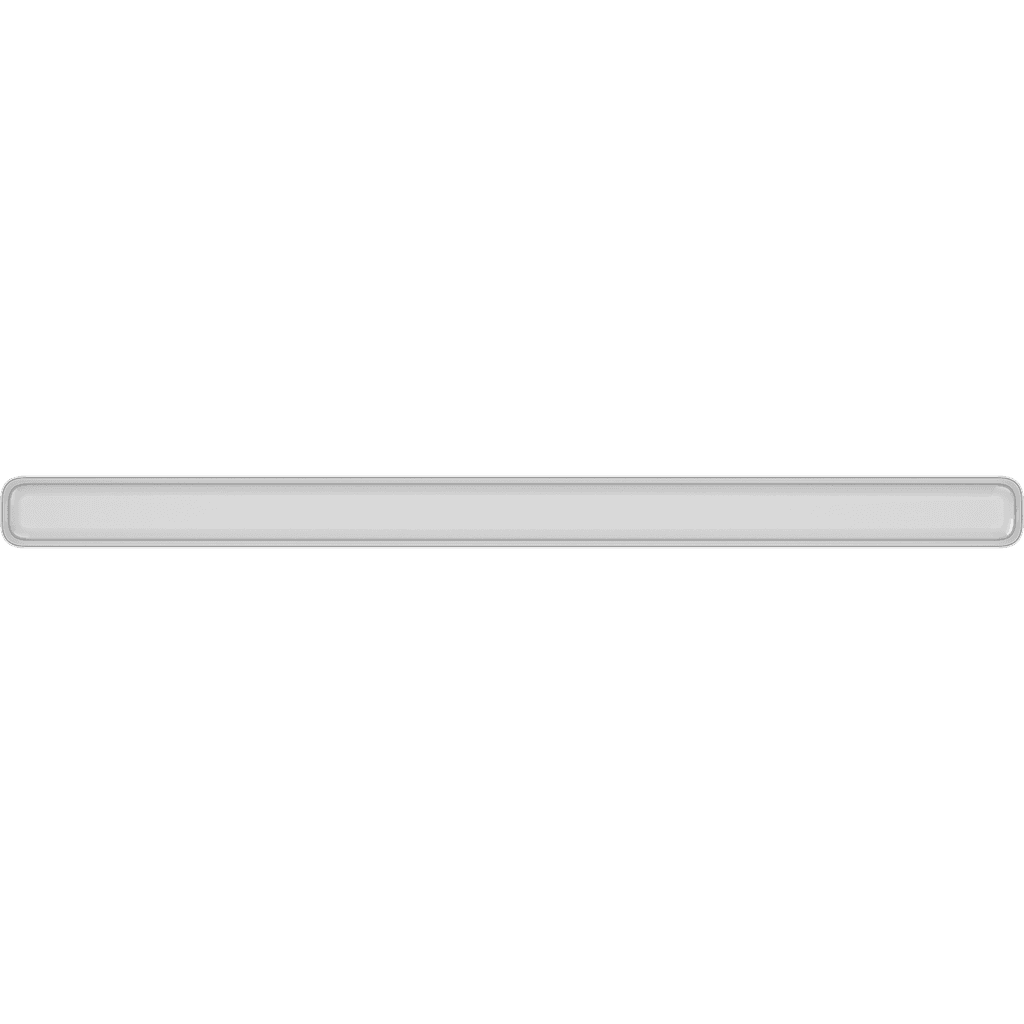

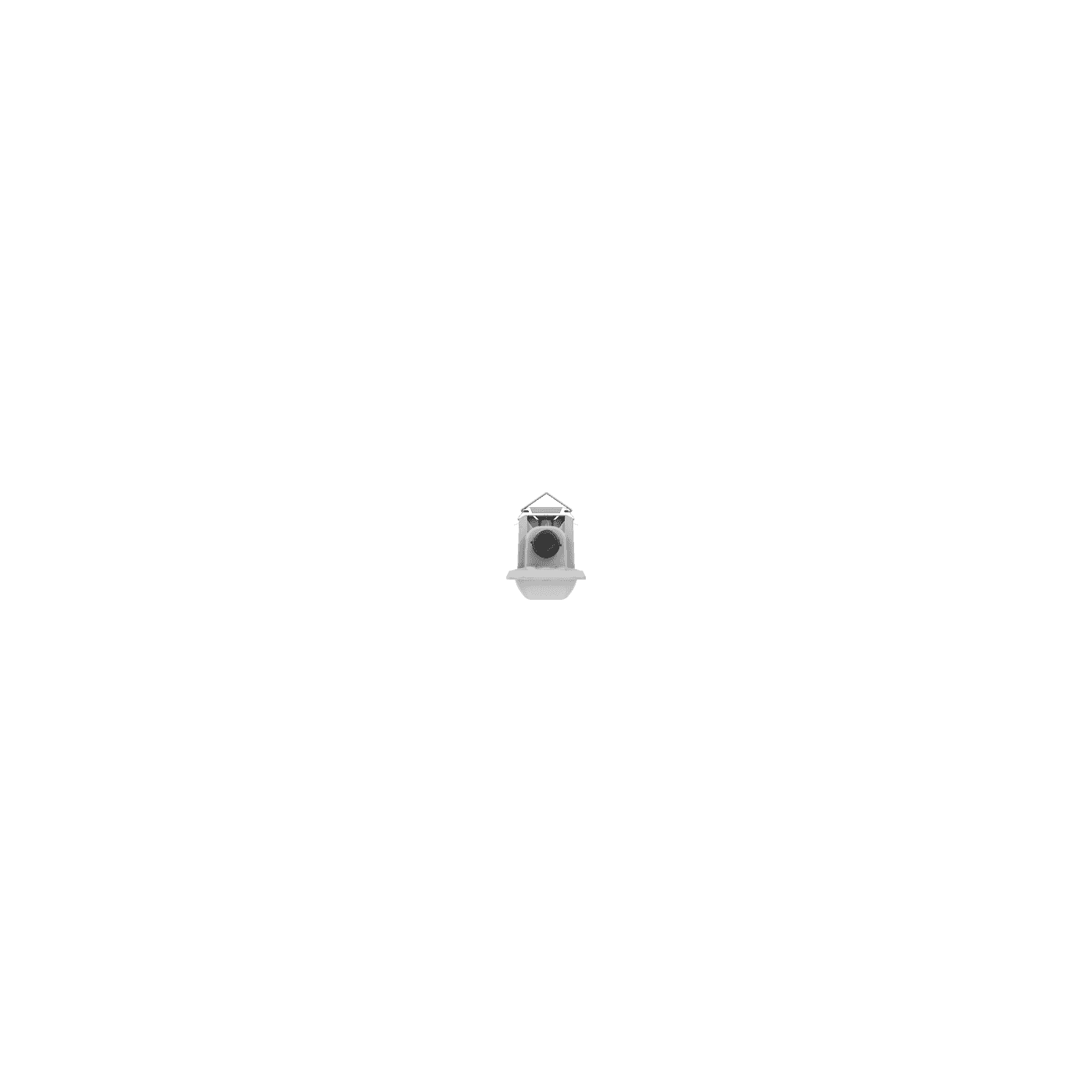

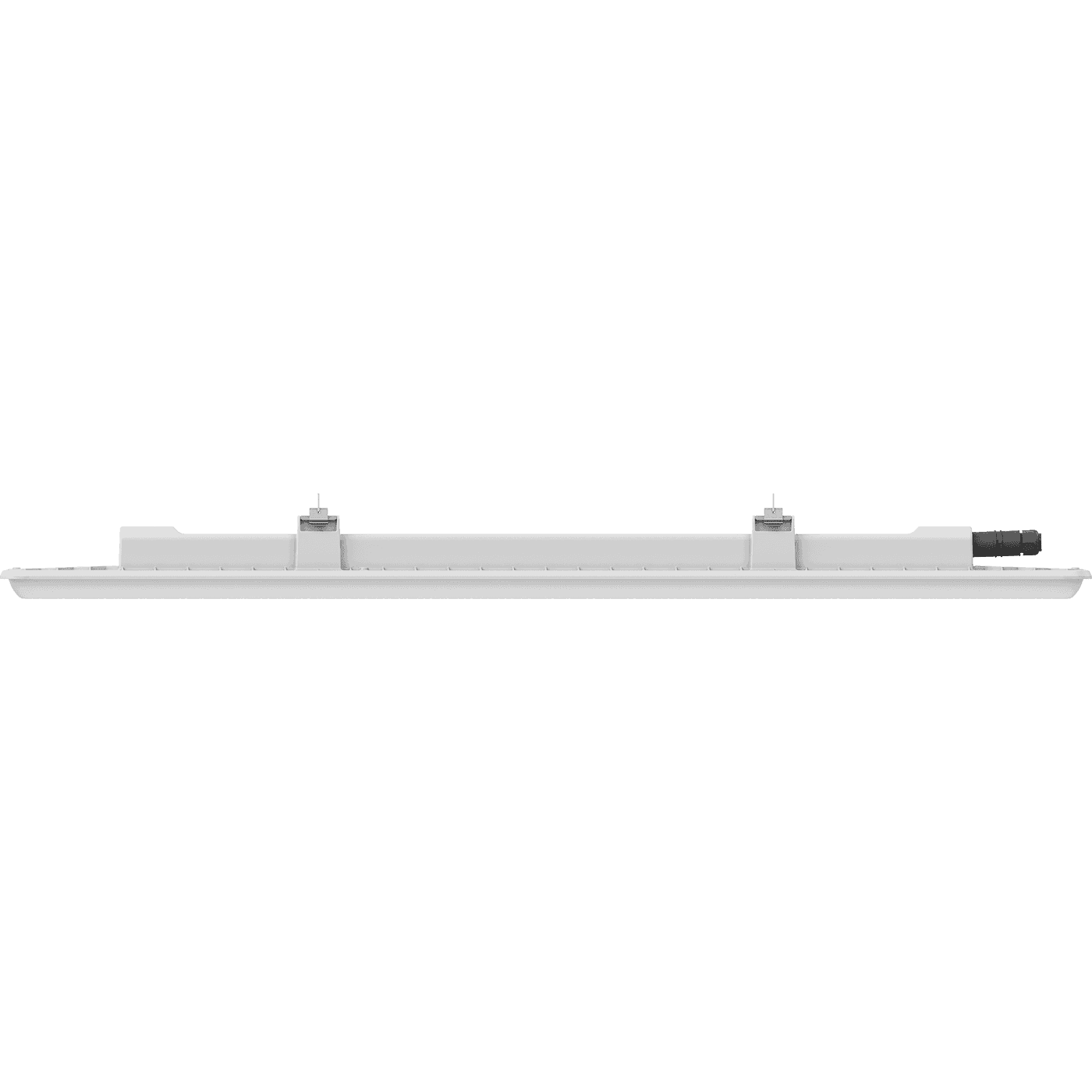

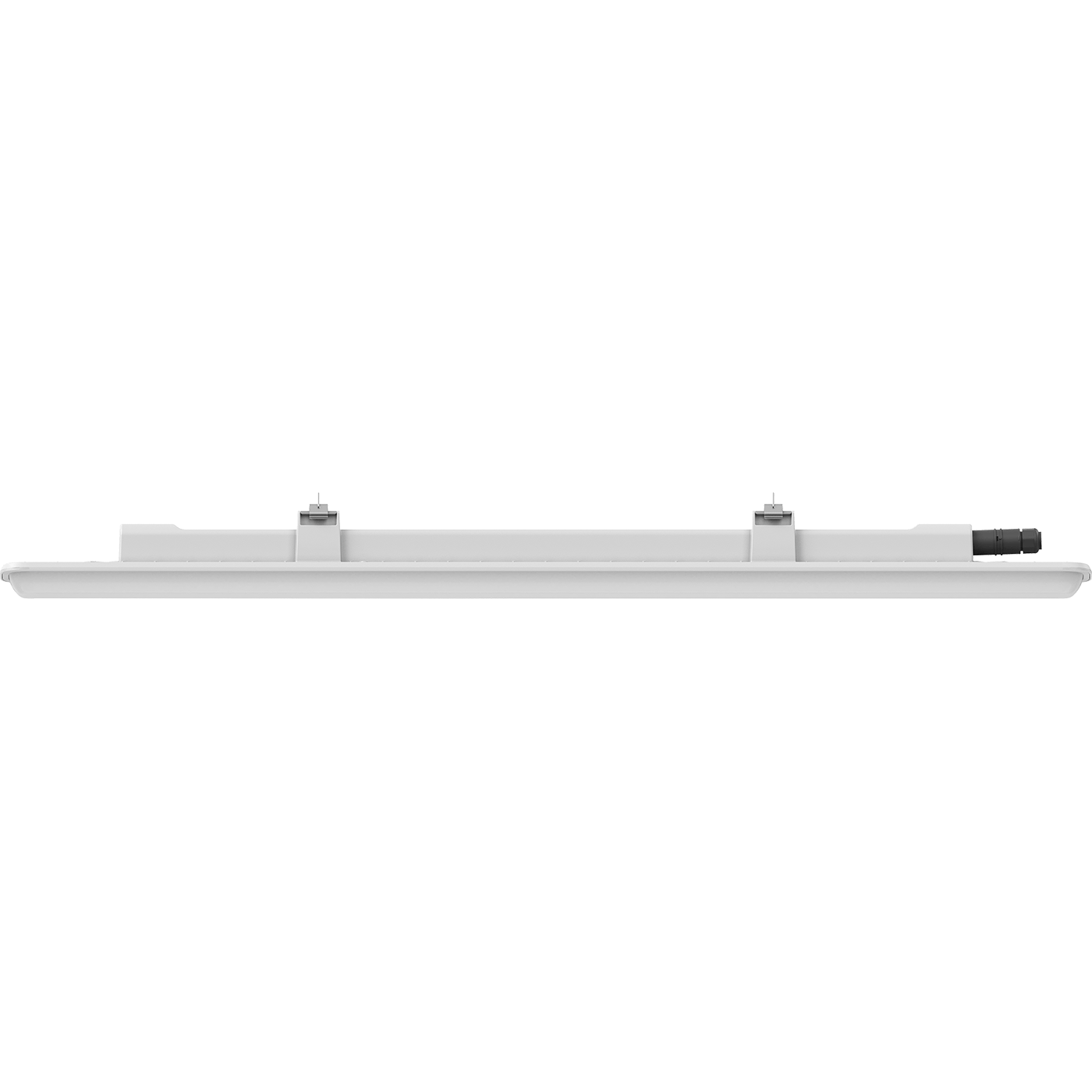

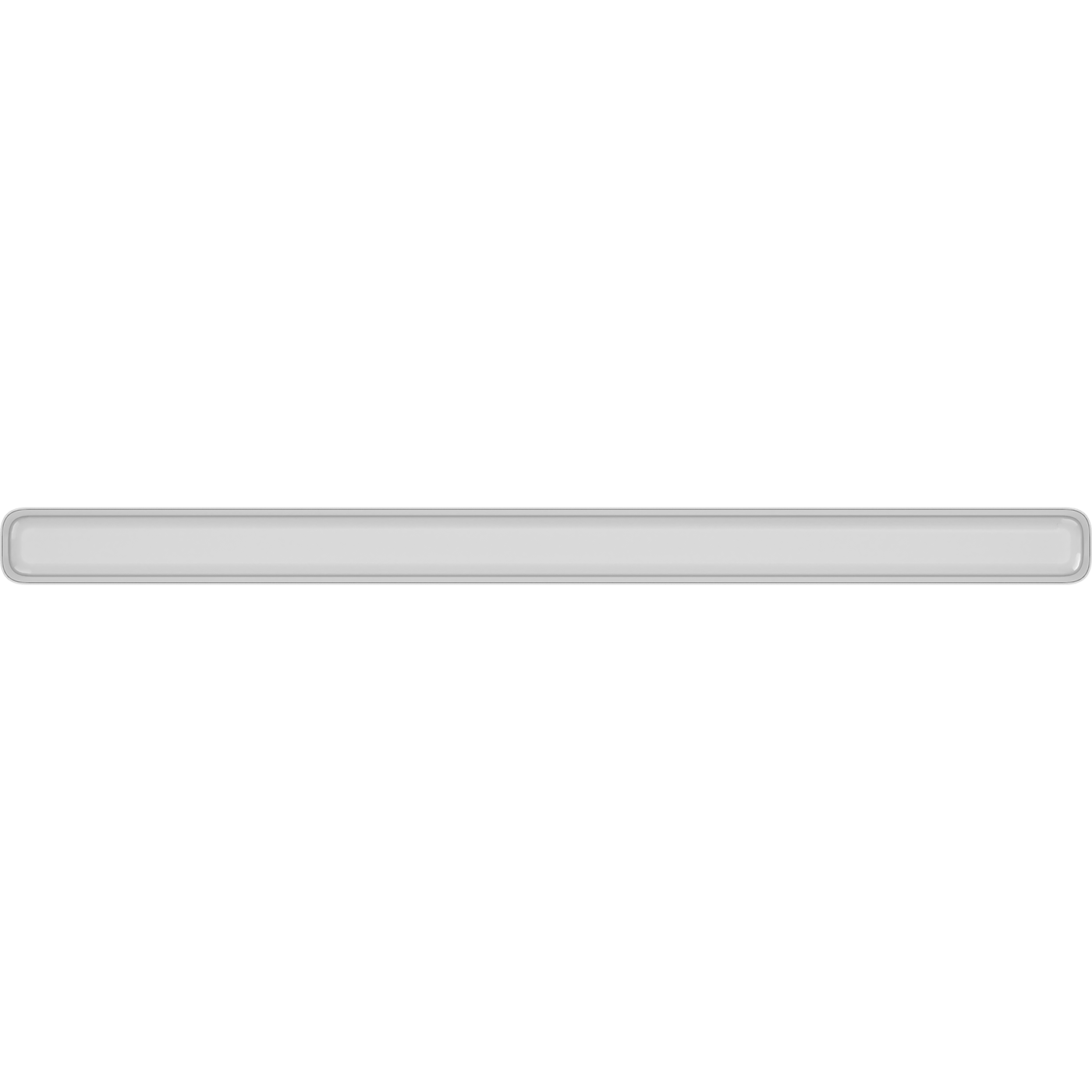

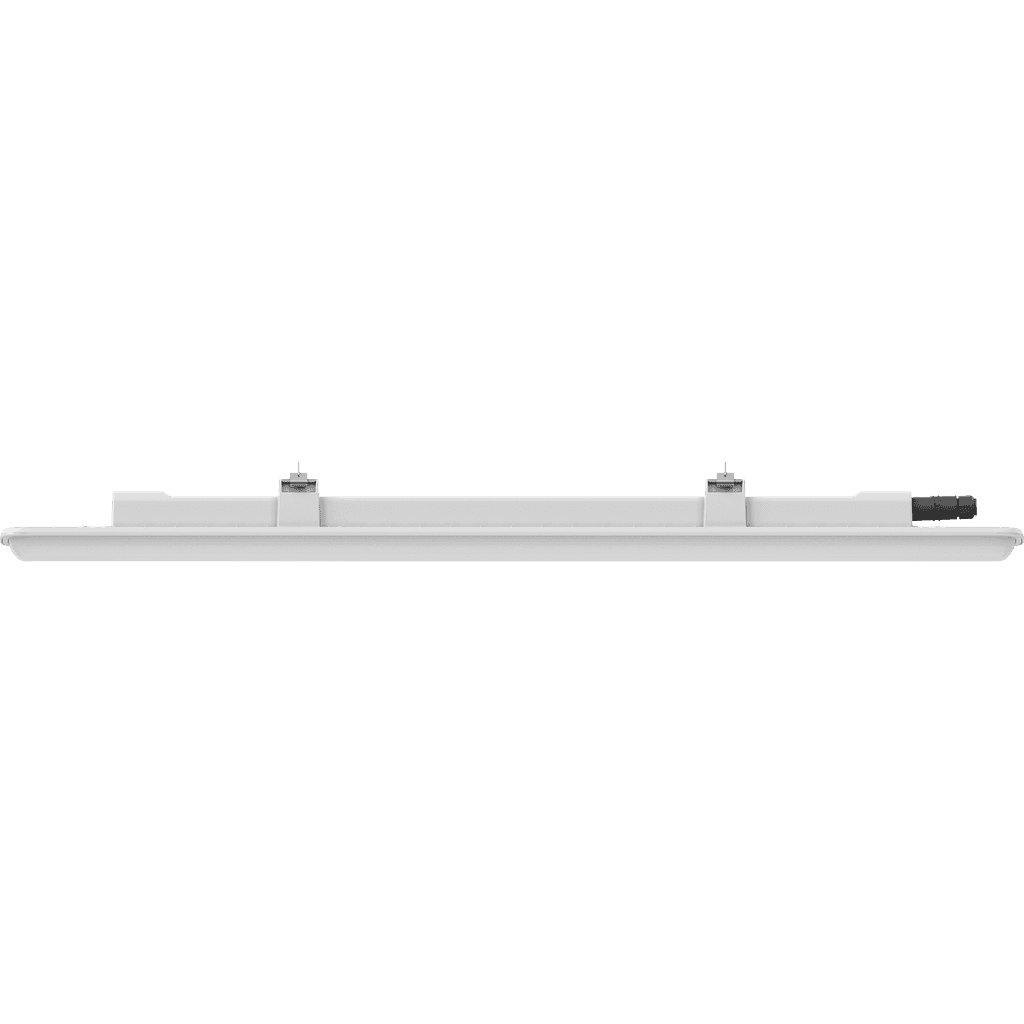

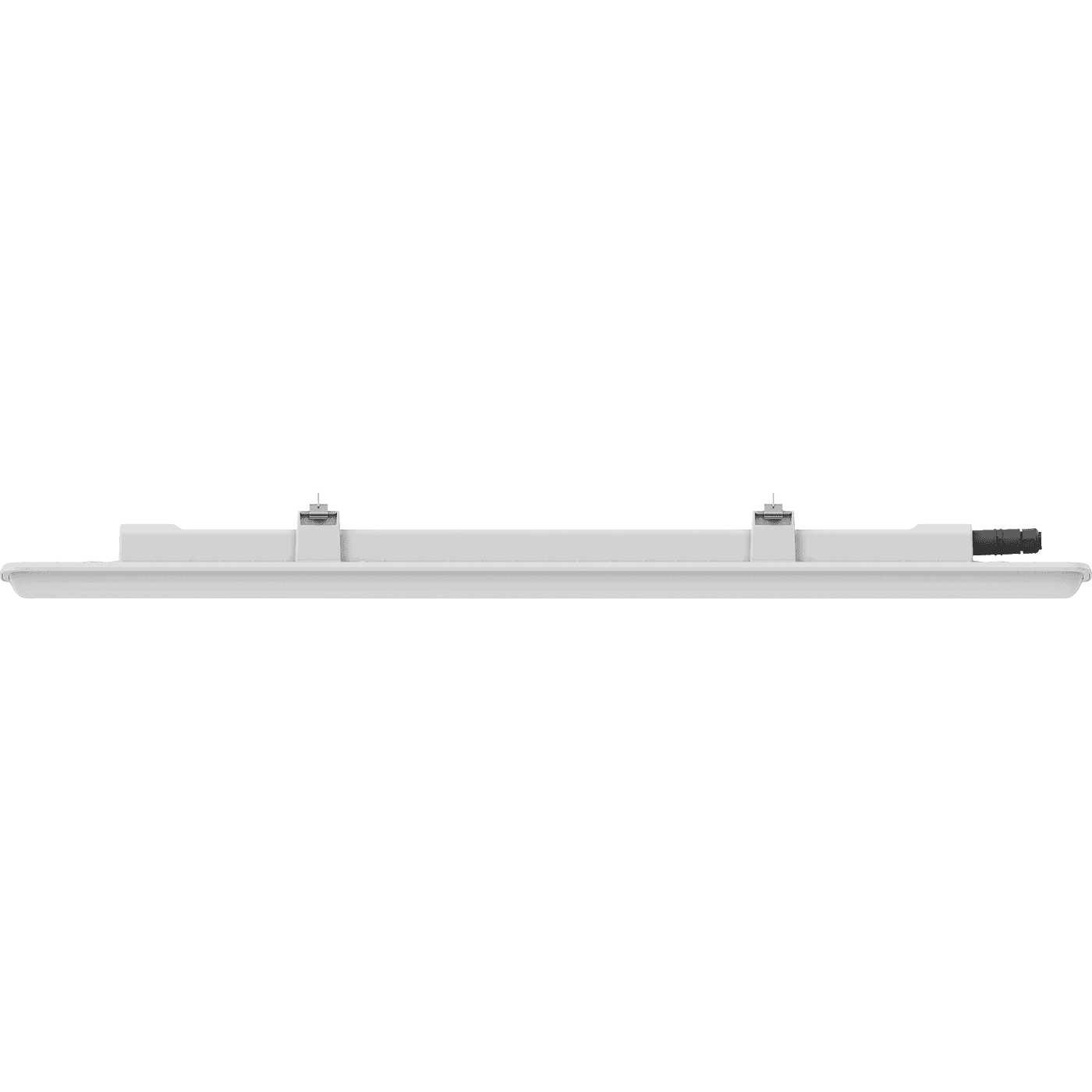

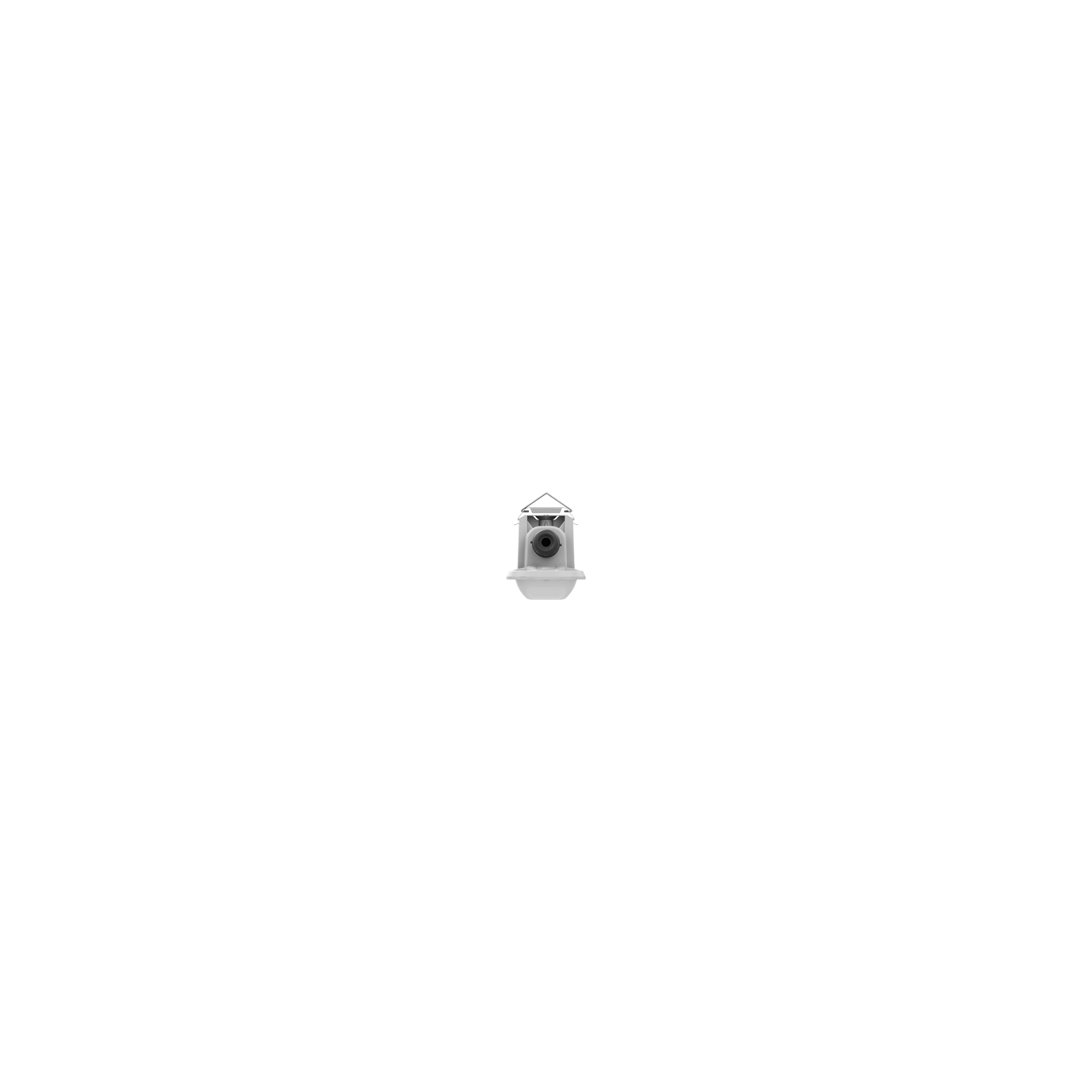

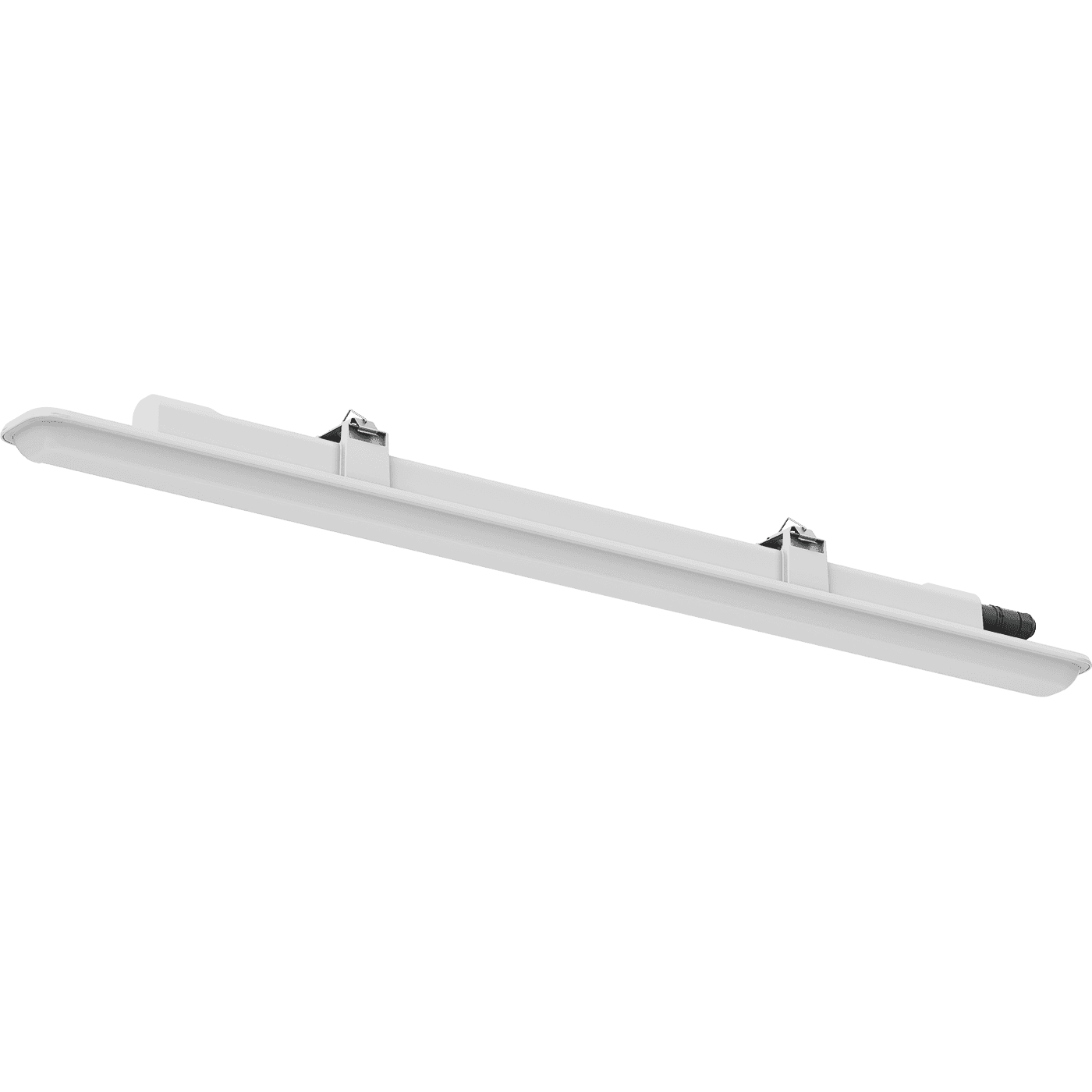

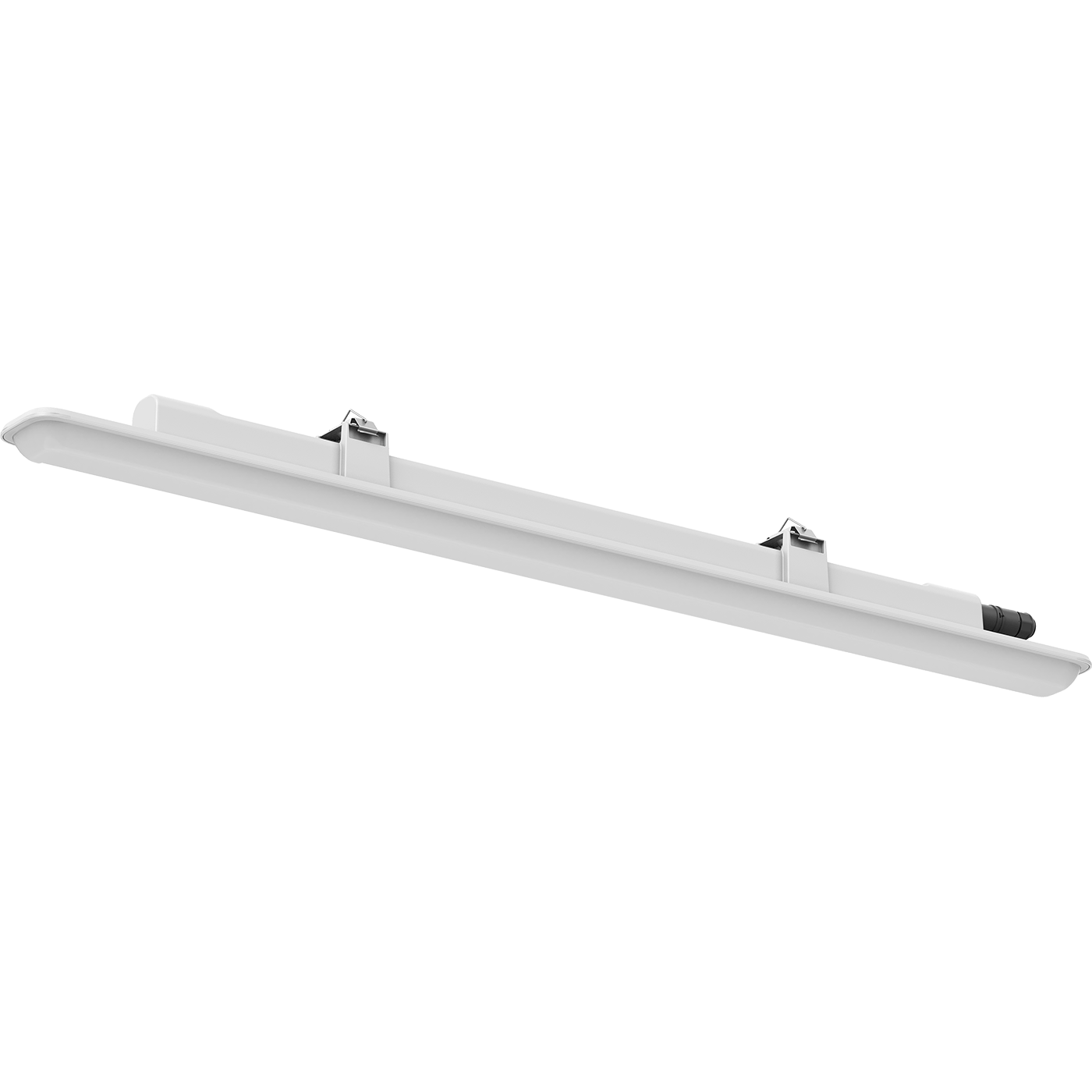

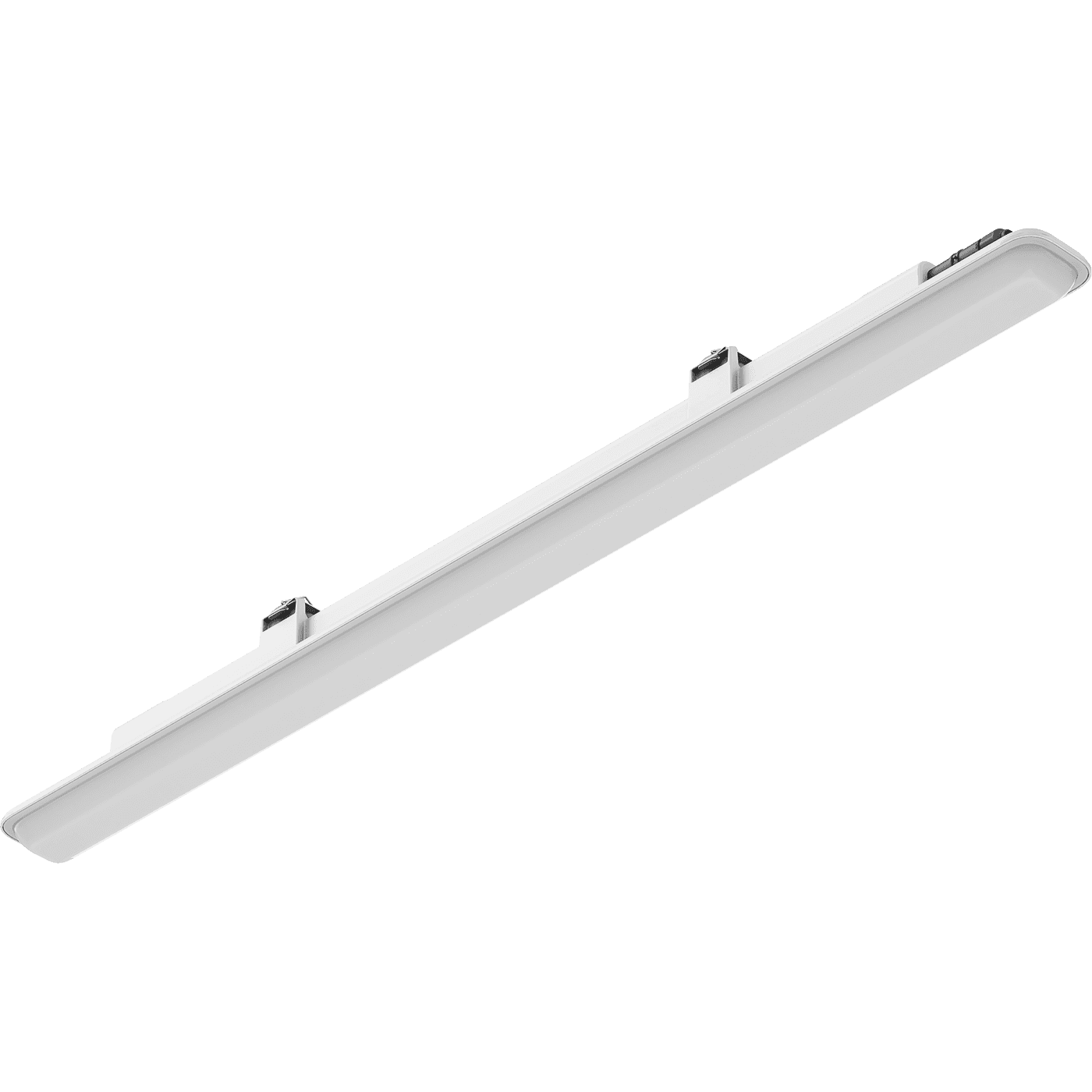

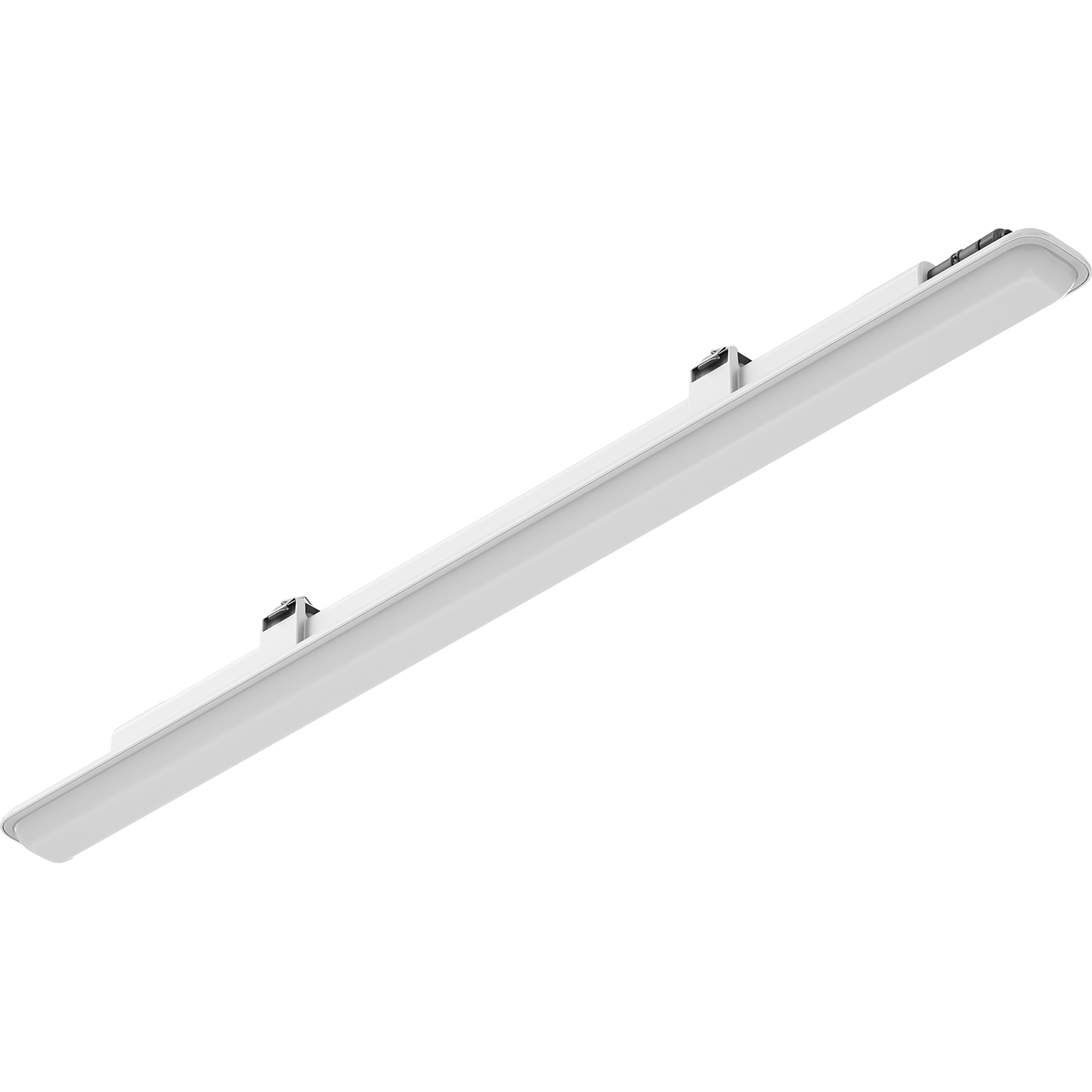

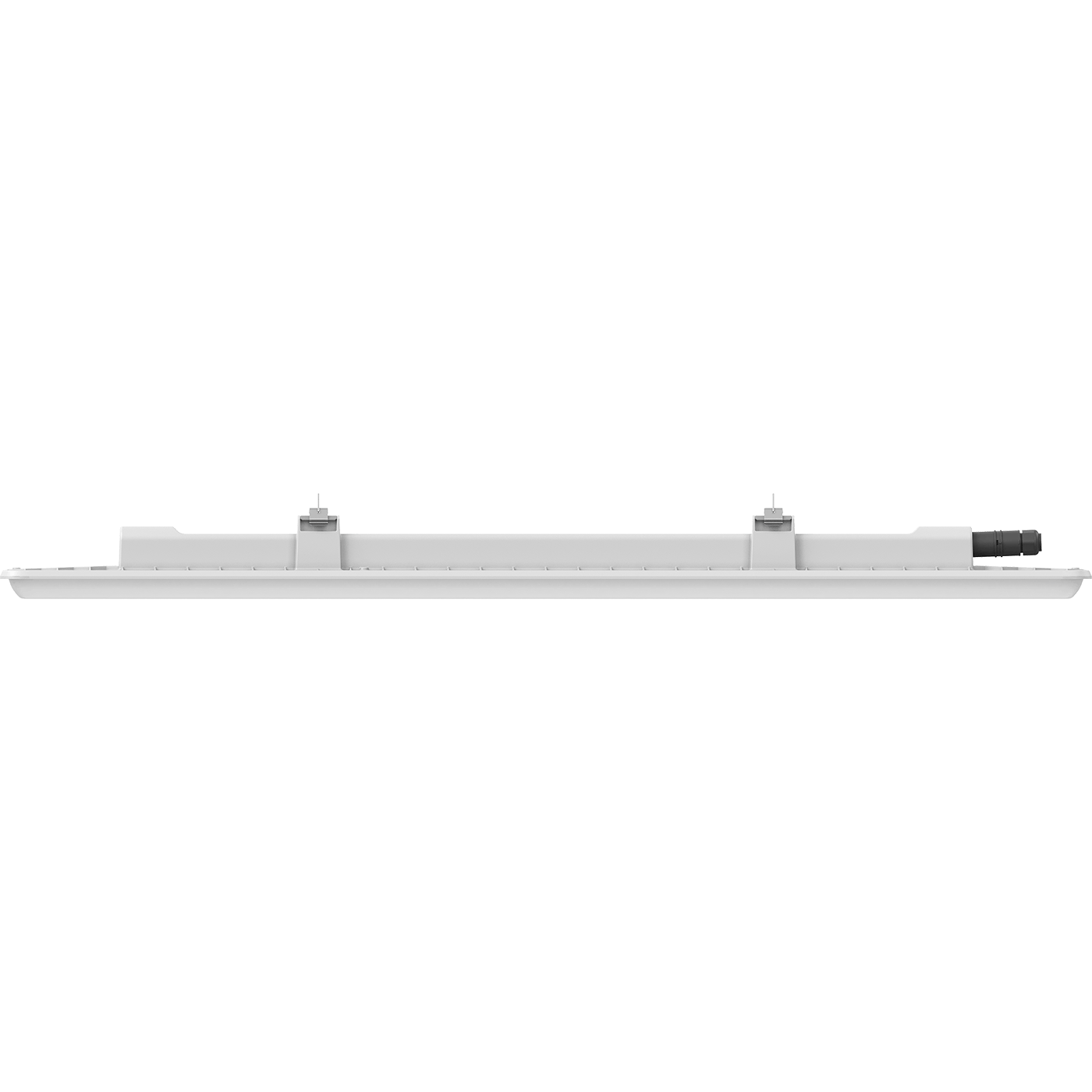

SLICK.PRS LED 35 (PC/SMC) 5000K

SLICK.PRS LED 35 (PC/SMC) 5000K
36 Wluminaire power
5400 lmlight flow
150 lm/Wenergy efficiency
code1631002800
color temperature5000
beam angleD120
weight1.75 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80
light flow
5400 lm
flickering factor
<1%
energy efficiency
150 lm/W

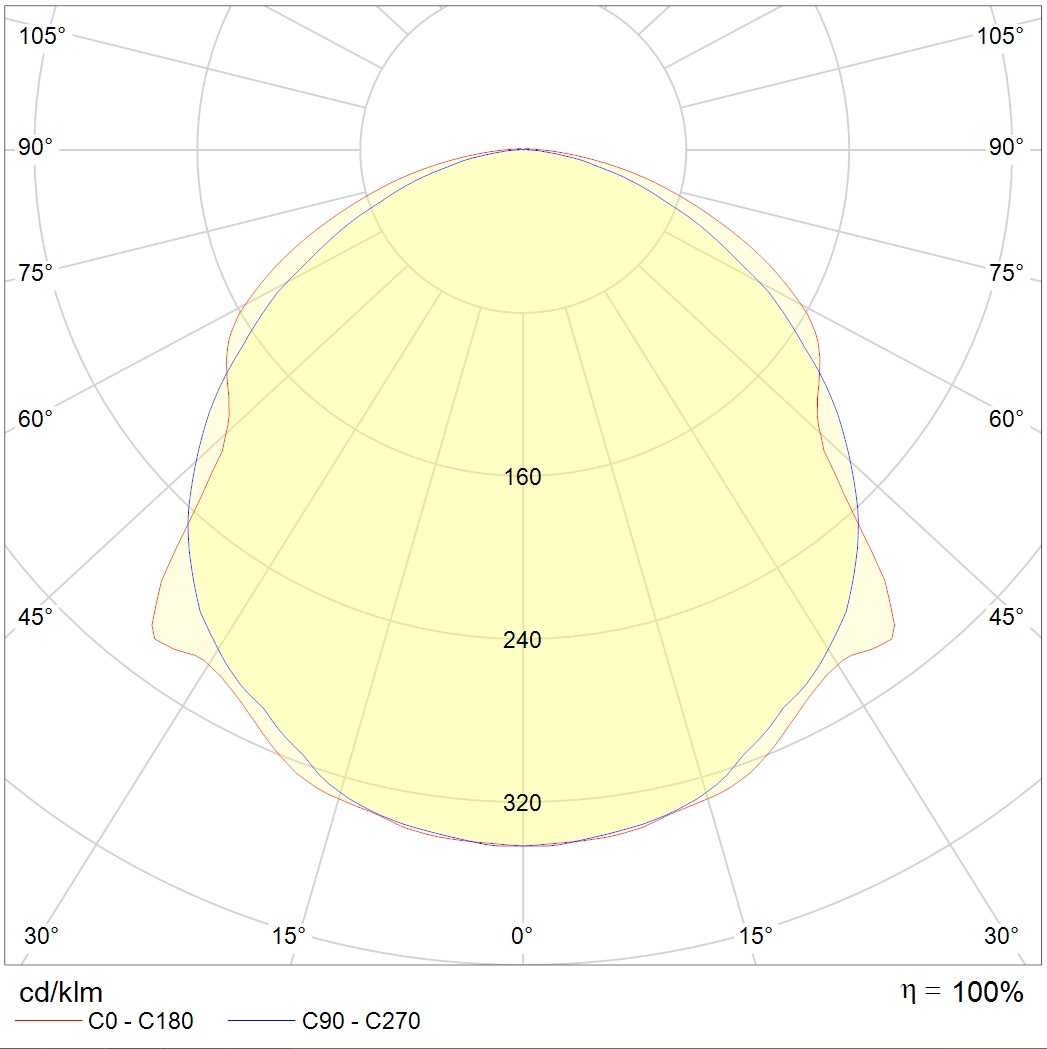

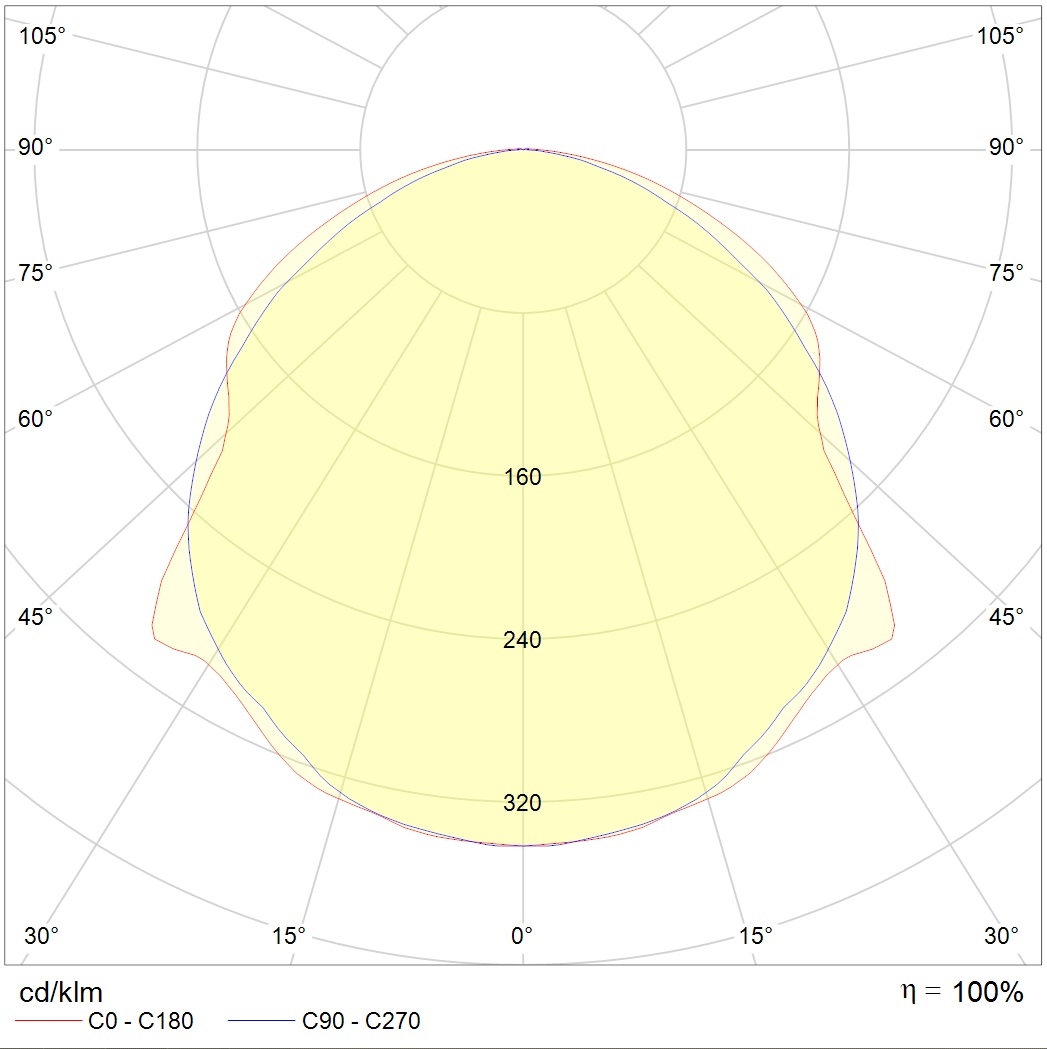

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
5400 lm
flickering factor
<1%
energy efficiency
150 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
36 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP69
weight
1.75 kg

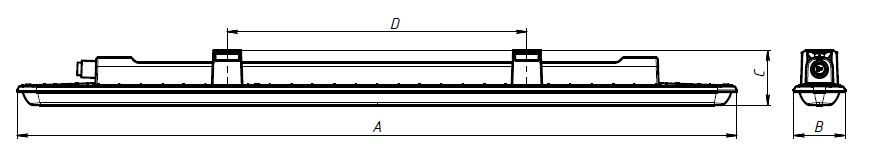

length, mm
1200 mm
width, mm
85 mm
height, mm
90 mm
installation length, mm
500 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1631002800
