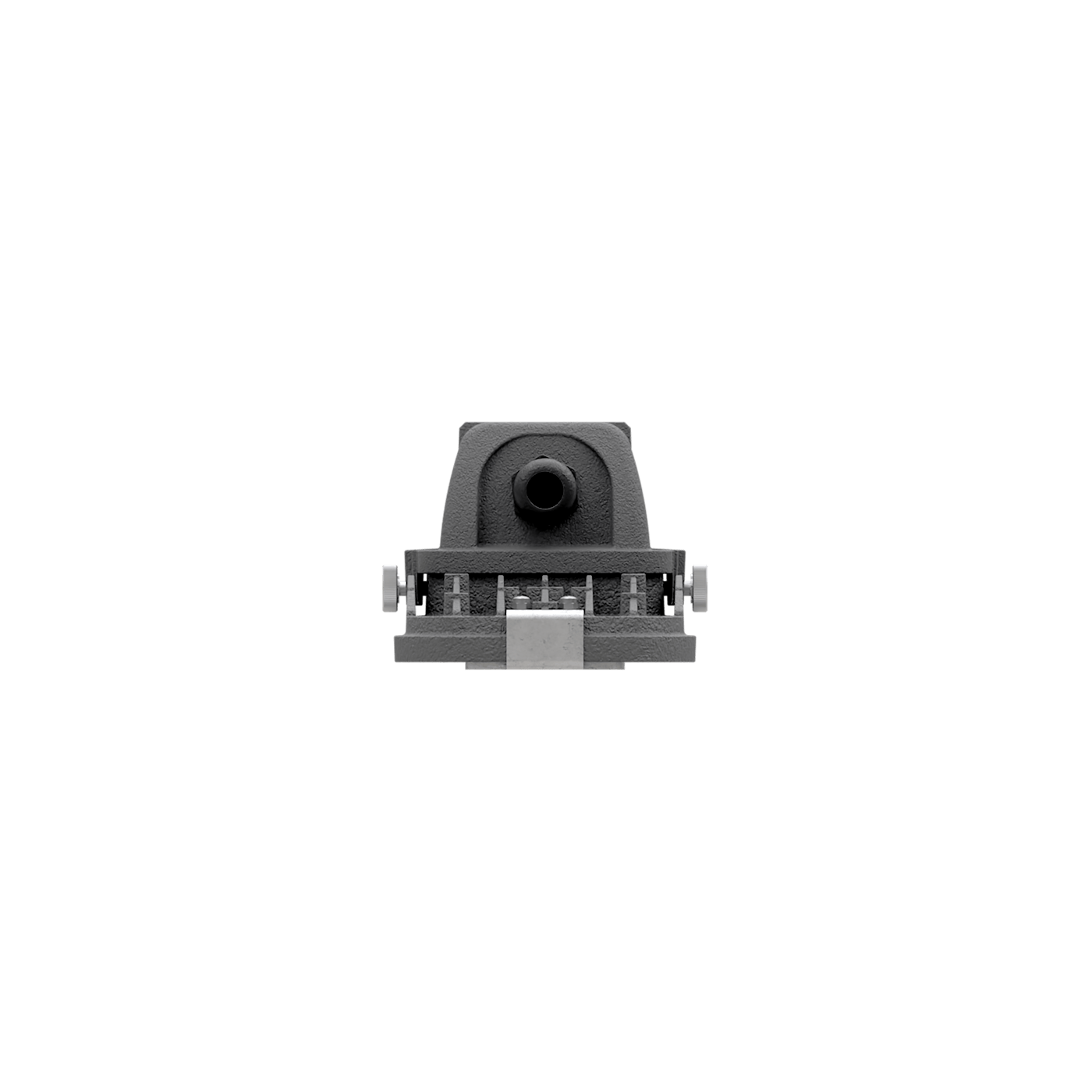

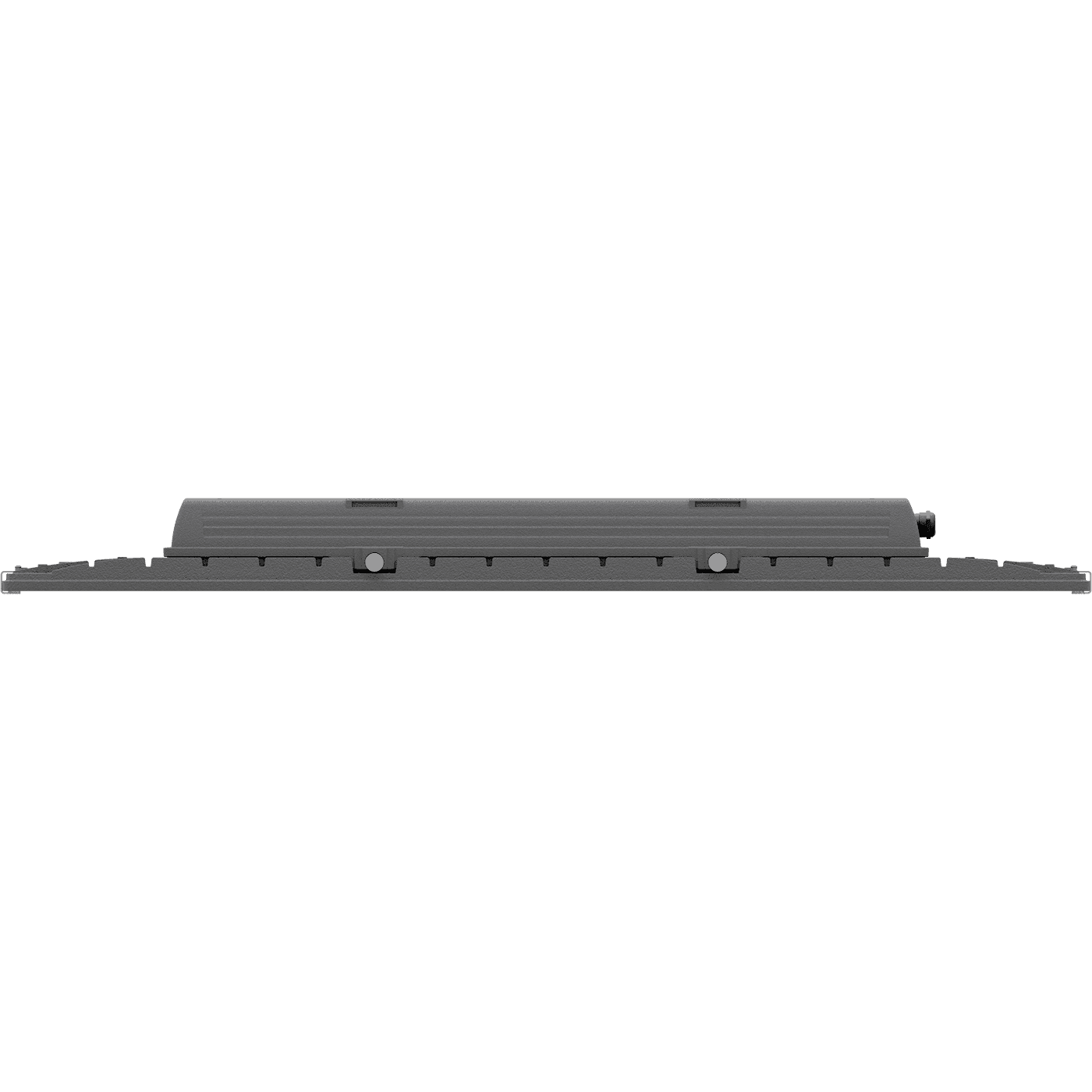

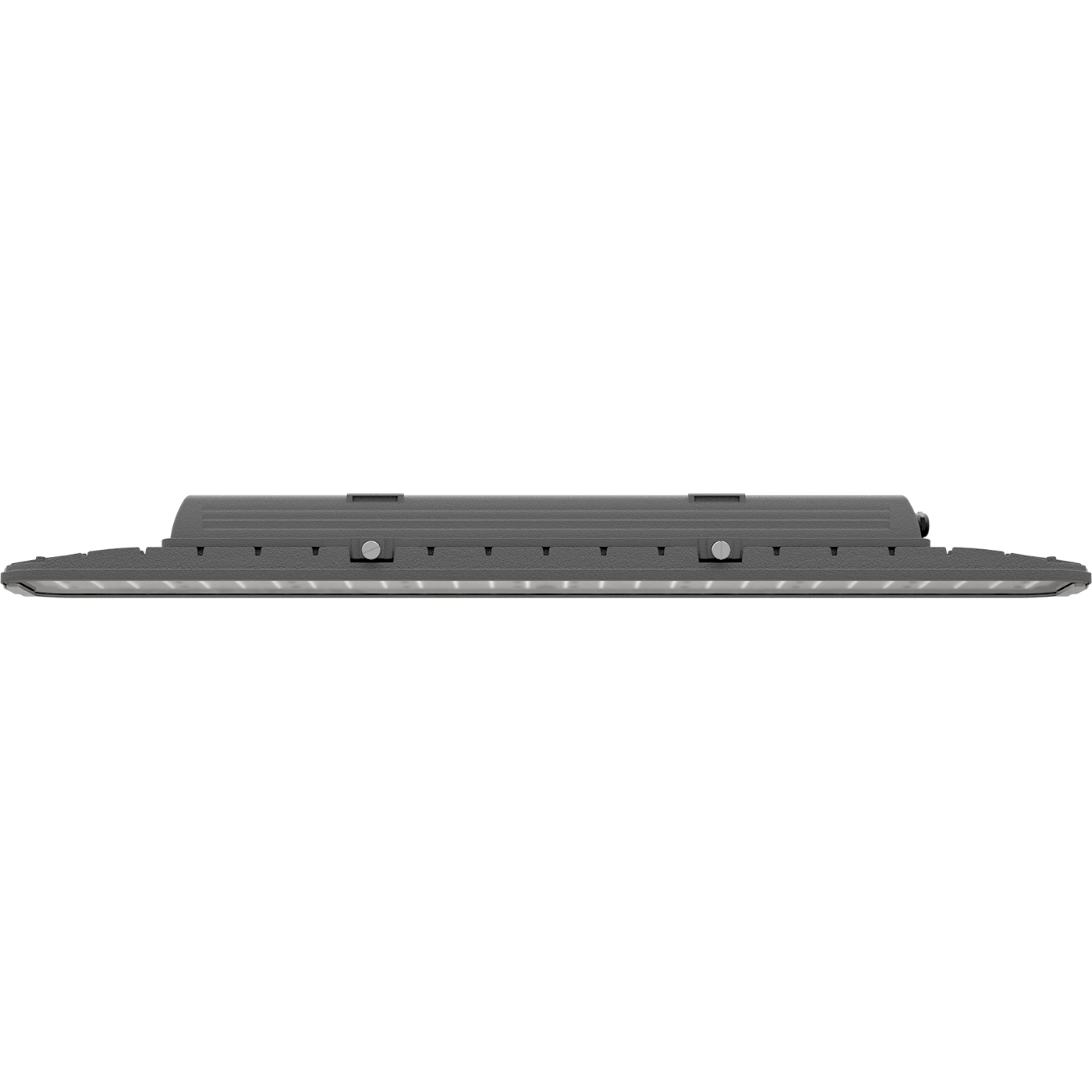

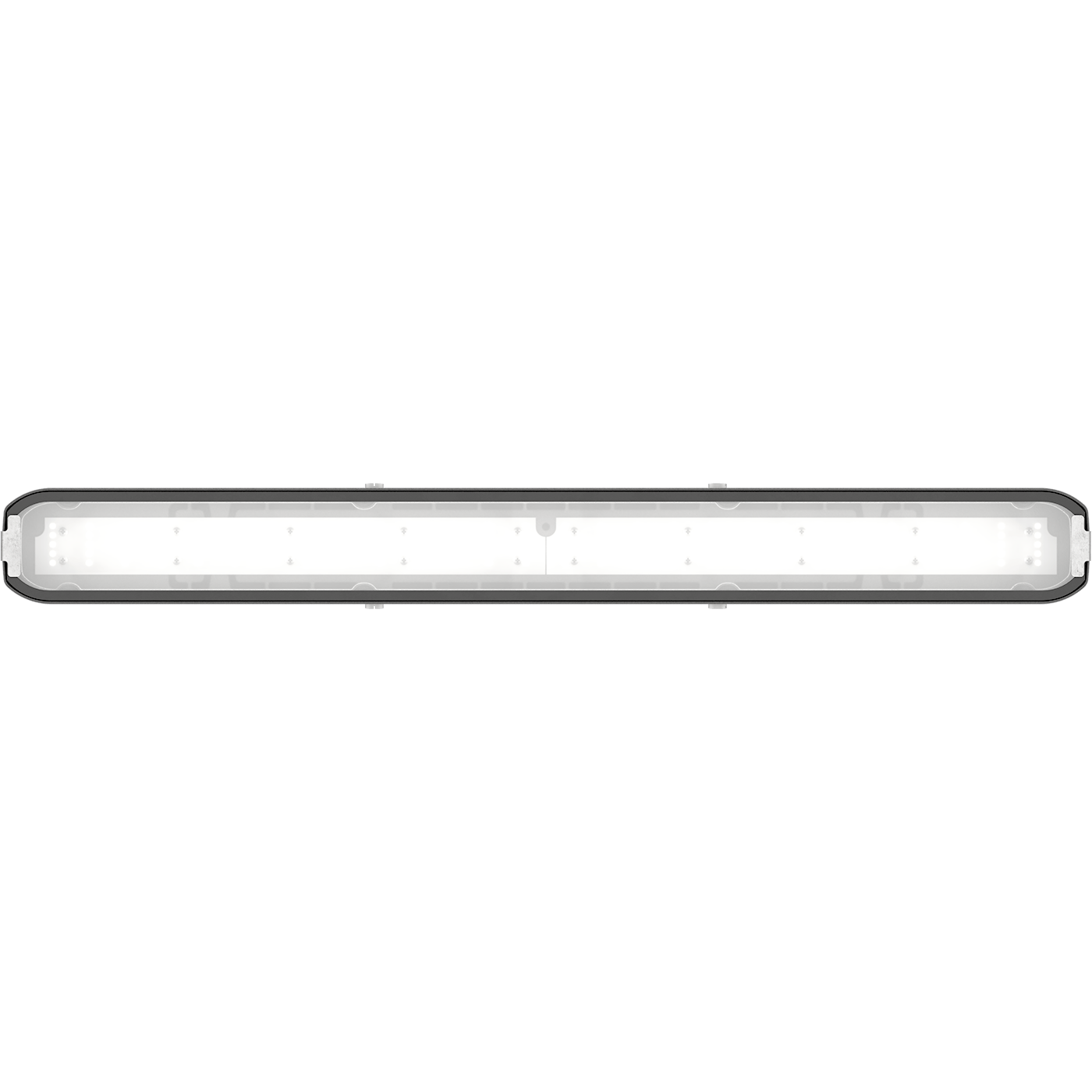

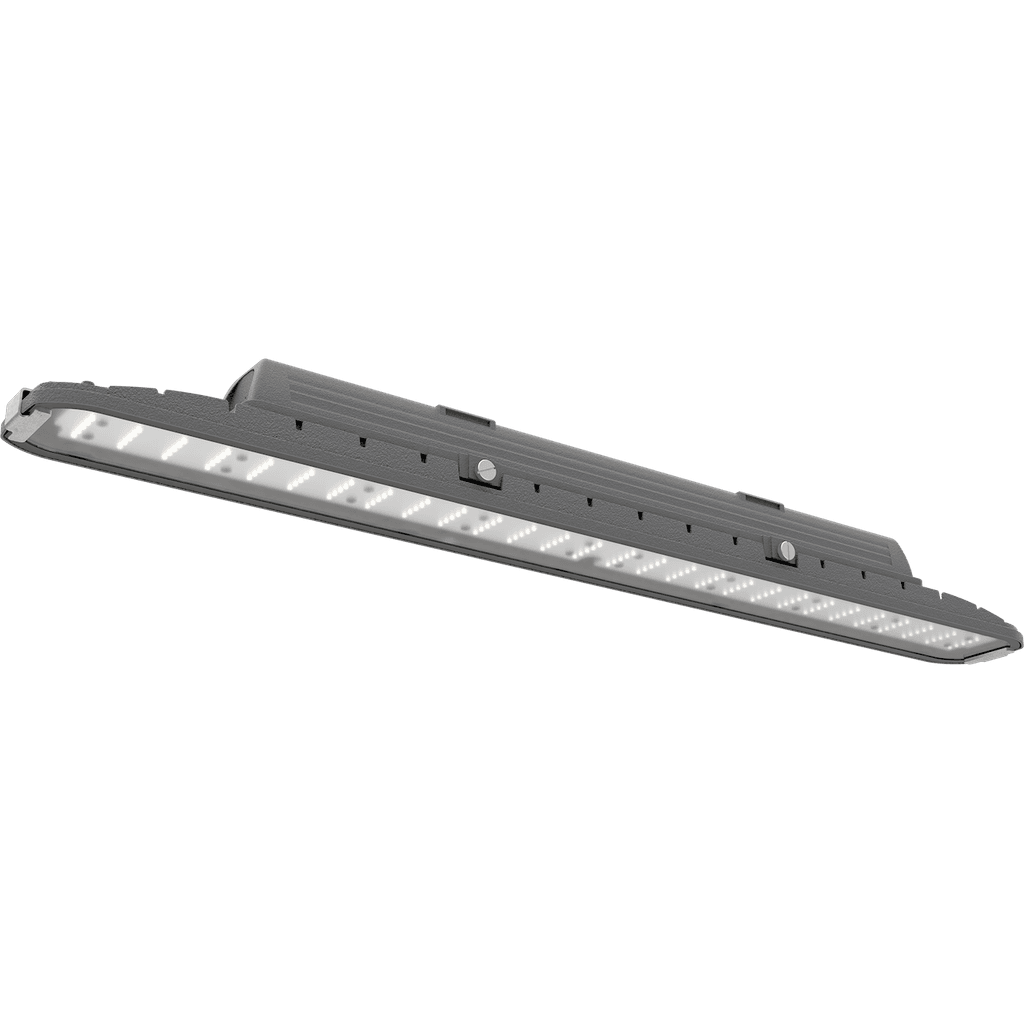

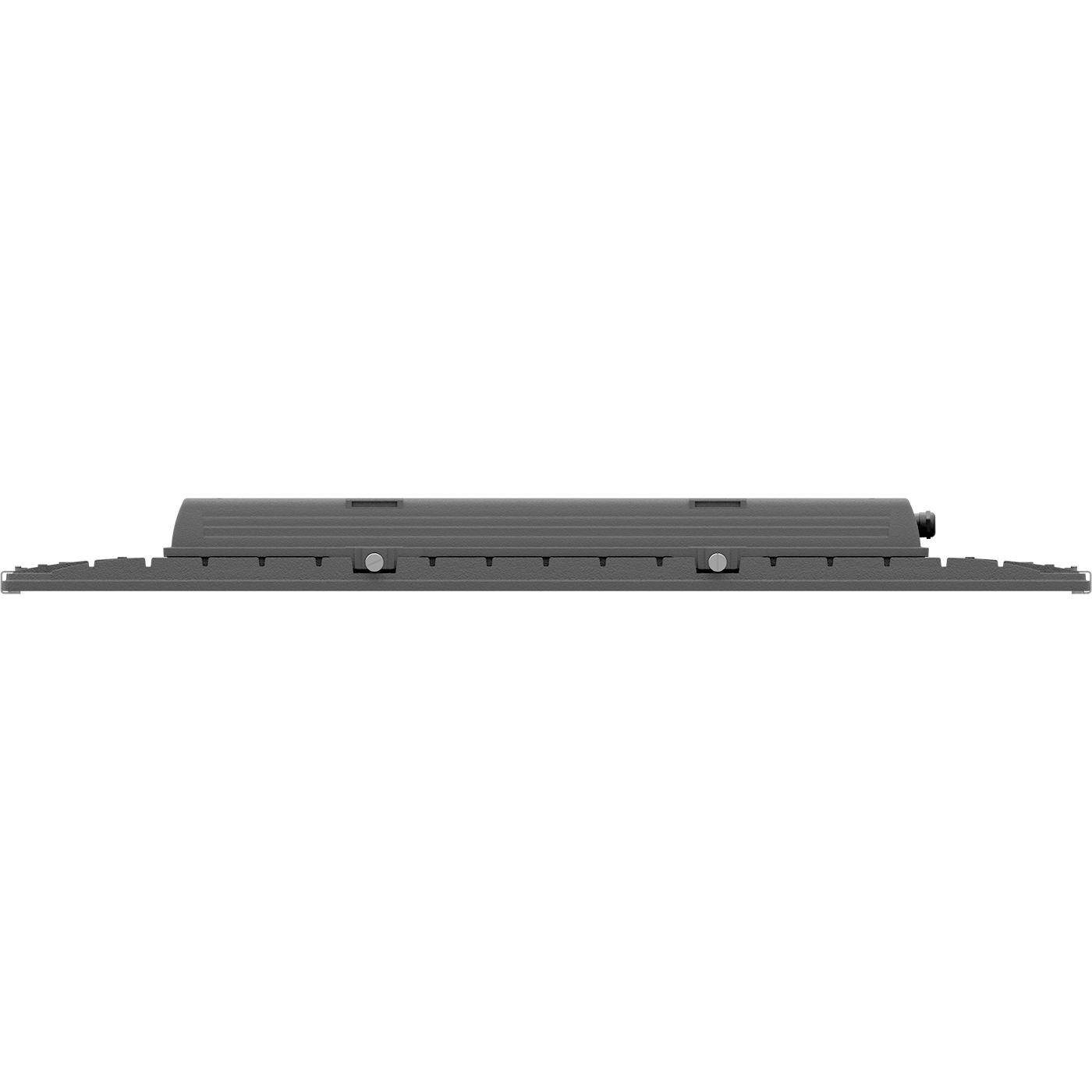

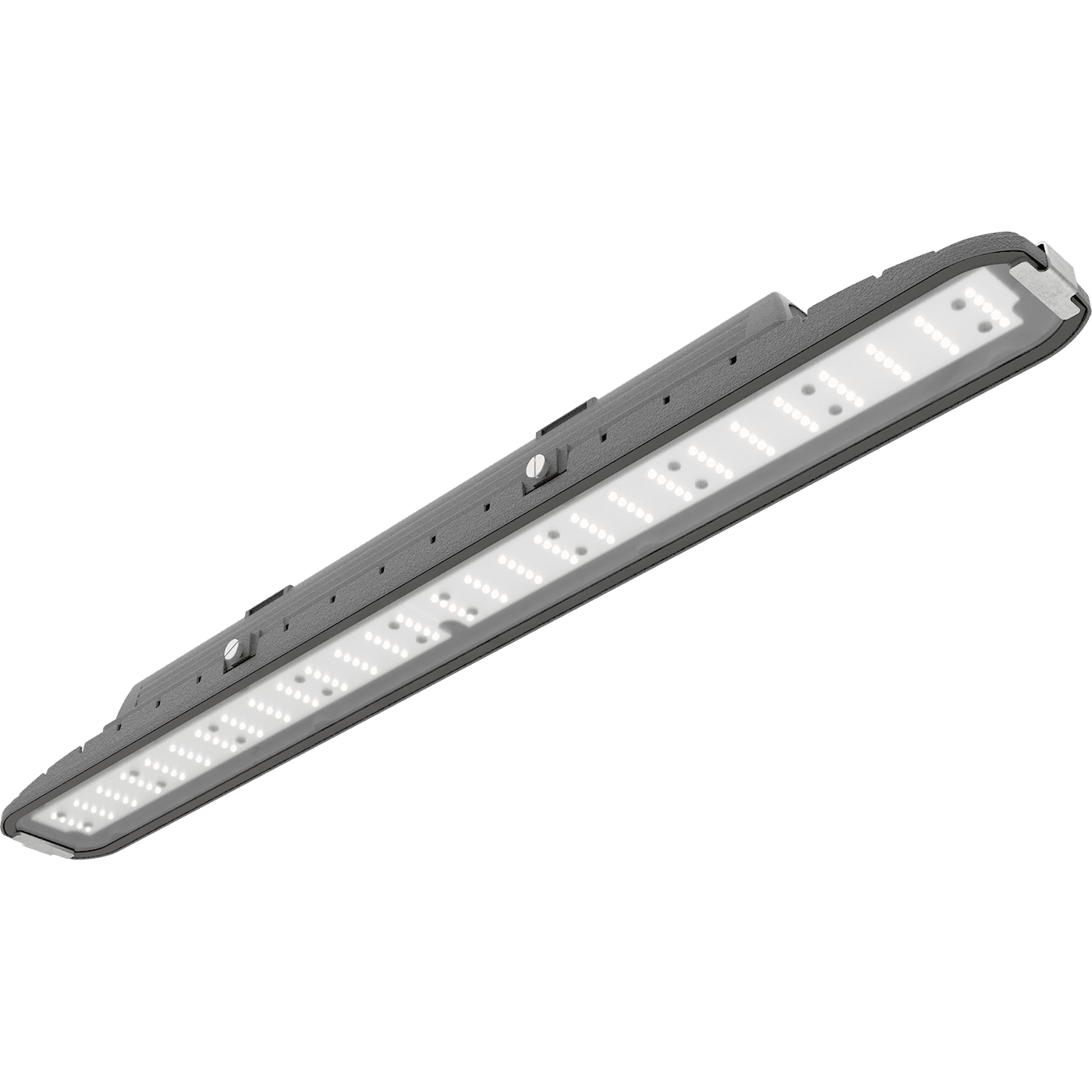

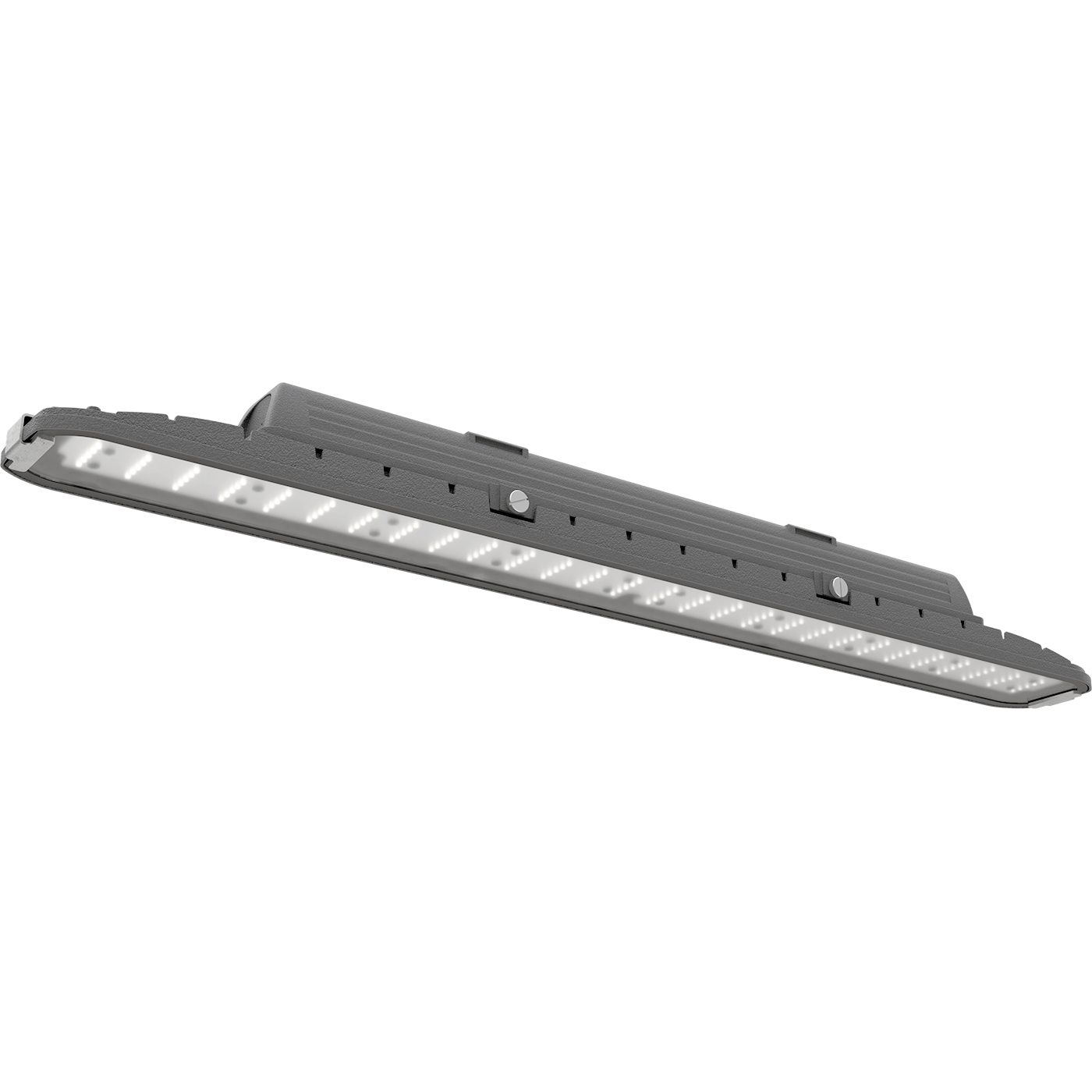

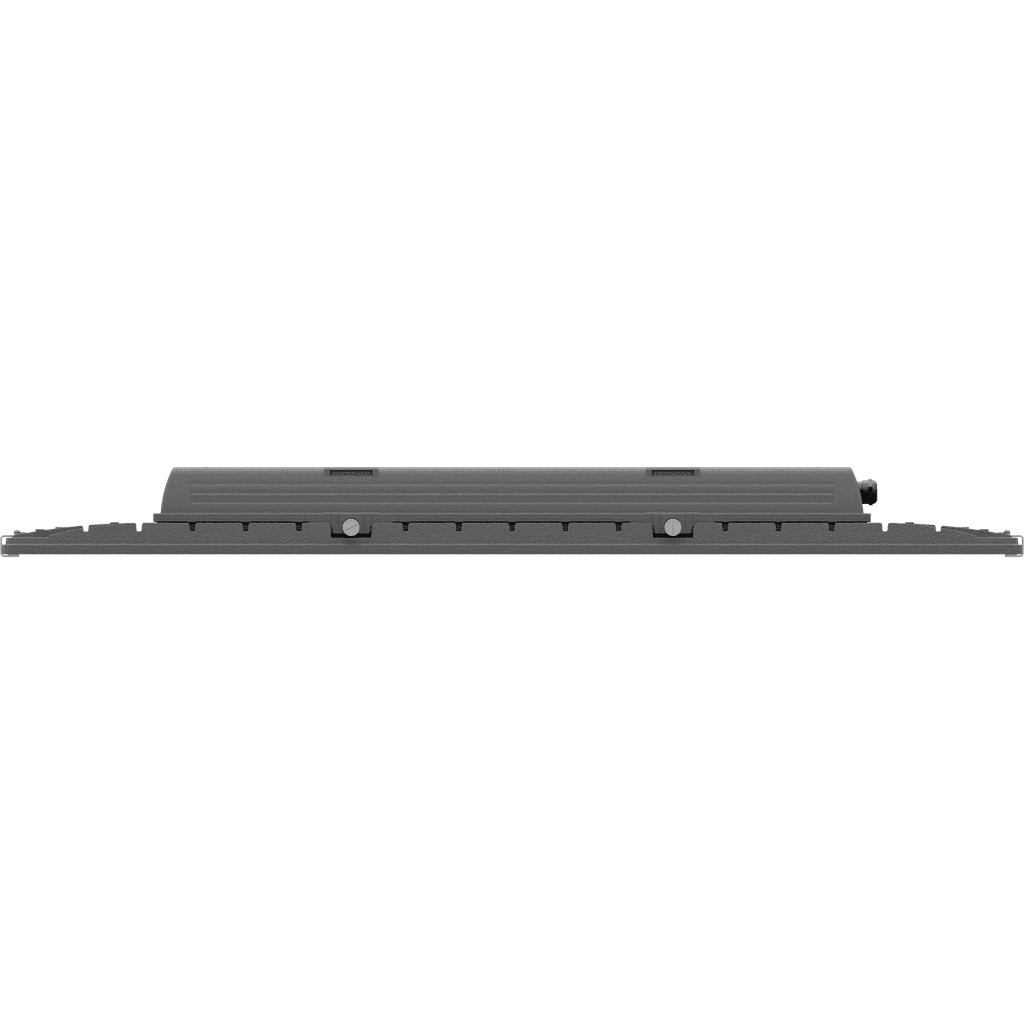

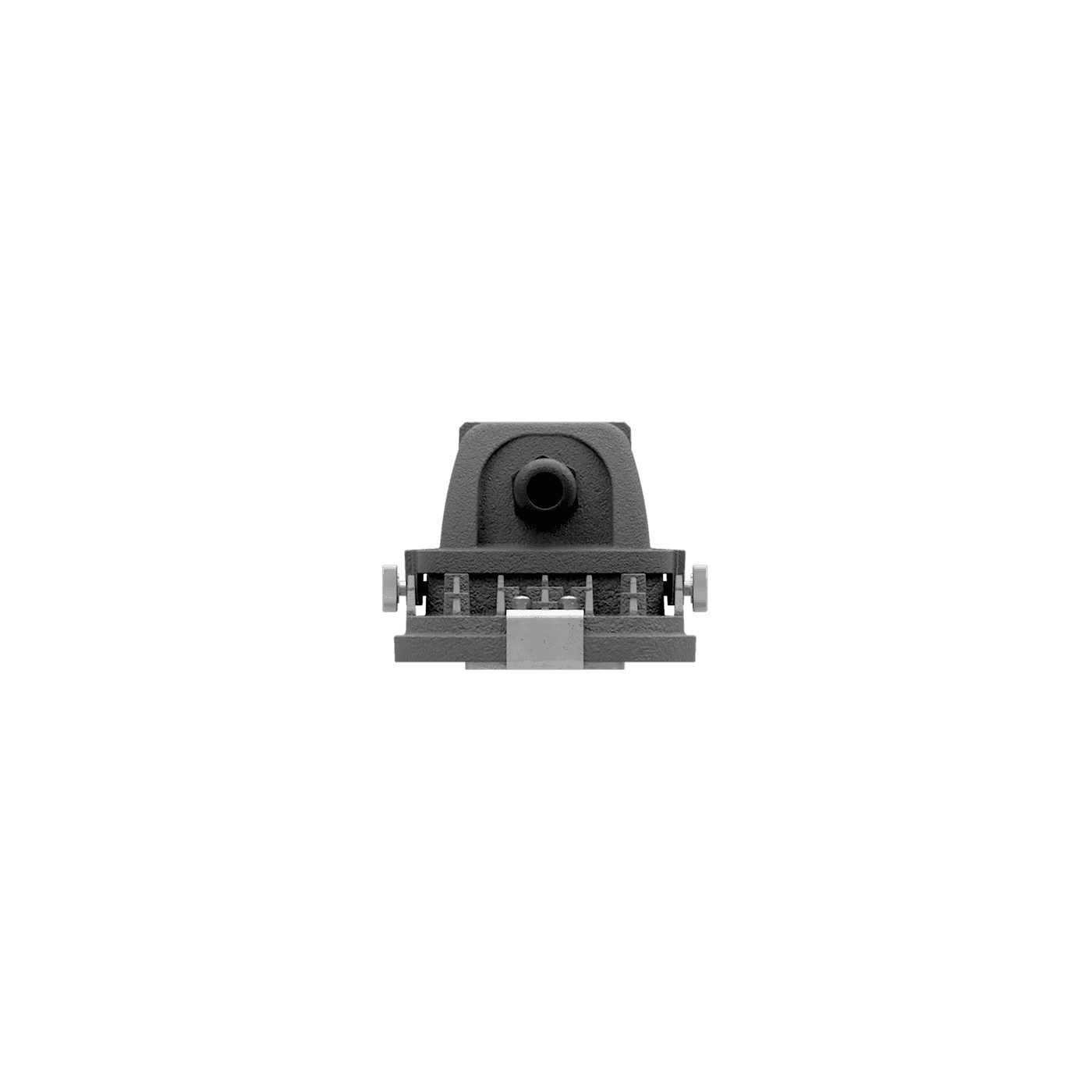

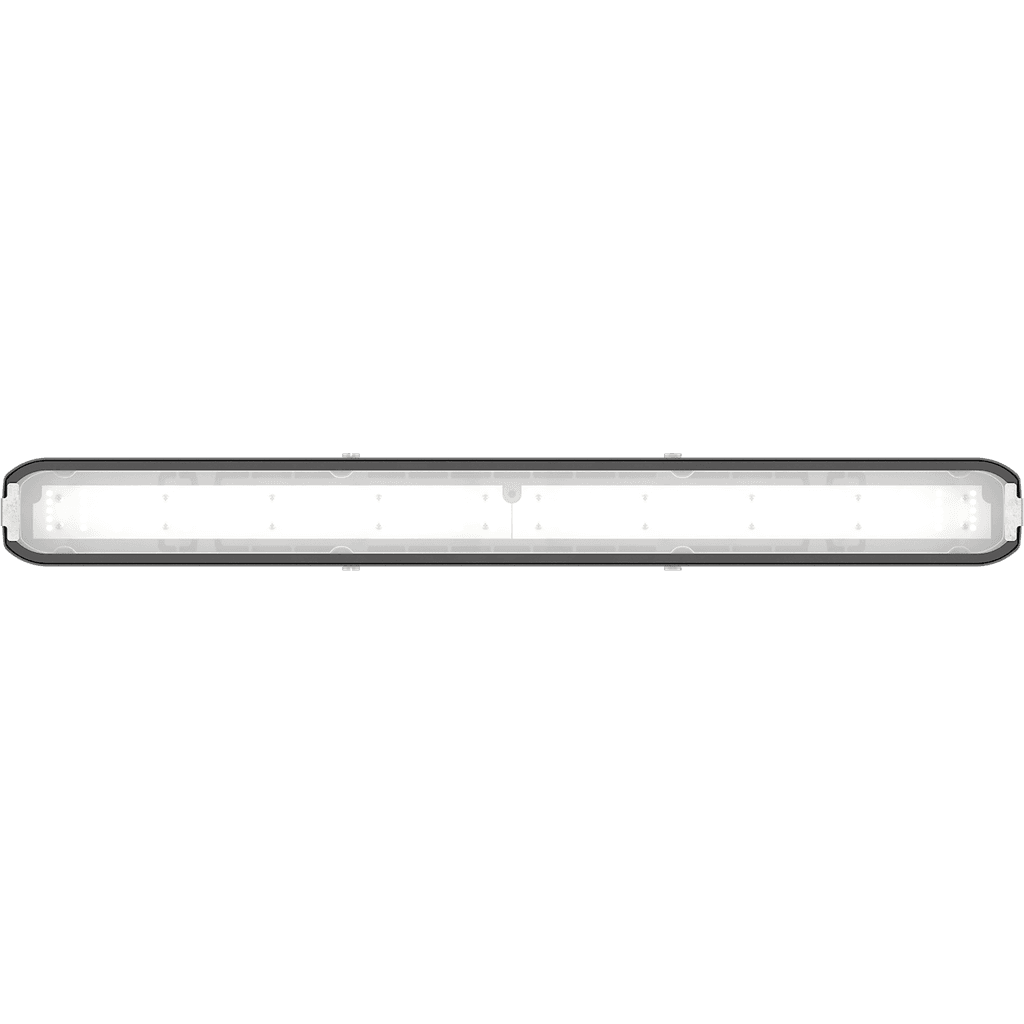

SLICK.PRS LED 60 with driver box /tempered glass/ HFD 5000K

SLICK.PRS LED 60 with driver box /tempered glass/ HFD 5000K
add to favorites
64 Wluminaire power
9600 lmlight flow
150 lm/Wenergy efficiency
code
1631003750
color temperature
5000 K
beam angle
D120
performance factor
100
weight
4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. SLICK LED G2
  8. SLICK.PRS LED 60 with driver box /tempered glass/ HFD 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommonpackage
energy efficiency
150 lm/W
color rendition index (CRI)
>80
light flow
9600 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
150 lm/W
color rendition index (CRI)
>80
light flow
9600 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
luminaire power
64 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
Type roof
emergency
emergency power supply
Нет
LMS options
dimming
DALI
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
code
1631003750
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт.
model files
model files

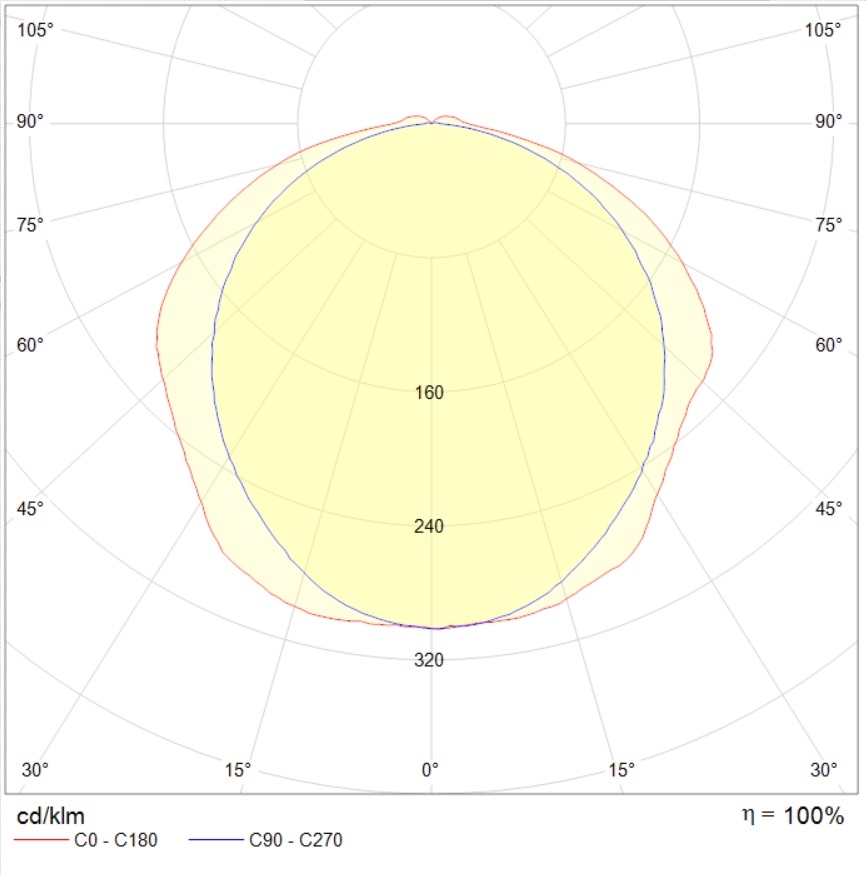

photometric files
ies263.3 kB
jpg85.6 kB
ldt207.1 kB
csv459 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB

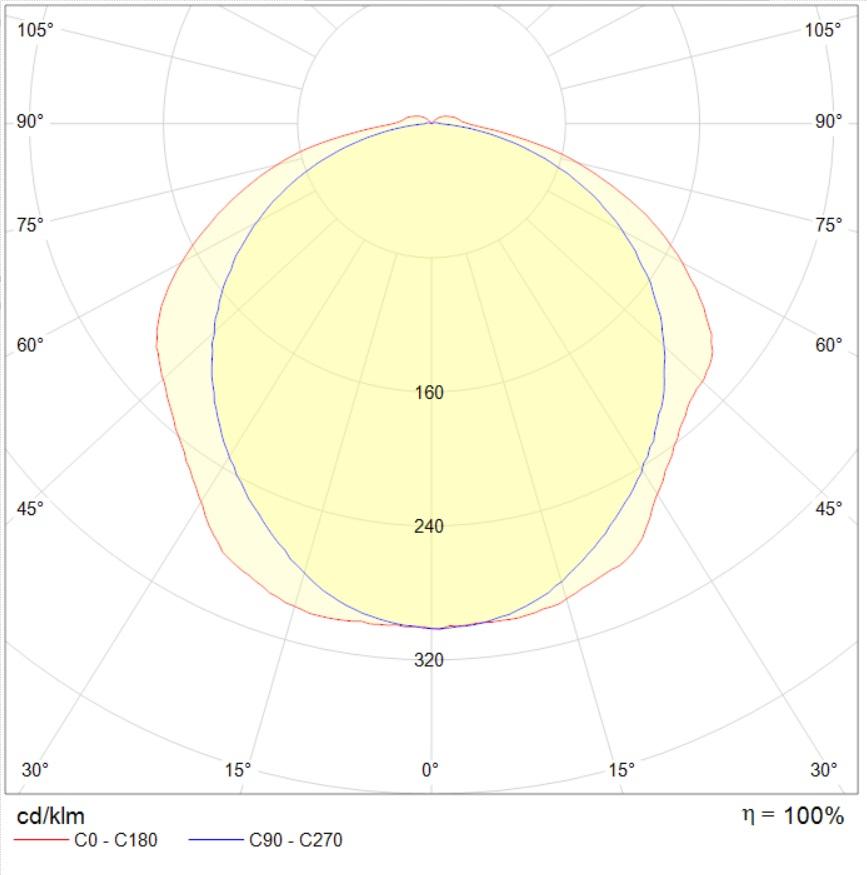

photometric files
ies263.3 kB
jpg85.6 kB
ldt207.1 kB
csv459 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
