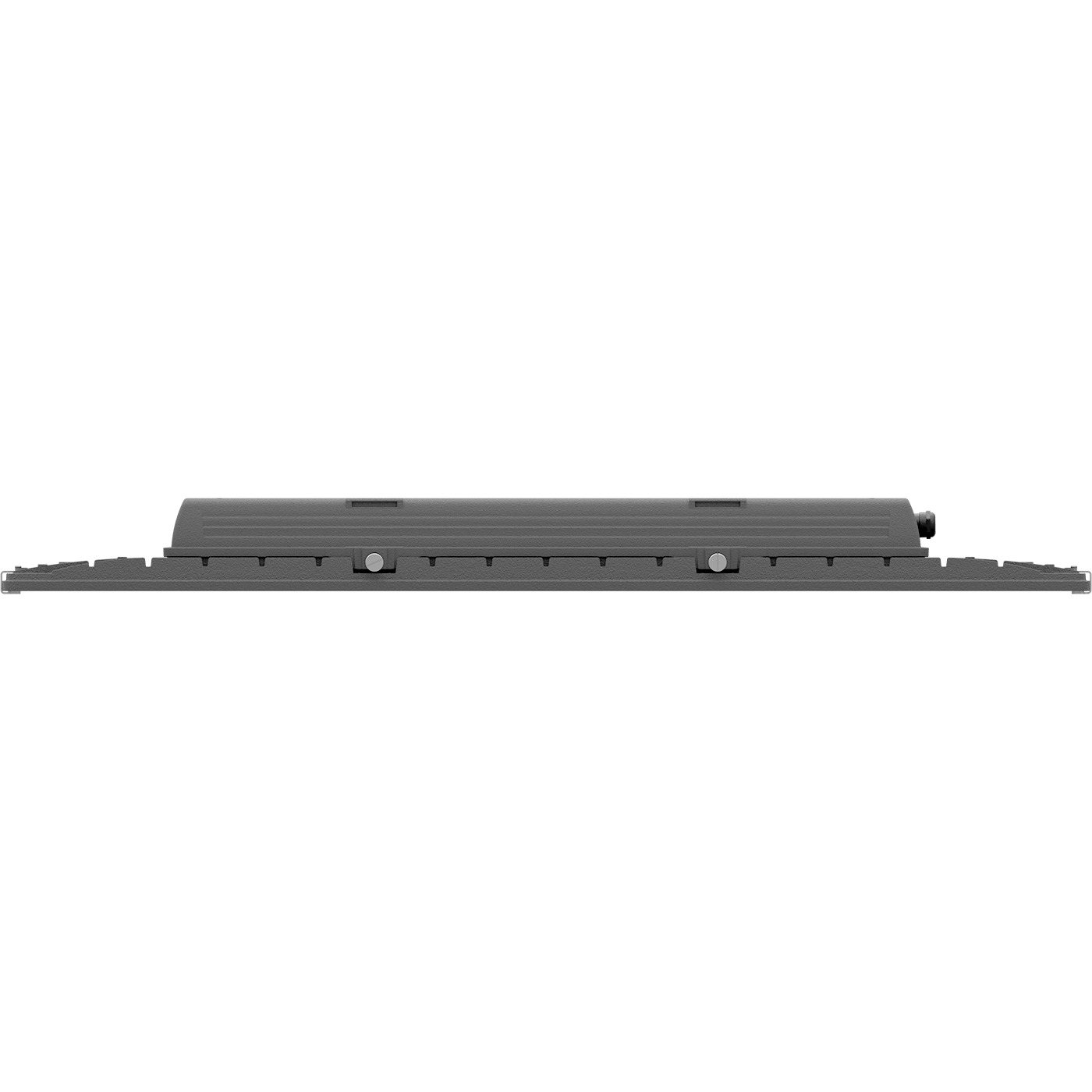

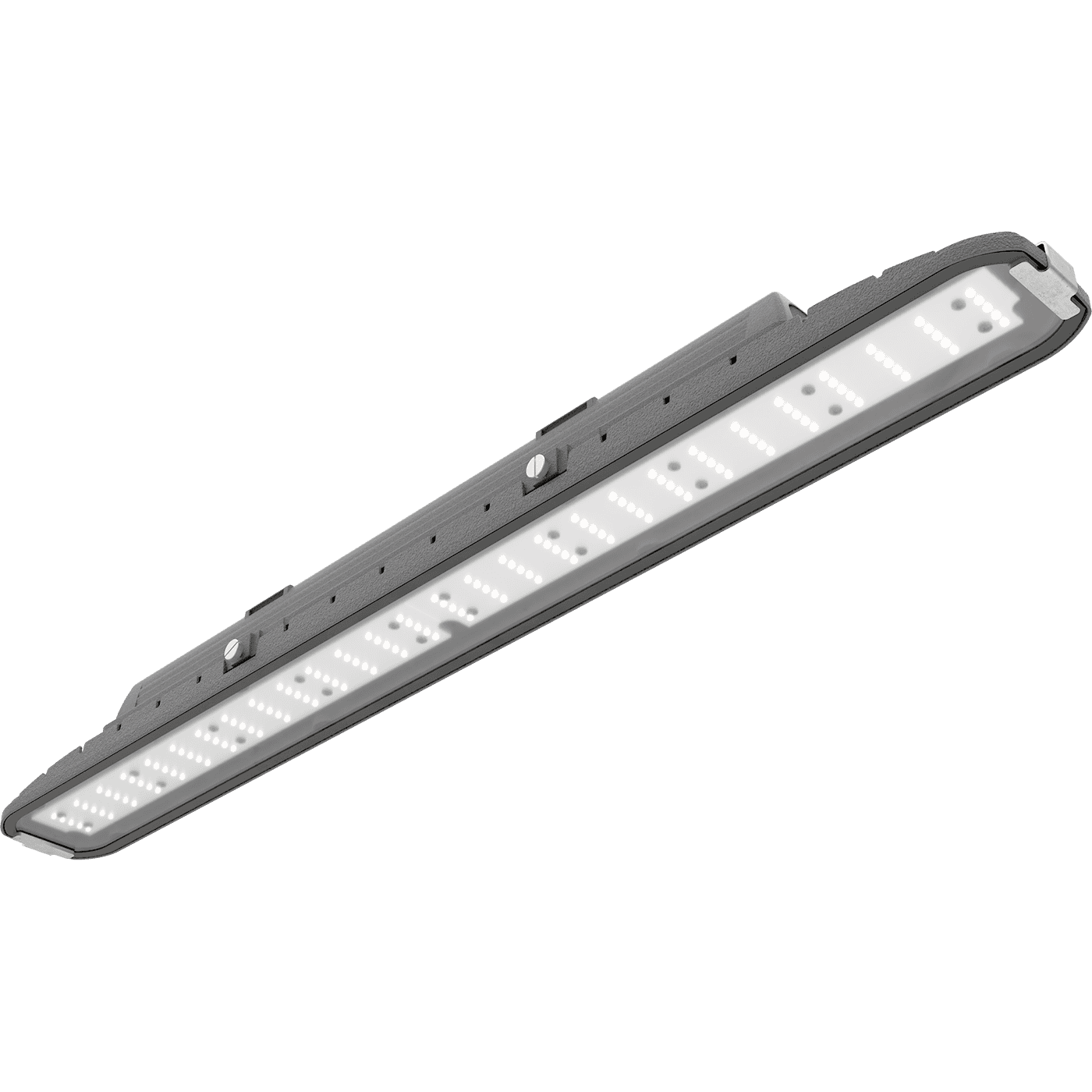

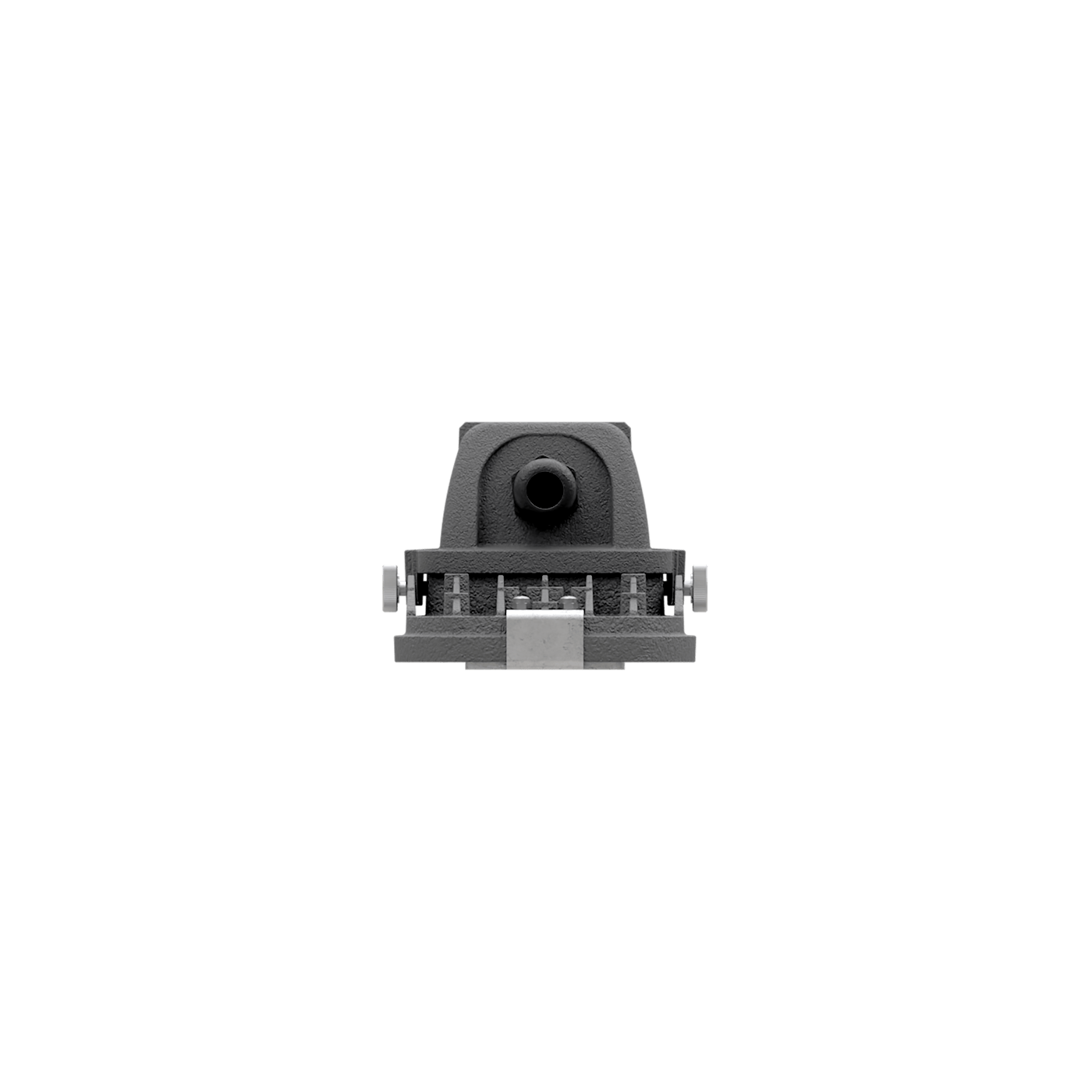

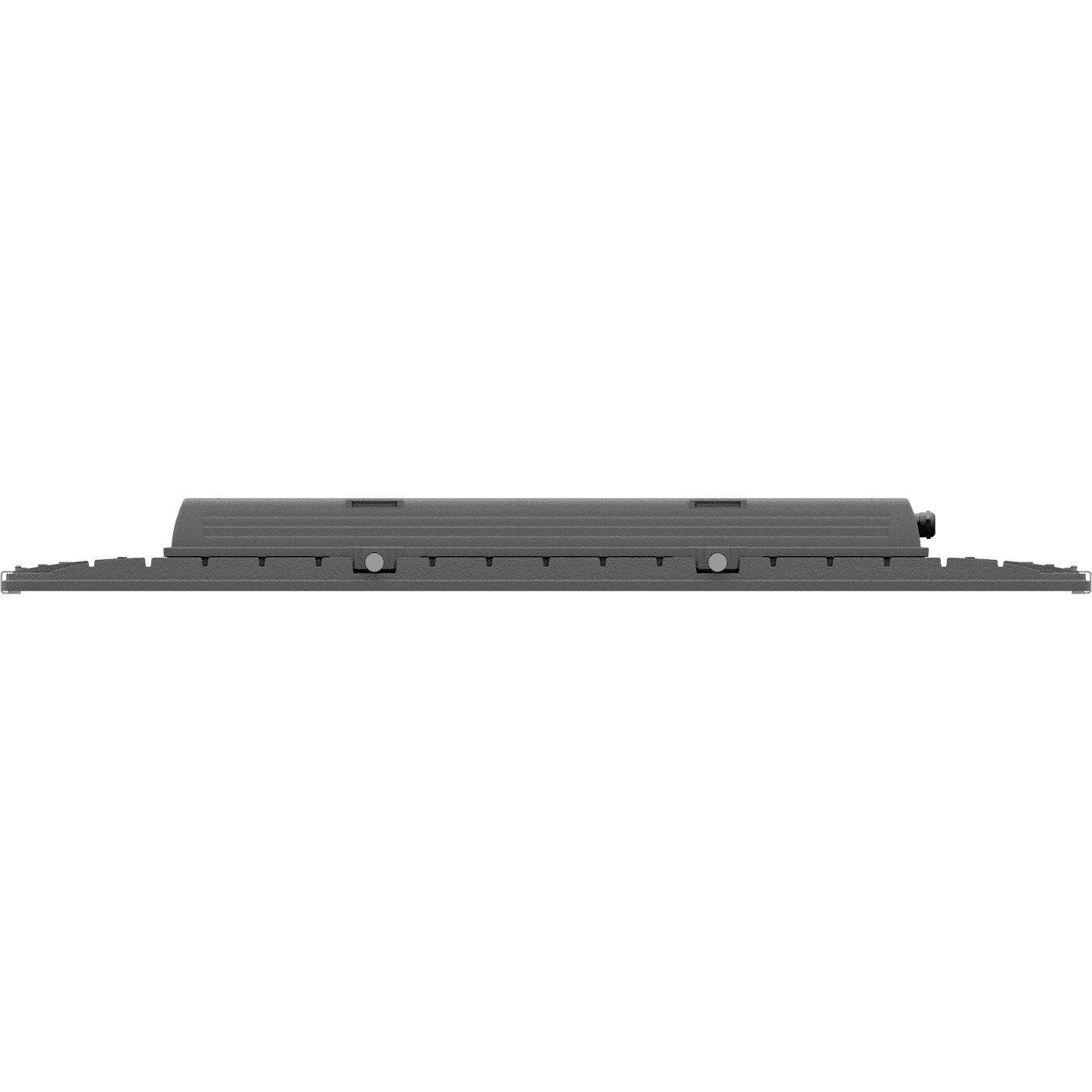

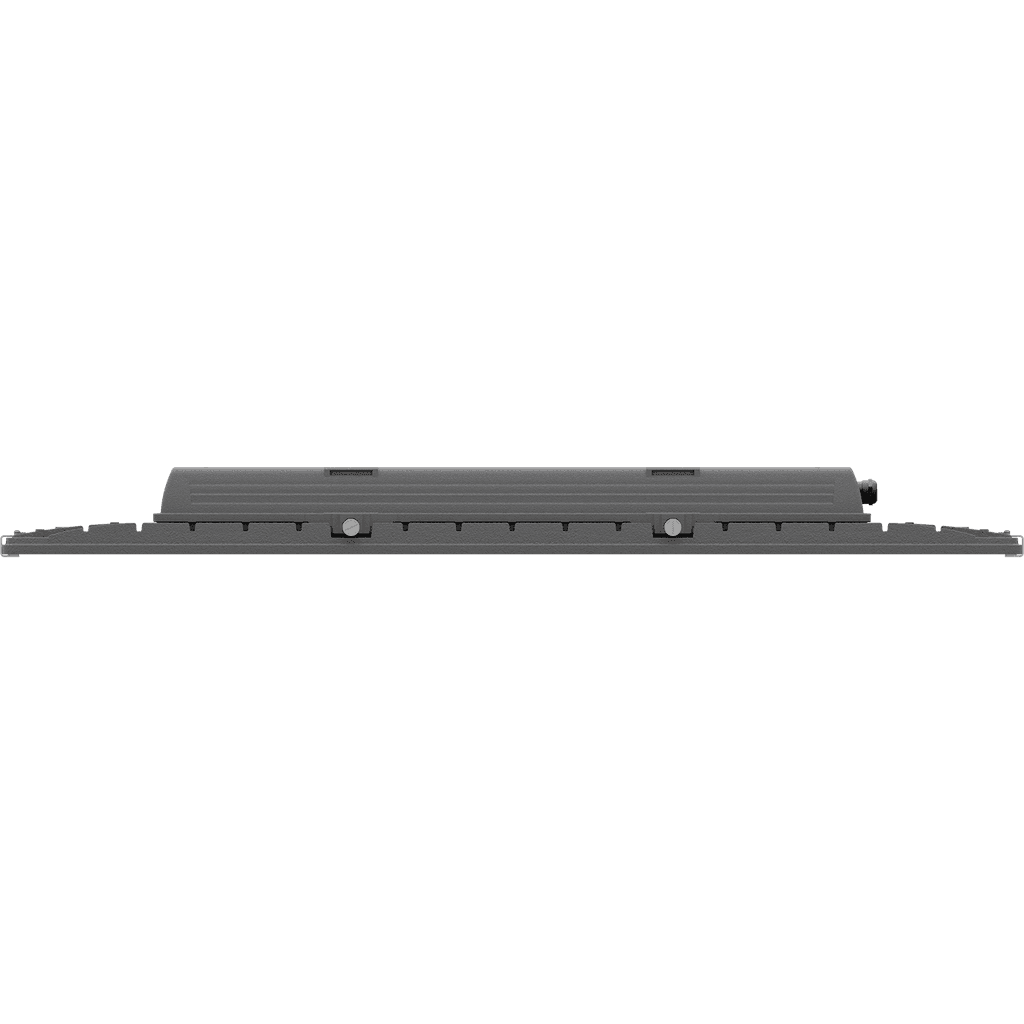

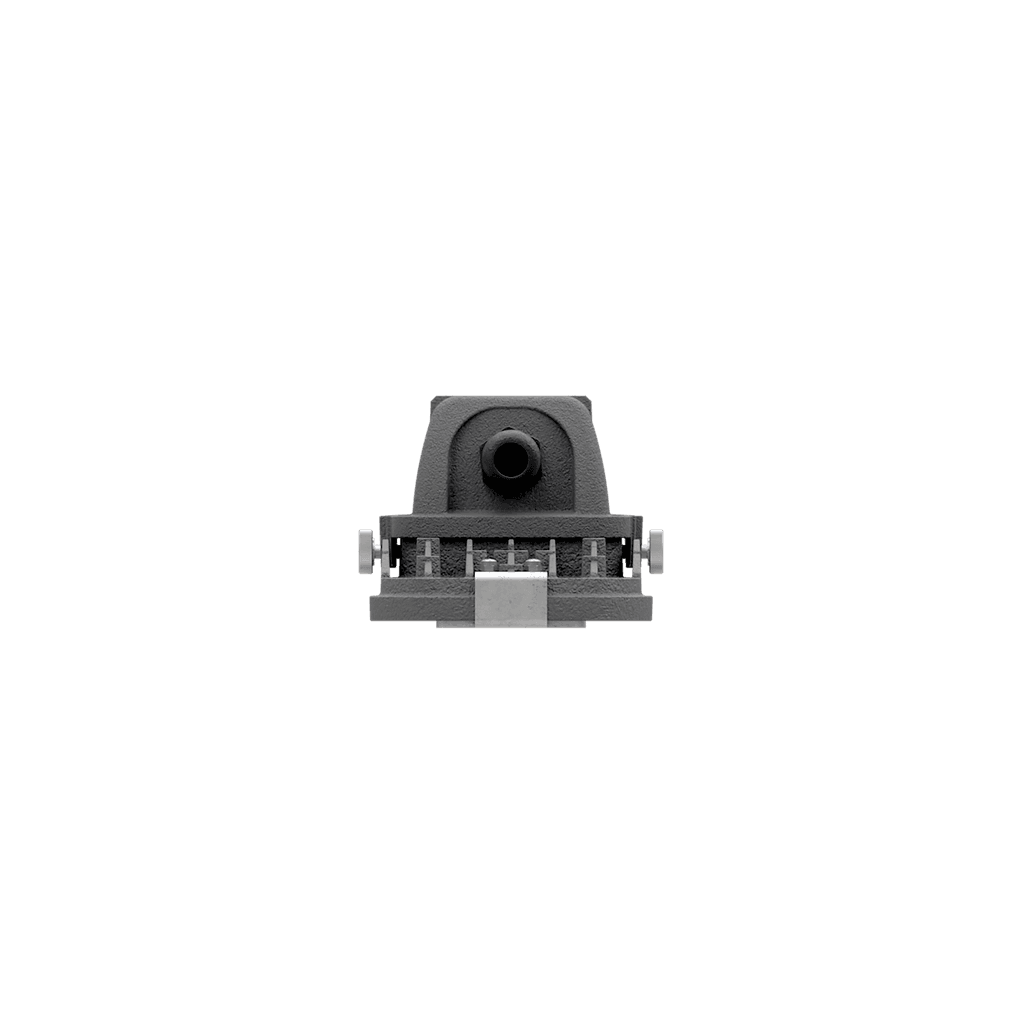

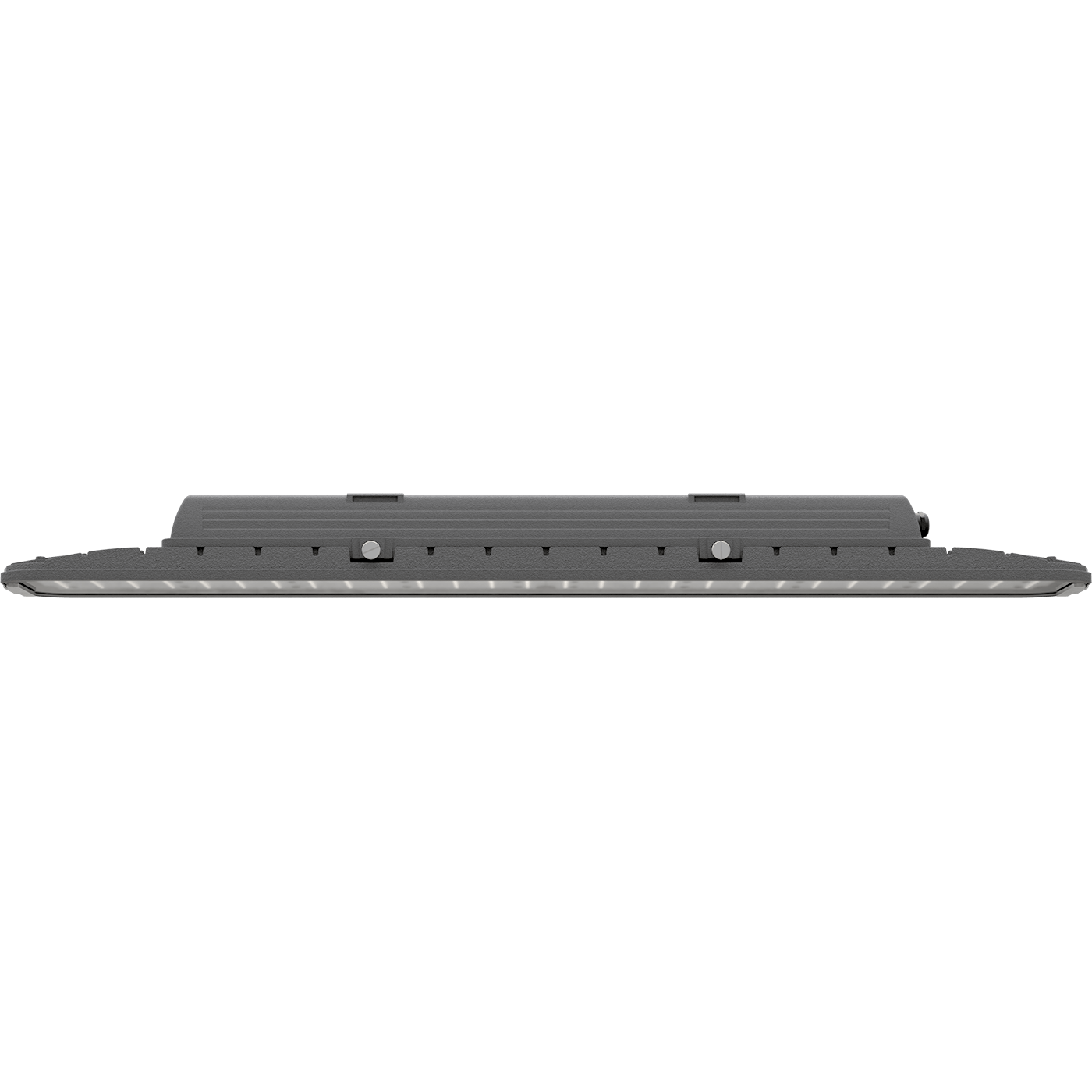

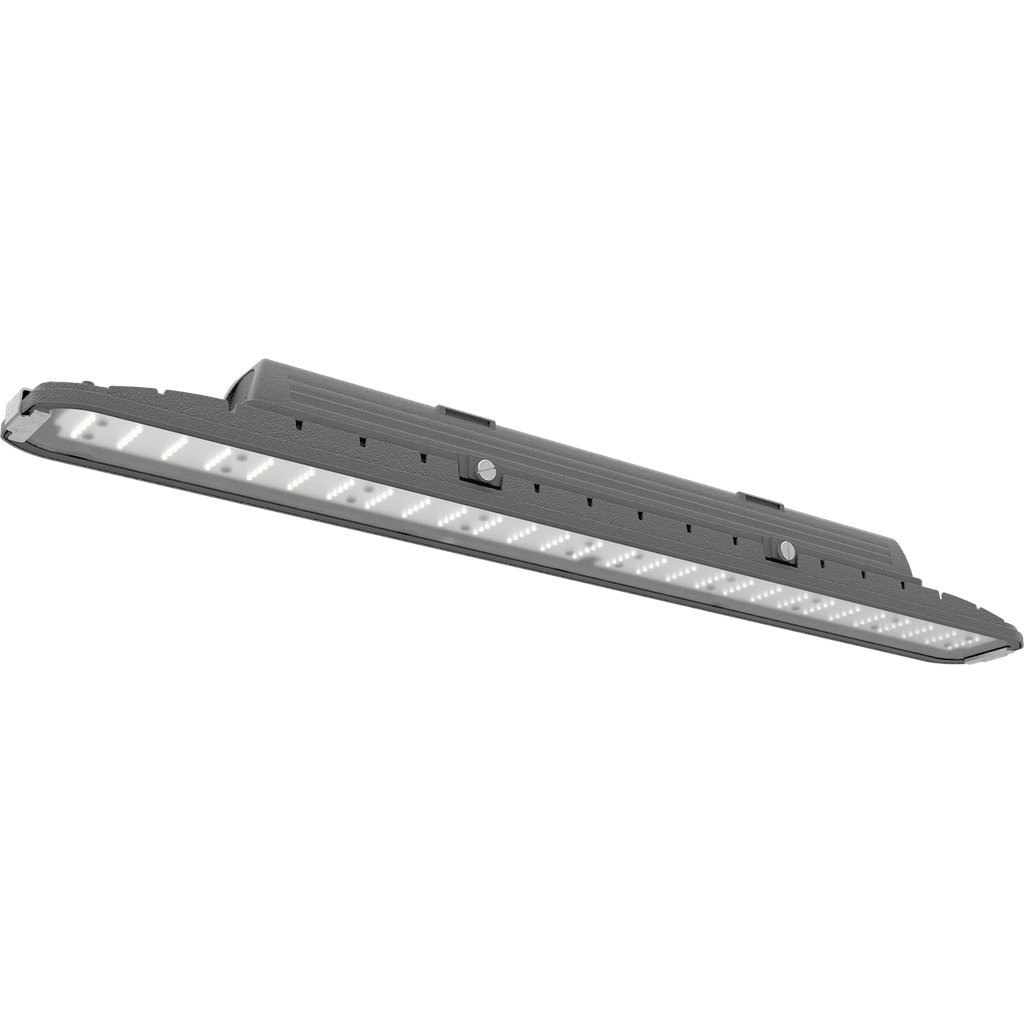

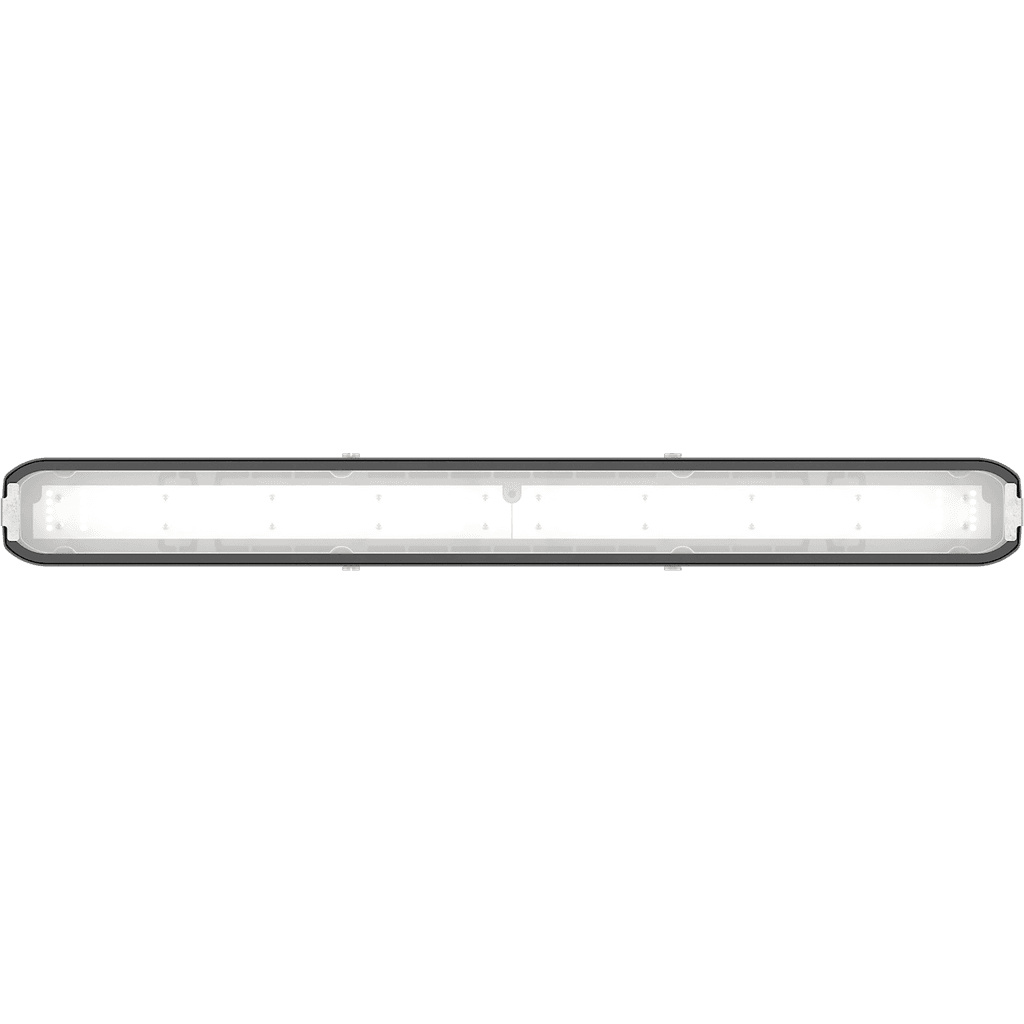

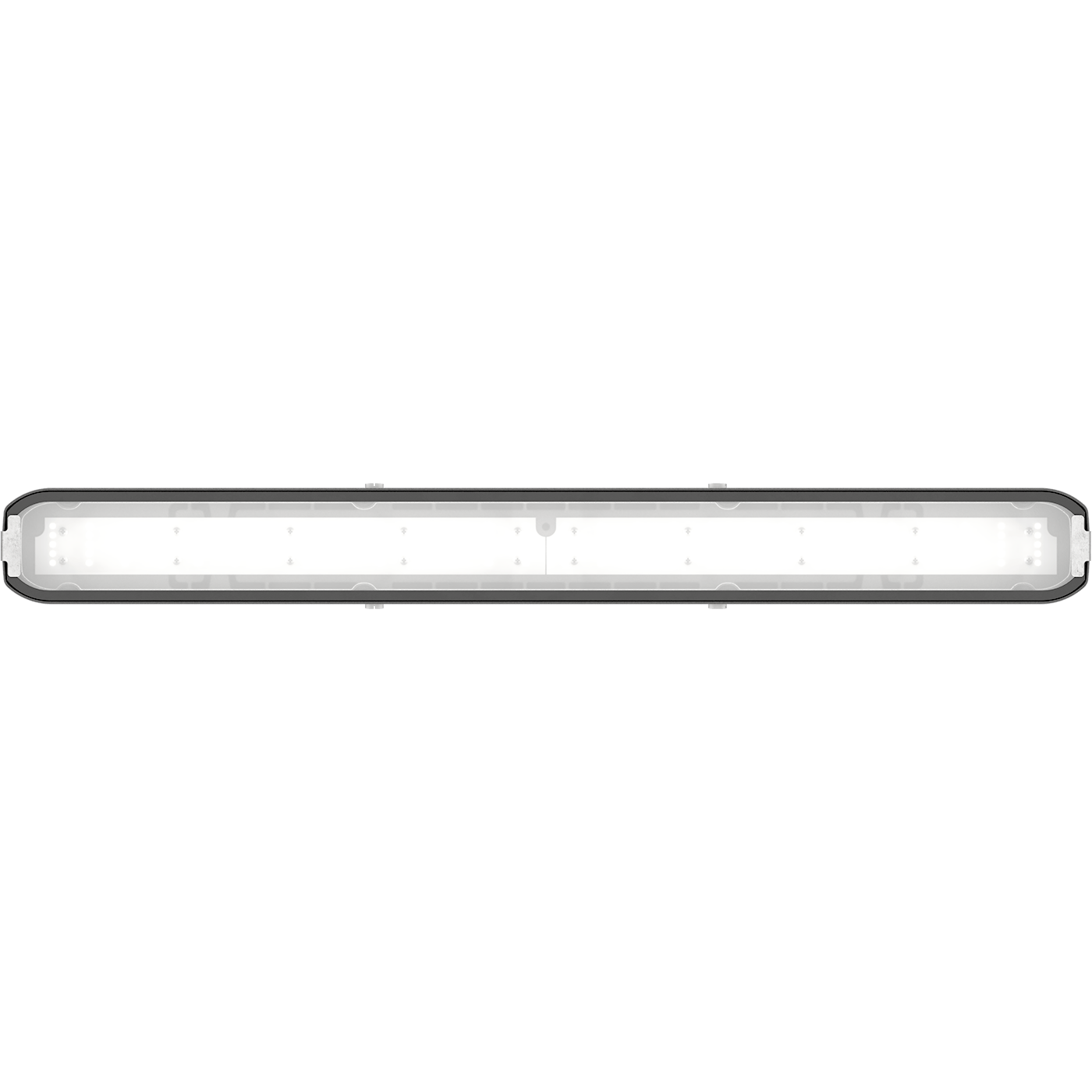

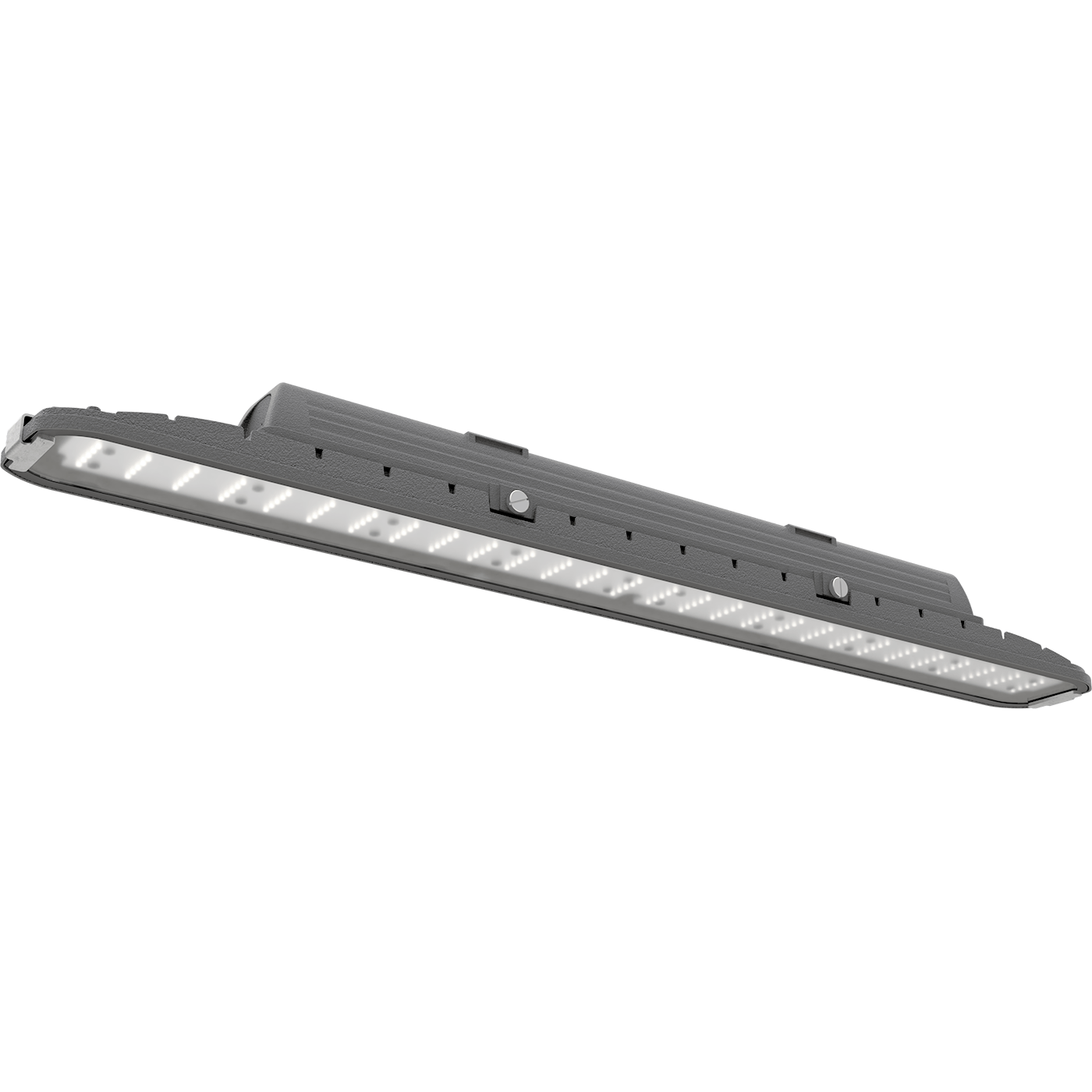

SLICK.PRS LED 60 with driver box /tempered glass/ 5000K
SLICK.PRS LED 60 with driver box /tempered glass/ 5000K
58 Wluminaire power
9100 lmlight flow
157 lm/Wenergy efficiency
code1631001840
color temperature5000

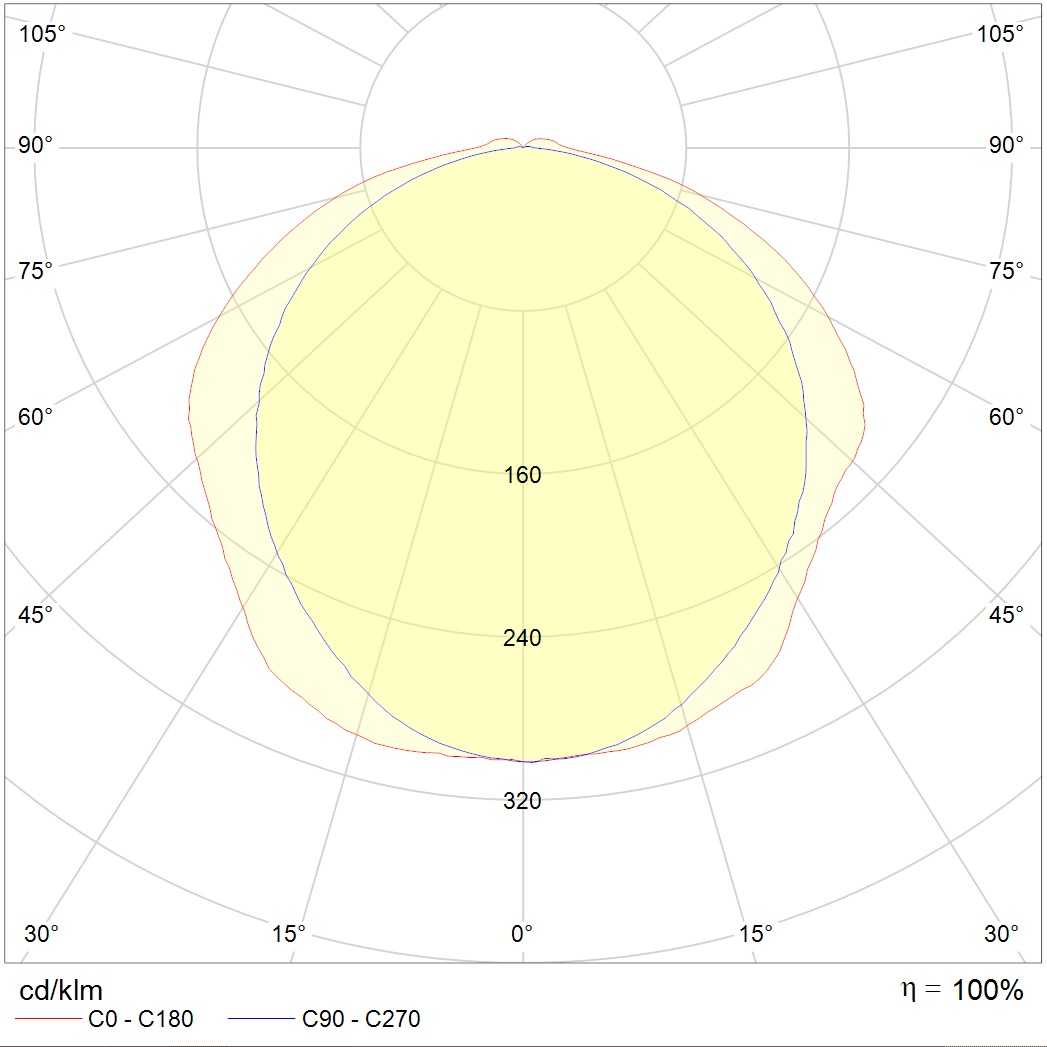

beam angleD120
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
9100 lmflickering factor
<1%energy efficiency
157 lm/Wbeam angle
D120color temperature
5000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
9100 lm
flickering factor
<1%
energy efficiency
157 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
58 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP69
weight
4.5 kg
length, mm
960 mm
width, mm
105 mm
height, mm
85 mm
installation length, mm
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +50 C
code
1631001840
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg126.3 kB
ldt207.1 kB
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
