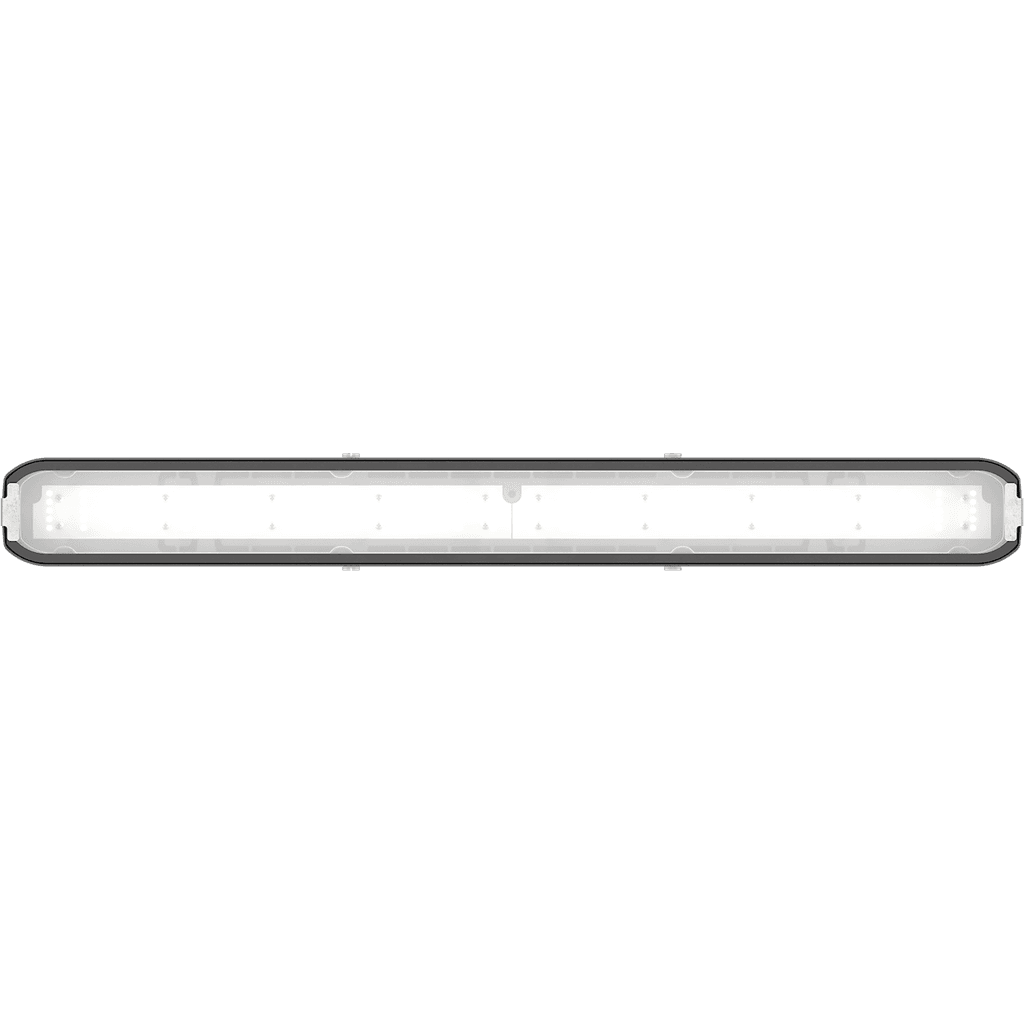

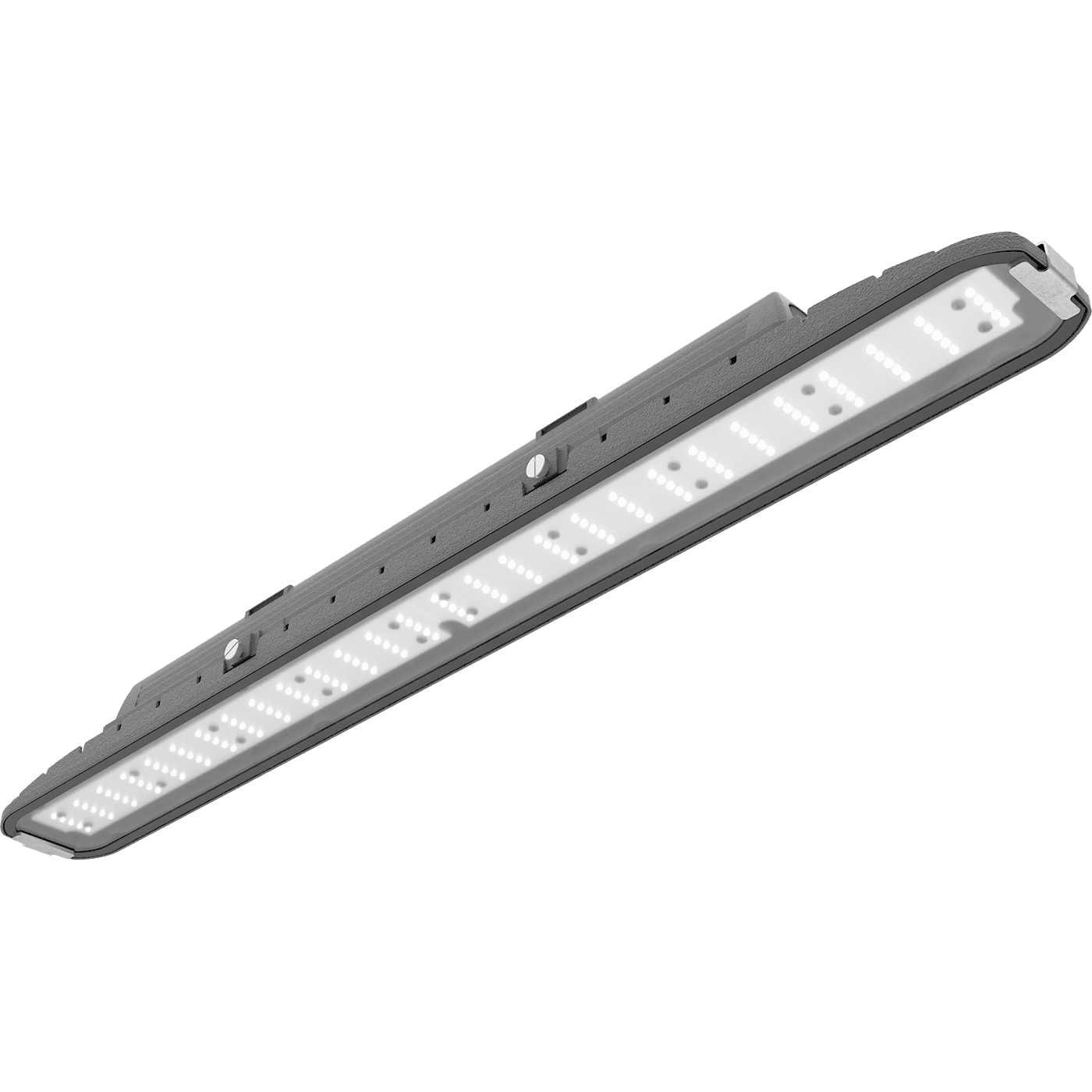

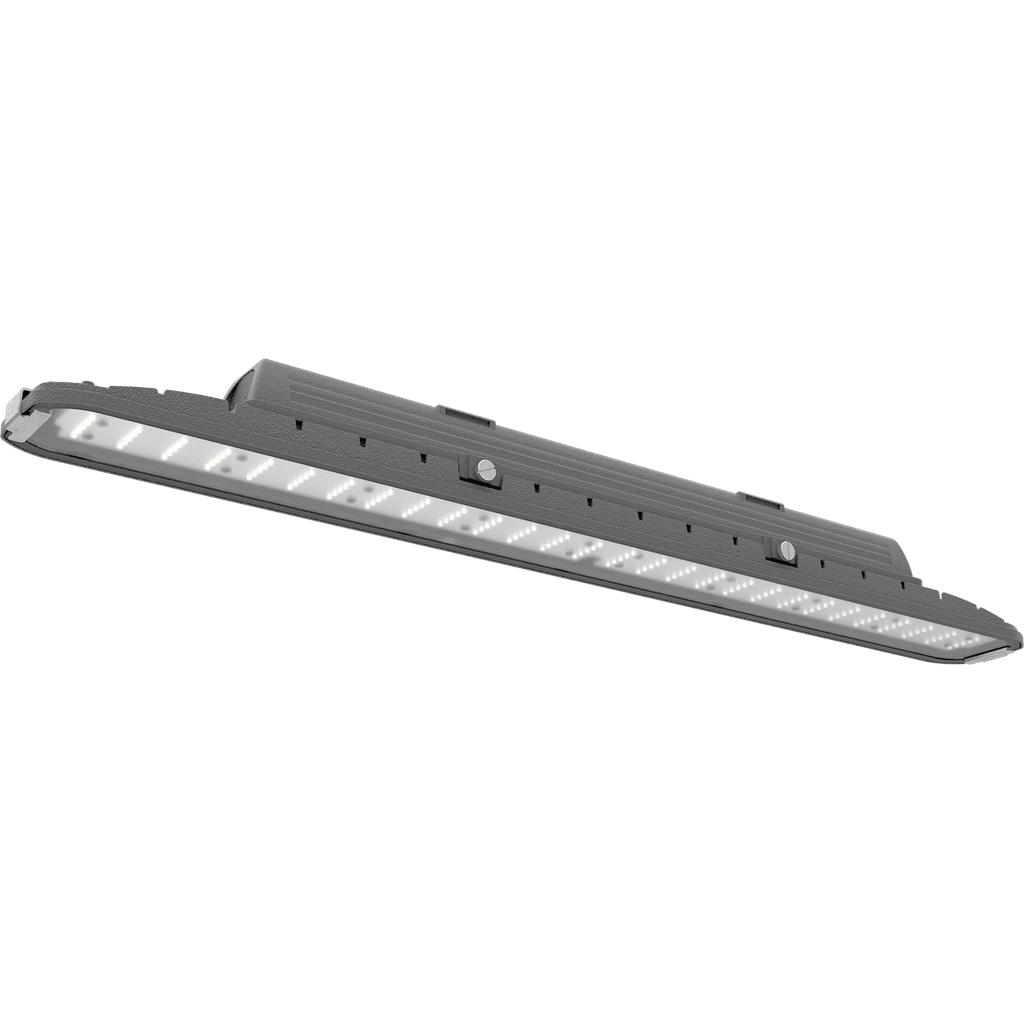

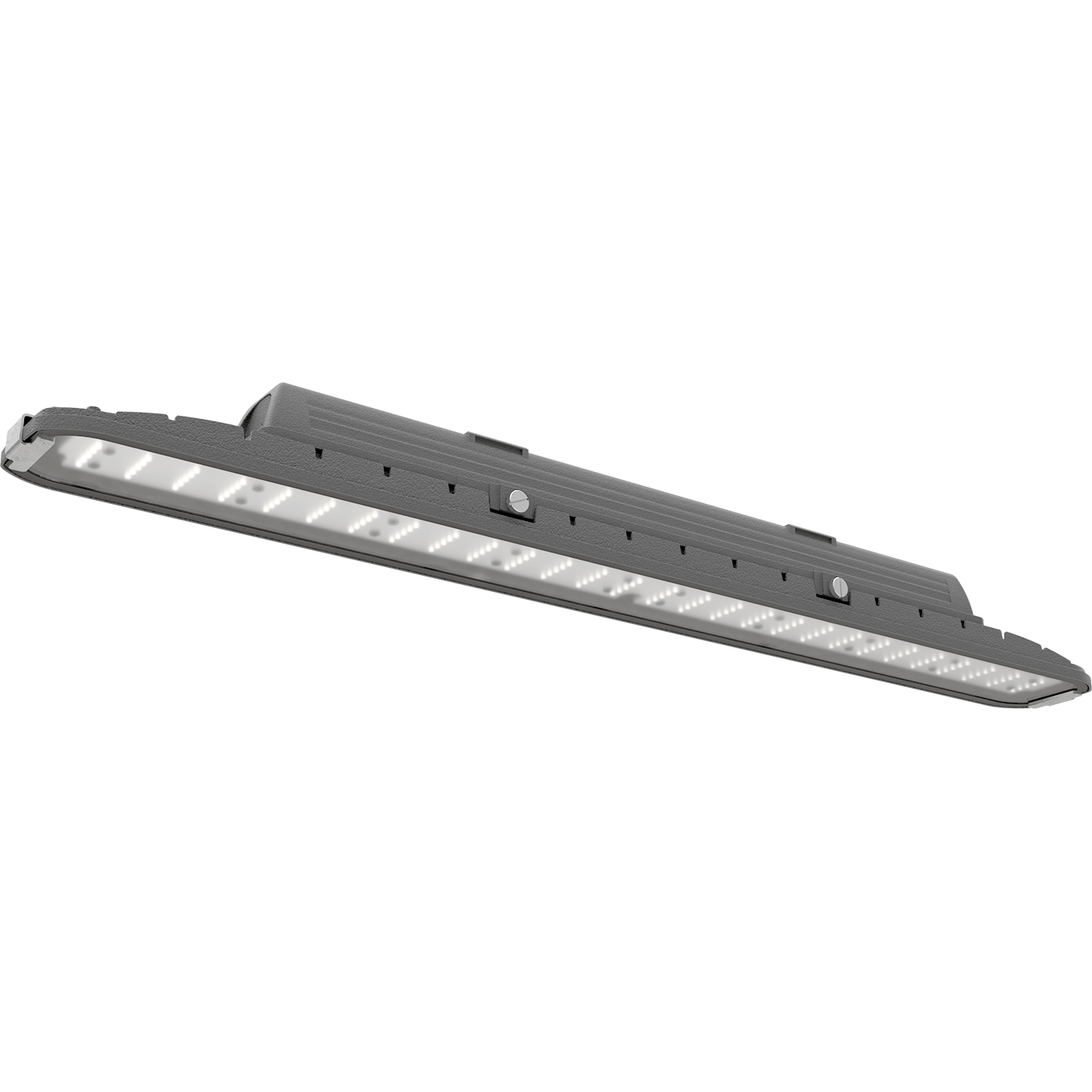

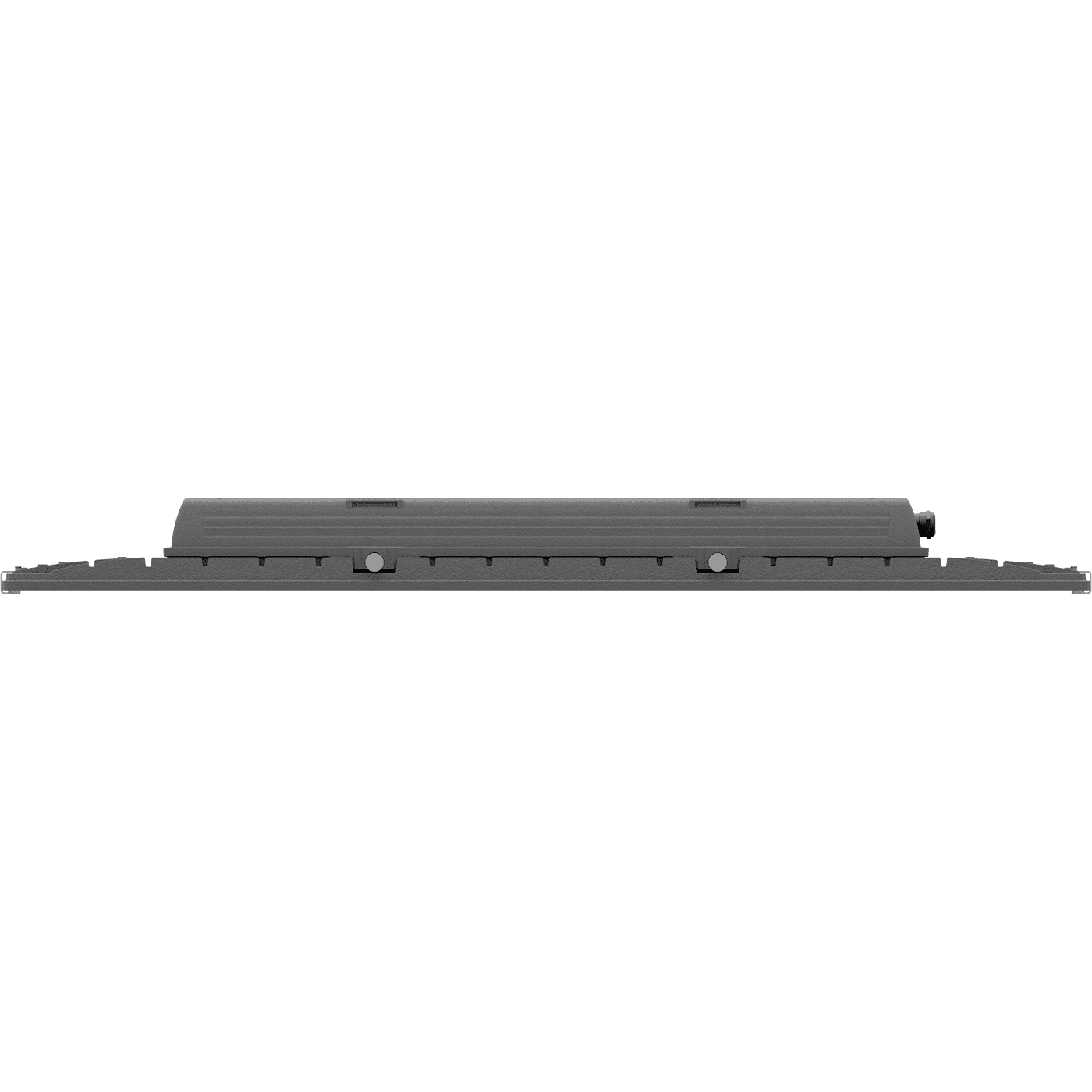

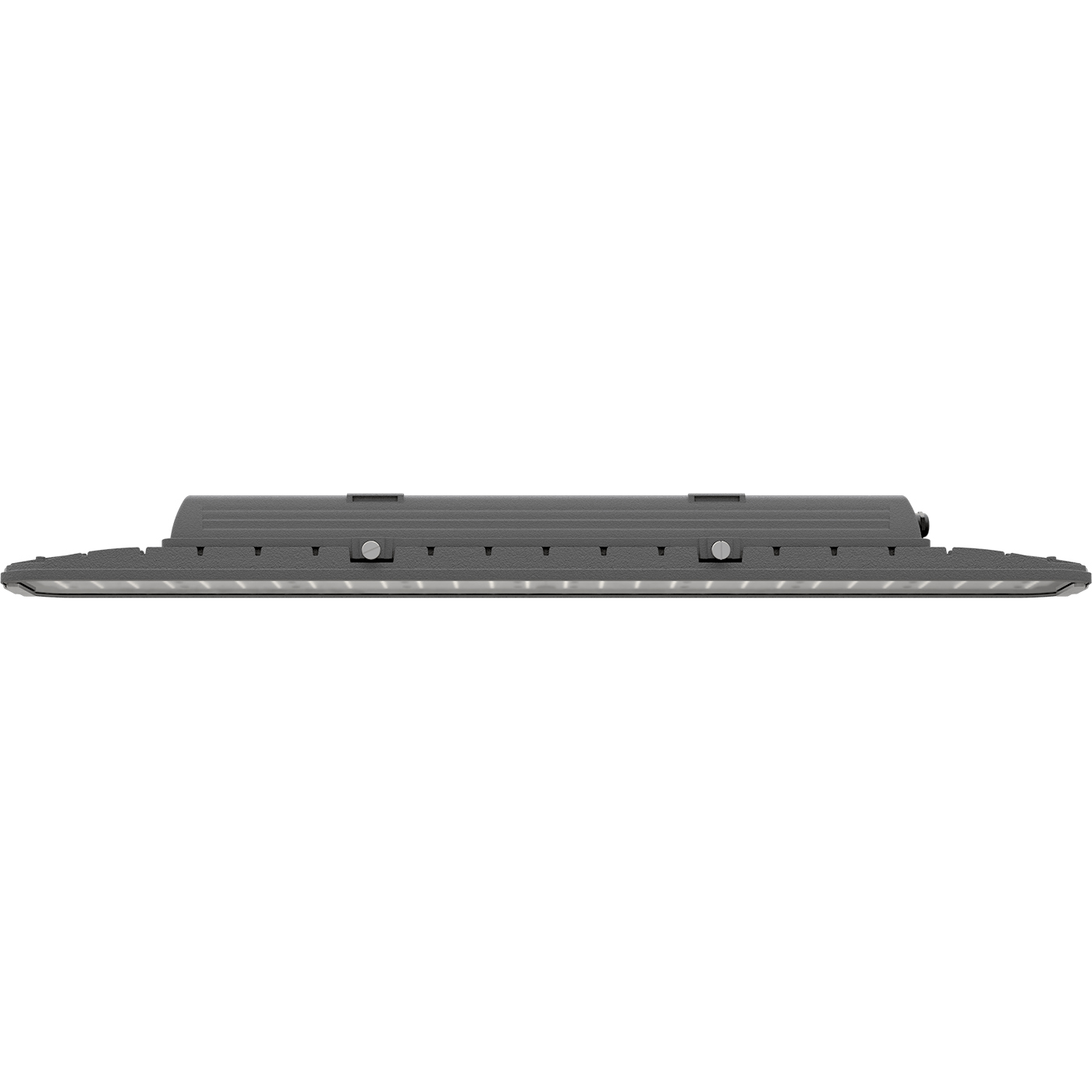

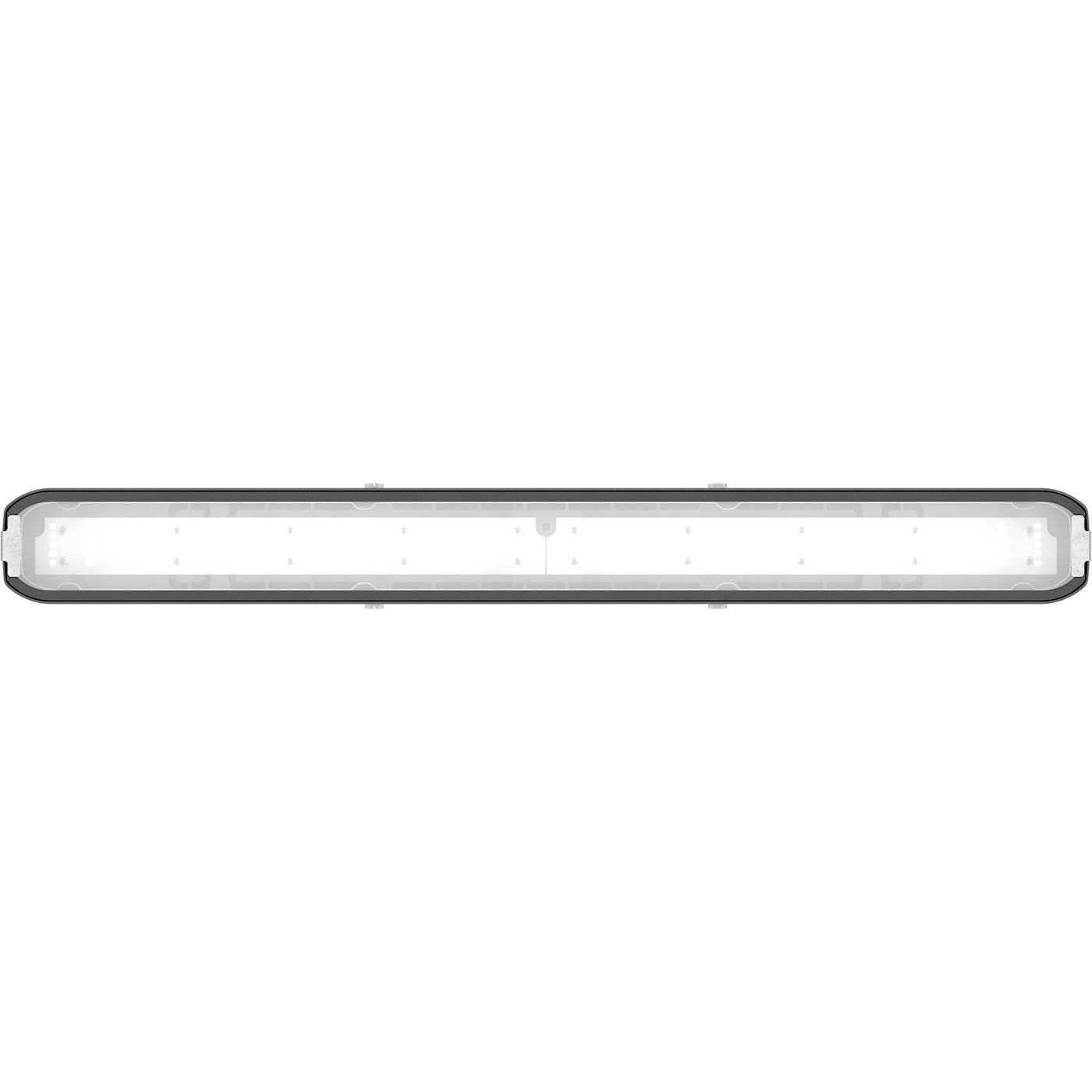

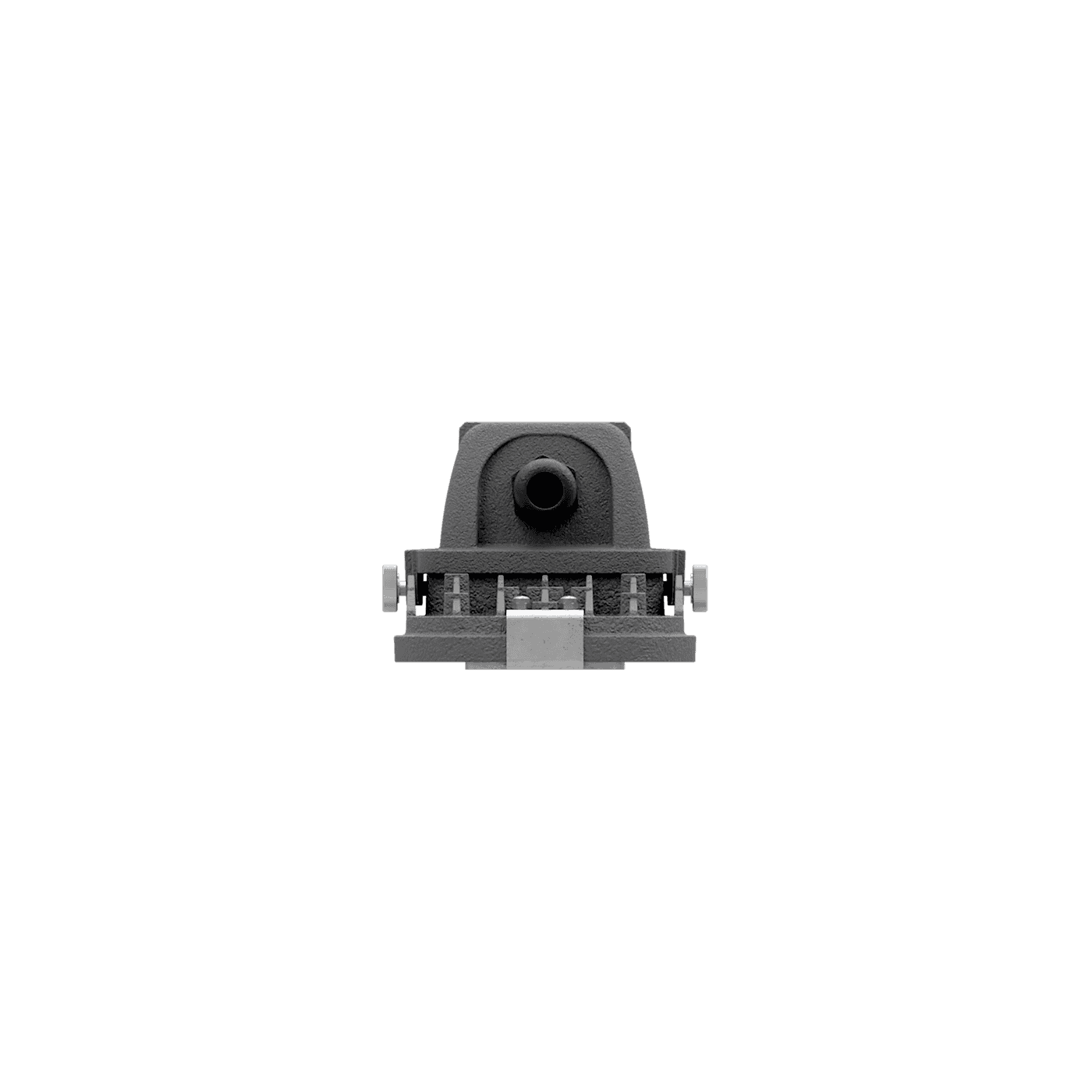

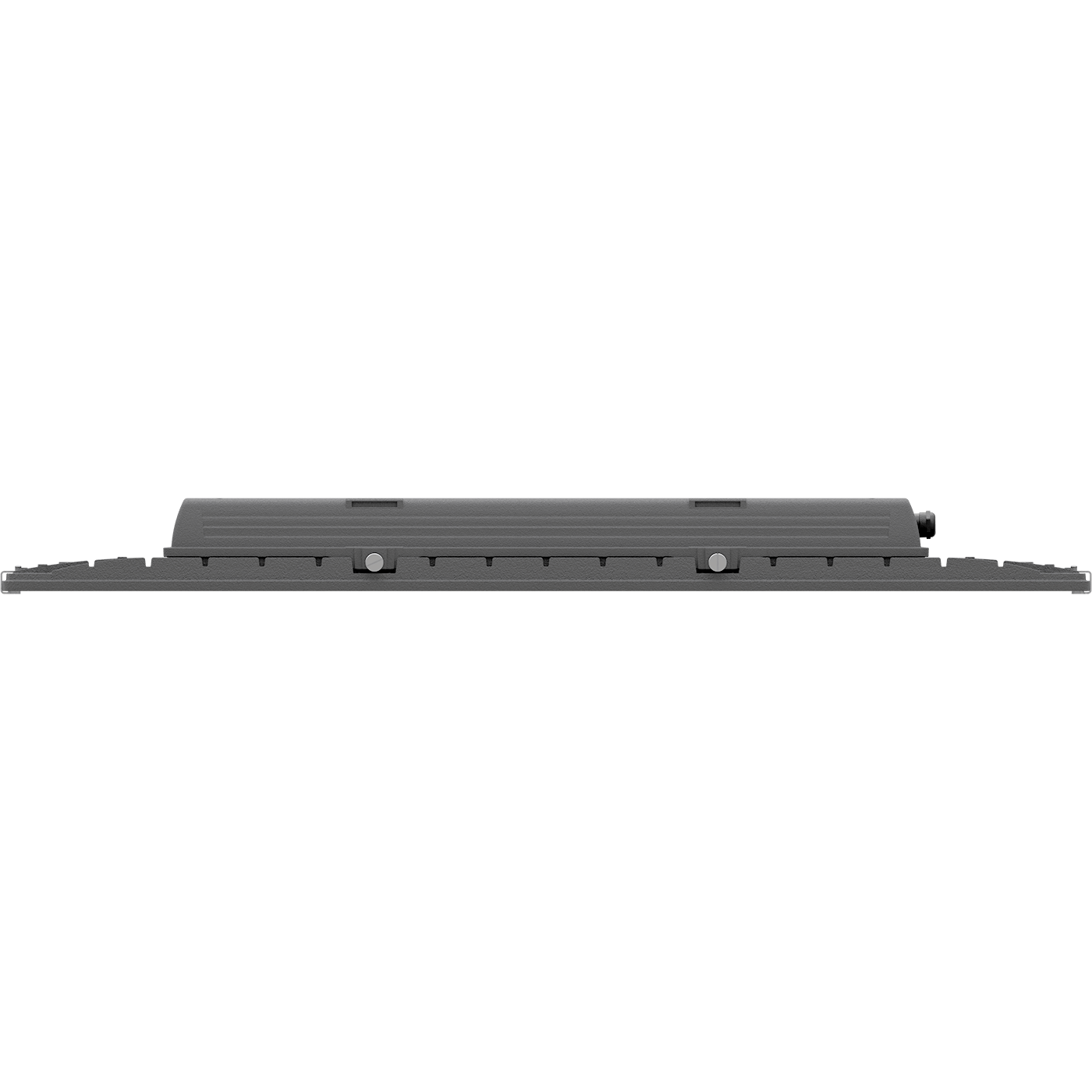

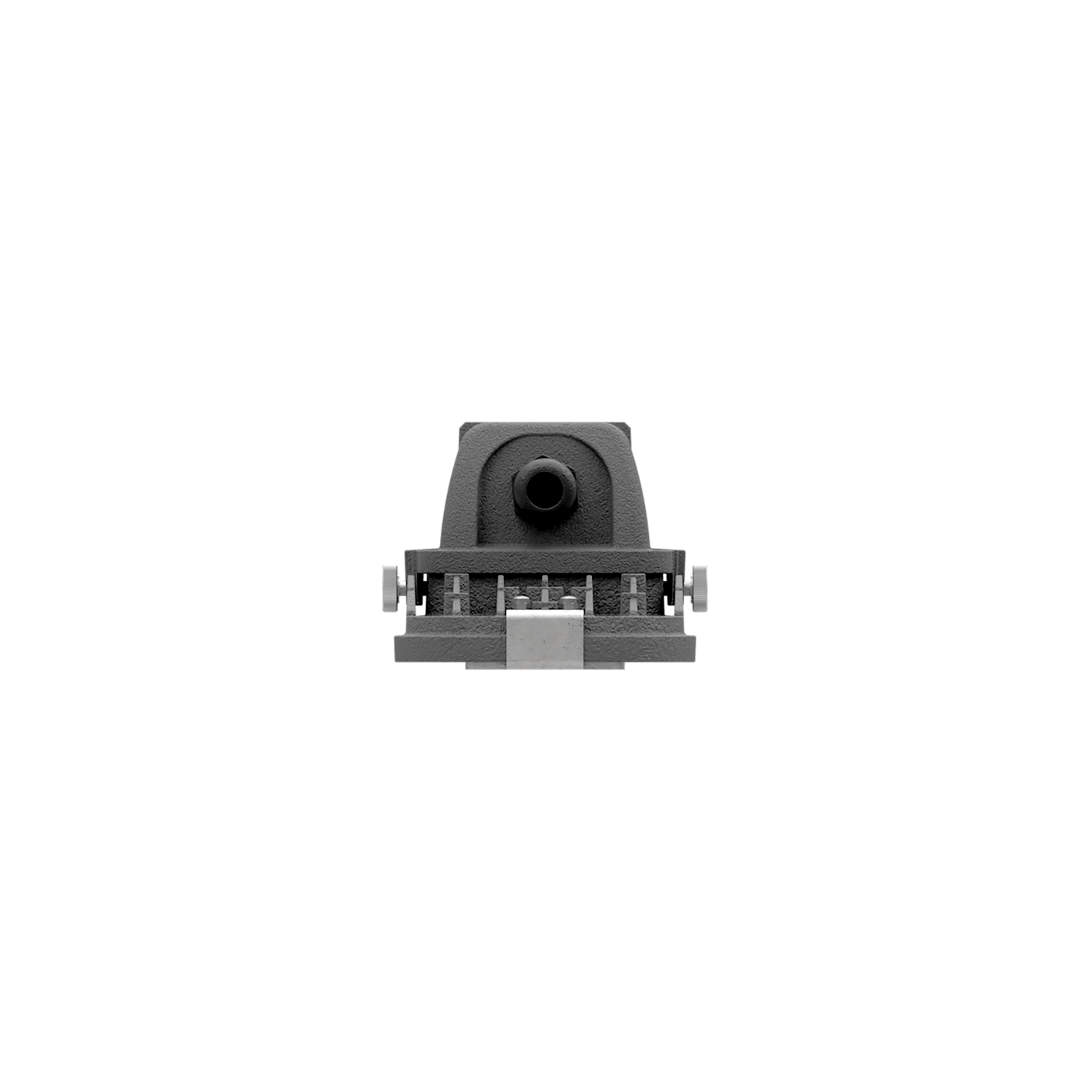

SLICK.PRS LED 60 EM with driver box /tempered glass/ 5000K
SLICK.PRS LED 60 EM with driver box /tempered glass/ 5000K
60 Wluminaire power
8600 lmlight flow
143 lm/Wenergy efficiency
code1631002350
color temperature5000 K
beam angleD120
weight4.8 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
8600 lmflickering factor
<1%energy efficiency
143 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
8600 lm
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,98
luminaire power
60 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP69
weight
4.8 kg
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
emergency
luminous flux in emergency mode
750 lm
operating time in emergency mode
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от 0 до +40 C
code
1631002350
model files
model files

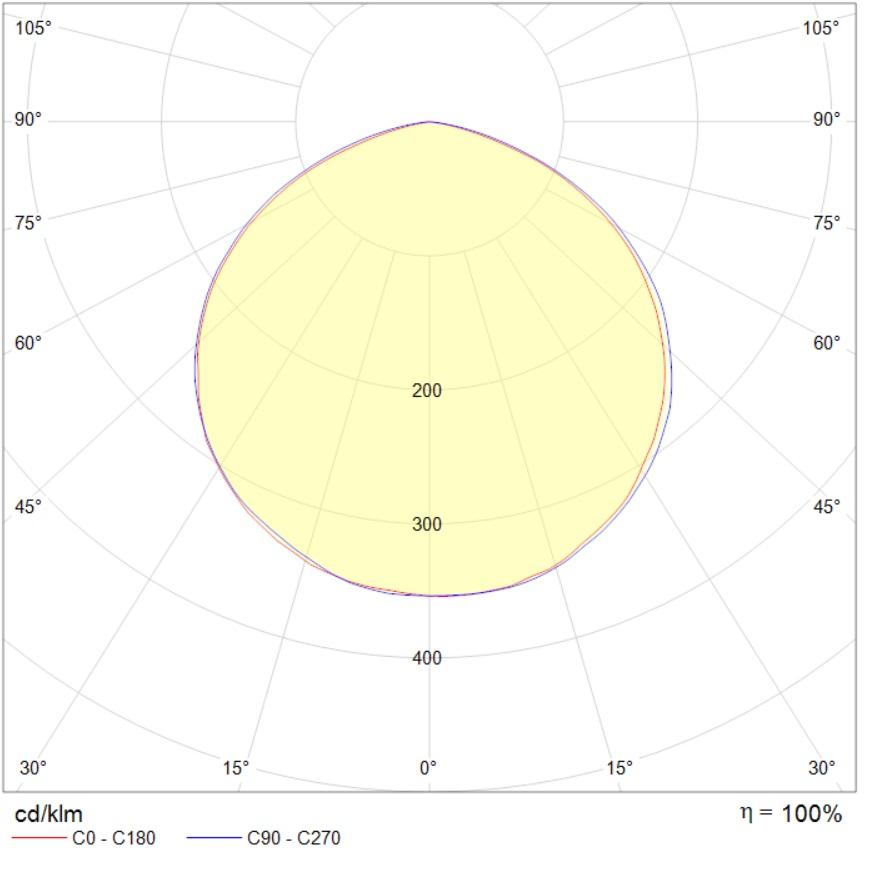

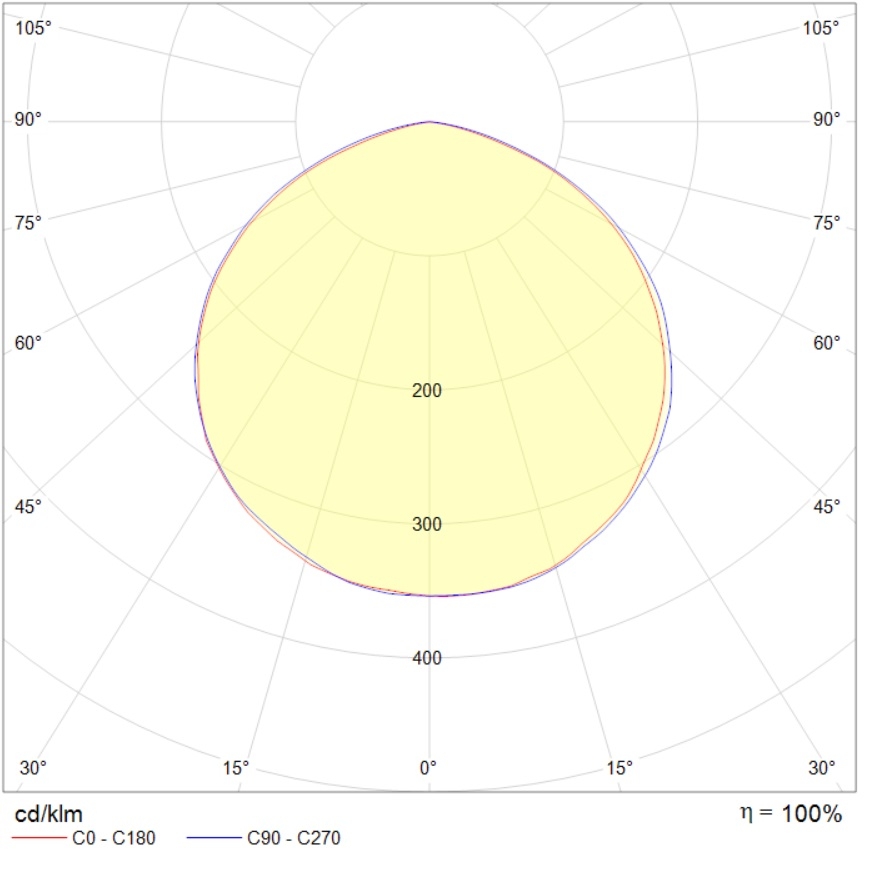

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg80 kB
ldt65.2 kB
csv449 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
