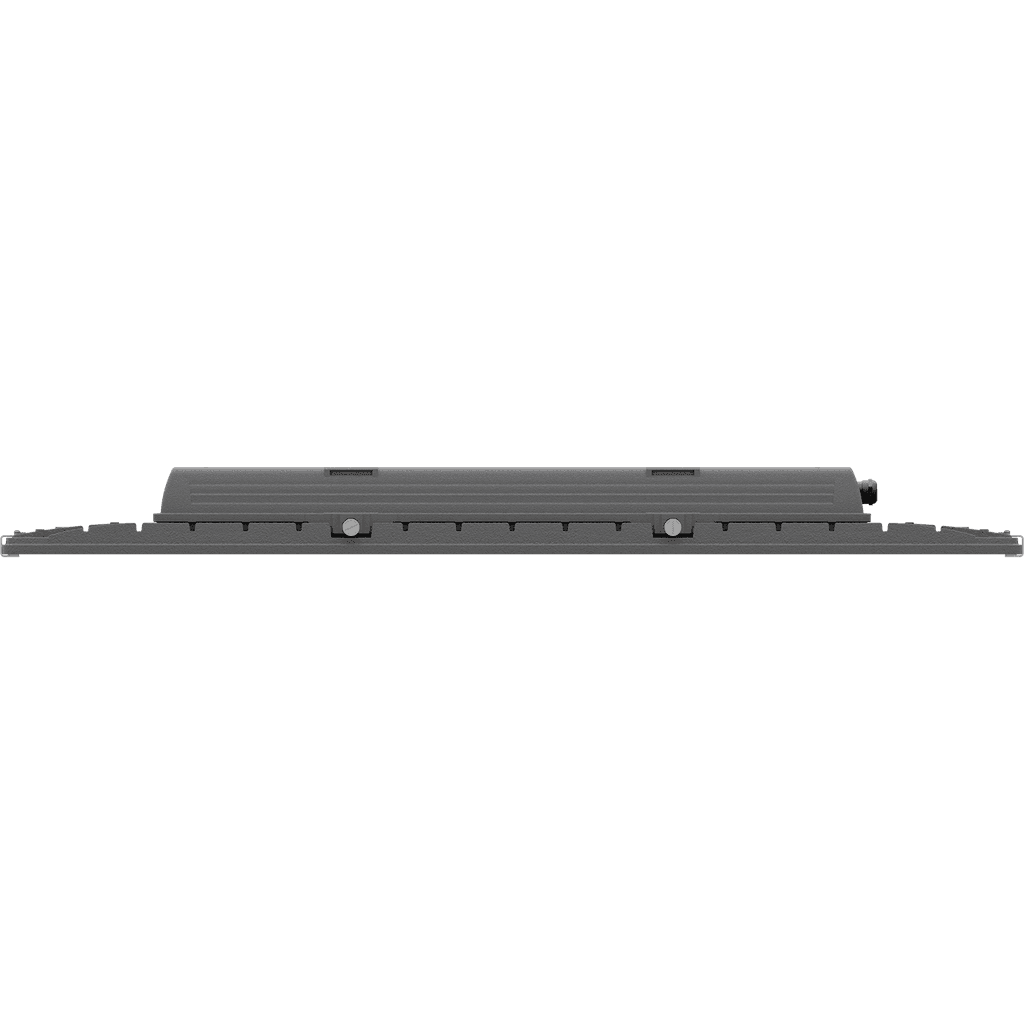

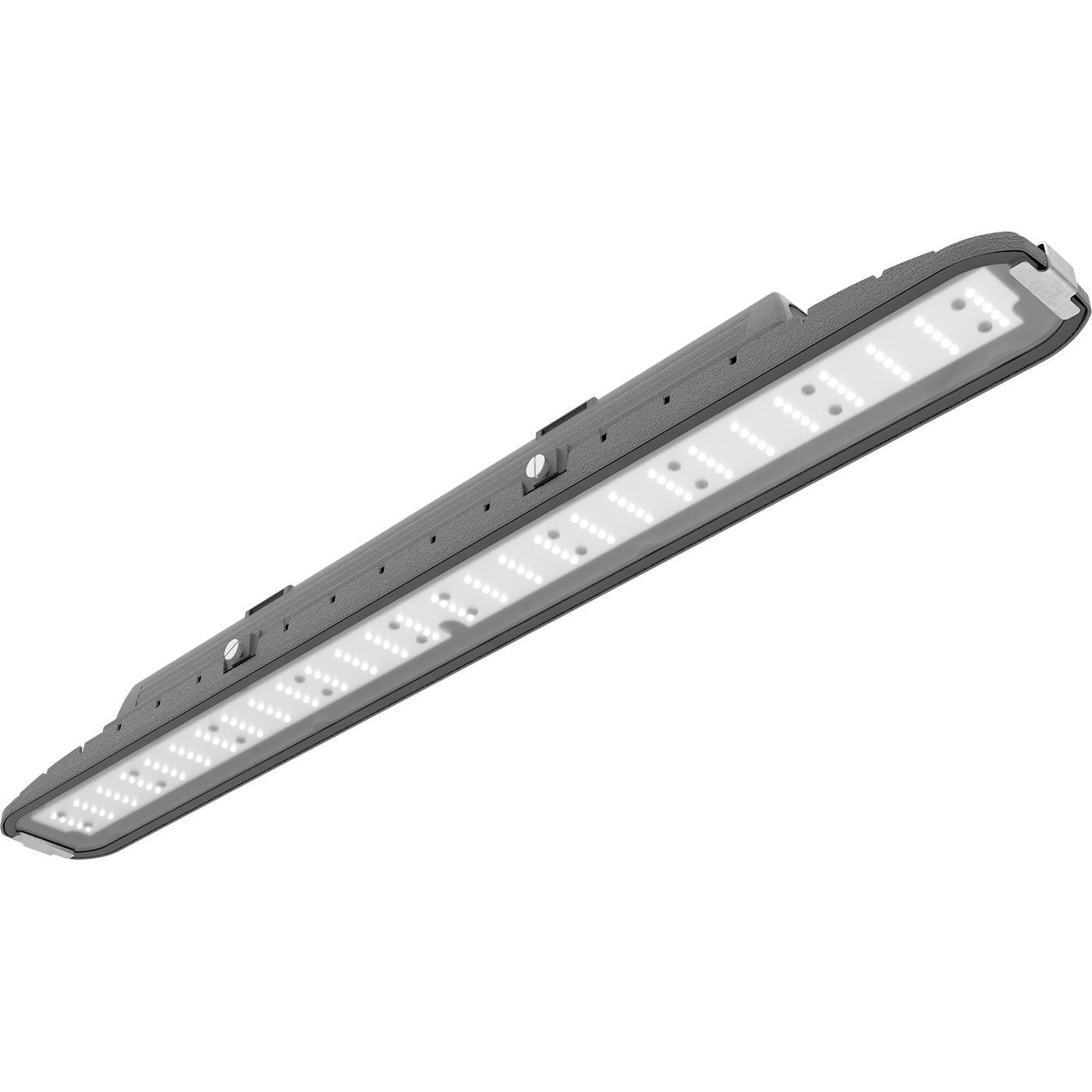

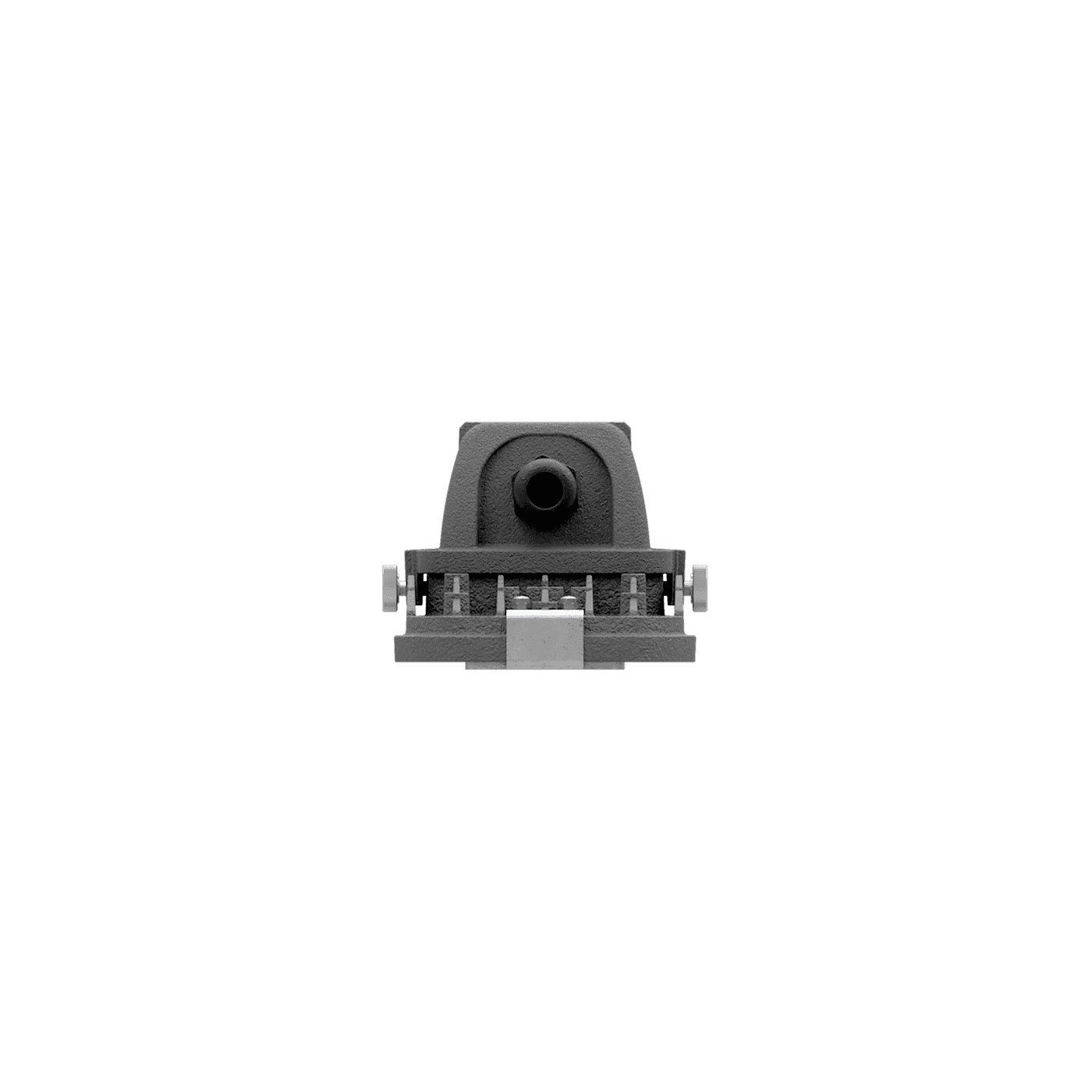

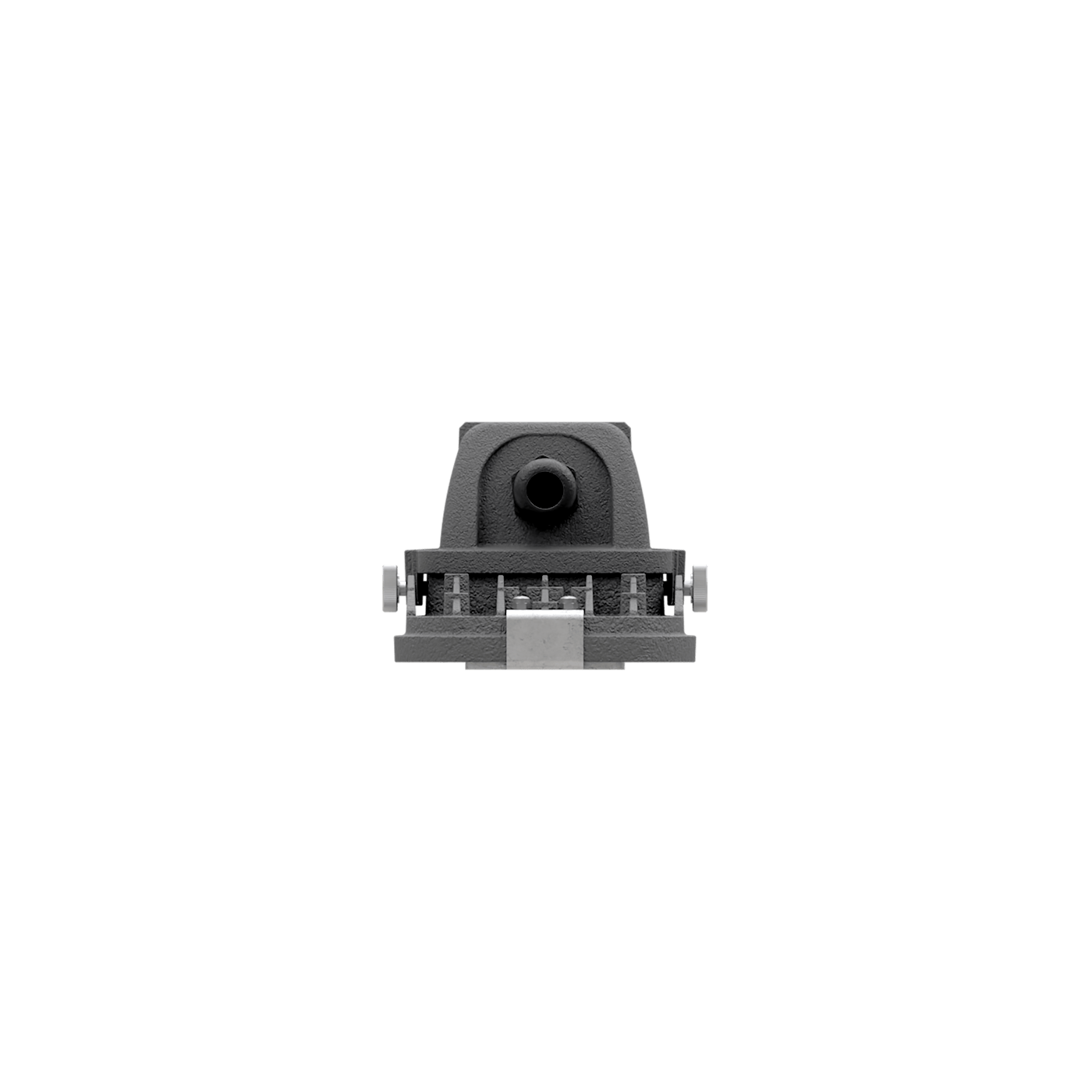

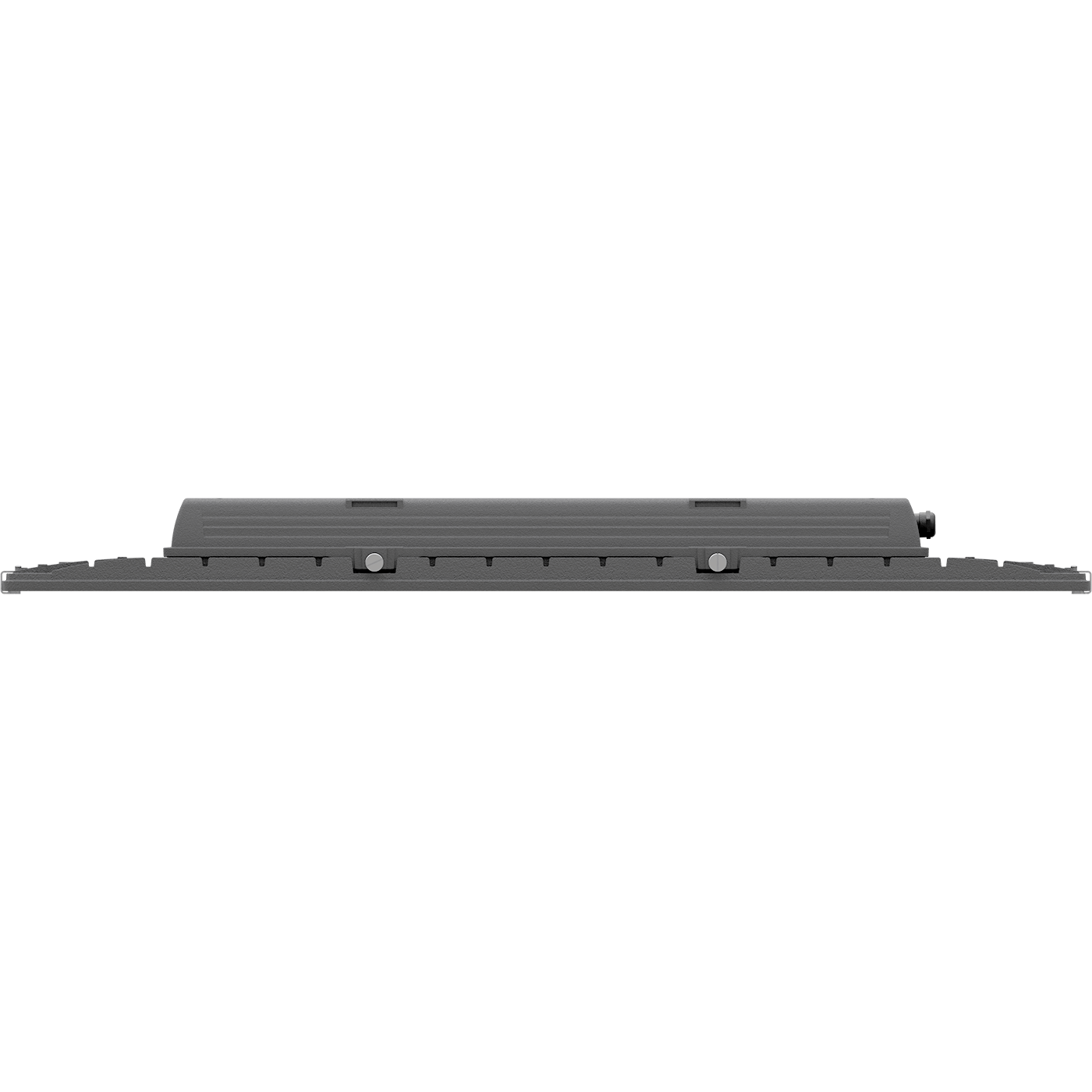

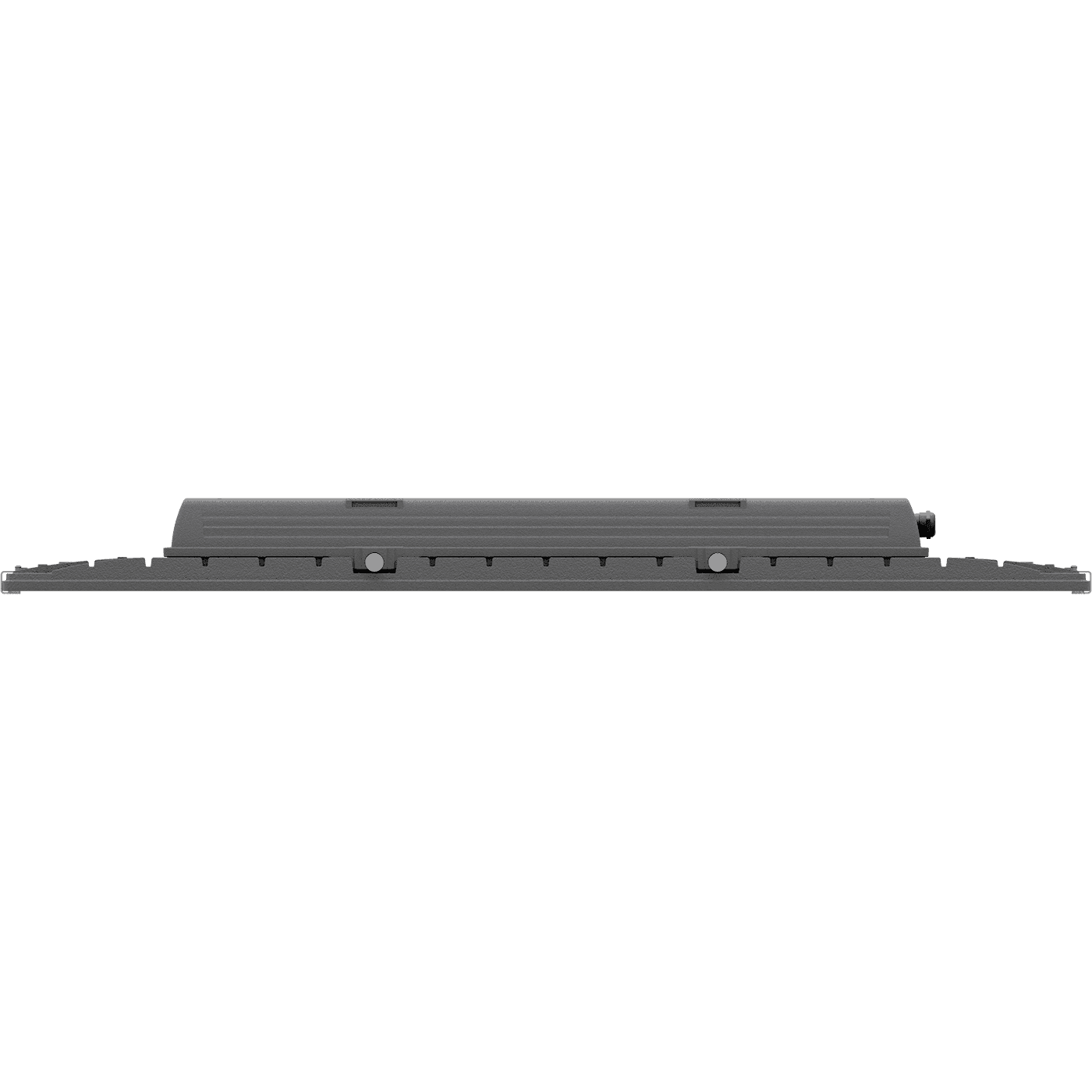

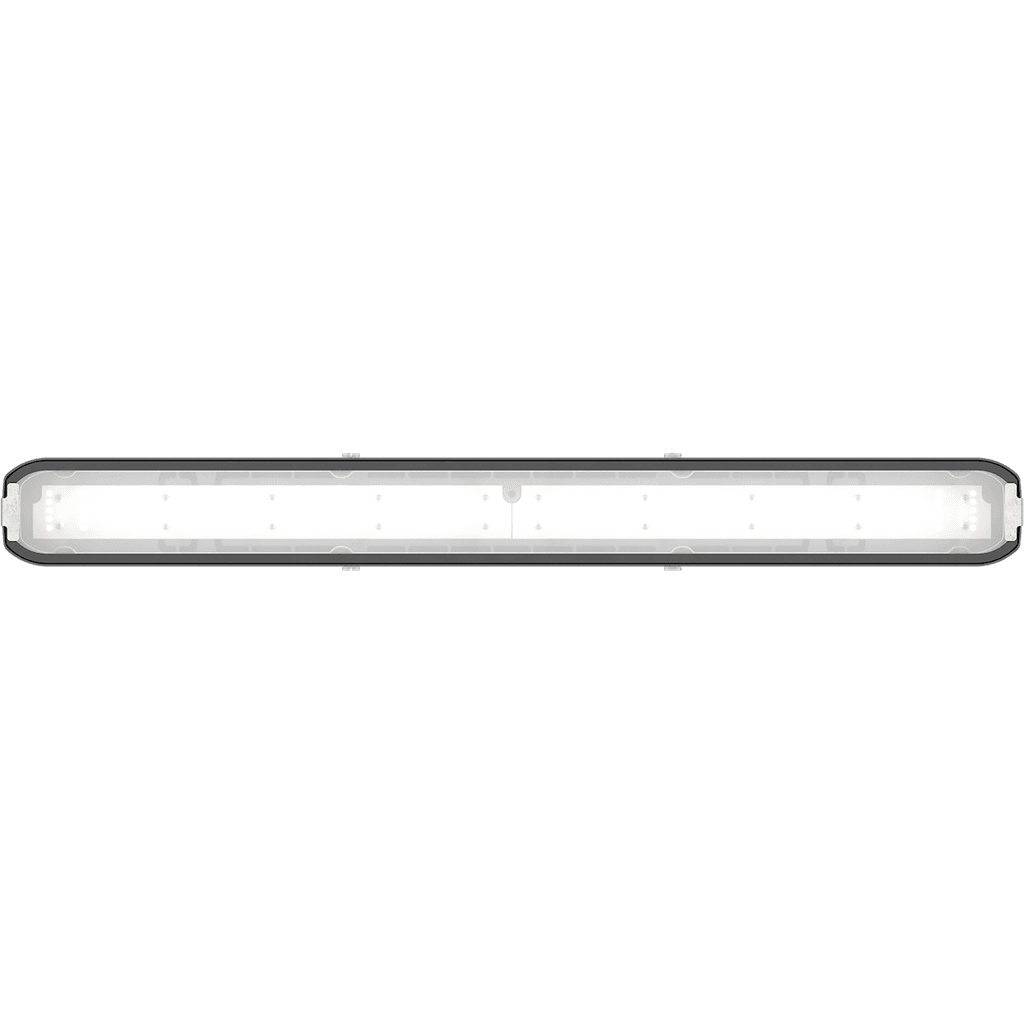

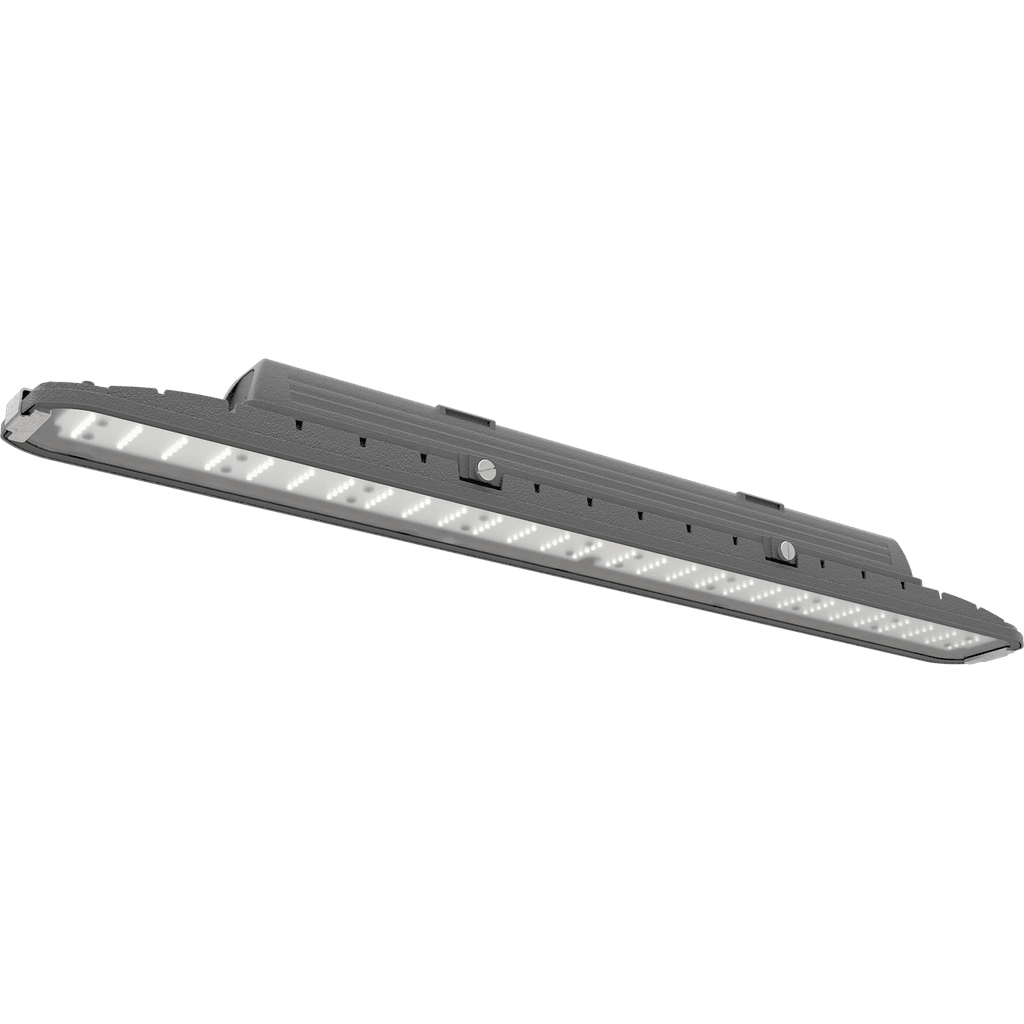

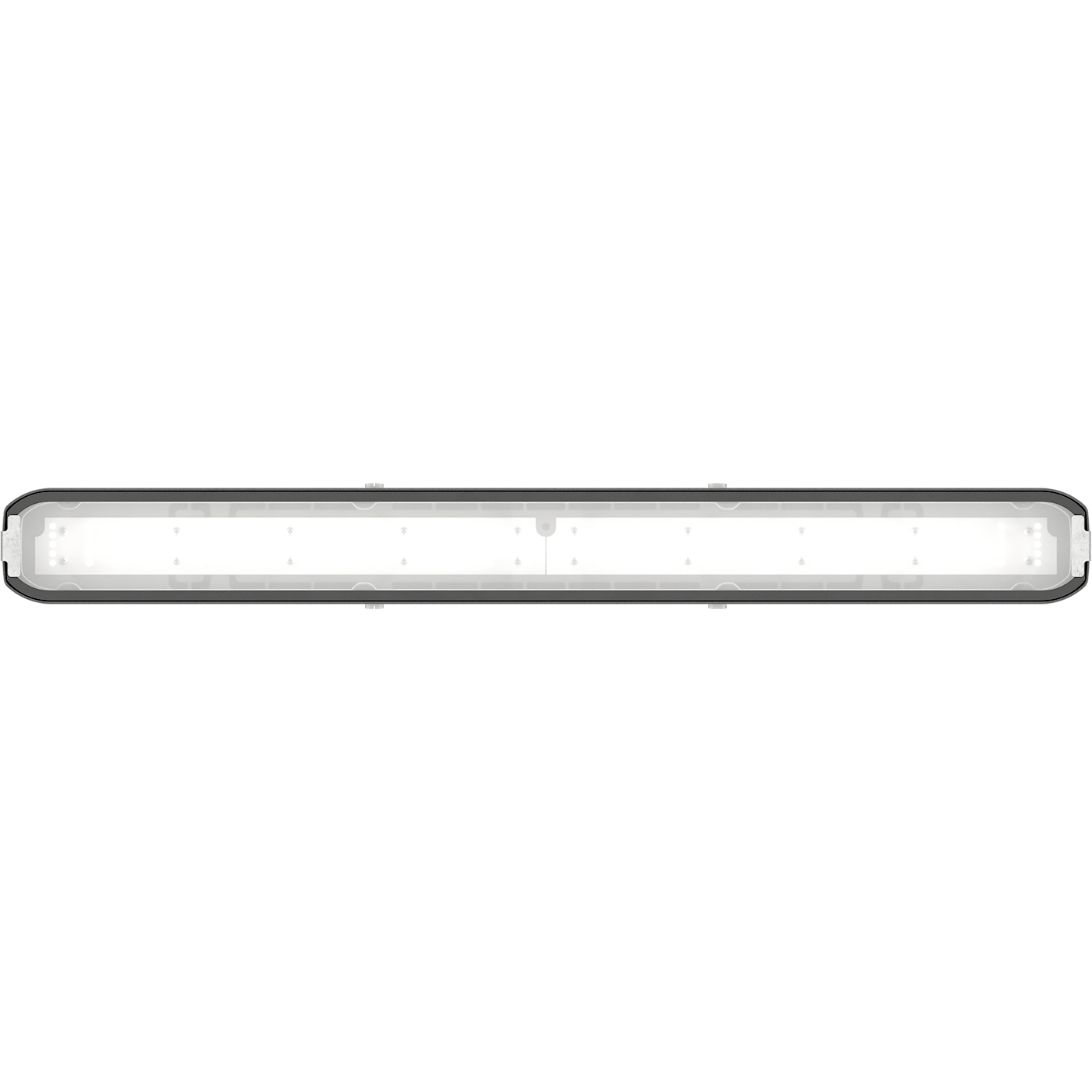

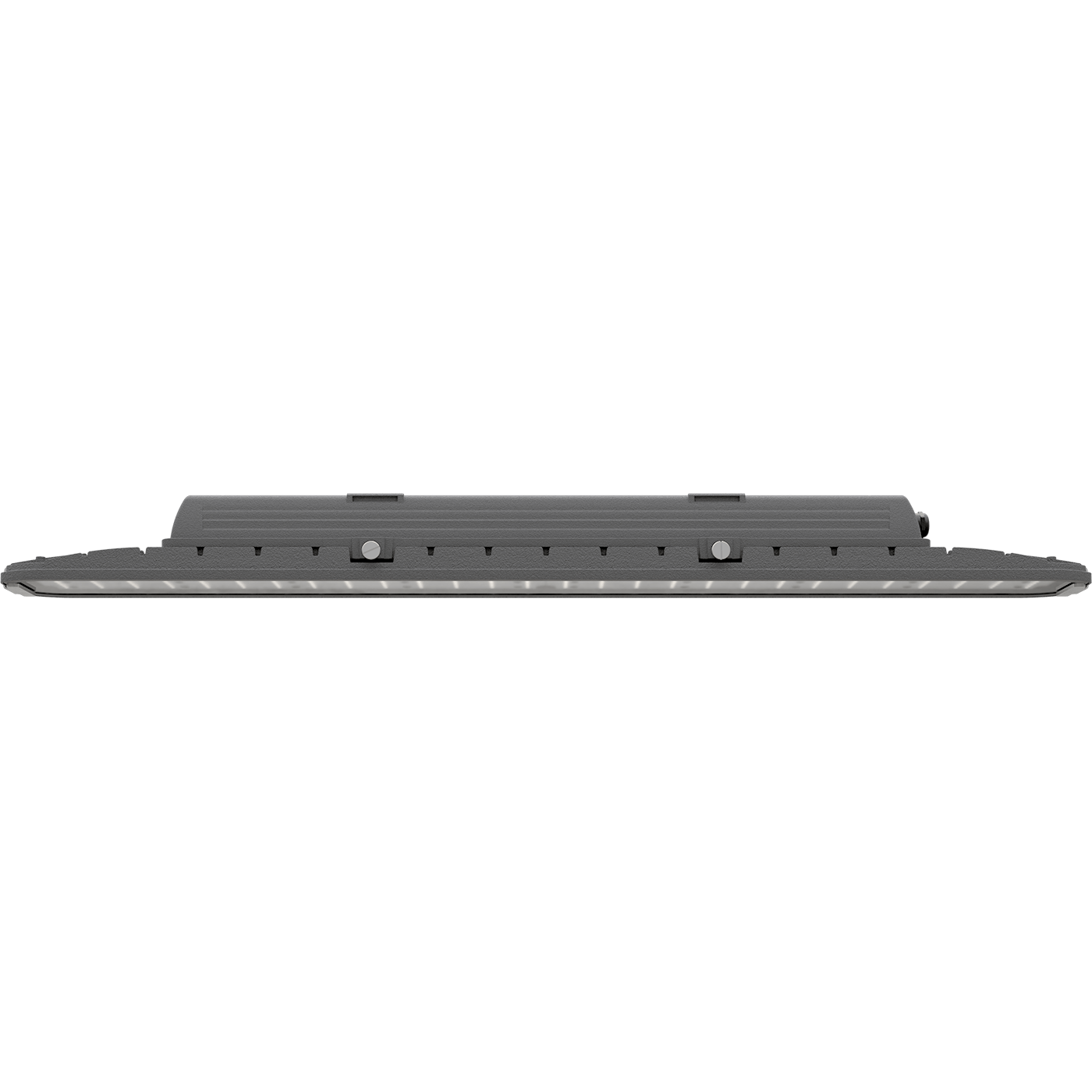

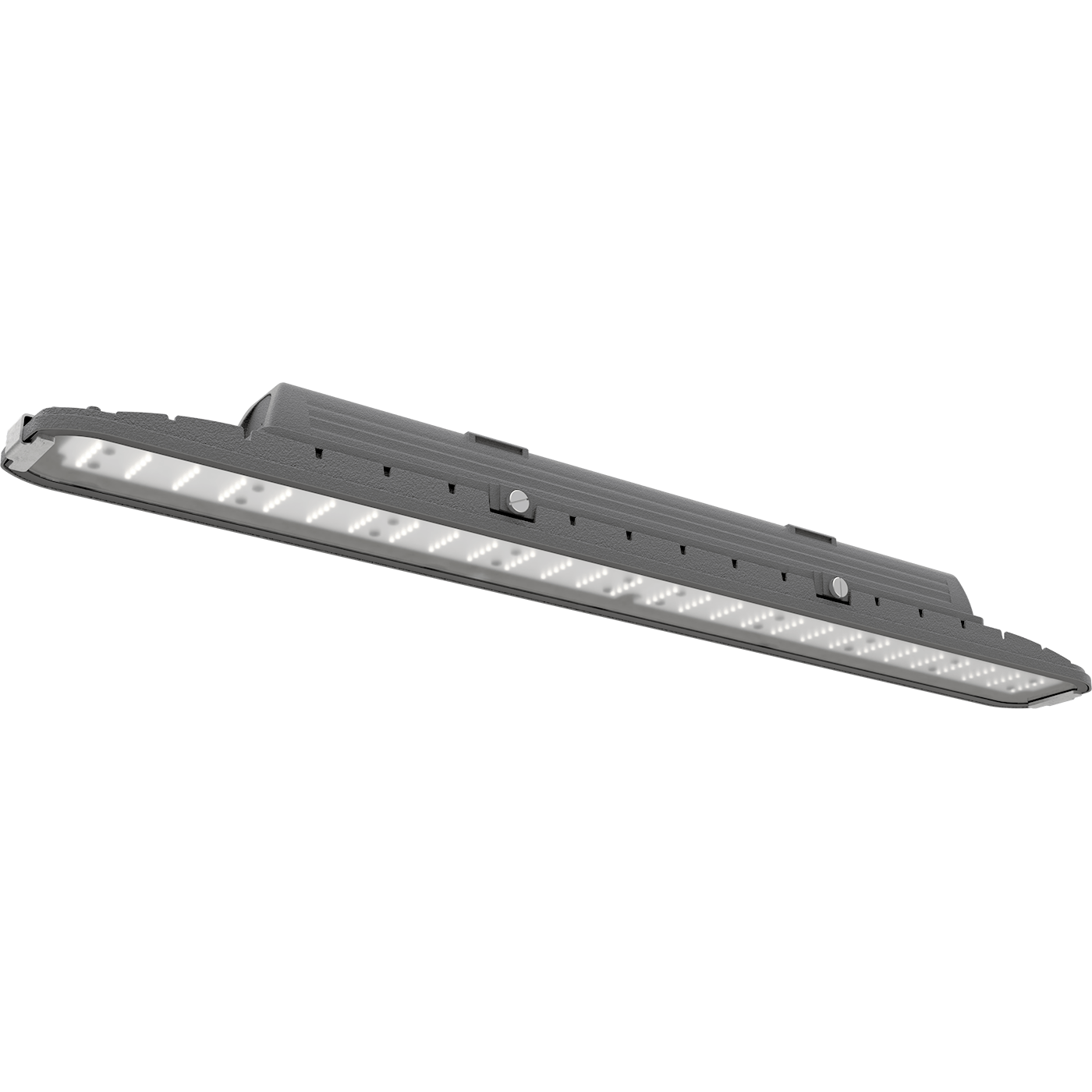

SLICK.PRS LED 50 with driver box /tempered glass/ 5000K

SLICK.PRS LED 50 with driver box /tempered glass/ 5000K
add to favorites
50 Wluminaire power
7350 lmlight flow
147 lm/Wenergy efficiency
code1631001720
color temperature5000
beam angleD120
weight4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. SLICK LED G2
  7. SLICK.PRS LED 50 with driver box /tempered glass/ 5000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP69
fire safety class
П-I,II,IIа
material
Алюминий
weight
4.5 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
960 mm
width, mm
105 mm
height, mm
85 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A++
service life, hour
50 000 h
code
1631001720
illuminating
light flow
7350 lm
flickering factor
<1%
energy efficiency
147 lm/W

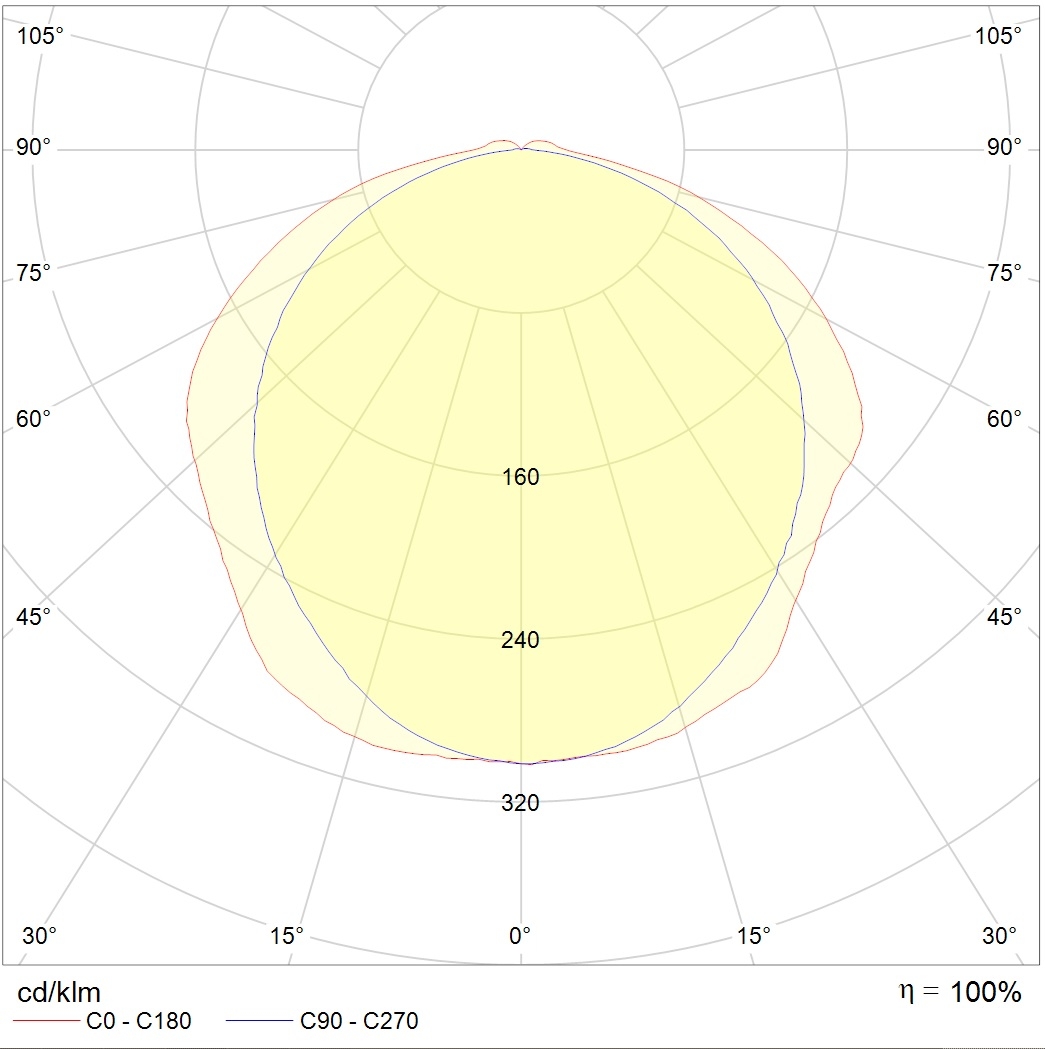

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files
CAD/BIM files
CAD model 3DS907 B
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg127 kB
ldt207 kB
csv446 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS907 B
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg127 kB
ldt207 kB
csv446 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
