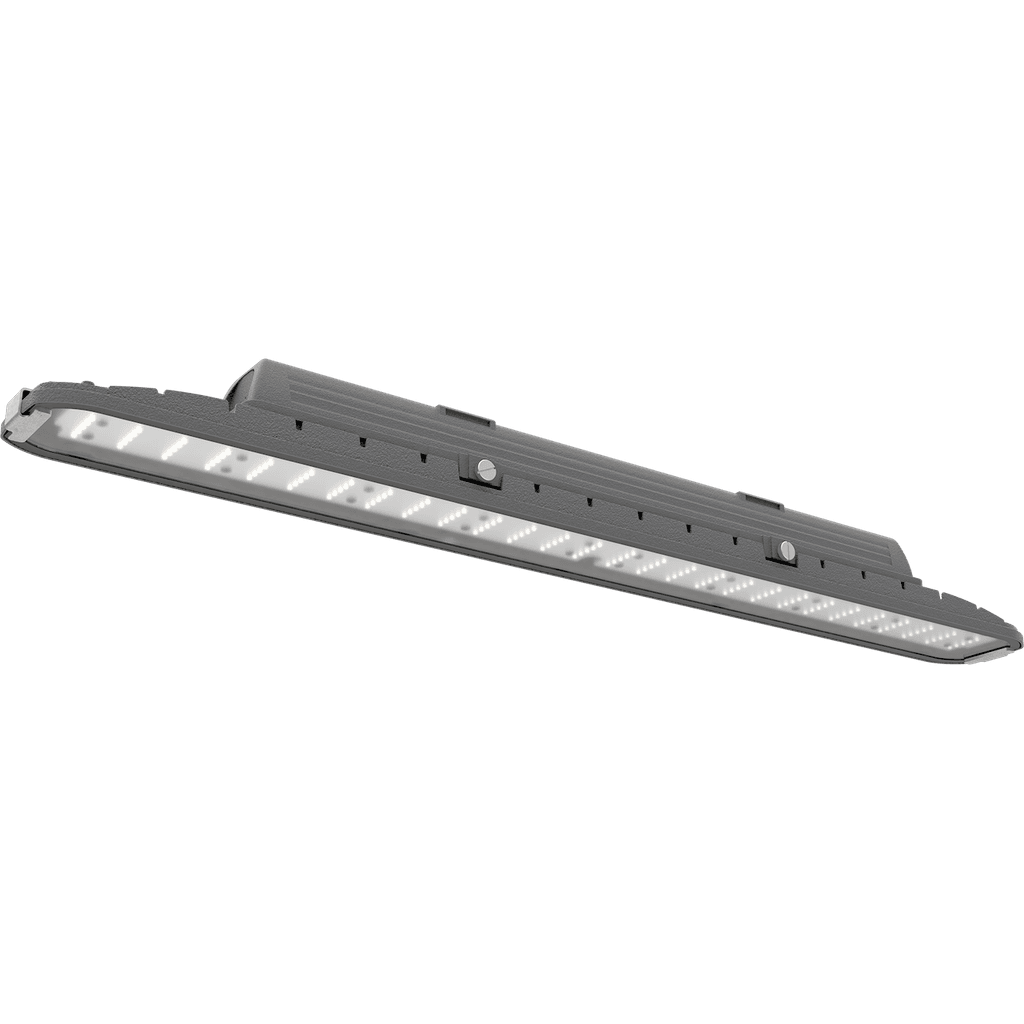

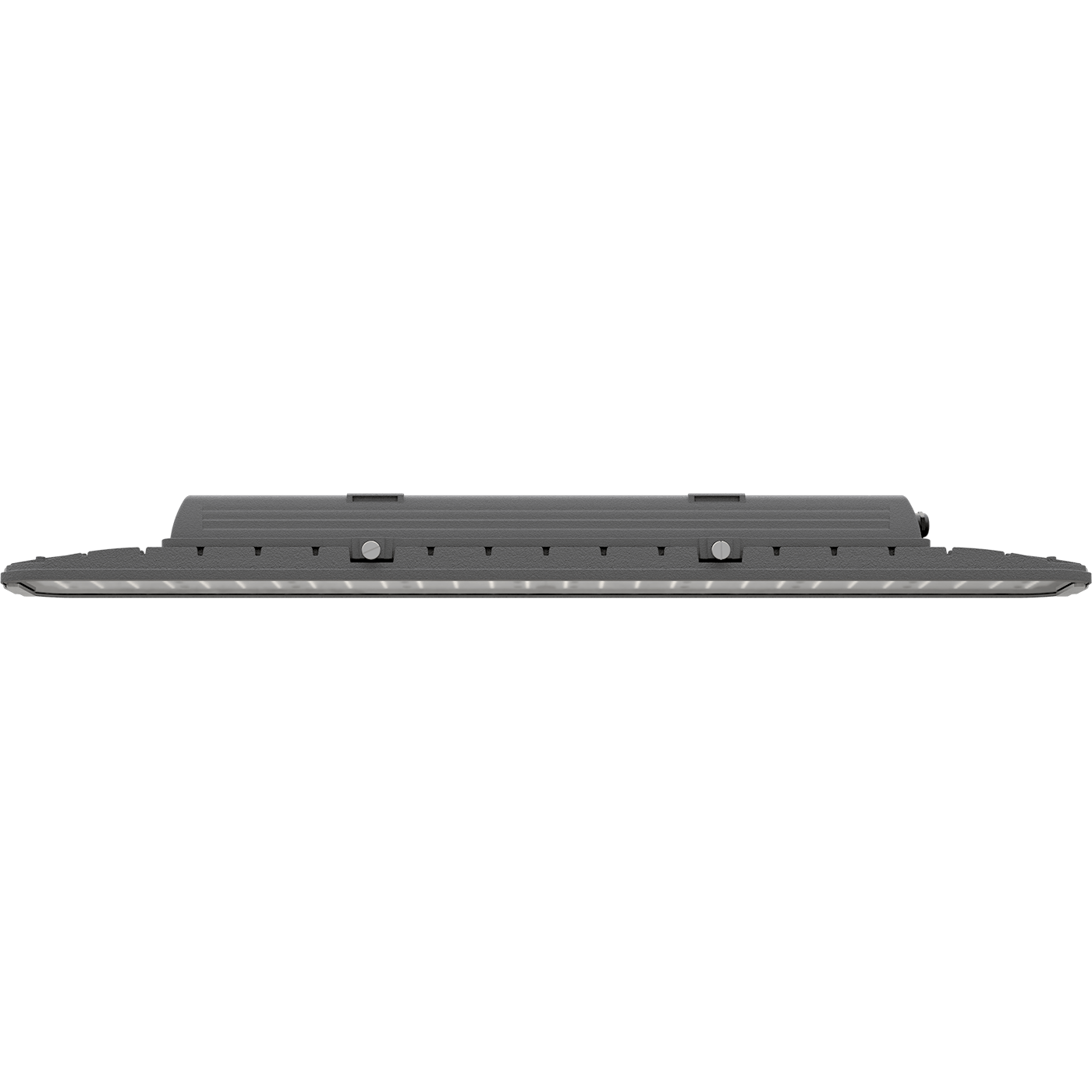

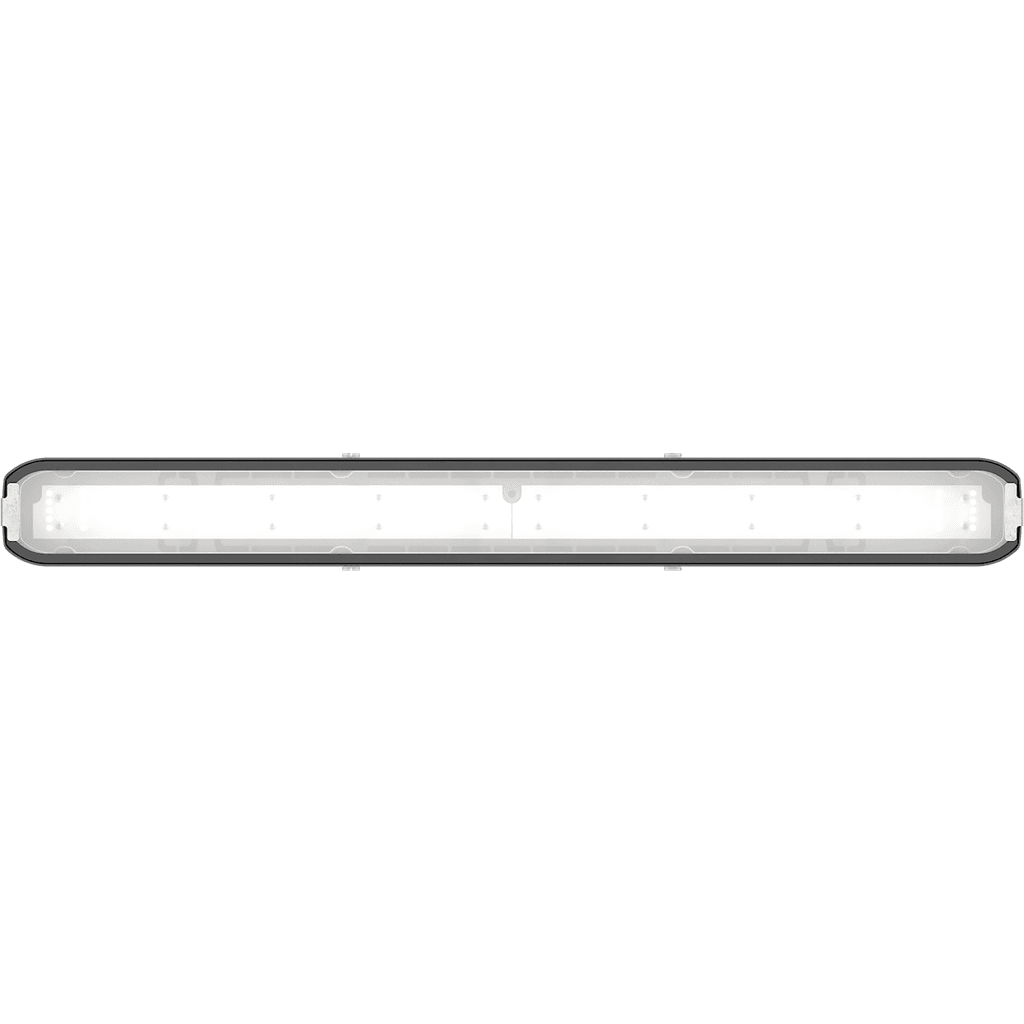

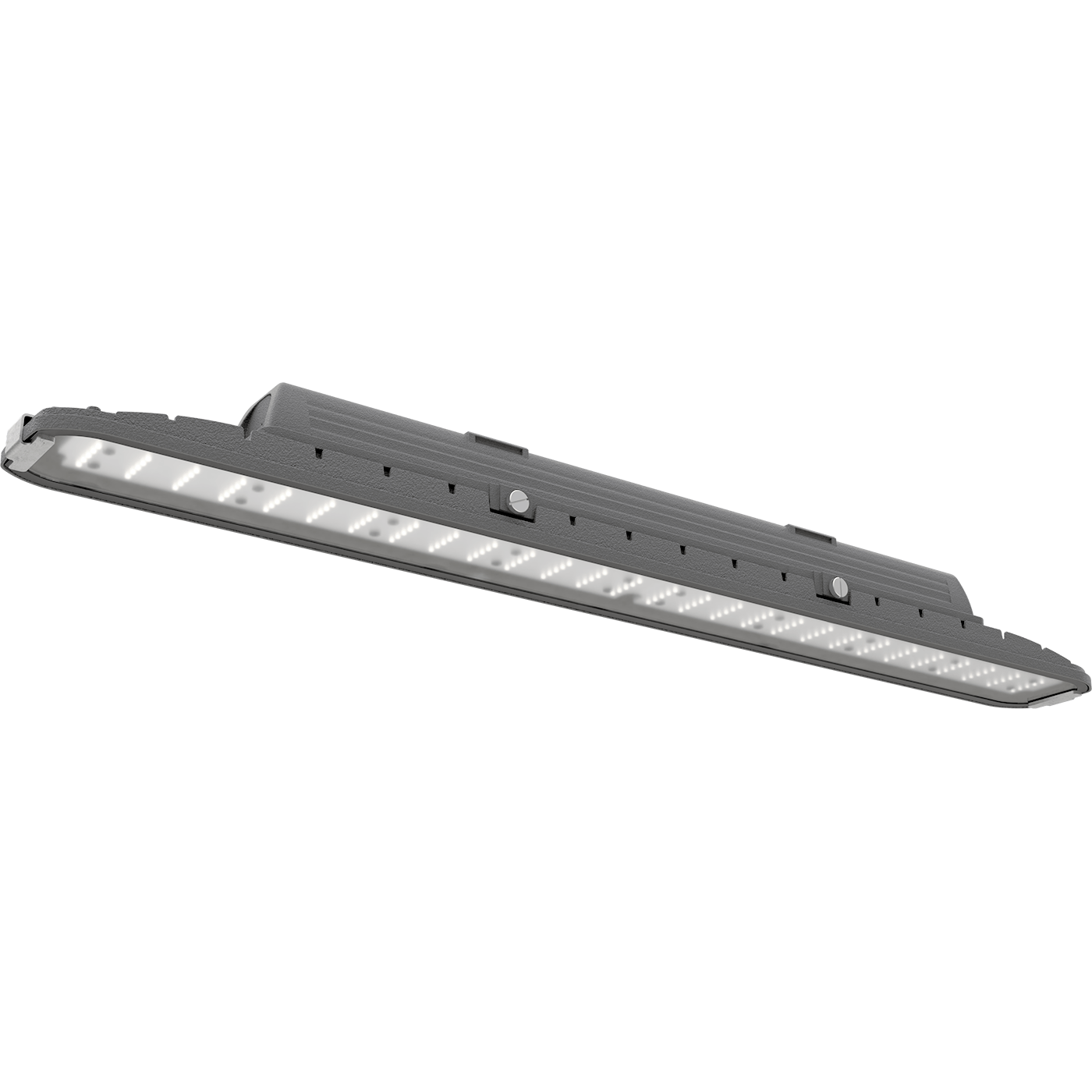

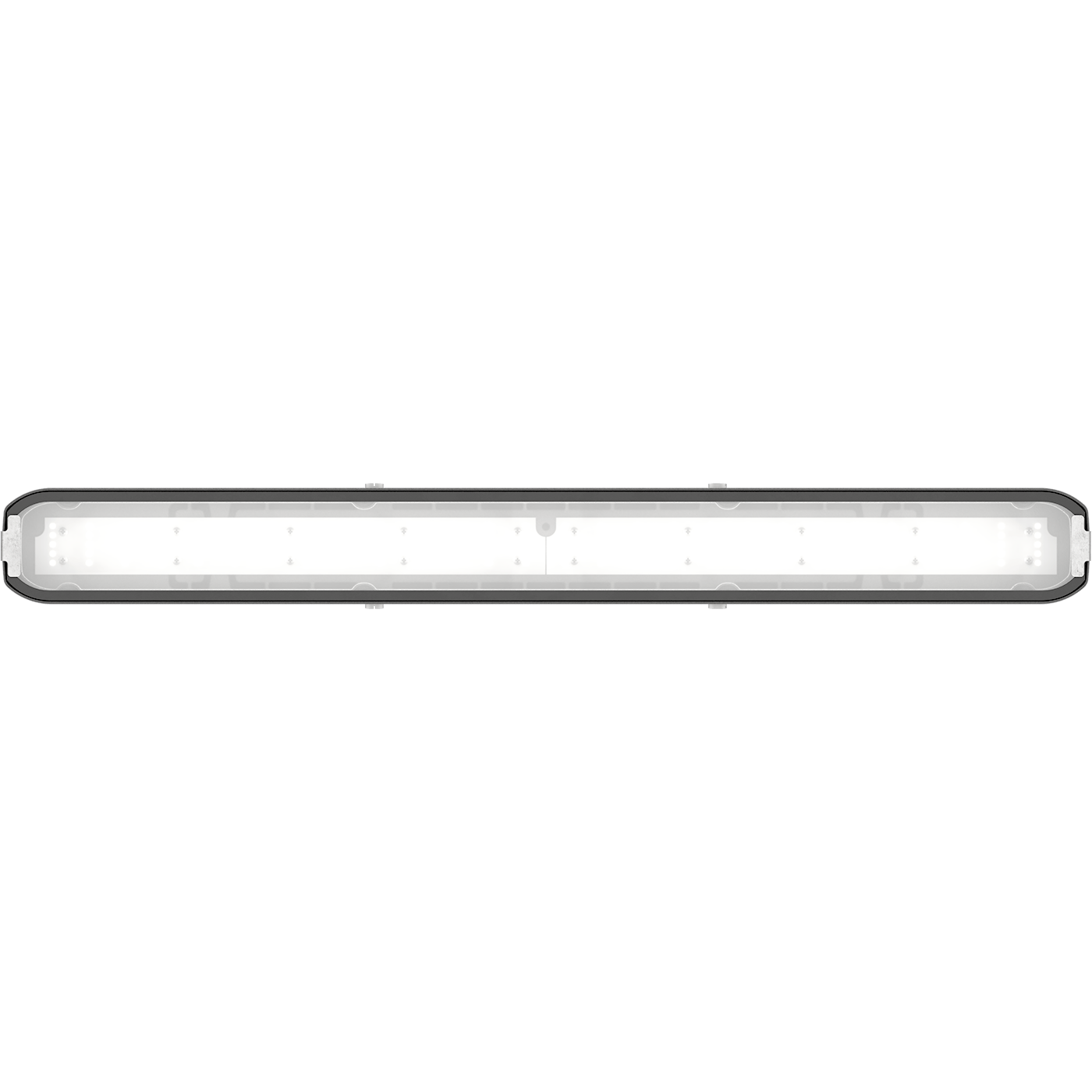

SLICK.PRS LED 30 with driver box /tempered glass/ 5000K

SLICK.PRS LED 30 with driver box /tempered glass/ 5000K
add to favorites
30 Wluminaire power
4500 lmlight flow
150 lm/Wenergy efficiency
code1631001710
color temperature5000 K
beam angleD120
performance factor100
weight4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. surface-mounted
  8. SLICK LED G2
  9. SLICK.PRS LED 30 with driver box /tempered glass/ 5000K
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
150 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
150 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +50 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Настенно-потолочный светильник
code
1631001710
model files
model files
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies134.1 kB
jpg126.2 kB
ldt105.5 kB
csv446 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies134.1 kB
jpg126.2 kB
ldt105.5 kB
csv446 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
