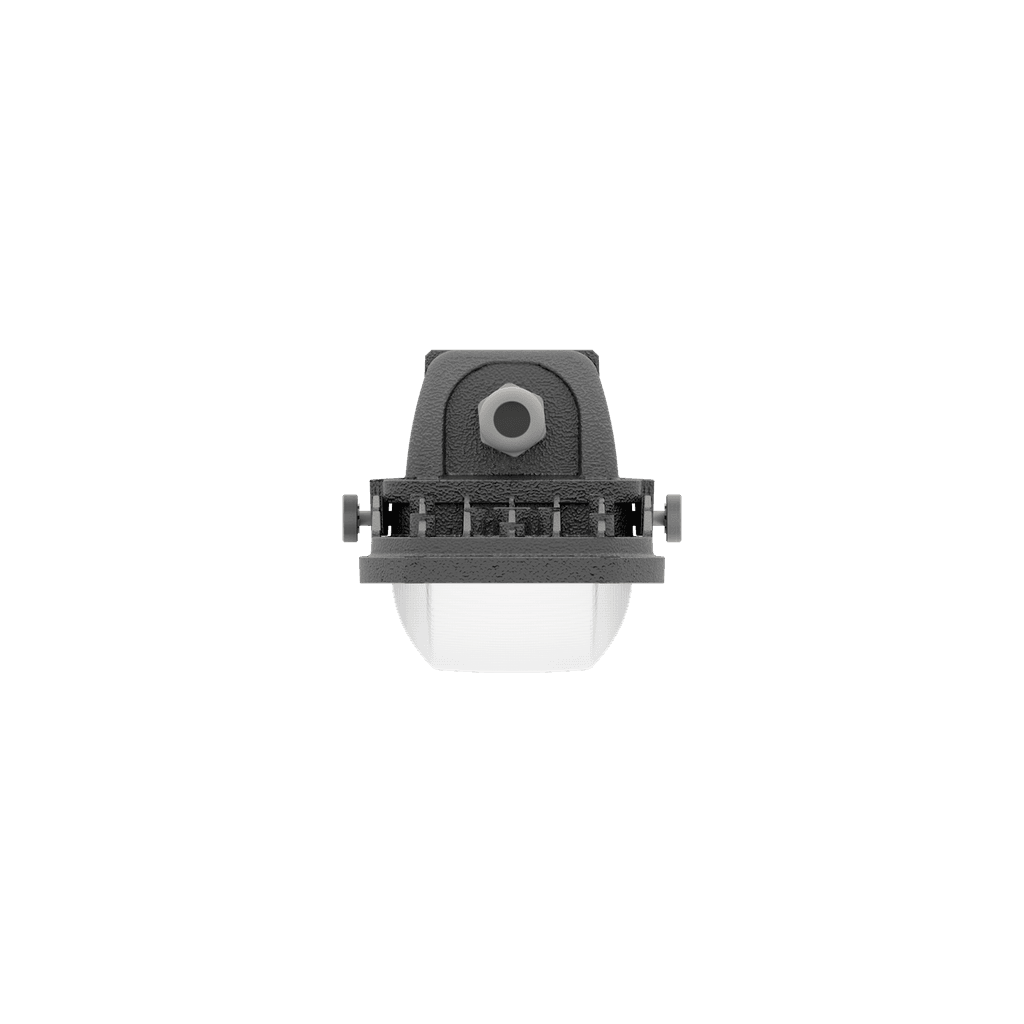

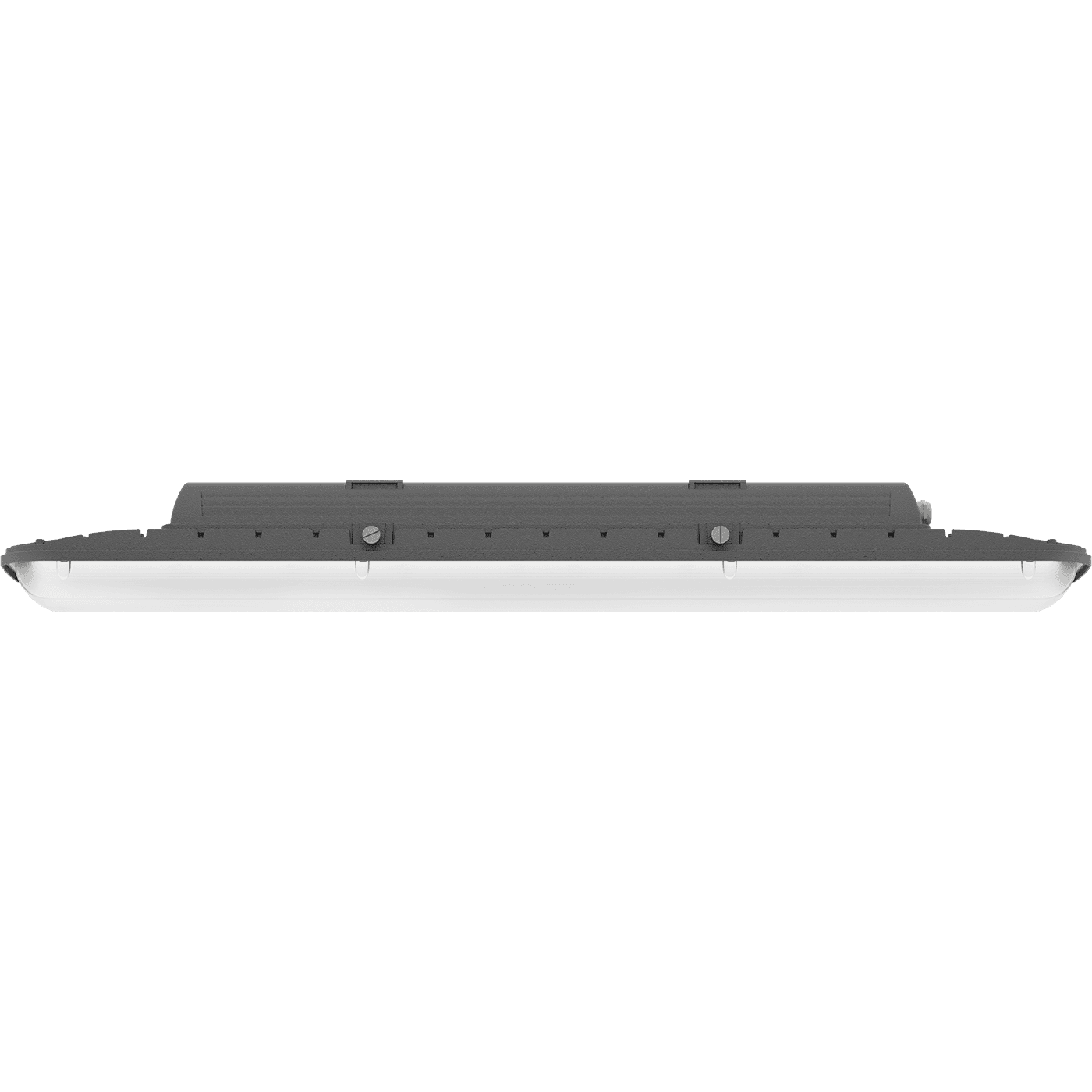

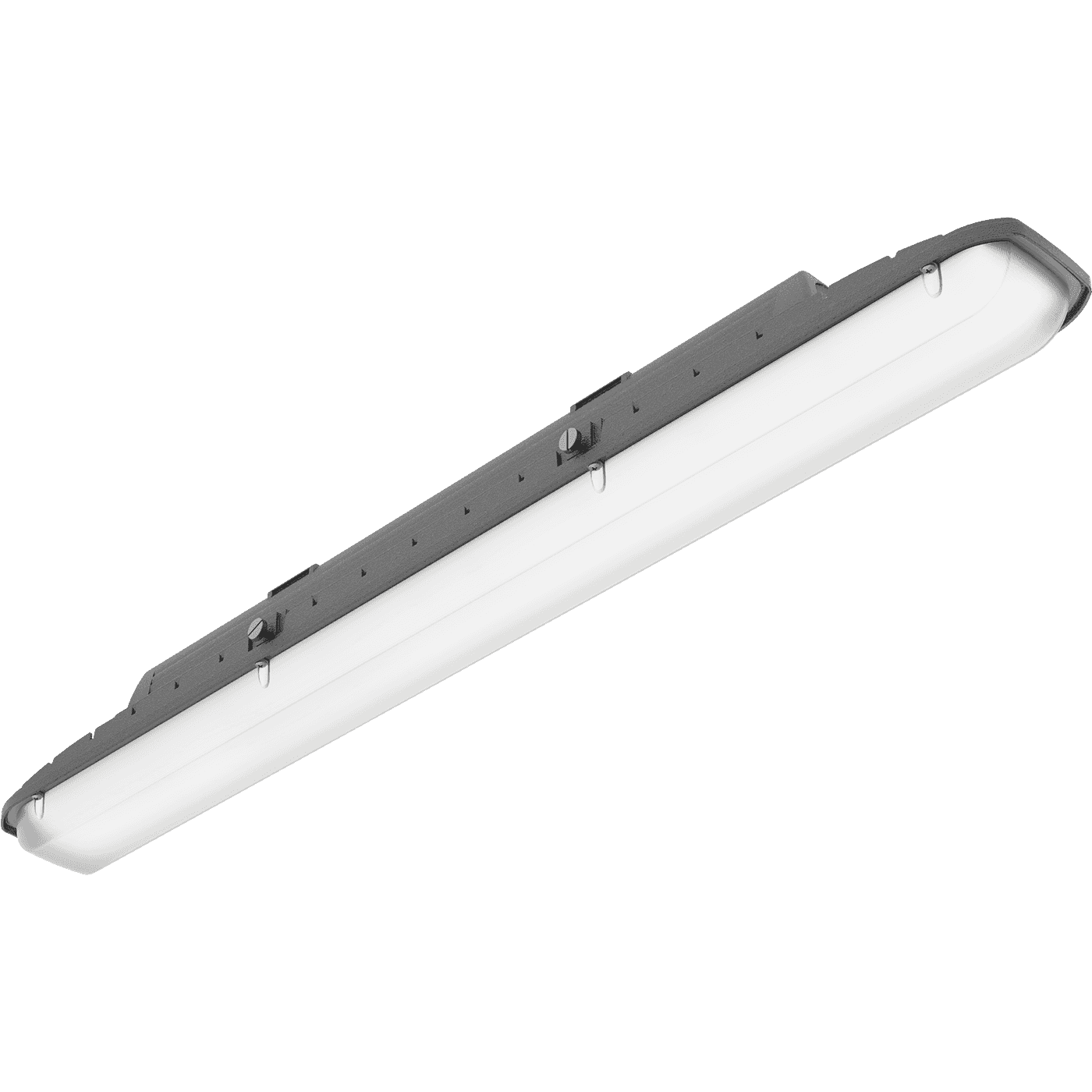

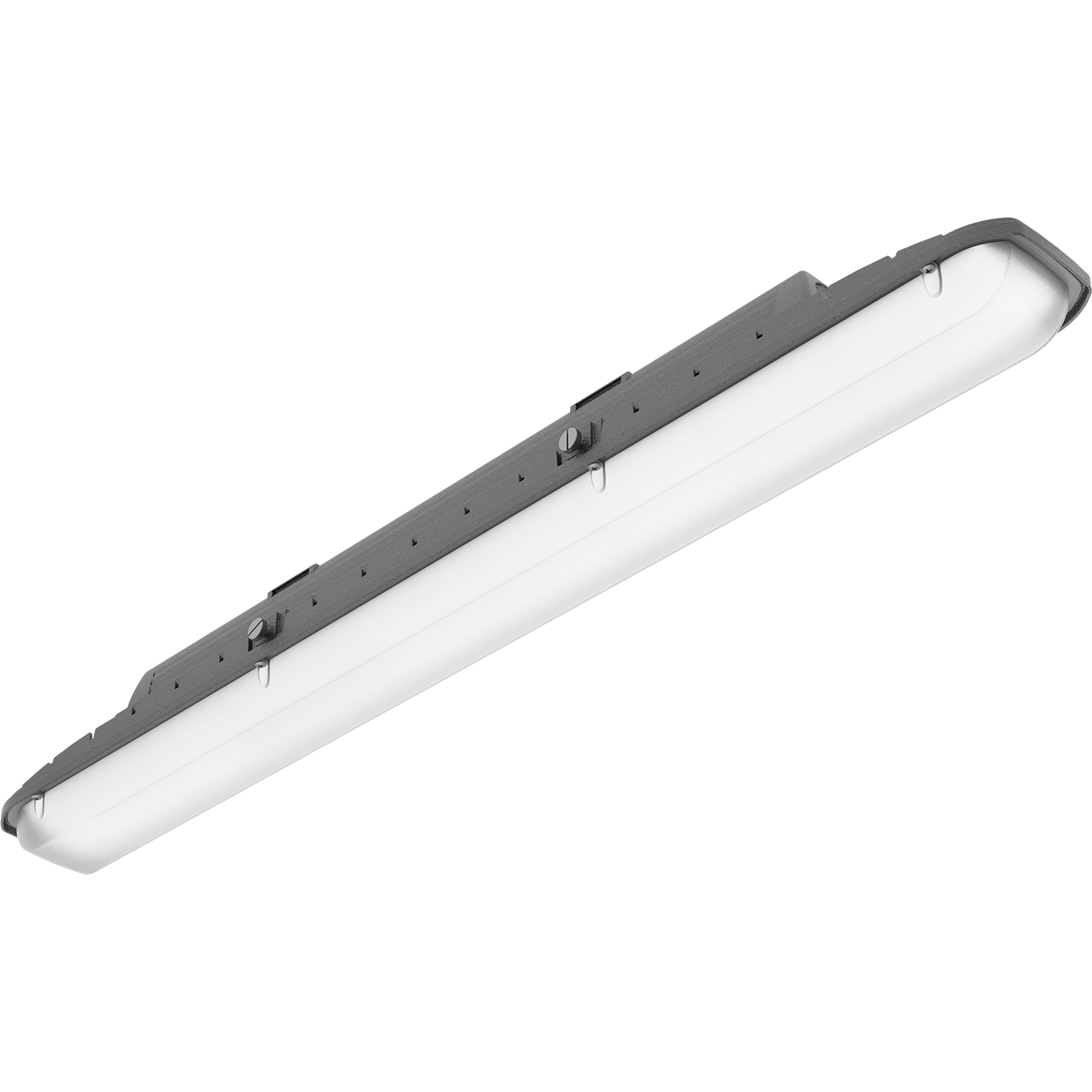

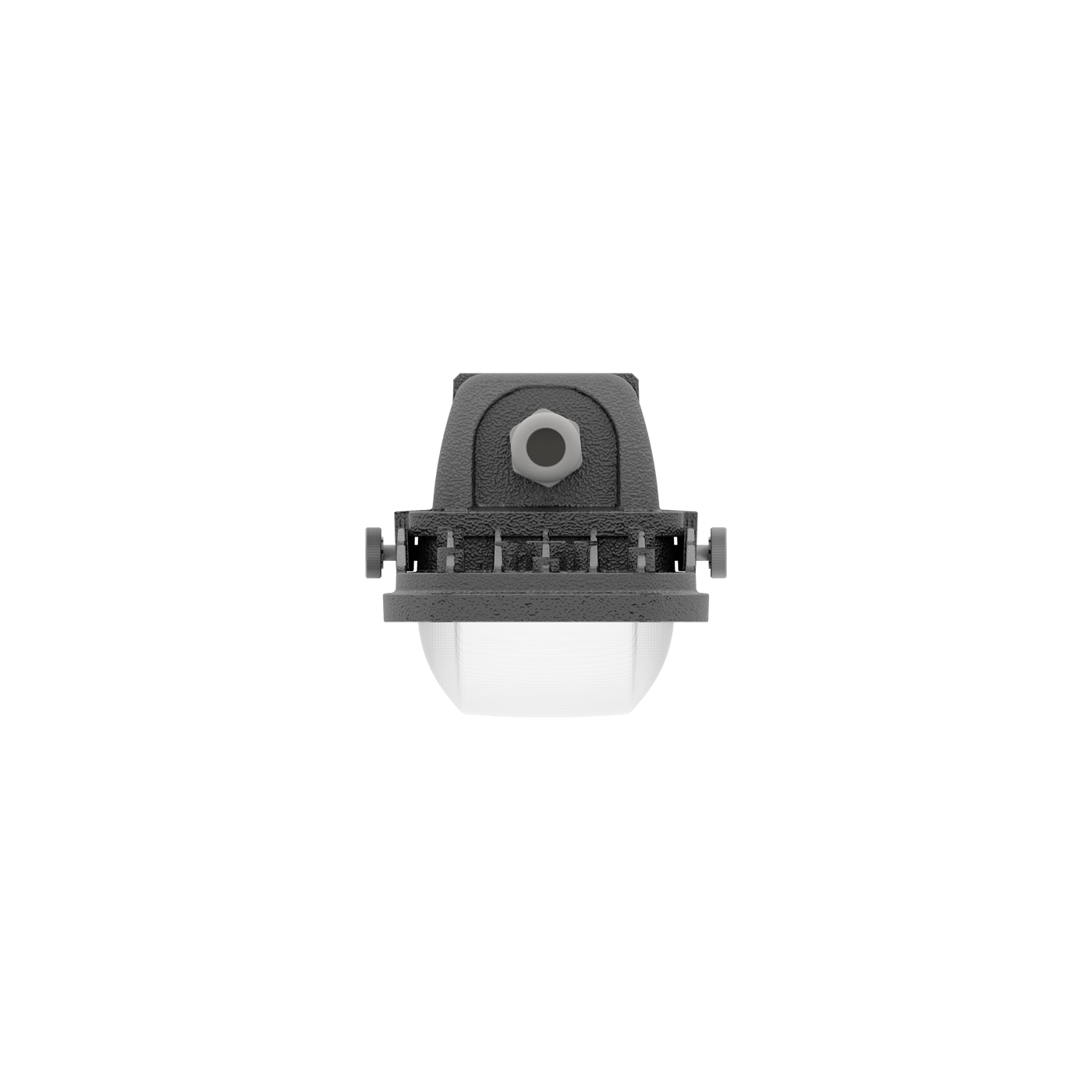

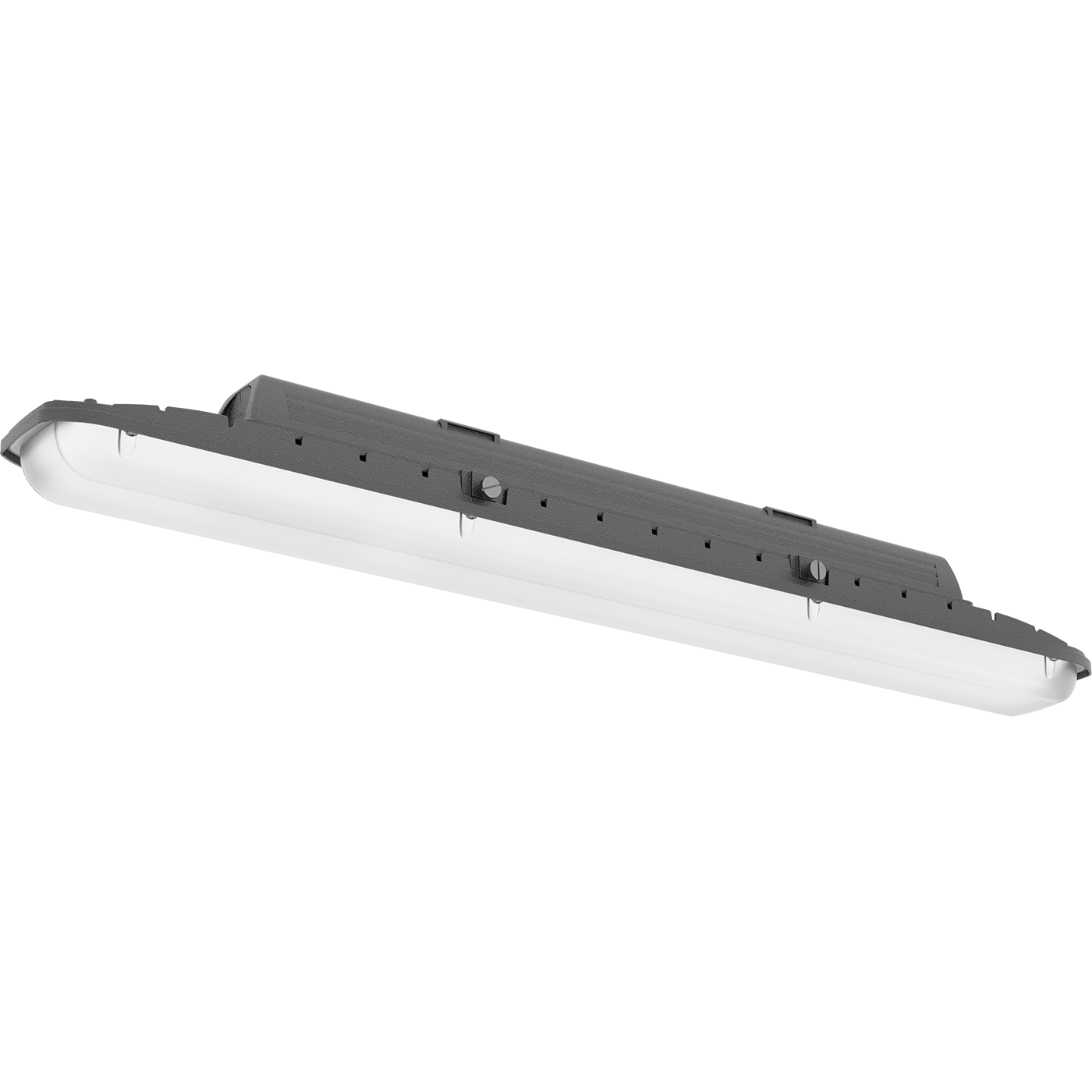

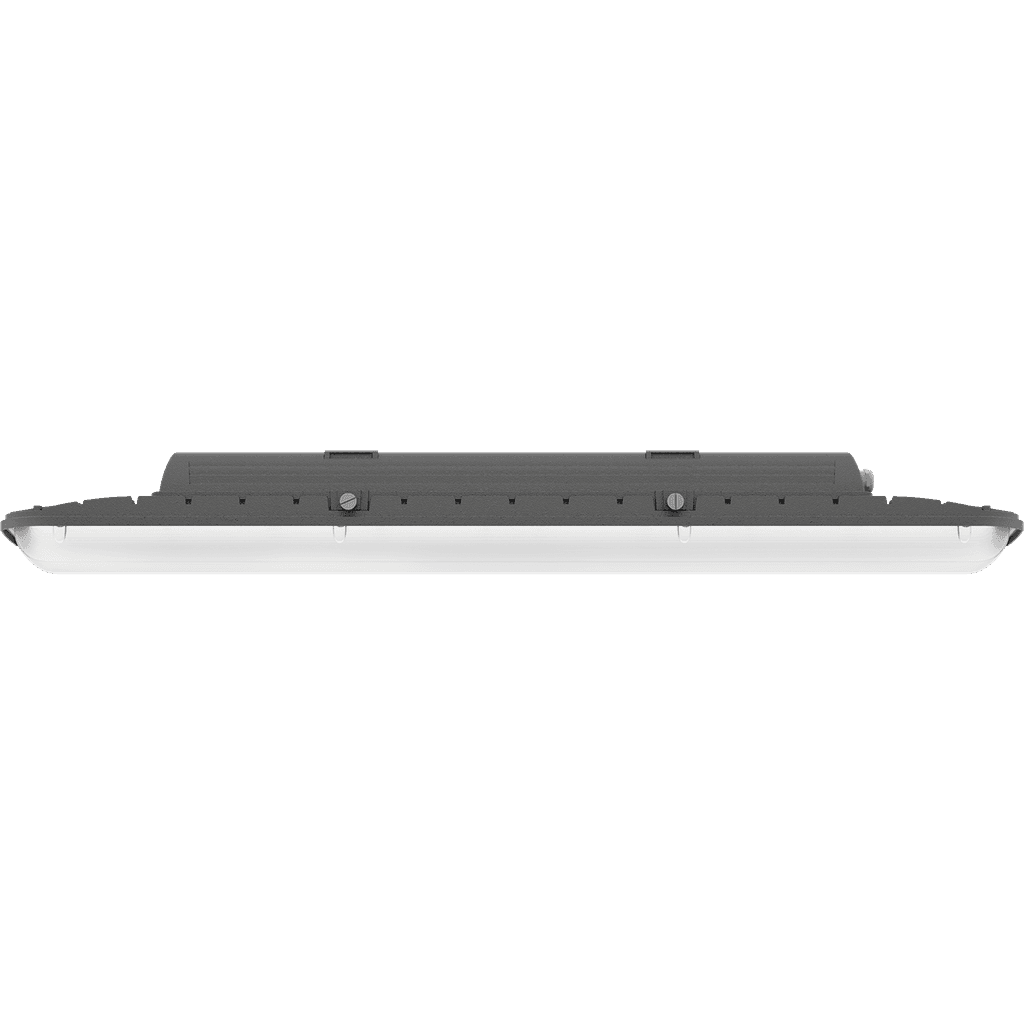

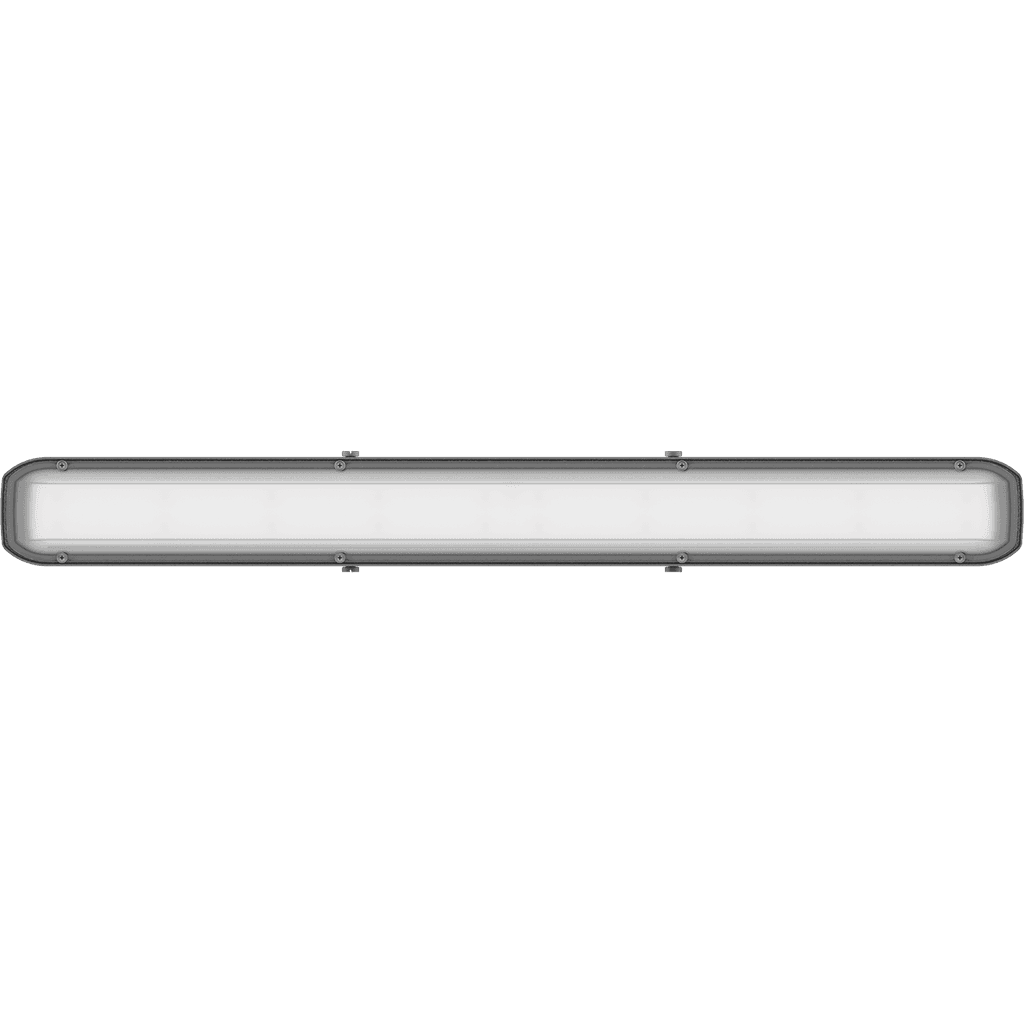

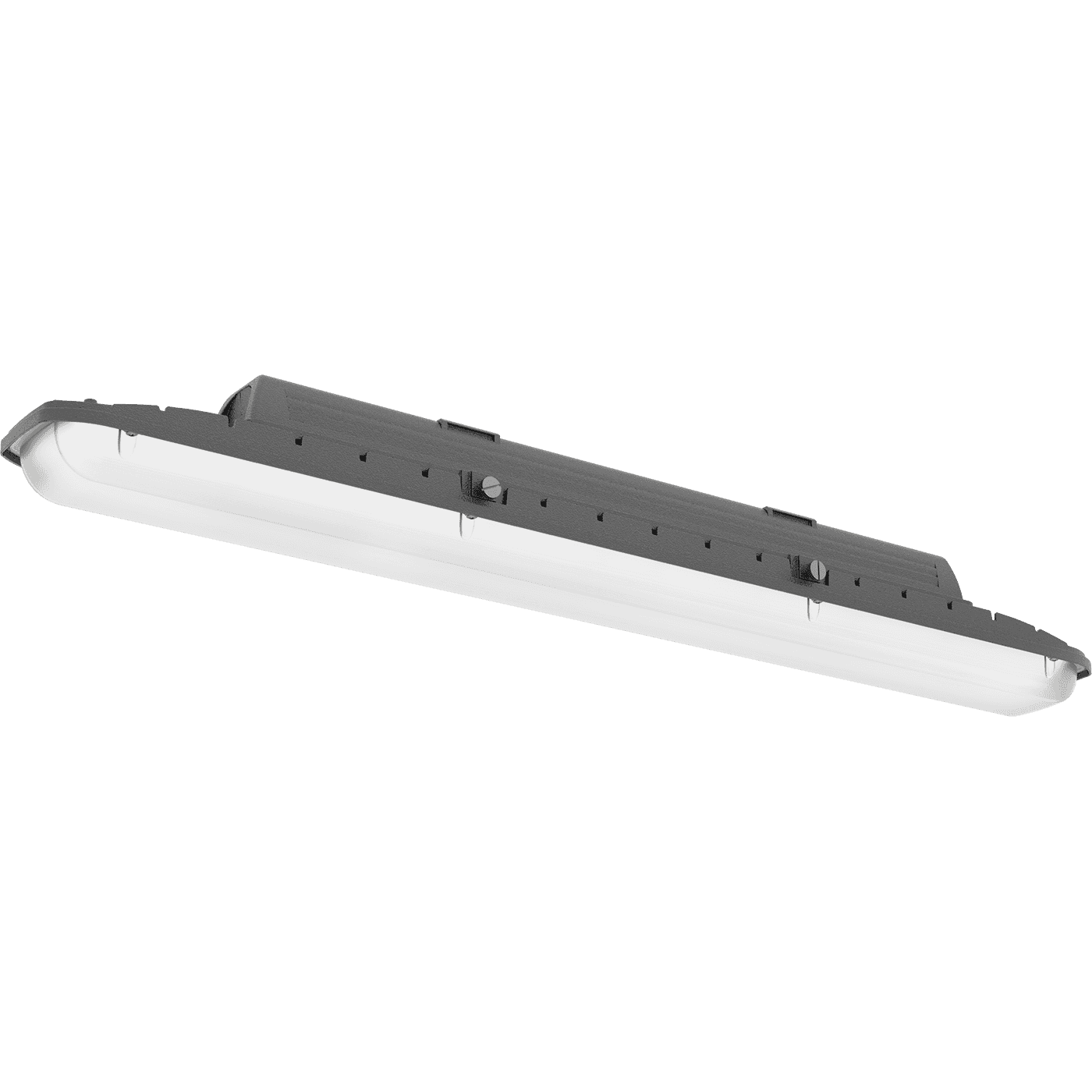

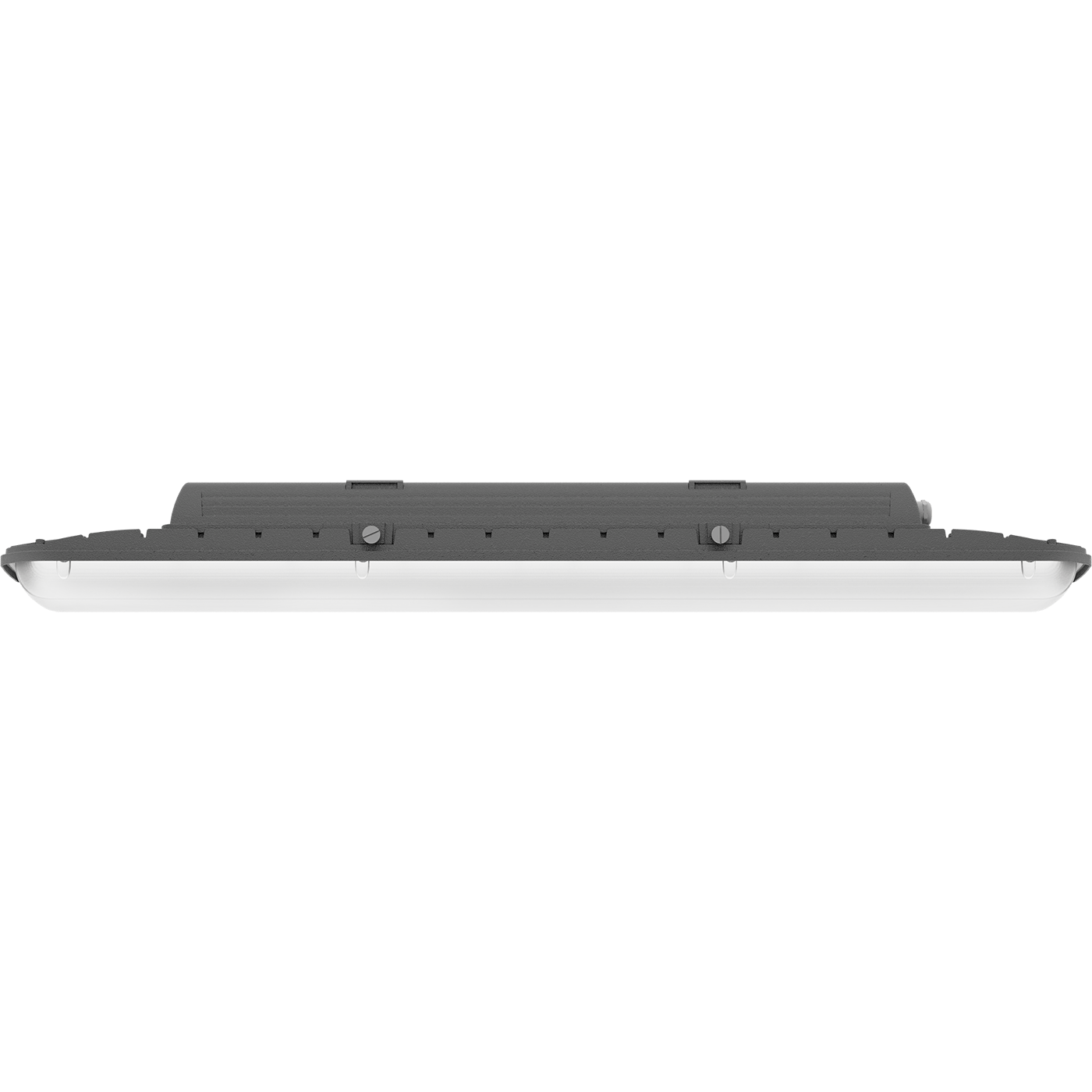

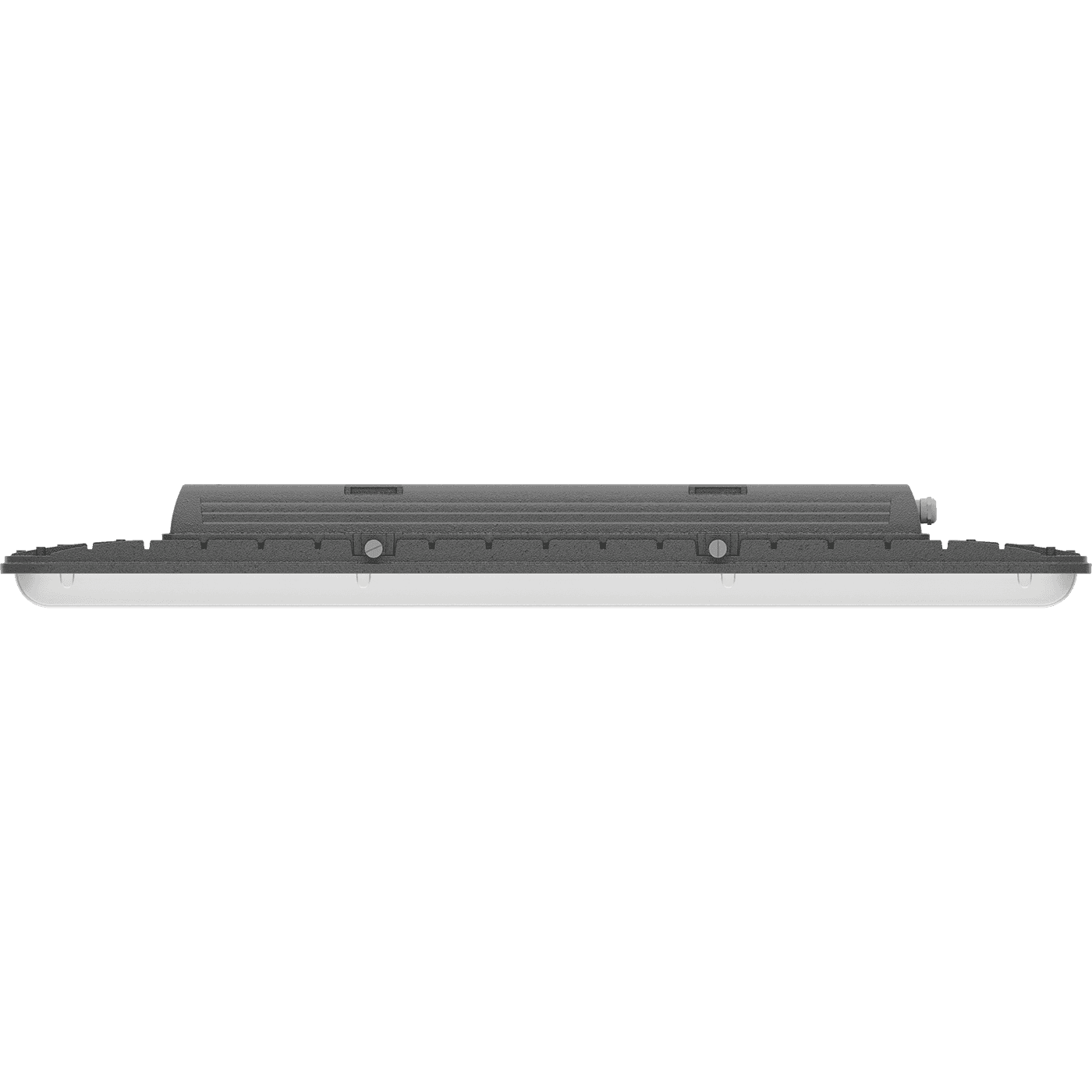

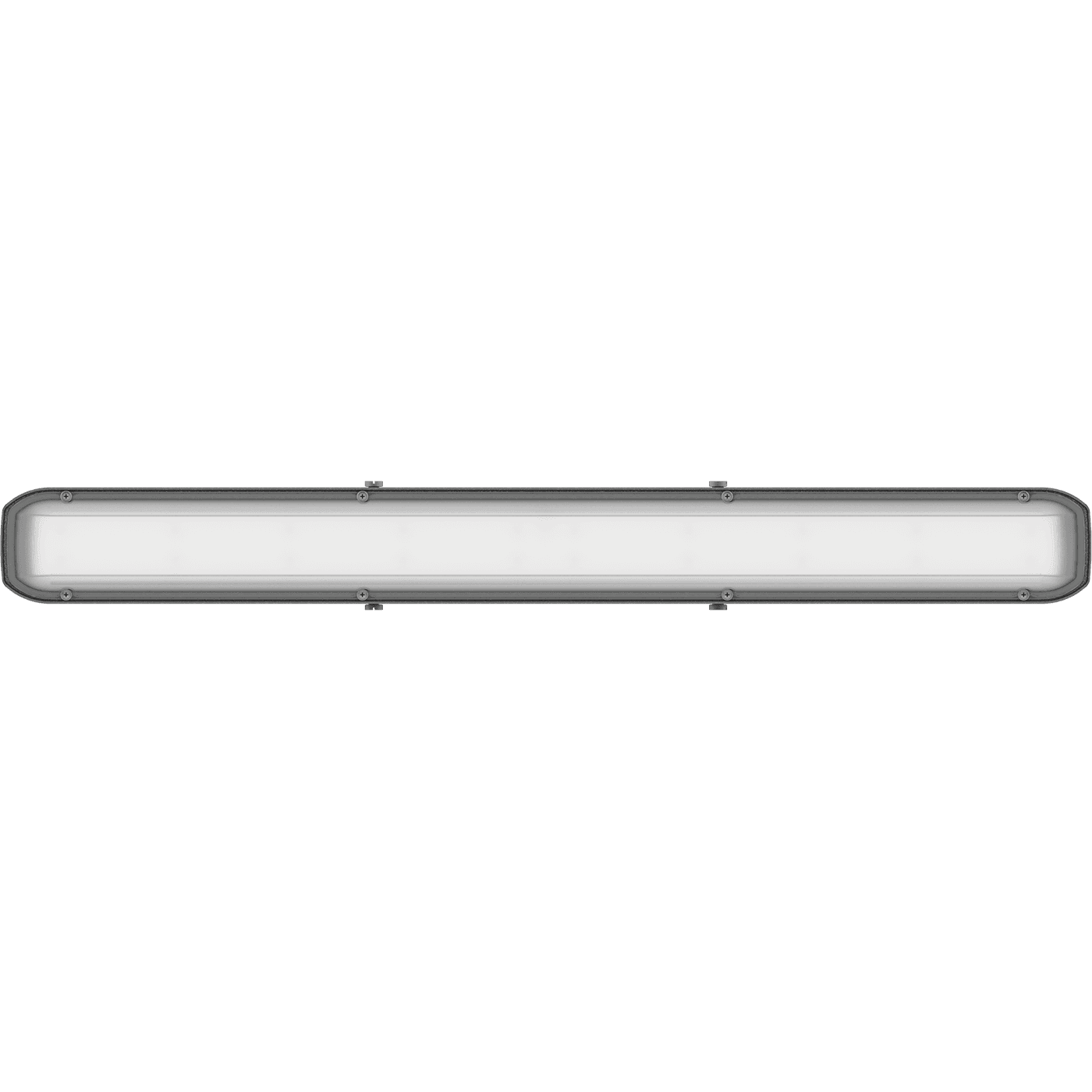

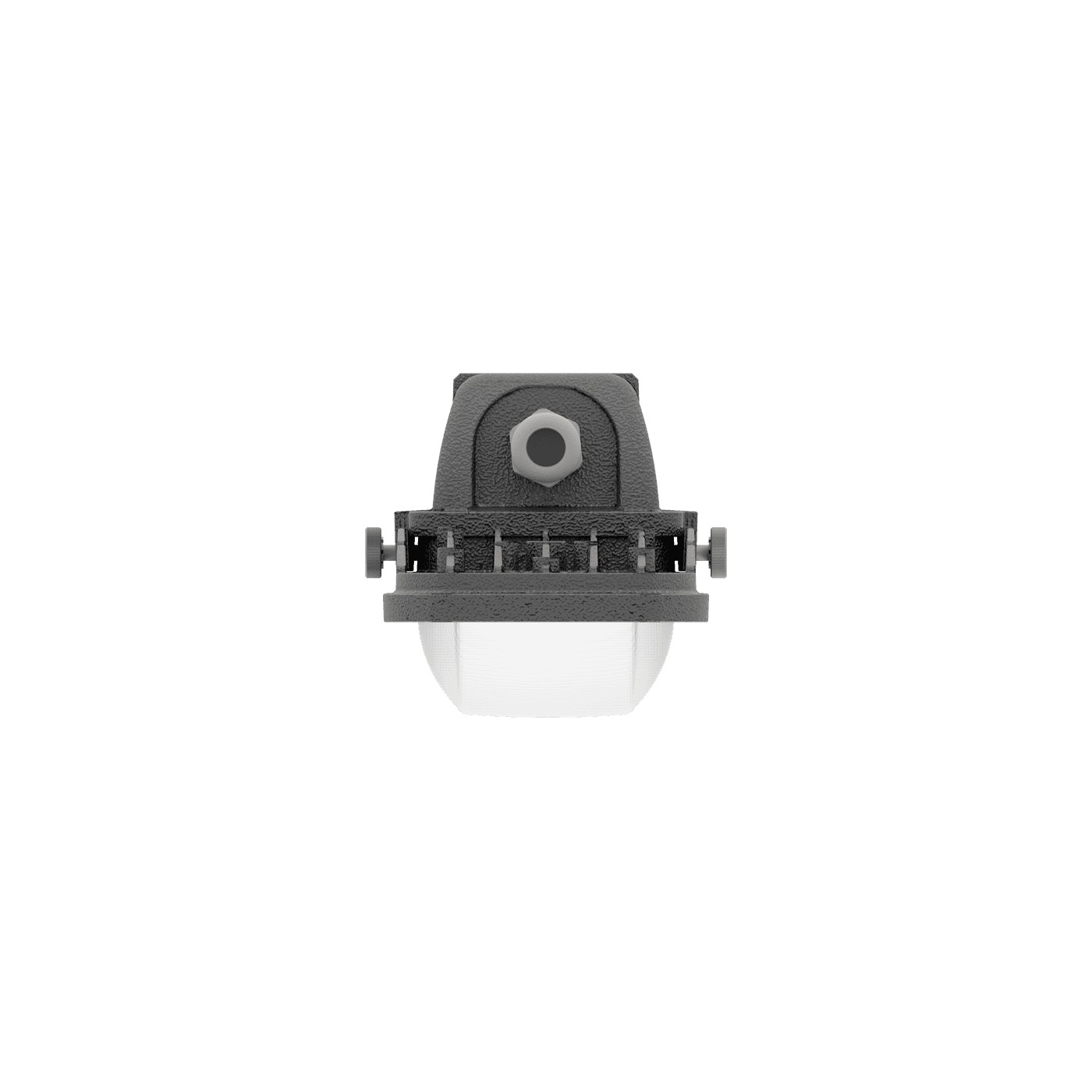

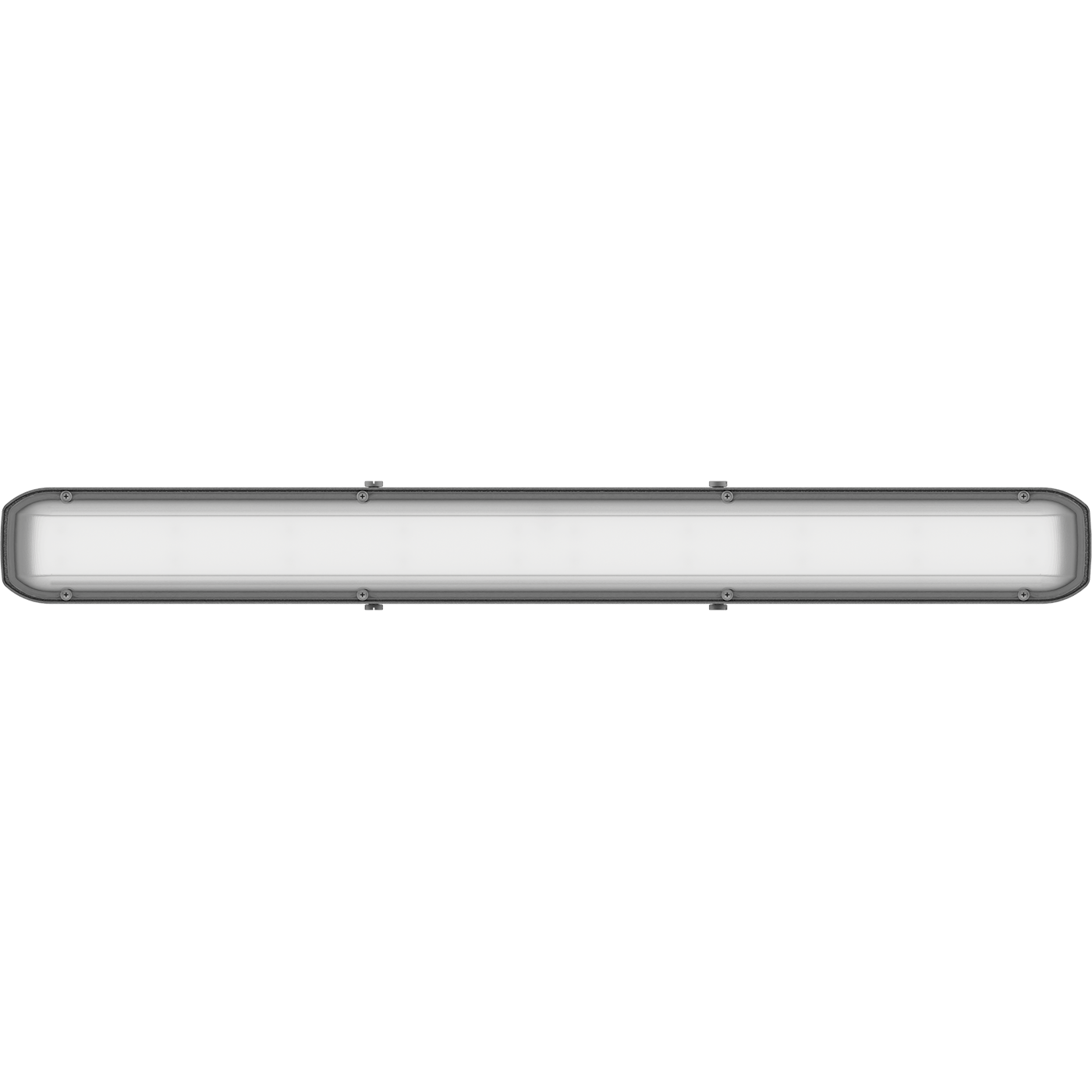

SLICK.PRS LED 30 with driver box 4000K
SLICK.PRS LED 30 with driver box 4000K
31 Wluminaire power
3950 lmlight flow
127 lm/Wenergy efficiency
code
1631003290
color temperature
4000 K
beam angle
D120
performance factor
100
weight
3.7 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
127 lm/Wcolor rendition index (CRI)
>80light flow
3950 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
127 lm/W
color rendition index (CRI)
>80
light flow
3950 lm
flickering factor
<1%

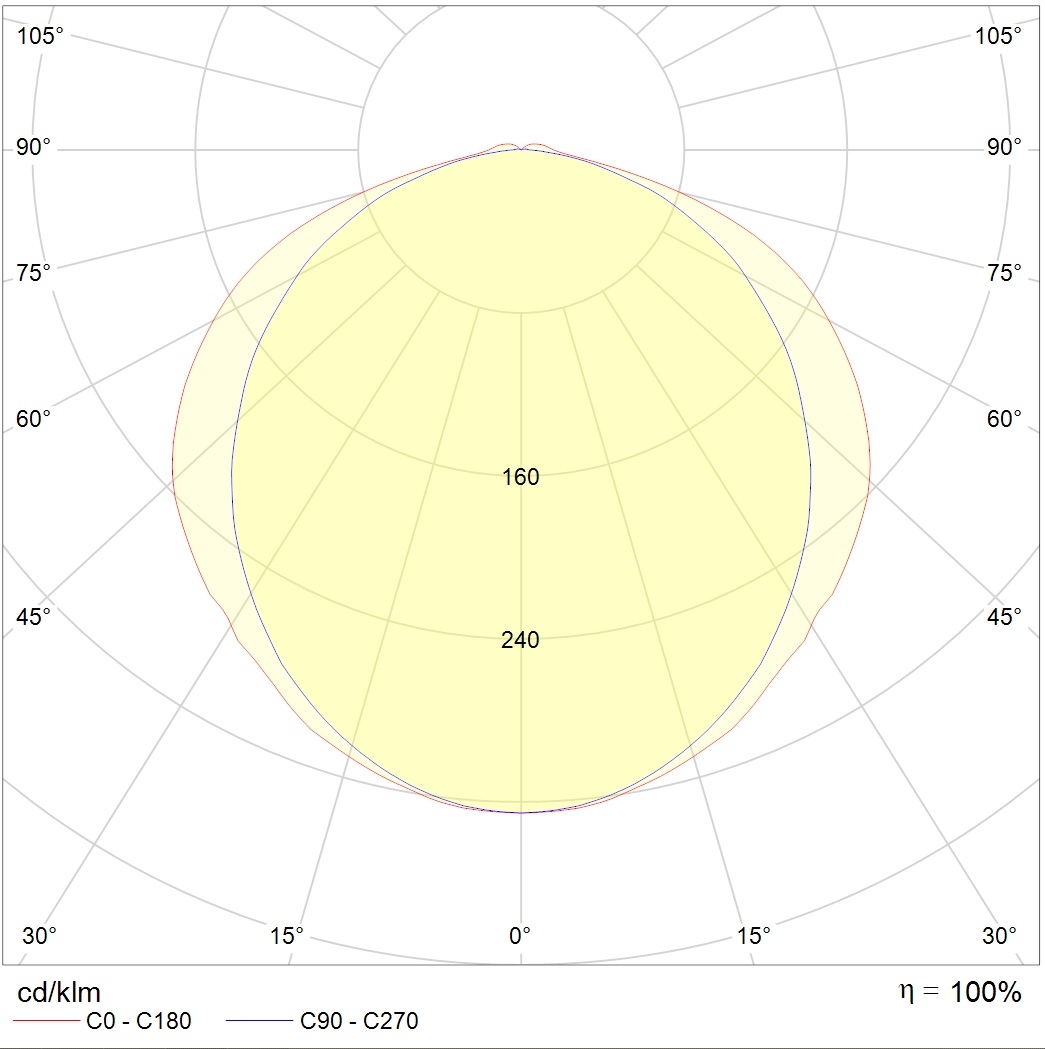

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
luminaire power
31 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
955 mm
width
105 mm
height
115 mm
installation length
574 mm
weight
3.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
material
Алюминий
housing color
Серый
mounting type
Накладной
lamp socket
LED
number of lamps
1
ballast
Драйвер
тип потолка
основной (опорный)
emergency
emergency power supply
Нет
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1631003290
model files
model files
photometric files
documents
сертификаты
media
photometric files
ies54.6 kB
jpg125.9 kB
ldt41.6 kB
csv429 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
media
brochure5.7 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
