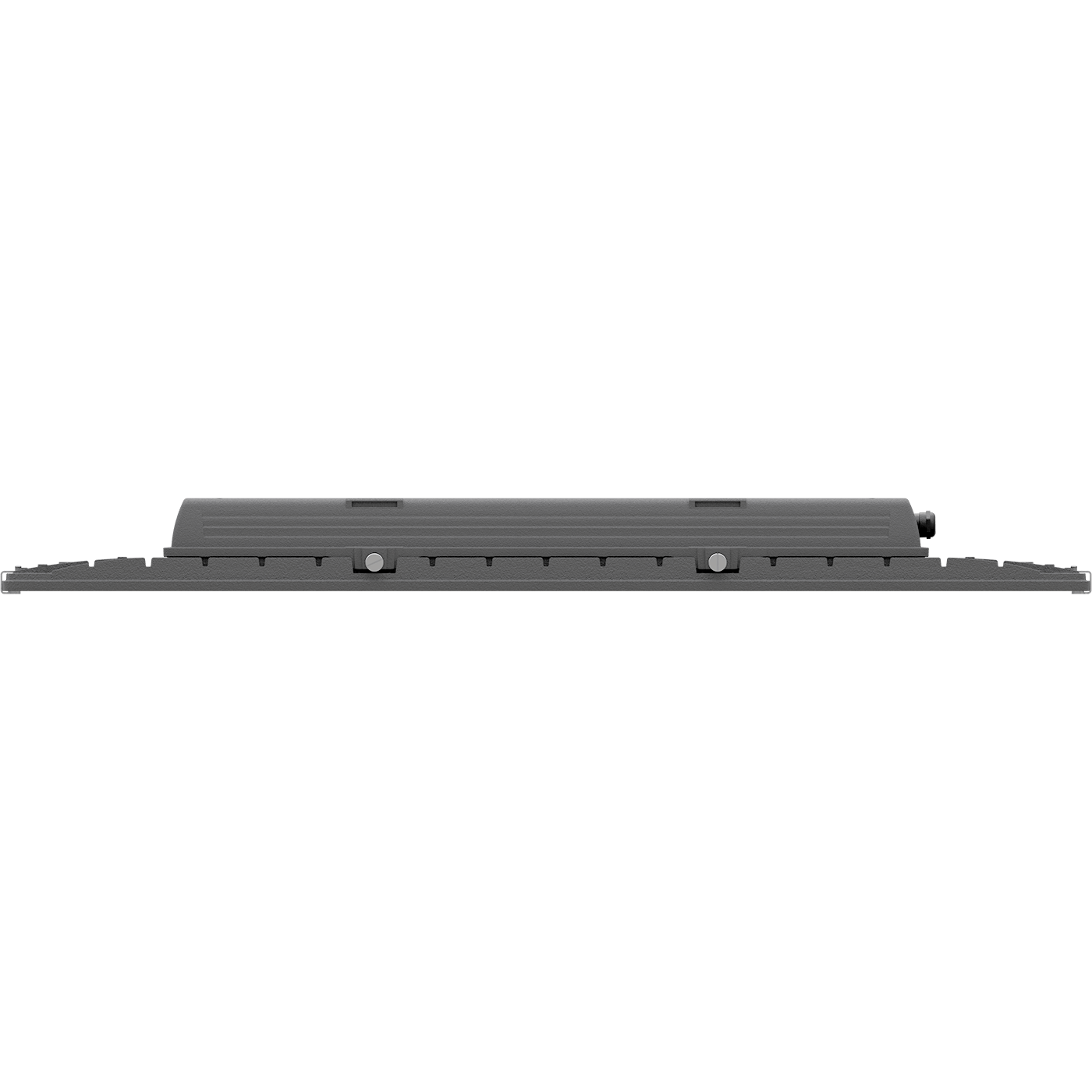

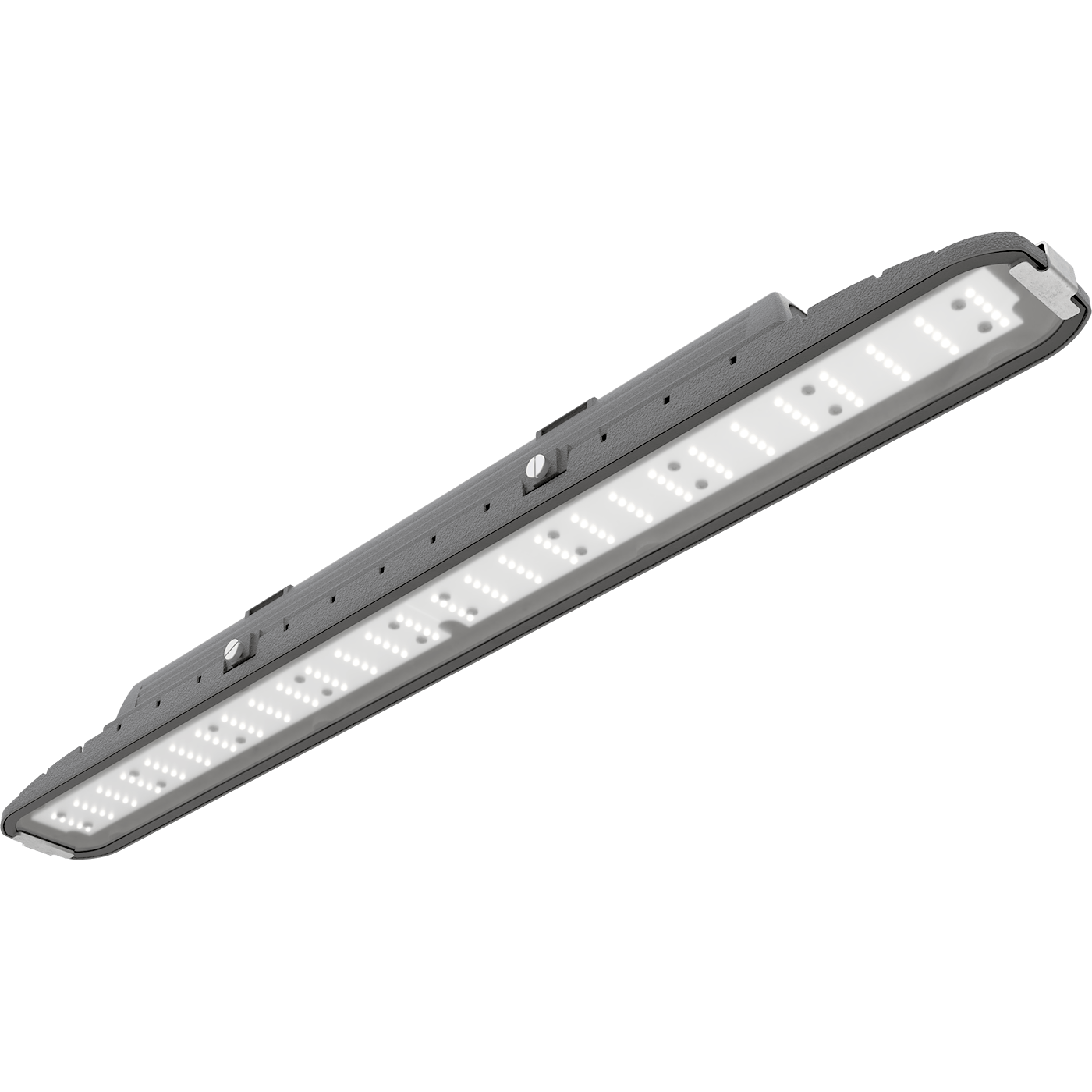

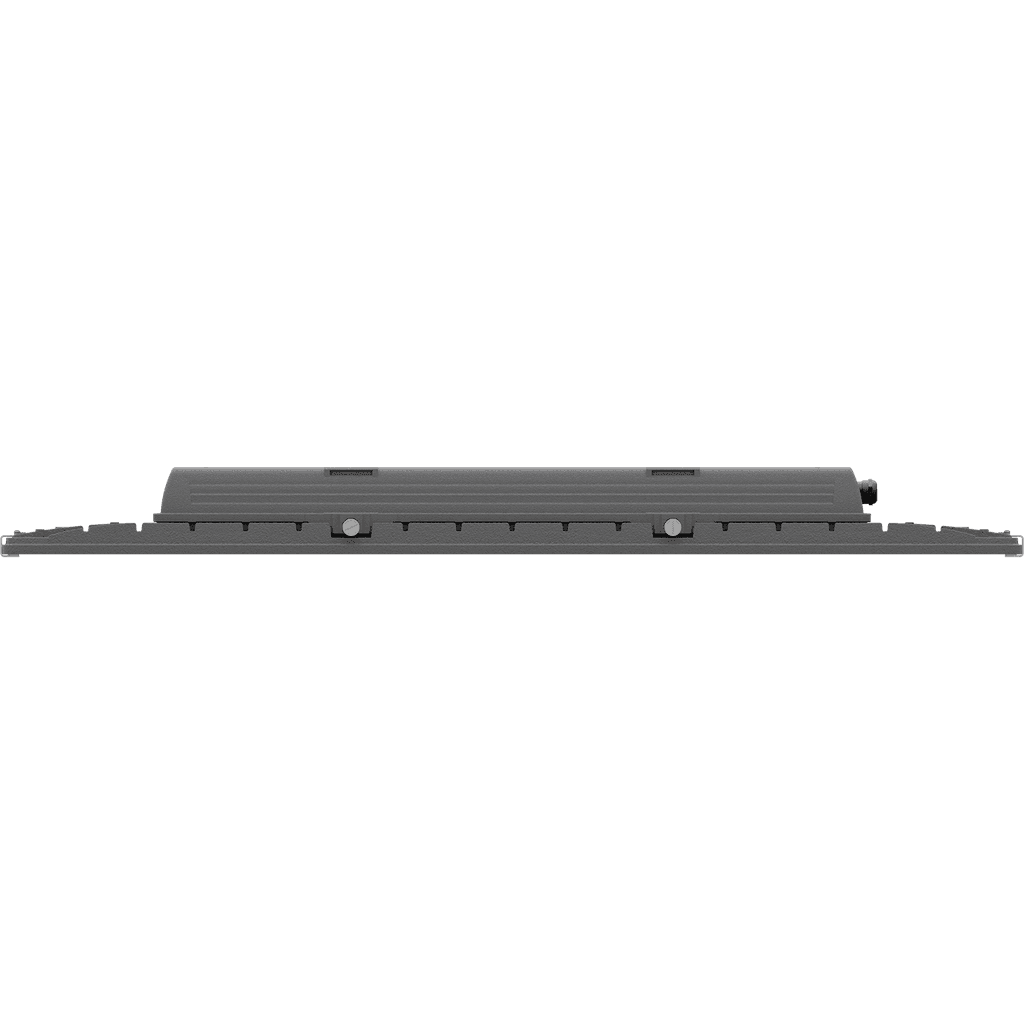

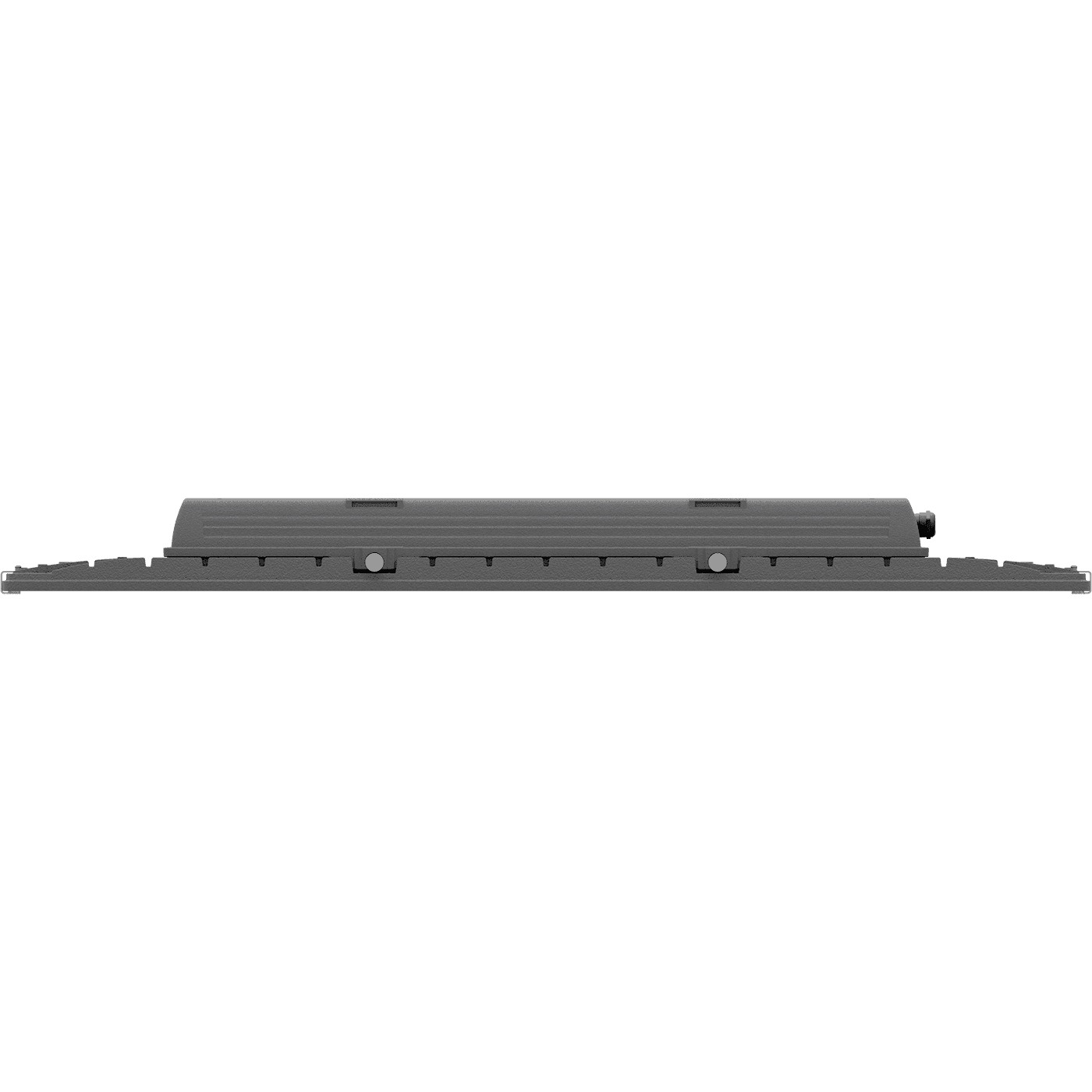

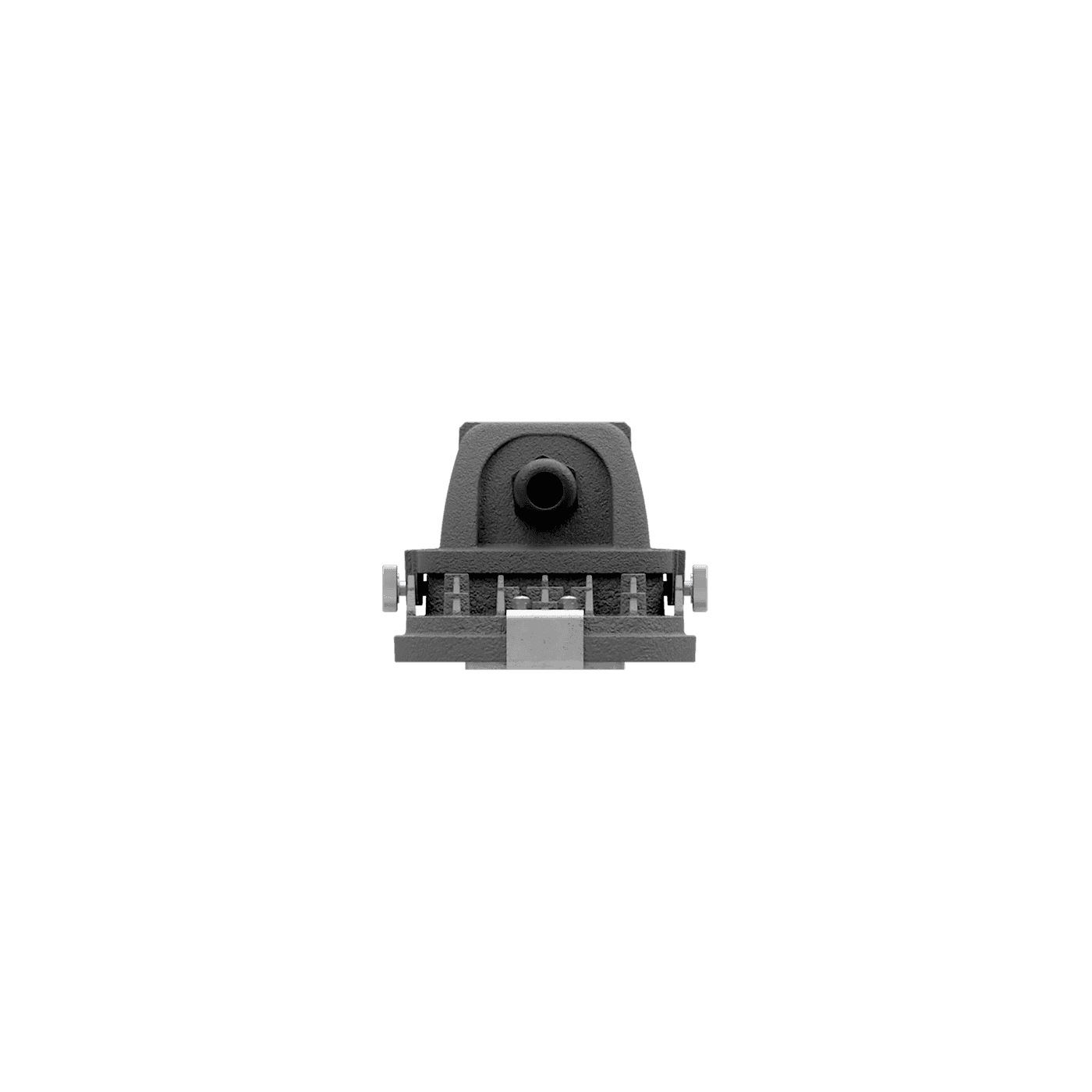

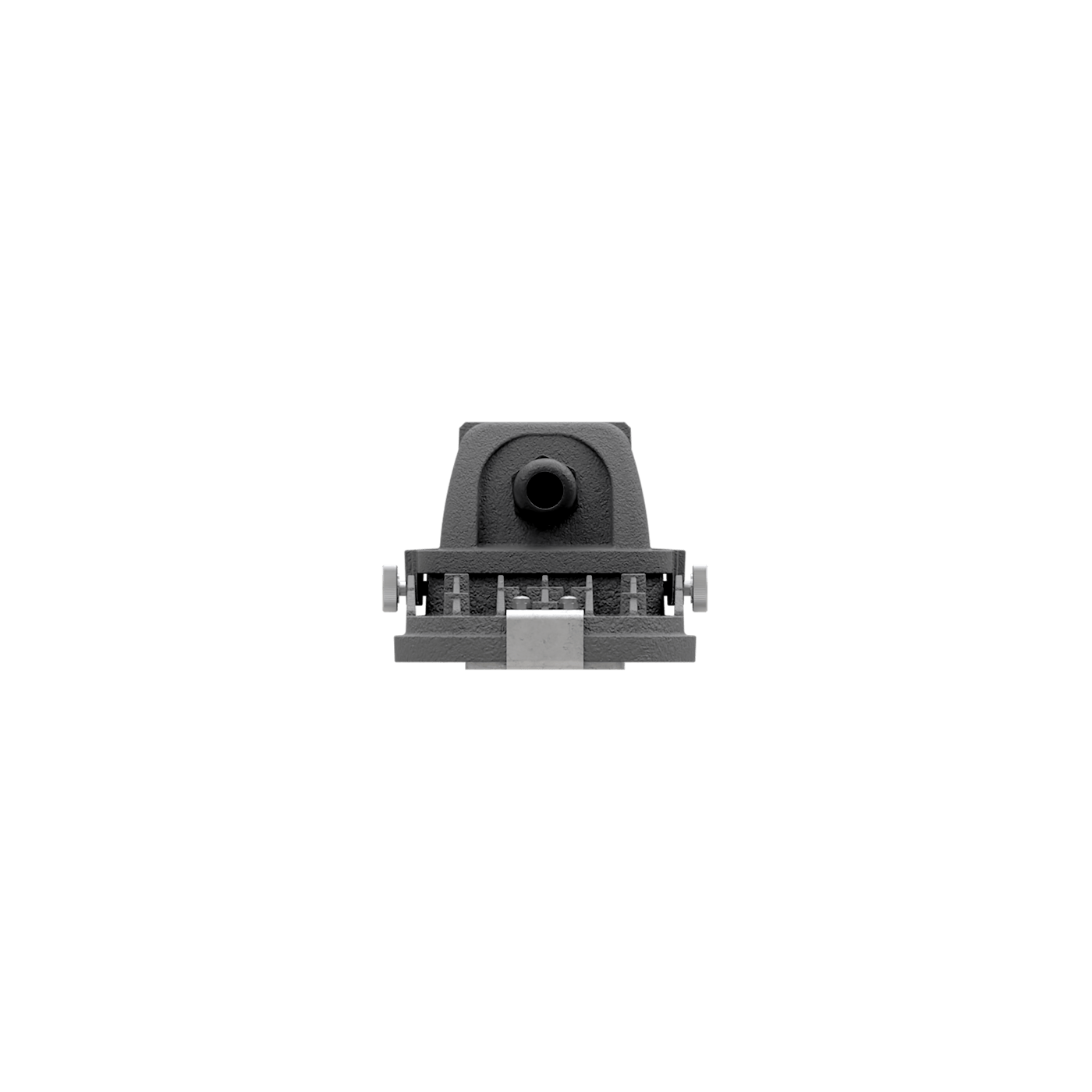

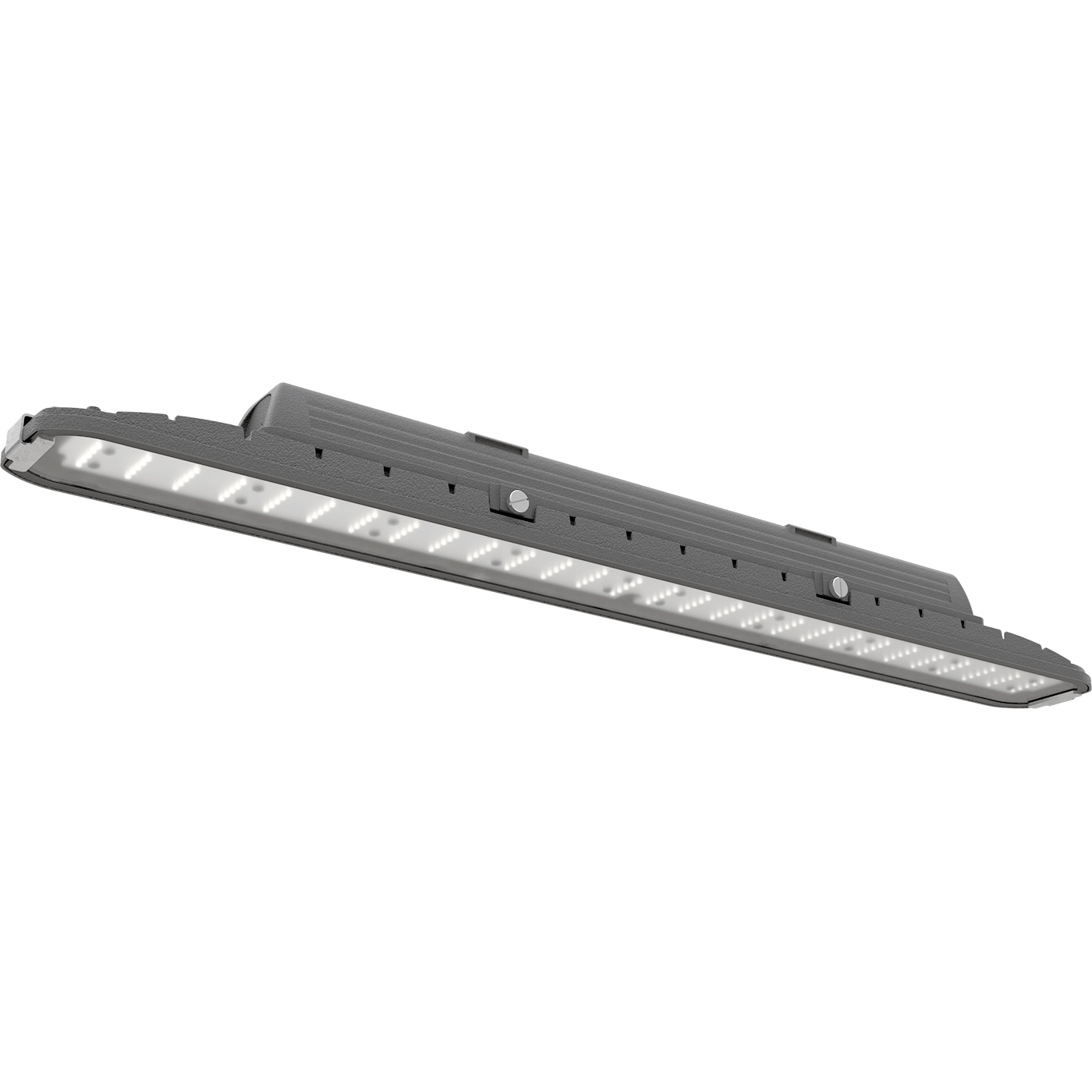

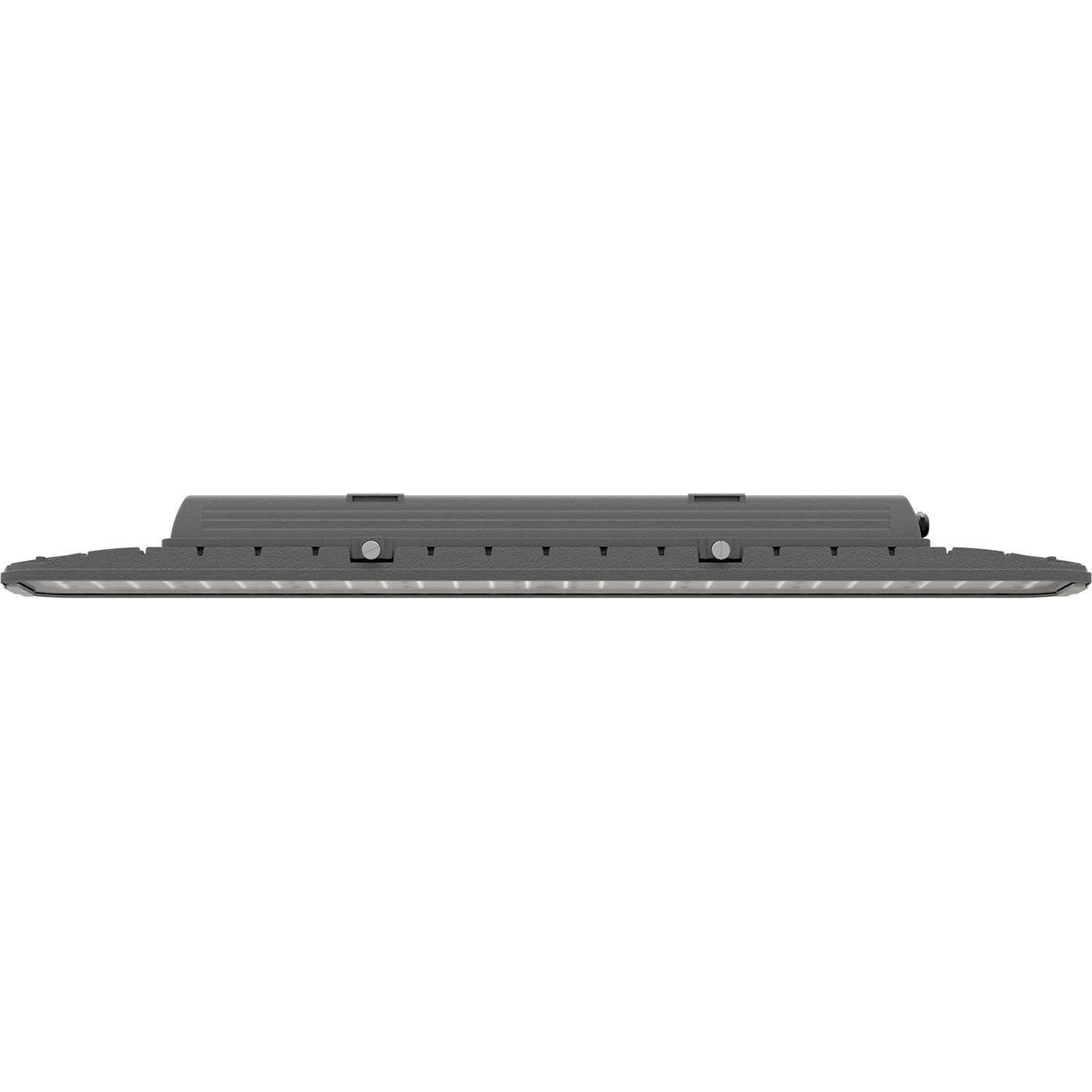

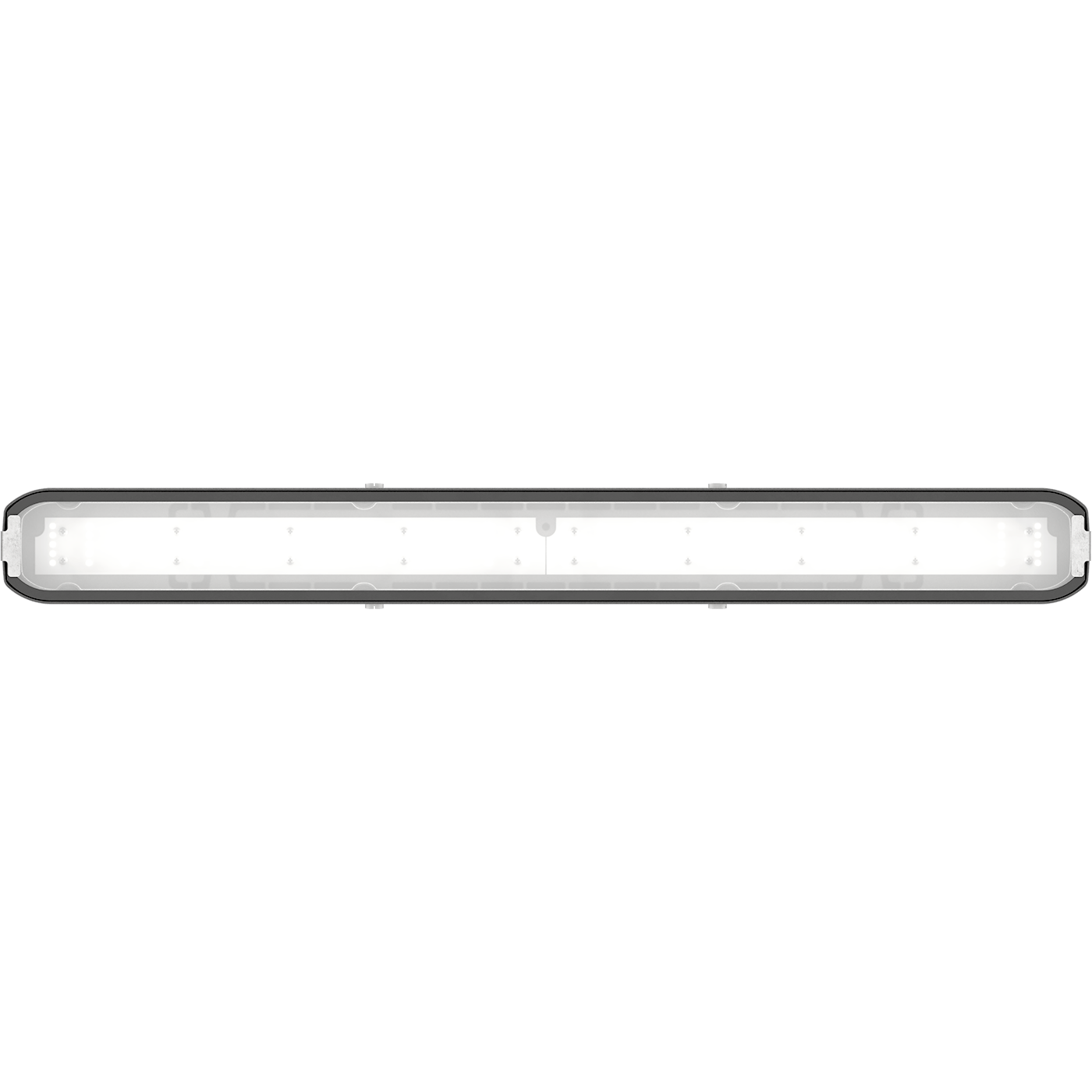

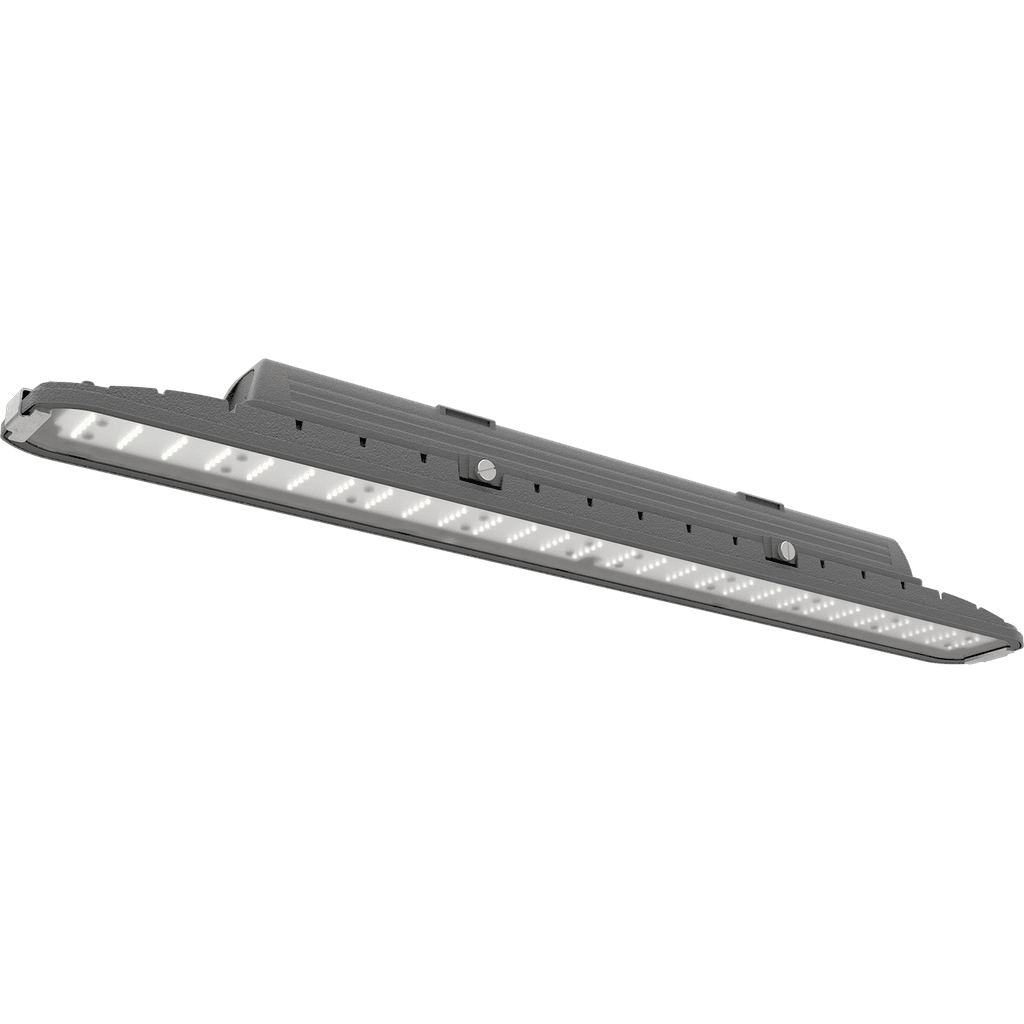

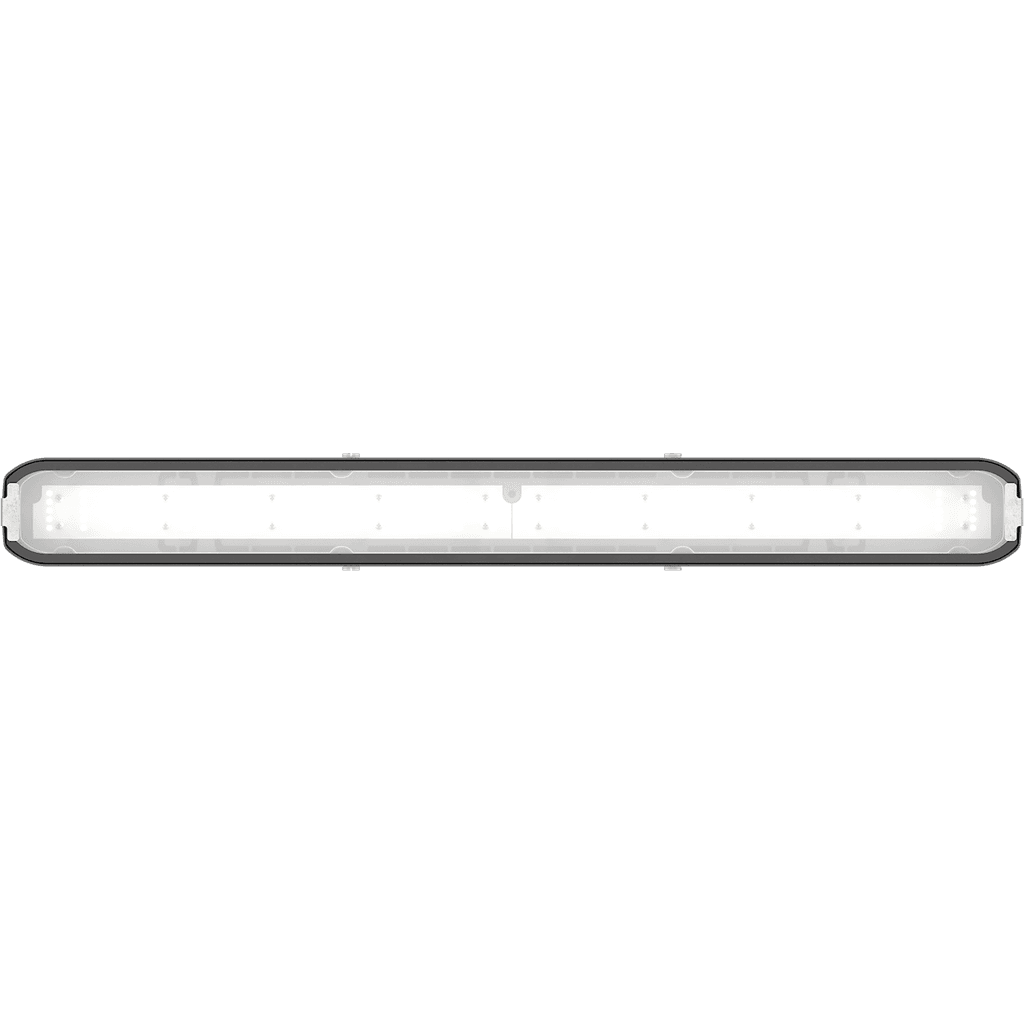

SLICK.PRS LED 20 with driver box /tempered glass/ with through wiring 5000K

archive
archive
SLICK.PRS LED 20 with driver box /tempered glass/ with through wiring 5000K
add to favorites
22 Wluminaire power
2900 lmlight flow
132 lm/Wenergy efficiency
code1631003090
color temperature5000
beam angleD120
weight4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. SLICK LED G2
  7. SLICK.PRS LED 20 with driver box /tempered glass/ with through wiring 5000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
22 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
22 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP69
fire safety class
П-ІІ
material
Алюминий
weight
4.5 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
960 mm
width, mm
105 mm
height, mm
85 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
code
1631003090
illuminating
light flow
2900 lm
flickering factor
<1%
energy efficiency
132 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

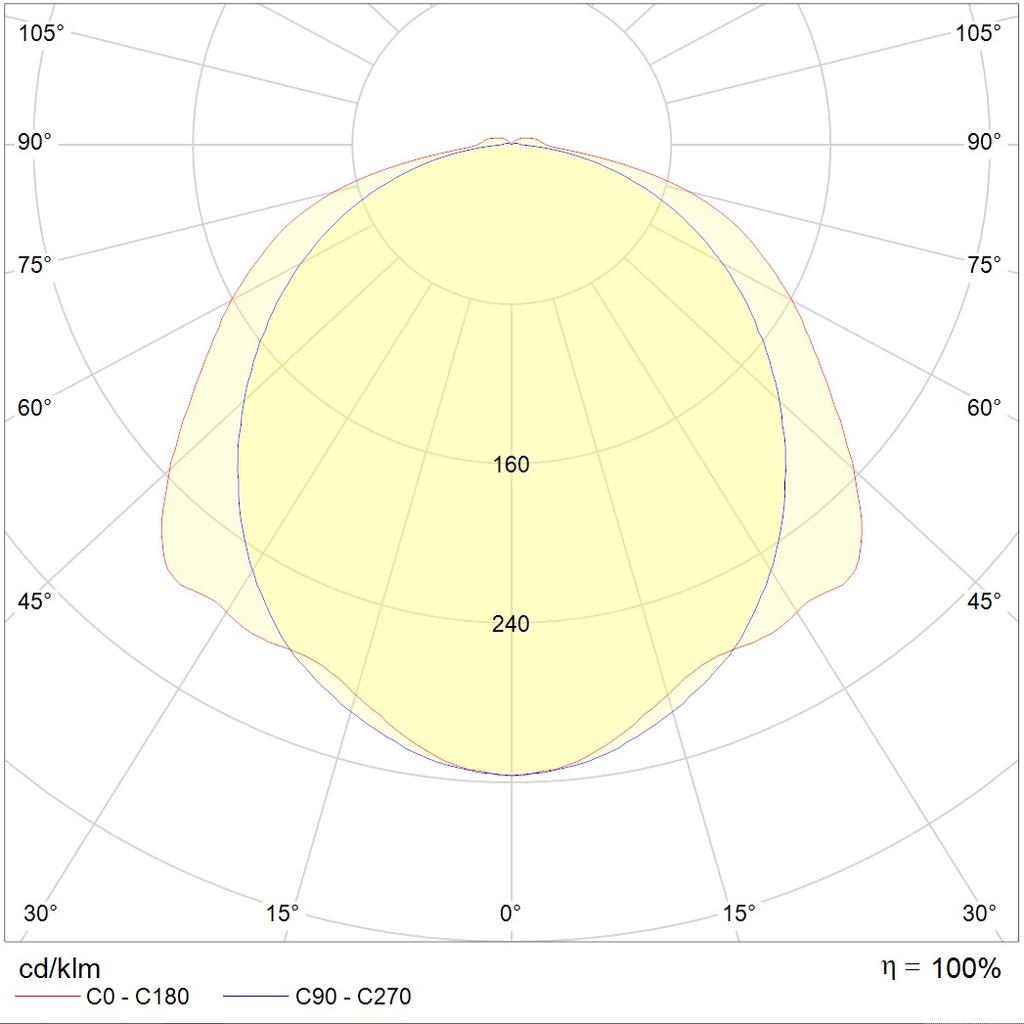

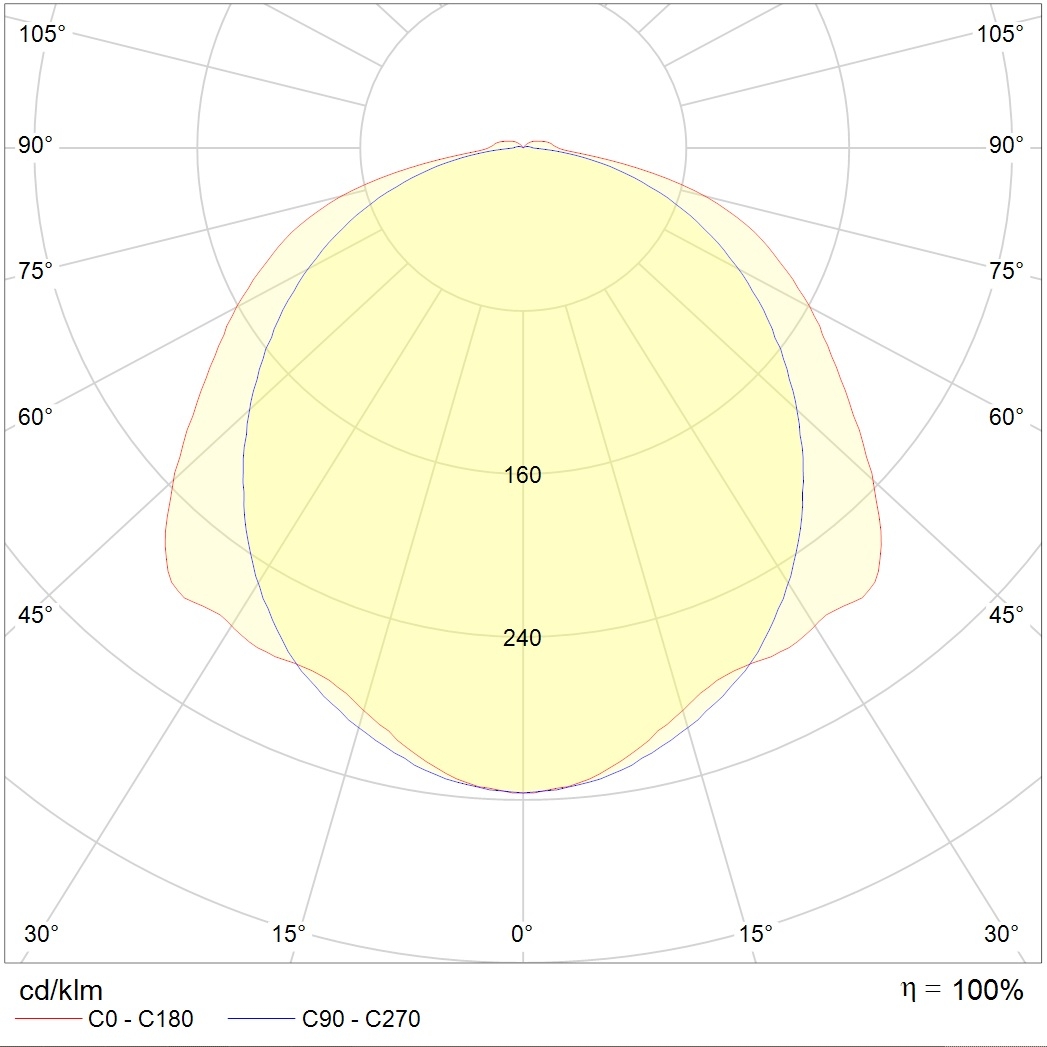

photometric files
ies134.1 kB
jpg125.6 kB
ldt108.1 kB
csv466 B
documents
passport1013.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
photometric files
ies134.1 kB
jpg125.6 kB
ldt108.1 kB
csv466 B
documents
passport1013.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
