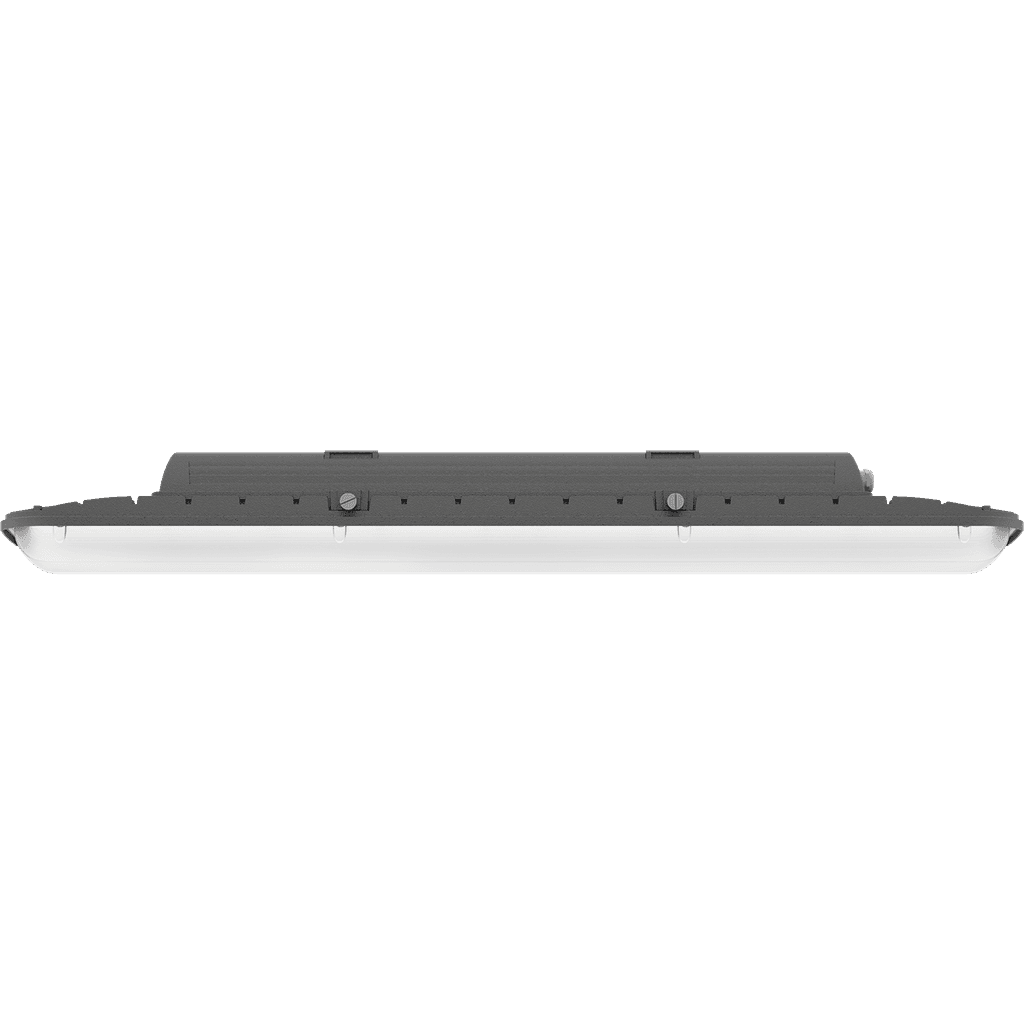

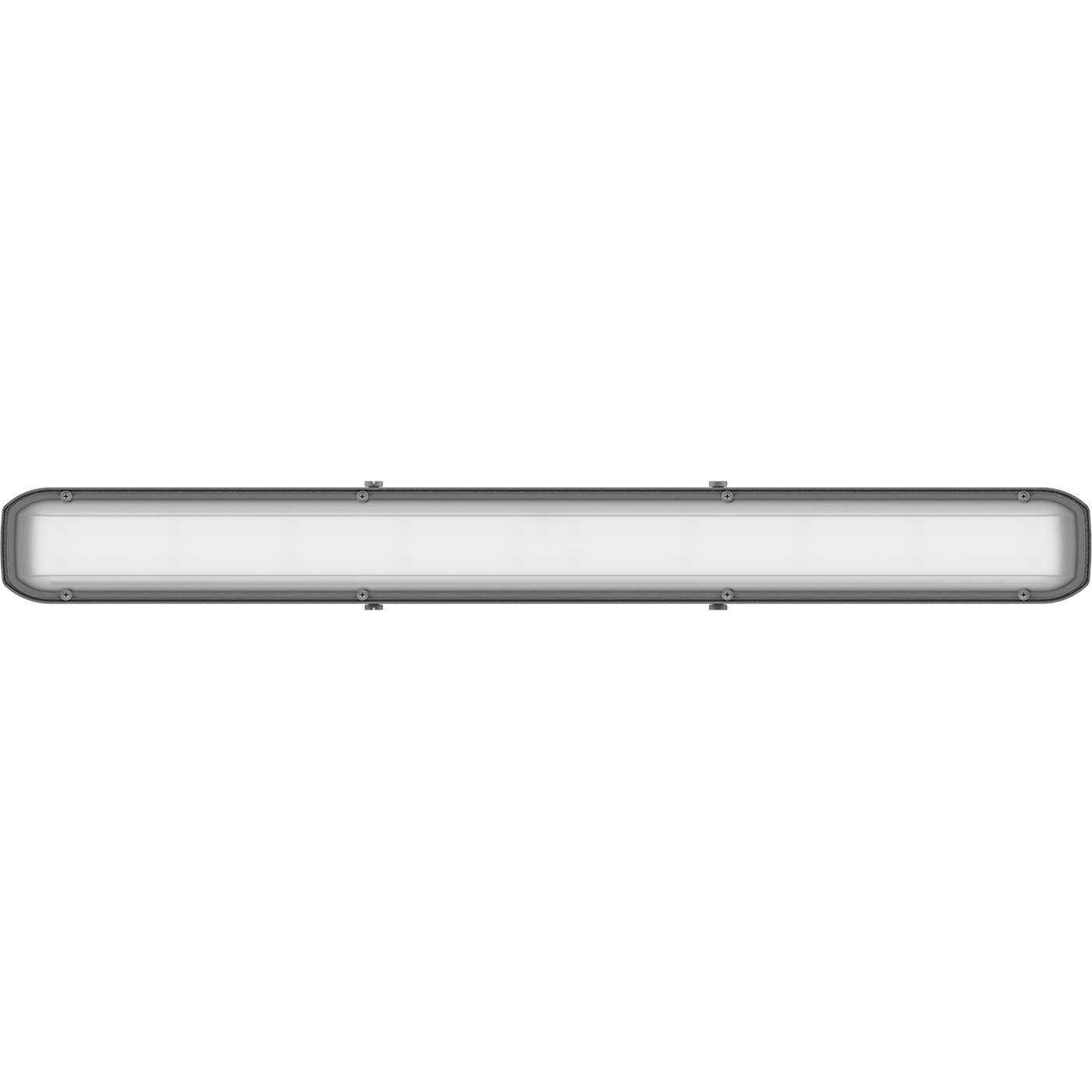

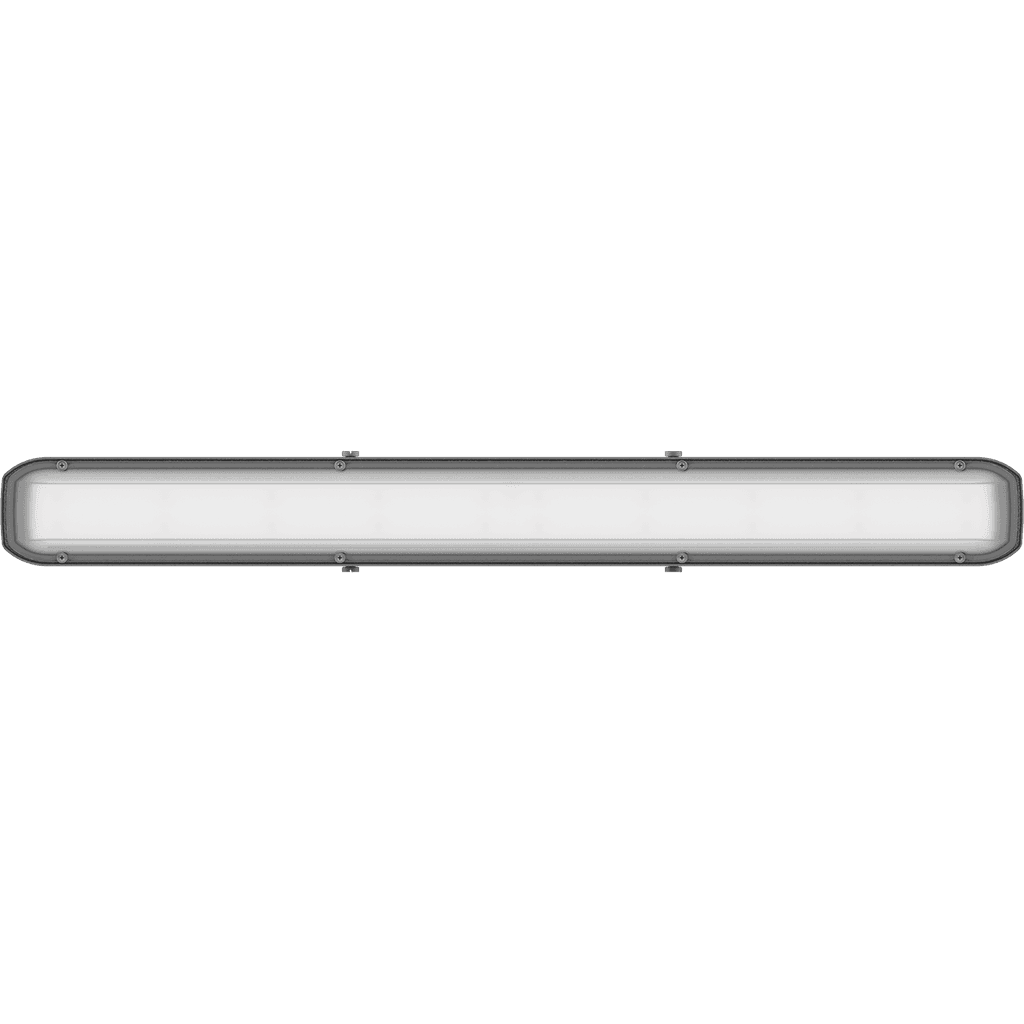

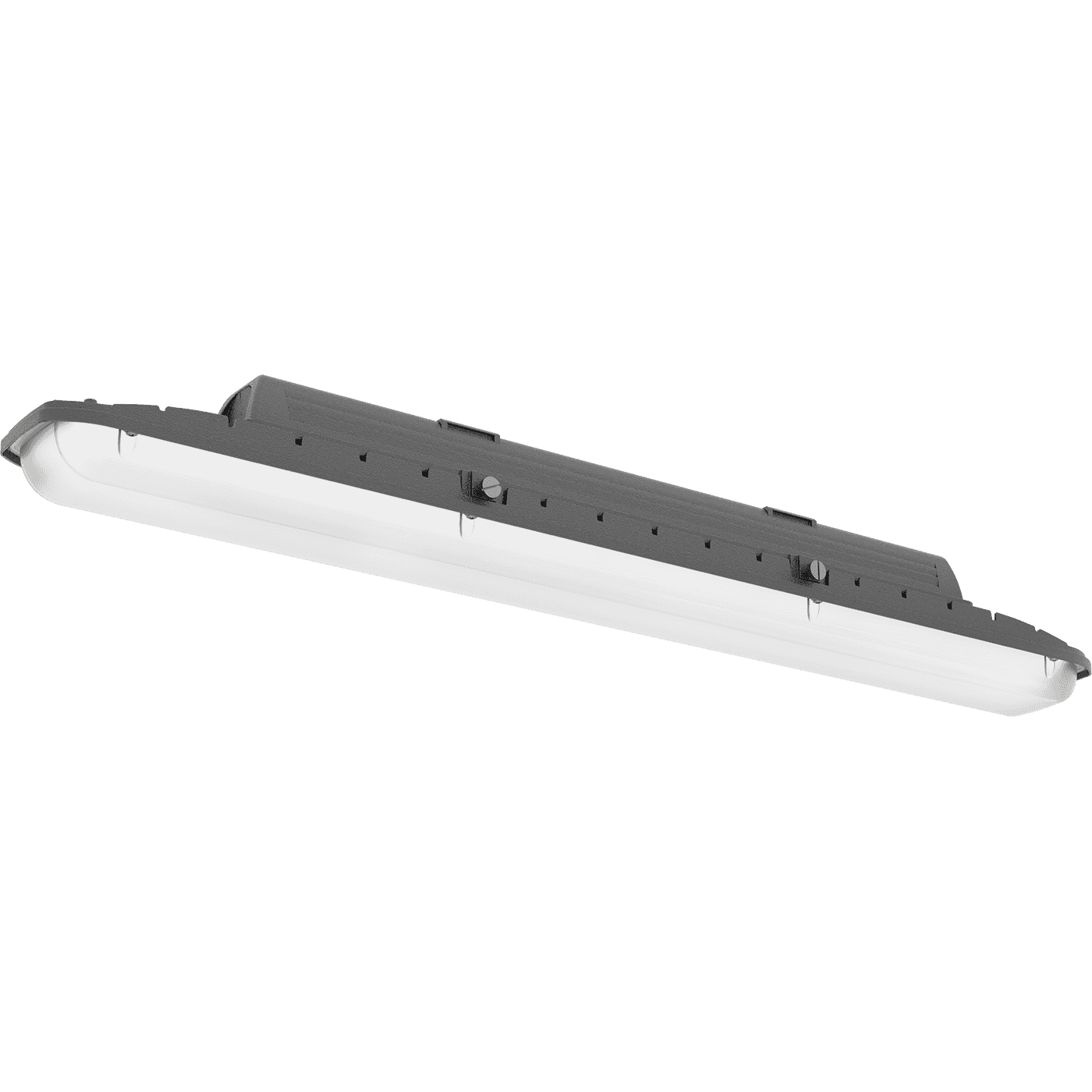

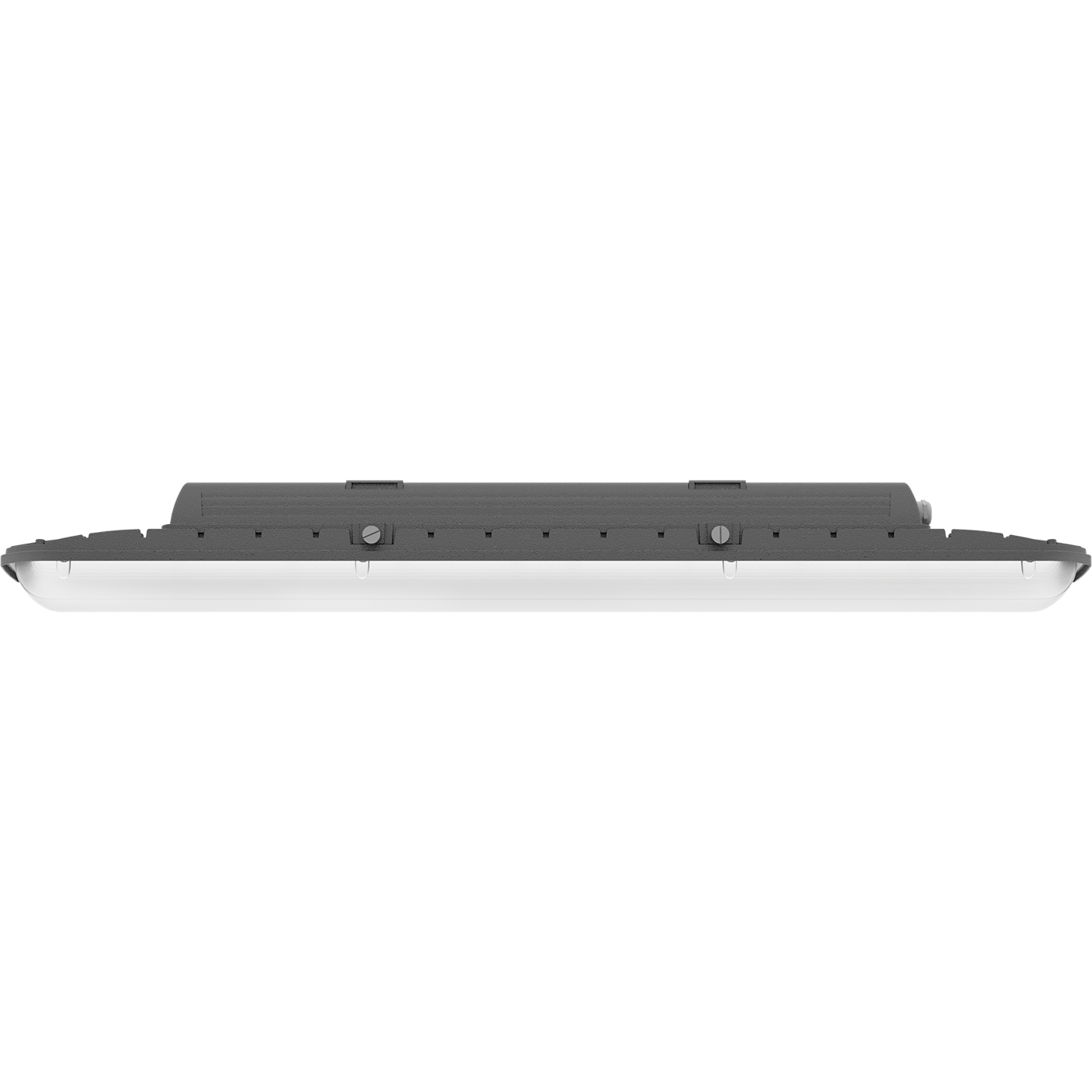

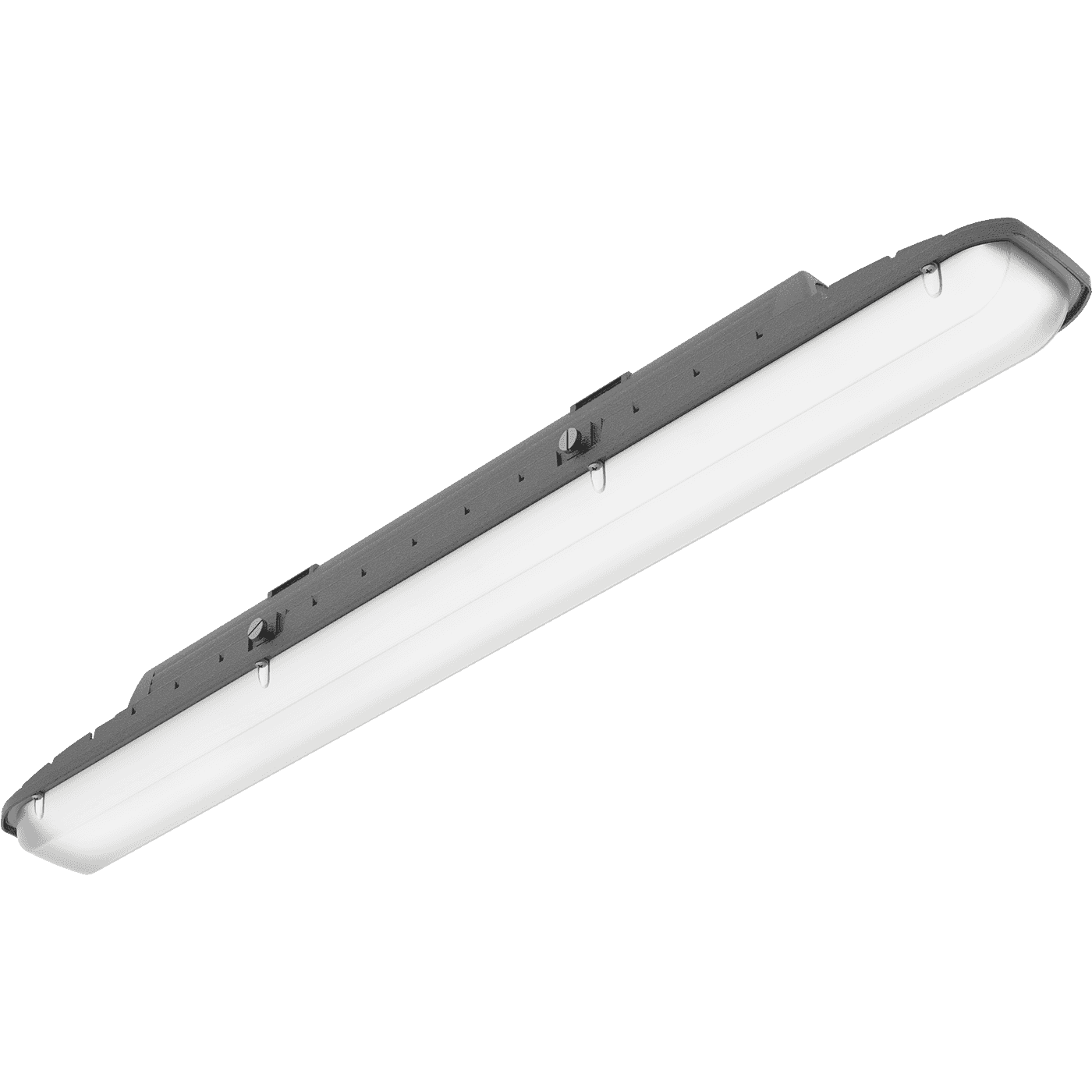

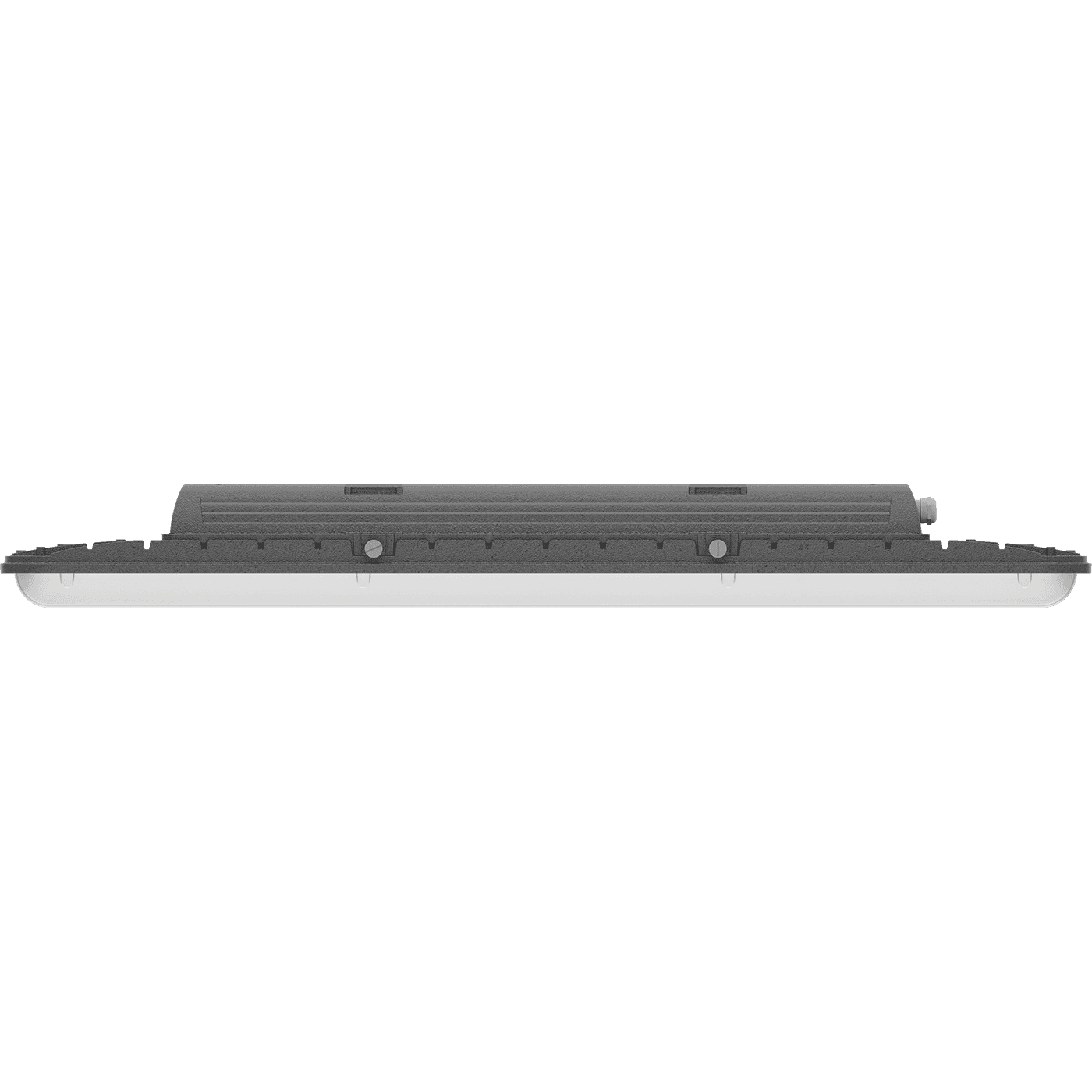

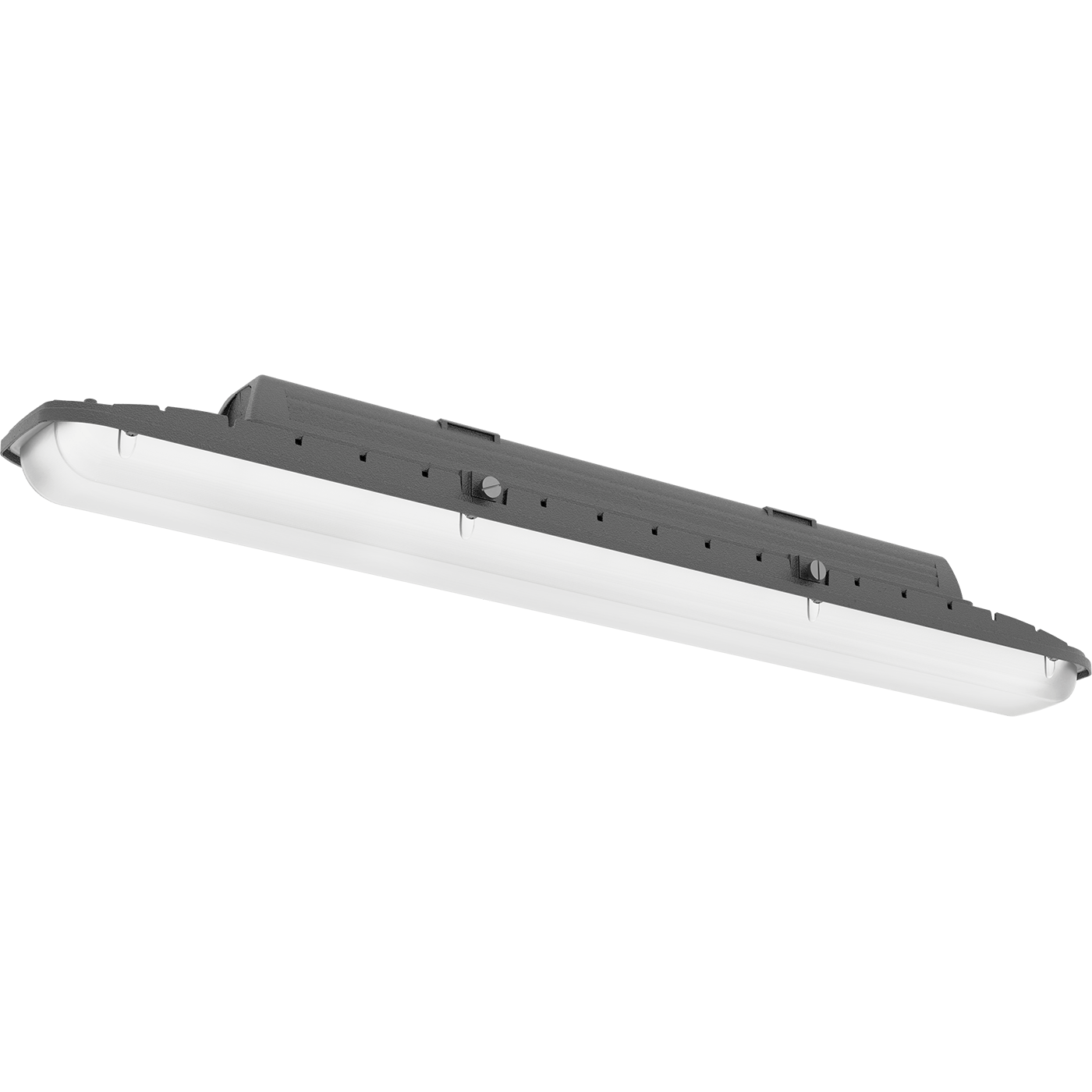

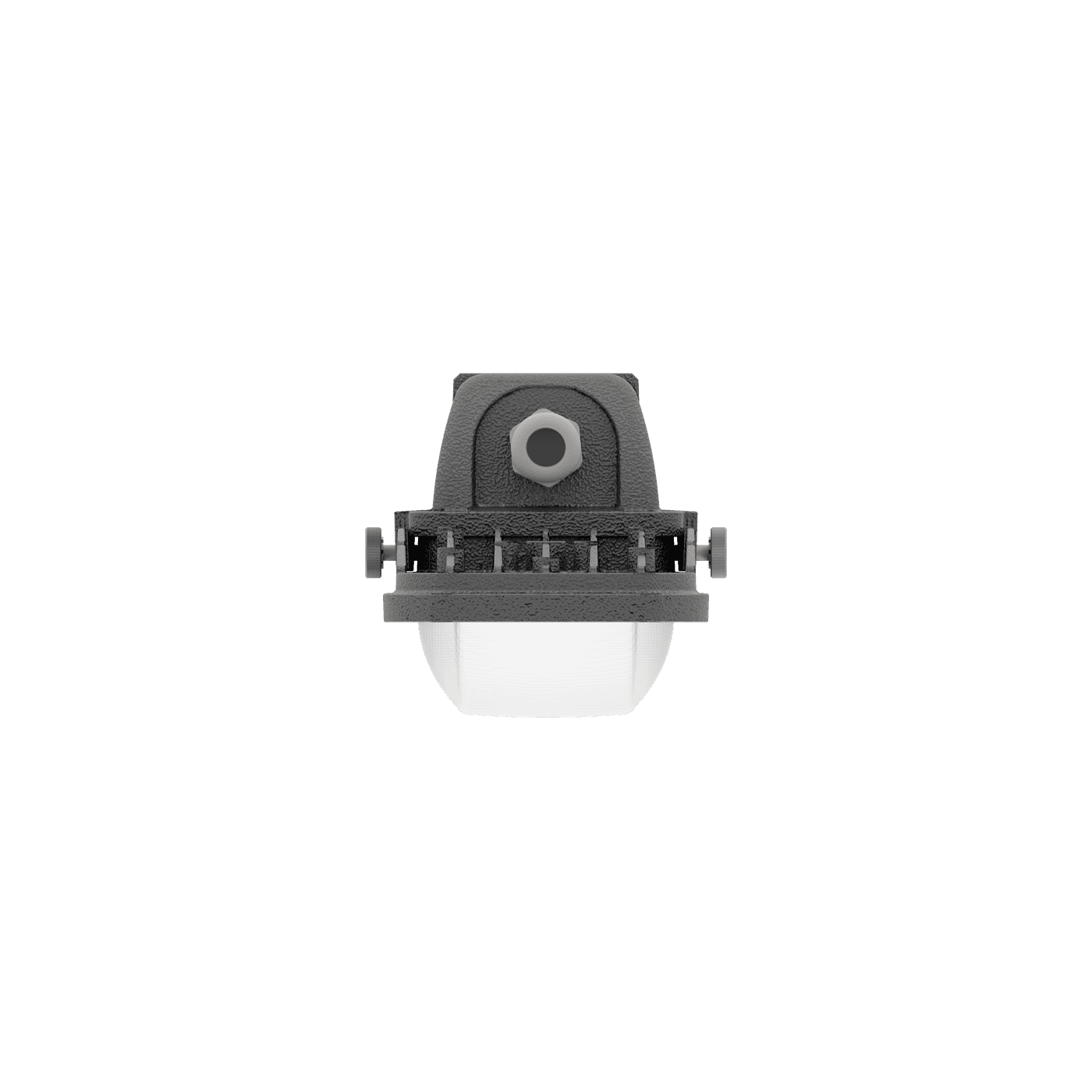

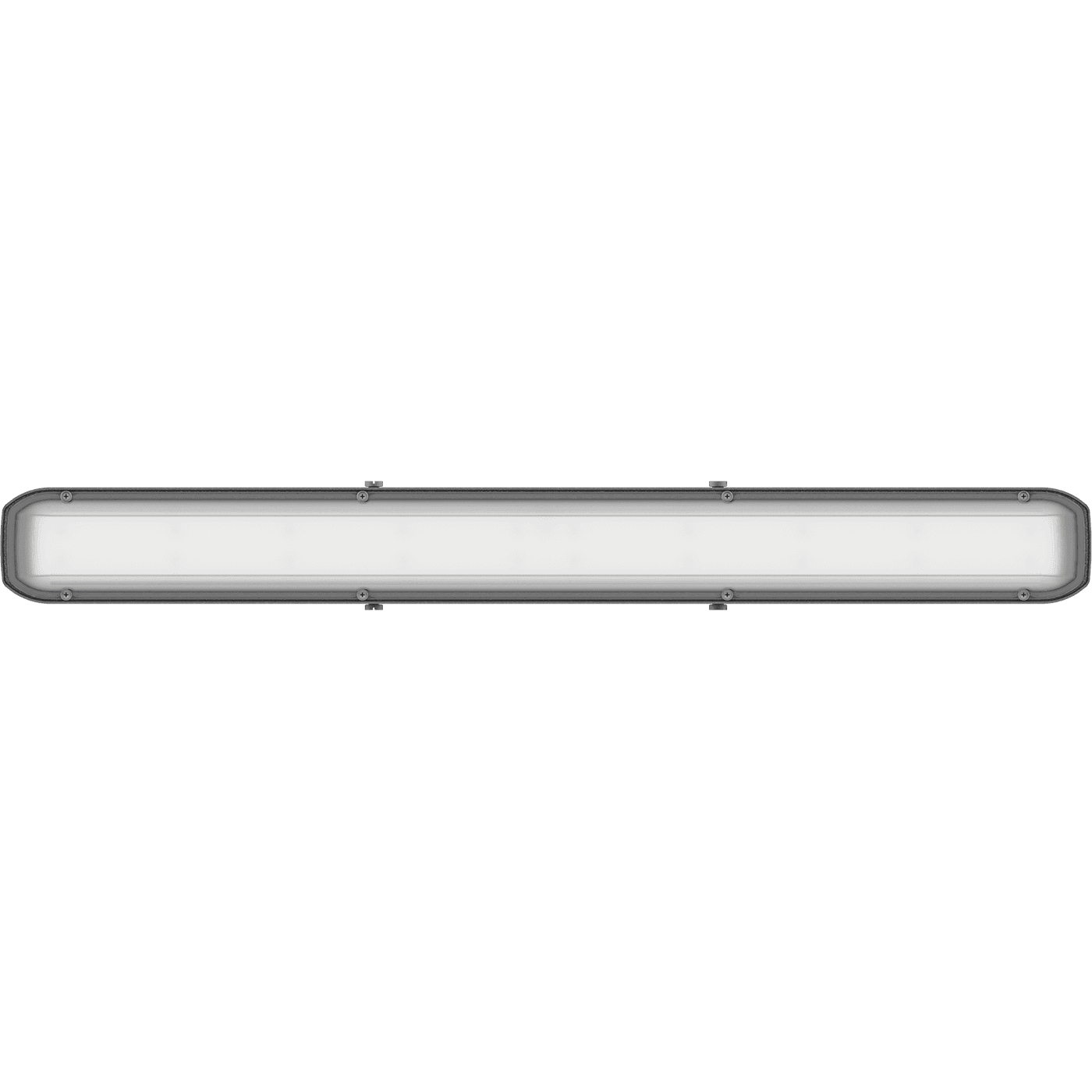

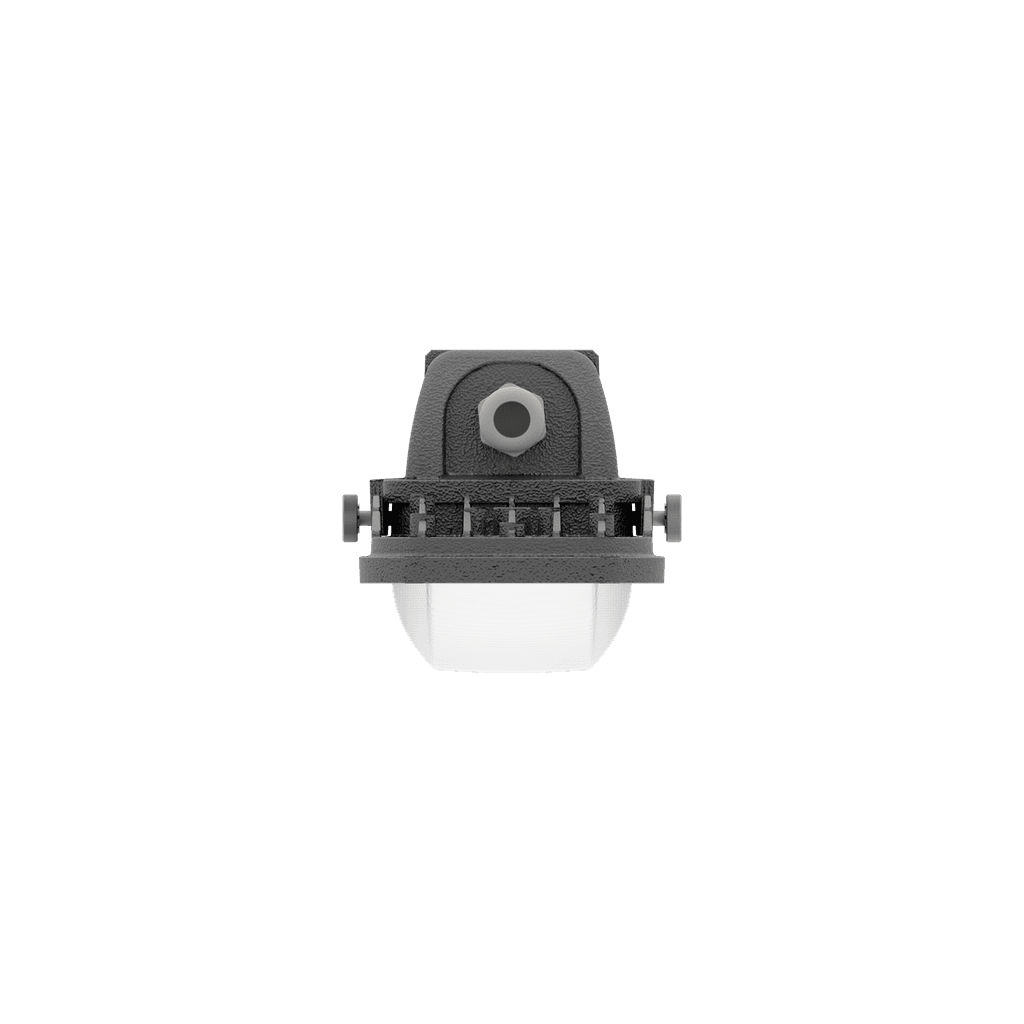

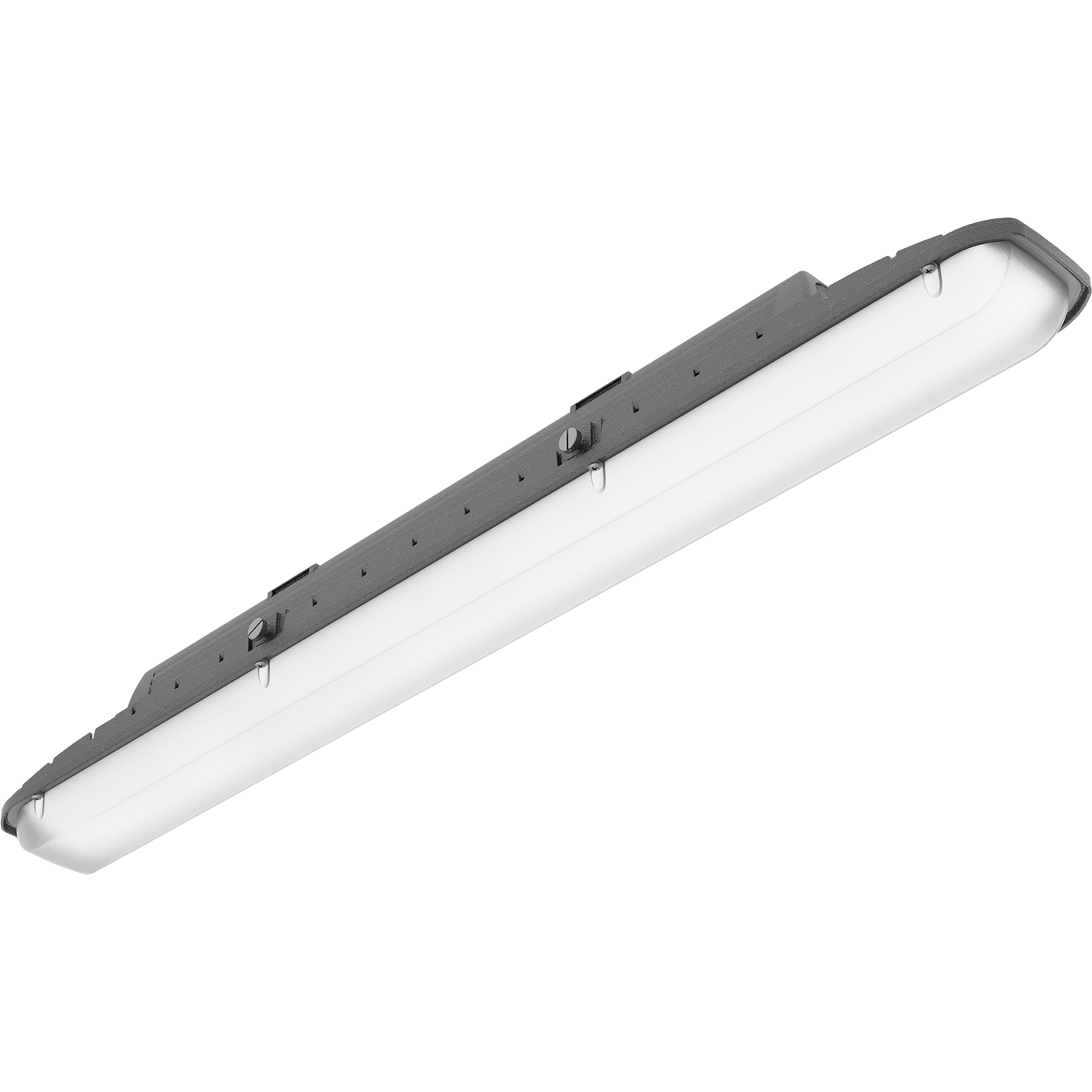

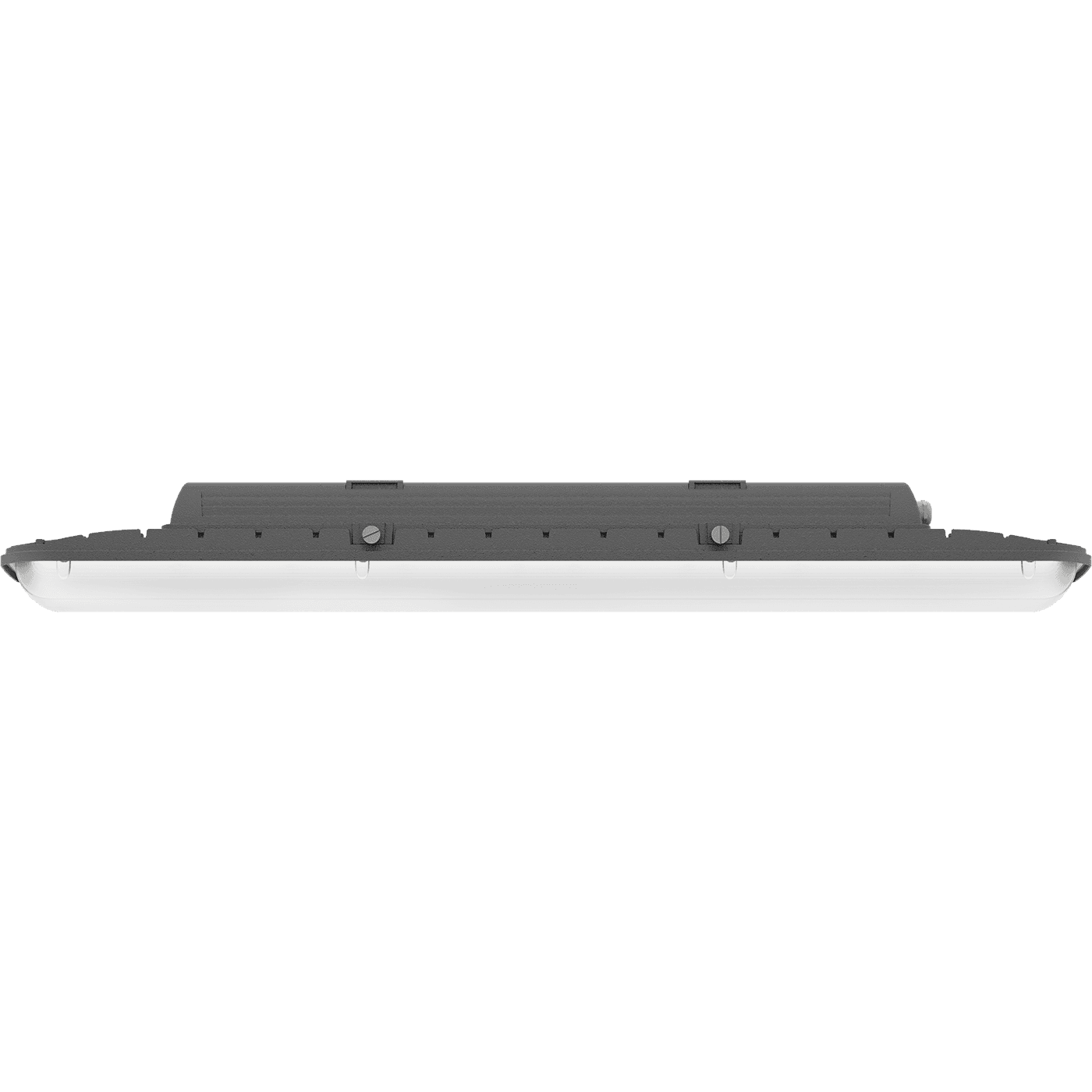

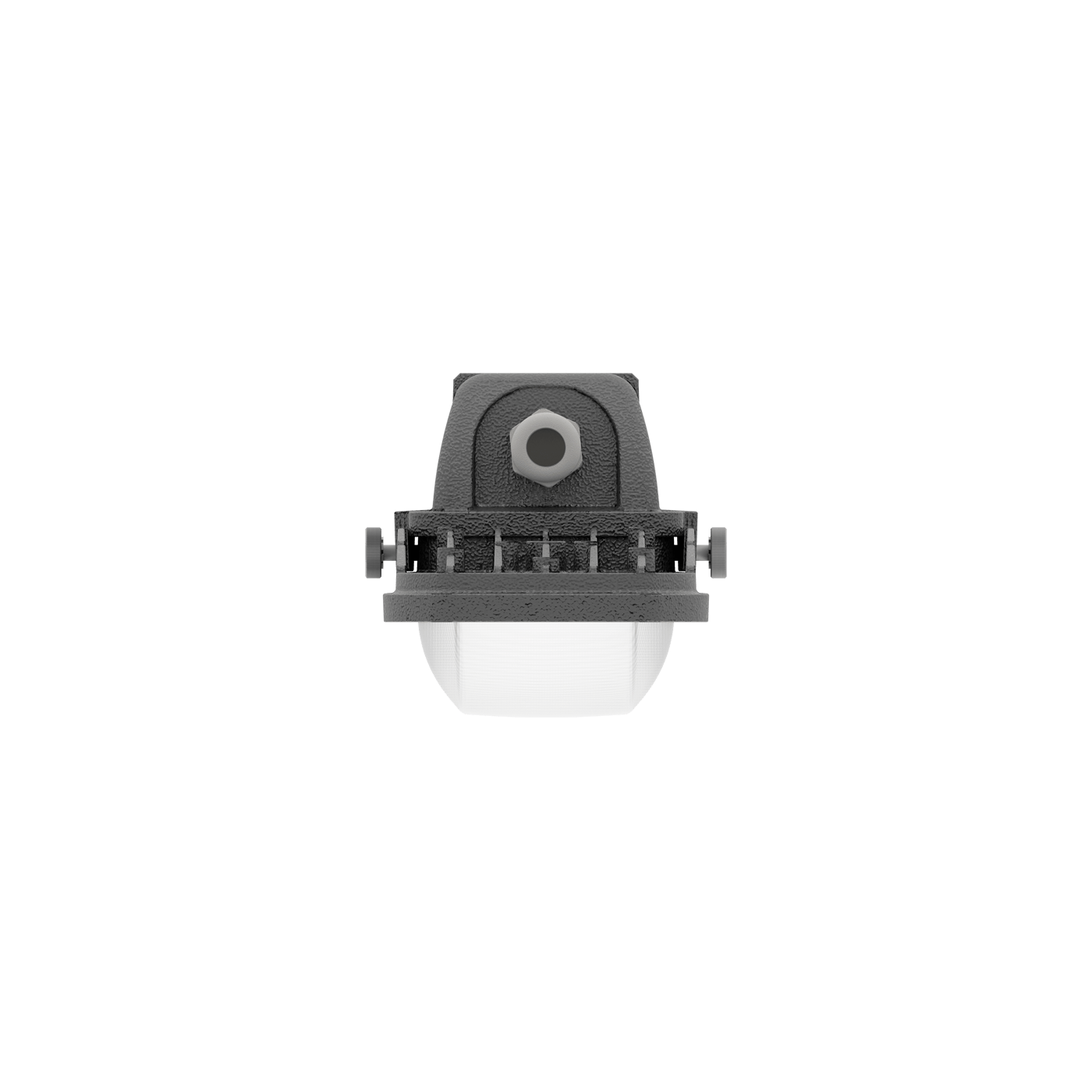

SLICK.PRS LED 20 with driver box 5000K
SLICK.PRS LED 20 with driver box 5000K
22 Wluminaire power
2900 lmlight flow
132 lm/Wenergy efficiency
code
1631001670
color temperature
5000 K
beam angle
D120
performance factor
100
weight
3.7 kg
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- SLICK LED G2
- SLICK.PRS LED 20 with driver box 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
132 lm/Wcolor rendition index (CRI)
>80light flow
2900 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
132 lm/W
color rendition index (CRI)
>80
light flow
2900 lm
flickering factor
<1%

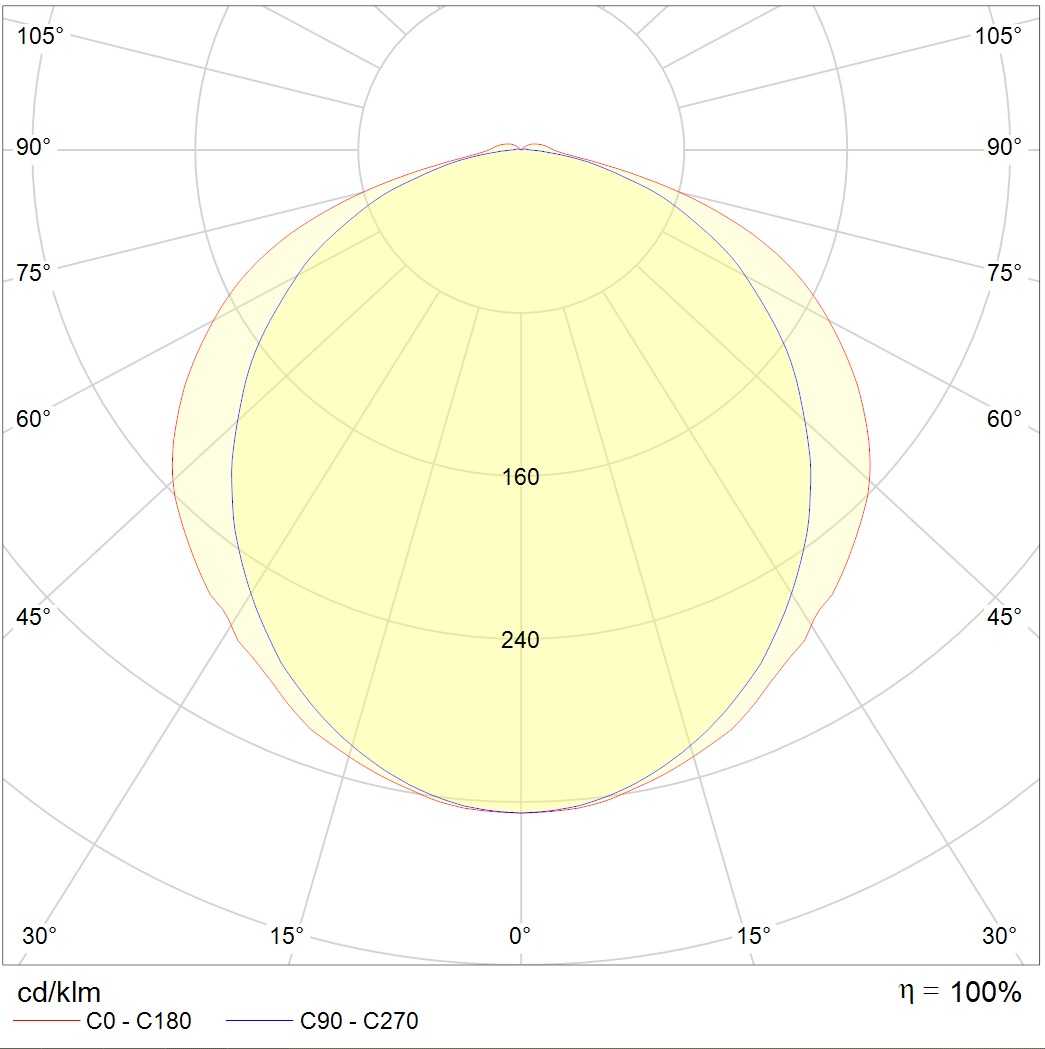

beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,90
luminaire power
22 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
955 mm
width
105 mm
height
115 mm
installation length
574 mm
weight
3.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
material
Алюминий
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1631001670
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
media
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies28 kB
jpg125.9 kB
ldt21.5 kB
csv440 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
