SLICK.OPL LED 50 EM with driver box /matt tempered glass/ 5000K

SLICK.OPL LED 50 EM with driver box /matt tempered glass/ 5000K
add to favorites
50 Wluminaire power
5800 lmlight flow
116 lm/Wenergy efficiency
code
1631003270
color temperature
5000 K
beam angle
D120
performance factor
100
weight
4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. SLICK LED G2
  8. SLICK.OPL LED 50 EM with driver box /matt tempered glass/ 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
116 lm/W
color rendition index (CRI)
>80
light flow
5800 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
116 lm/W
color rendition index (CRI)
>80
light flow
5800 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,97
luminaire power
50 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
operating time in emergency mode
1 h
luminous flux in emergency mode
600 lm
common
temperature range
от 0 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1631003270
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт.
model files
model files

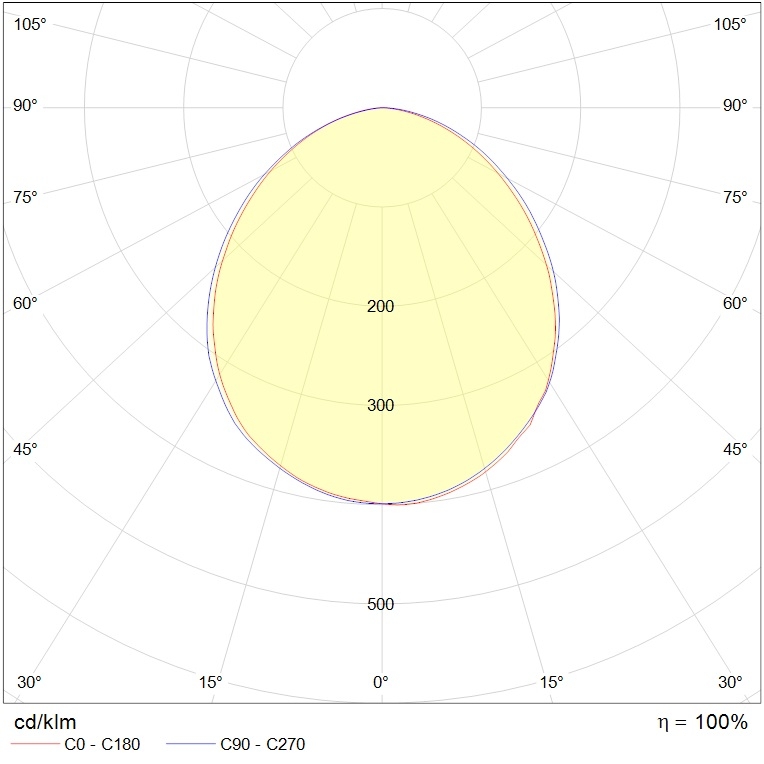

photometric files
ies107.1 kB
jpg76.6 kB
ldt72.1 kB
csv468 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
photometric files
ies107.1 kB
jpg76.6 kB
ldt72.1 kB
csv468 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
