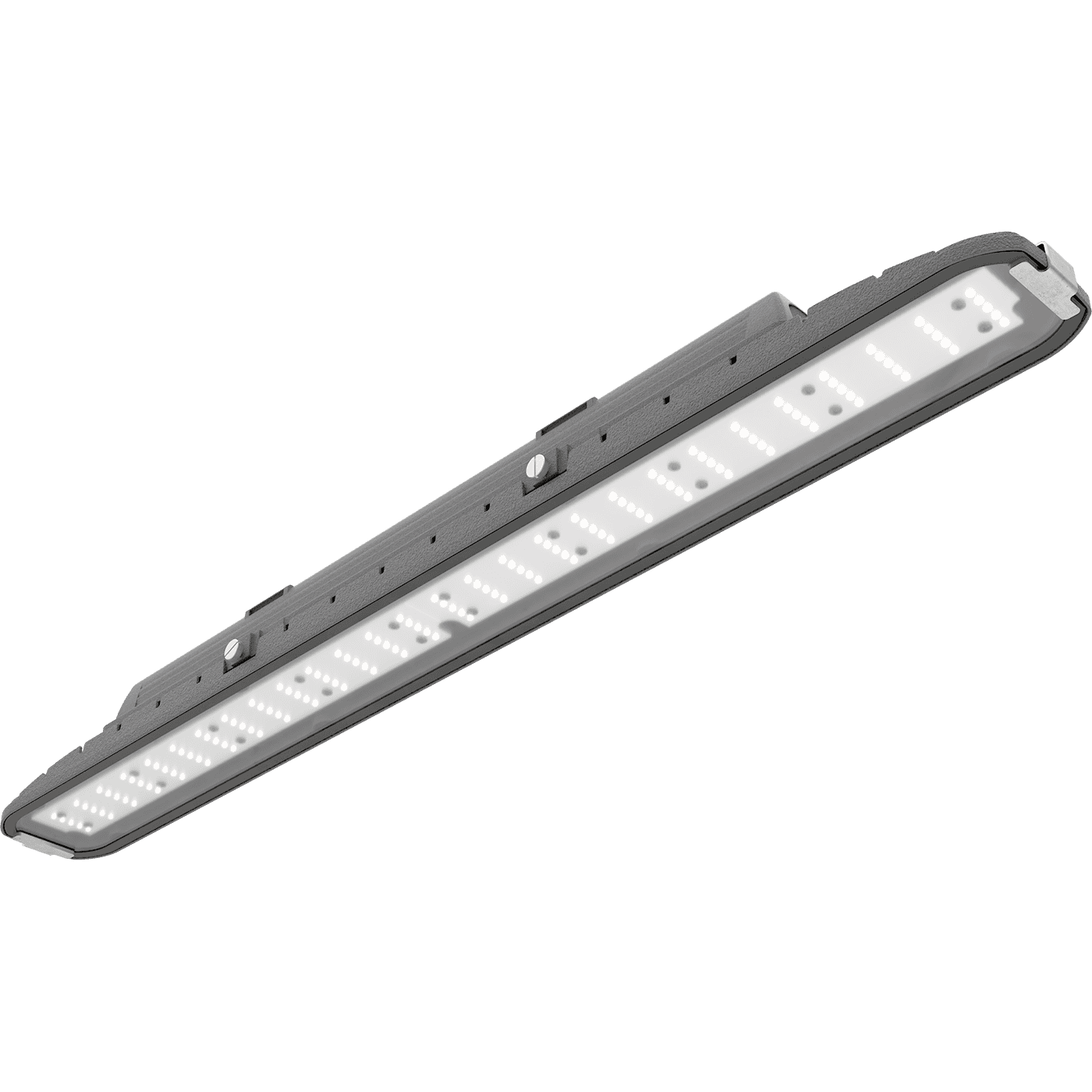

SLICK.OPL LED 20 EM with driver box /matt tempered glass/ 5000K
SLICK.OPL LED 20 EM with driver box /matt tempered glass/ 5000K
22 Wluminaire power
2300 lmlight flow
105 lm/Wenergy efficiency
code1631004050
color temperature5000 K
beam angleD120
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
2300 lmflickering factor
<1%energy efficiency
105 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
2300 lm
flickering factor
<1%
energy efficiency
105 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
22 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP69
weight
4.5 kg
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
emergency
operating time in emergency mode
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от 0 до +40 C
code
1631004050
model files
model files
photometric files
сертификаты
photometric files
ies134.1 kB
jpg110 kB
ldt105.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
