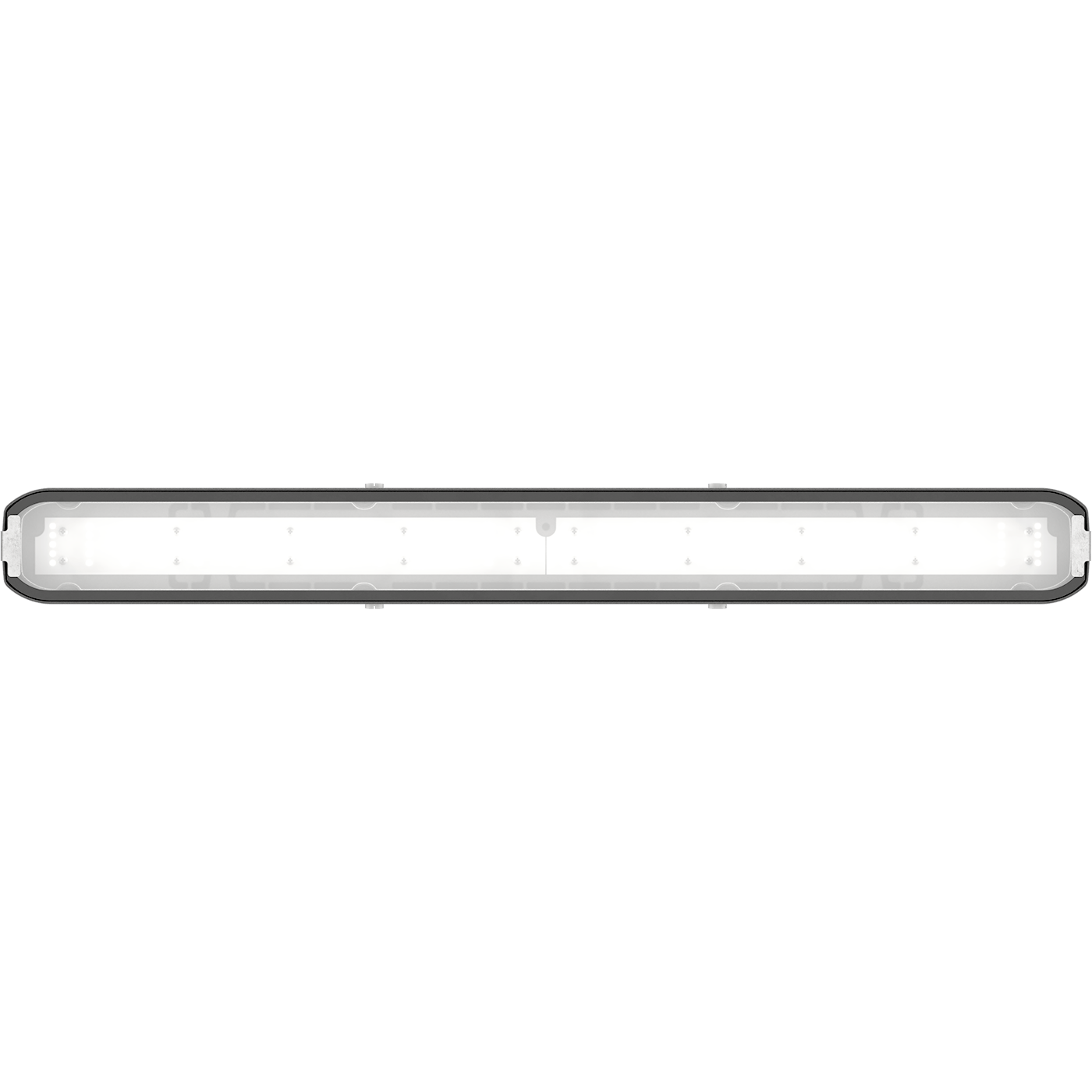

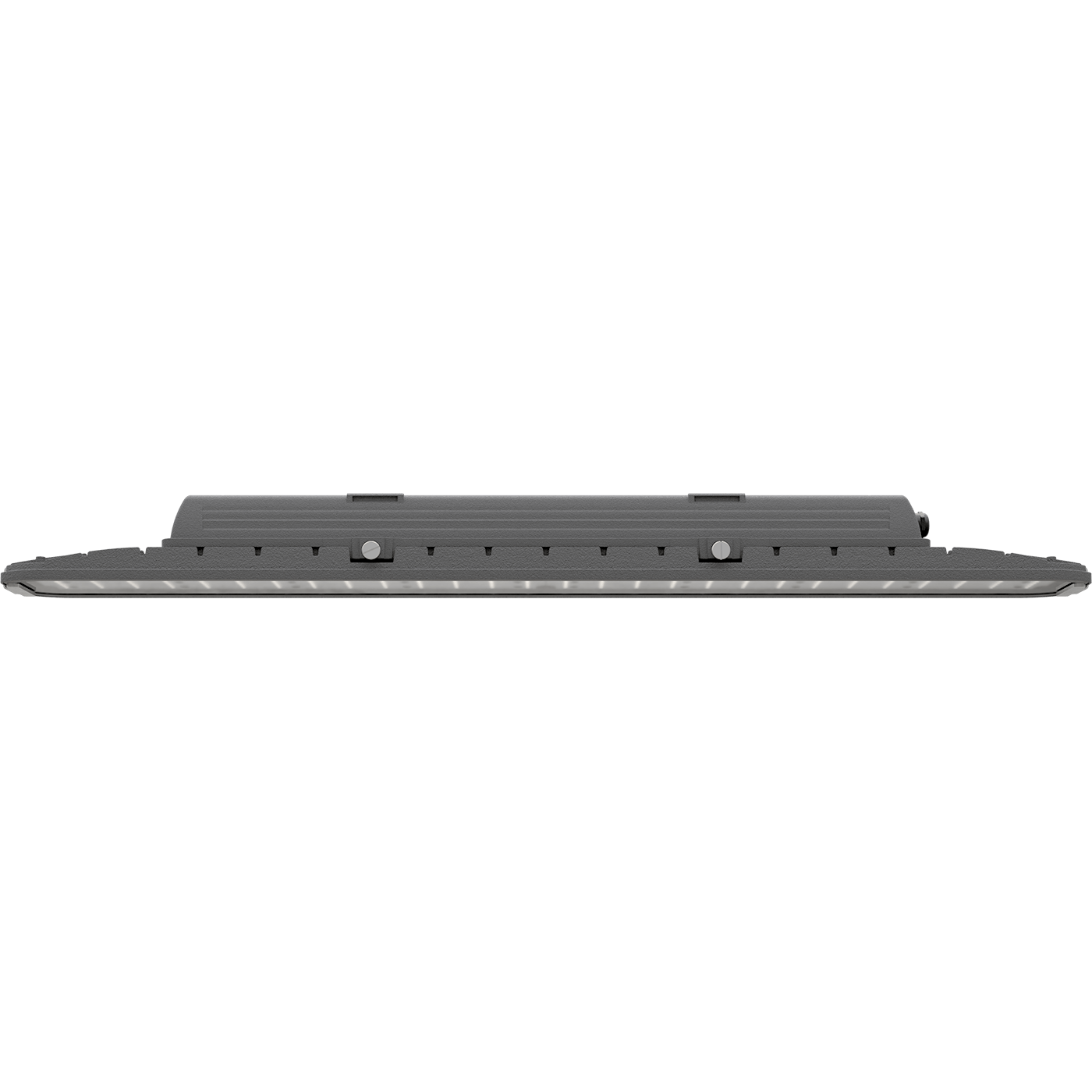

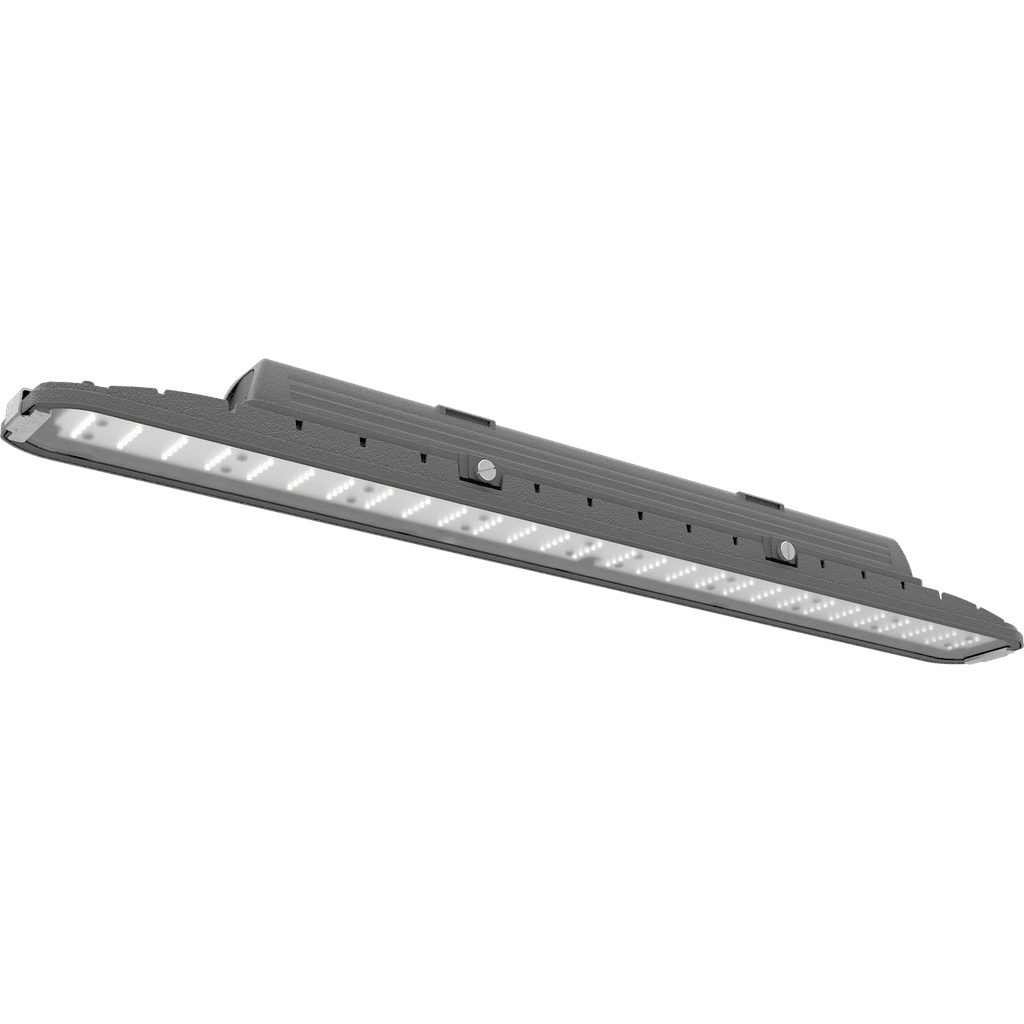

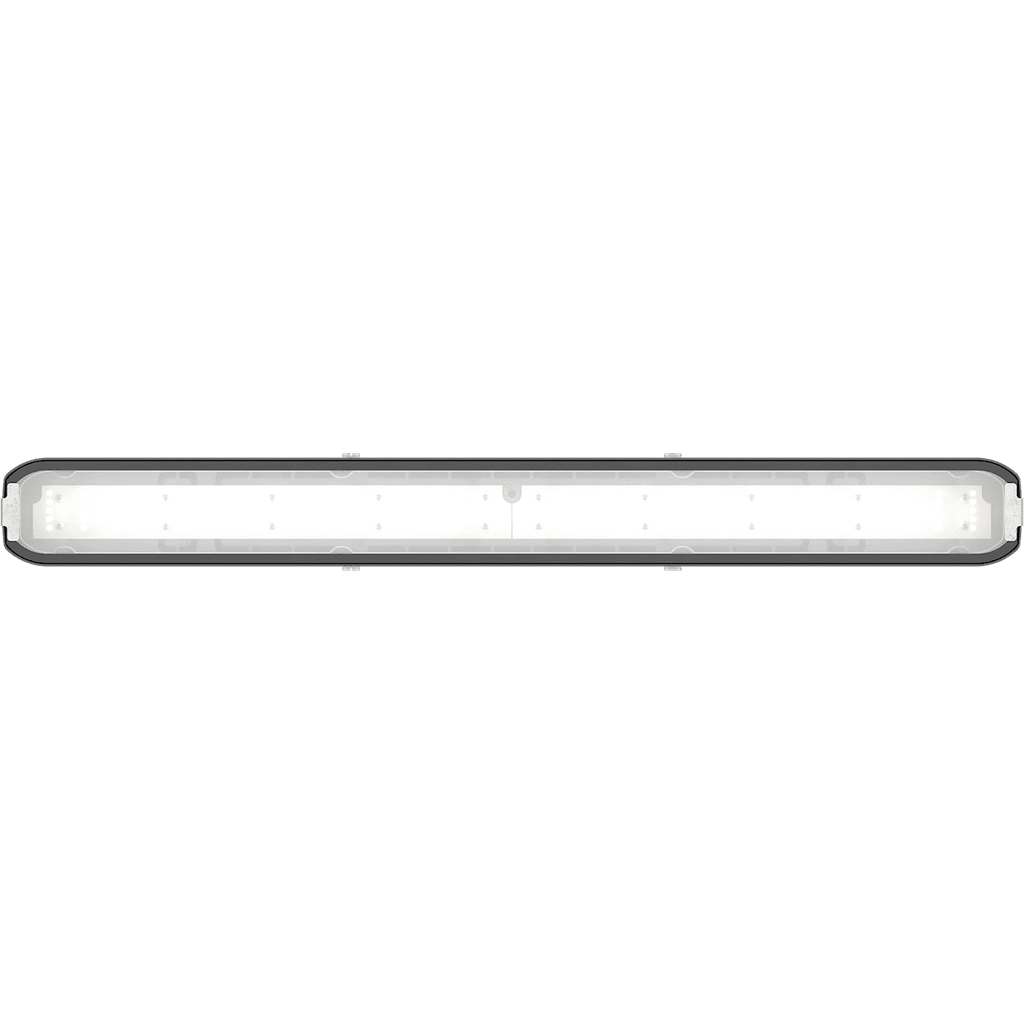

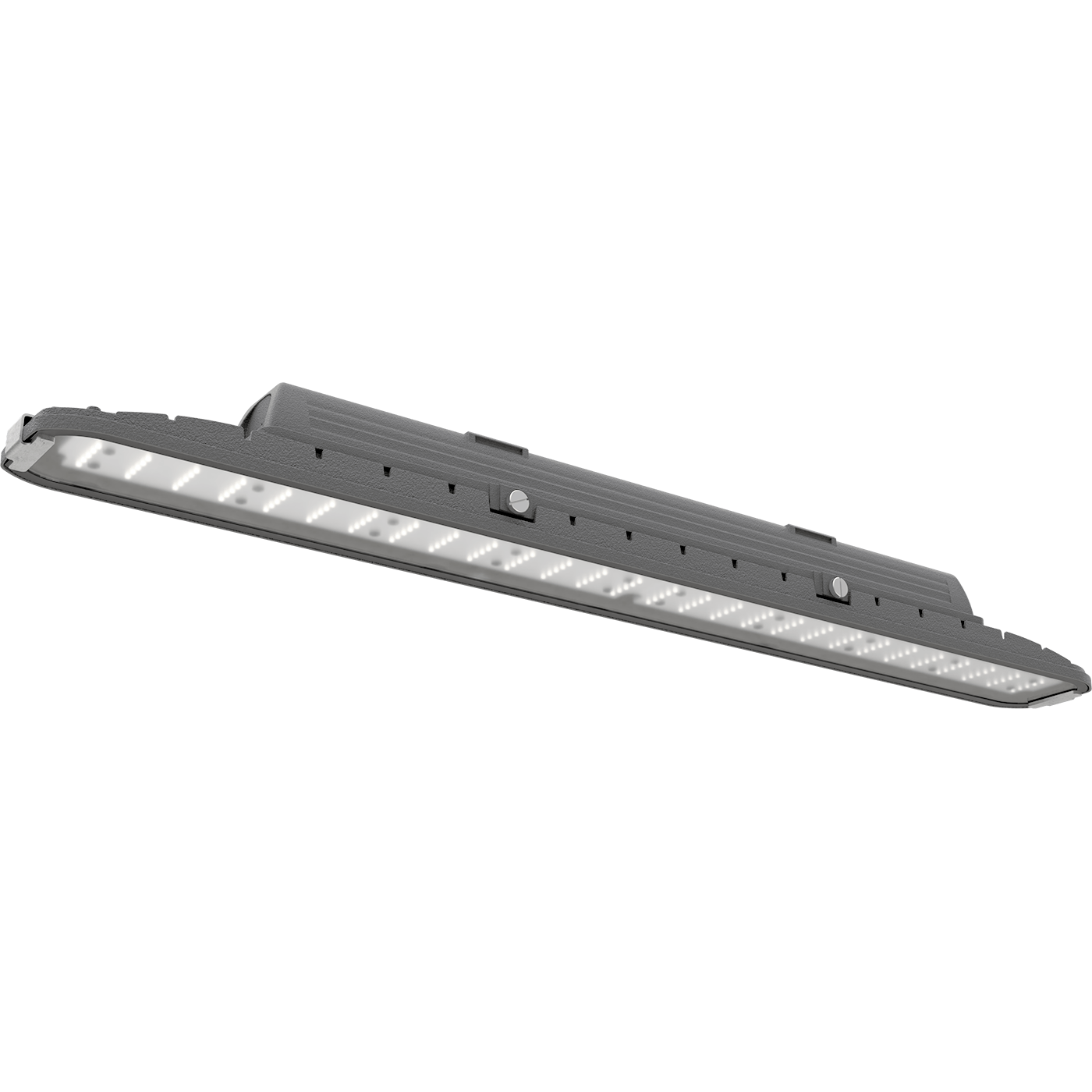

SLICK LED G2 80W PRS 850 HG with driver box /tempered glass/
SLICK LED G2 80W PRS 850 HG with driver box /tempered glass/
80 Wluminaire power
11200 lmlight flow
140 lm/Wenergy efficiency
code1631005880
color temperature5000 K

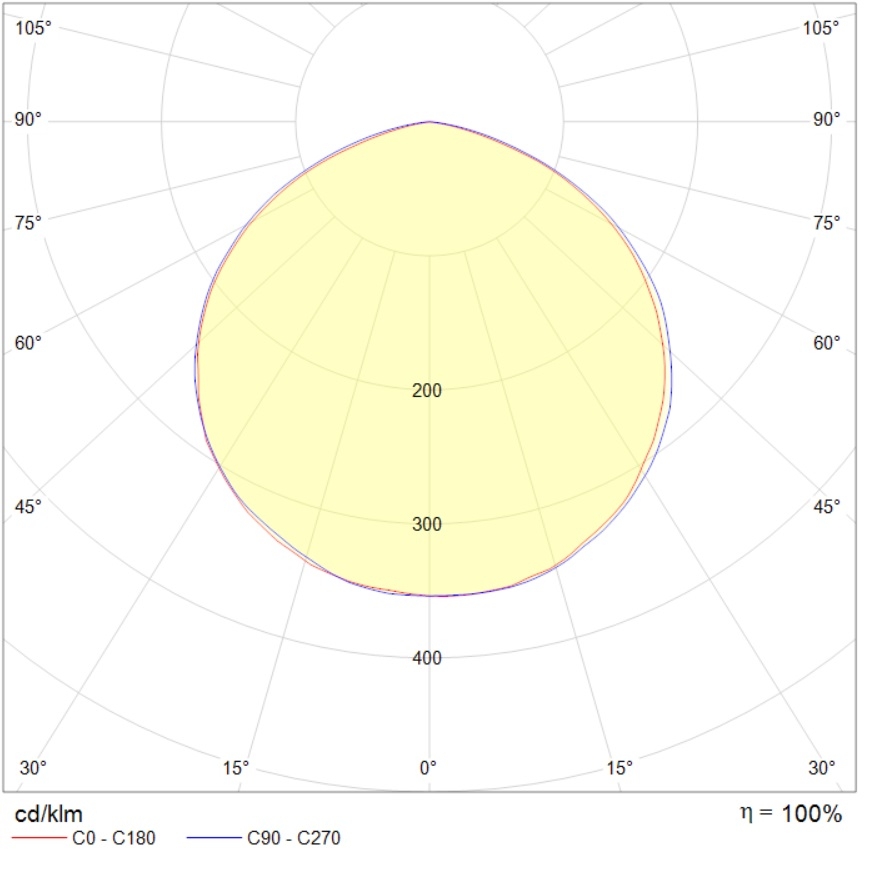

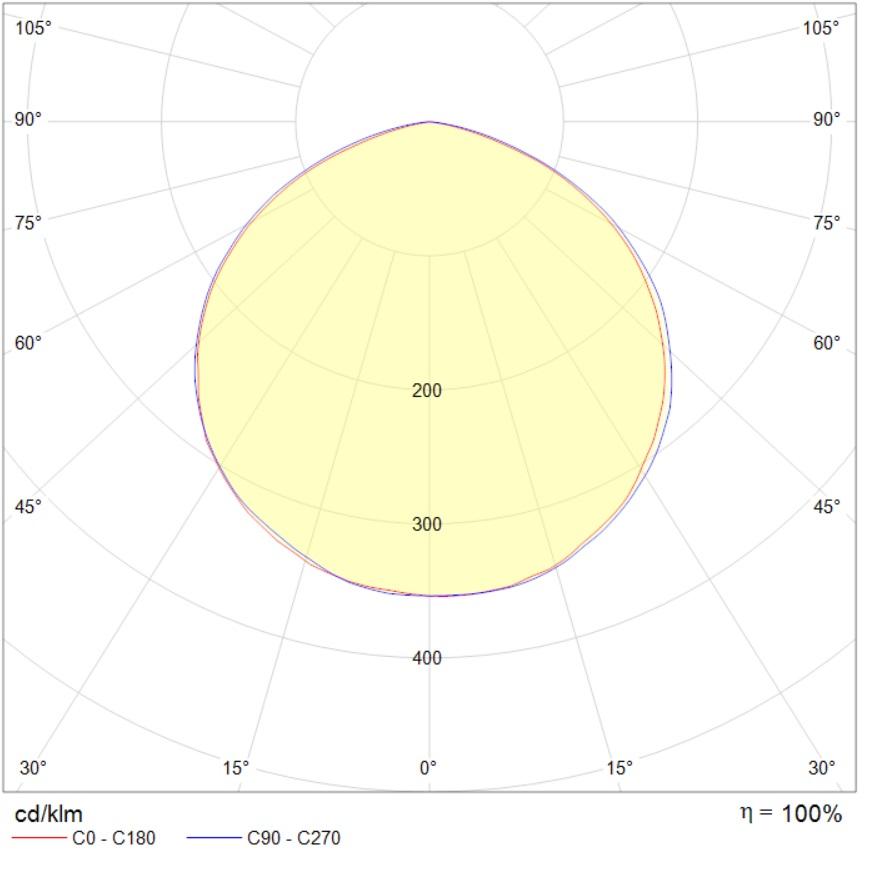

beam angleD120
performance factor100
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
140 lm/Wcolor rendition index (CRI)
>80light flow
11200 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
140 lm/W
color rendition index (CRI)
>80
light flow
11200 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1500 µs
electric shock protection
I
luminaire power
80 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
3 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +50 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Настенно-потолочный светильник
code
1631005880
model files
model files
photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg80 kB
ldt65.2 kB
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
