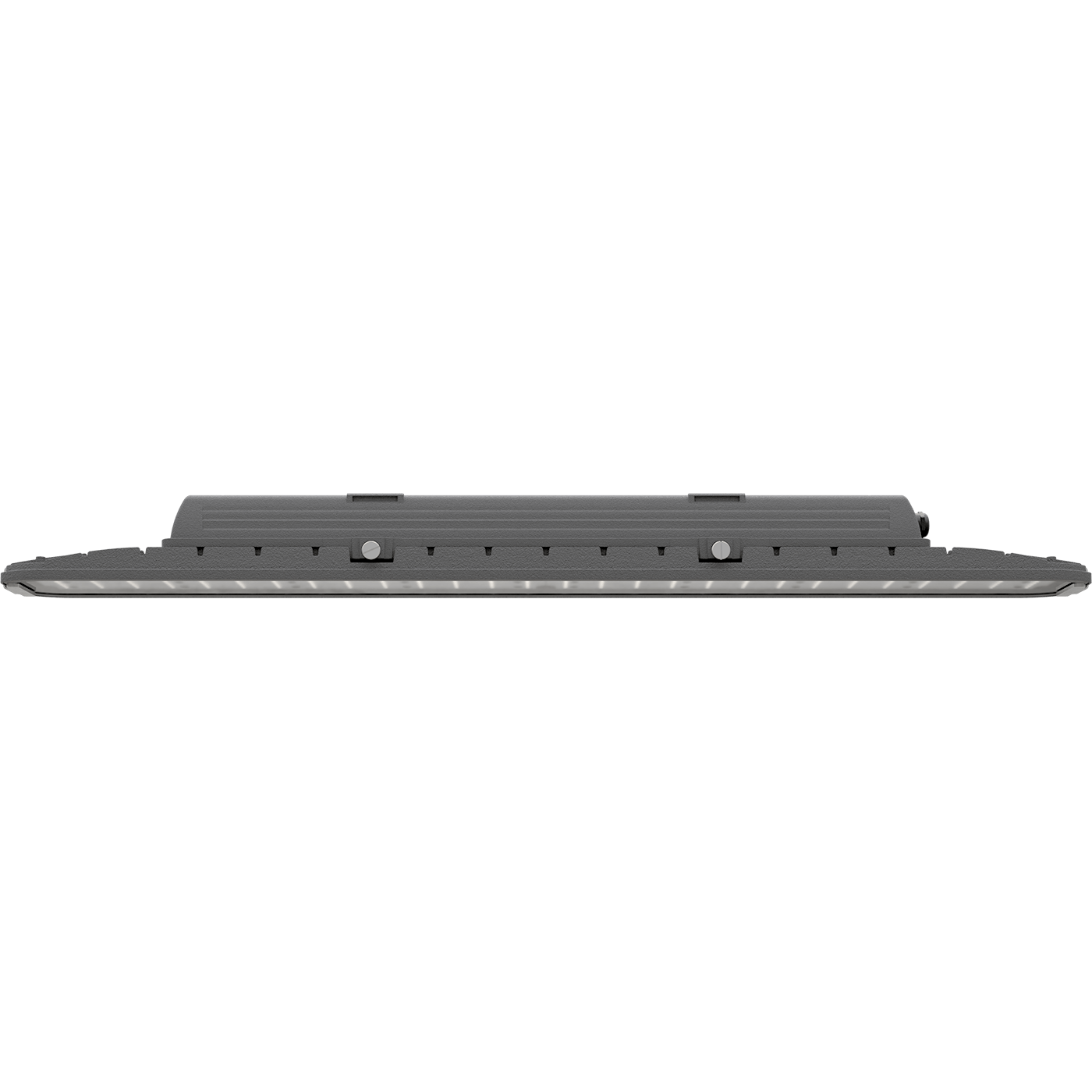

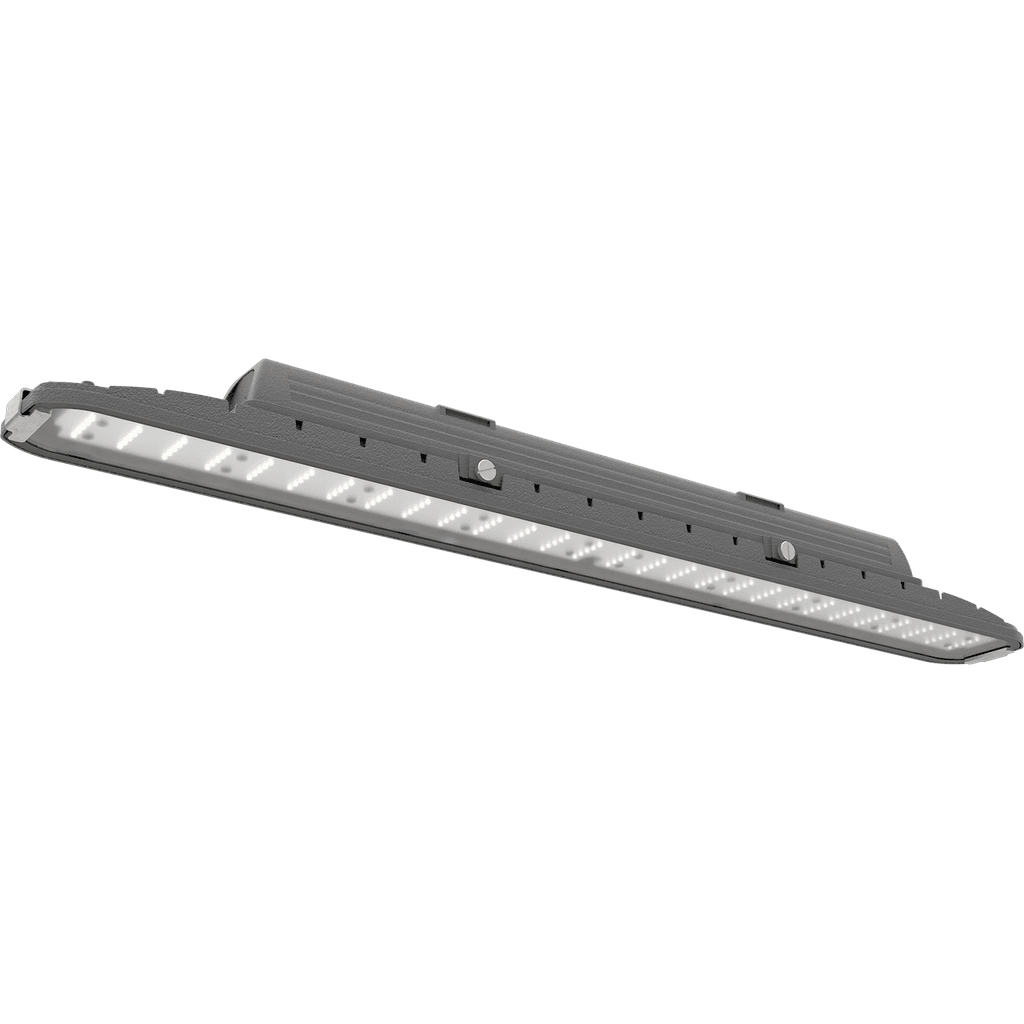

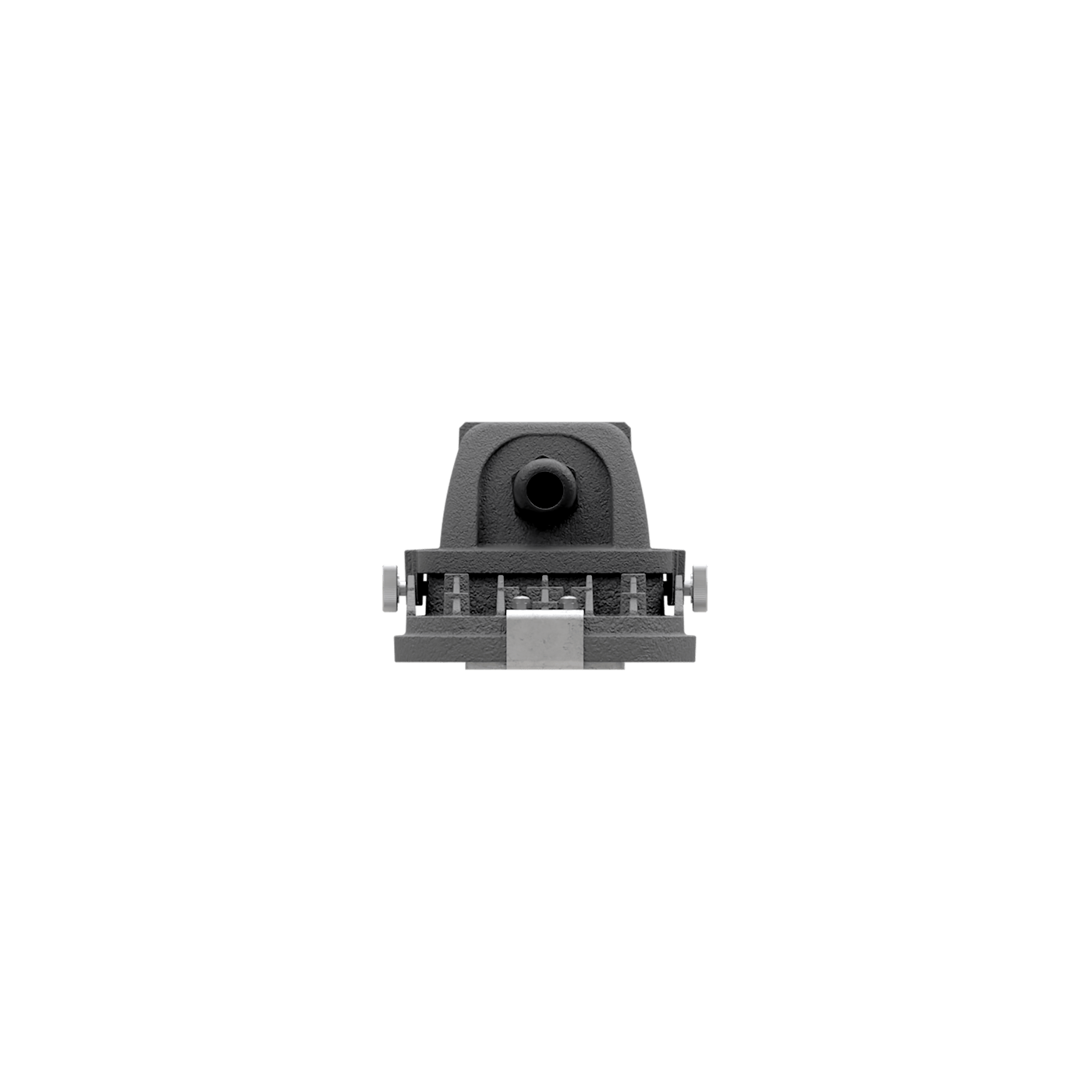

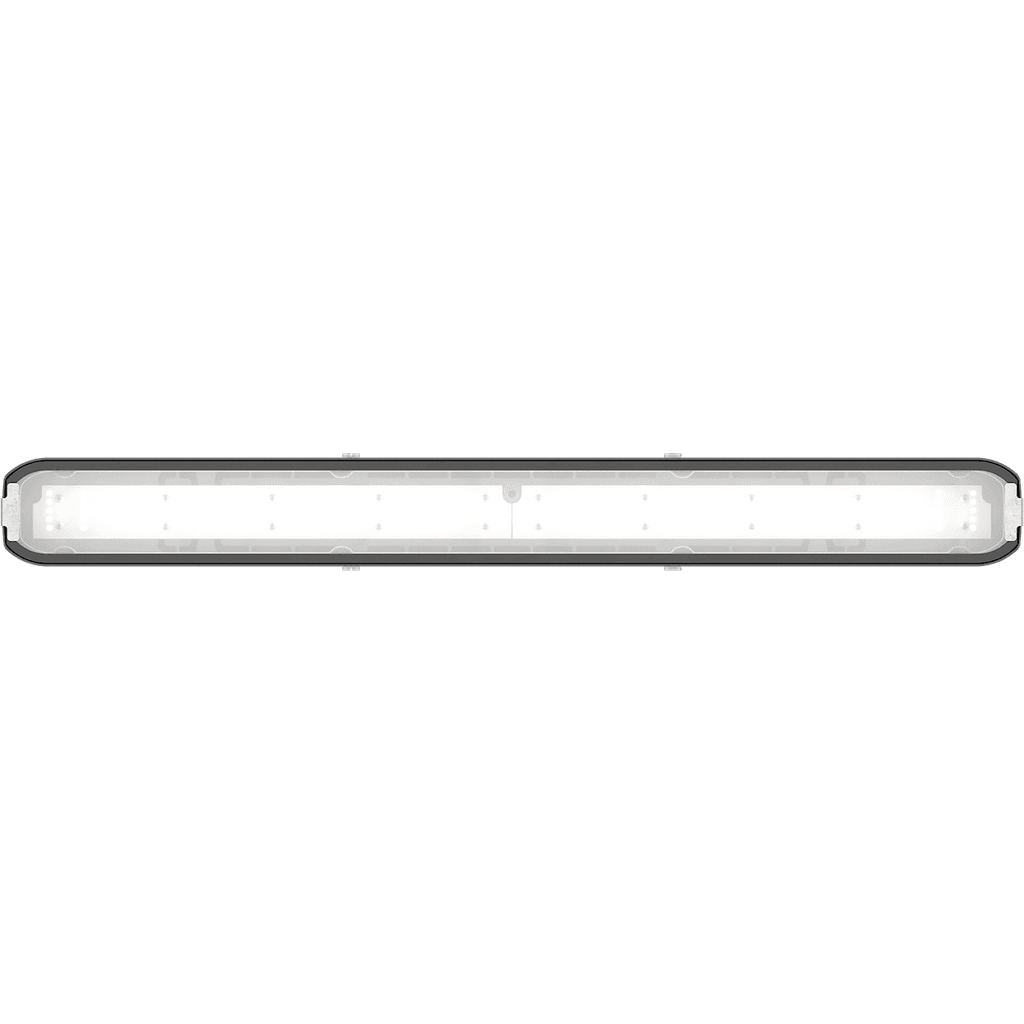

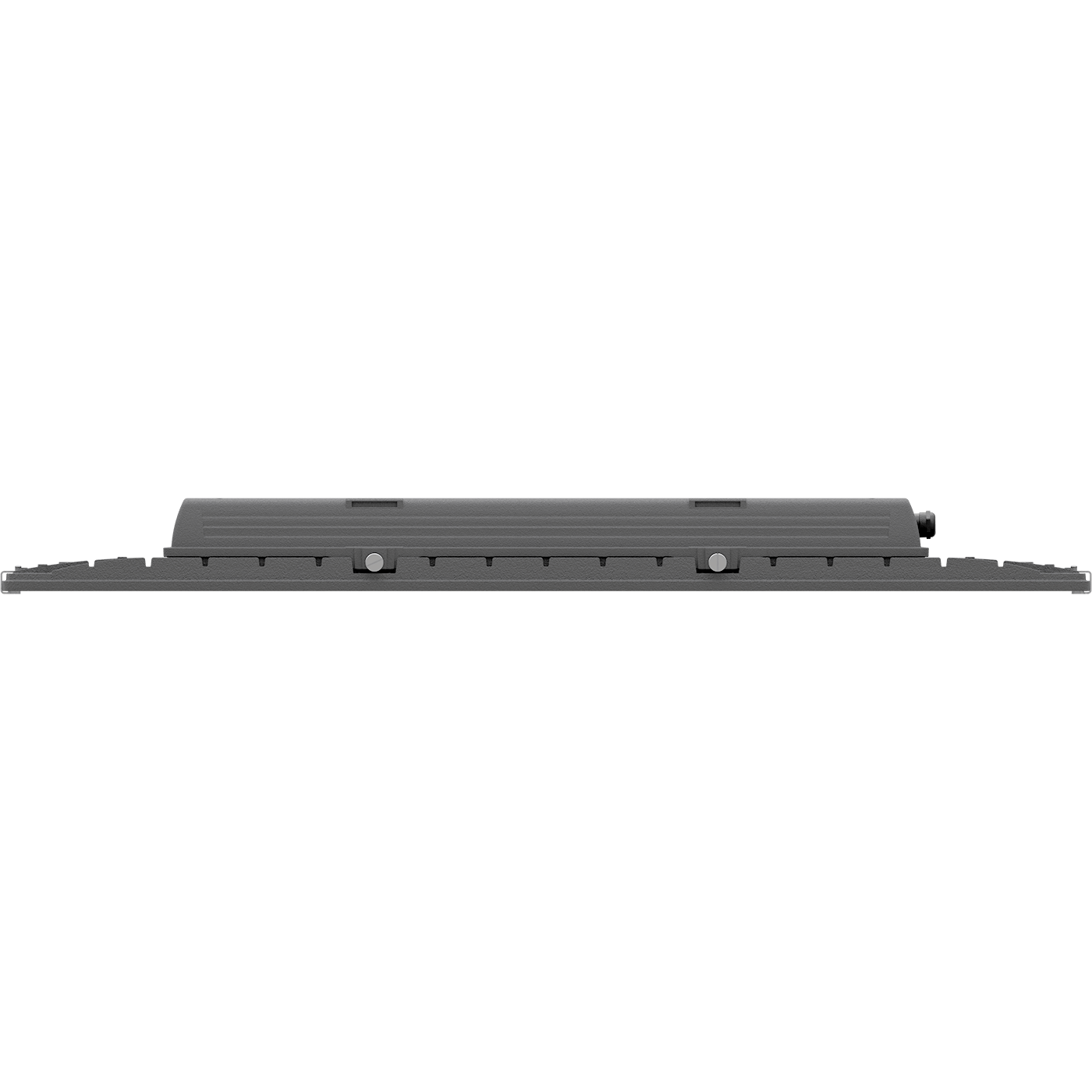

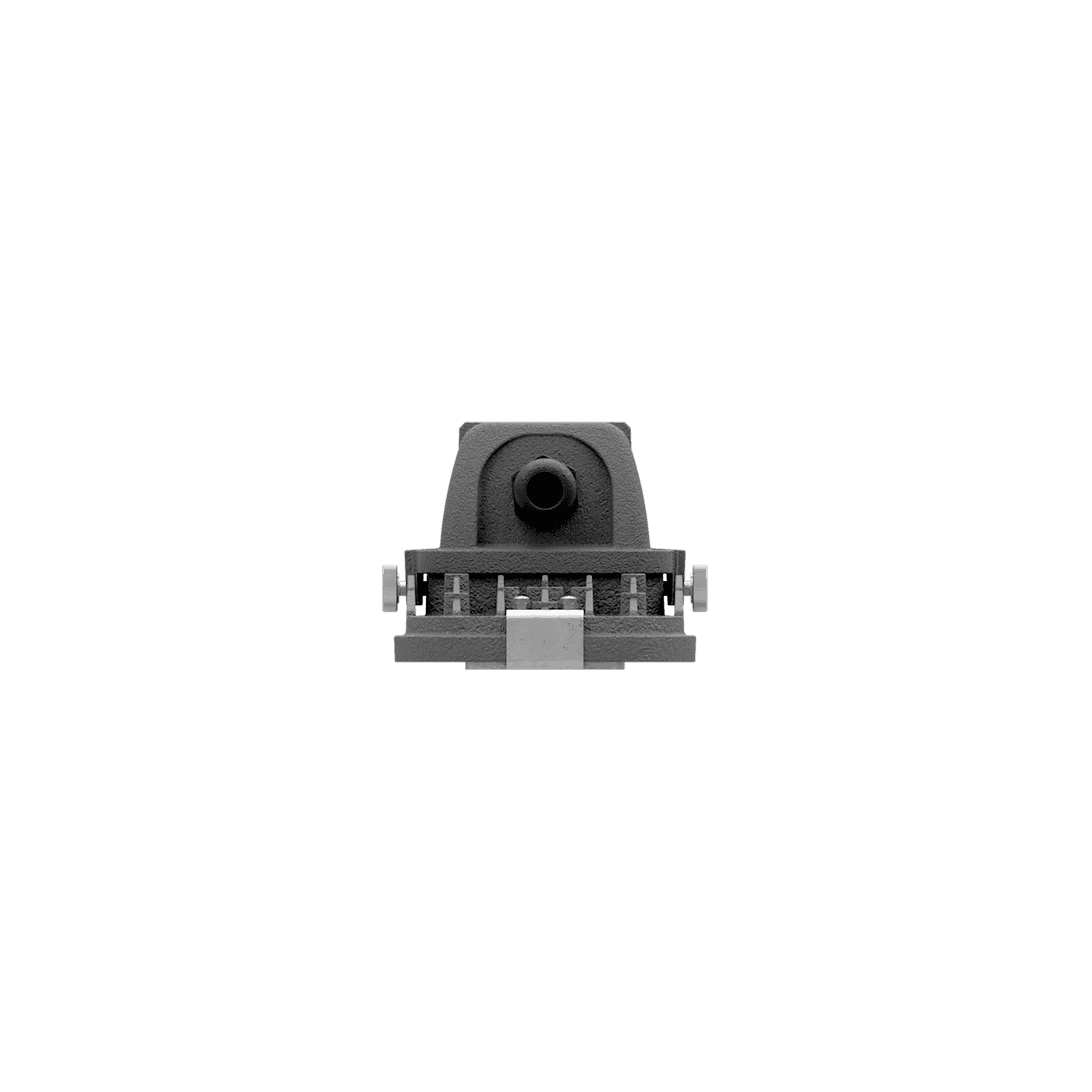

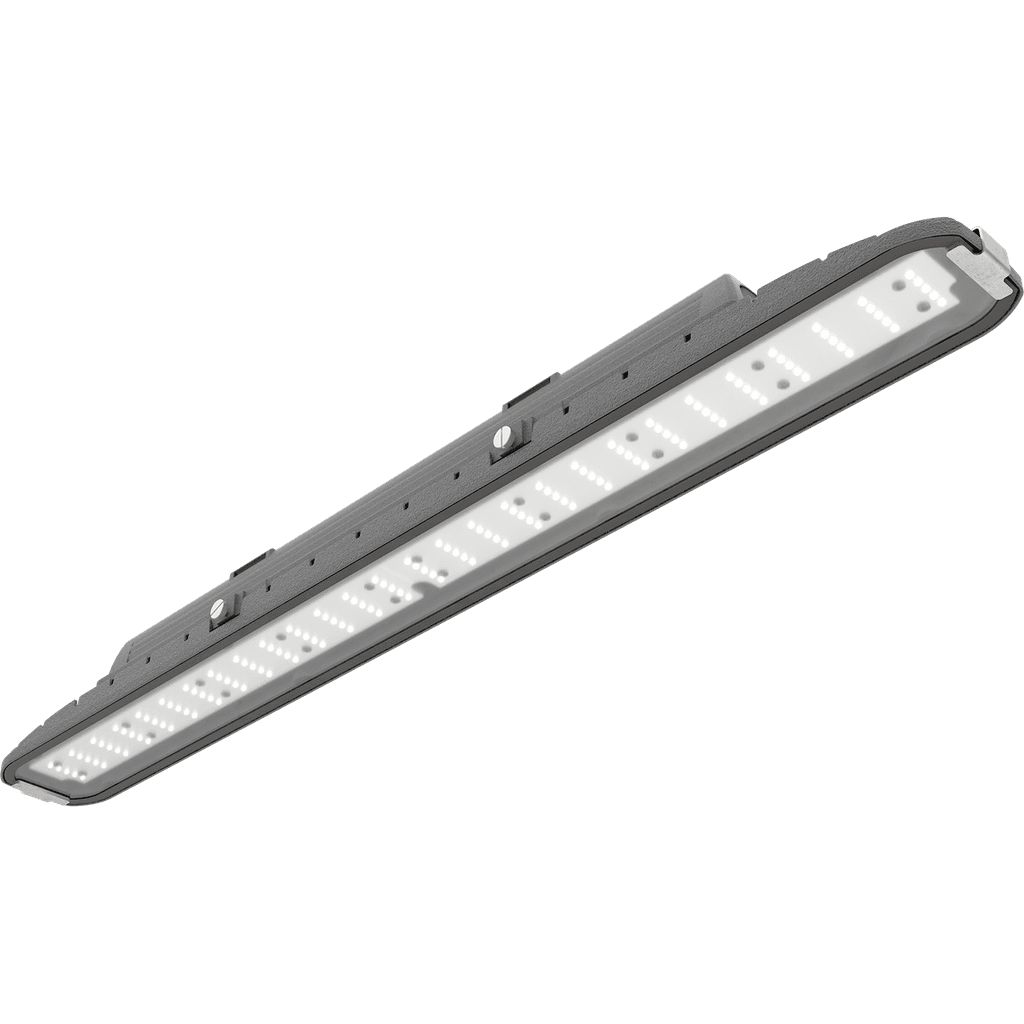

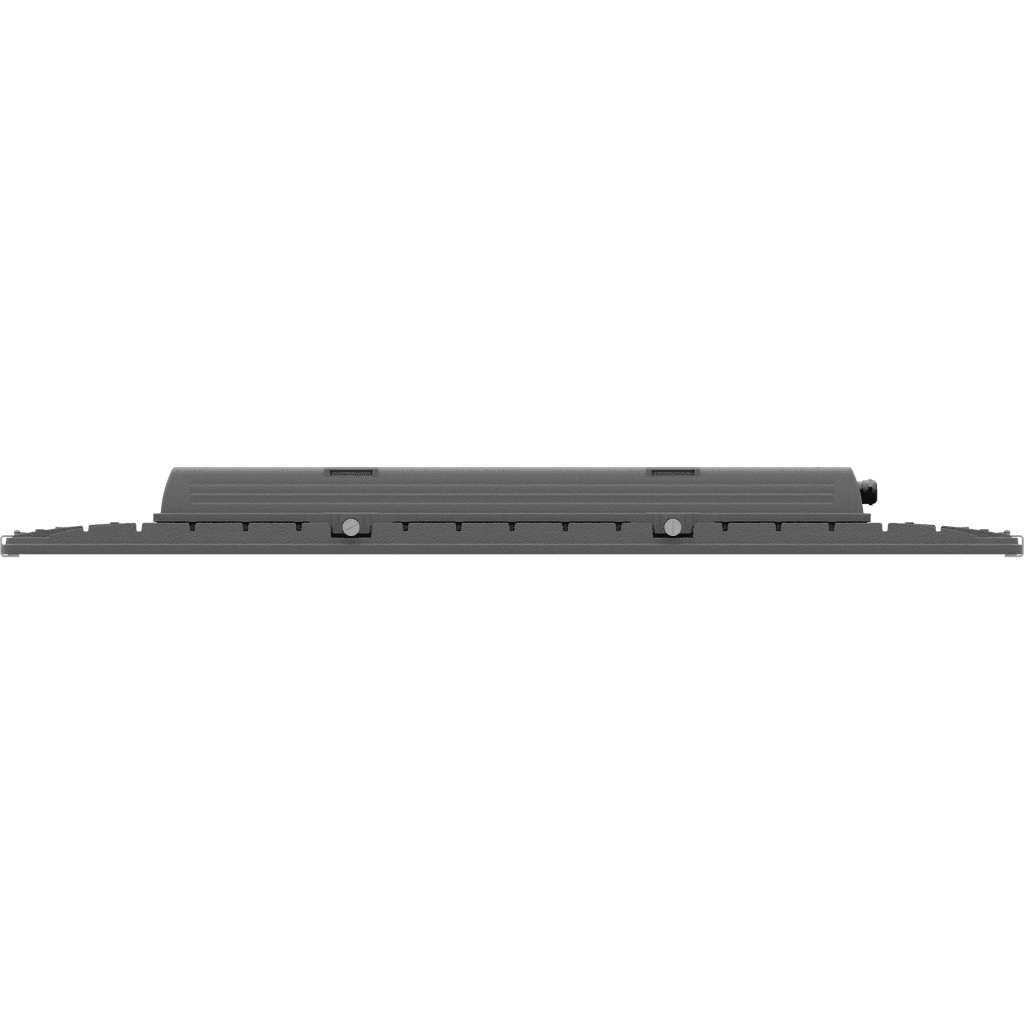

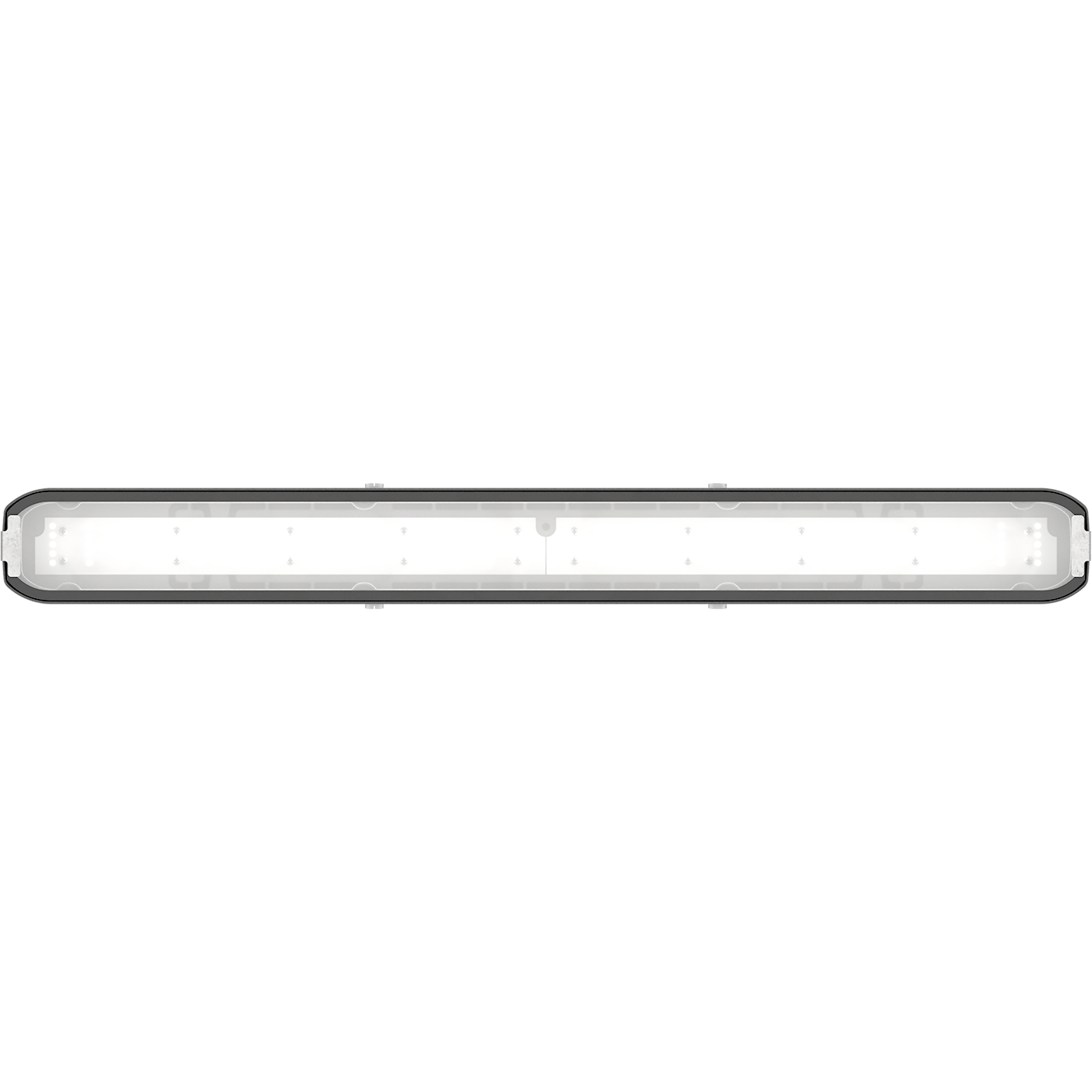

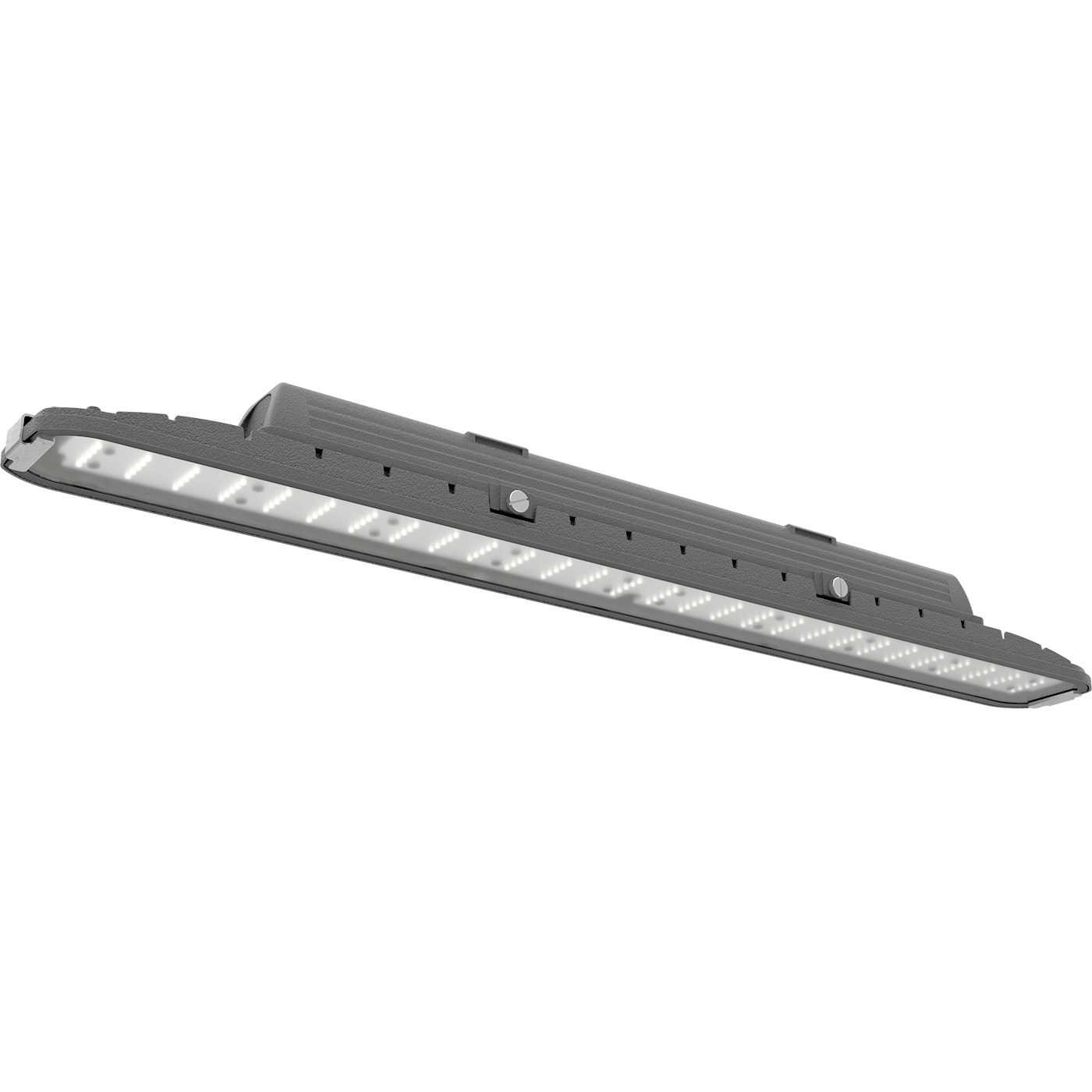

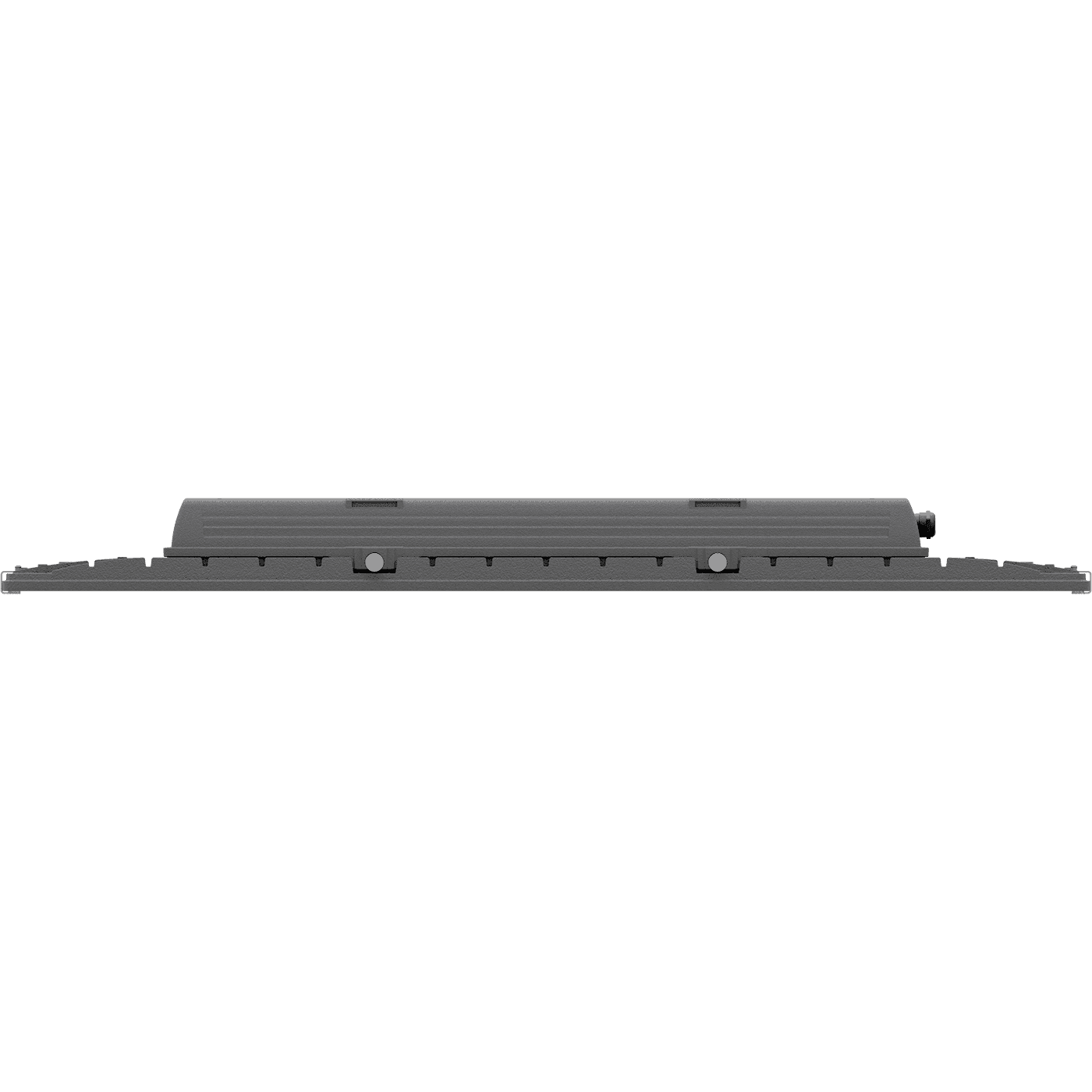

SLICK LED G2 60W OPL 840 HG with driver box /tempered glass
зарегистрирована в реестре российской промышленной продукции
SLICK LED G2 60W OPL 840 HG with driver box /tempered glass
64 Wluminaire power
7700 lmlight flow
120 lm/Wenergy efficiency
code
1631005730
number from the register of Russian industrial products
10758134
color temperature
4000 K

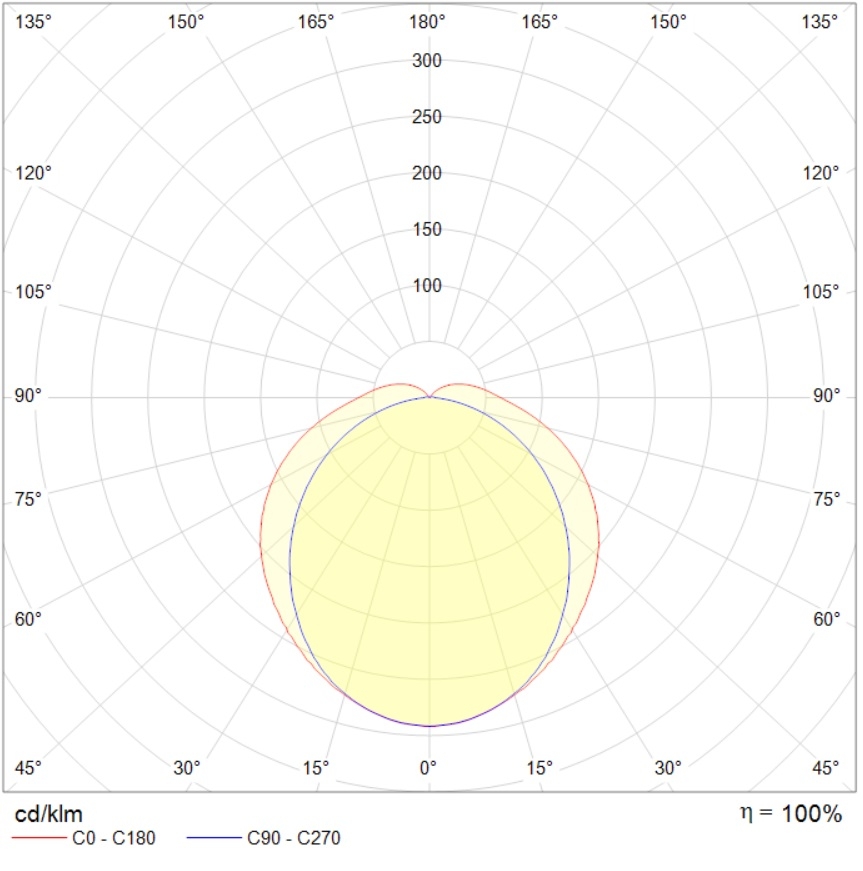

beam angle
D120
performance factor
100
weight
4.5 kg
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- SLICK LED G2
- SLICK LED G2 60W OPL 840 HG with driver box /tempered glass
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
120 lm/Wcolor rendition index (CRI)
>80light flow
7700 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
120 lm/W
color rendition index (CRI)
>80
light flow
7700 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1500 µs
power factor
> 0,95
luminaire power
64 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
3 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1631005730
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
photometric files
documents
сертификаты
media
photometric files
ies134.1 kB
jpg110 kB
ldt105.3 kB
csv457 B
documents
passport2.7 mB
сертификаты
Russian origin330.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
