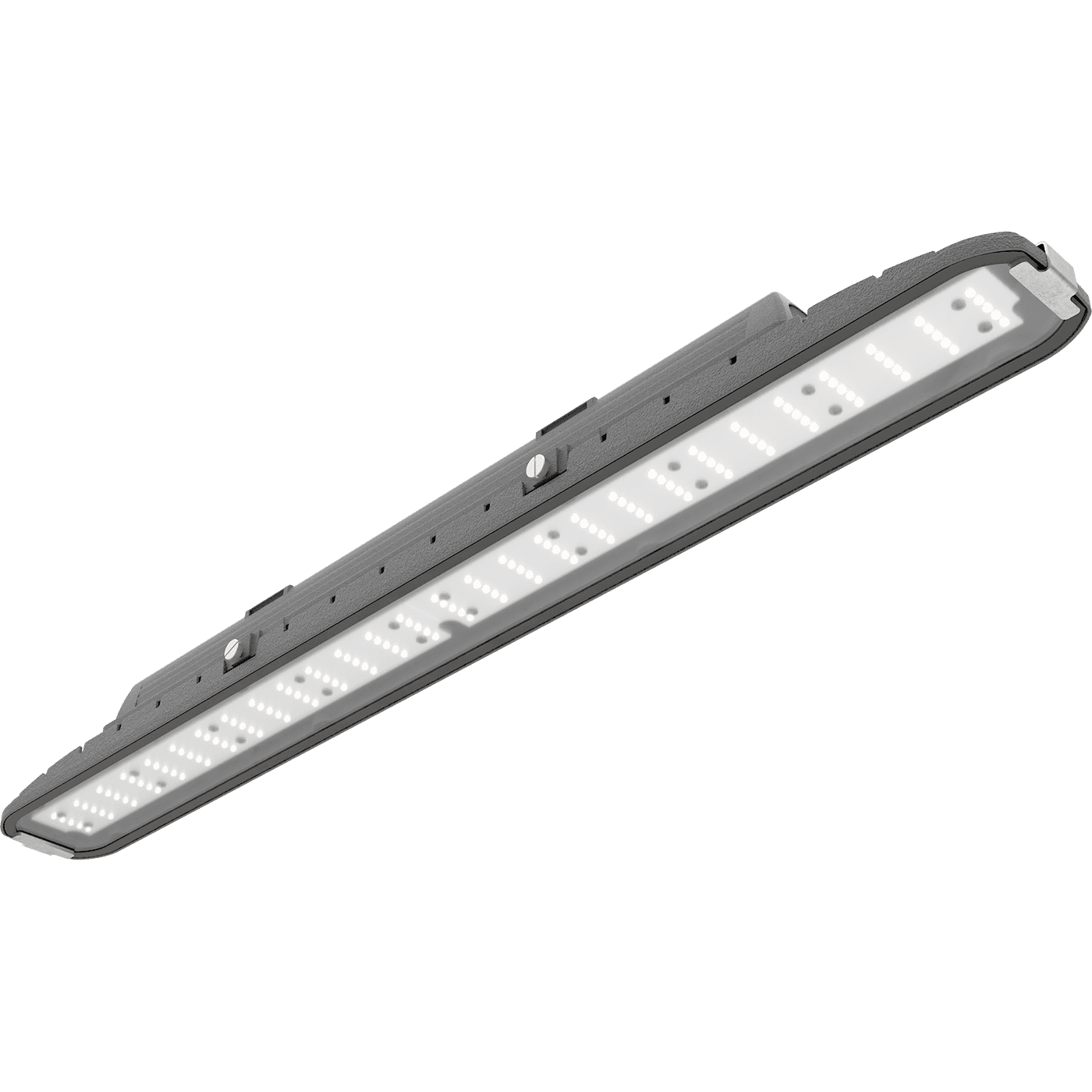

SLICK LED G2 60W OPL 840 HG DALI with driver box /tempered glass
SLICK LED G2 60W OPL 840 HG DALI with driver box /tempered glass
60 Wluminaire power
7200 lmlight flow
120 lm/Wenergy efficiency
code1631005720
color temperature4000
beam angleD120
weight4.5 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
30 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
60 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
60 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP69
fire safety class
П-ІІ
material
Алюминий
weight
4.5 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
960 mm
width, mm
105 mm
height, mm
85 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
code
1631005720
illuminating
light flow
7200 lm
flickering factor
<1%
energy efficiency
120 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files
photometric files
сертификаты
photometric files
ies134.1 kB
jpg110 kB
ldt105.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
