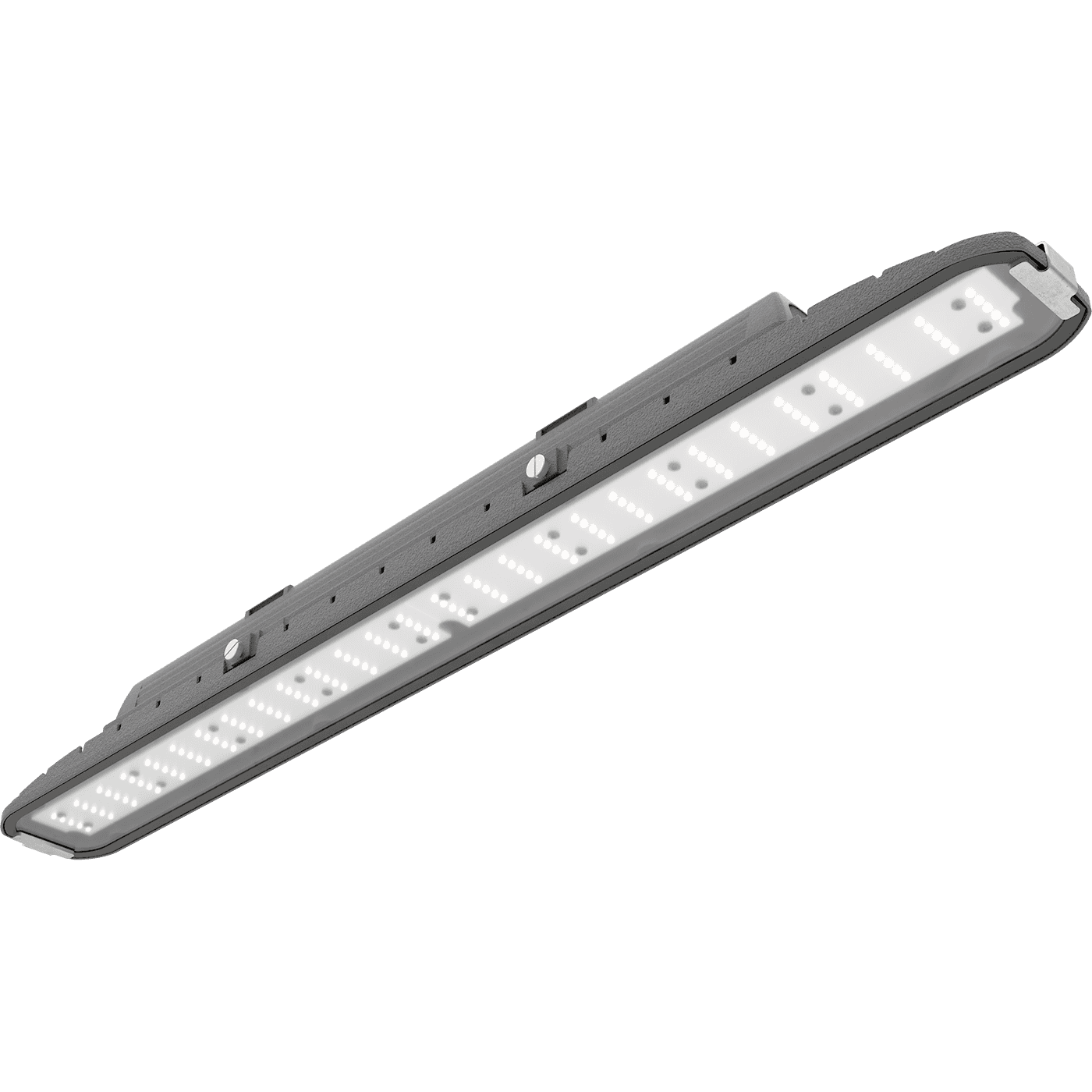

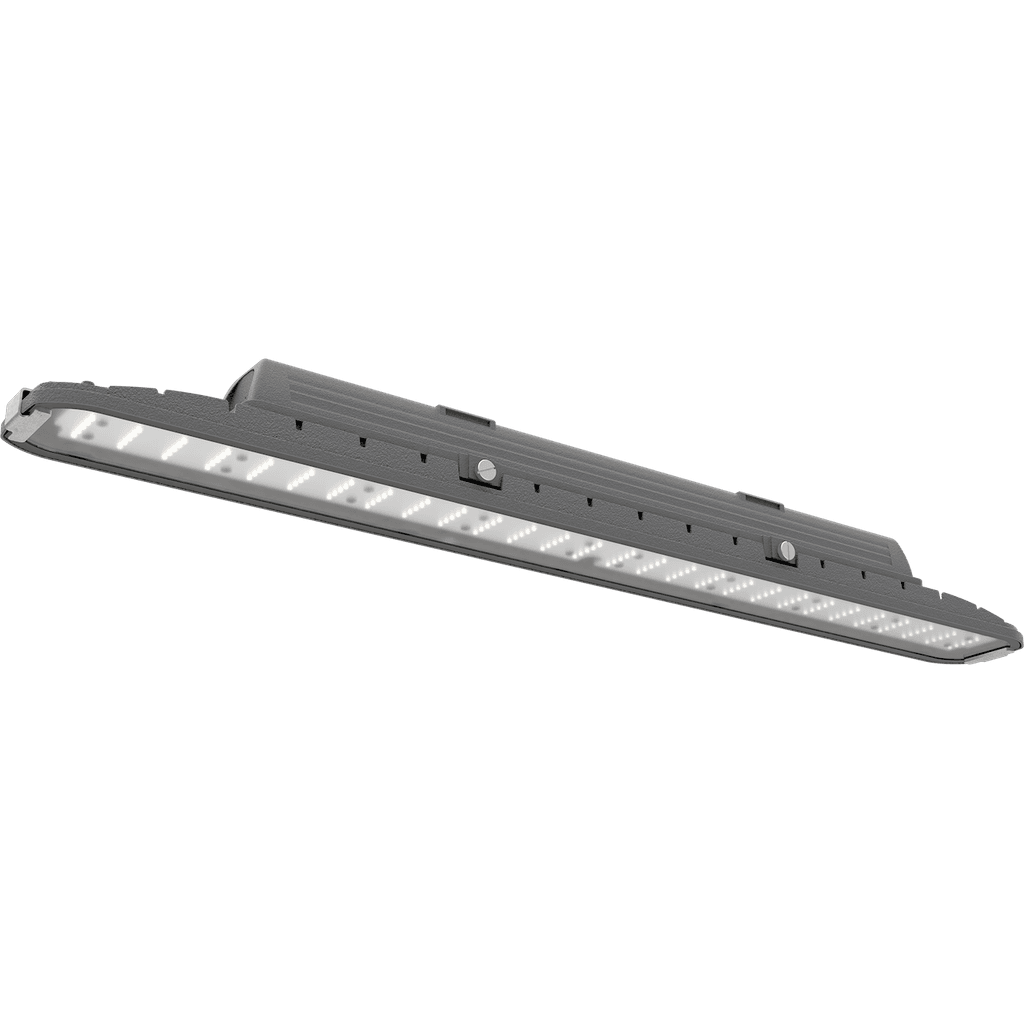

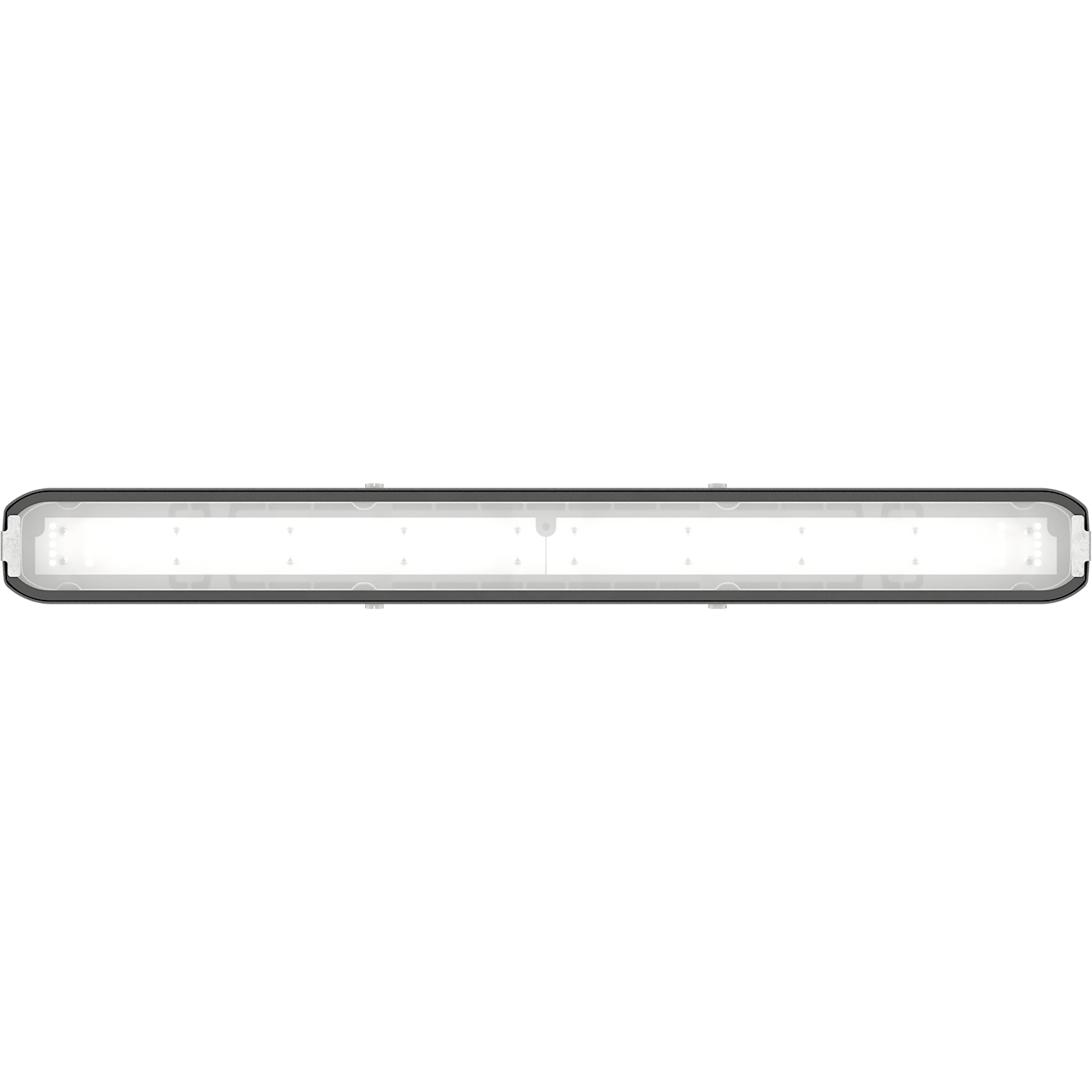

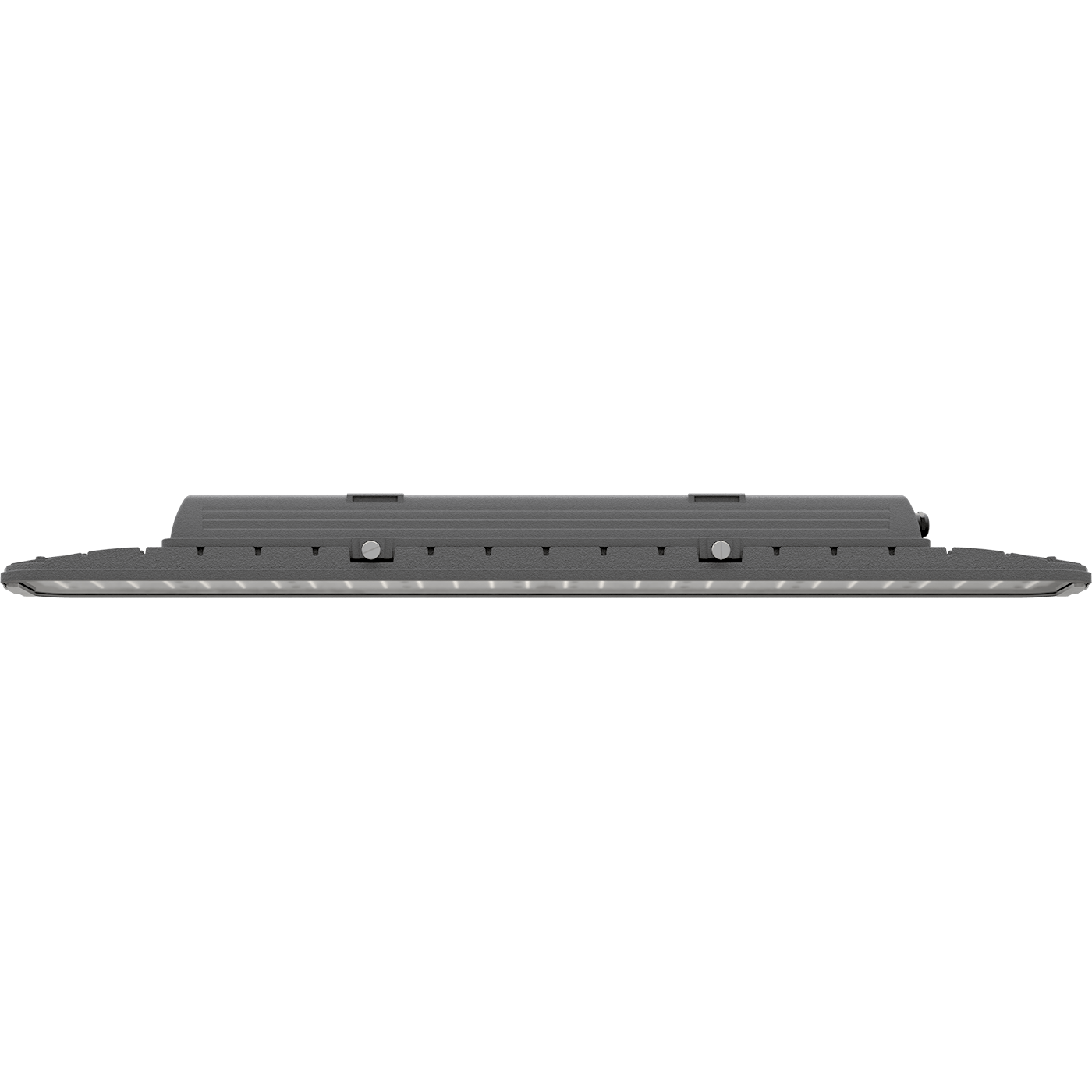

SLICK LED G2 50W OPL 840 HG with driver box /matt tempered glass
SLICK LED G2 50W OPL 840 HG with driver box /matt tempered glass
48 Wluminaire power
5800 lmlight flow
121 lm/Wenergy efficiency
code1631005710
color temperature4000 K
beam angleD120
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
5800 lmflickering factor
<1%energy efficiency
121 lm/Wbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
5800 lm
flickering factor
<1%
energy efficiency
121 lm/W
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
48 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP69
weight
4.5 kg
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +50 C
code
1631005710
model files
model files

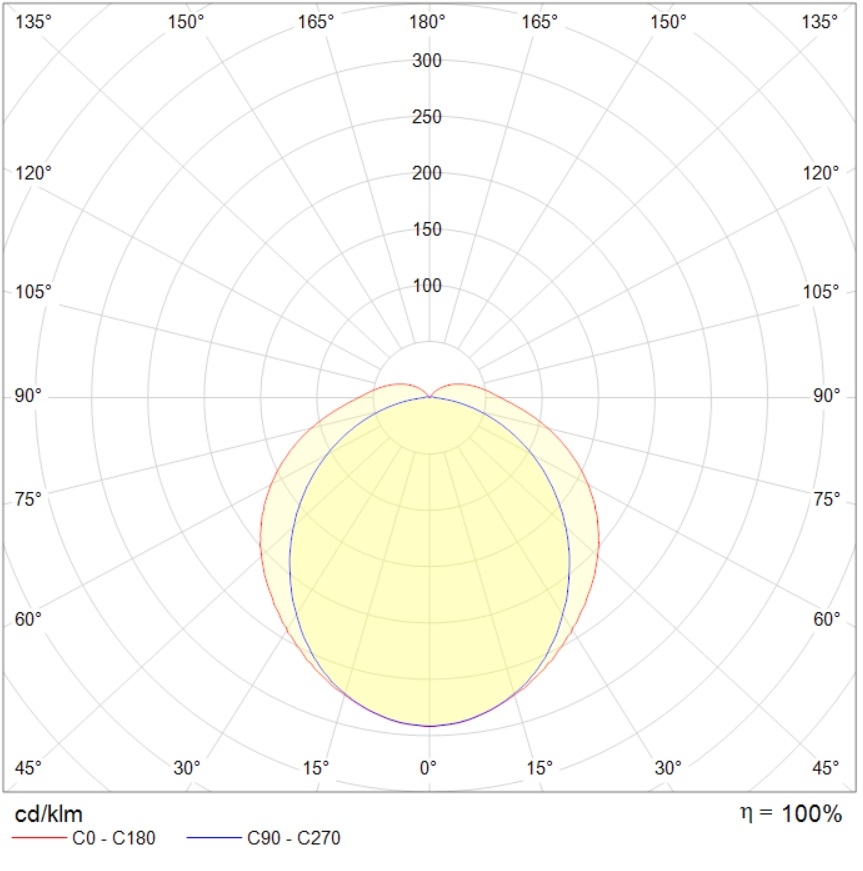

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg110 kB
ldt105.3 kB
documents
passport2.7 mB
сертификаты
Russian origin635.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
