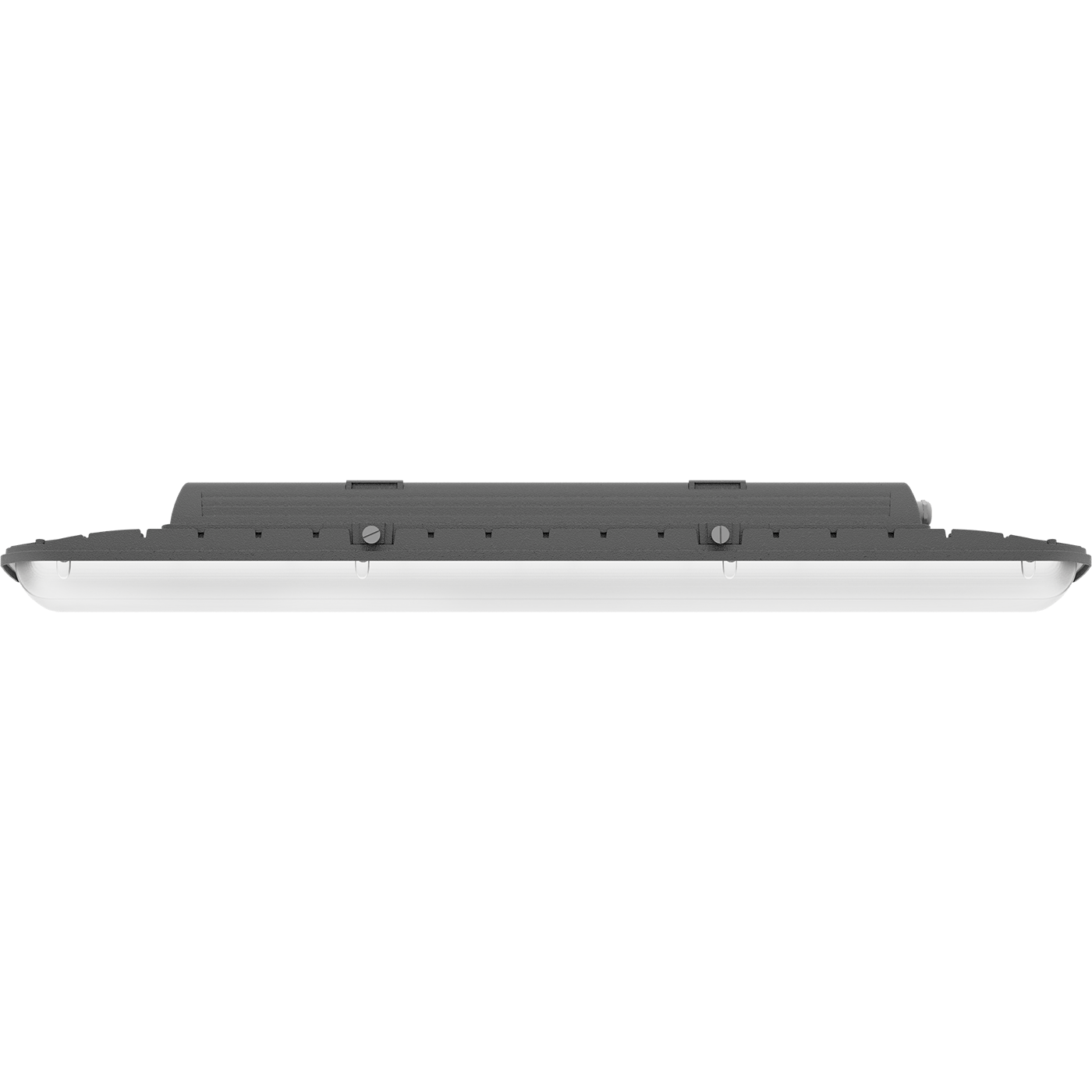

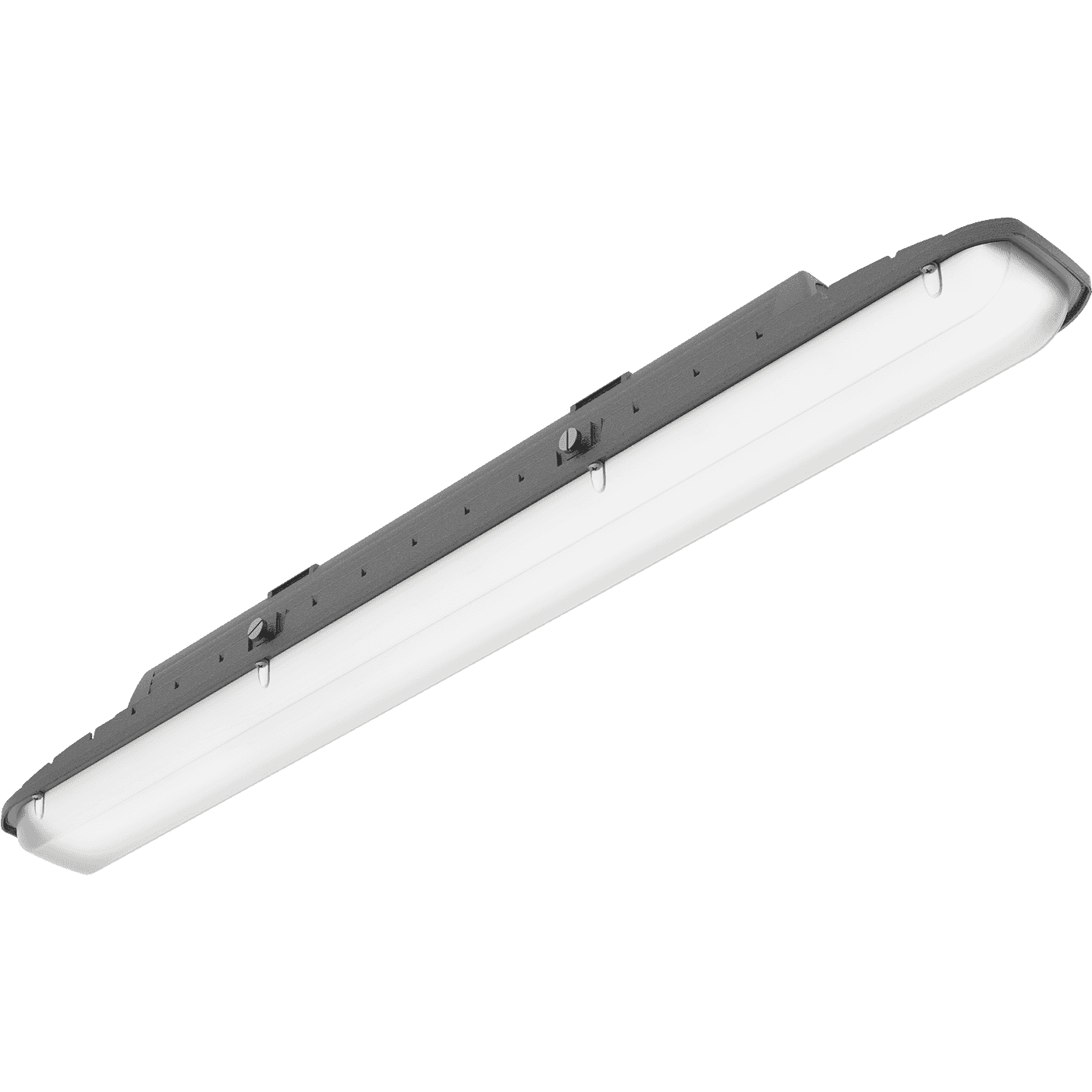

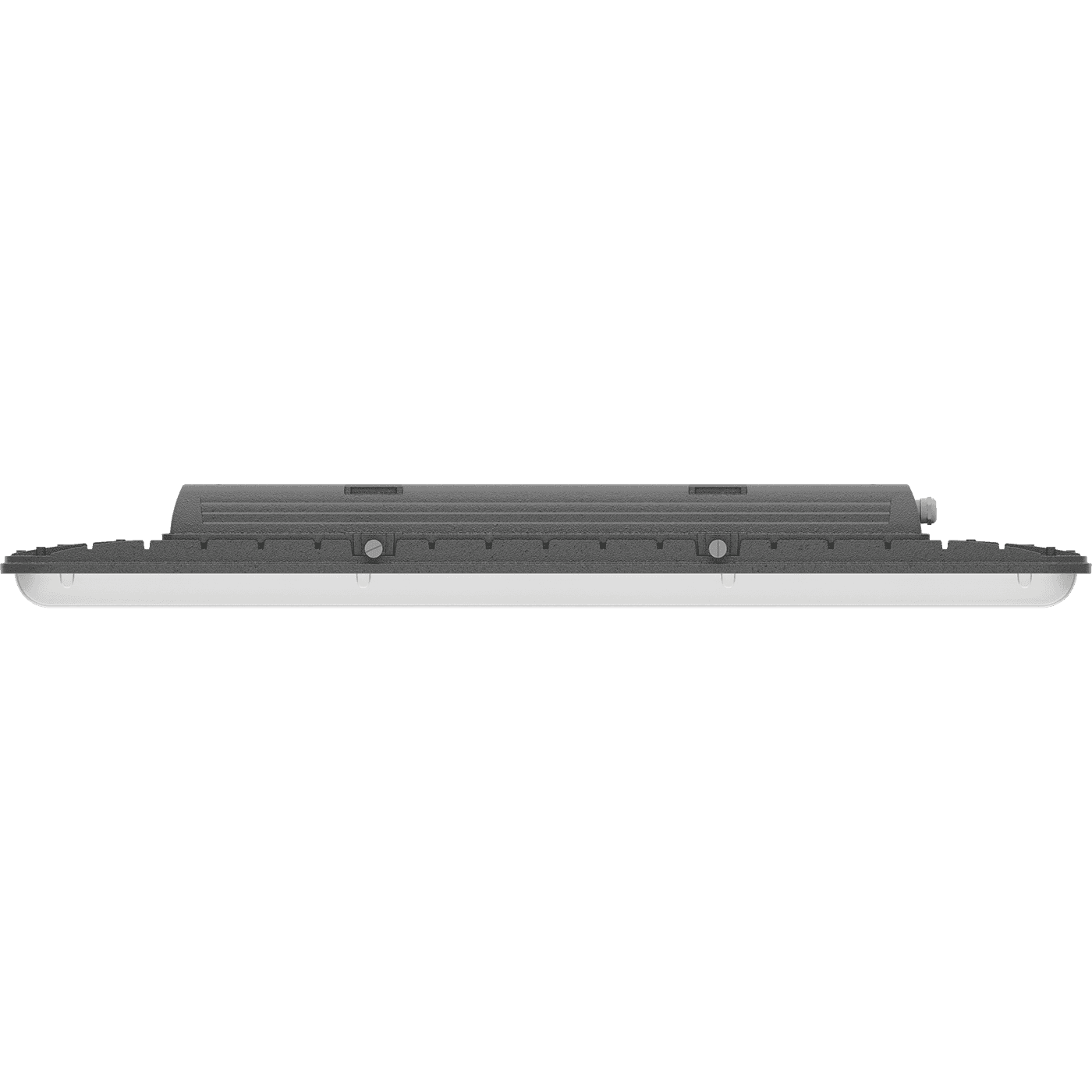

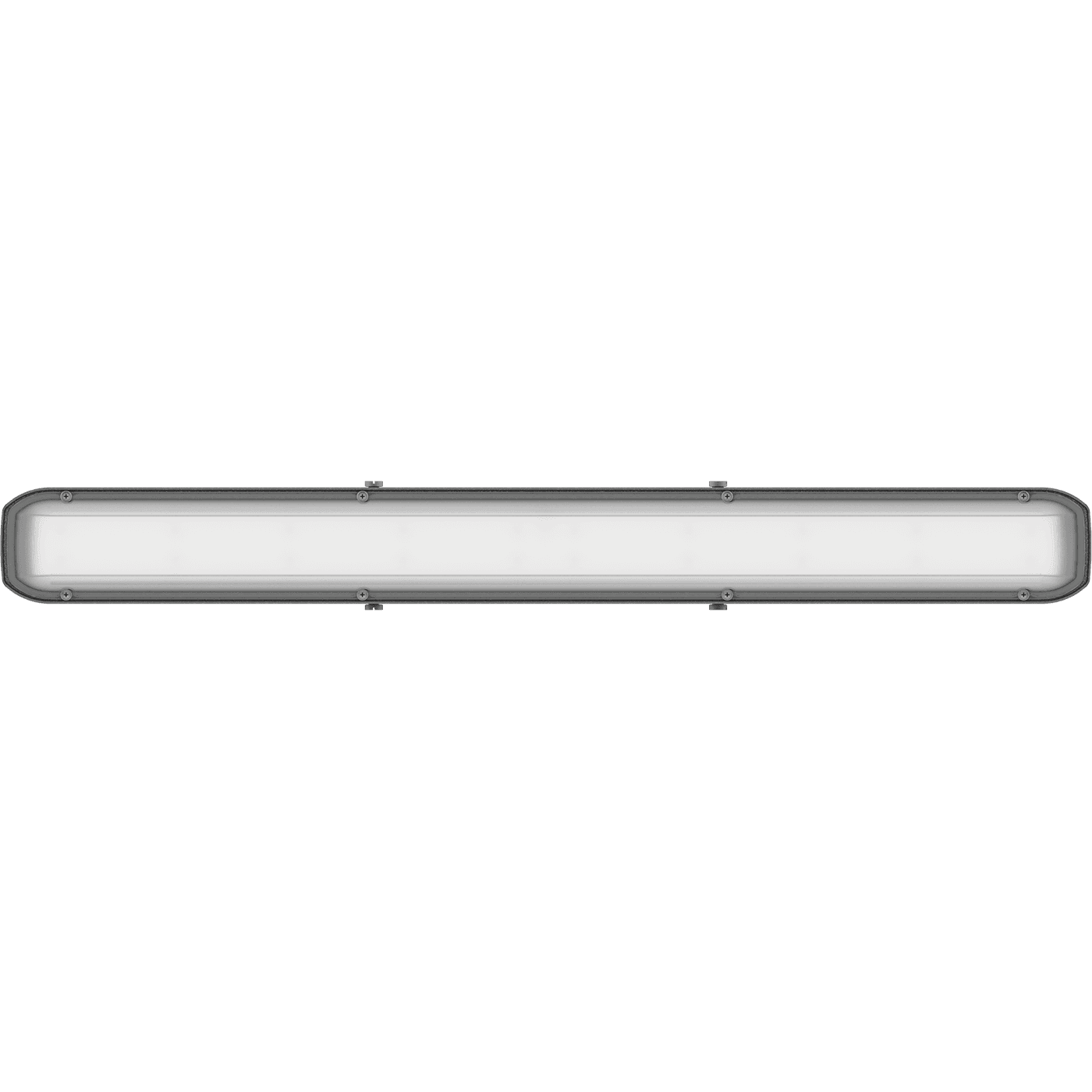

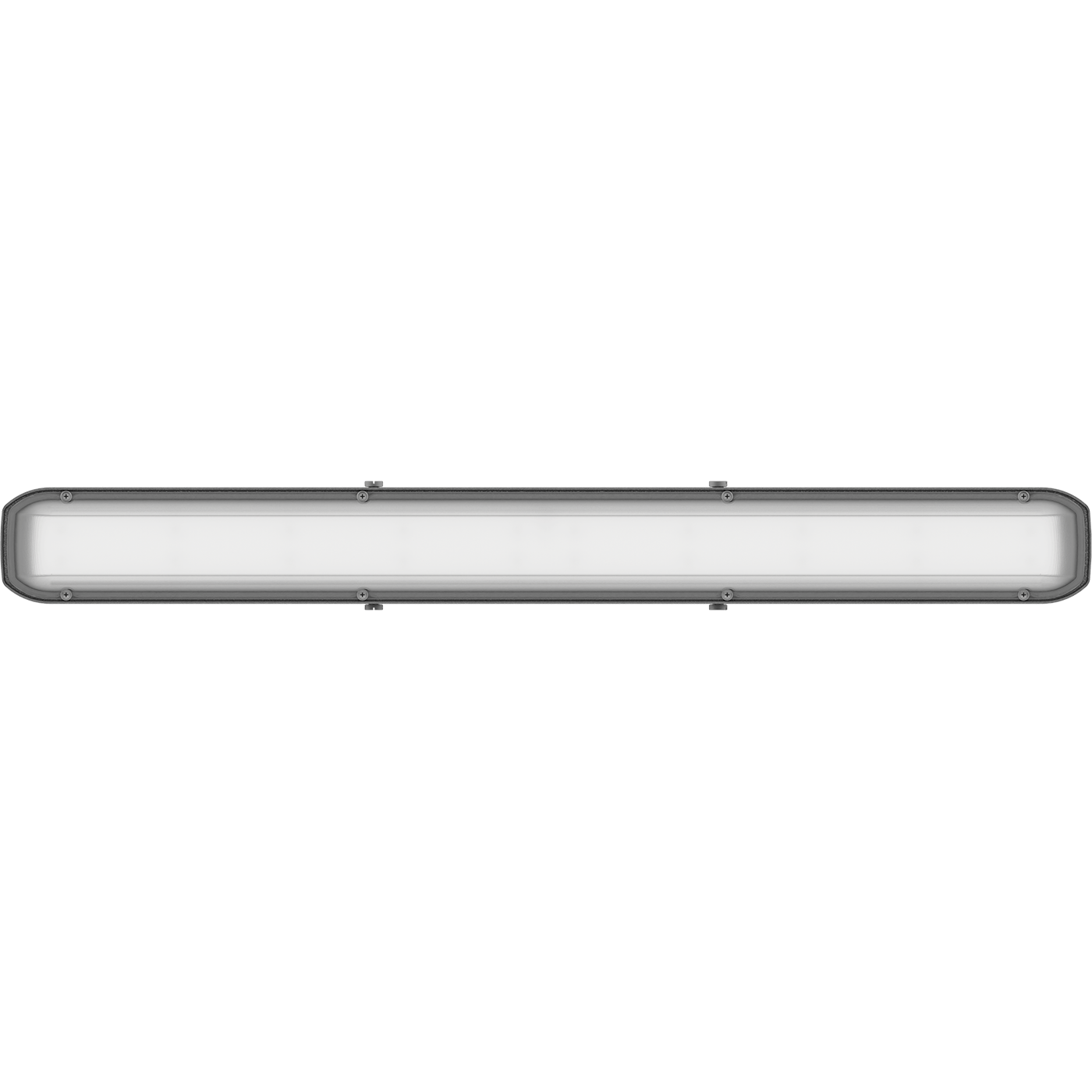

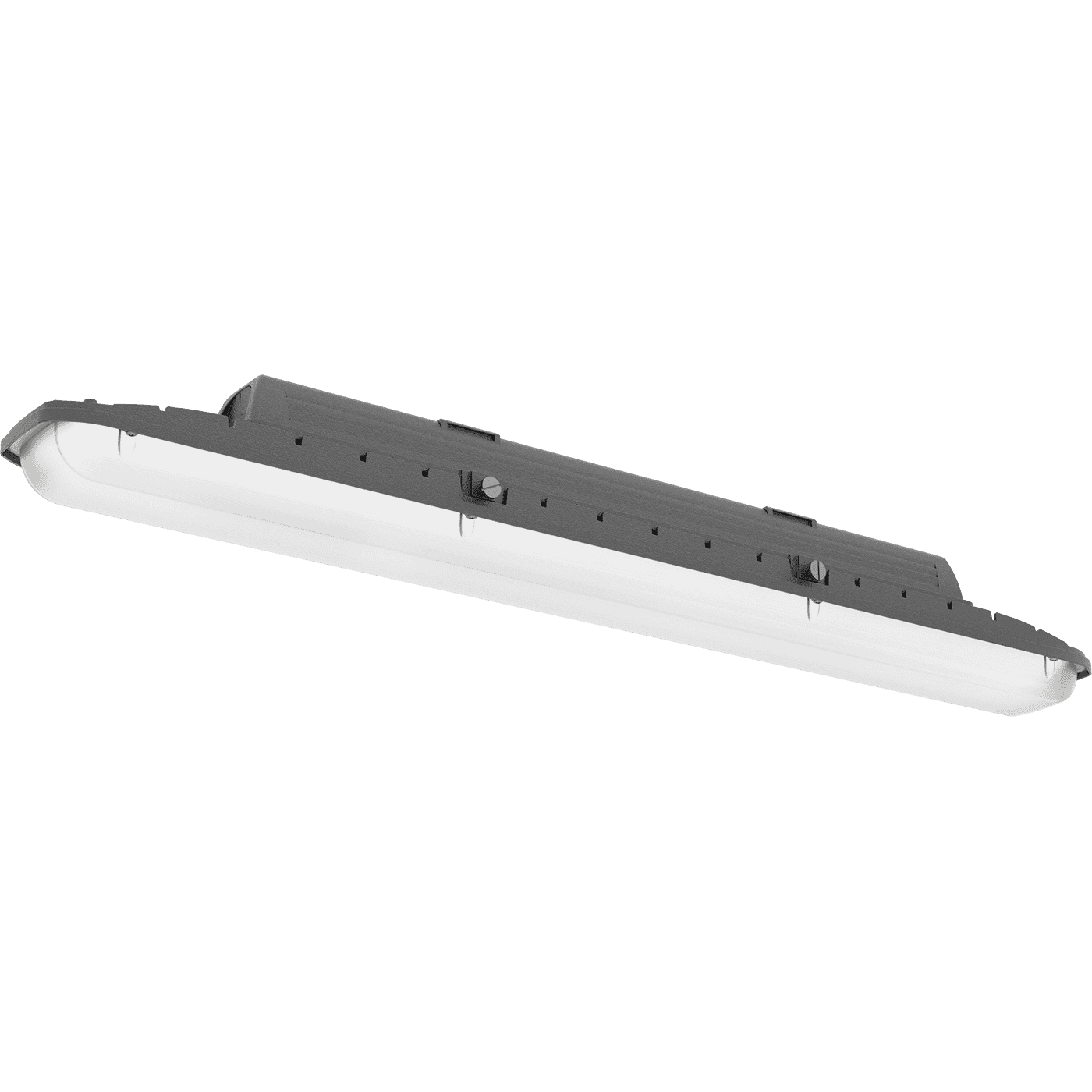

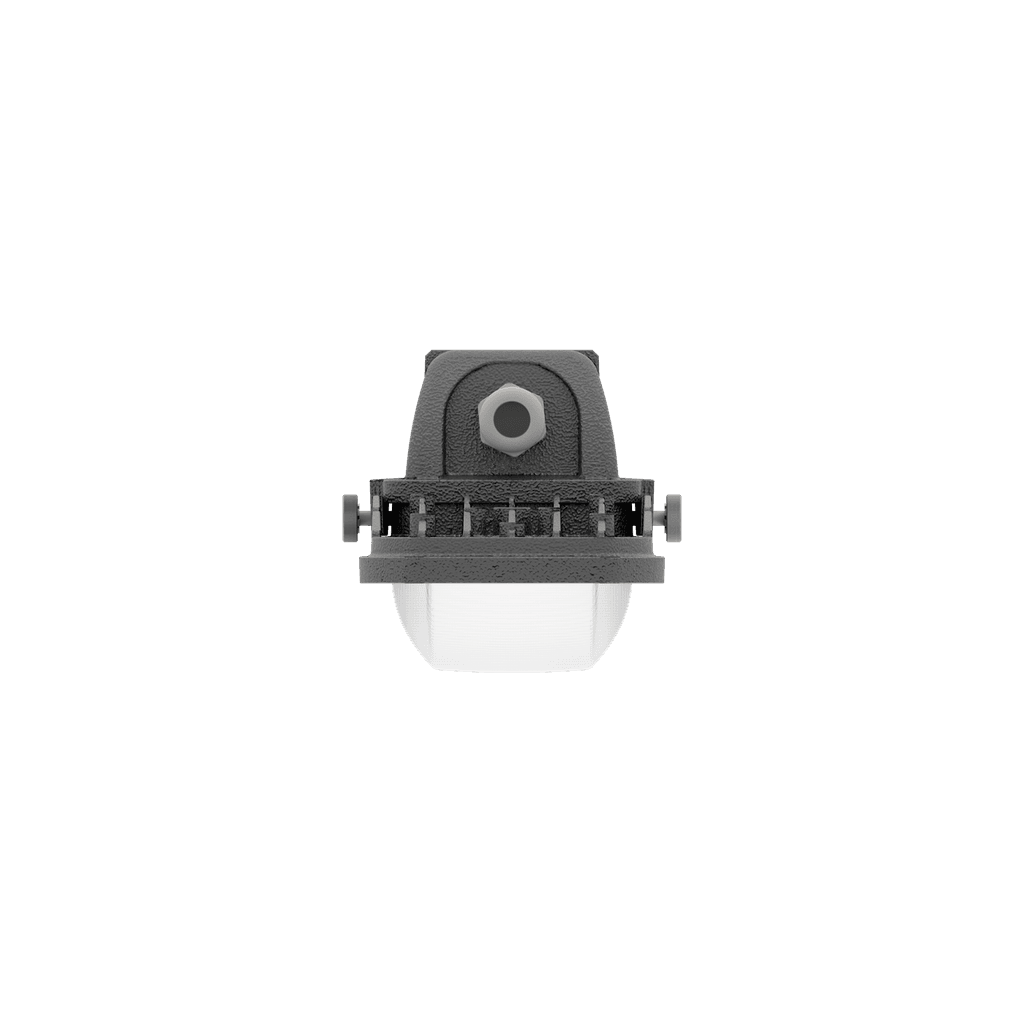

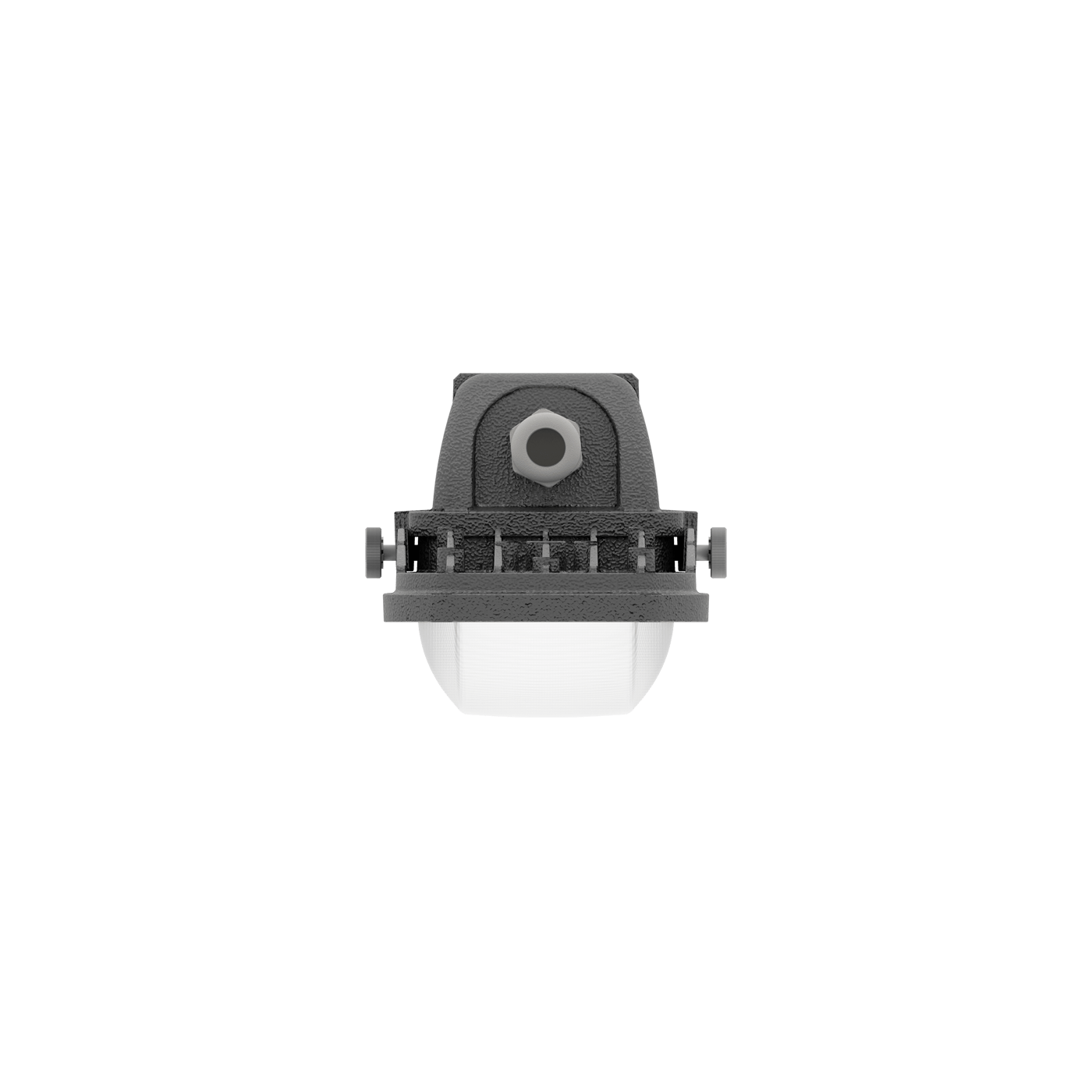

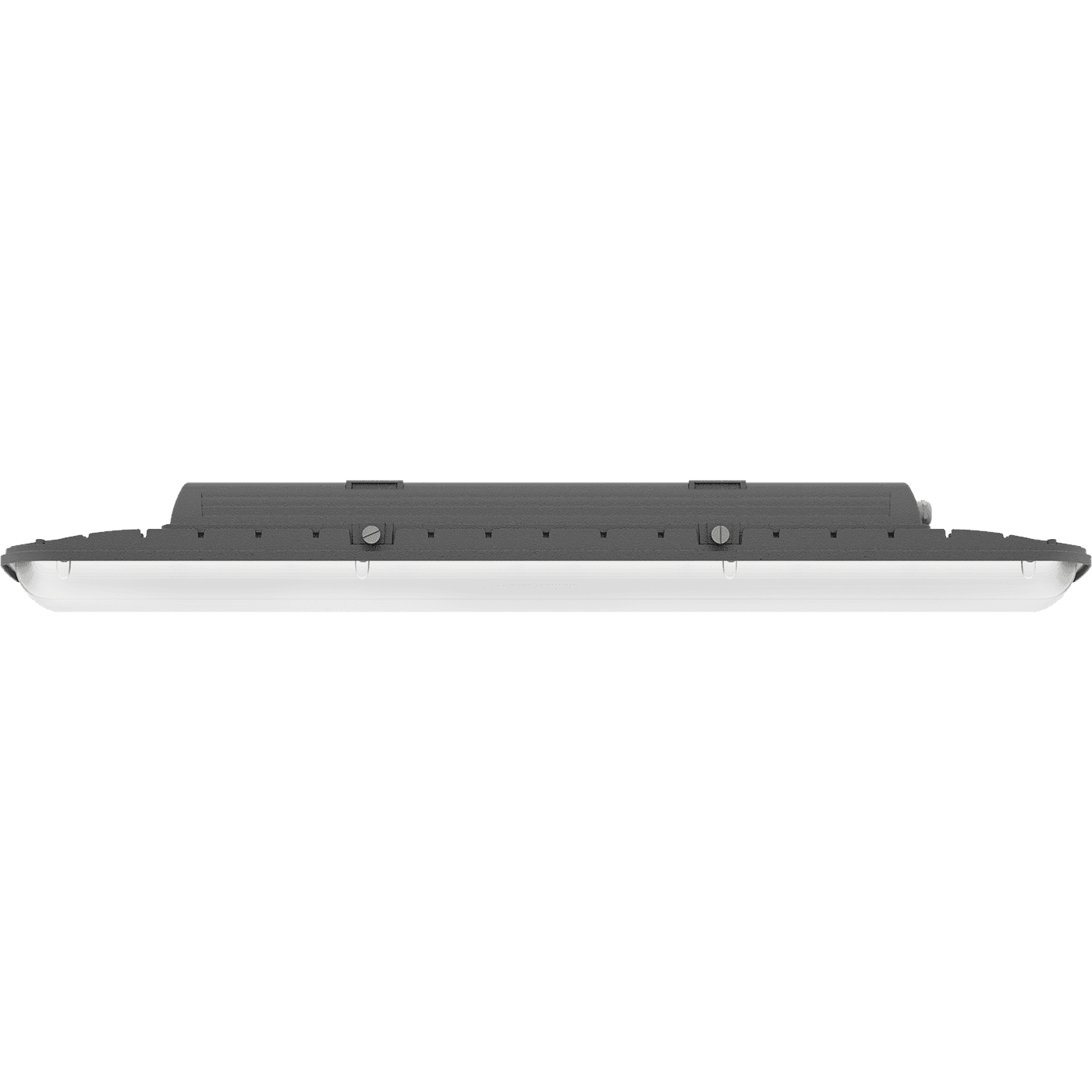

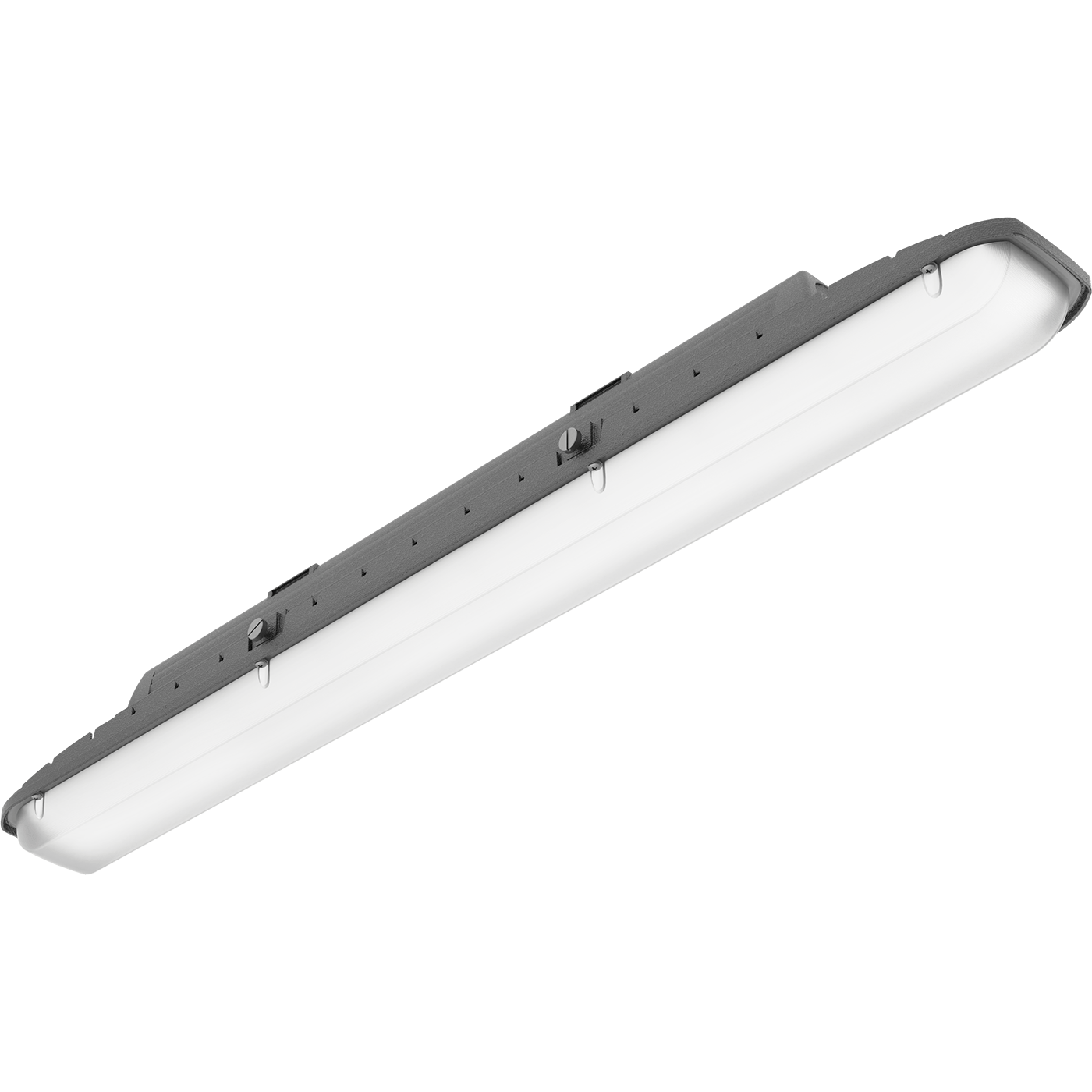

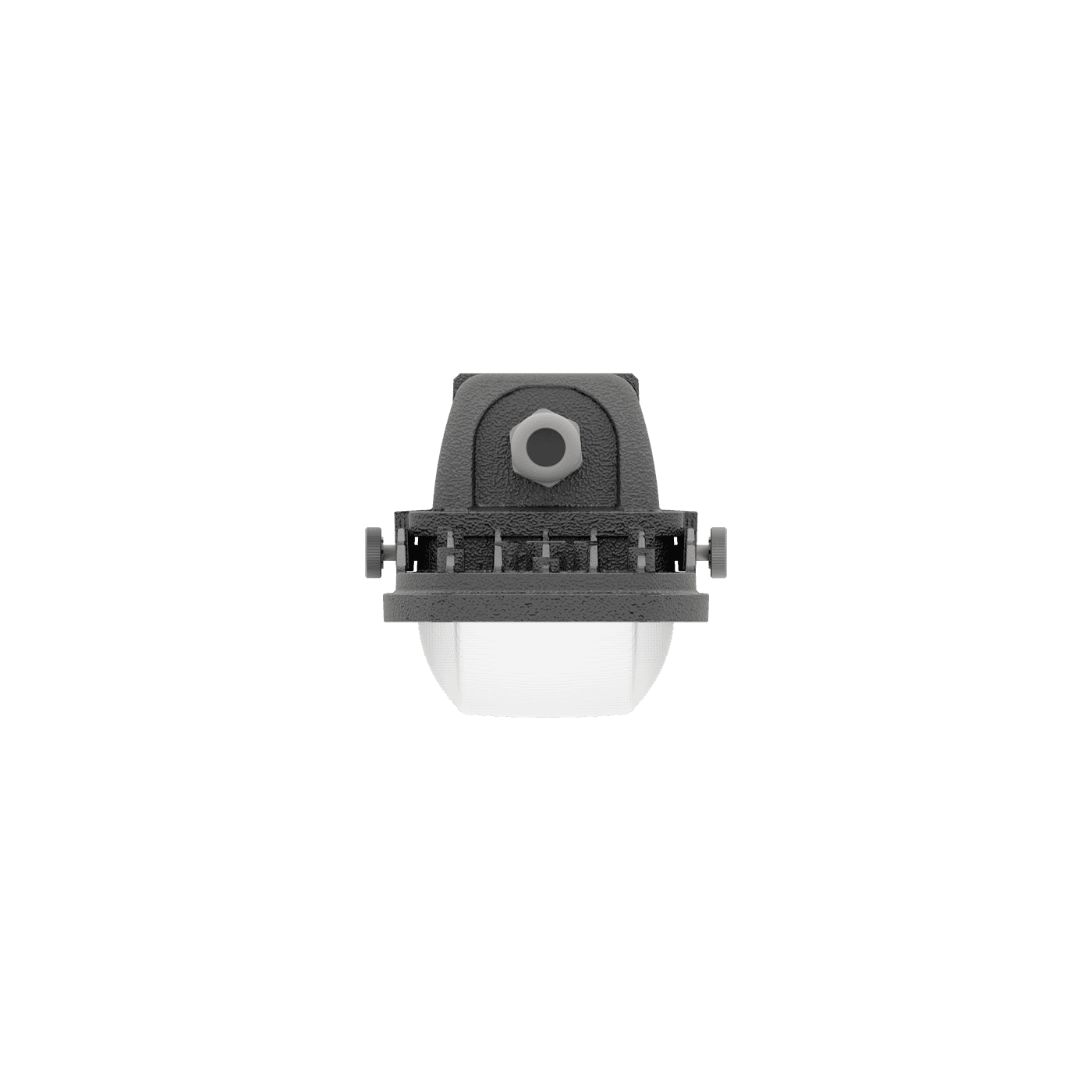

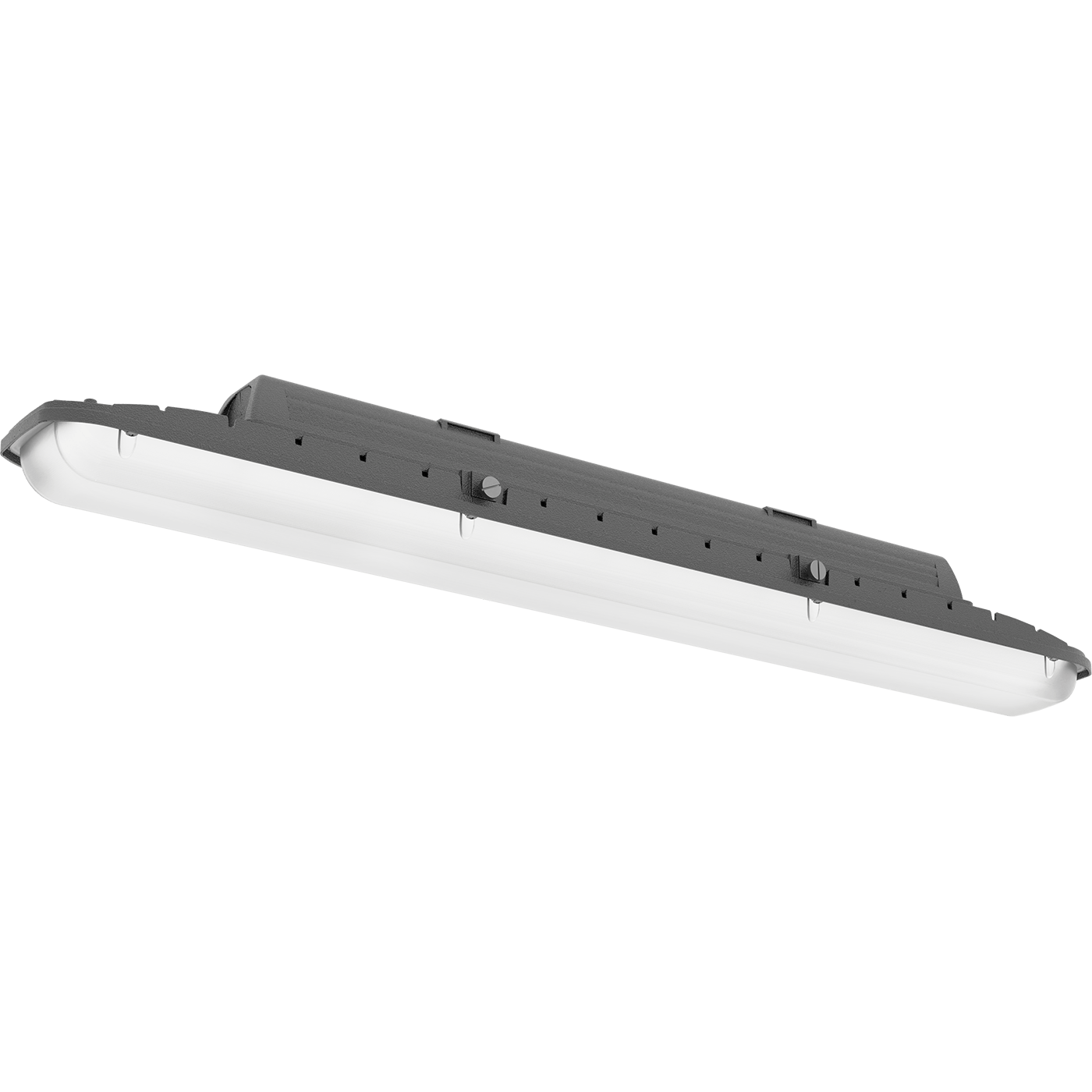

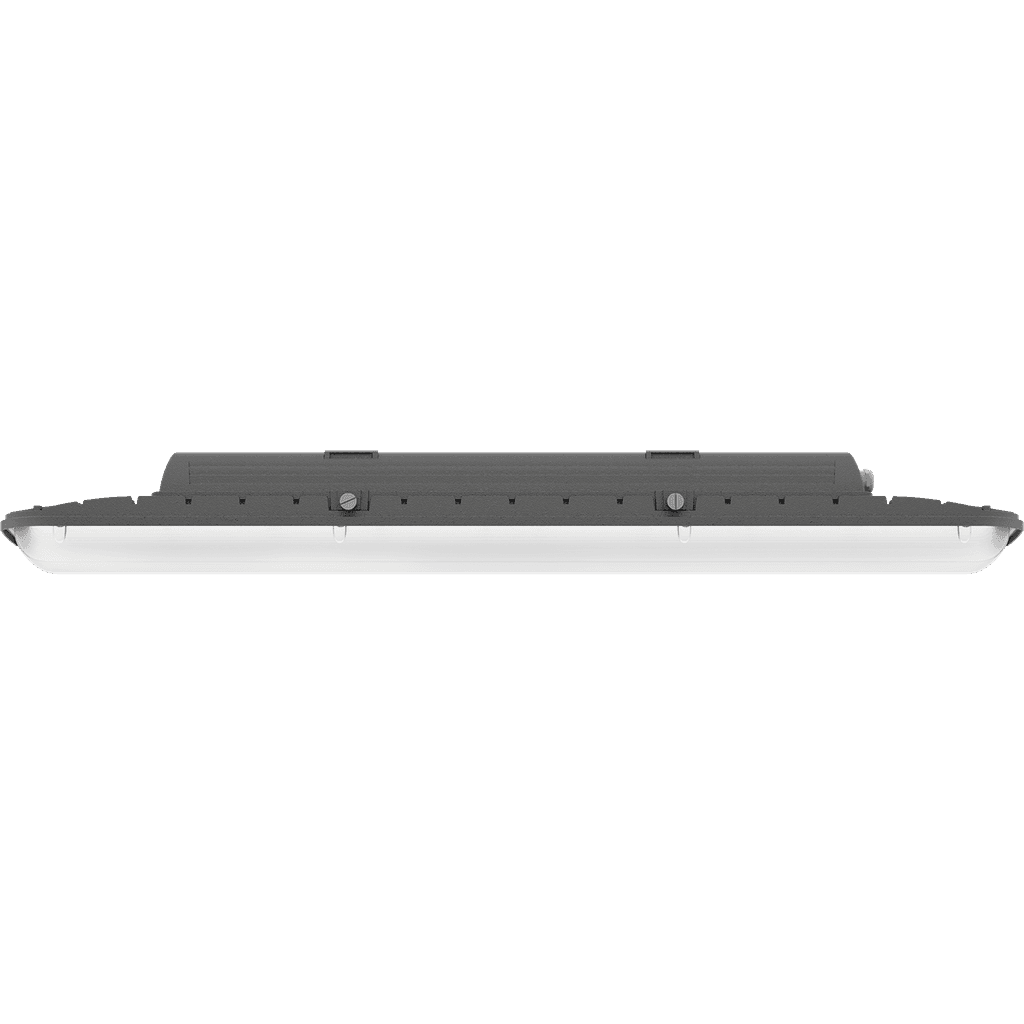

SLICK LED G2 30W PRS 840 HG with driver box with through wiring
SLICK LED G2 30W PRS 840 HG with driver box with through wiring
31 Wluminaire power
3950 lmlight flow
127 lm/Wenergy efficiency
code1631005000
color temperature4000
beam angleD120
weight3.8 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
31 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
31 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-I,II,IIа
material
Алюминий
weight
3.8 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
955 mm
width, mm
105 mm
height, mm
115 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
574 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
code
1631005000
illuminating
light flow
3950 lm
flickering factor
<1%
energy efficiency
127 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

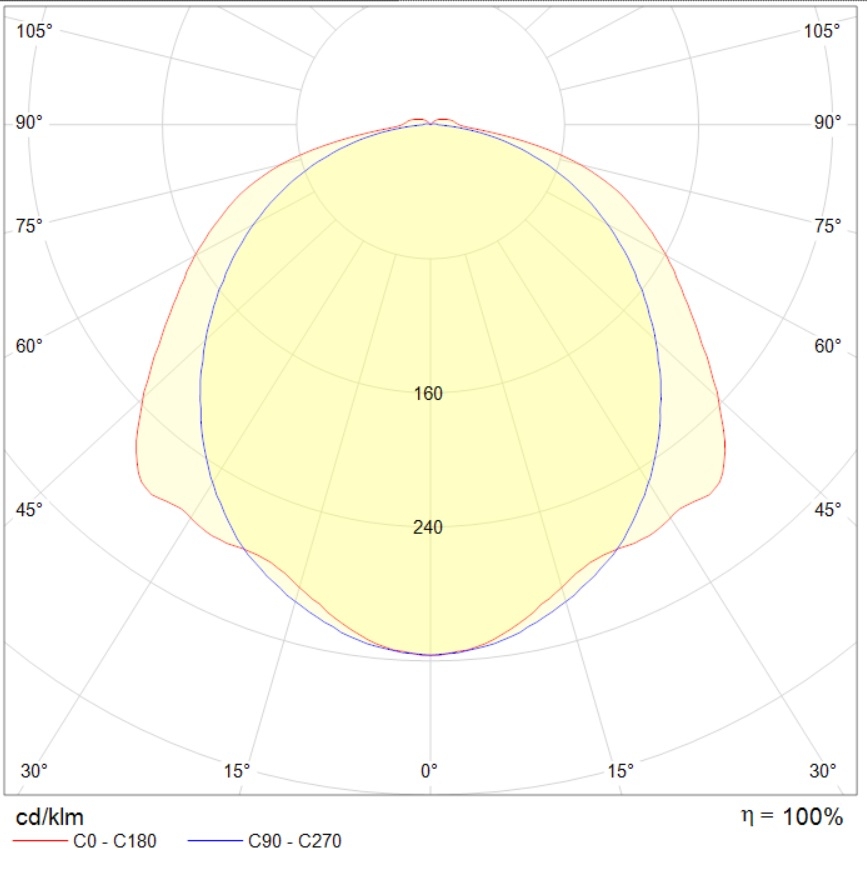

photometric files
