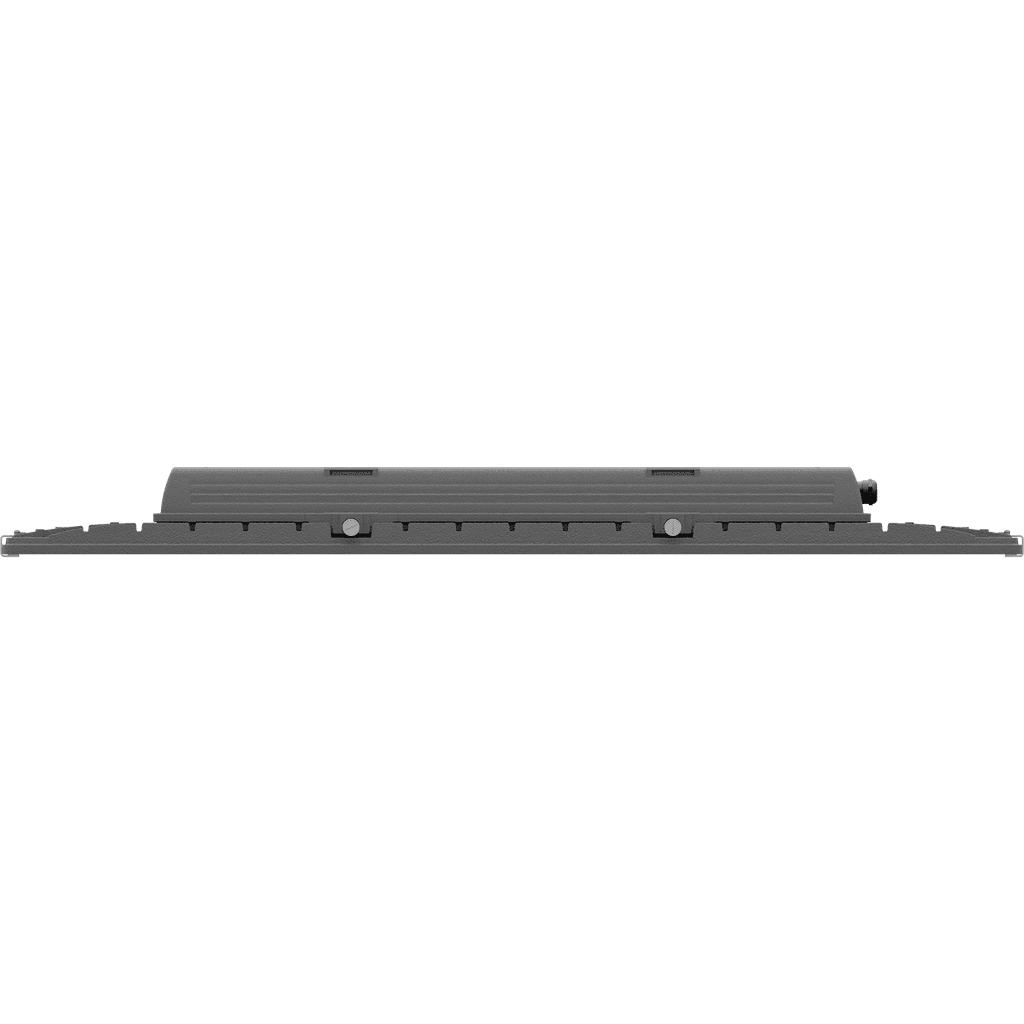

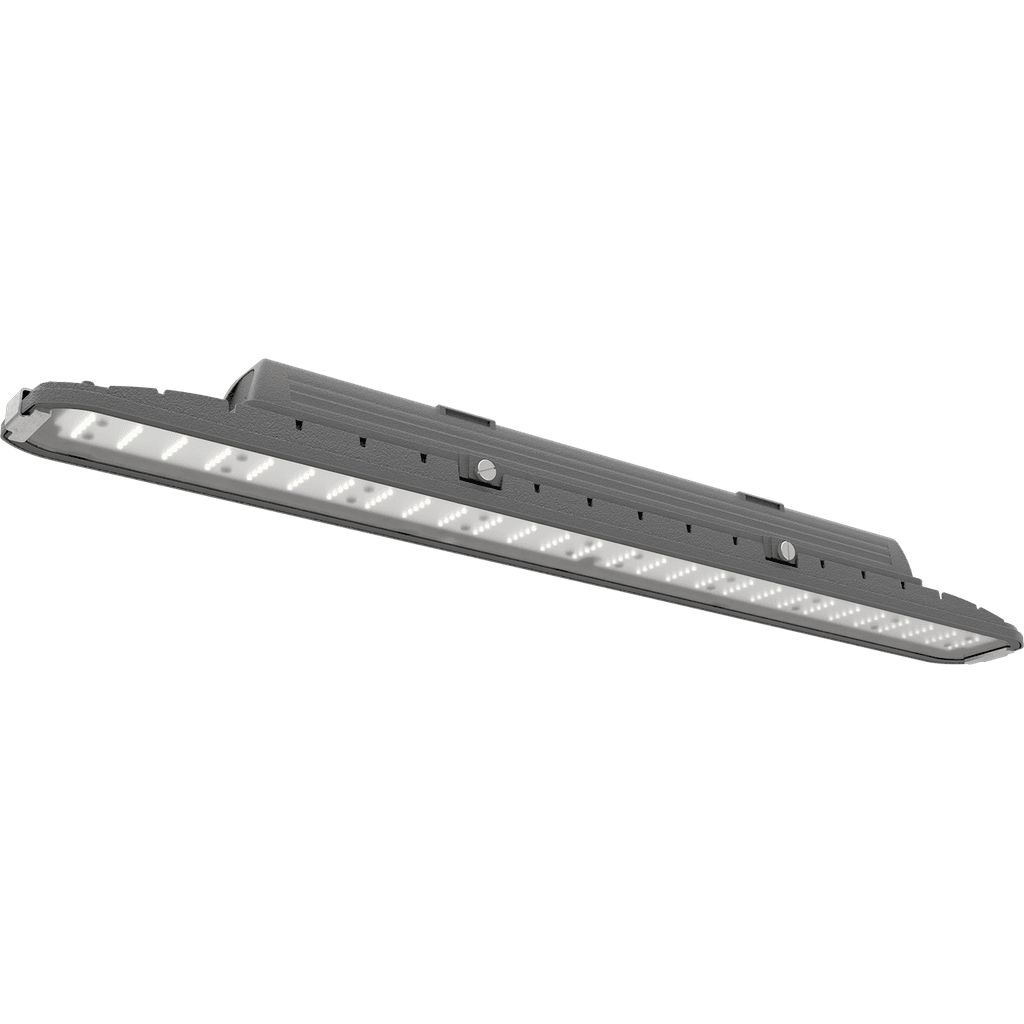

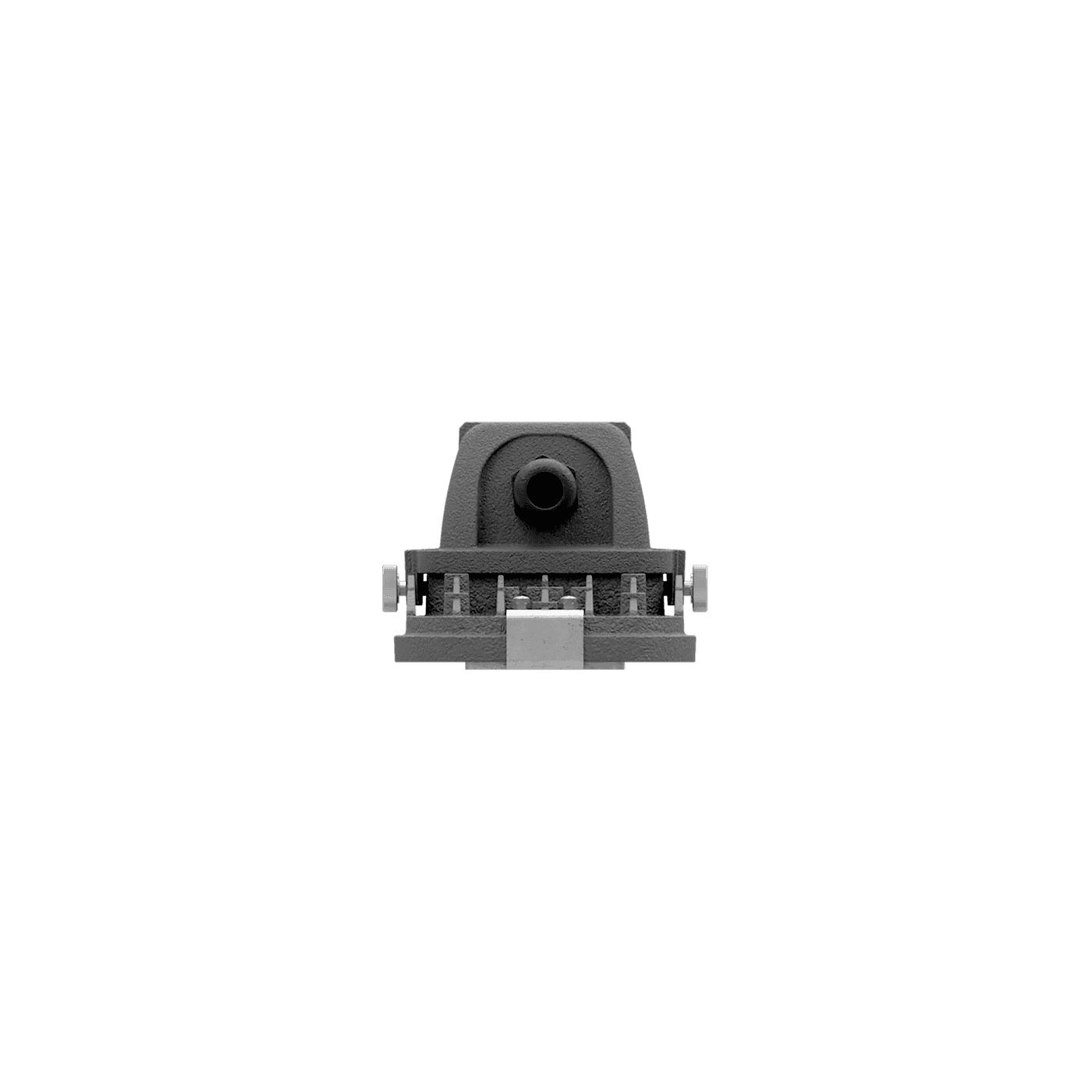

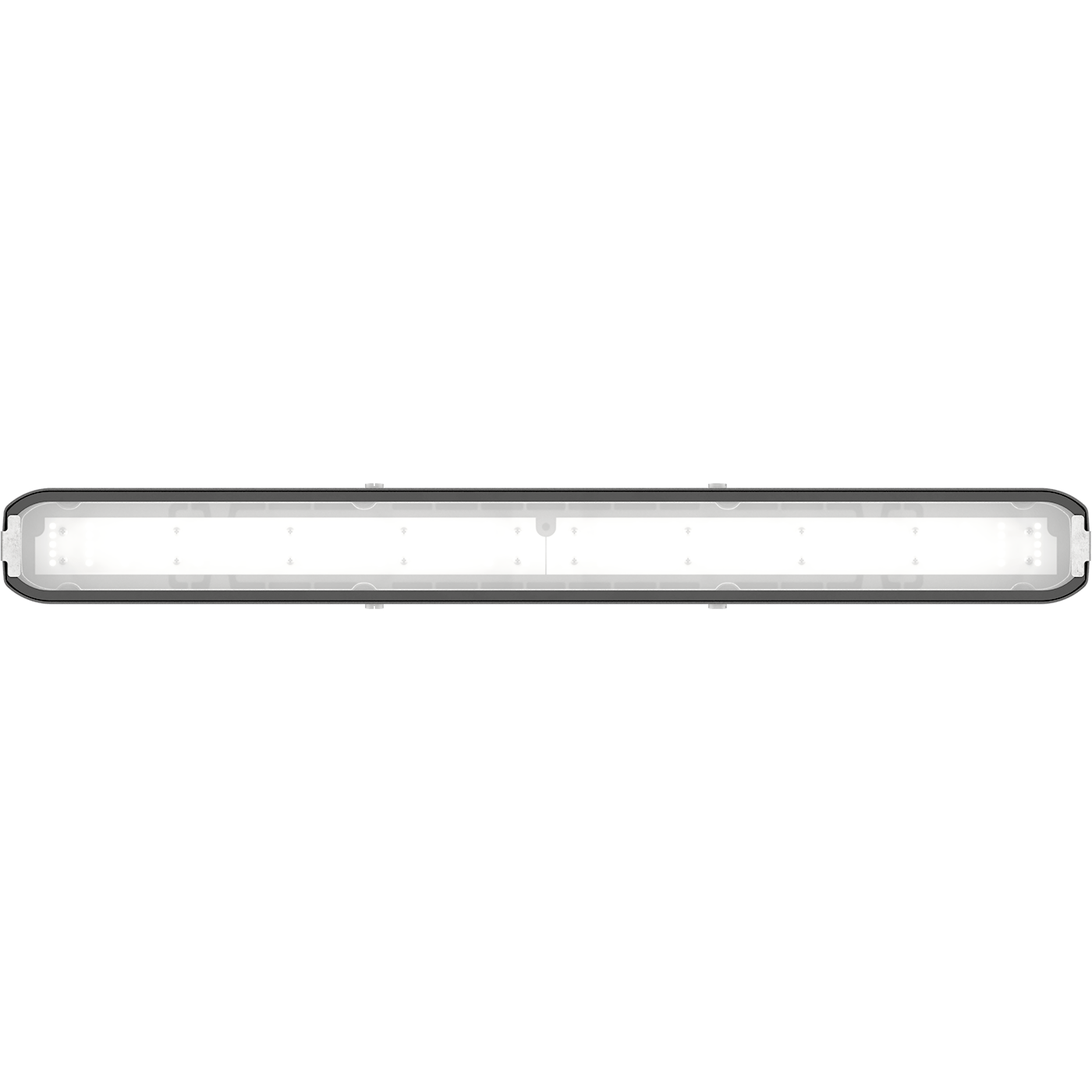

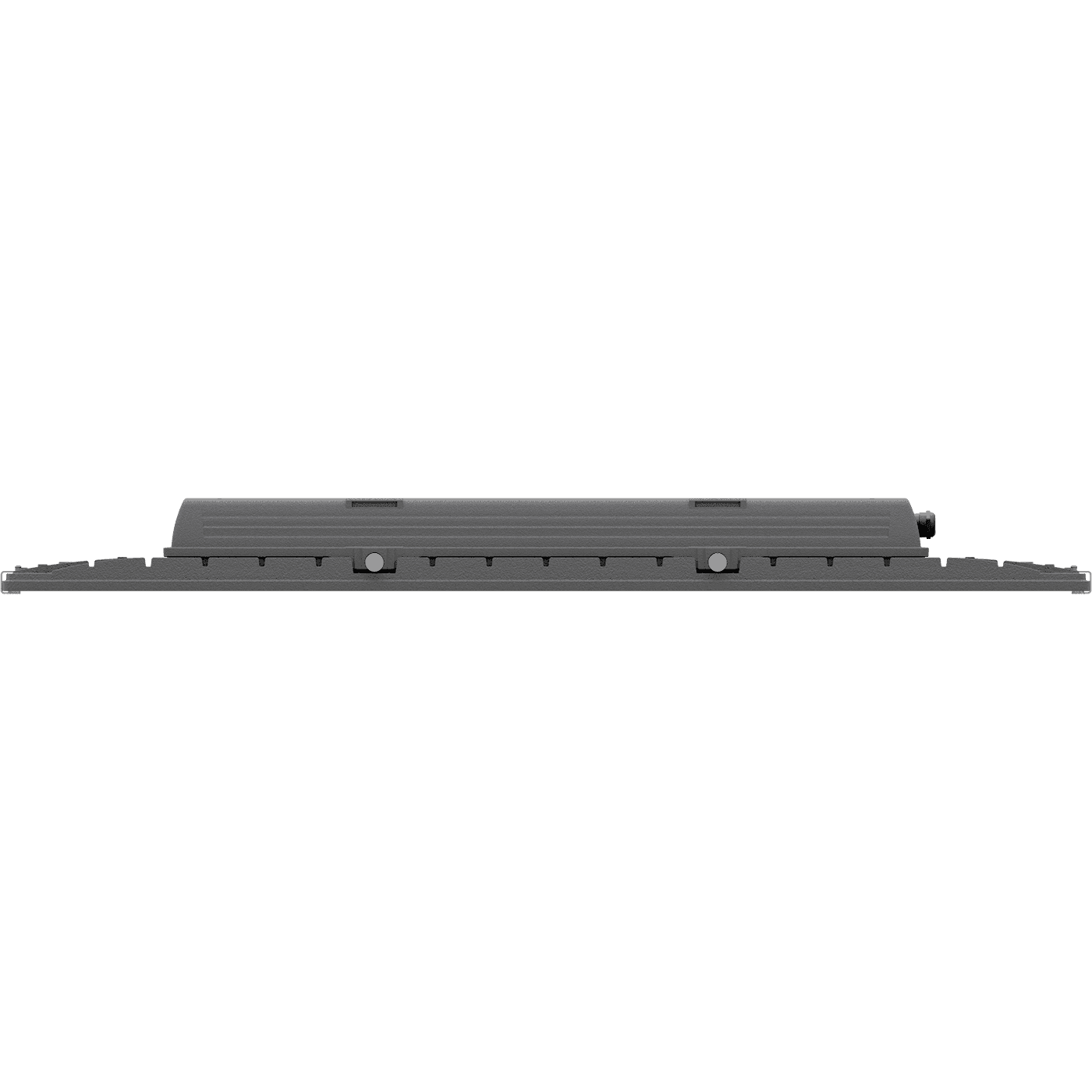

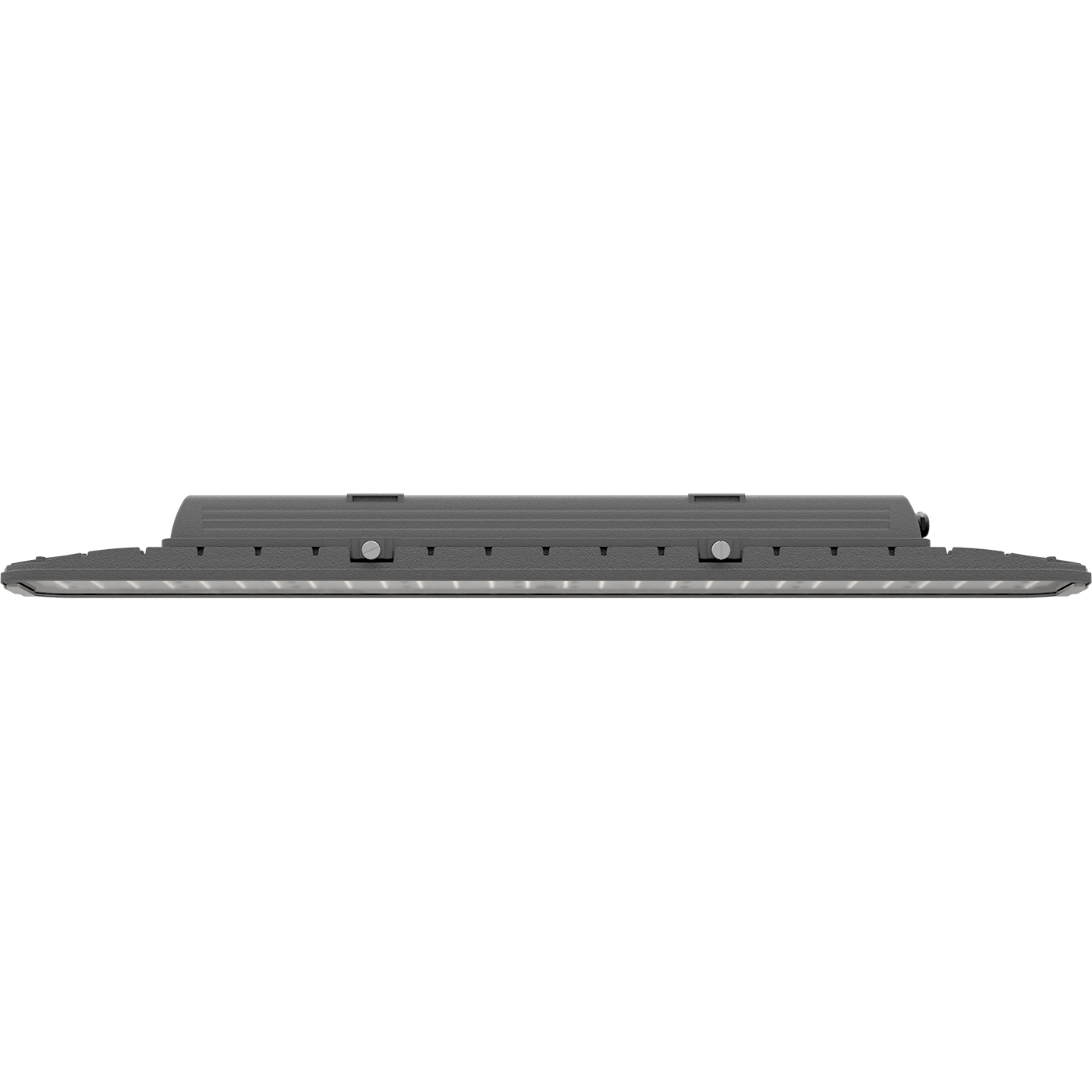

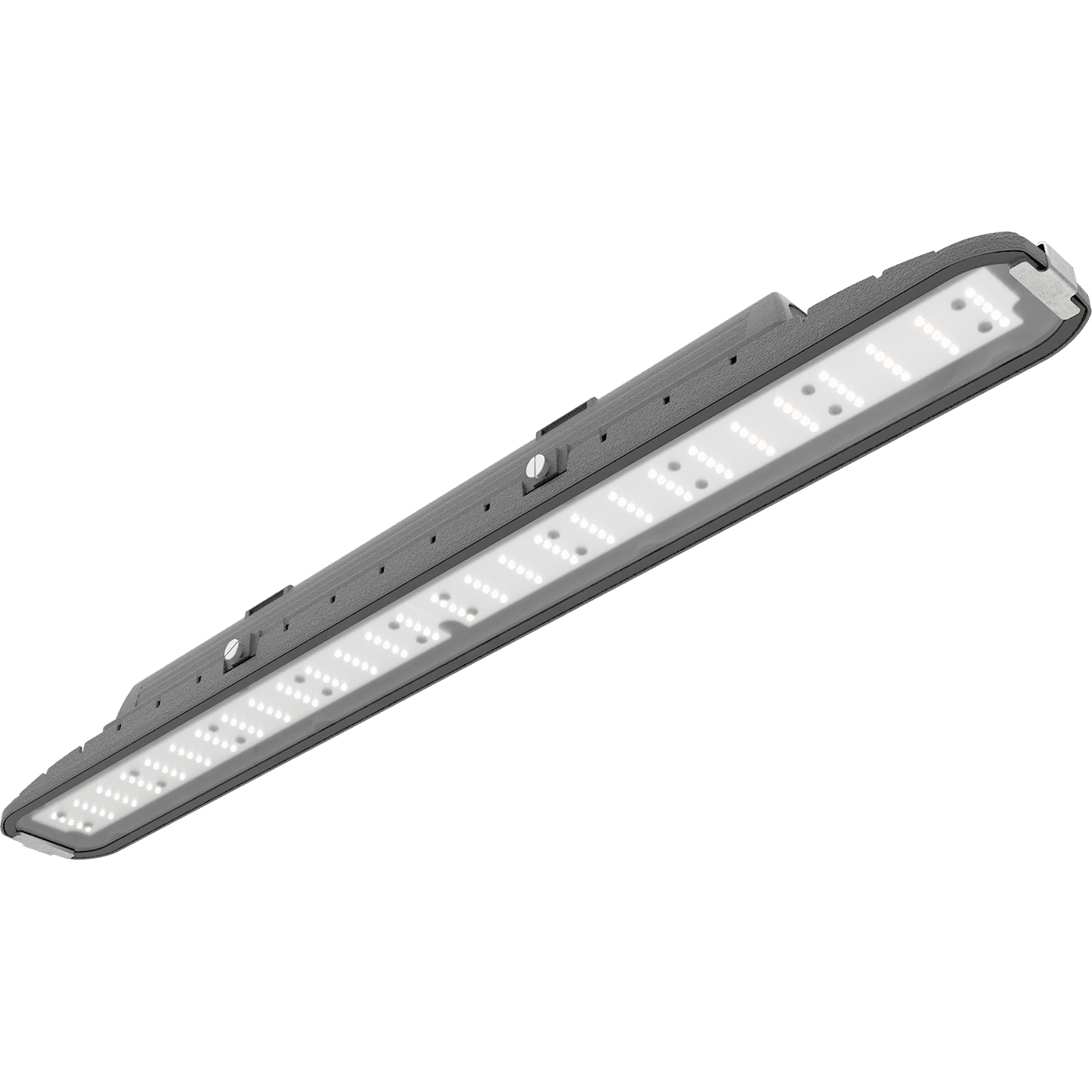

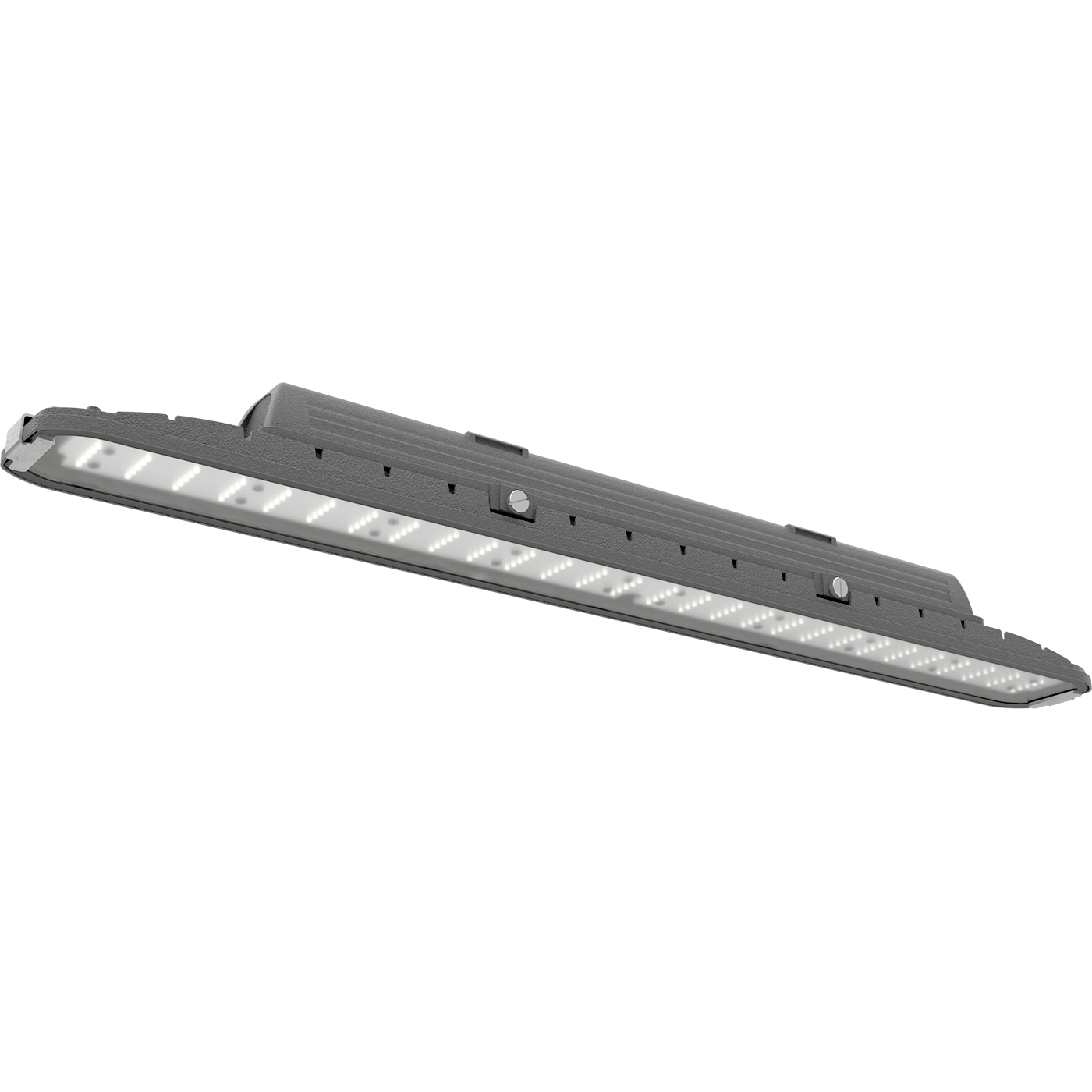

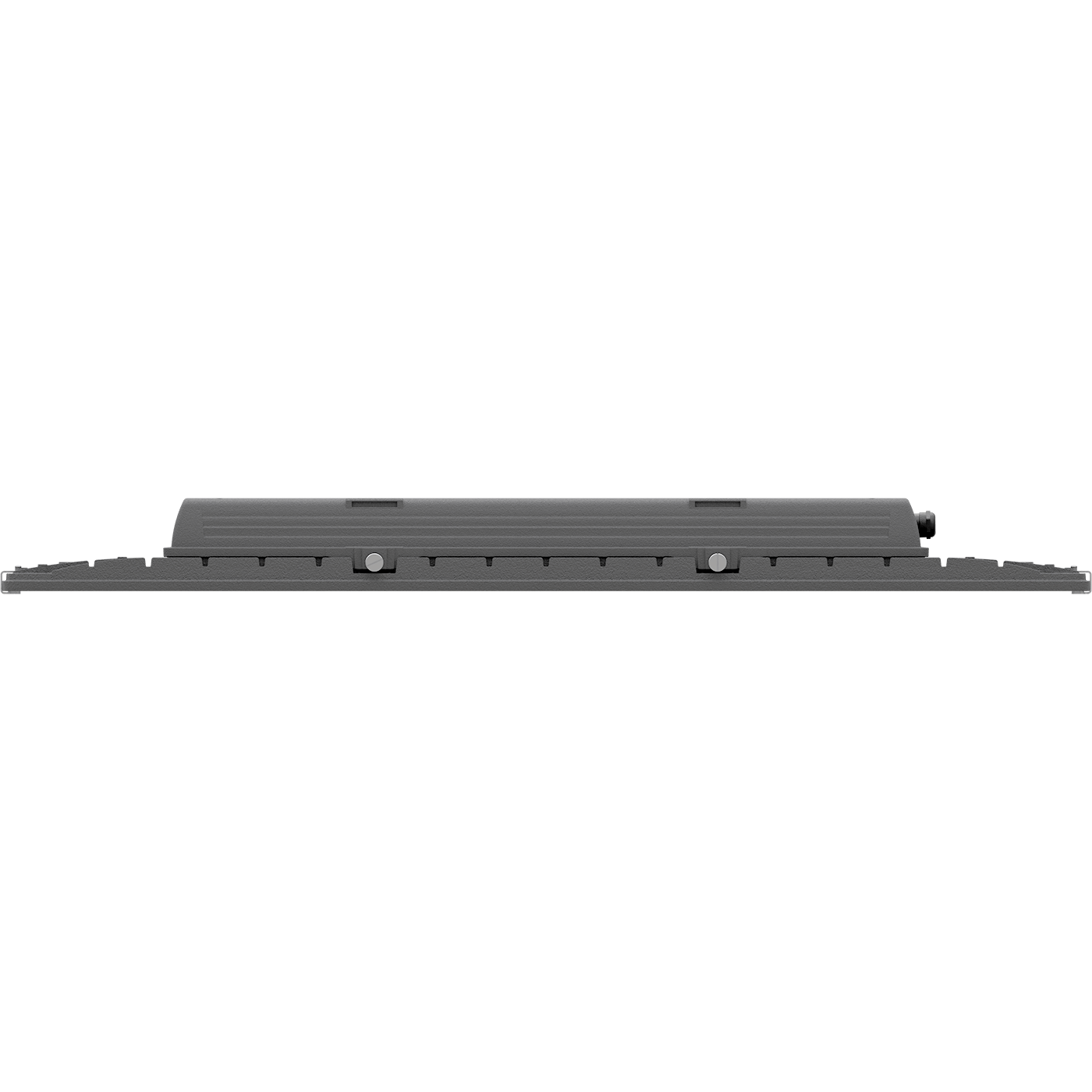

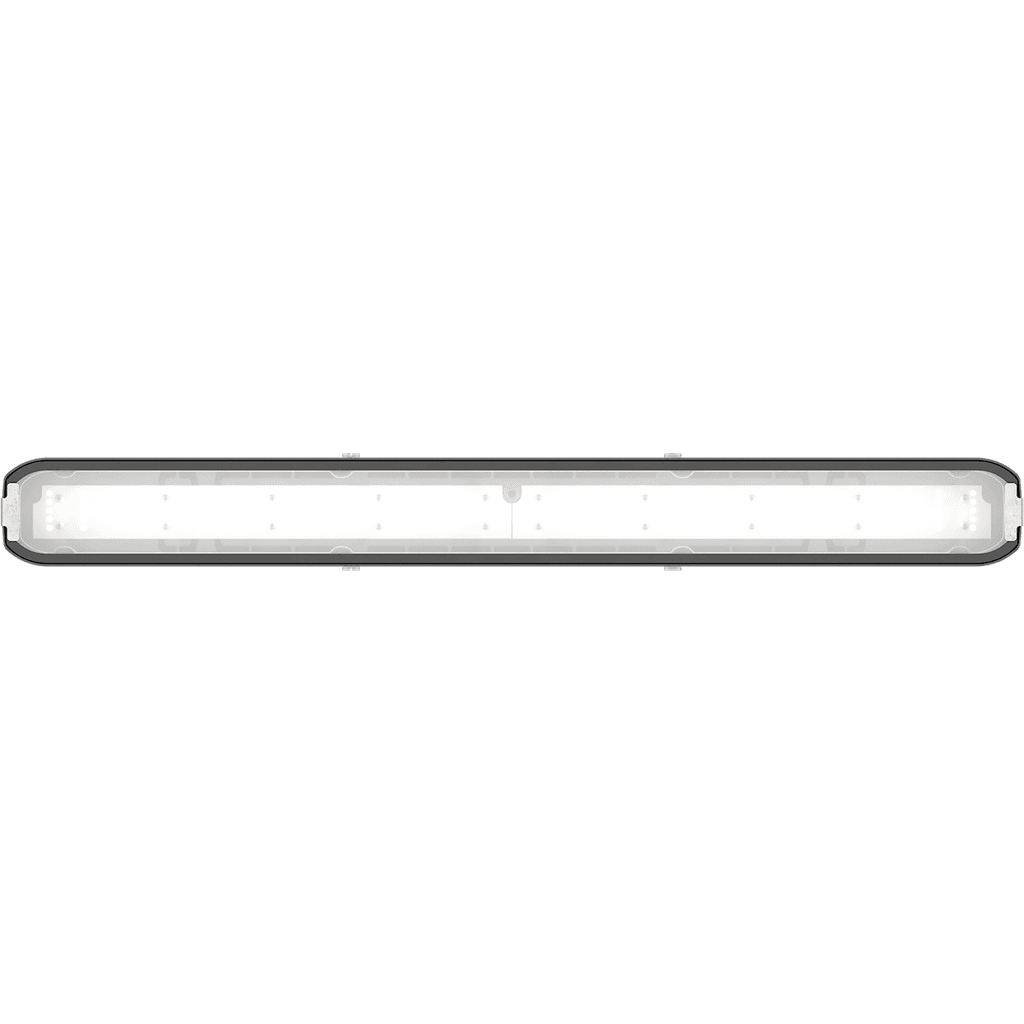

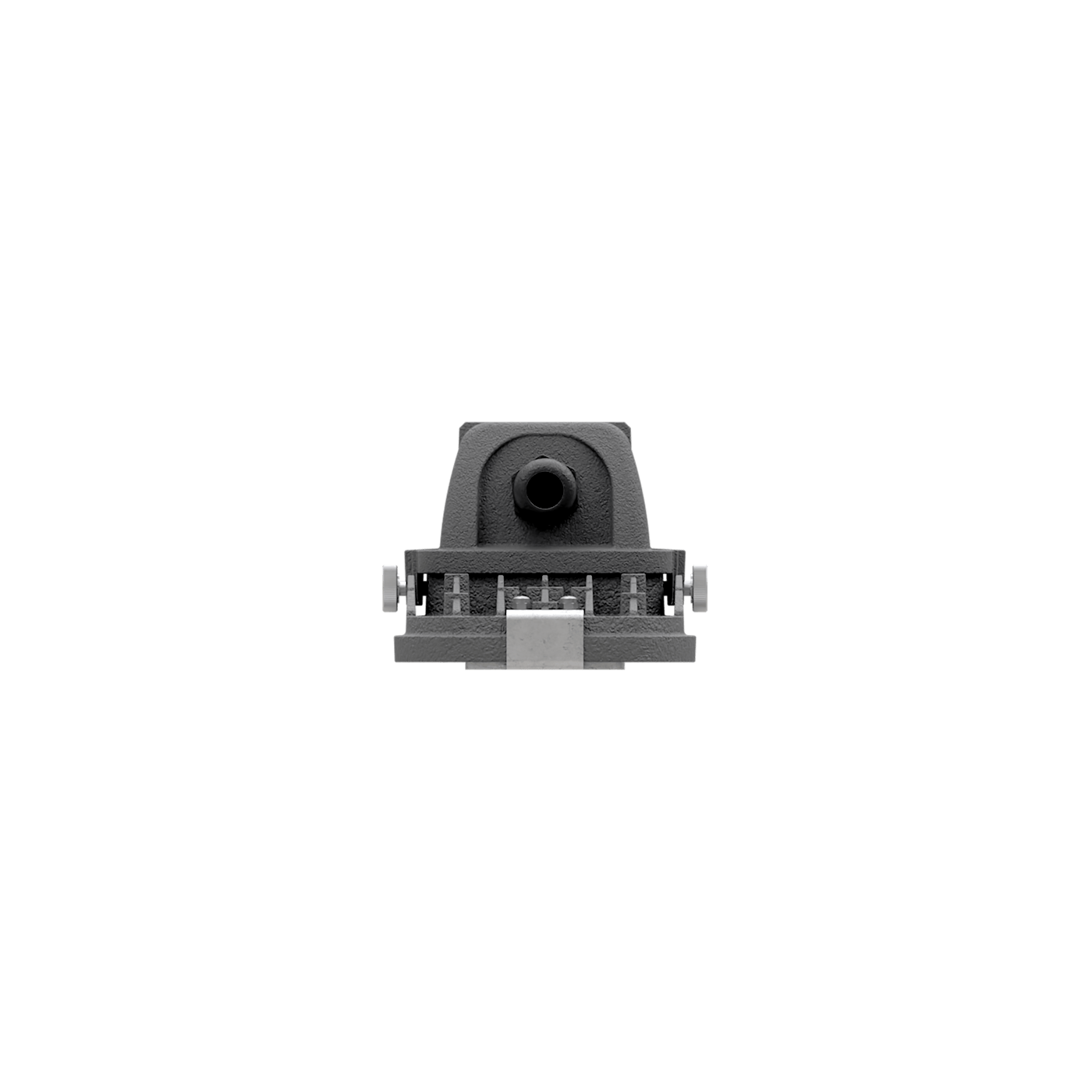

SLICK LED G2 20W PRS 840 HG with driver box /tempered glass/ with through wiring
SLICK LED G2 20W PRS 840 HG with driver box /tempered glass/ with through wiring
20 Wluminaire power
3100 lmlight flow
155 lm/Wenergy efficiency
code1631005760
color temperature4000 K
beam angleD120
performance factor100
weight4.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
155 lm/Wcolor rendition index (CRI)
>80light flow
3100 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
155 lm/W
color rendition index (CRI)
>80
light flow
3100 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,96
luminaire power
20 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
code
1631005760
model files
model files
photometric files
сертификаты
photometric files
ies263.3 kB
jpg190.2 kB
ldt176.7 kB
сертификаты
Russian origin330.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
