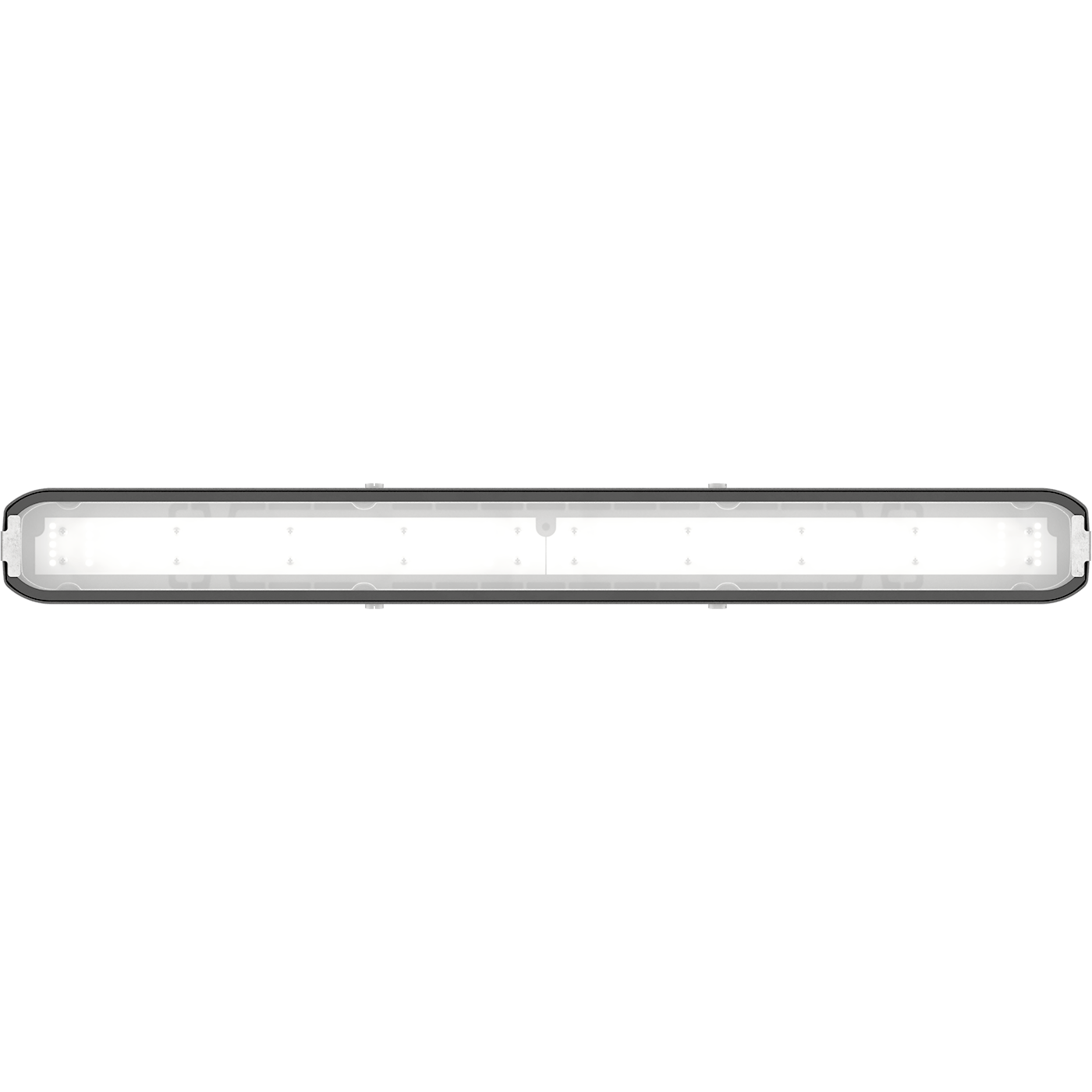

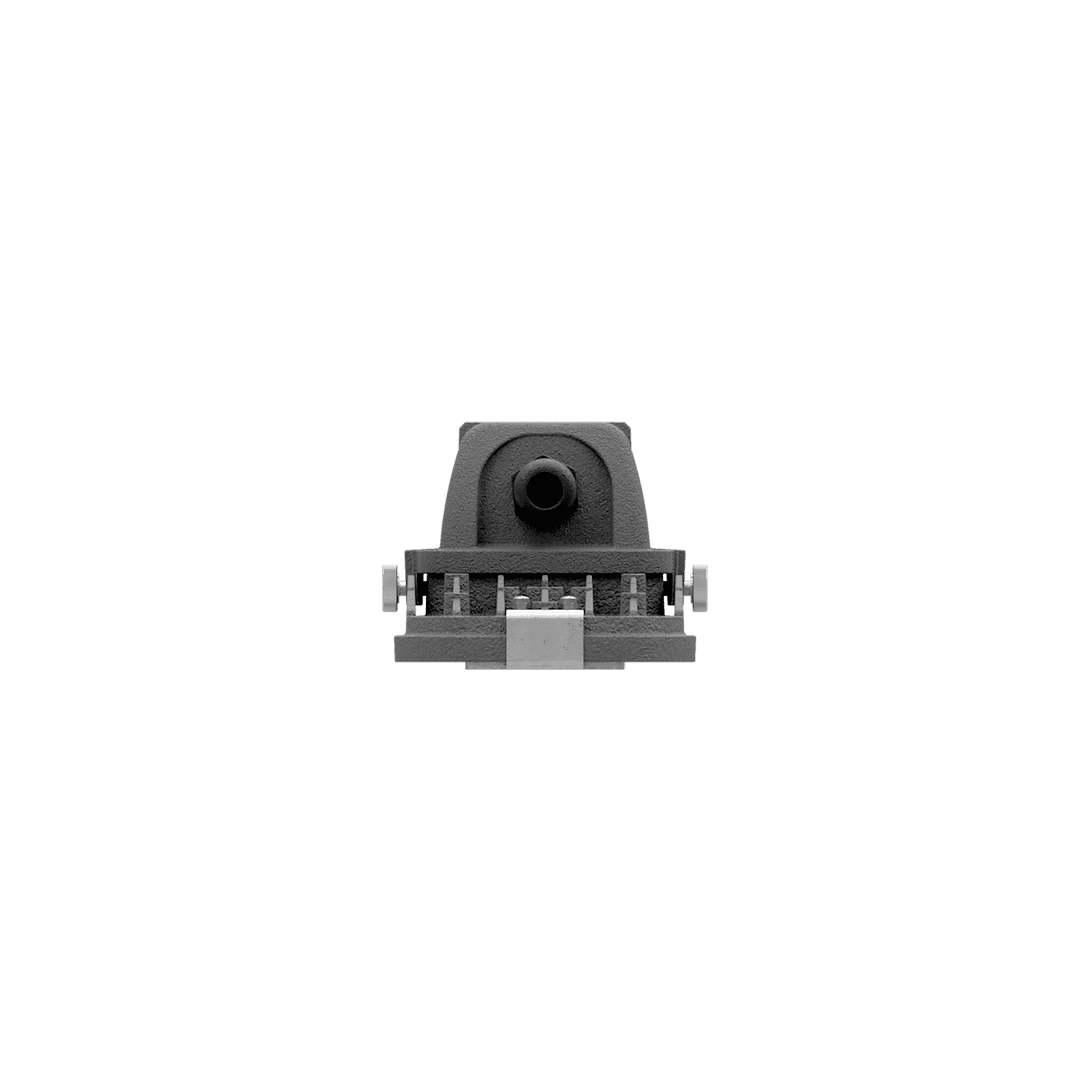

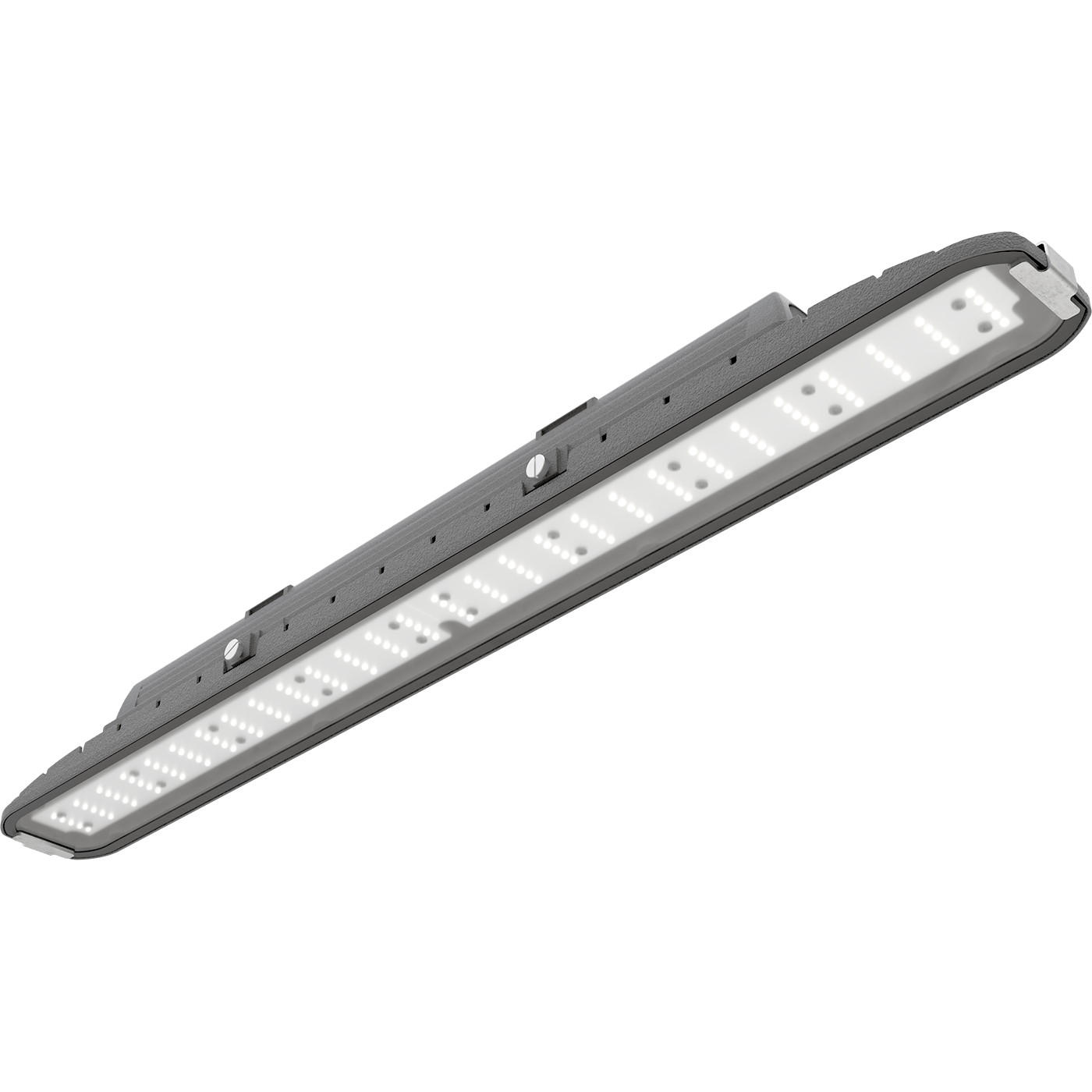

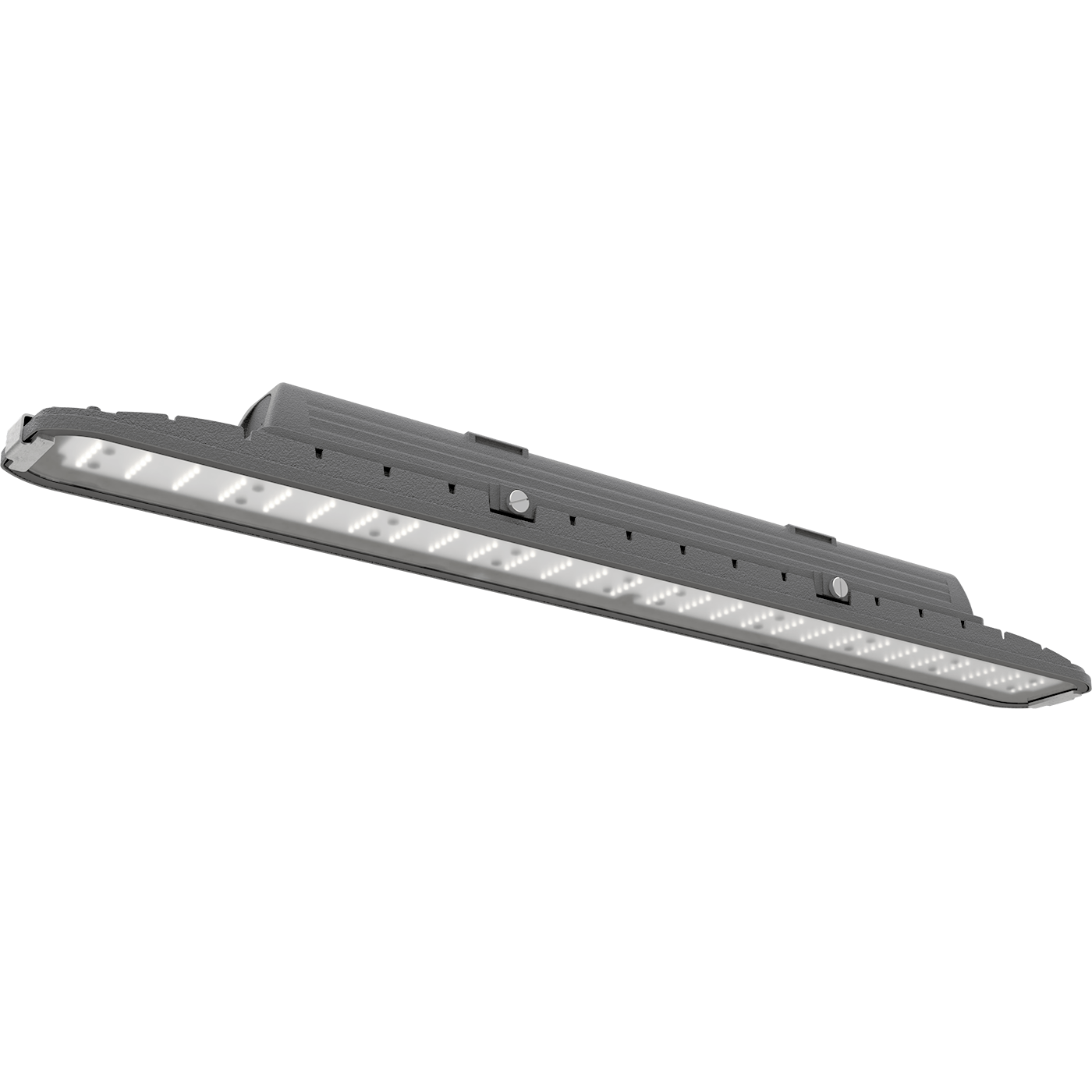

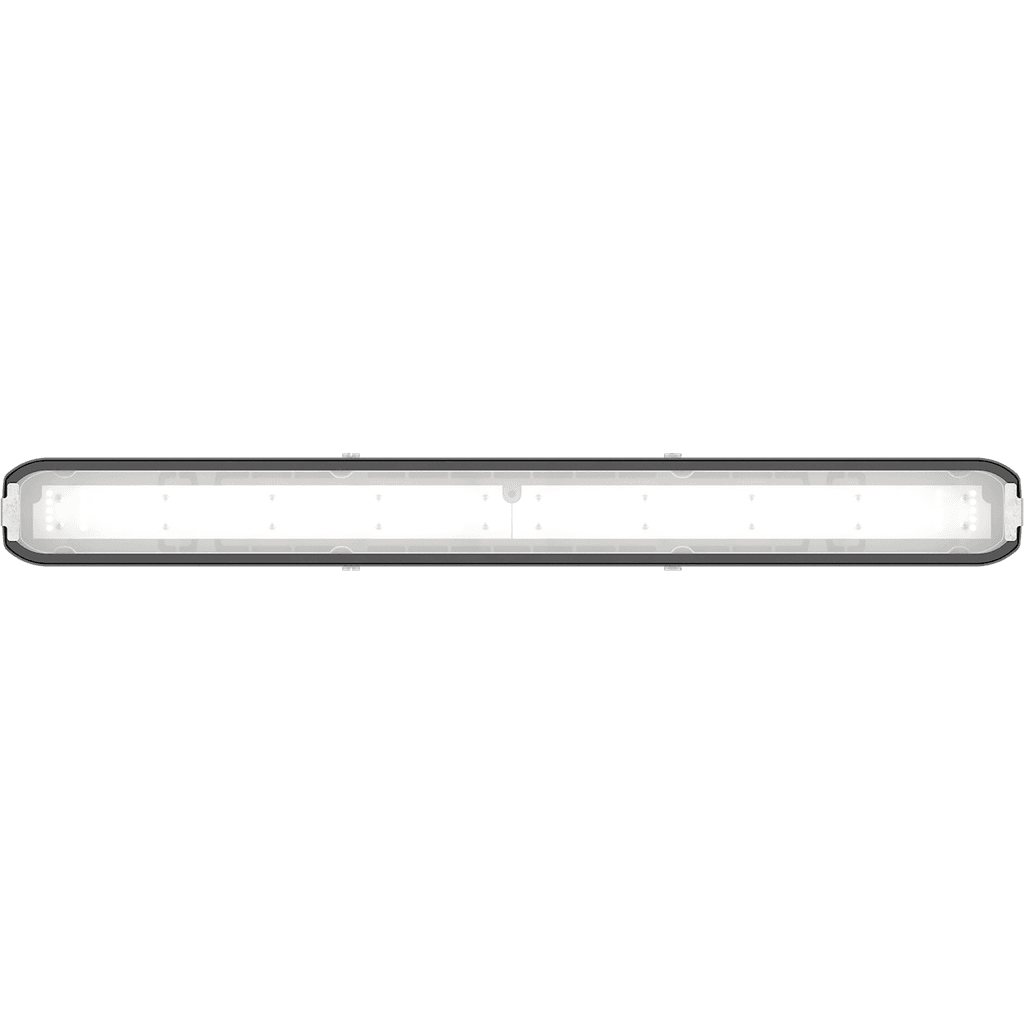

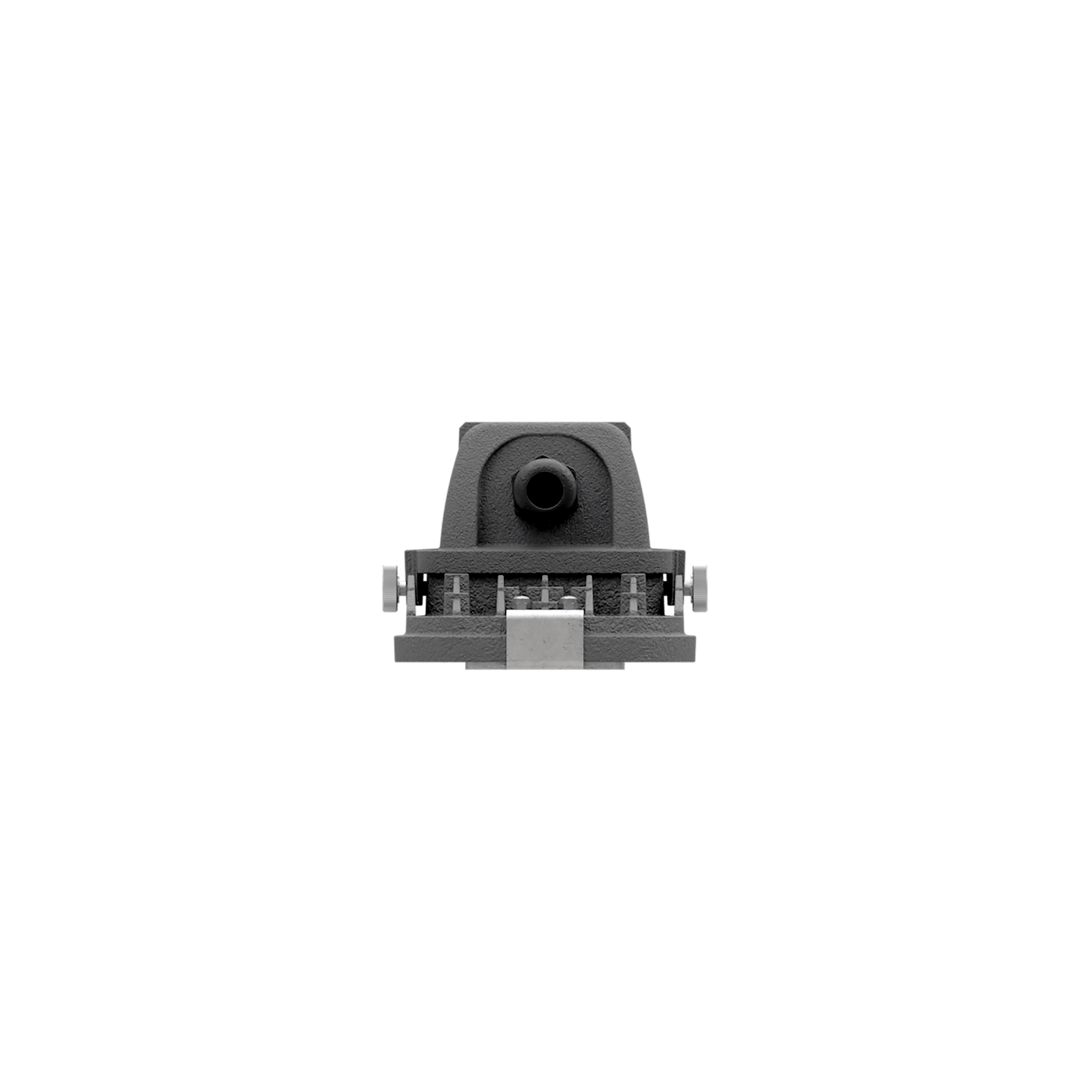

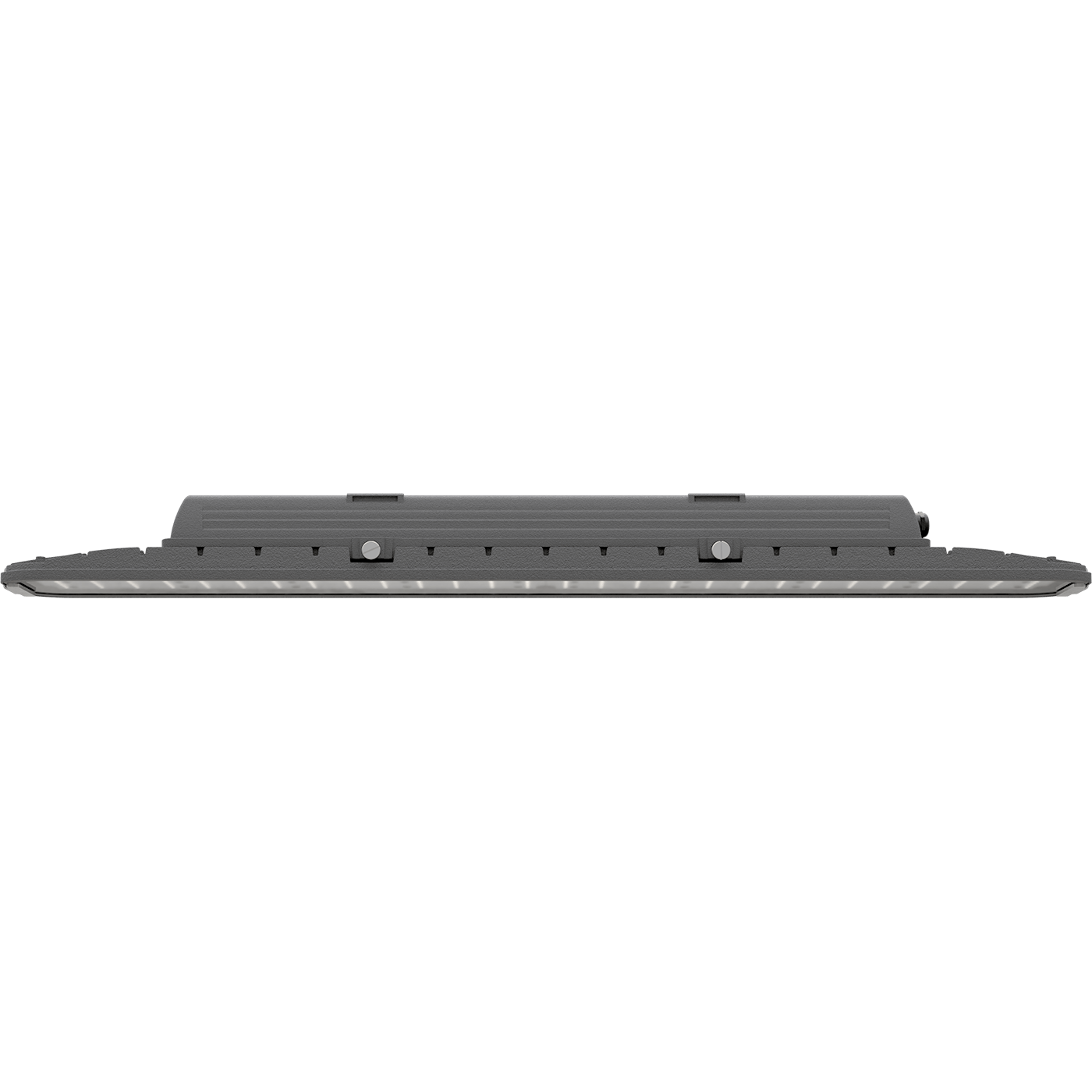

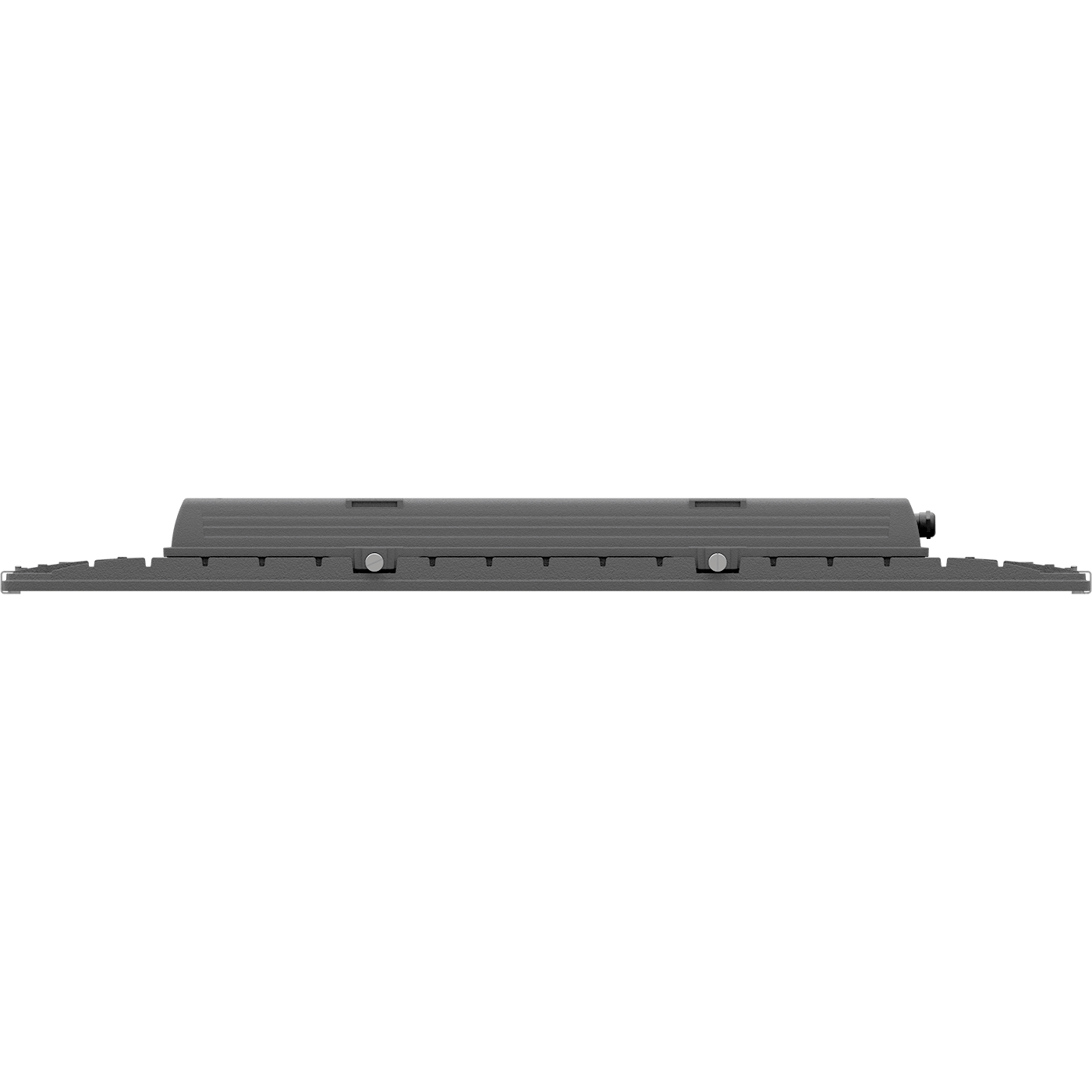

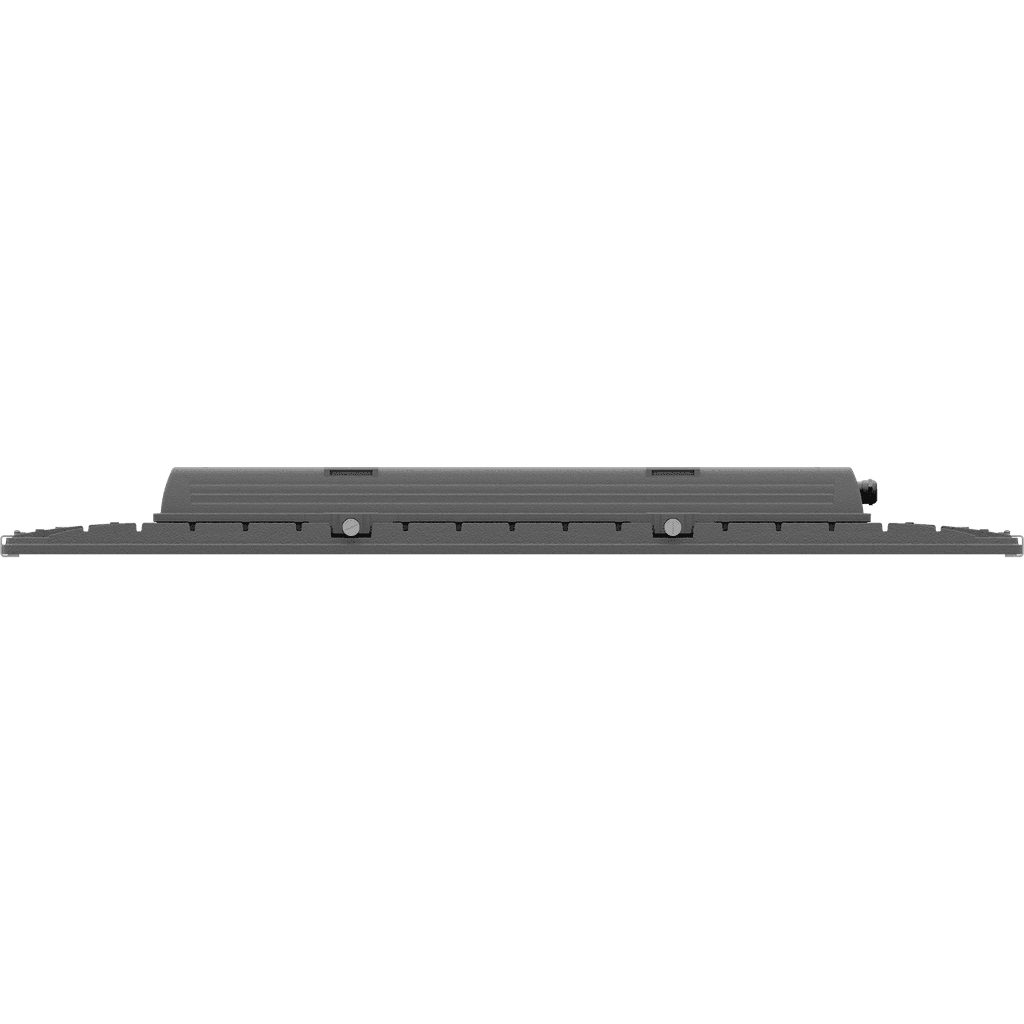

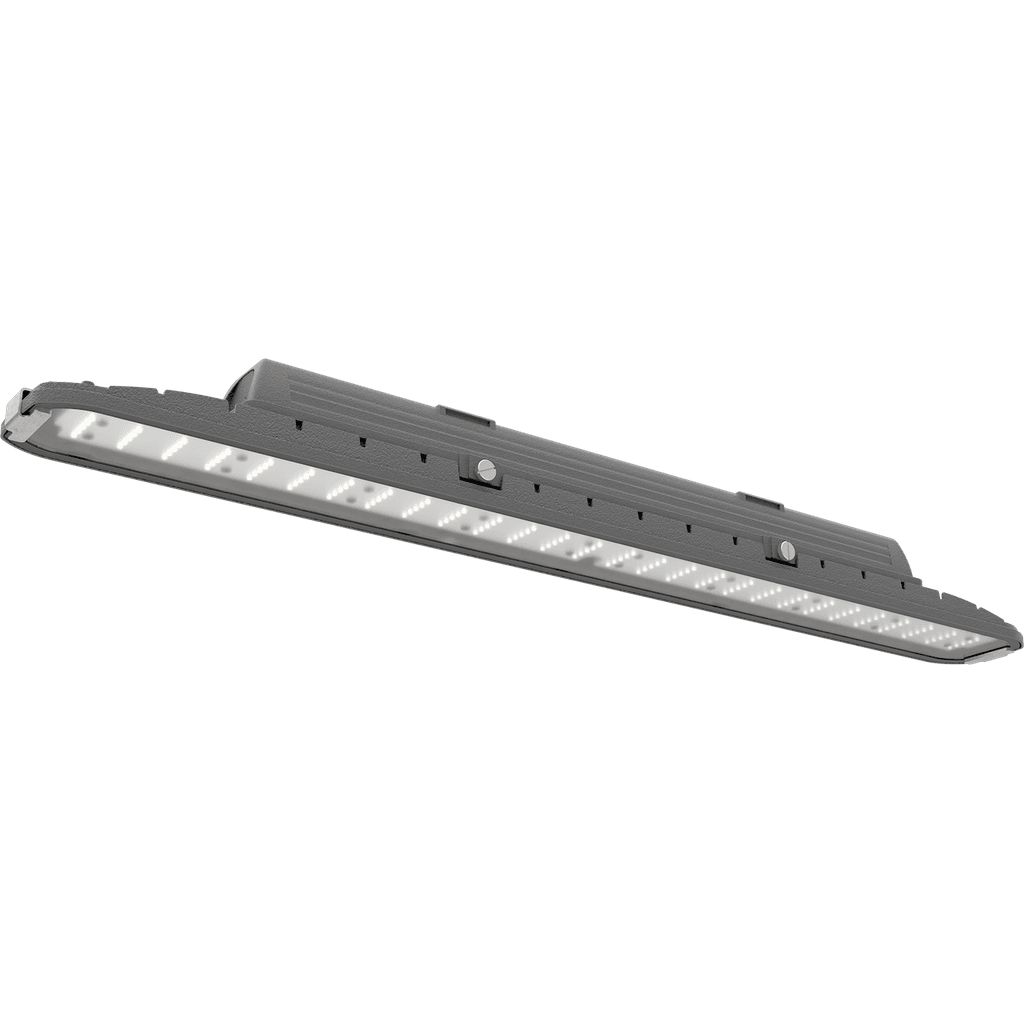

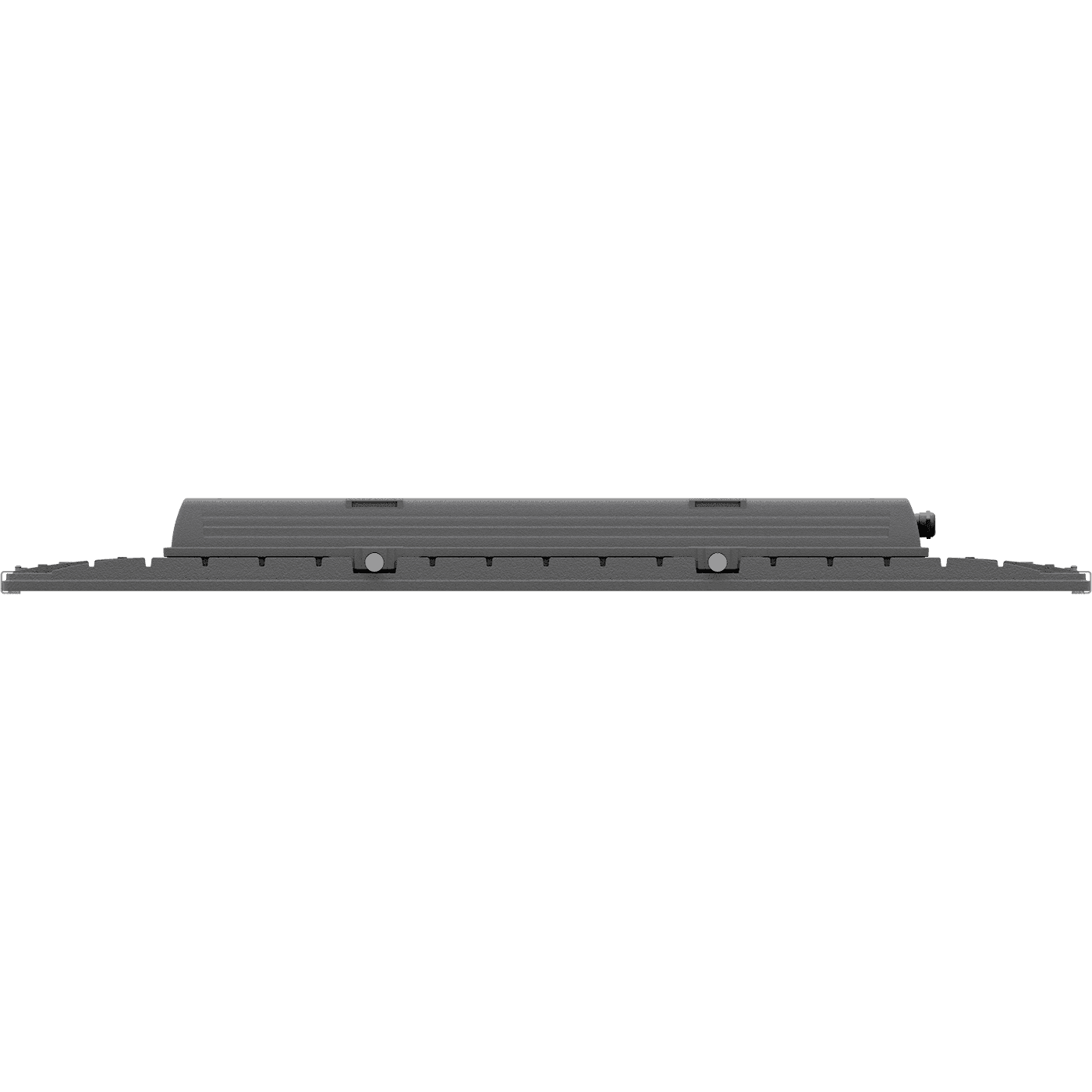

SLICK LED G2 20W PRS 840 HG with driver box /tempered glass

зарегистрирована в реестре российской промышленной продукции
SLICK LED G2 20W PRS 840 HG with driver box /tempered glass
add to favorites
20 Wluminaire power
3100 lmlight flow
155 lm/Wenergy efficiency
code
1631005750
number from the register of Russian industrial products
10758137
color temperature
4000 K
beam angle
D120
performance factor
100
weight
4.5 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. SLICK LED G2
  8. SLICK LED G2 20W PRS 840 HG with driver box /tempered glass
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
155 lm/W
color rendition index (CRI)
>80
light flow
3100 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
155 lm/W
color rendition index (CRI)
>80
light flow
3100 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,96
luminaire power
20 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
960 mm
width
105 mm
height
85 mm
installation length
574 mm
weight
4.5 kg
ingress protection (IP)
IP66/IP69
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Алюминий
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
code
1631005750
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт.
model files
model files
photometric files
ies263.3 kB
jpg190.2 kB
ldt176.7 kB
documents
passport2.7 mB
сертификаты
Russian origin330.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
photometric files
ies263.3 kB
jpg190.2 kB
ldt176.7 kB
documents
passport2.7 mB
сертификаты
Russian origin330.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
