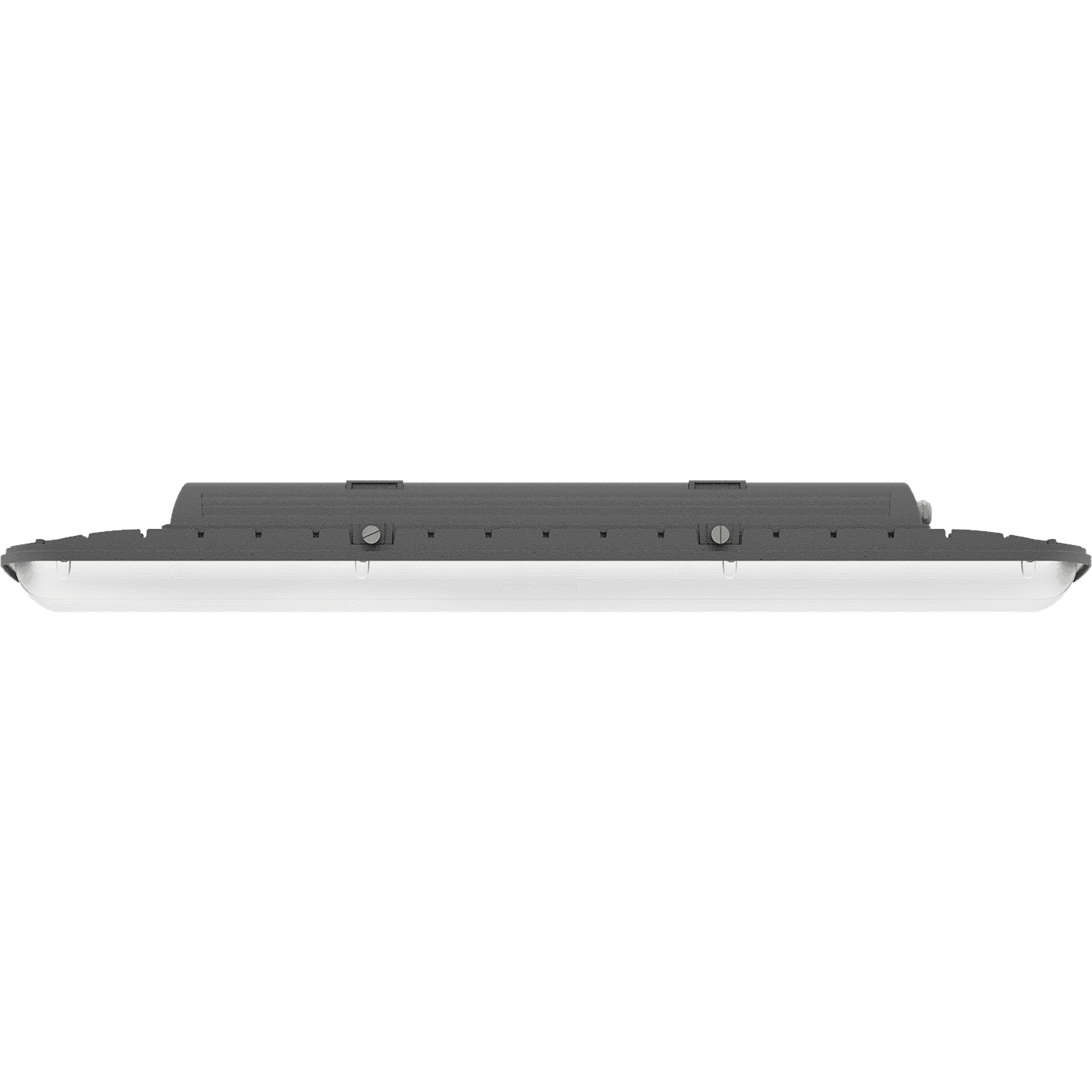

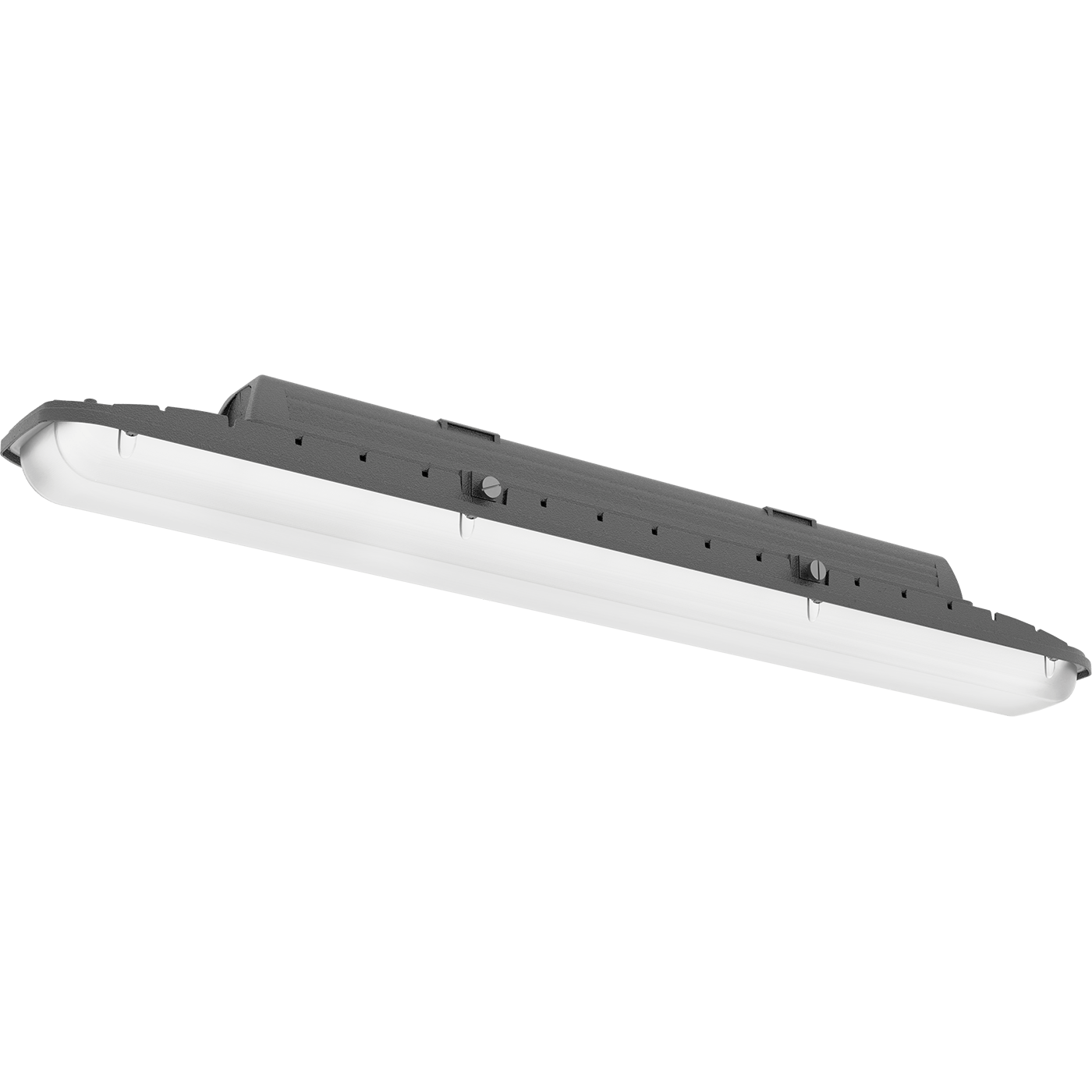

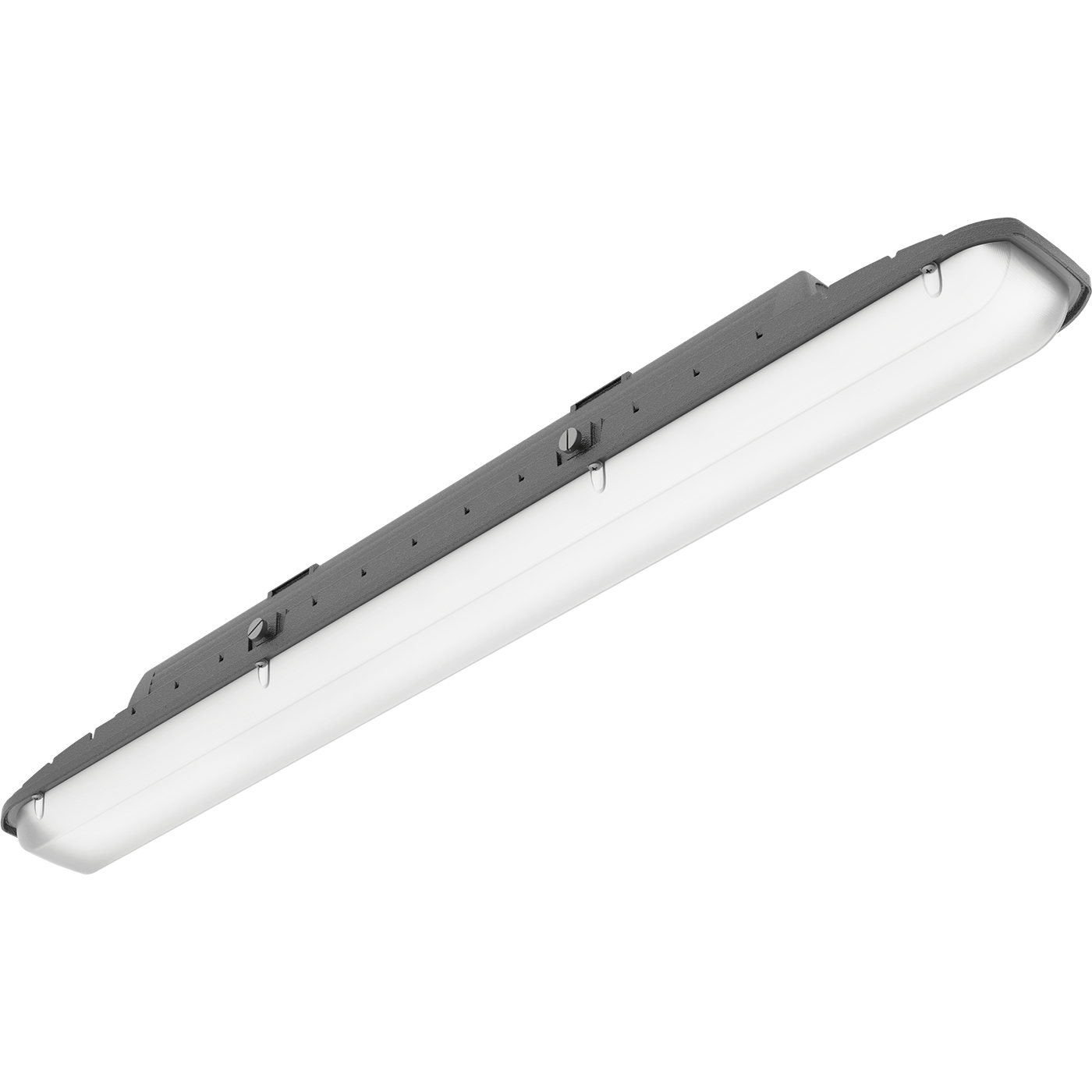

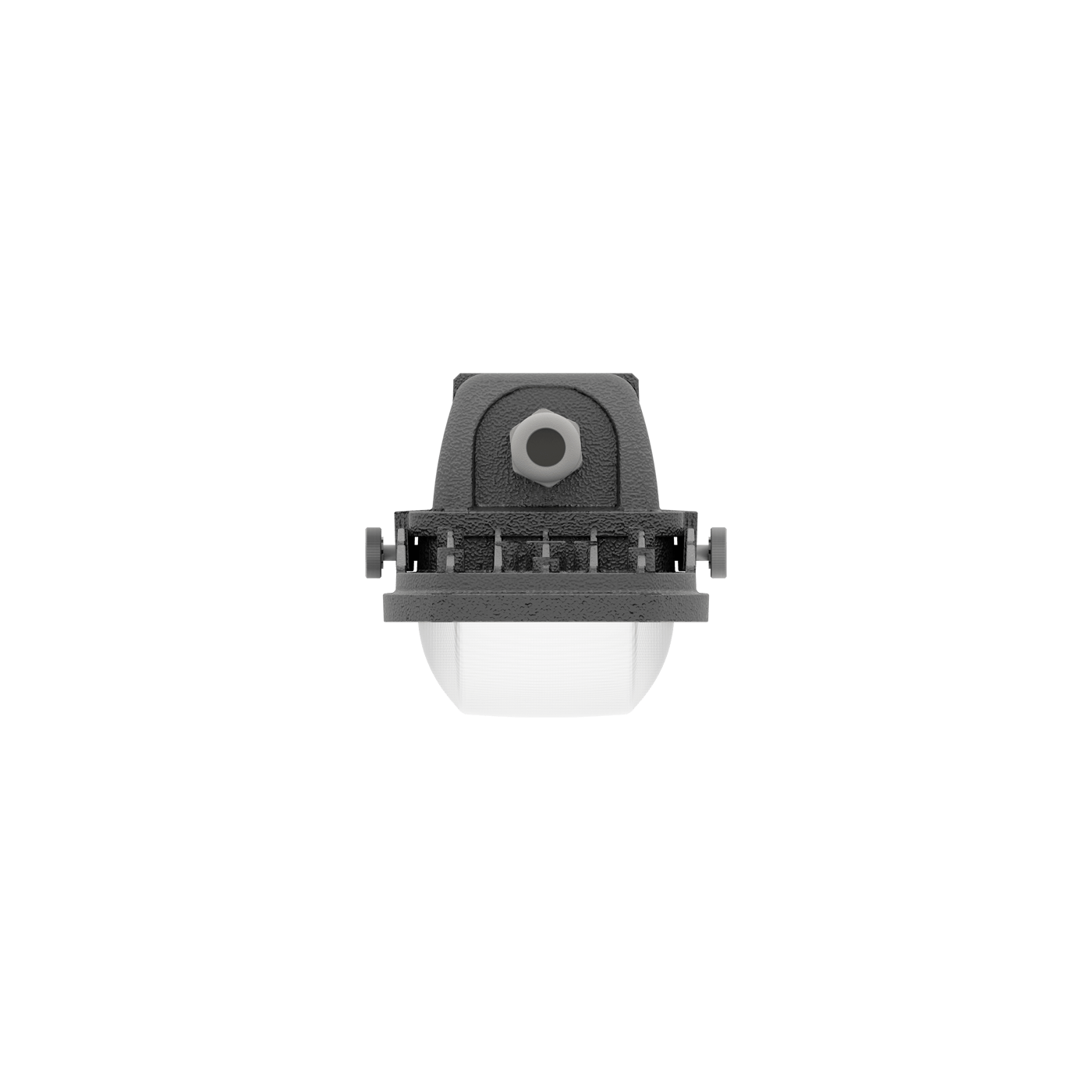

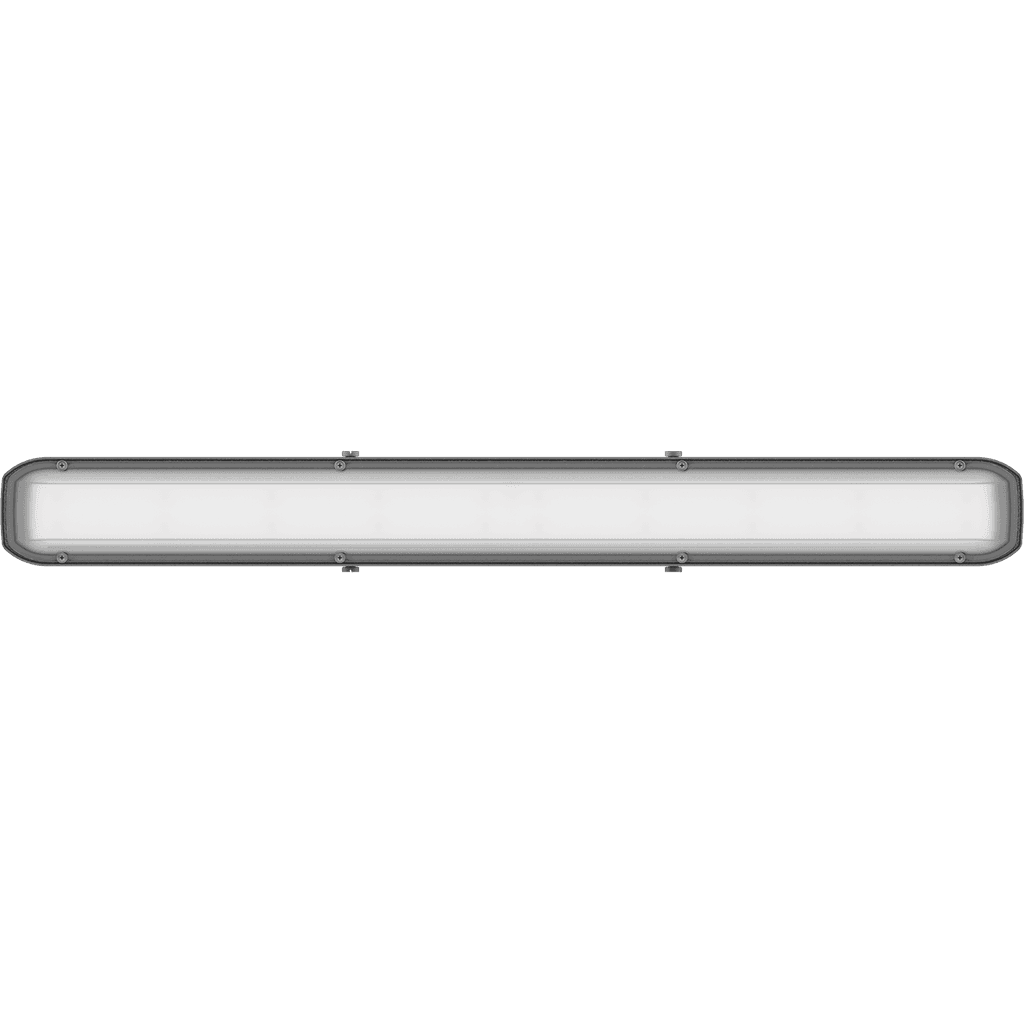

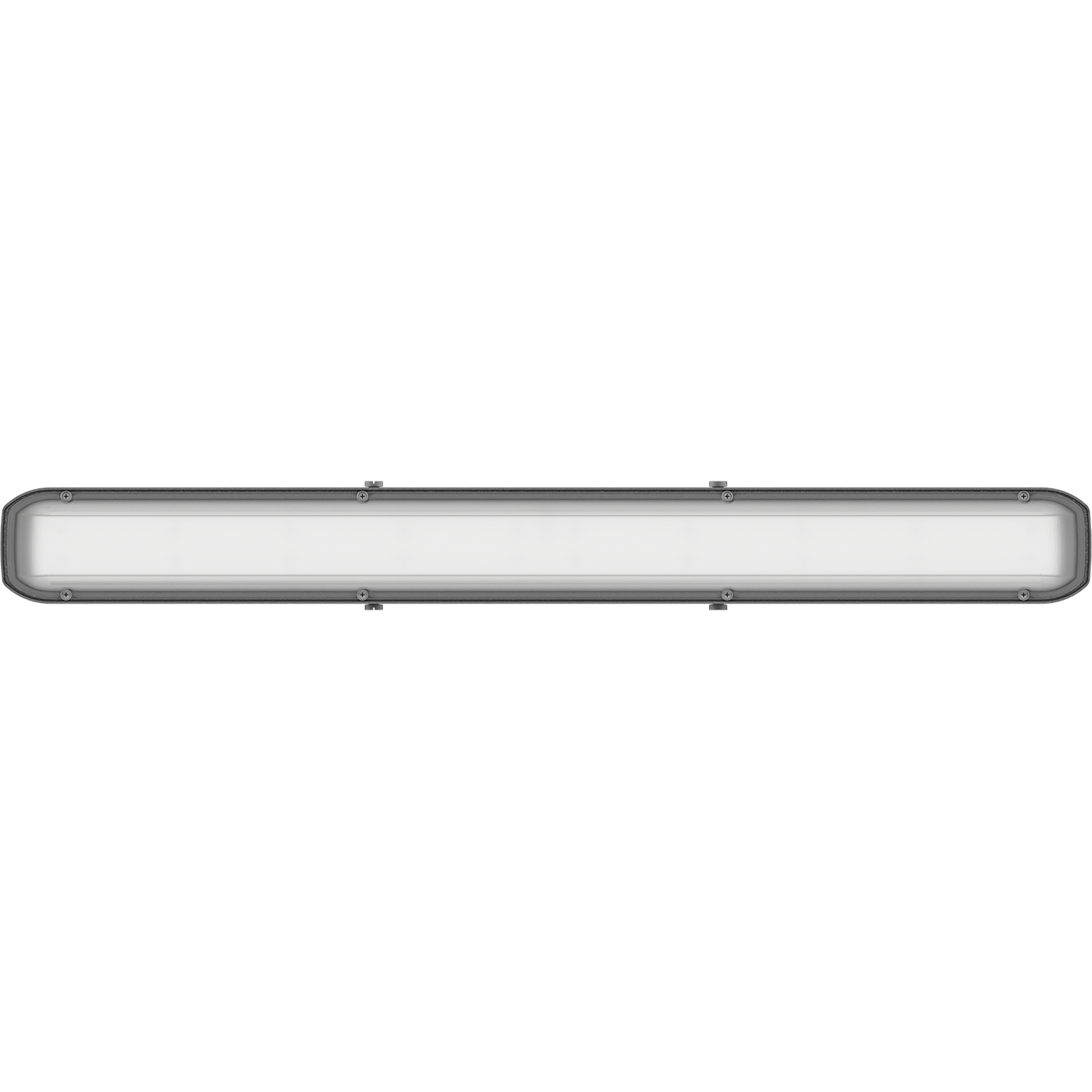

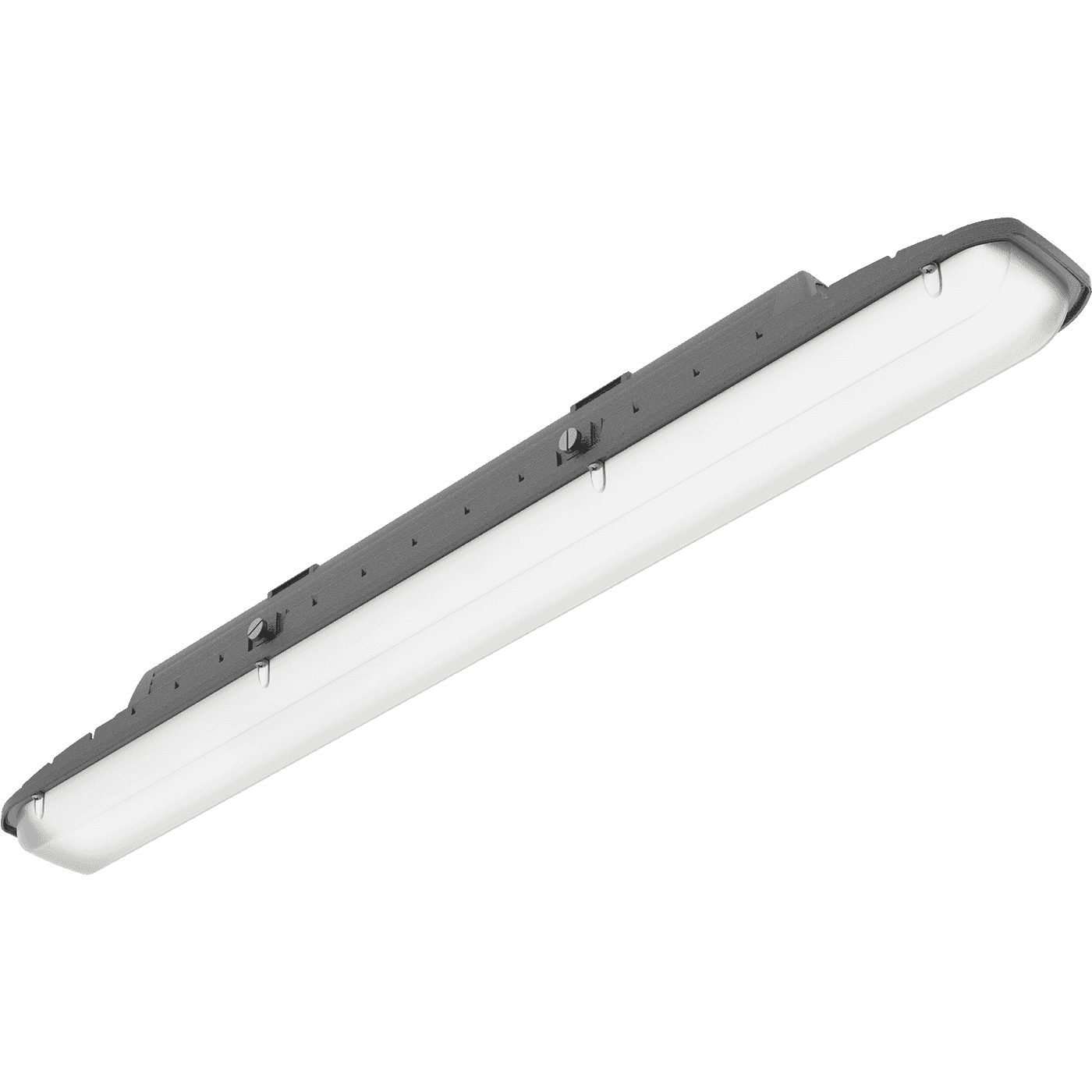

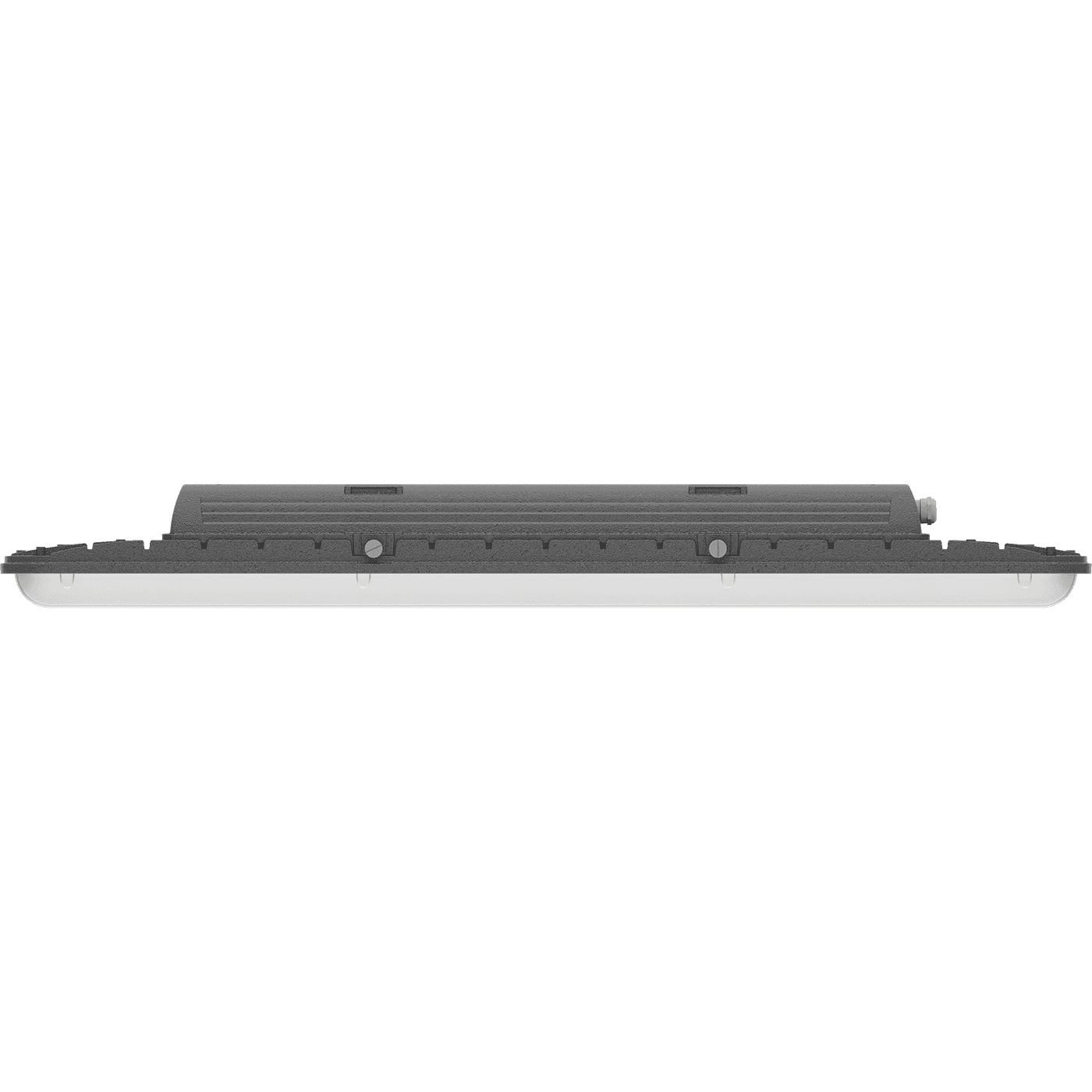

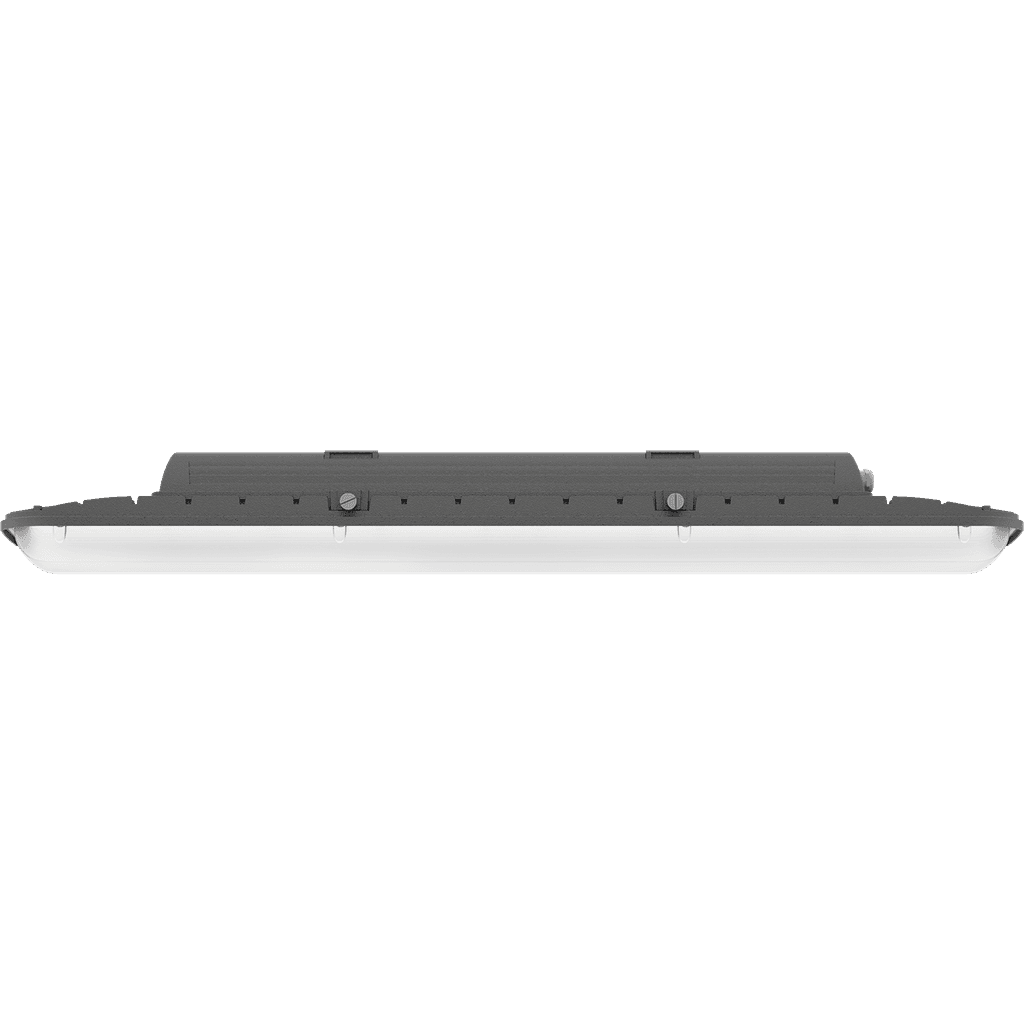

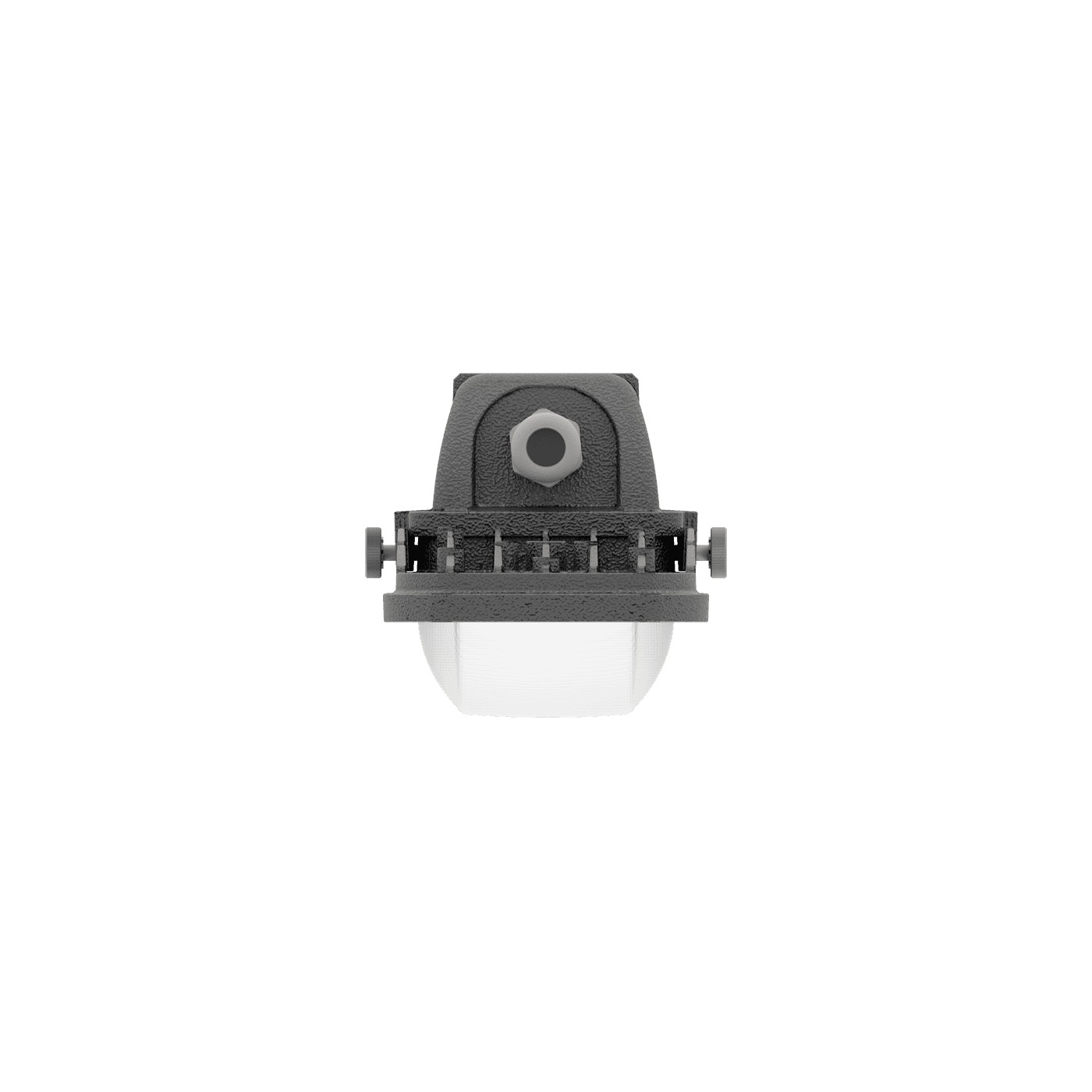

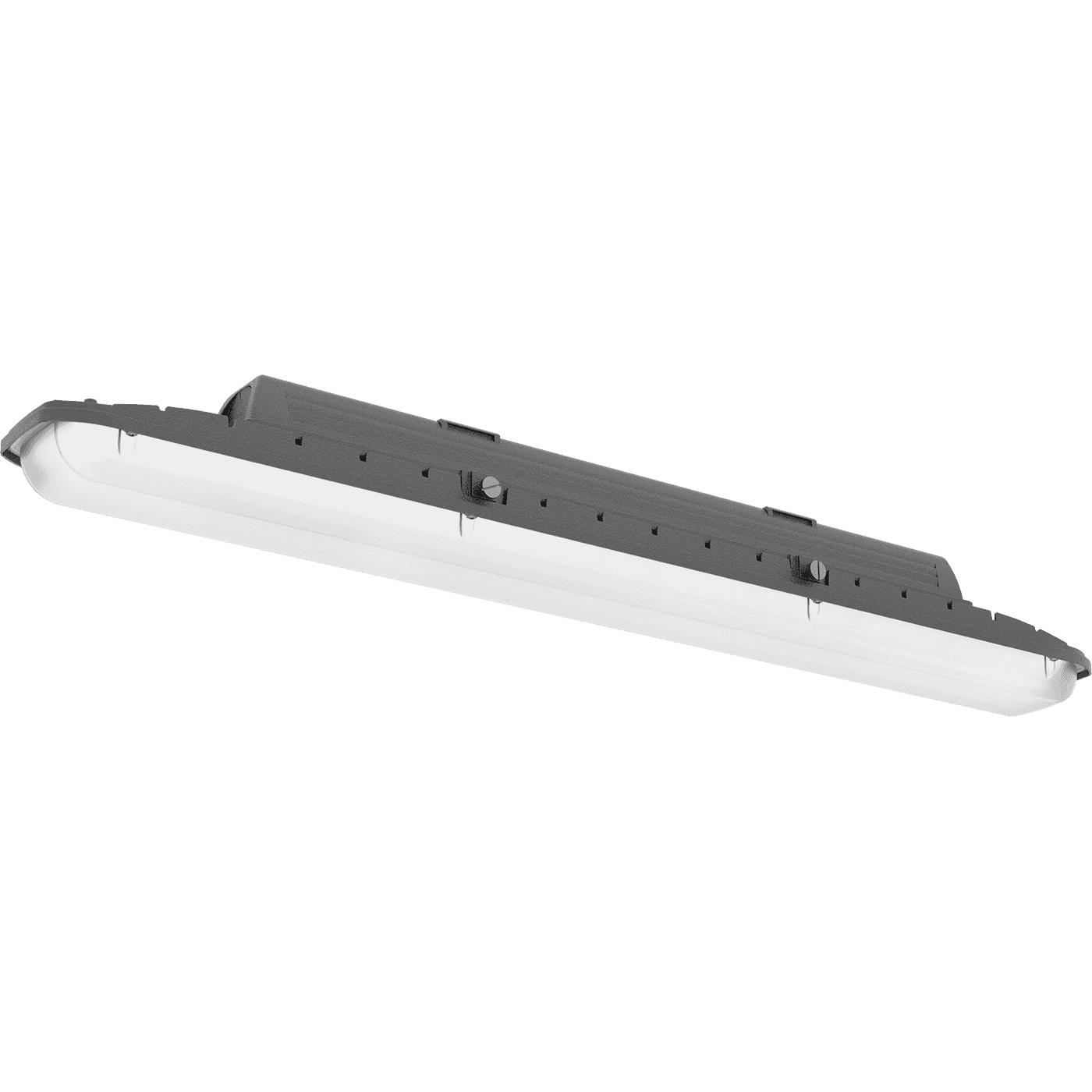

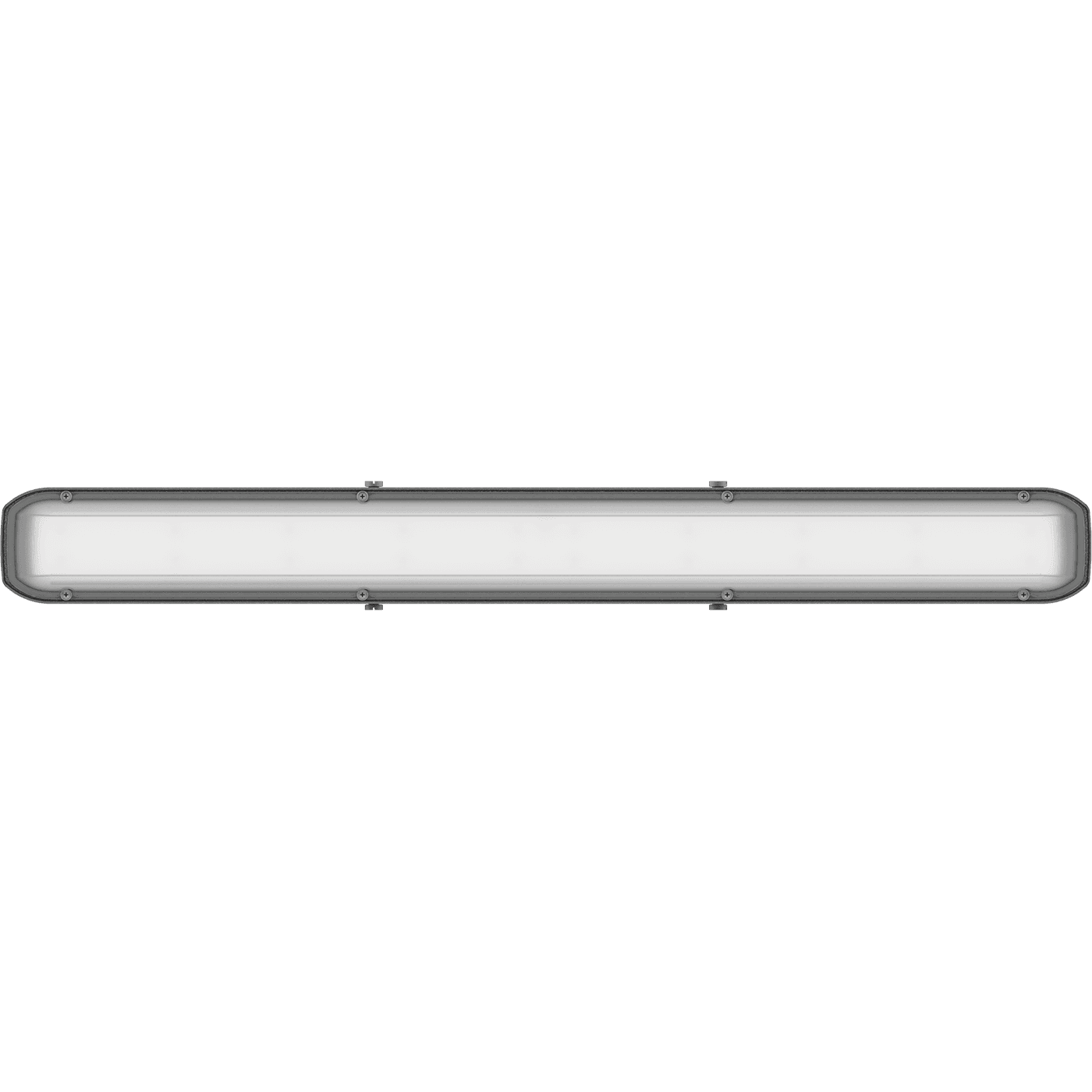

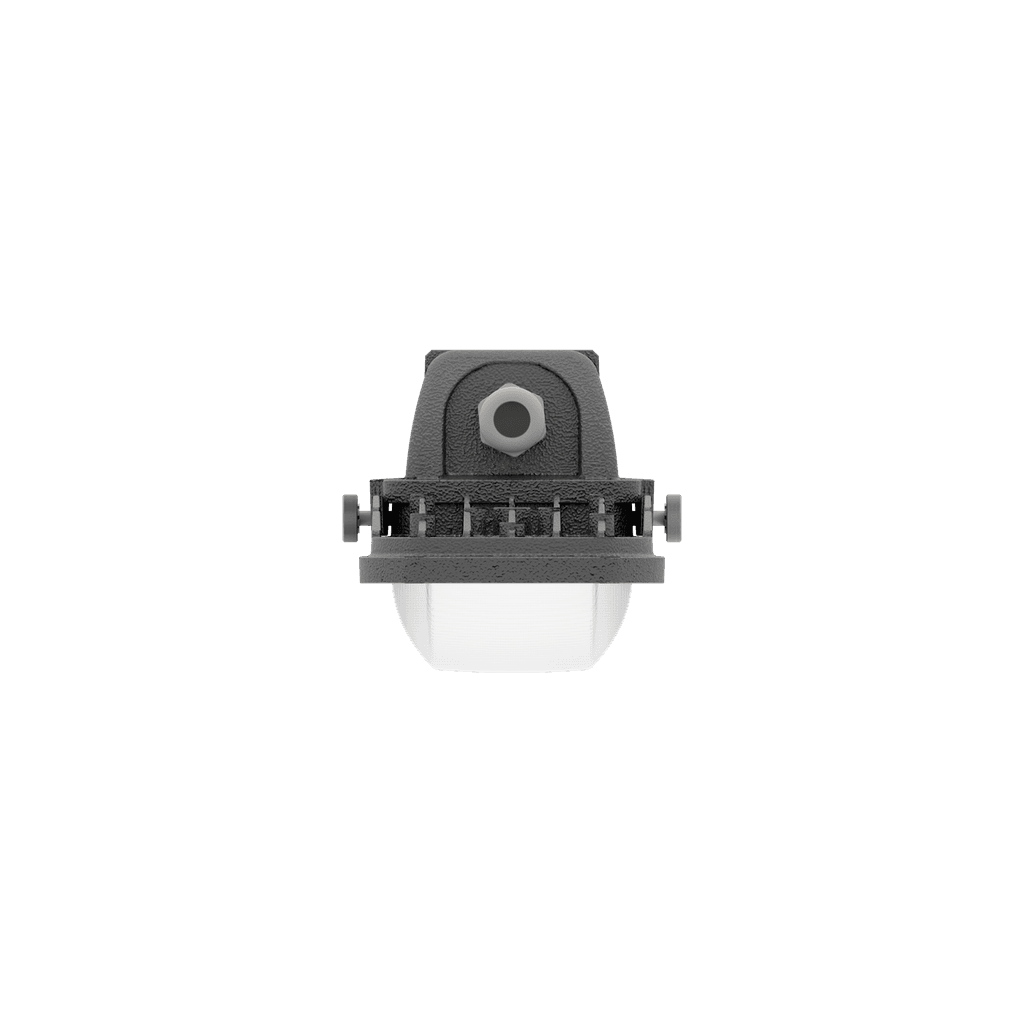

SLICK LED G2 20W PRS 840 HG with driver box

зарегистрирована в реестре российской промышленной продукции
SLICK LED G2 20W PRS 840 HG with driver box
add to favorites
20 Wluminaire power
2900 lmlight flow
145 lm/Wenergy efficiency
code1631005770
number from the register of Russian industrial products10758137
color temperature4000 K
beam angleD120
performance factor100
weight3.7 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. ceiling
  6. IP protected
  7. SLICK LED G2
  8. SLICK LED G2 20W PRS 840 HG with driver box
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
145 lm/W
color rendition index (CRI)
>80
light flow
2900 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
145 lm/W
color rendition index (CRI)
>80
light flow
2900 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
luminaire power
20 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
955 mm
width
105 mm
height
115 mm
installation length
574 mm
weight
3.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
material
Алюминий
housing color
Серый
mounting type
Накладной
lamp socket
LED
number of lamps
1
ballast
Драйвер
тип потолка
основной (опорный)
common
temperature range
от -40 до +50 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A++
code
1631005770
model files
model files
photometric files
ies263.2 kB
jpg190.2 kB
ldt176.7 kB
documents
passport2.7 mB
сертификаты
Russian origin330.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies263.2 kB
jpg190.2 kB
ldt176.7 kB
documents
passport2.7 mB
сертификаты
Russian origin330.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Wall/ceiling rotary brackets SLICK LED G20.2kgarticle: 2631000160
Комплект подвеса на горизонтальный трос SLICK LED G20.335kgarticle: 2631000380
Комплект подвеса на трос SLICK LED G20.2kgarticle: 2631000370
