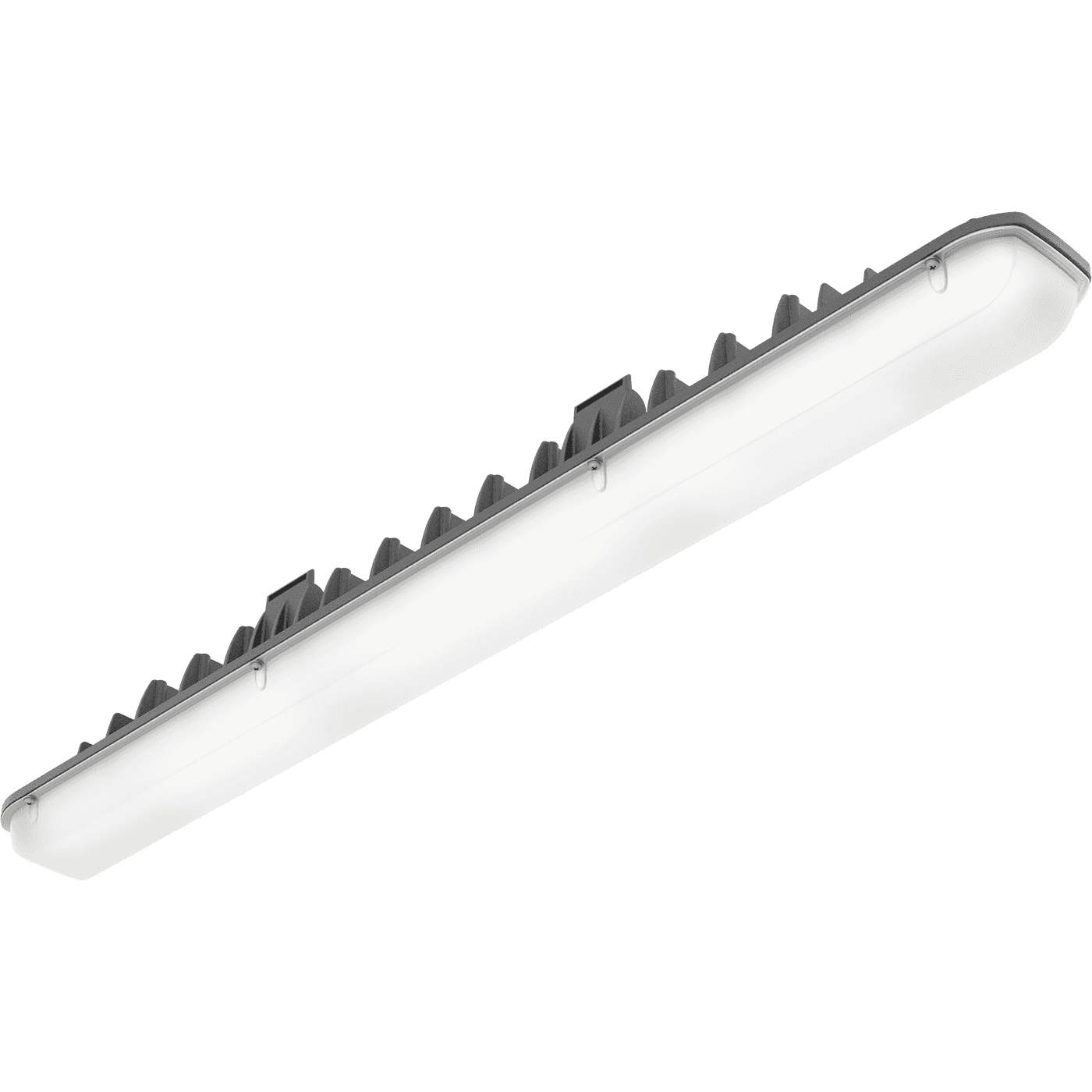

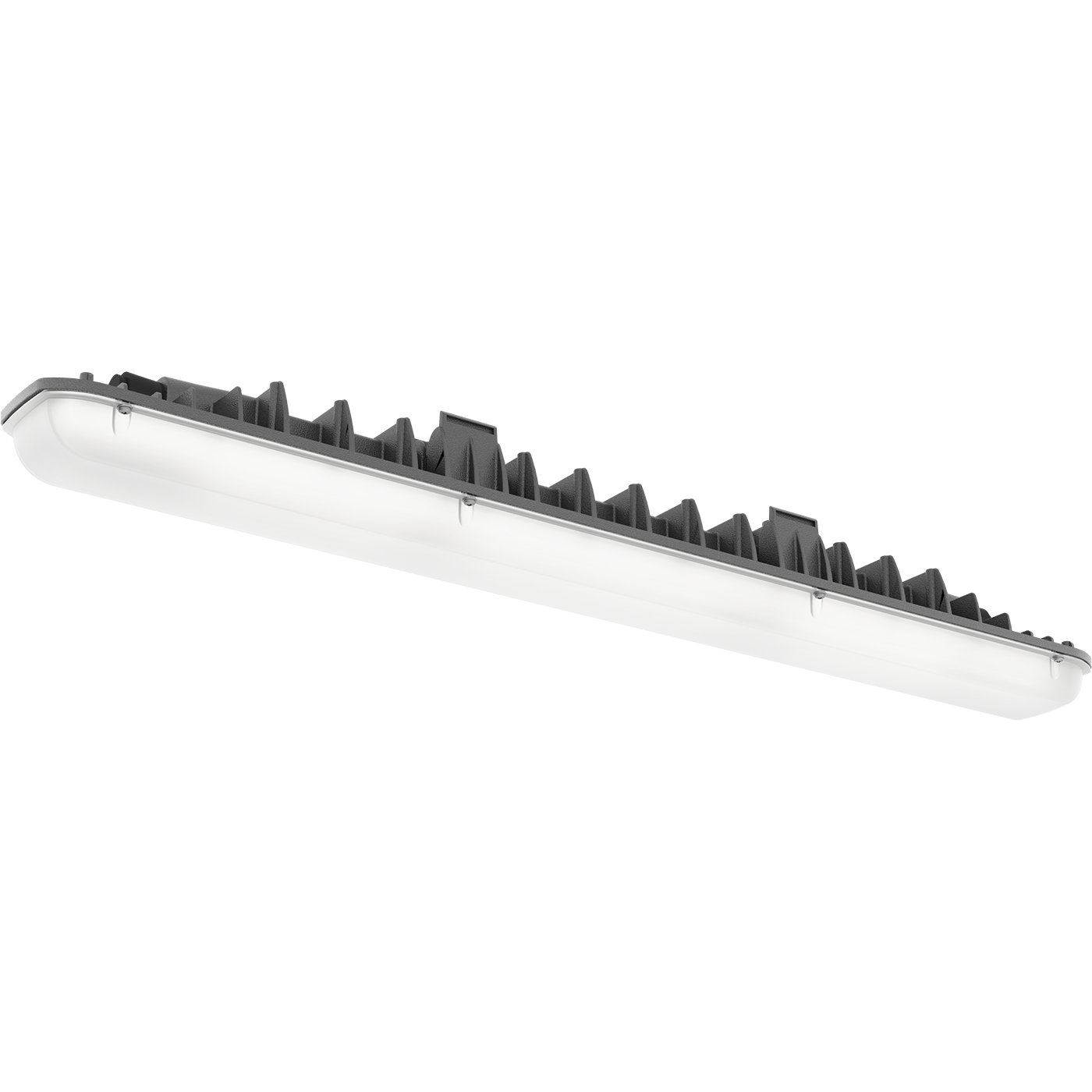

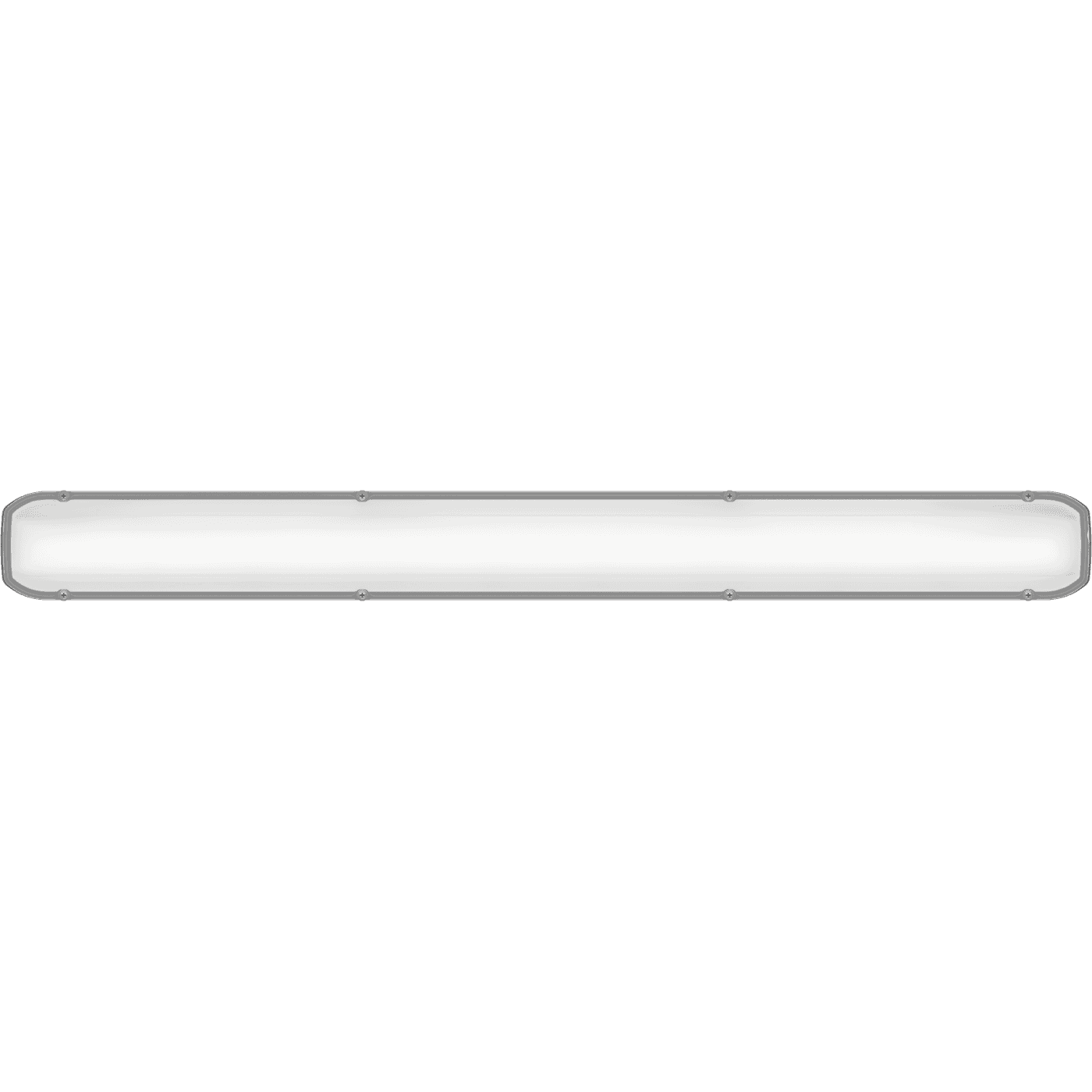

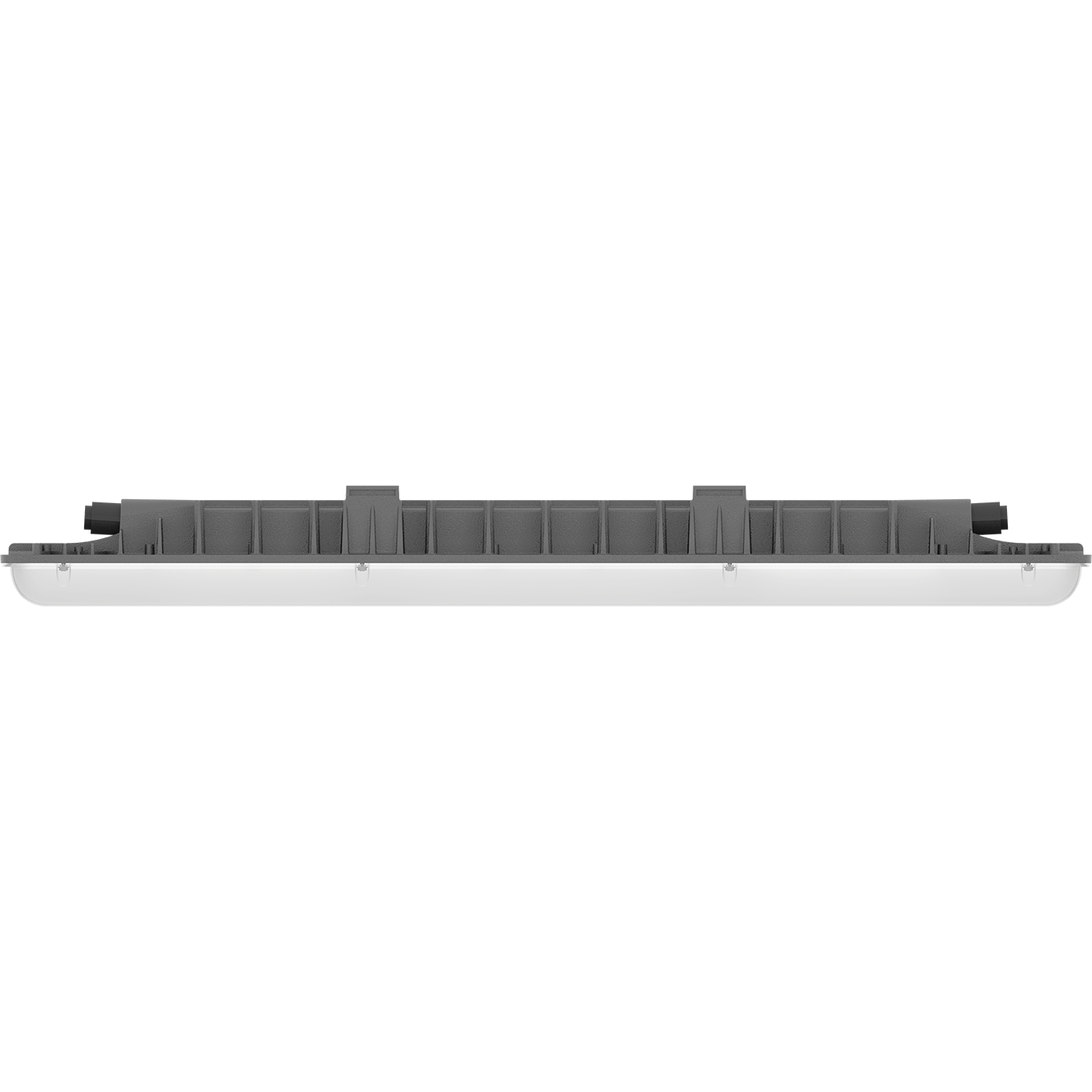

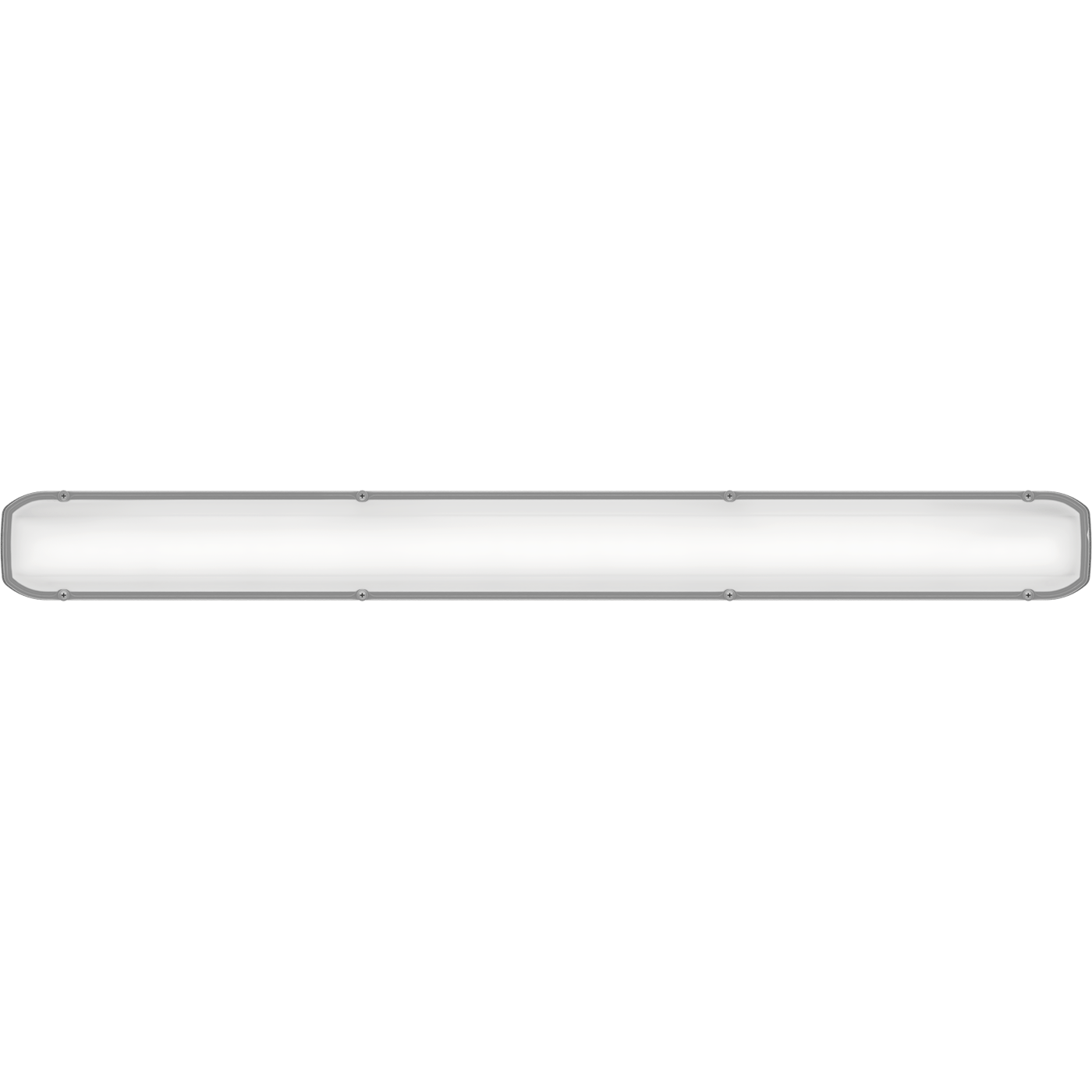

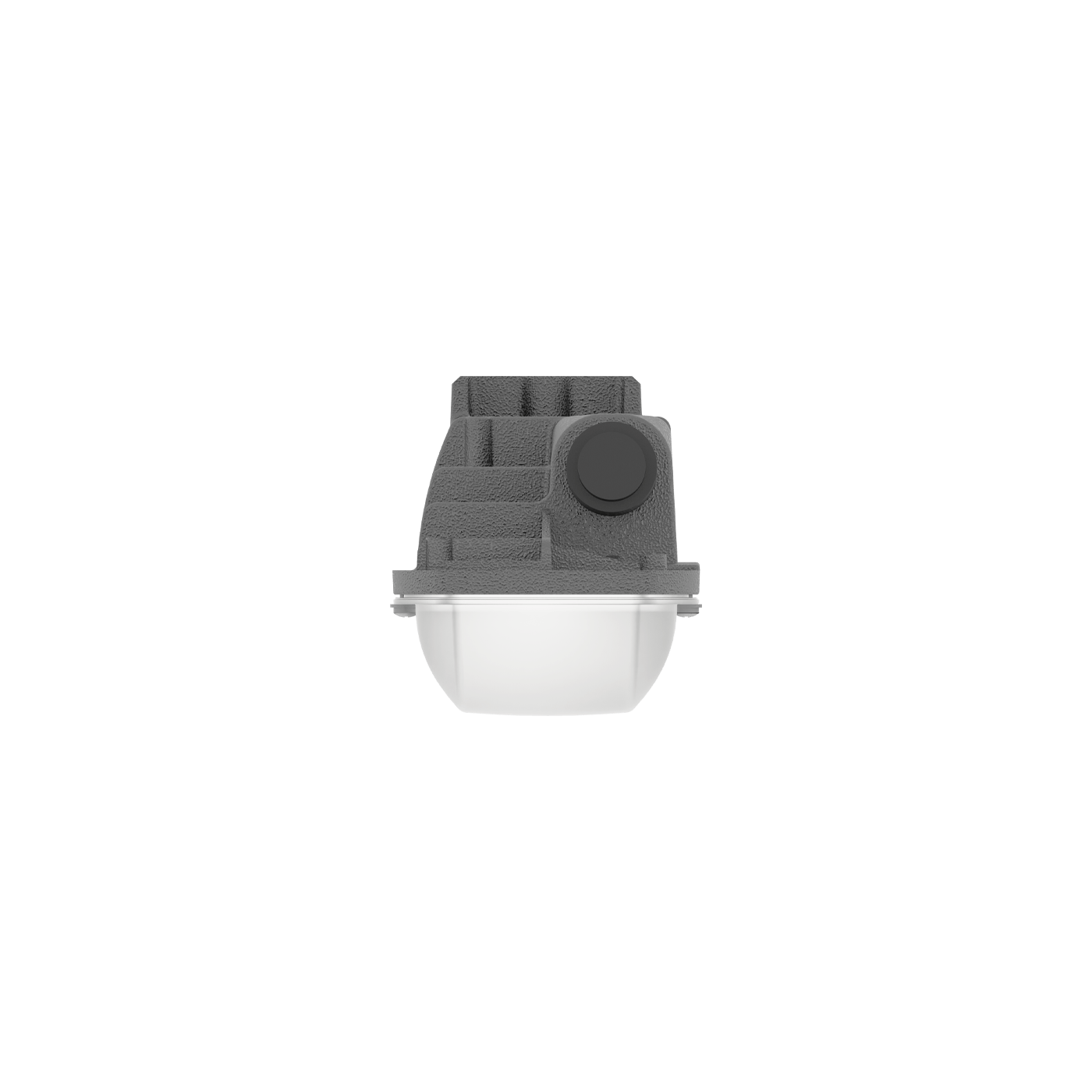

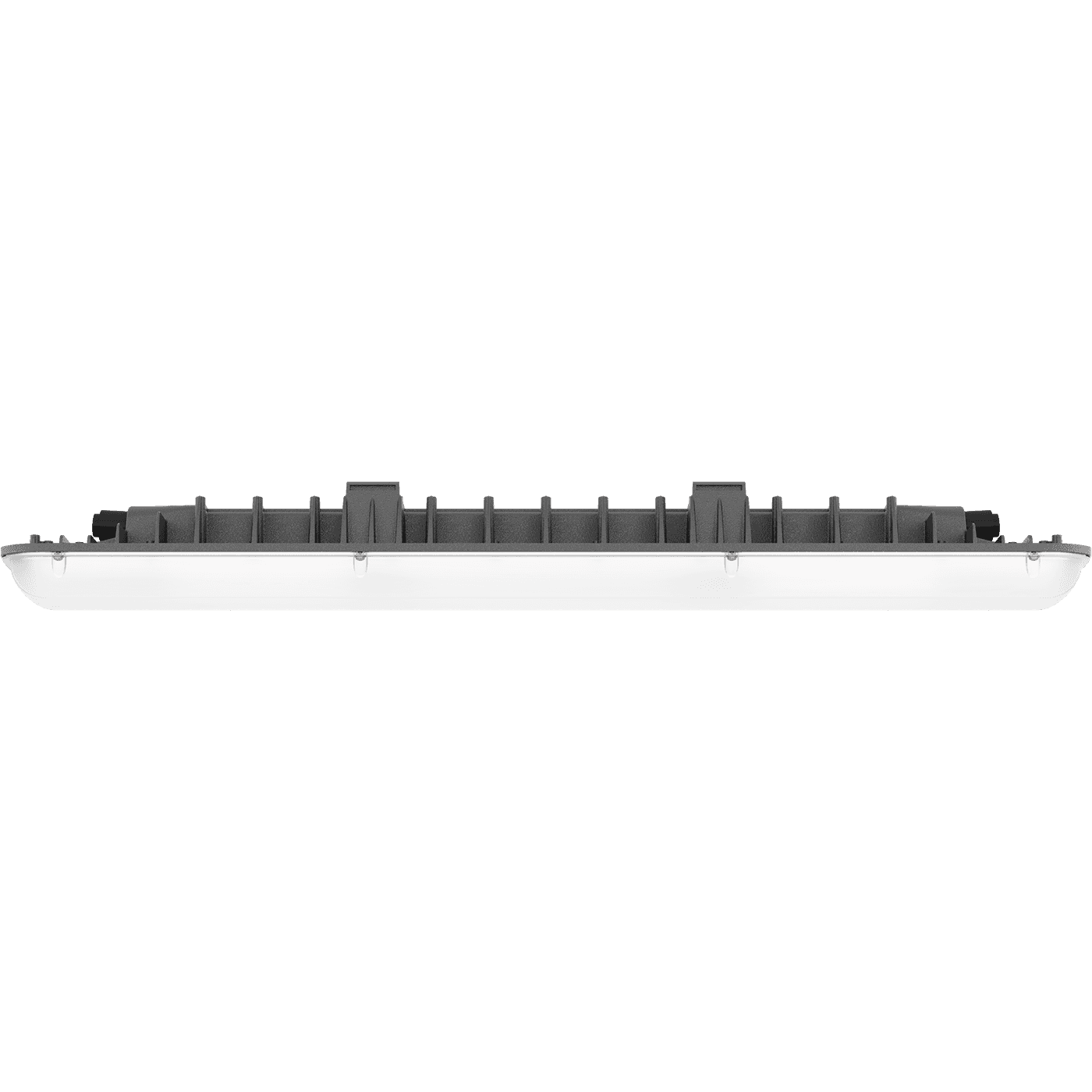

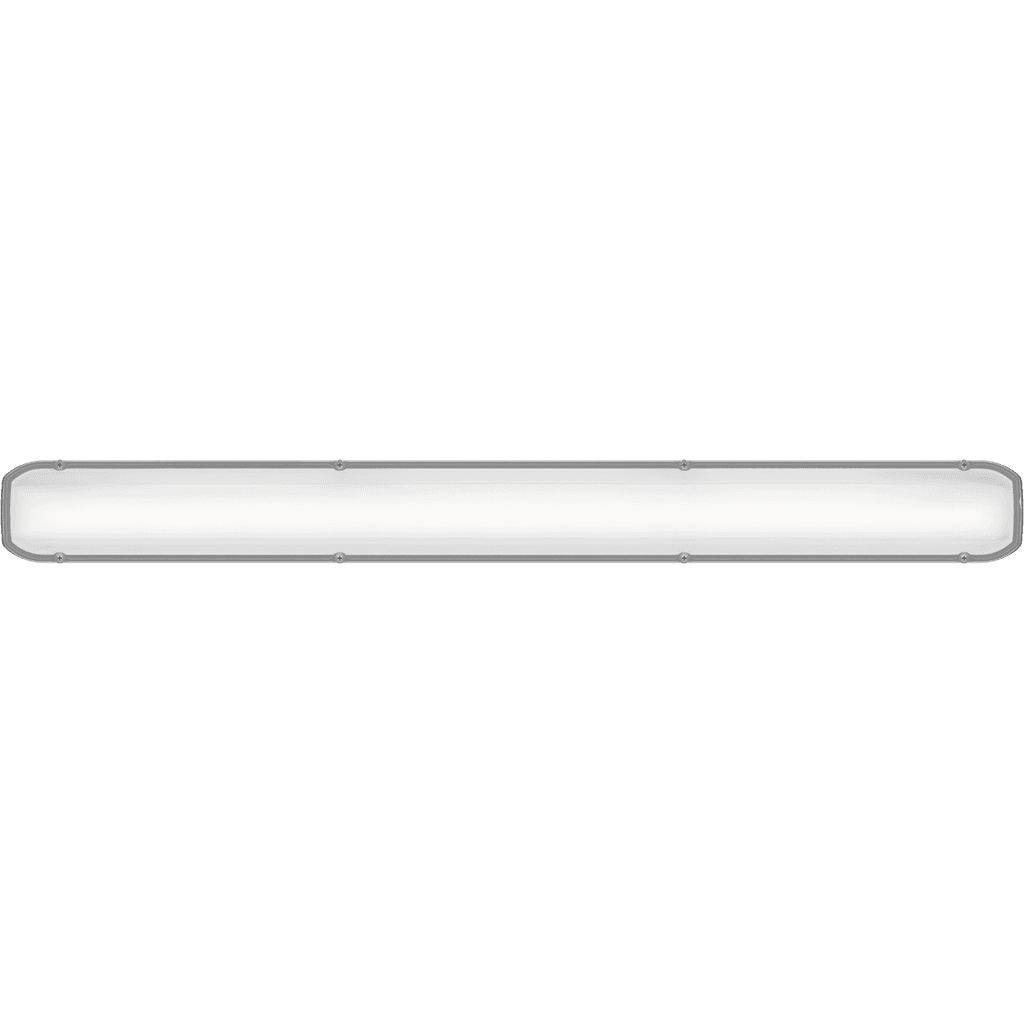

SLICK.PRS ECO LED 60 5000K
SLICK.PRS ECO LED 60 5000K
59 Wluminaire power
7700 lmlight flow
131 lm/Wenergy efficiency
code1631000200
color temperature5000 K
beam angleD120
performance factor100
weight2.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
131 lm/Wcolor rendition index (CRI)
>70light flow
7700 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
131 lm/W
color rendition index (CRI)
>70
light flow
7700 lm
flickering factor
<1%

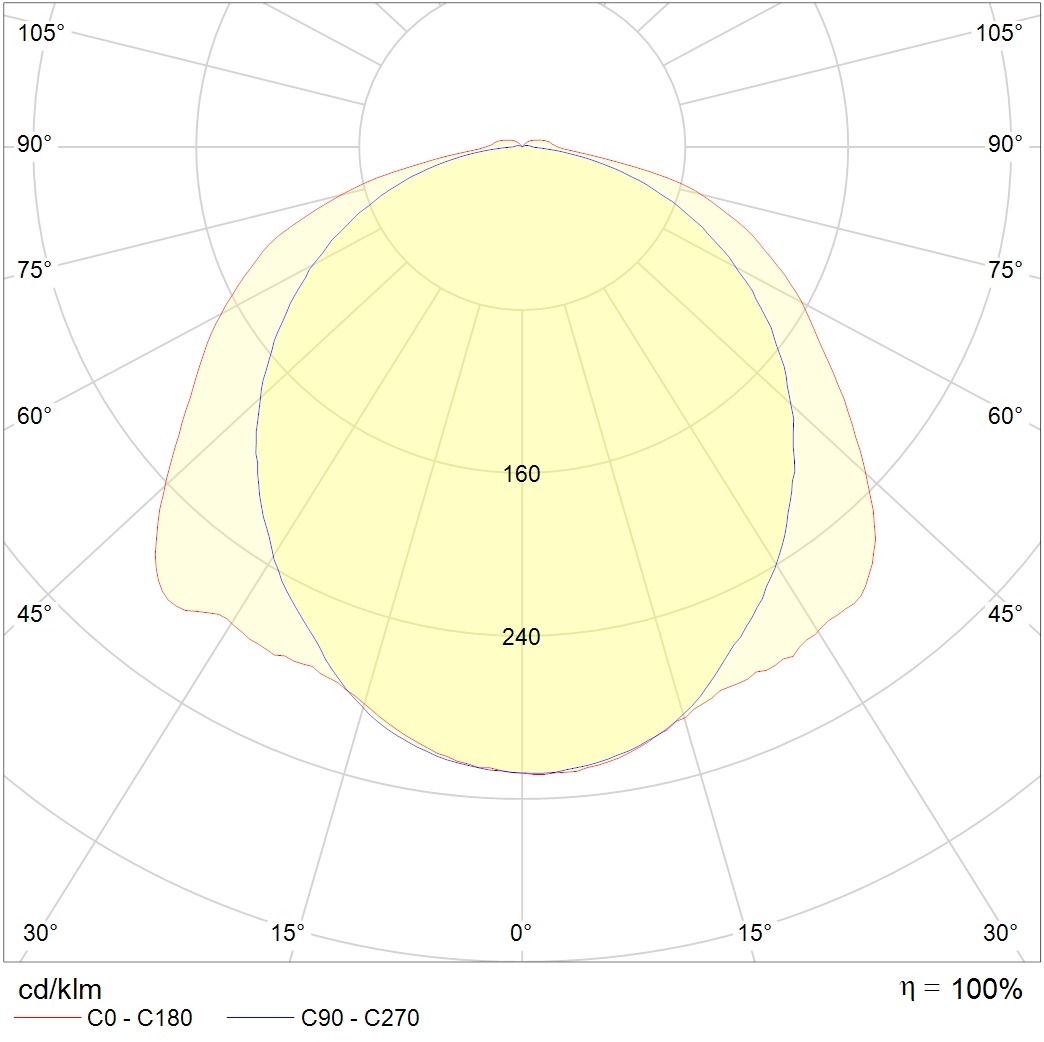

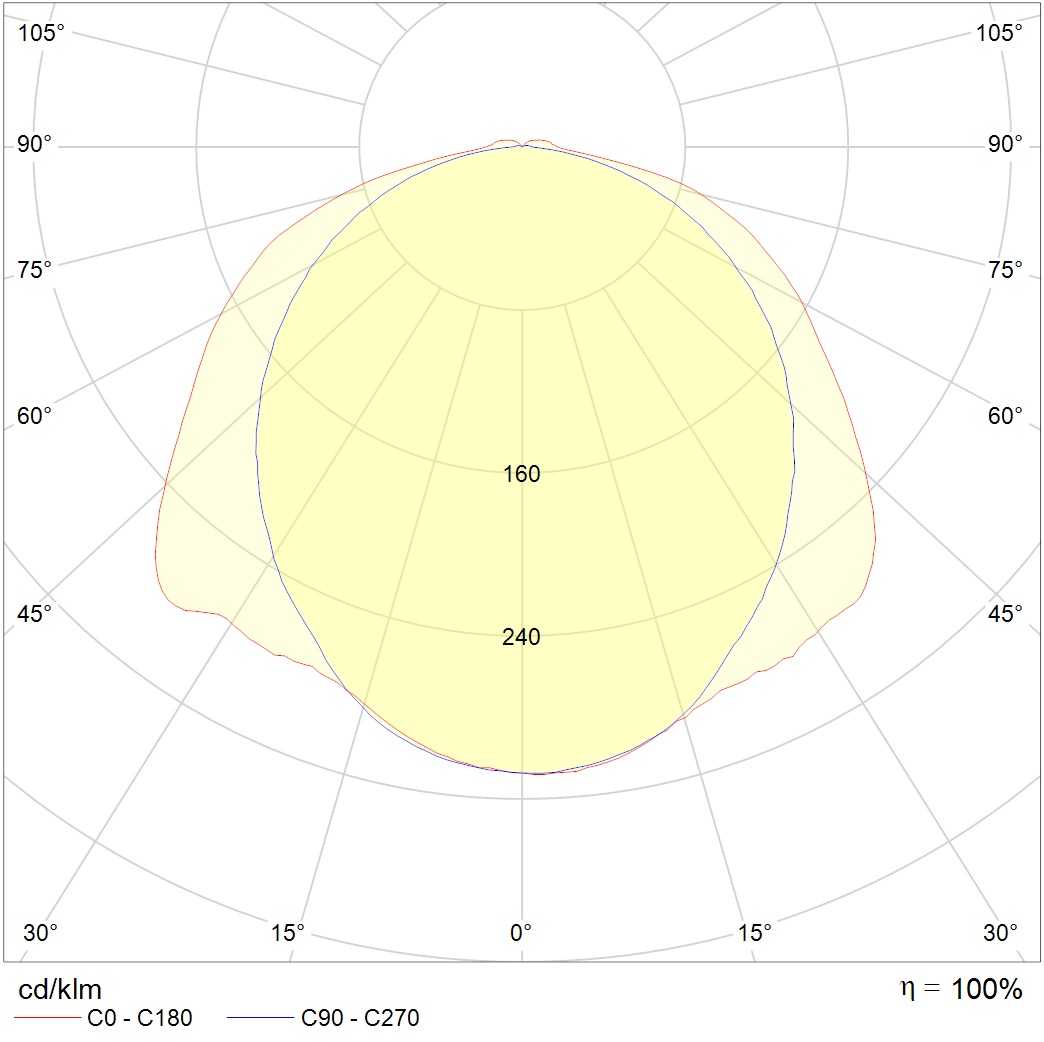

beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
59 W
supply voltage
230 V
power factor
> 0,97
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
953 mm
width
96 mm
height
105 mm
installation length
302 mm
weight
2.5 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1631000200
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg121.9 kB
ldt202.2 kB
csv417 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Anti-vibration brackets for SLICK ECO LED0.14kgarticle: 2631000110
Wall/ceiling rotary brackets SLICK ECO LED0.75kgarticle: 2631000120
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
