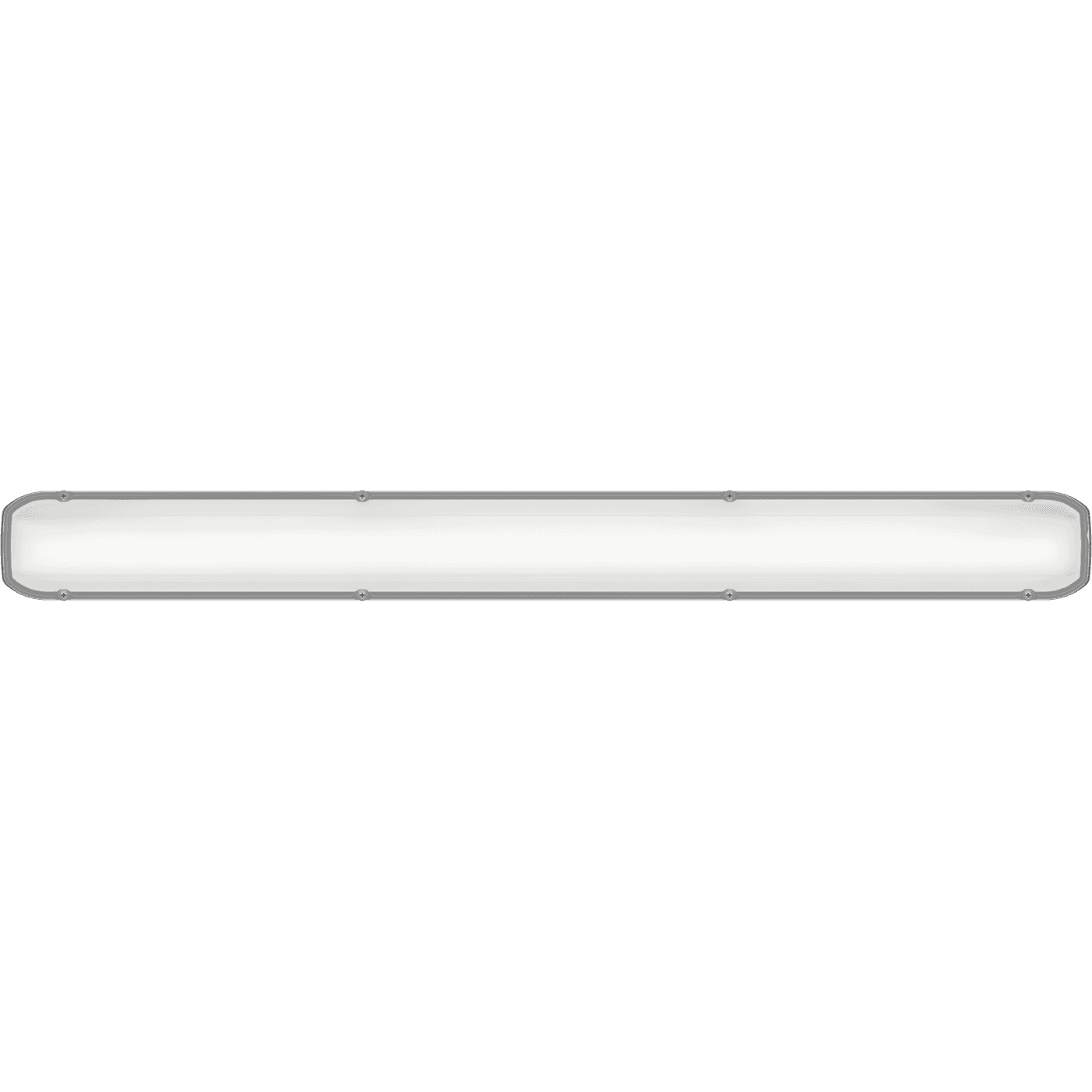

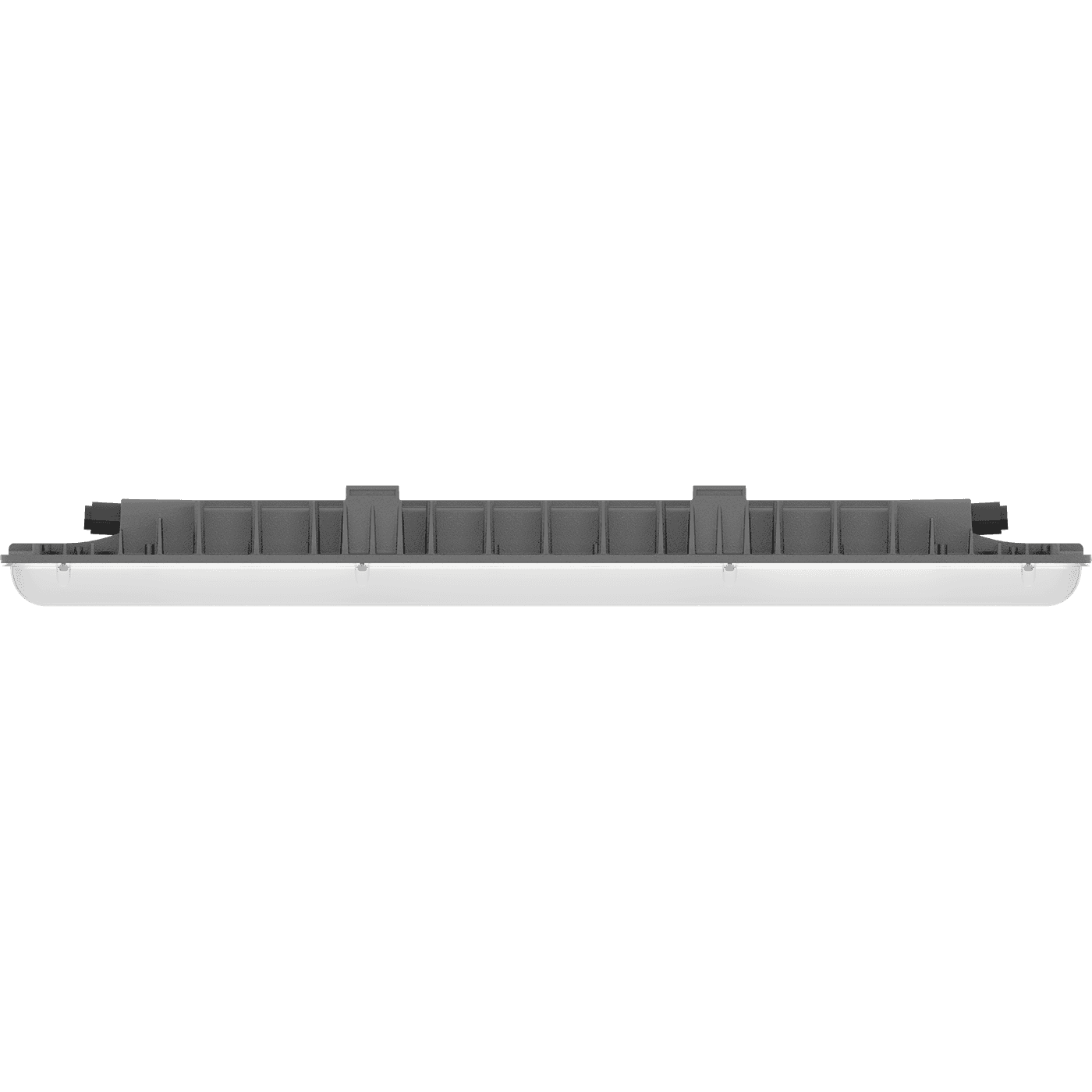

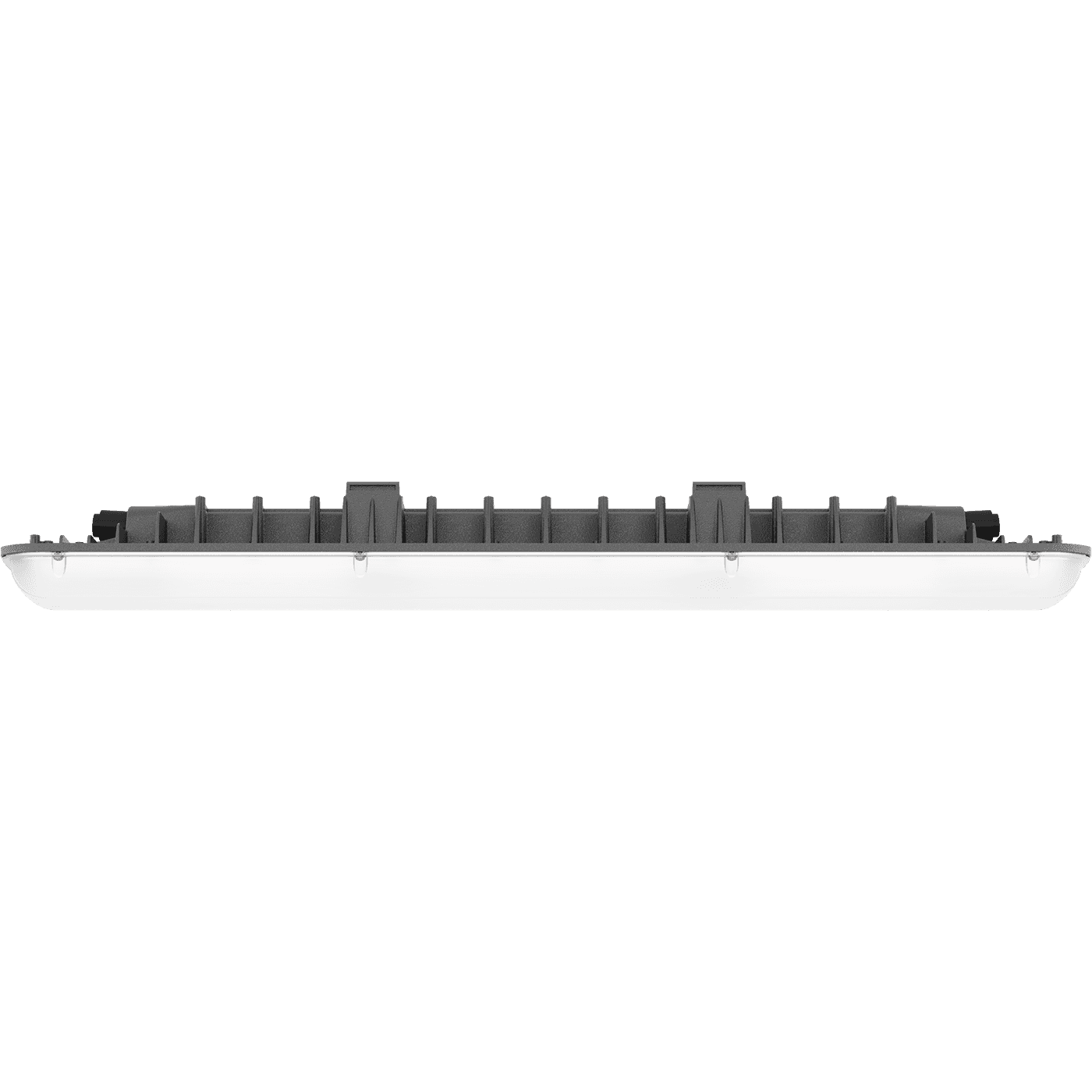

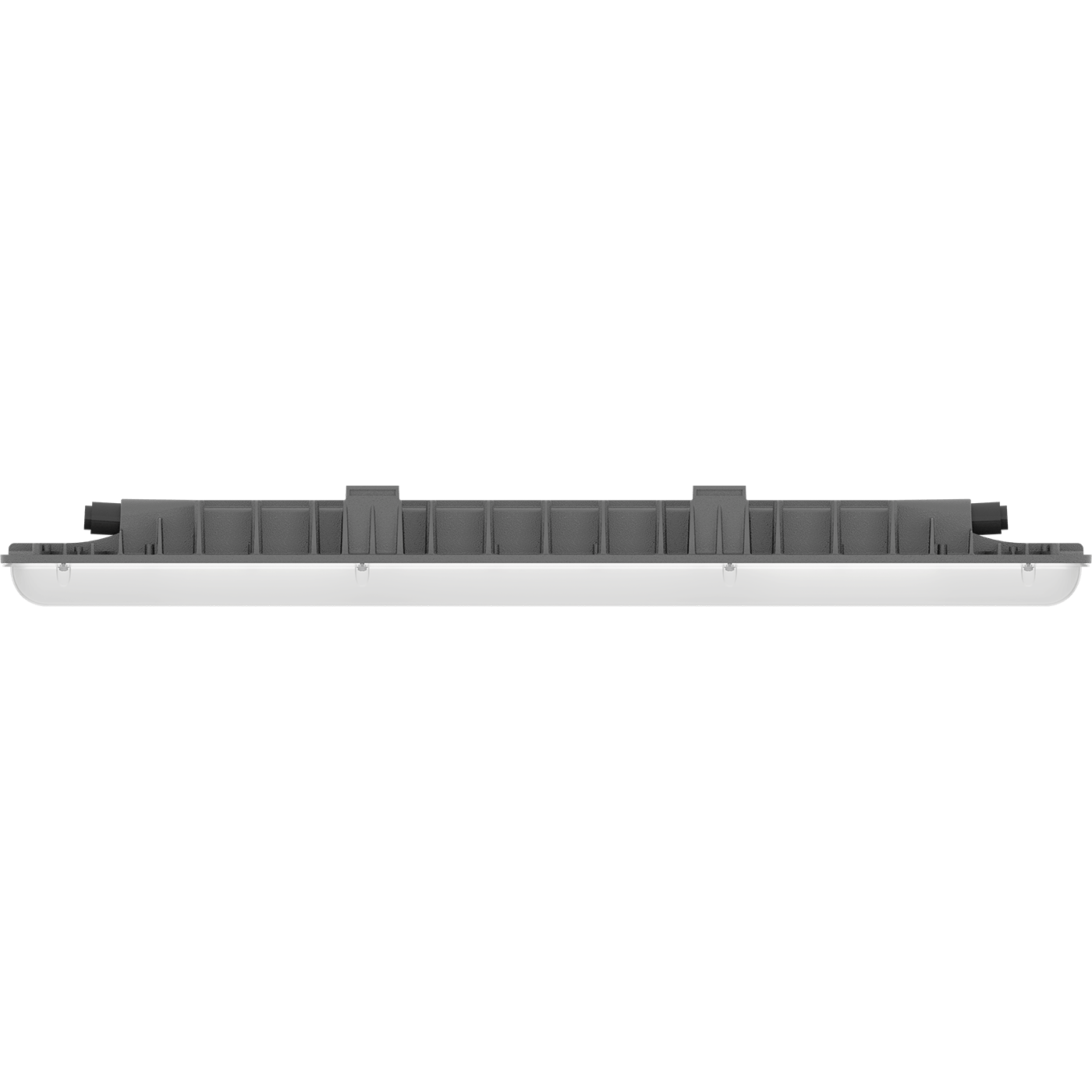

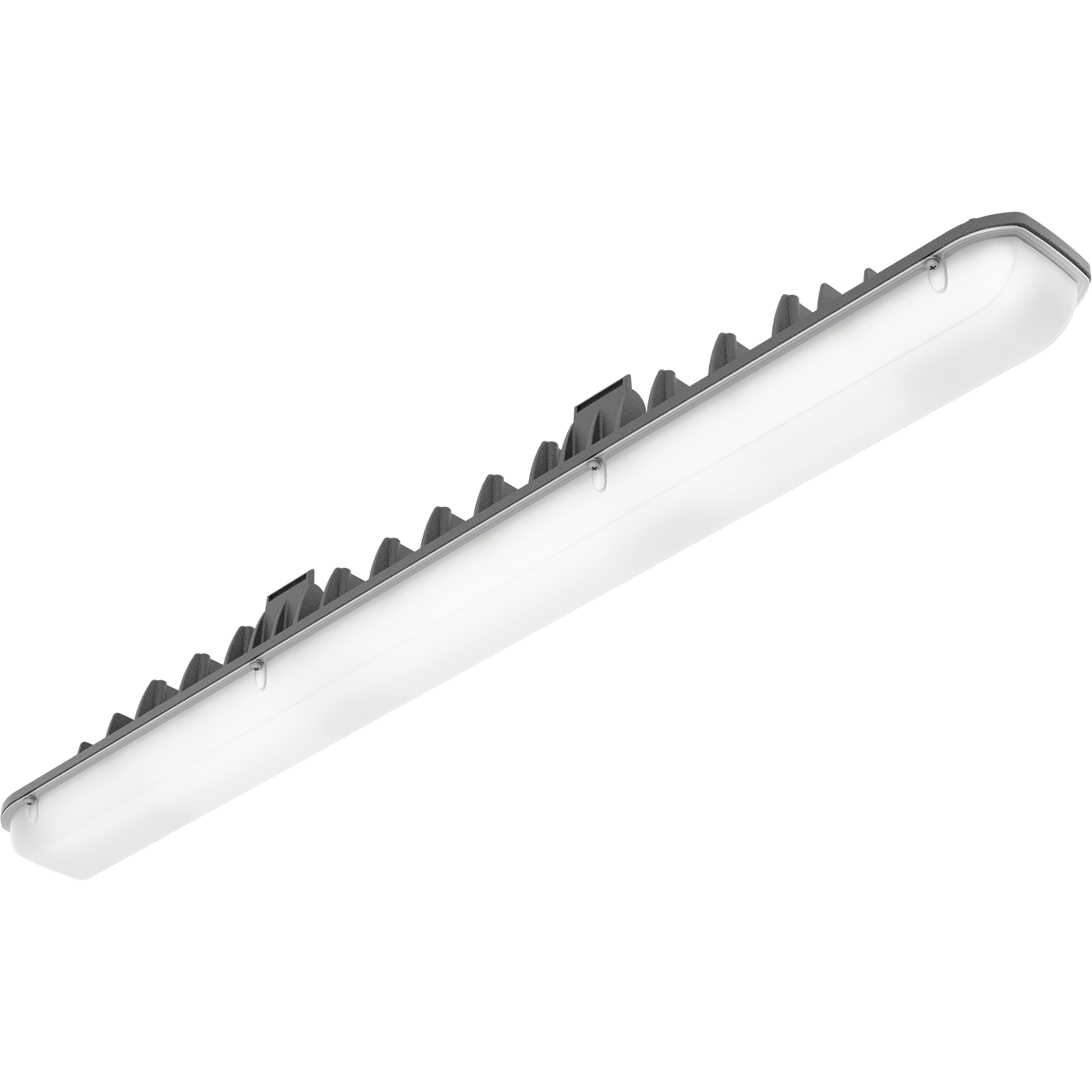

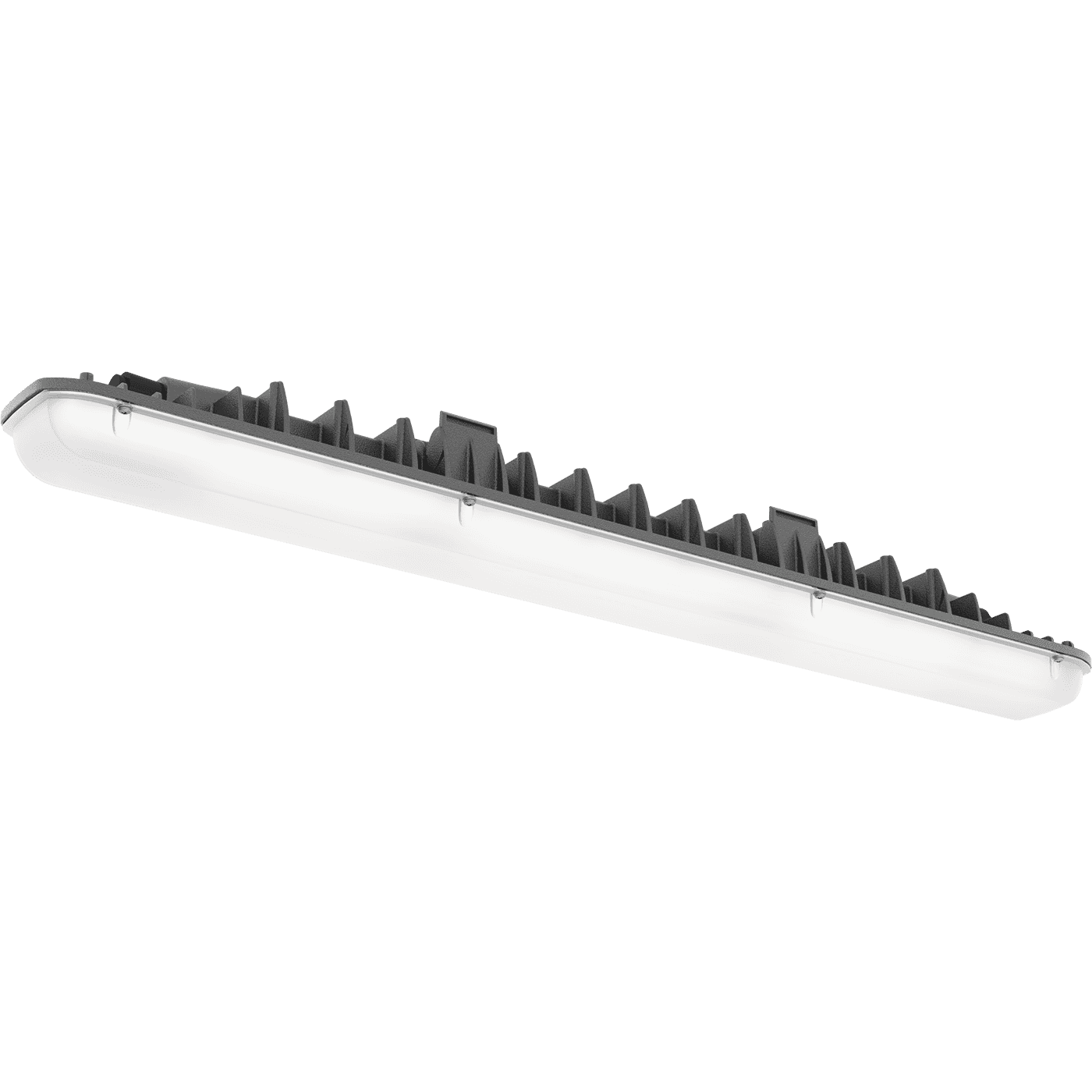

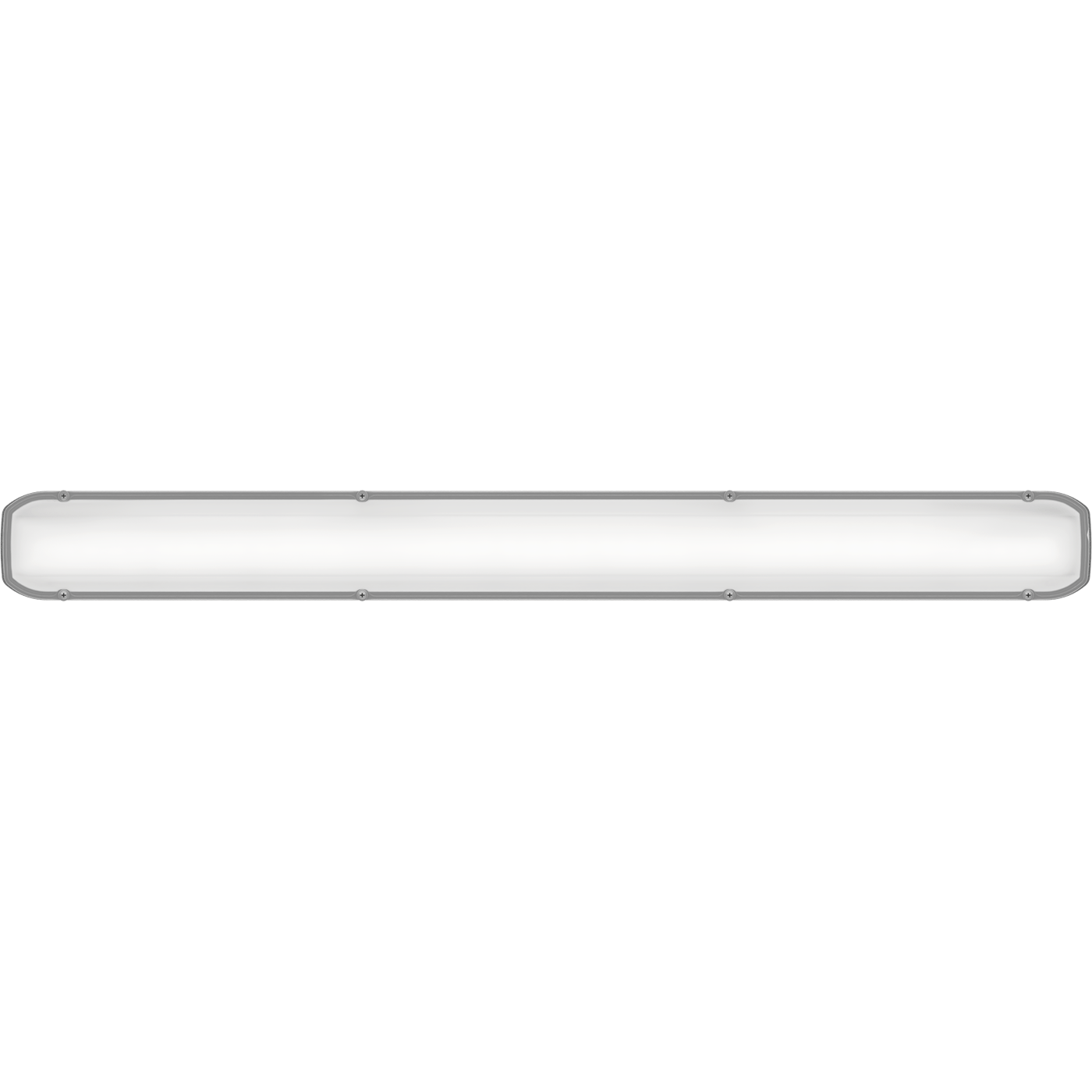

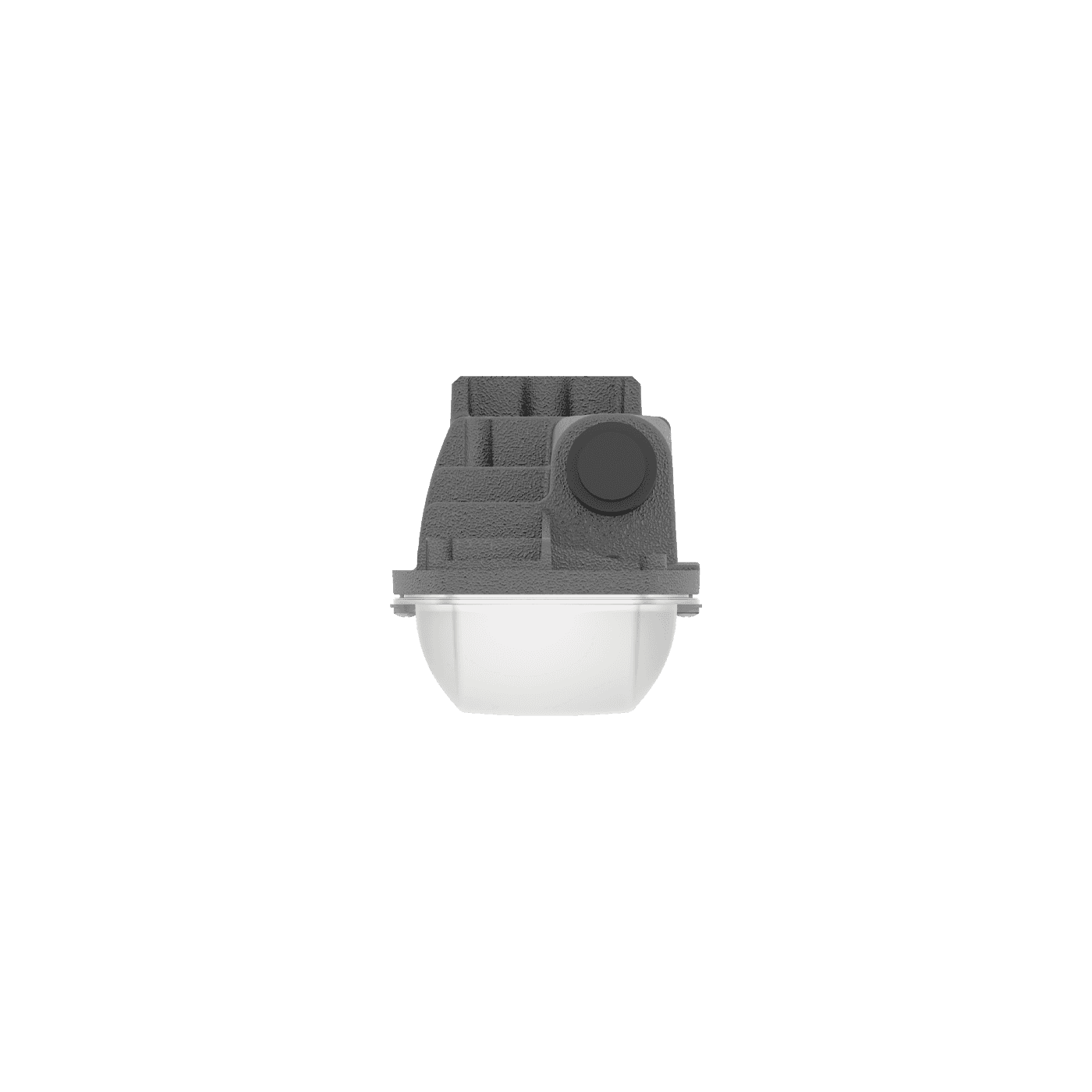

SLICK.PRS ECO LED 45 HFD 5000K

SLICK.PRS ECO LED 45 HFD 5000K
add to favorites
40 Wluminaire power
5200 lmlight flow
130 lm/Wenergy efficiency
code1631000590
color temperature5000
beam angleD120
weight2.5 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. SLICK ECO LED
  7. SLICK.PRS ECO LED 45 HFD 5000K
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Алюминий
weight
2.5 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
953 mm
width, mm
96 mm
height, mm
105 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
302 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1631000590
illuminating
light flow
5200 lm
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
LMS options
dimming
DALI
model files
model files
CAD/BIM files
CAD model 3DS907 B
model 3dMax1.5 mB

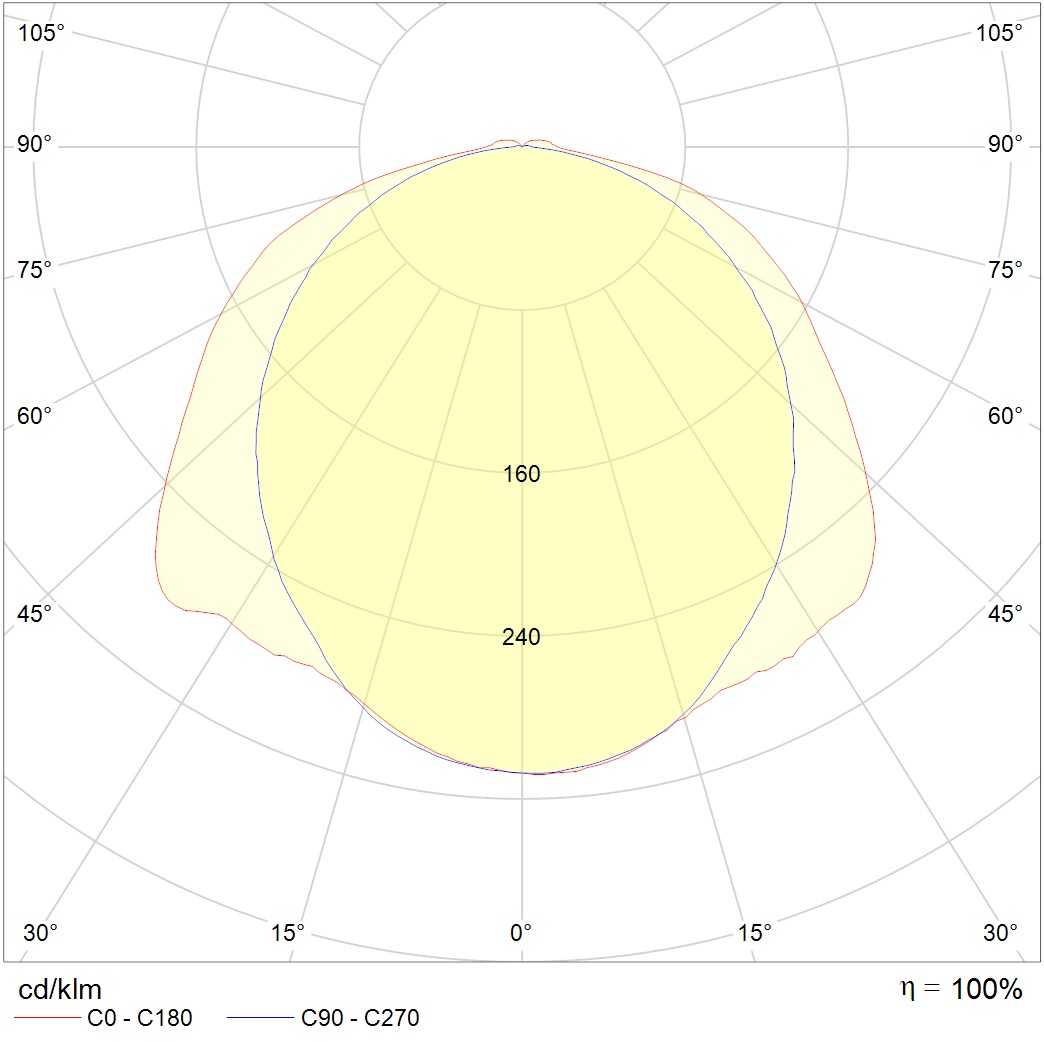

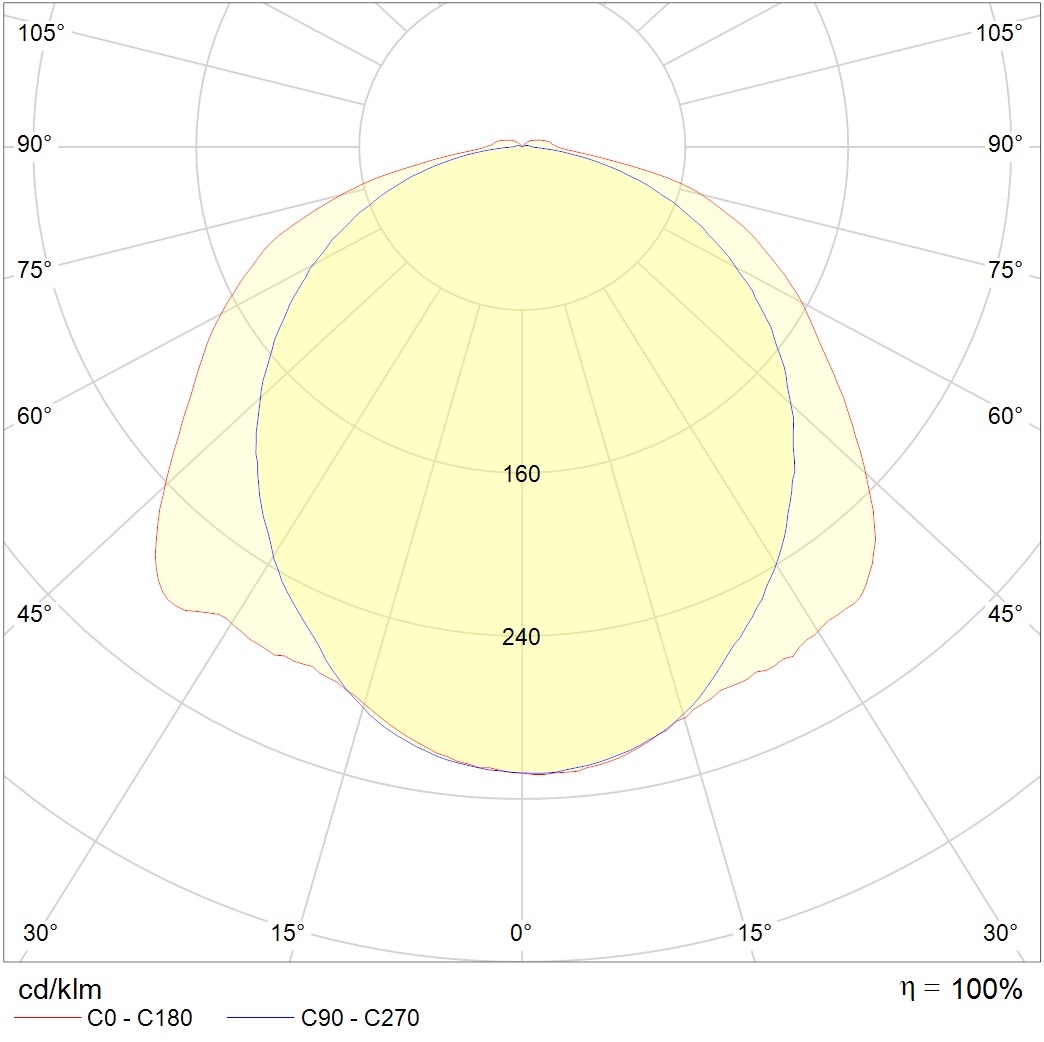

photometric files
ies263.2 kB
jpg121.9 kB
ldt207.2 kB
csv421 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS907 B
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg121.9 kB
ldt207.2 kB
csv421 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Anti-vibration brackets for SLICK ECO LED0.14kgarticle: 2631000110
Wall/ceiling rotary brackets SLICK ECO LED0.75kgarticle: 2631000120
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
