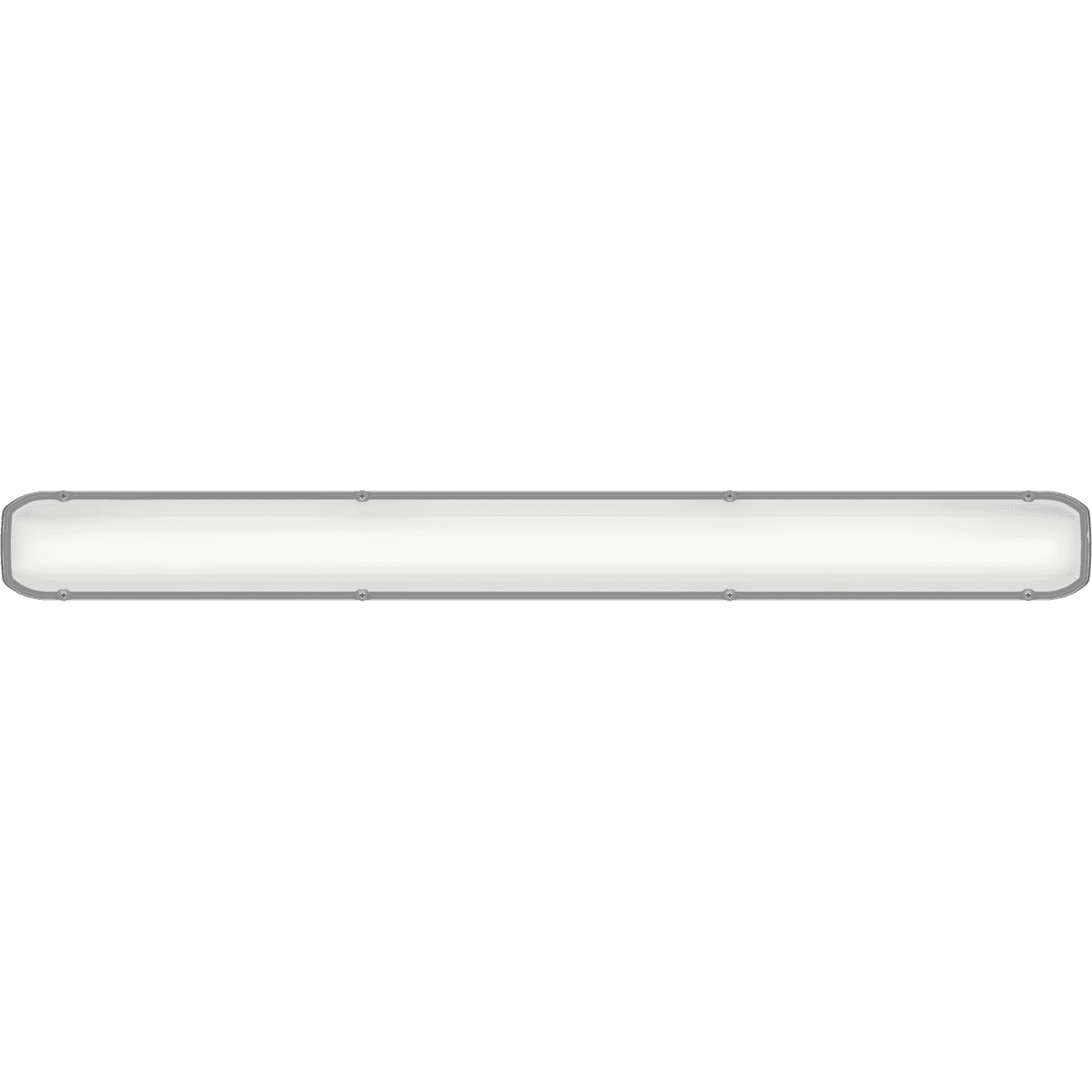

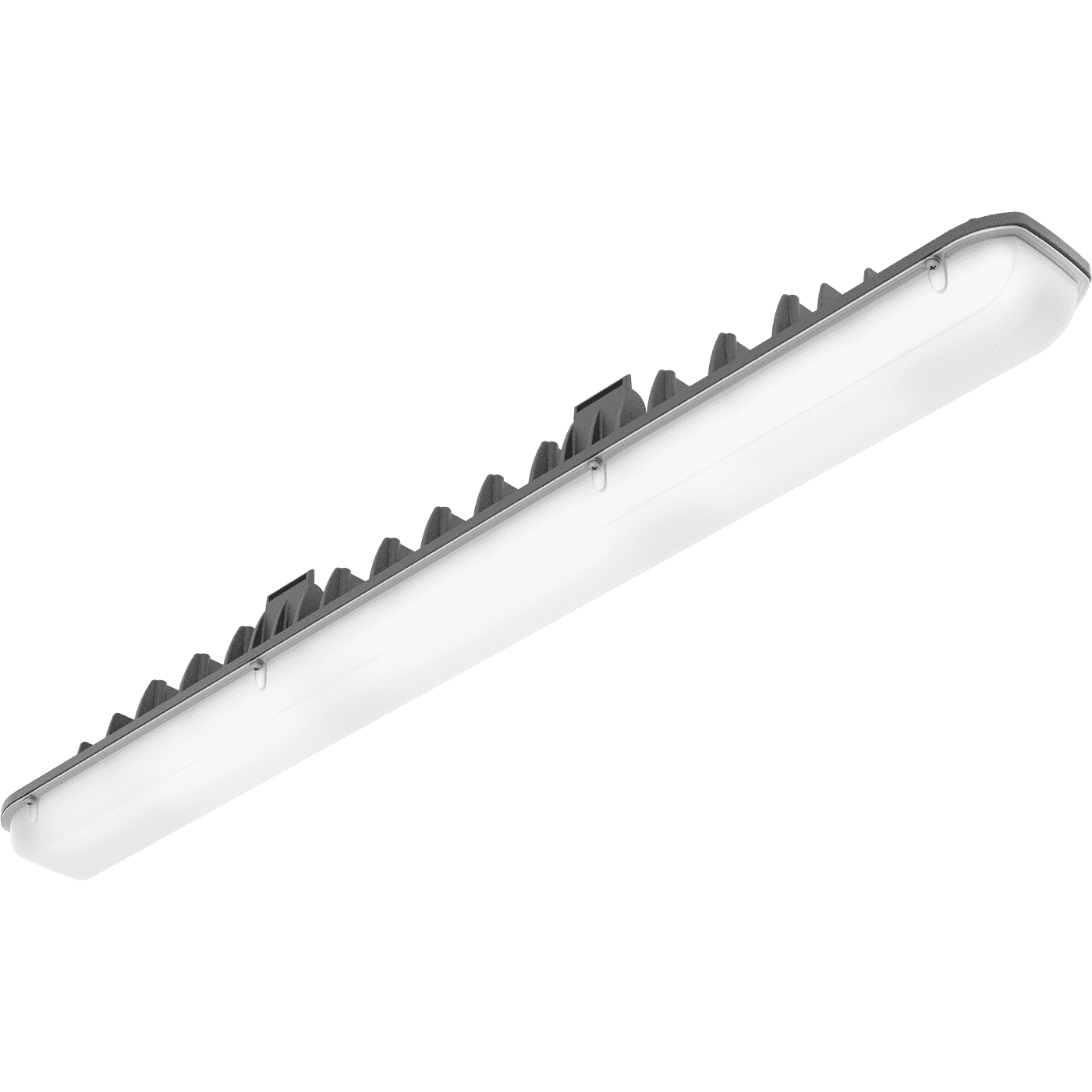

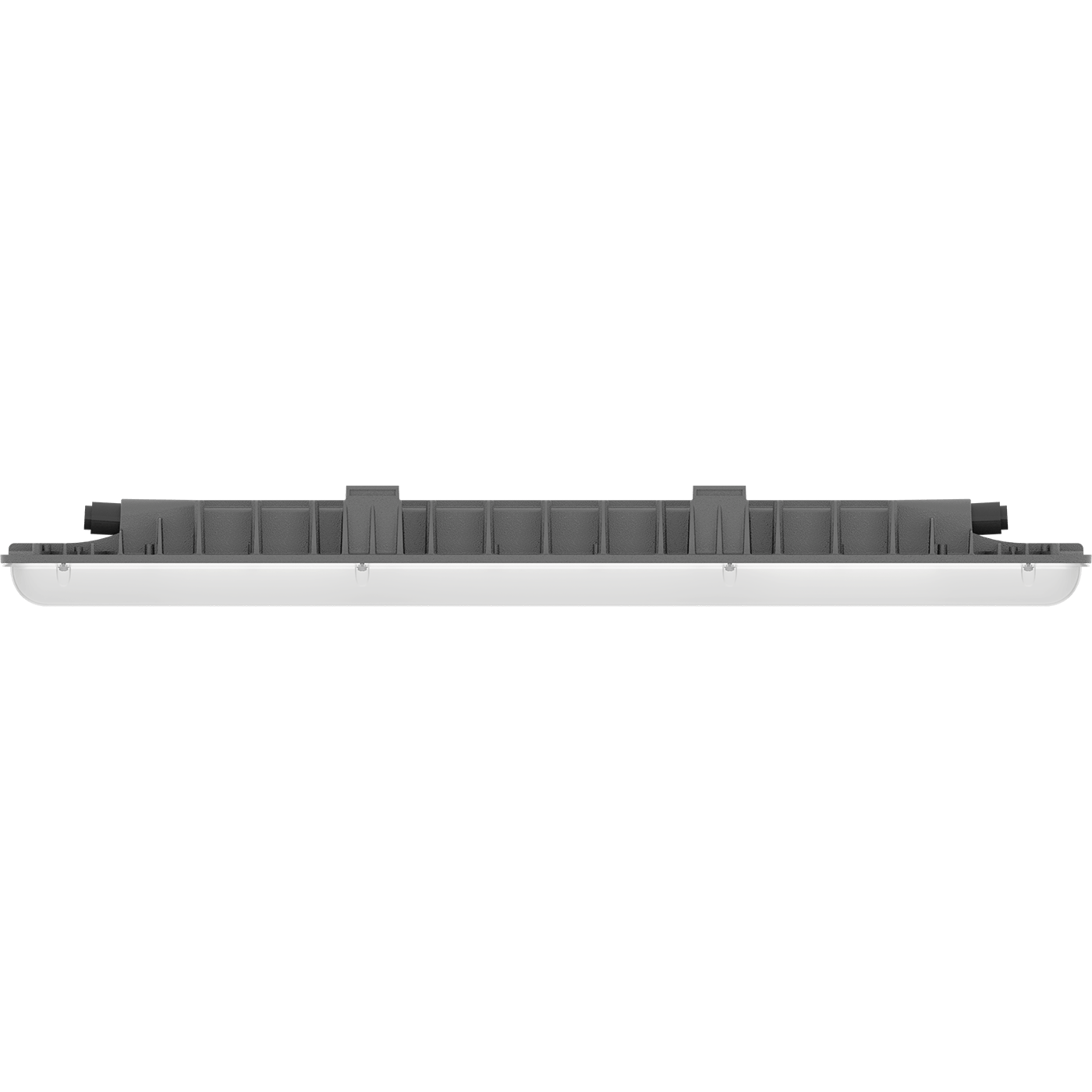

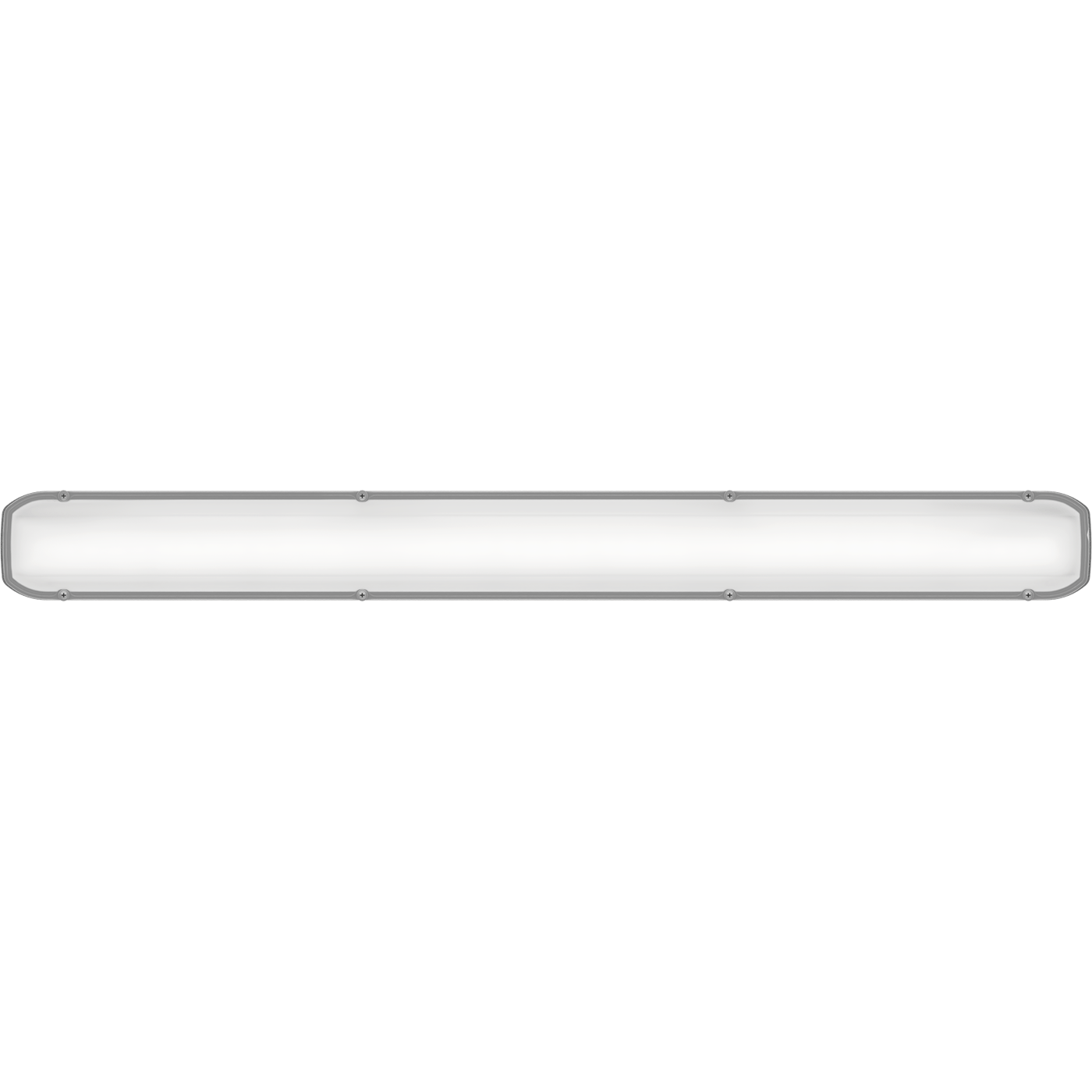

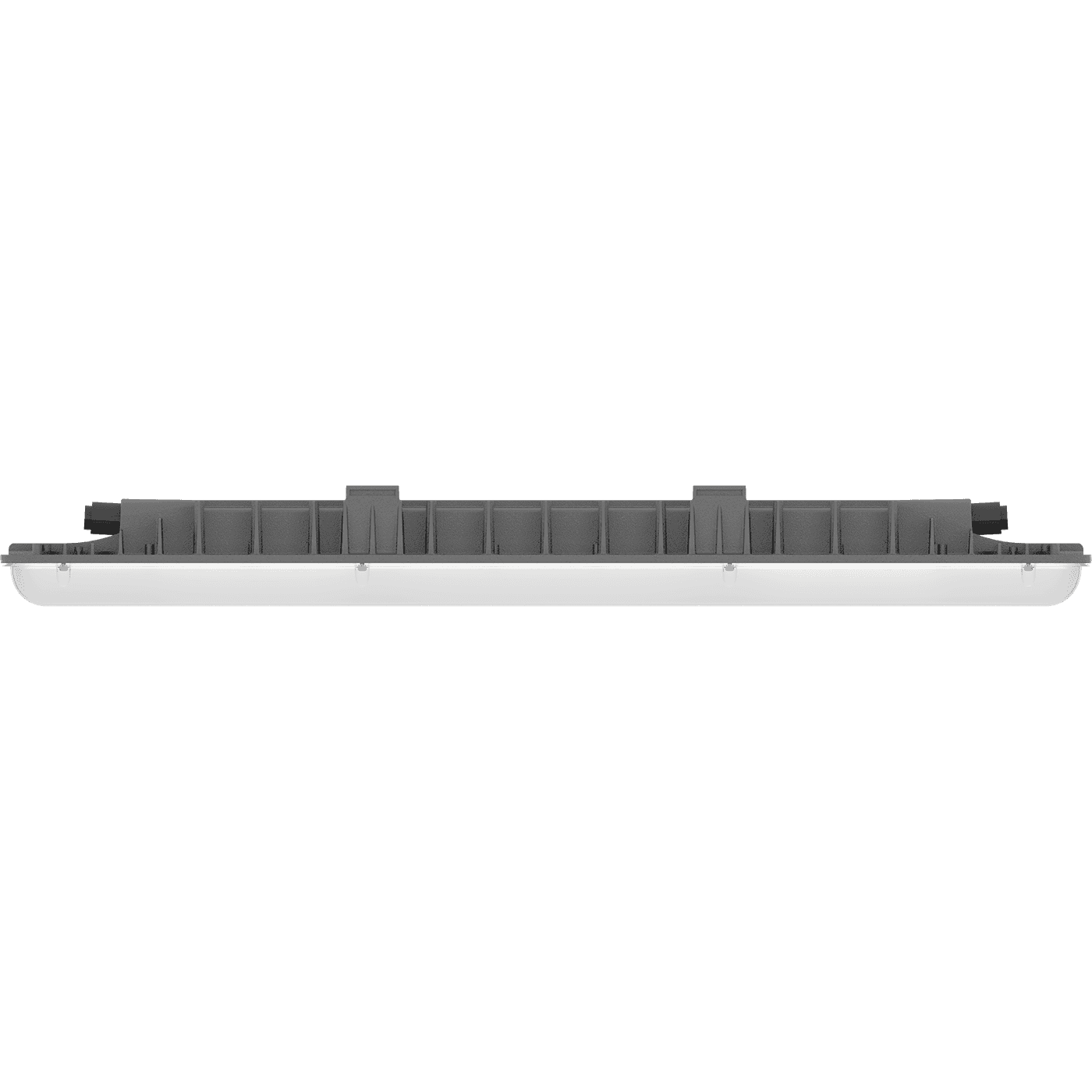

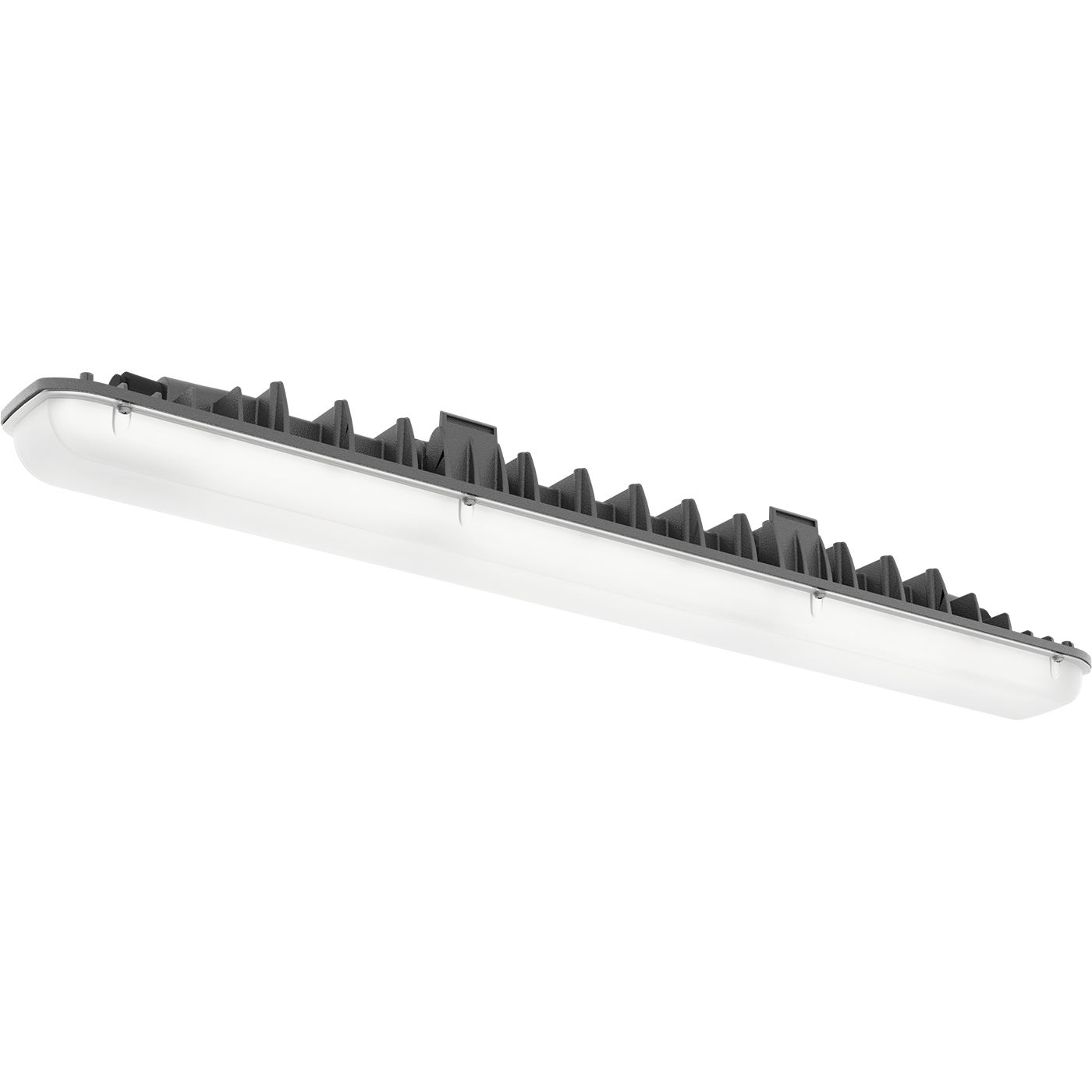

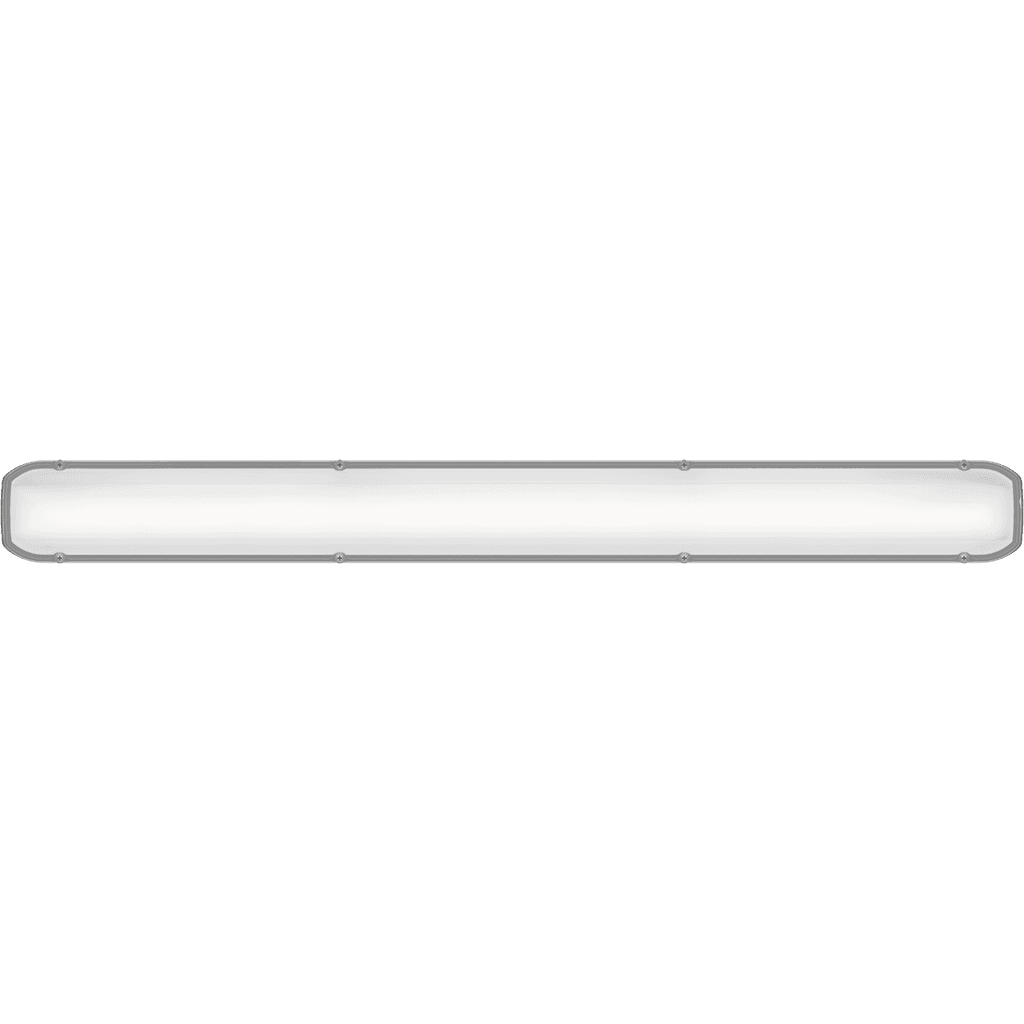

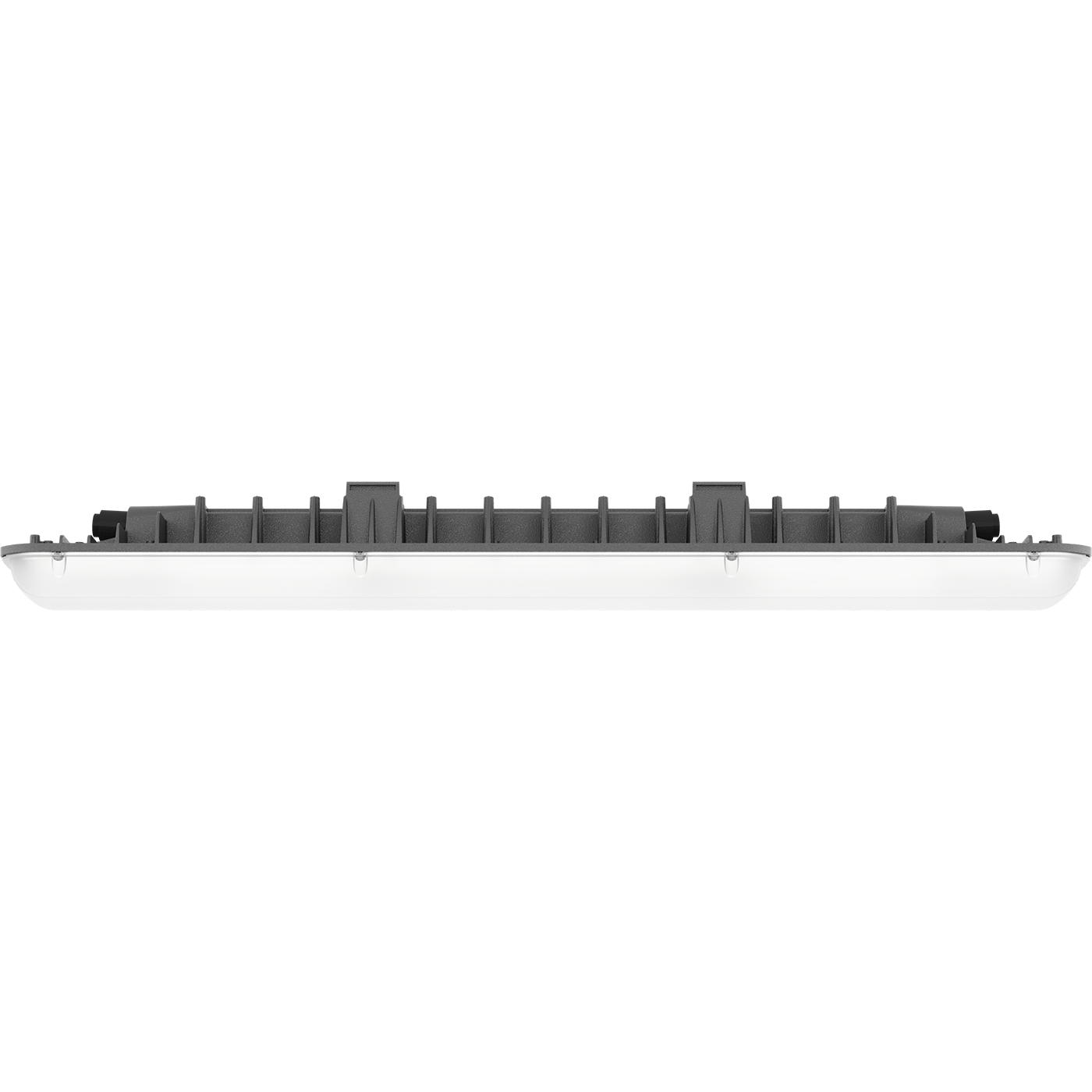

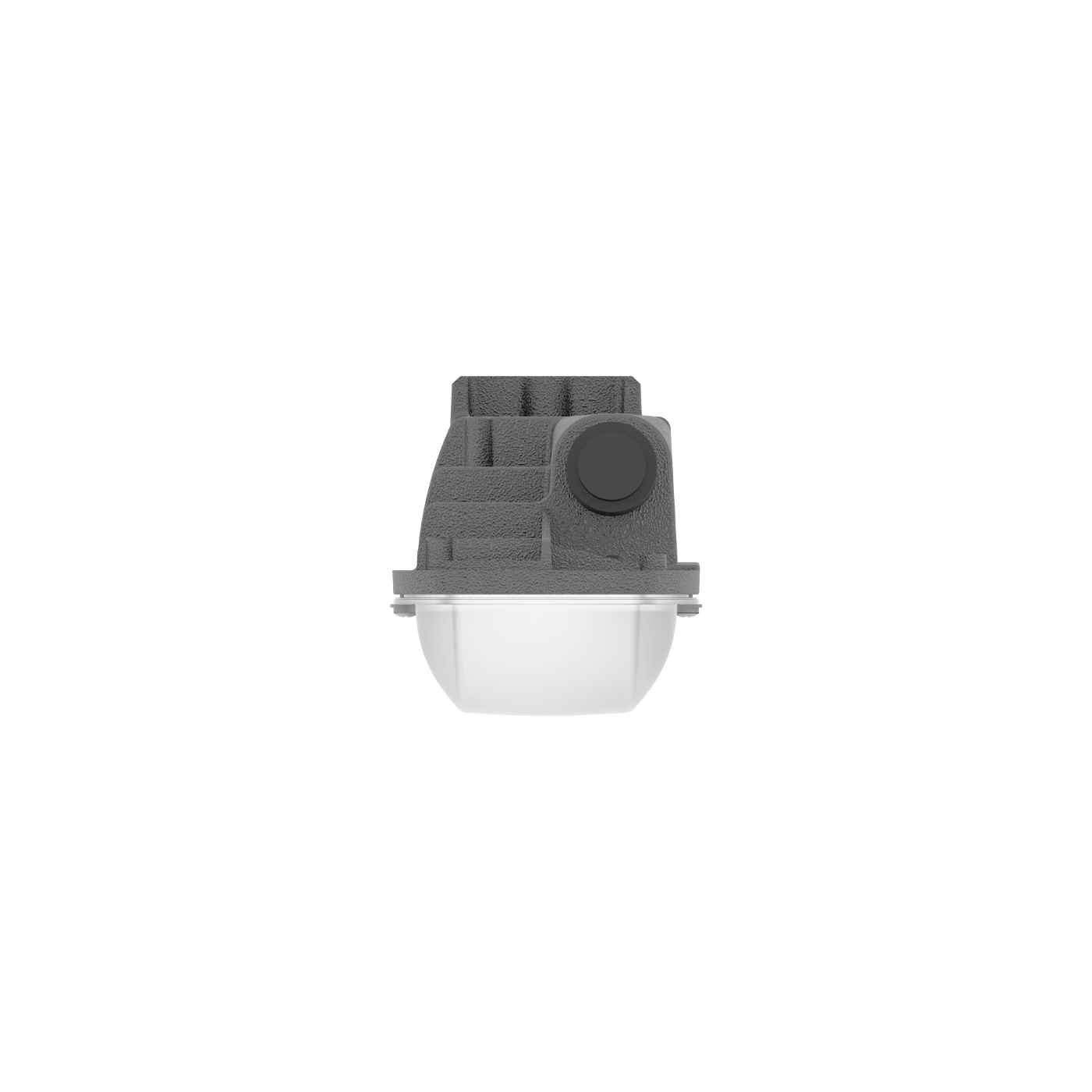

SLICK.PRS ECO LED 45 HFD 4000K
SLICK.PRS ECO LED 45 HFD 4000K
40 Wluminaire power
4700 lmlight flow
118 lm/Wenergy efficiency
code1631002010
color temperature4000
beam angleD120
weight2.5 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
40 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Алюминий
weight
2.5 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
953 mm
width, mm
96 mm
height, mm
105 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
302 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1631002010
illuminating
light flow
4700 lm
flickering factor
<1%
energy efficiency
118 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
LMS options
dimming
DALI
model files
model files

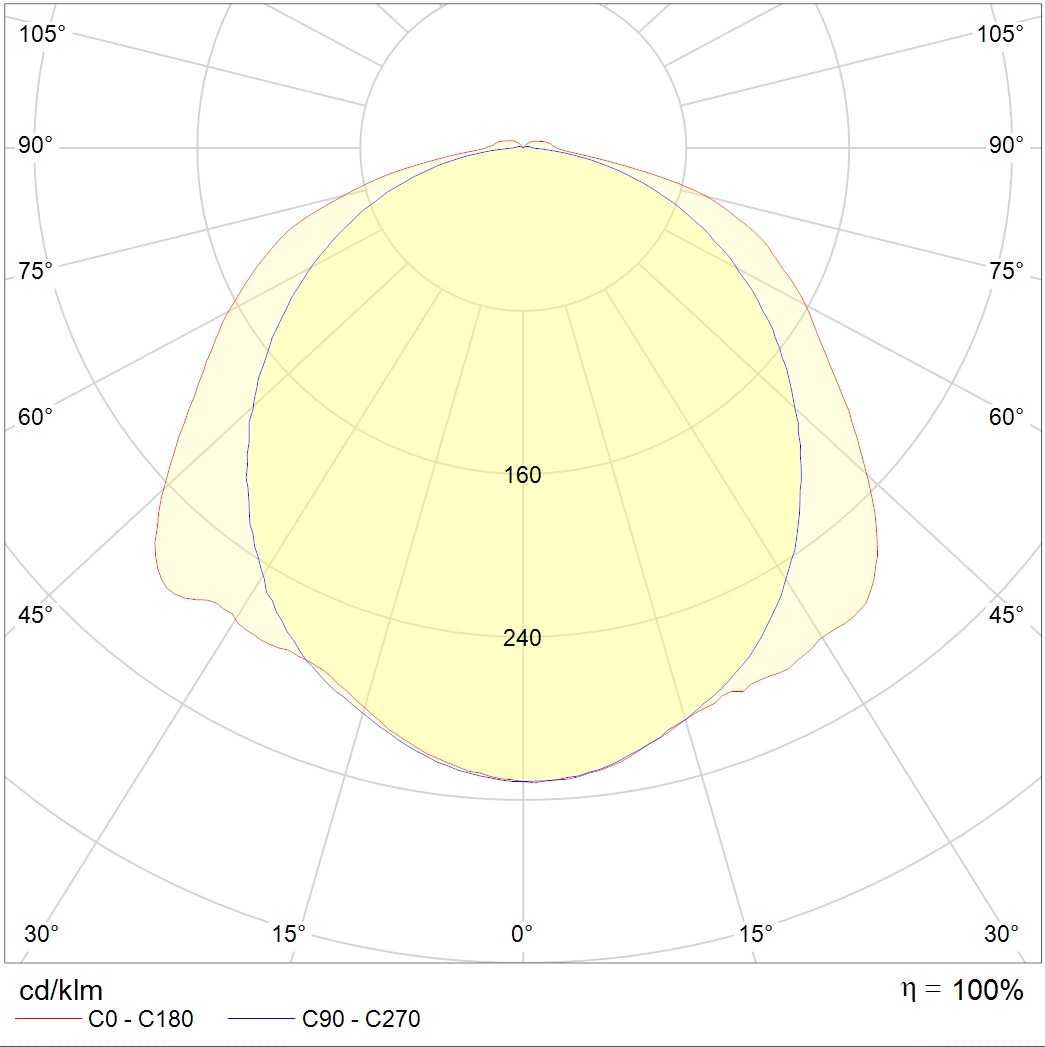

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg124.7 kB
ldt207.2 kB
csv421 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
