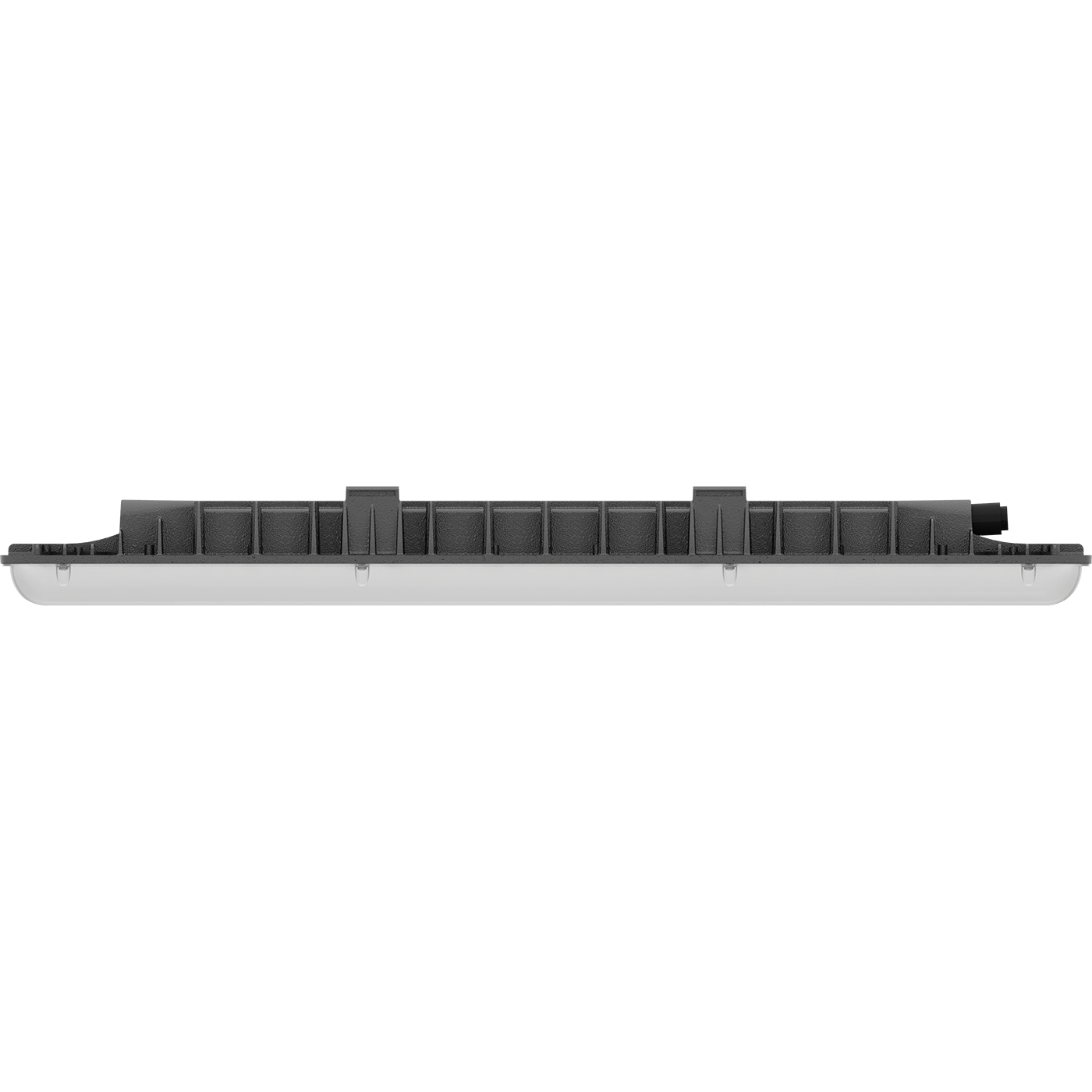

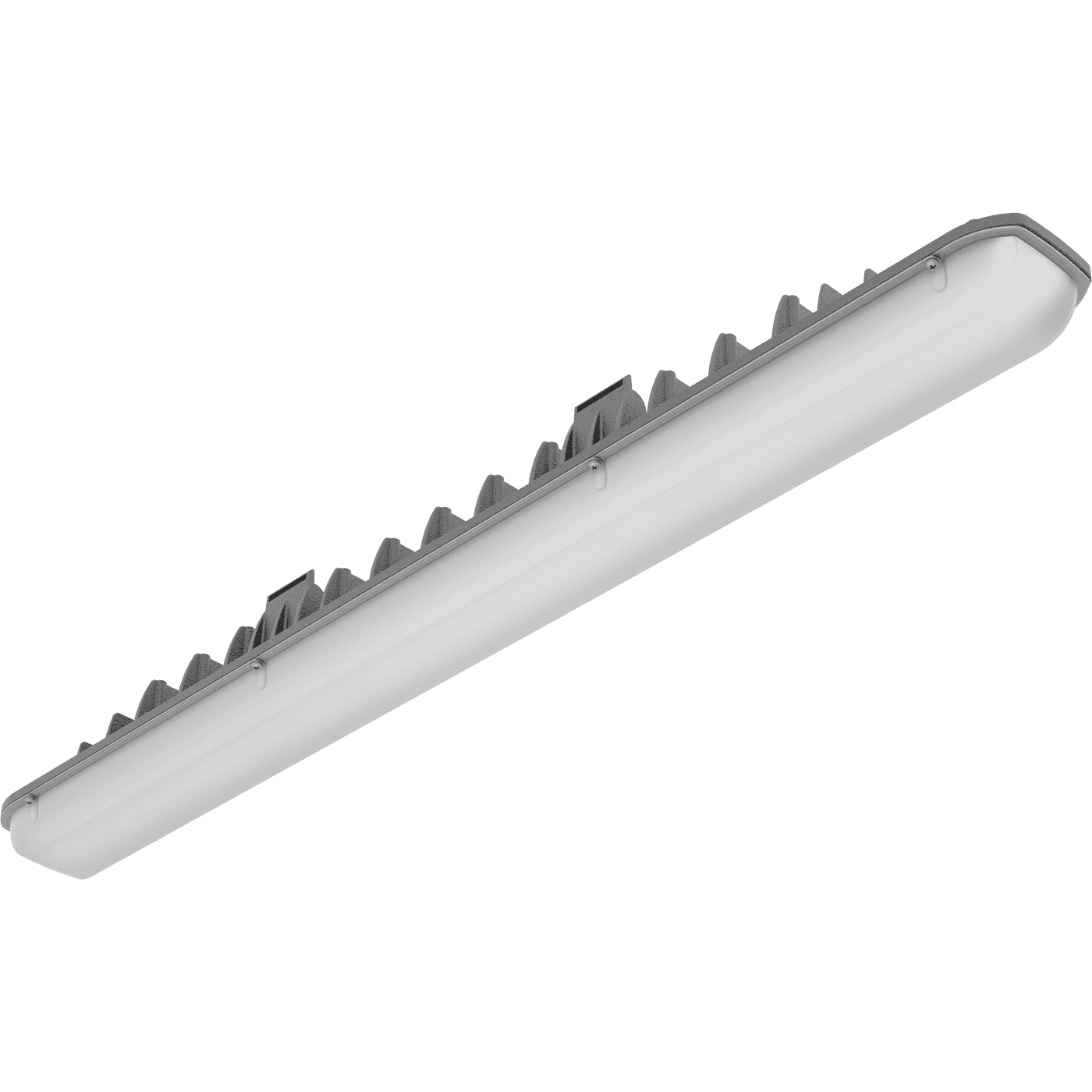

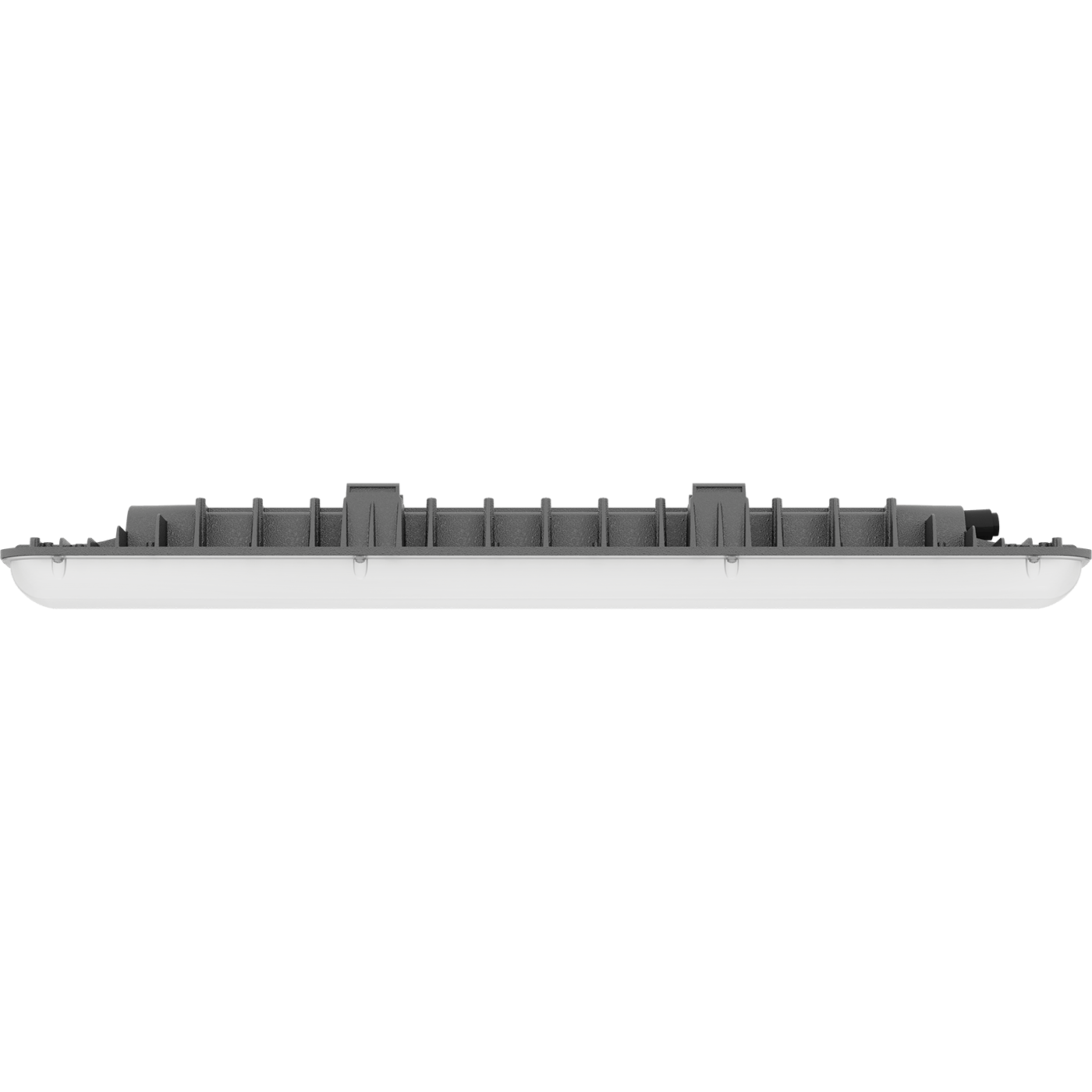

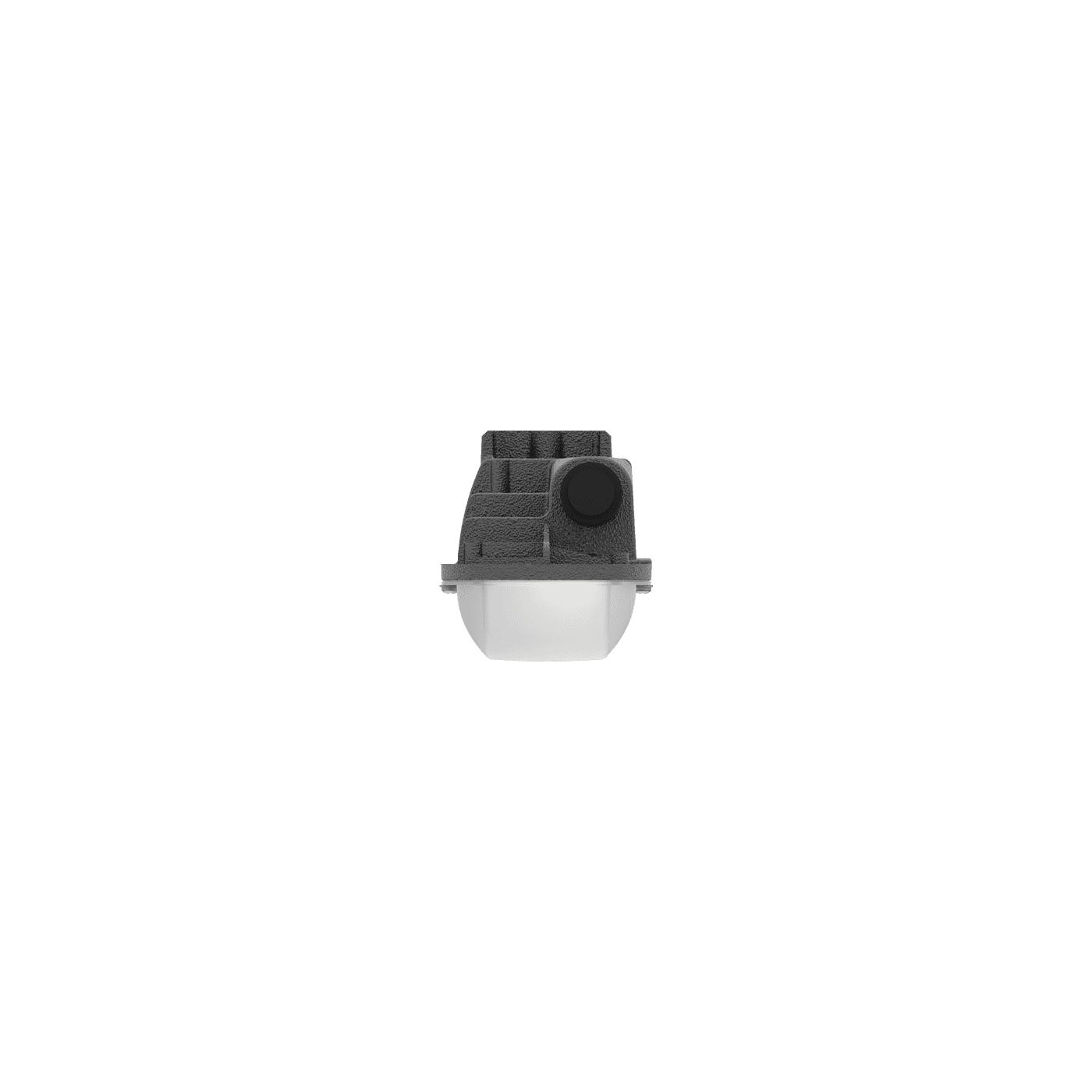

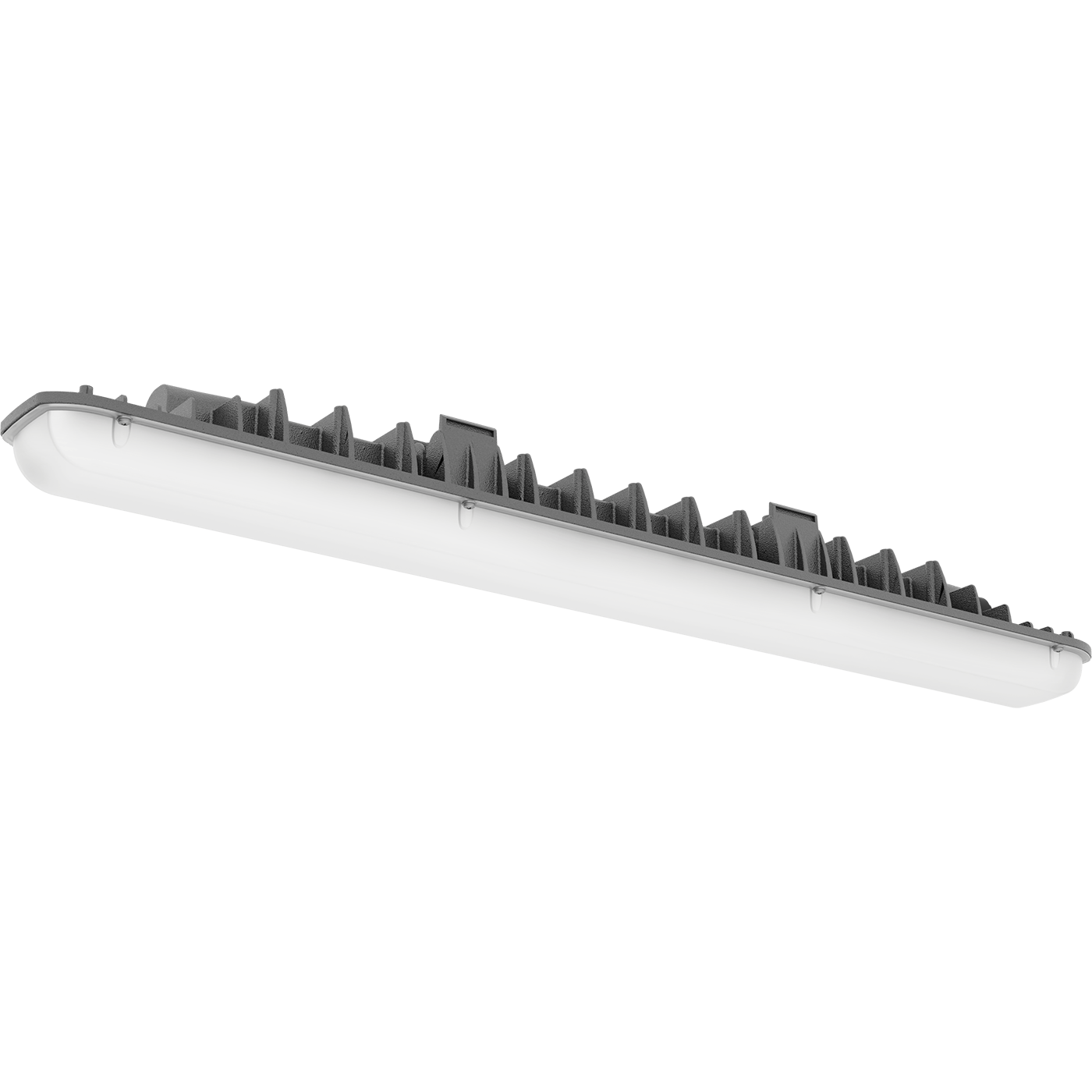

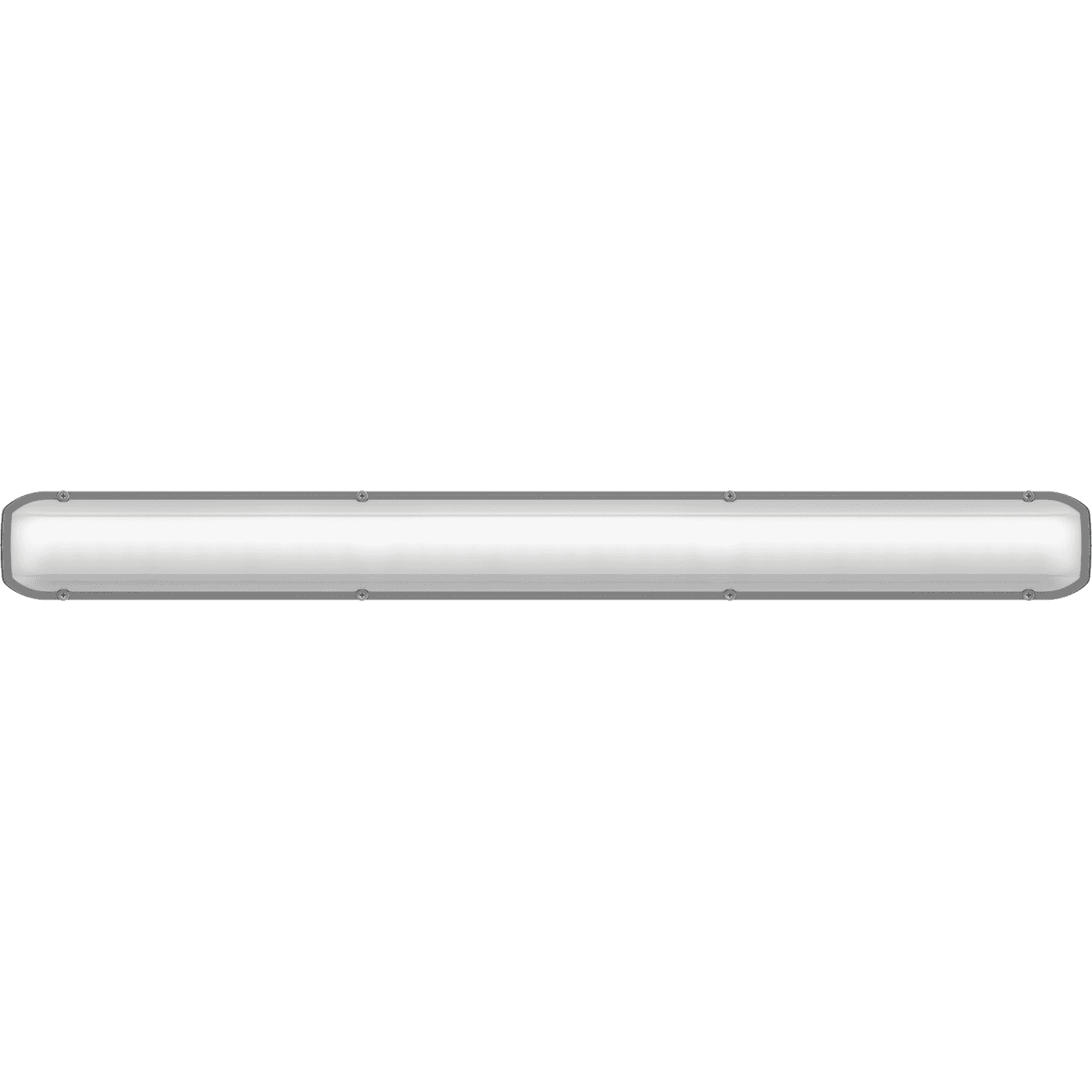

SLICK.PRS ECO LED 30 Ex 4000K

SLICK.PRS ECO LED 30 Ex 4000K
add to favorites
32 Wluminaire power
4000 lmlight flow
125 lm/Wenergy efficiency
code1631003950
color temperature4000
gas marking2 Ex nR II T6 Gc X
dust markingEx tb IIIC T80 С Db X
beam angleD120
weight2.5 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 2
  7. SLICK ECO LED Ex
  8. SLICK.PRS ECO LED 30 Ex 4000K
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proof
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
25 A
starting current pulse time, µs
250 mks
luminaire power
32 W
supply voltage, alternating current
160-264 V
supply voltage, direct current
160-264 V
power factor
> 0,95
electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
25 A
starting current pulse time, µs
250 mks
luminaire power
32 W
supply voltage, alternating current
160-264 V
supply voltage, direct current
160-264 V
power factor
> 0,95
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Сплав алюминиевый
weight
2.5 kg

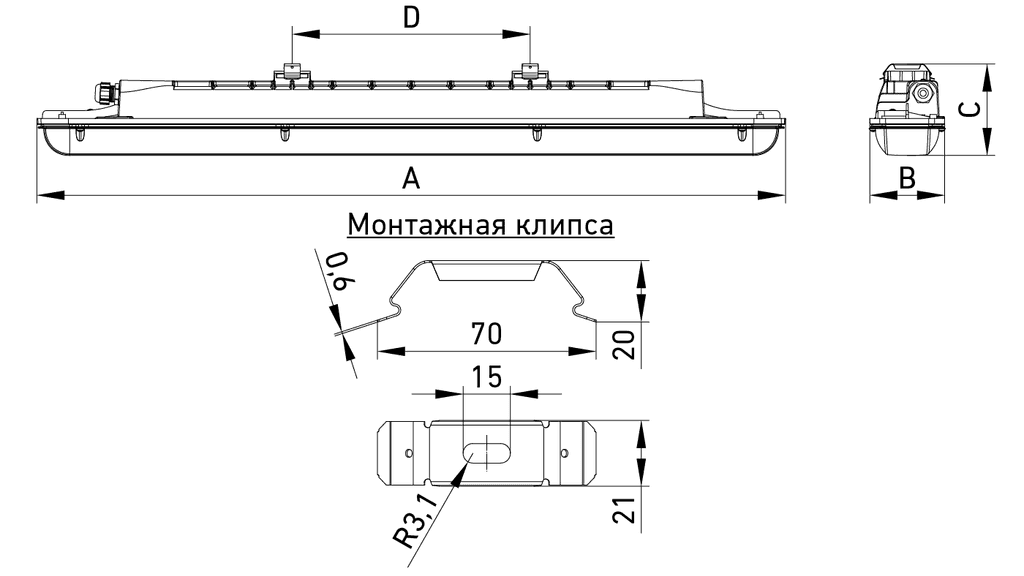

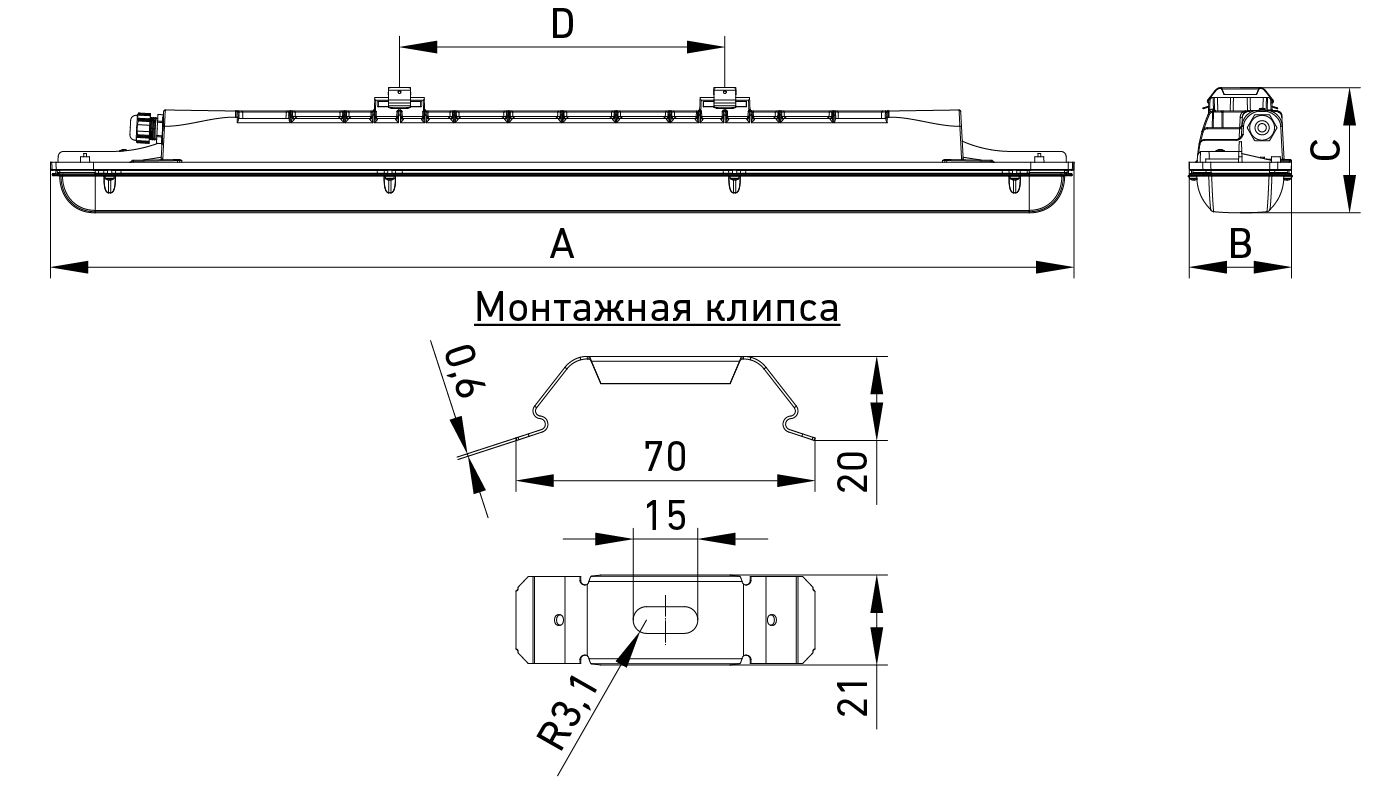

length, mm
953 mm
width, mm
96 mm
height, mm
105 mm
housing color
Серый
installation length, mm
302 mm
shock resistance (IK)
IK08/7 Дж
common
code
1631003950
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>70
light flow
4000 lm
energy efficiency
125 lm/W
flickering factor
<1%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
2 Ex nR II T6 Gc X
dust marking
Ex tb IIIC T80 С Db X
gas explosion-proof (type)
Ex nR
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
model files
model files

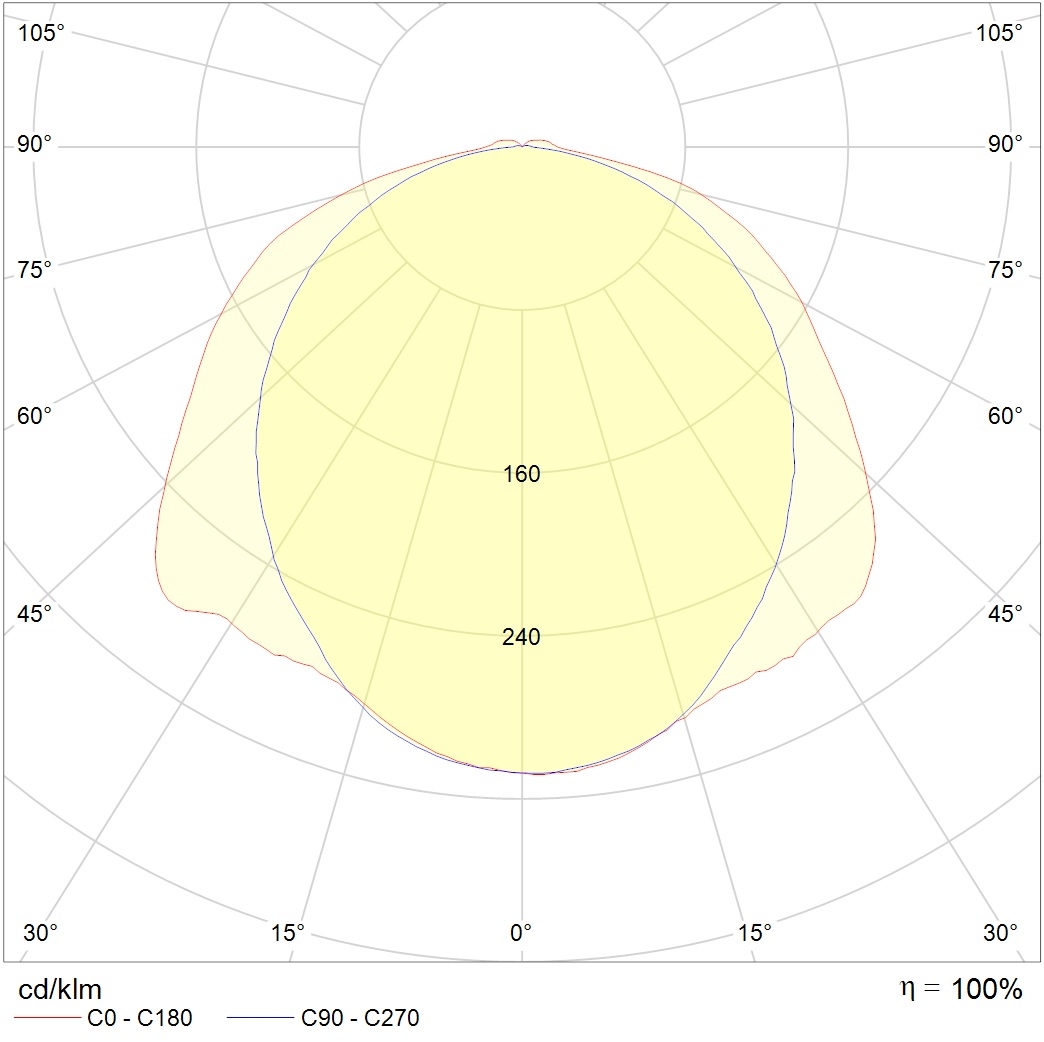

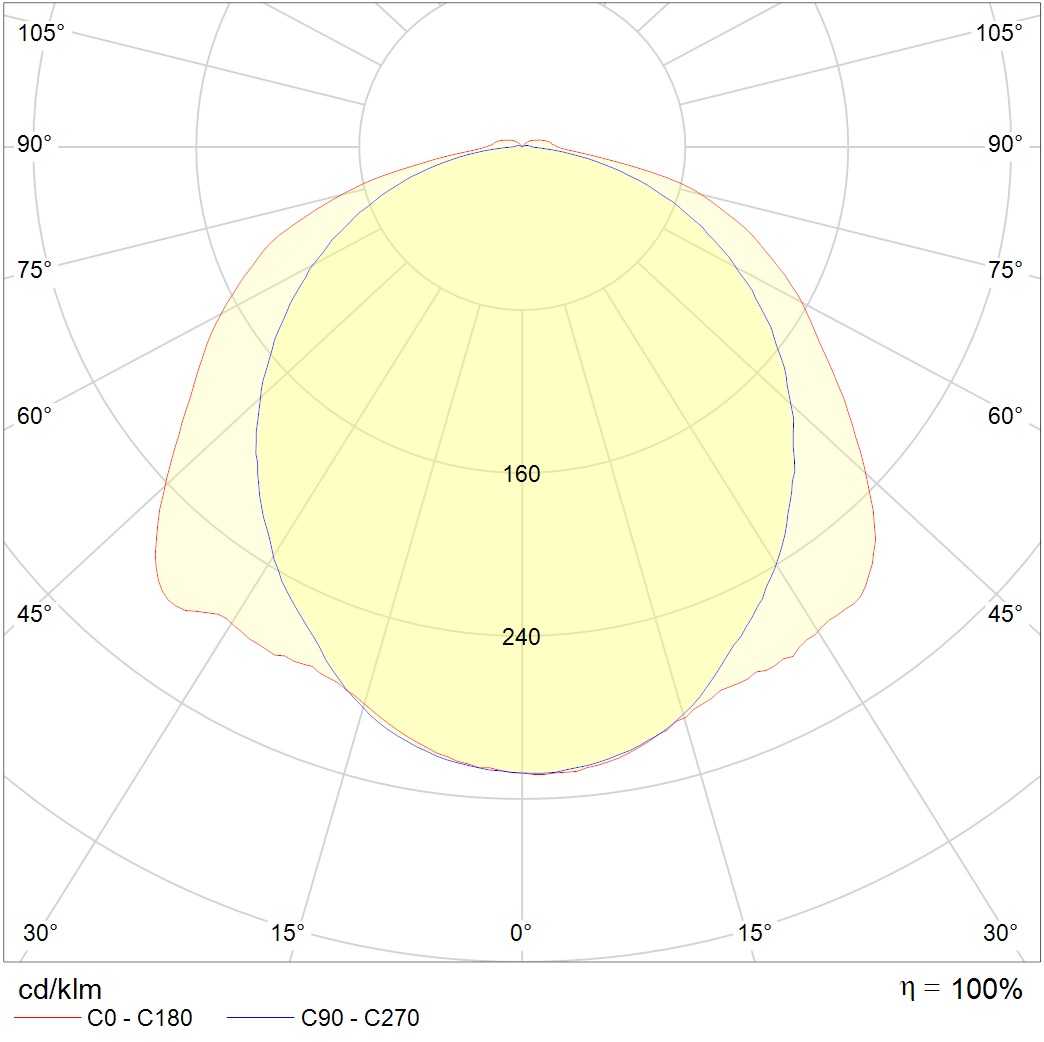

photometric files
ies263.2 kB
jpg121.9 kB
ldt205.5 kB
csv420 B
documents
passport4.3 mB
сертификаты
Russian origin559 kB
Certificate of conformity TRTS 012/2011365.9 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
photometric files
ies263.2 kB
jpg121.9 kB
ldt205.5 kB
csv420 B
documents
passport4.3 mB
сертификаты
Russian origin559 kB
Certificate of conformity TRTS 012/2011365.9 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories
Anti-vibration brackets for SLICK ECO LED0.14kgarticle: 2631000110
Wall/ceiling rotary brackets SLICK ECO LED0.75kgarticle: 2631000120
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
