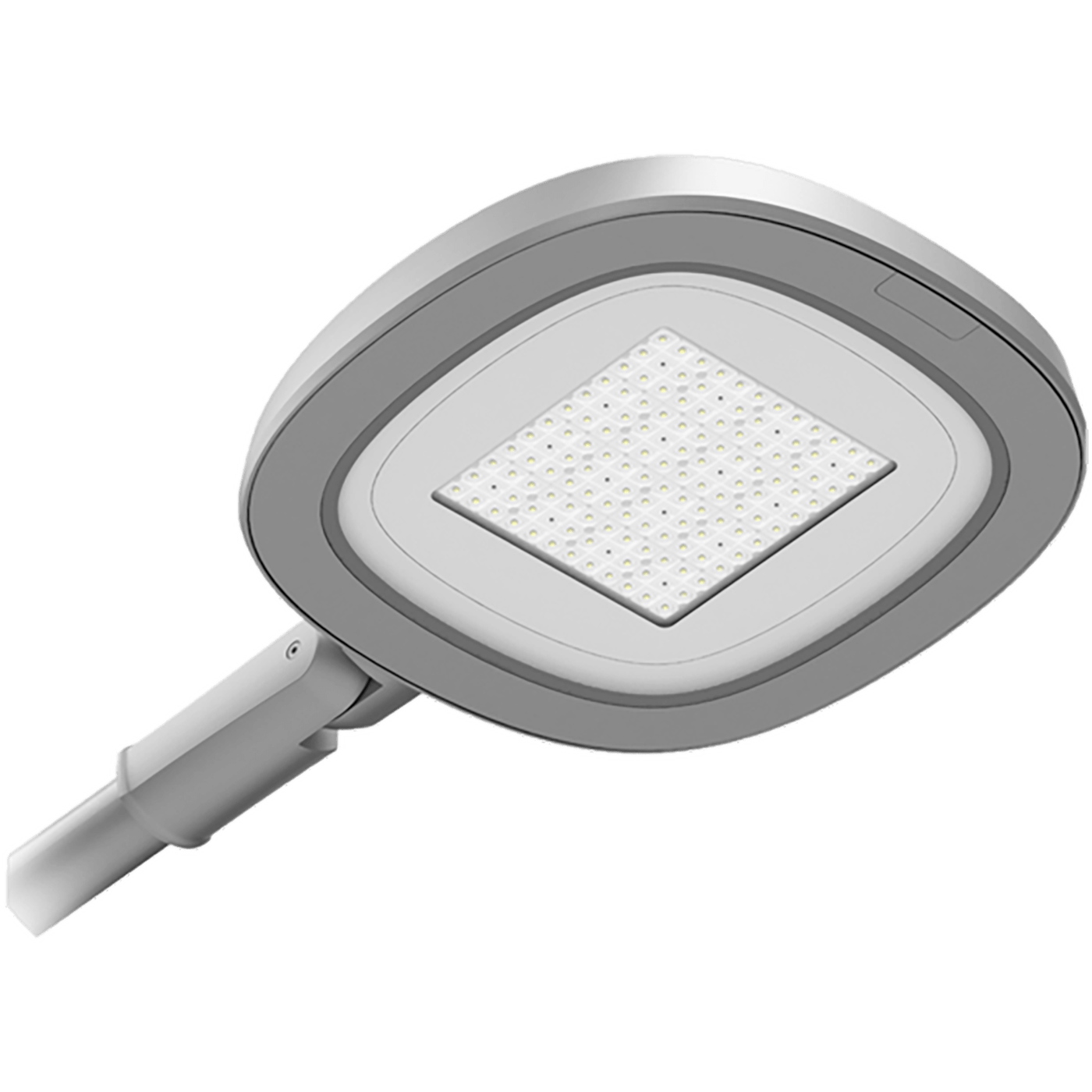

SKYLINE LED 90W DW1 730 RAL9006
SKYLINE LED 90W DW1 730 RAL9006
88 Wluminaire power
12200 lmlight flow
139 lm/Wenergy efficiency
code1707000130
beam angleD145/65
color temperature3000
weight14 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
88 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
88 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
14 kg
length, mm
730 mm
width, mm
490 mm
height, mm
130 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1707000130
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
139 lm/W
color rendition index (CRI)
>70
light flow
12200 lm
flickering factor
<1%

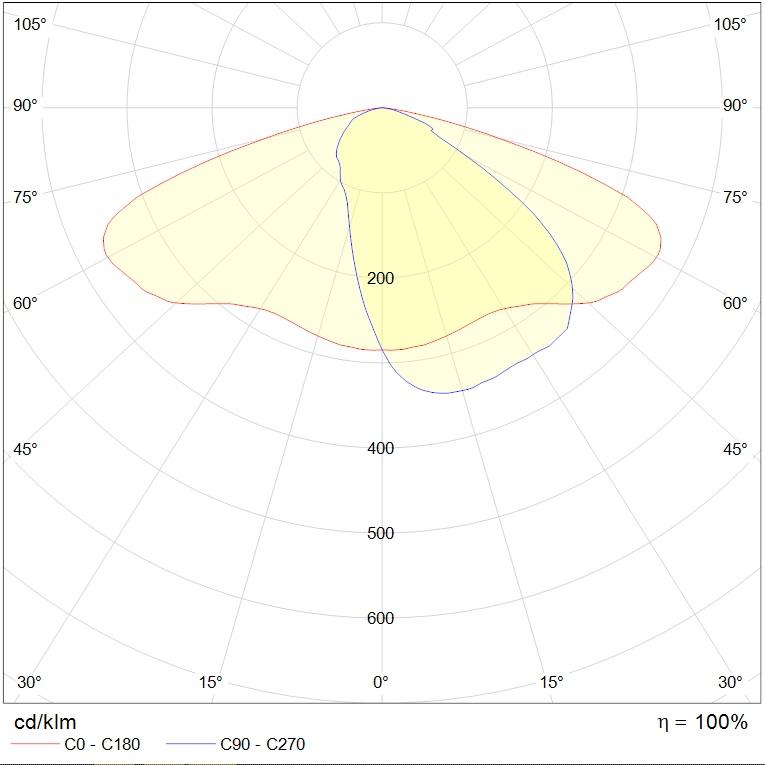

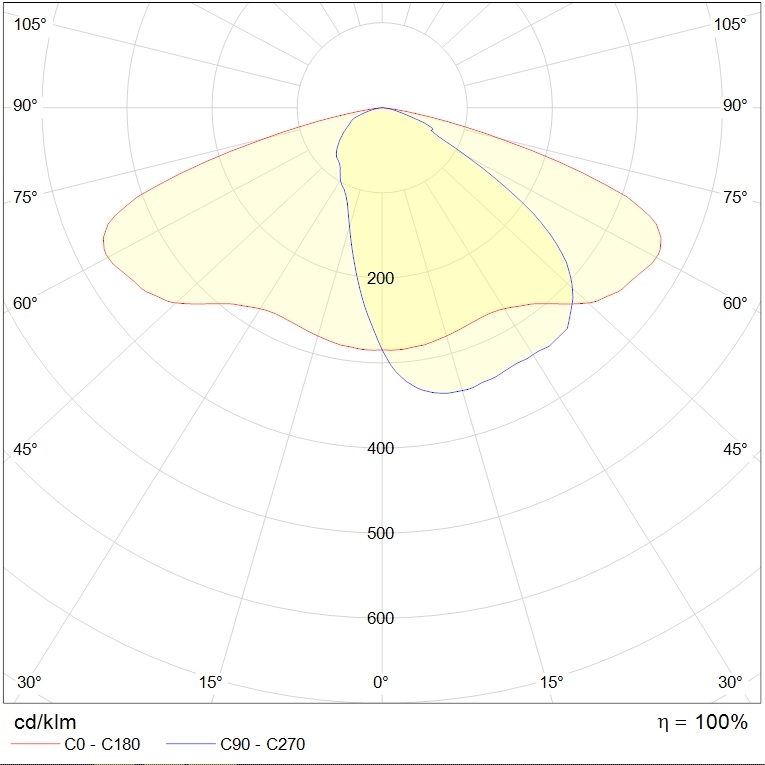

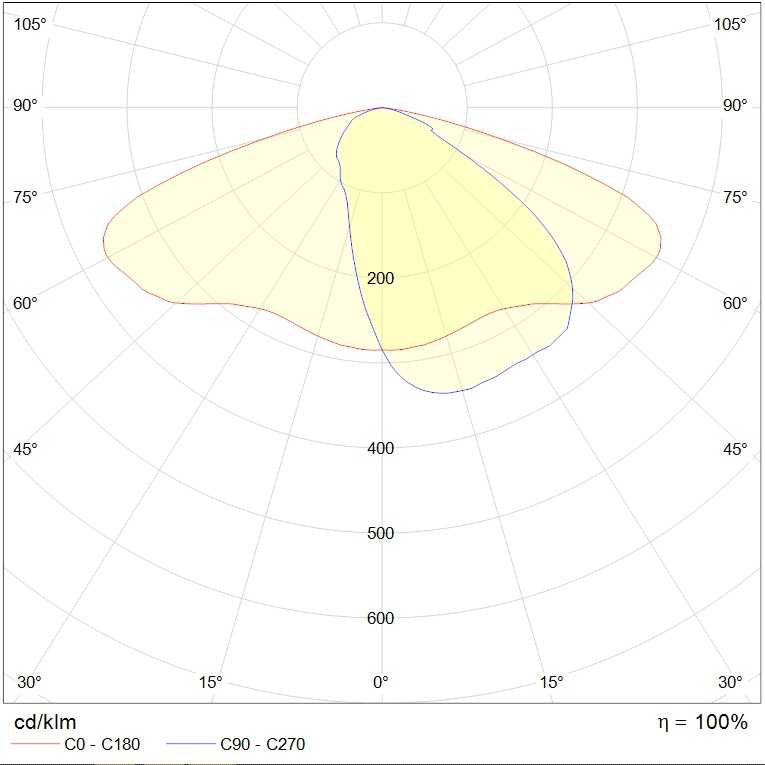

beam angle
D145/65
color temperature
3000
light source type
LED
emission color
Белый
