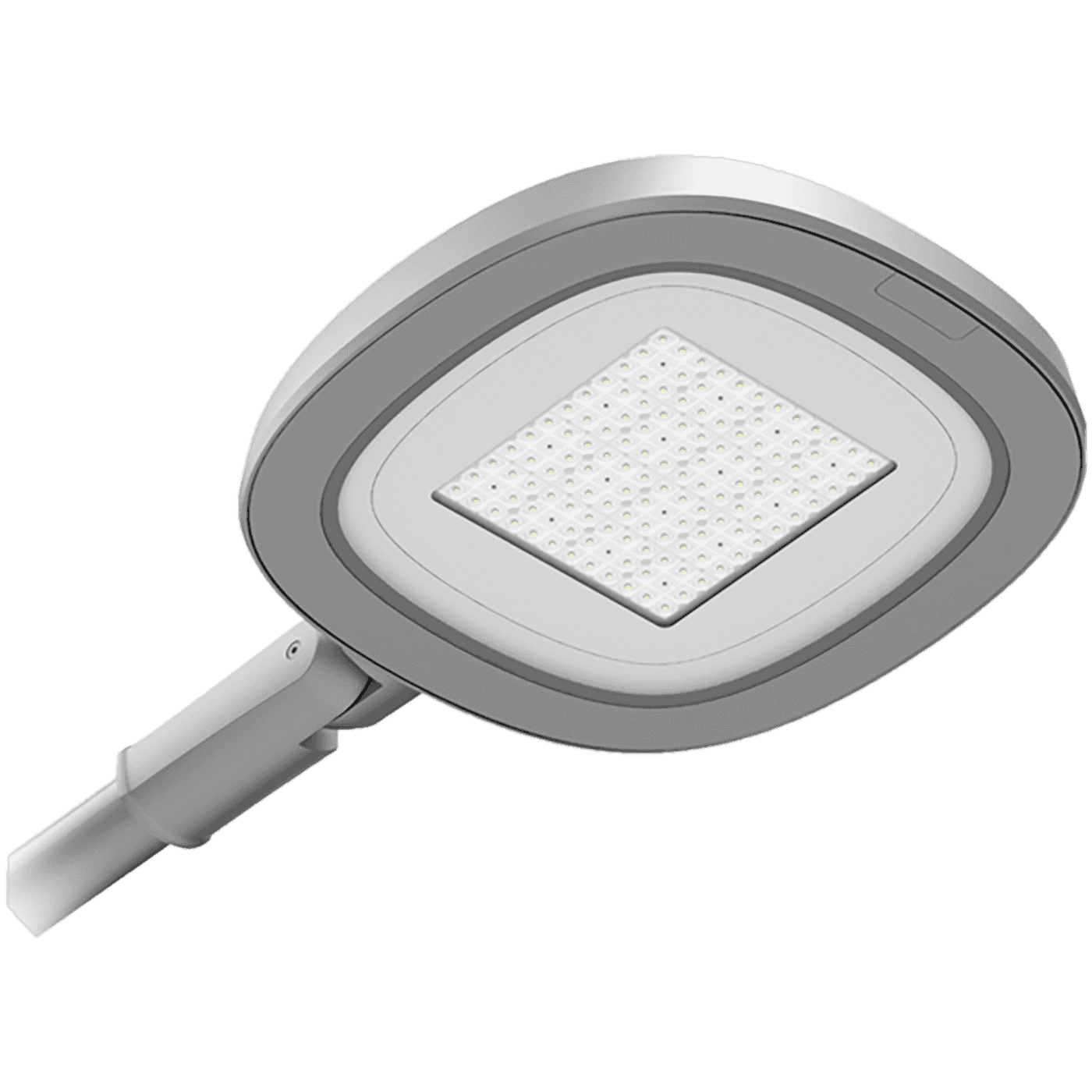

SKYLINE LED 60W DS1 740 RAL9006
54 Wluminaire power
7900 lmlight flow
146 lm/Wenergy efficiency
code1707000100
beam angleD150
color temperature4000
weight9.4 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
220 Vluminaire power
54 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
rated supply voltage, alternating current
220 V
luminaire power
54 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
9.4 kg
length, mm
730 mm
width, mm
490 mm
height, mm
130 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation diameter, mm
50 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1707000100
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
7900 lm
flickering factor
<1%
beam angle
D150
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты

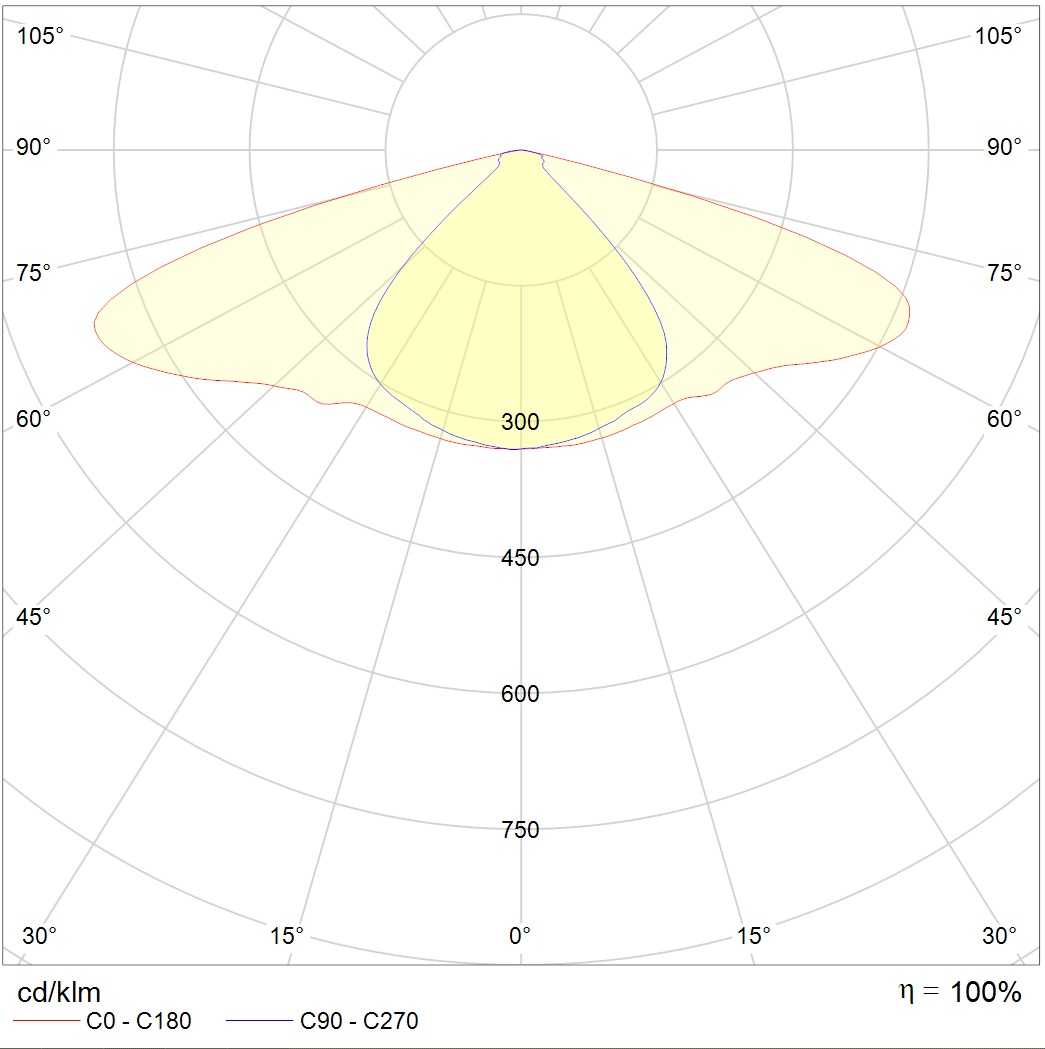

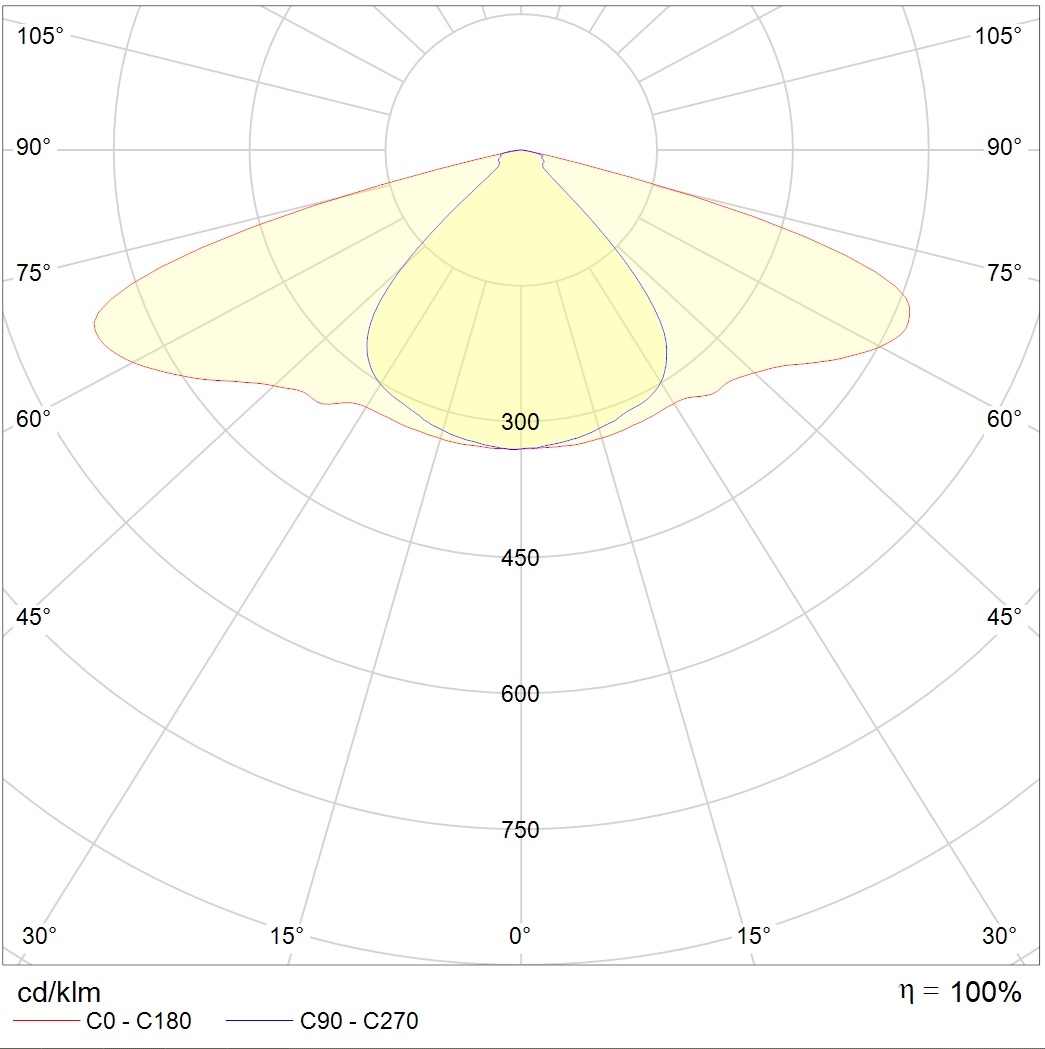

photometric files
ies263.2 kB
jpg126.7 kB
ldt162.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
