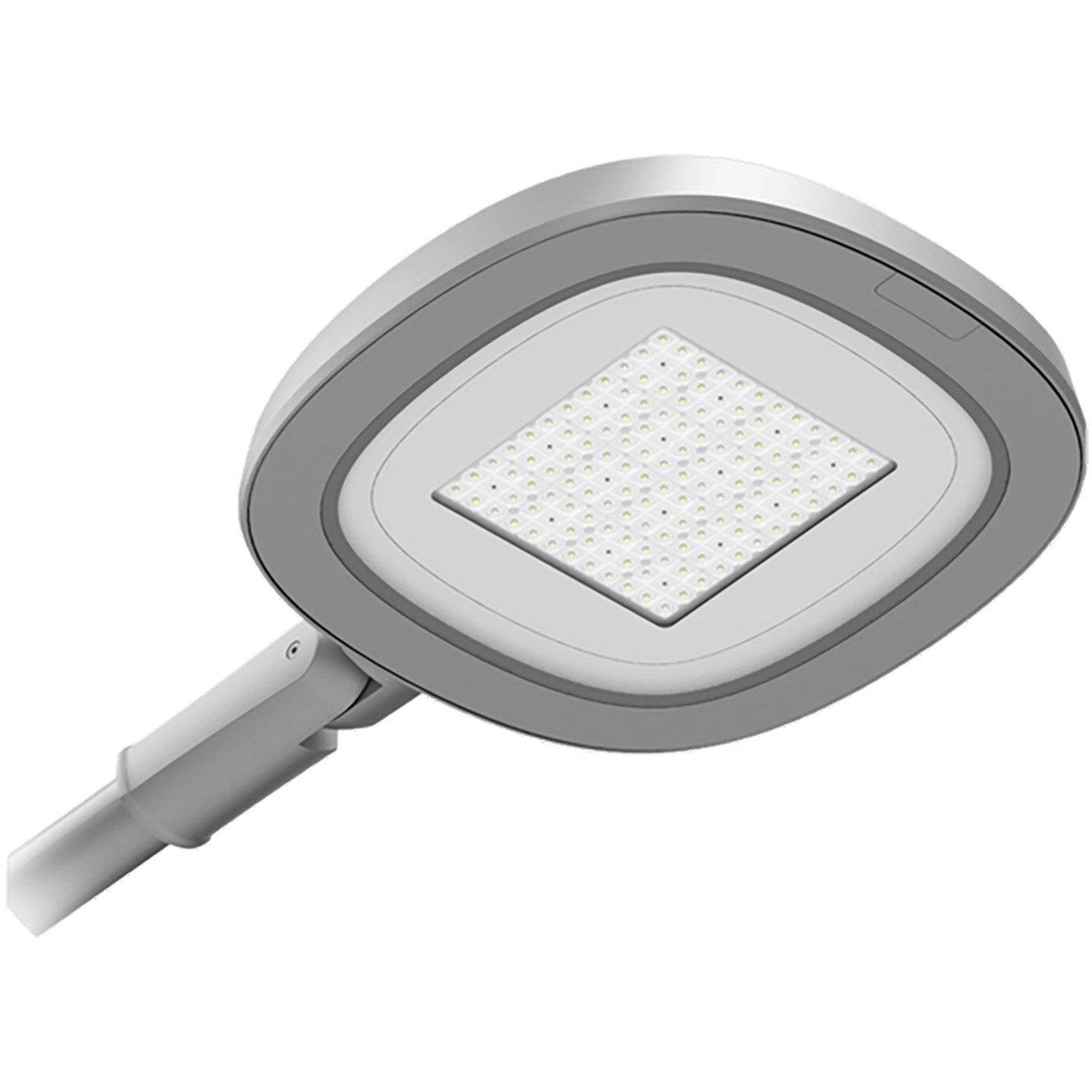

SKYLINE LED 120W DW1 827 RAL9006
archive
archive
SKYLINE LED 120W DW1 827 RAL9006
104 Wluminaire power
14200 lmlight flow
137 lm/Wenergy efficiency
code1707000520
beam angleD150
color temperature2700
weight14 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
104 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
luminaire power
104 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
14 kg
length, mm
730 mm
width, mm
490 mm
height, mm
130 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1707000520
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
137 lm/W
color rendition index (CRI)
>70
light flow
14200 lm
flickering factor
<1%
beam angle
D150
color temperature
2700
light source type
LED
emission color
Белый
model files
model files

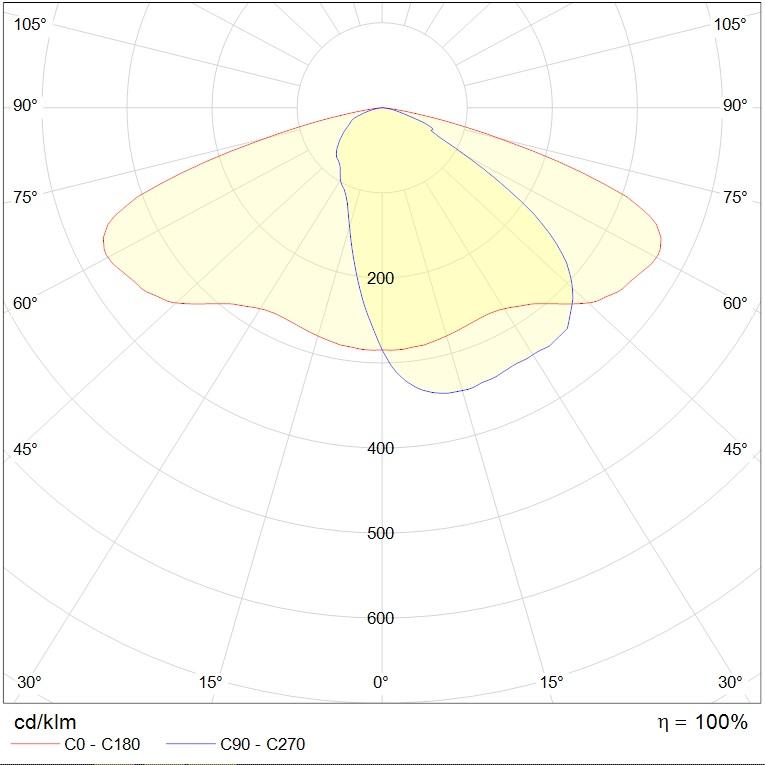

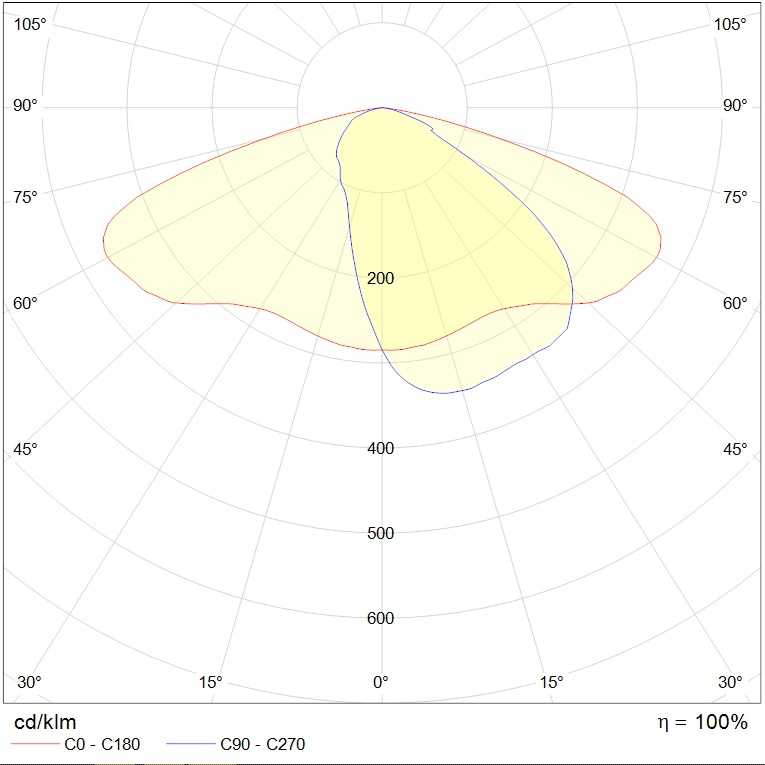

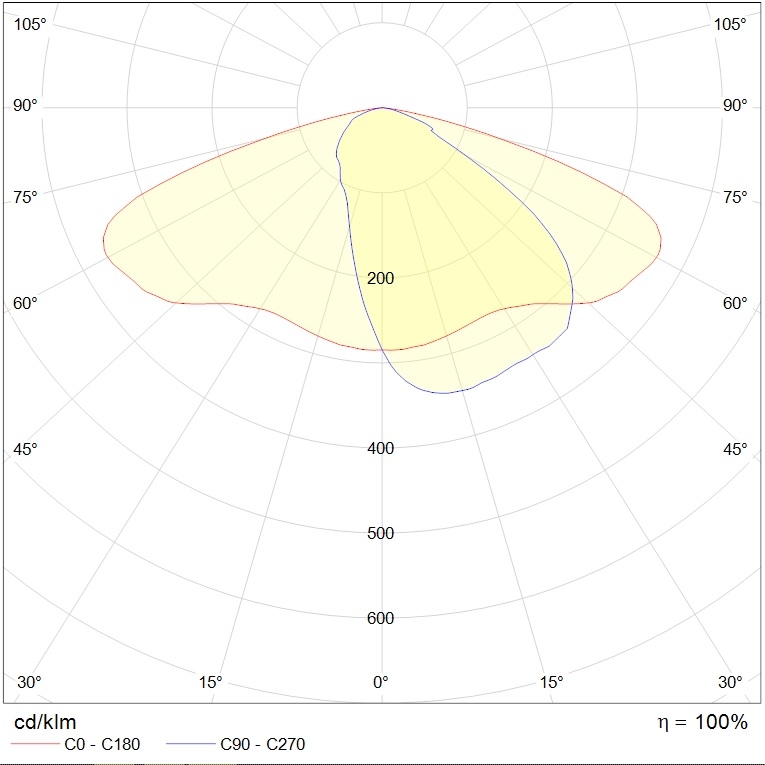

photometric files
сертификаты
photometric files
ies54.6 kB
jpg85.8 kB
ldt33.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
