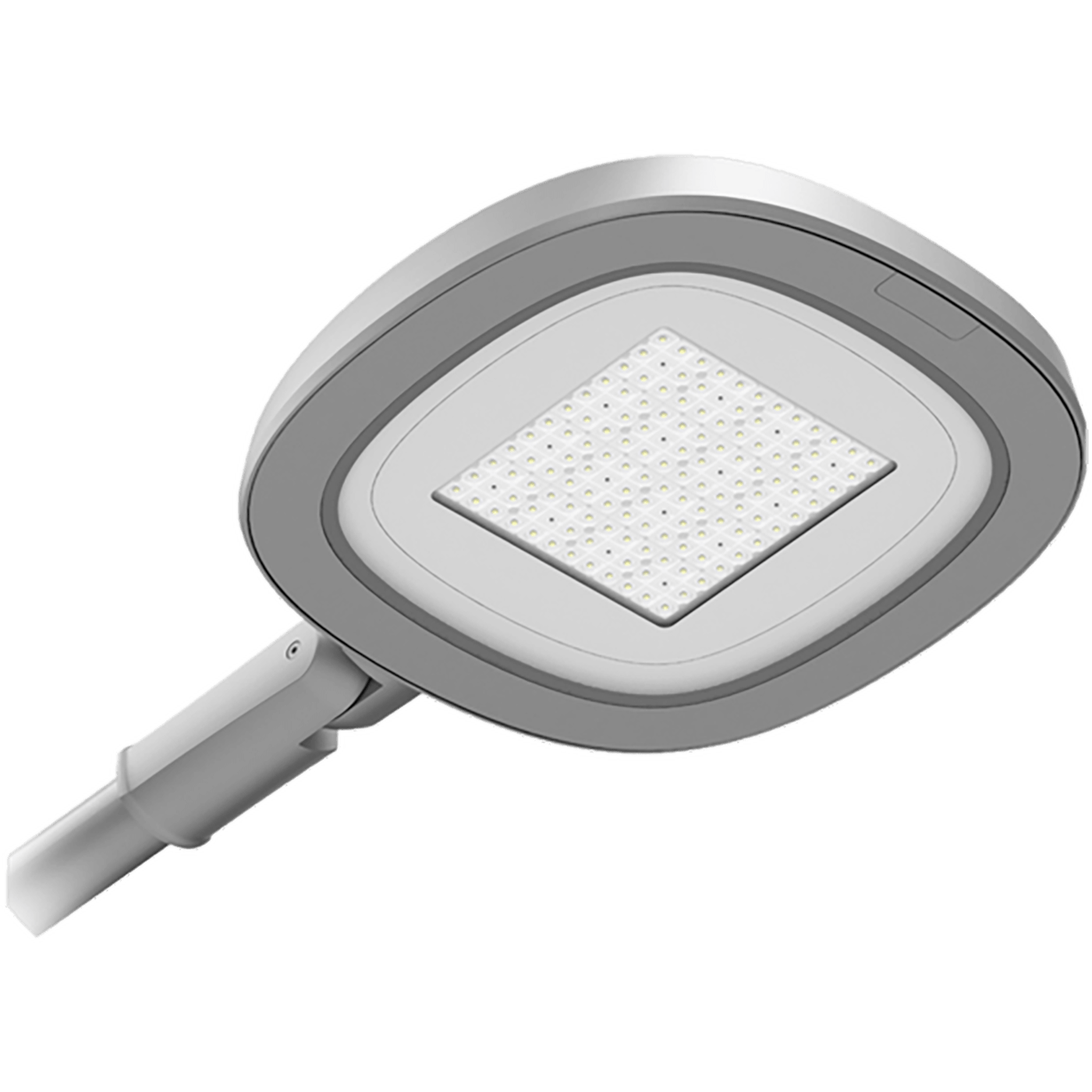

SKYLINE LED 120W DW1 740 RAL9005
archive
archive
SKYLINE LED 120W DW1 740 RAL9005
104 Wluminaire power
15200 lmlight flow
146 lm/Wenergy efficiency
code1707000570
beam angleD145/65
color temperature4000
weight14 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65housing color
Черныйlength, mm
730 mmwidth, mm
490 mmheight, mm
130 mmweight
14 kgfire safety class
П-ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK08/5 Джinstallation diameter, mm
60 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP65
housing color
Черный
length, mm
730 mm
width, mm
490 mm
height, mm
130 mm
weight
14 kg
fire safety class
П-ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK08/5 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
104 W
power factor
> 0,95
supply voltage
230 V
common
code
1707000570
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>70
light flow
15200 lm
energy efficiency
146 lm/W
flickering factor
<1%
beam angle
D145/65
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

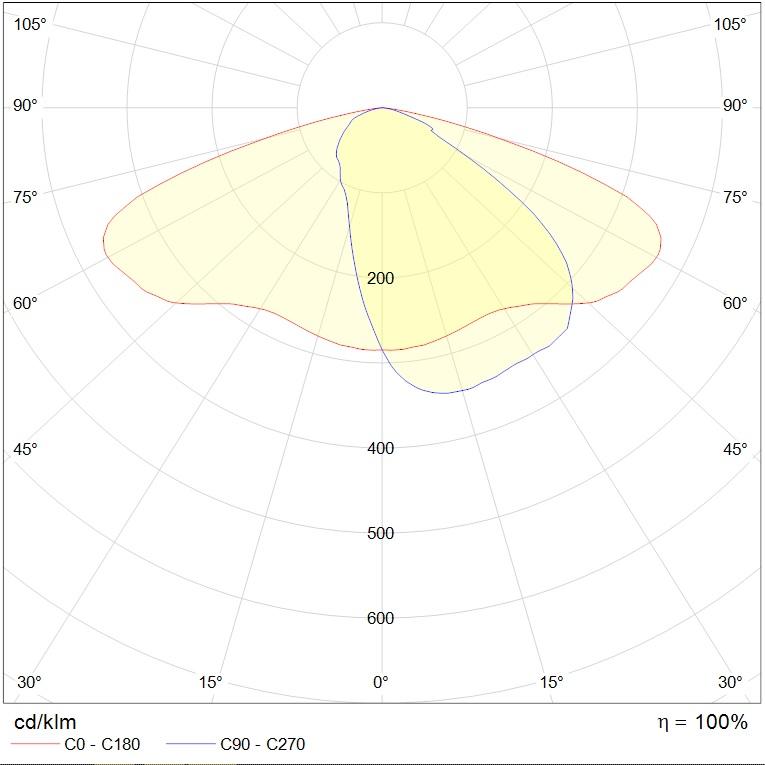

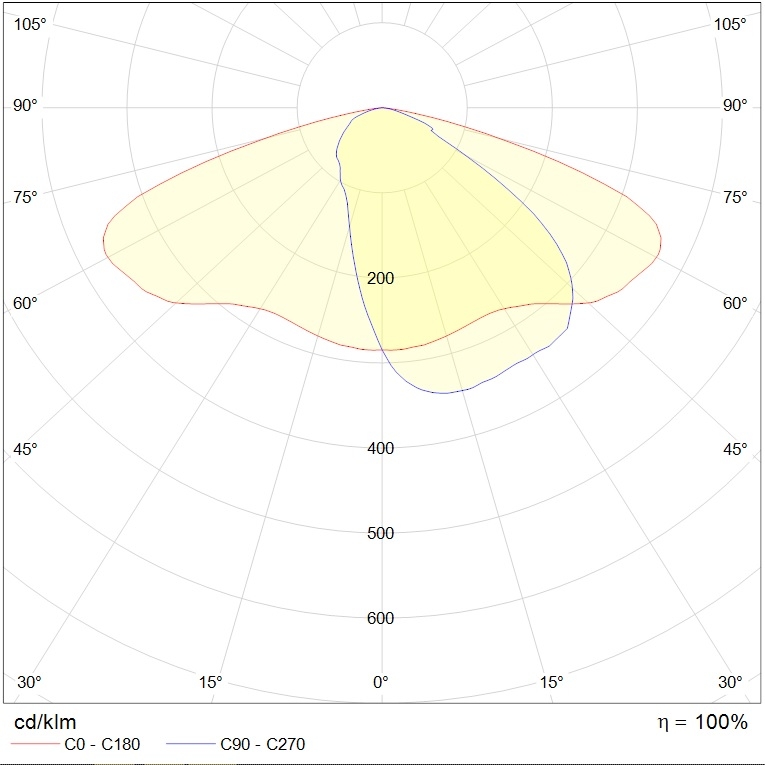

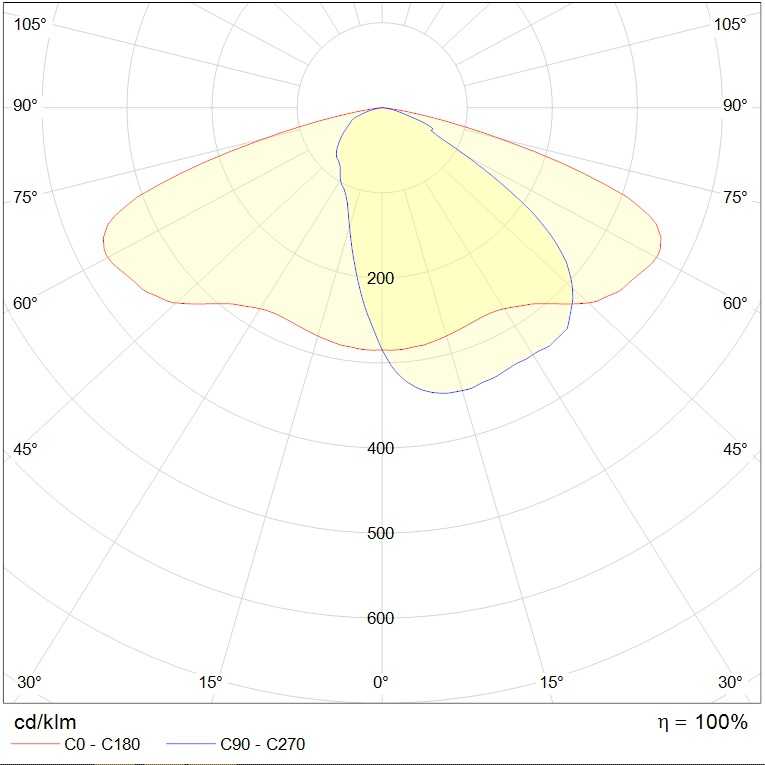

photometric files
documents
сертификаты
photometric files
ies54.6 kB
jpg85.8 kB
ldt33.8 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
