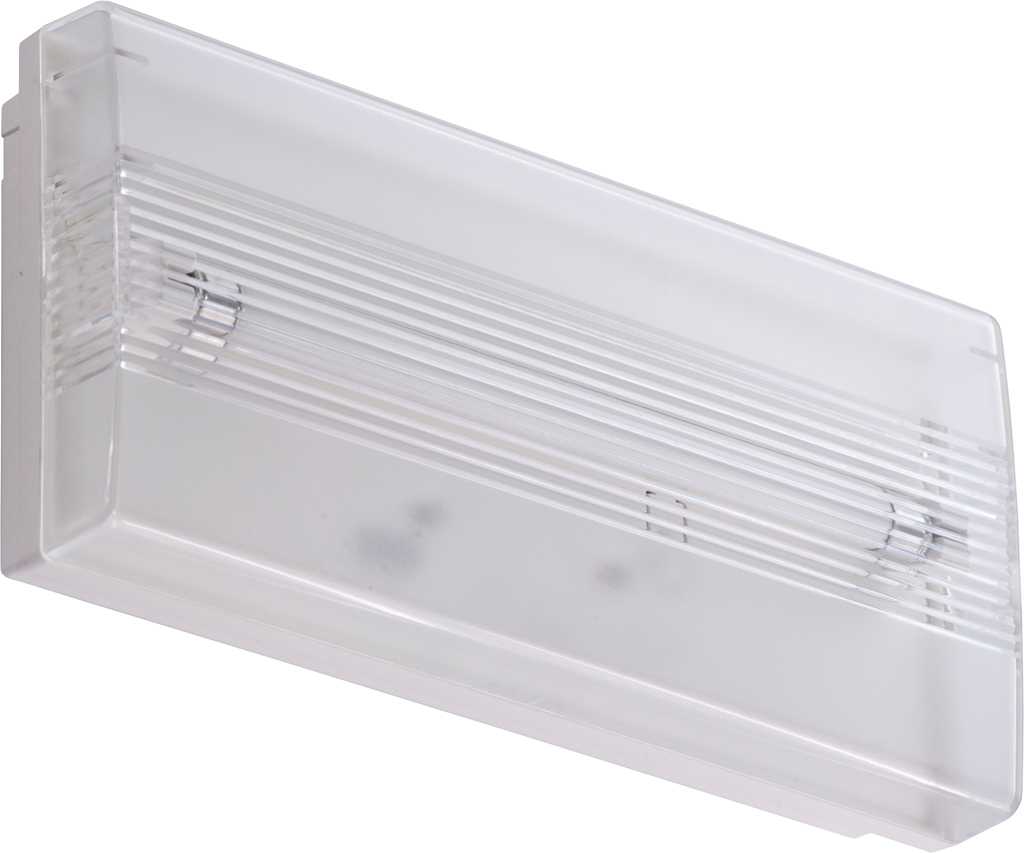

SIRAH 2021-3 LED

SIRAH 2021-3 LED
add to favorites
3 Wluminaire power
180 kd/m2average luminance
code
4502003400
operating time in emergency mode
1 h
battery / battery Ni-Cd
RB 3,6 V 1,5 A*h Ni-Cd
type of operation / type of operation of the emergency luminaire
постоянного действия
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. SIRAH LED
  7. SIRAH 2021-3 LED
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
100 lm
average luminance
180 kd/m2
flickering factor
<5%
light source type
LED
energy efficiency
33 lm/W
emission color
Белый
illuminating
light flow
100 lm
average luminance
180 kd/m2
flickering factor
<5%
light source type
LED
energy efficiency
33 lm/W
emission color
Белый
electrical
supply voltage
230 V
constructional
material
Поликарбонат
ballast
Без драйвера
weight
0.51 kg
length
261 mm
width
124 mm
height
51 mm
материал рассеивателя
Поликарбонат
ingress protection (IP)
IP20
mounting type
Настенный накладной
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
emergency
operating time in emergency mode
1 h
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 3,6 V 1,5 A*h Ni-Cd
emergency power supply
Нет
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
B
code
4502003400
model files
model files
CAD/BIM files
model 3dMax1.1 mB
photometric files
ies54.6 kB
jpg173.8 kB
ldt47.8 kB
documents
passport333.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011307.5 kB
Declaration of Conformity EAEU TR 037/2016302.7 kB
CAD/BIM files
model 3dMax1.1 mB

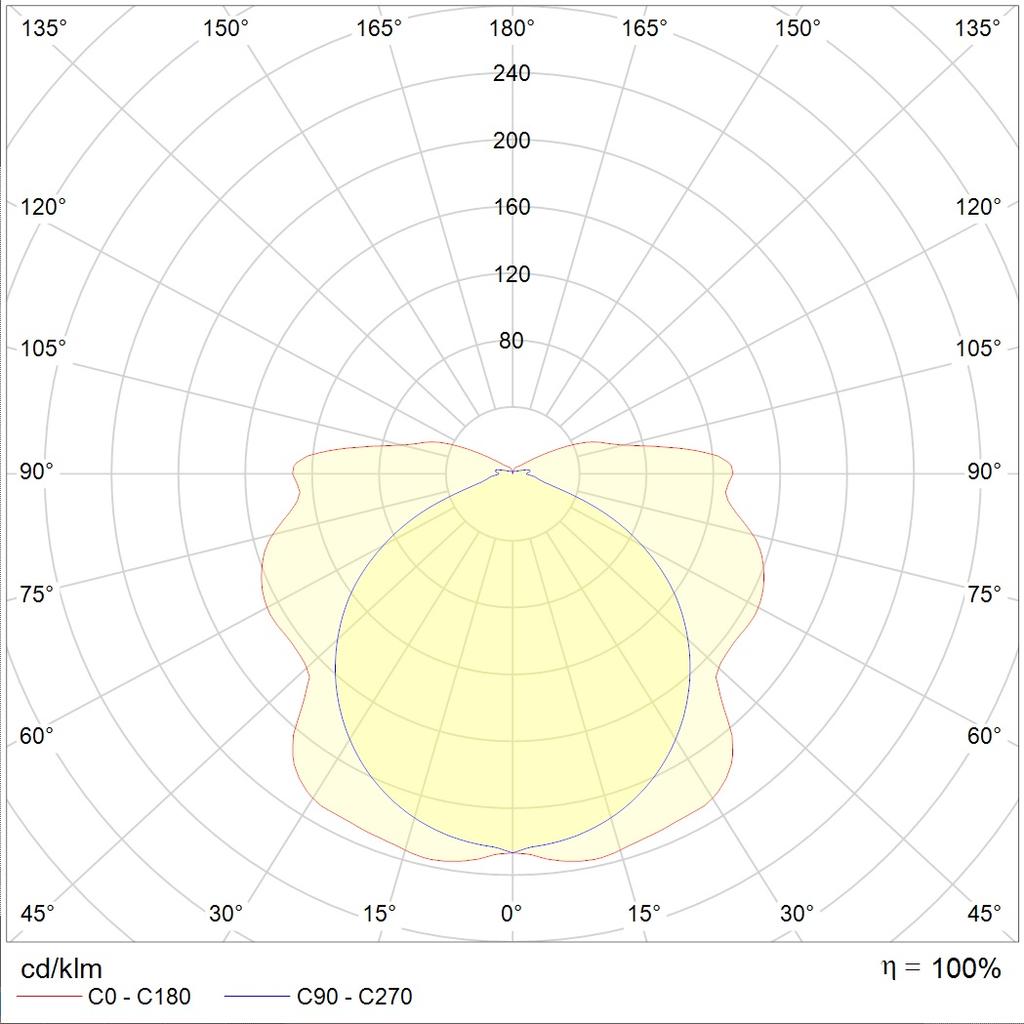

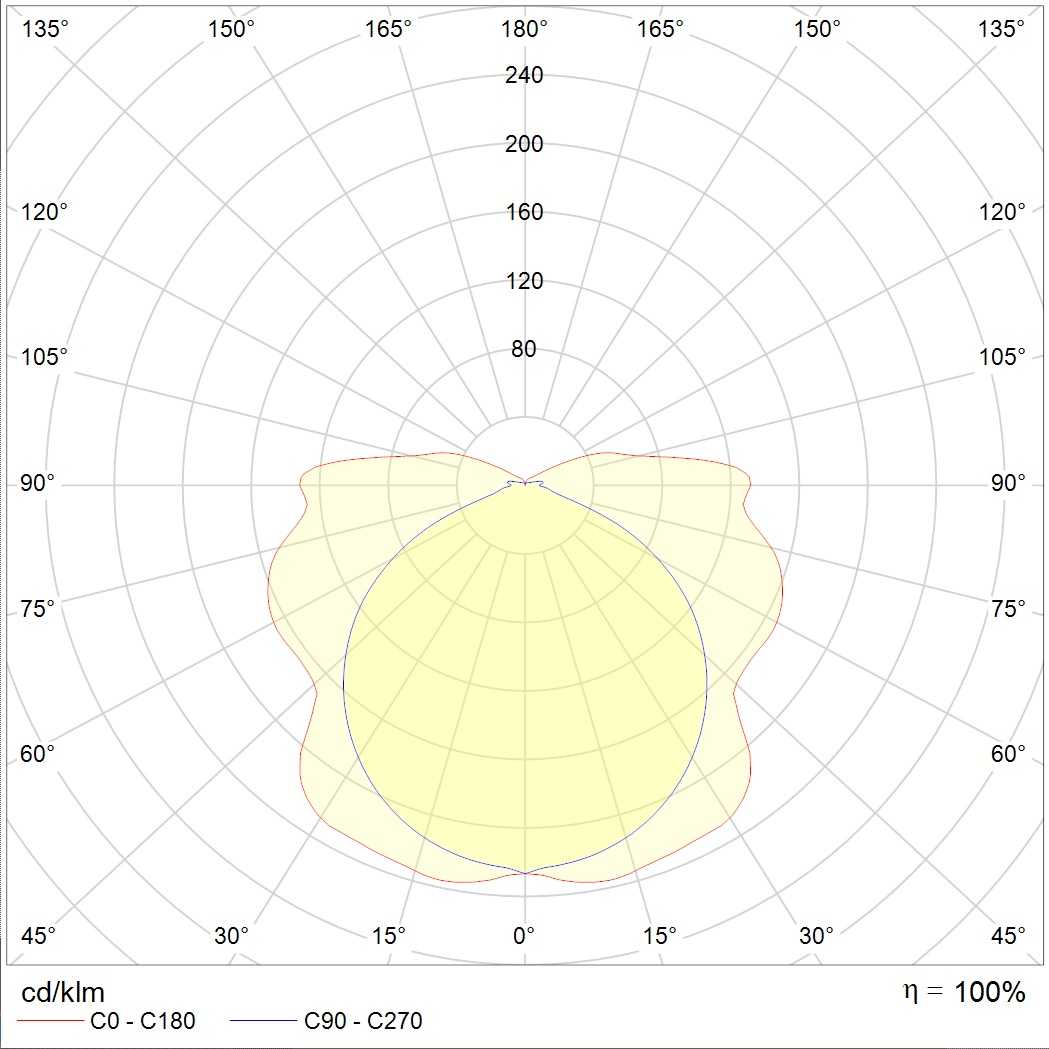

photometric files
ies54.6 kB
jpg173.8 kB
ldt47.8 kB
documents
passport333.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011307.5 kB
Declaration of Conformity EAEU TR 037/2016302.7 kB
accessories

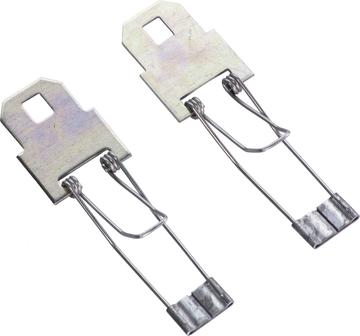

ST 21 /set of clips/0.02kgarticle: 2501000010
