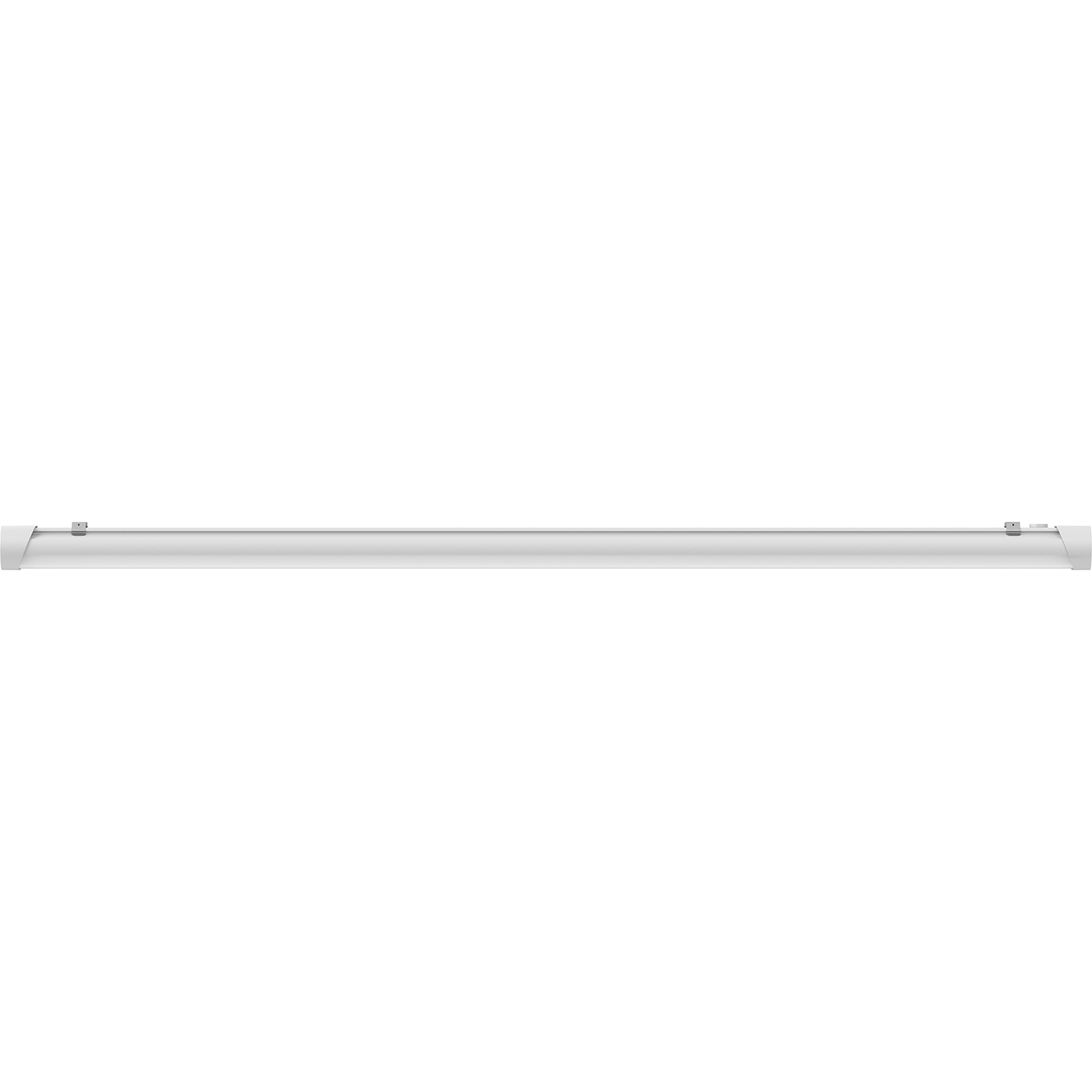

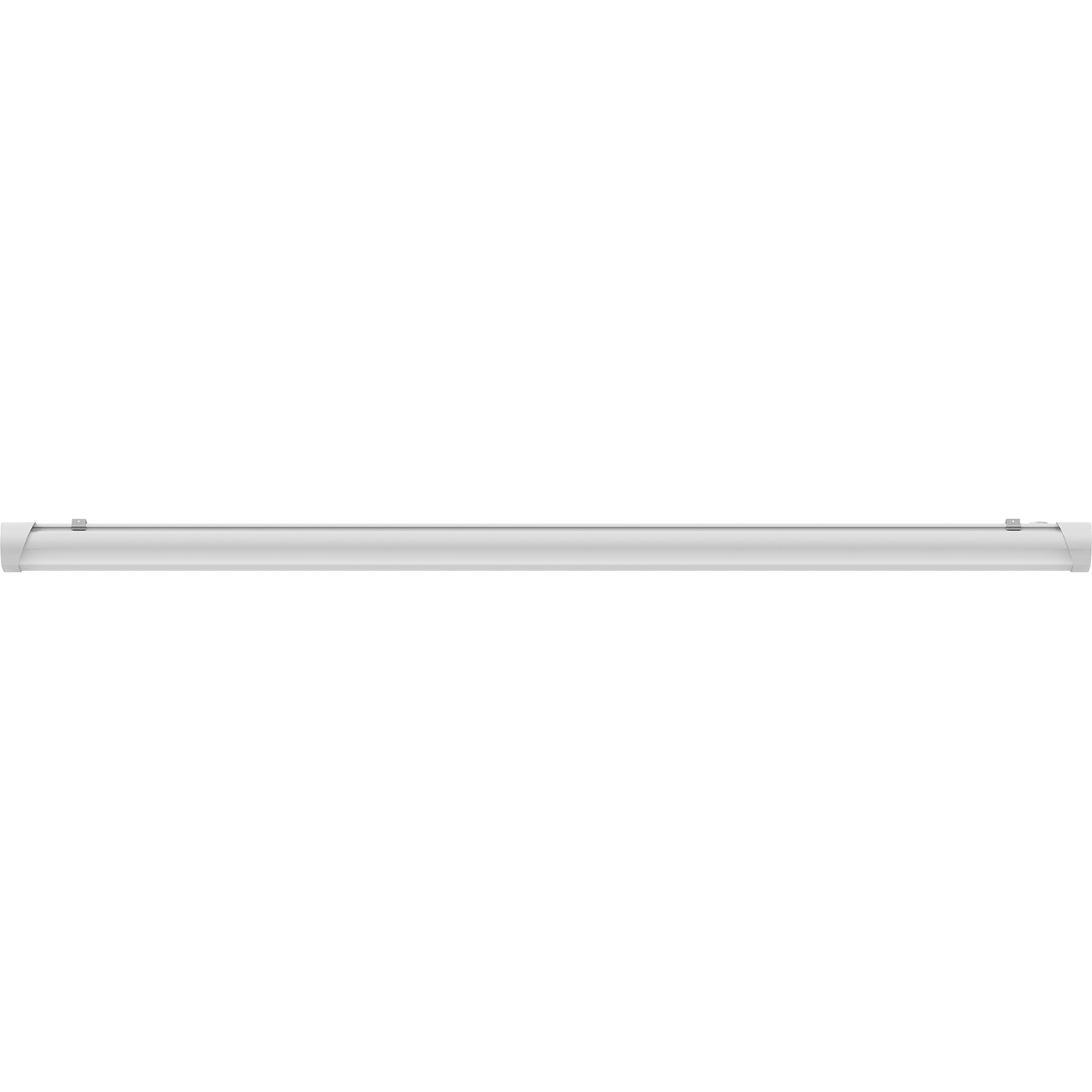

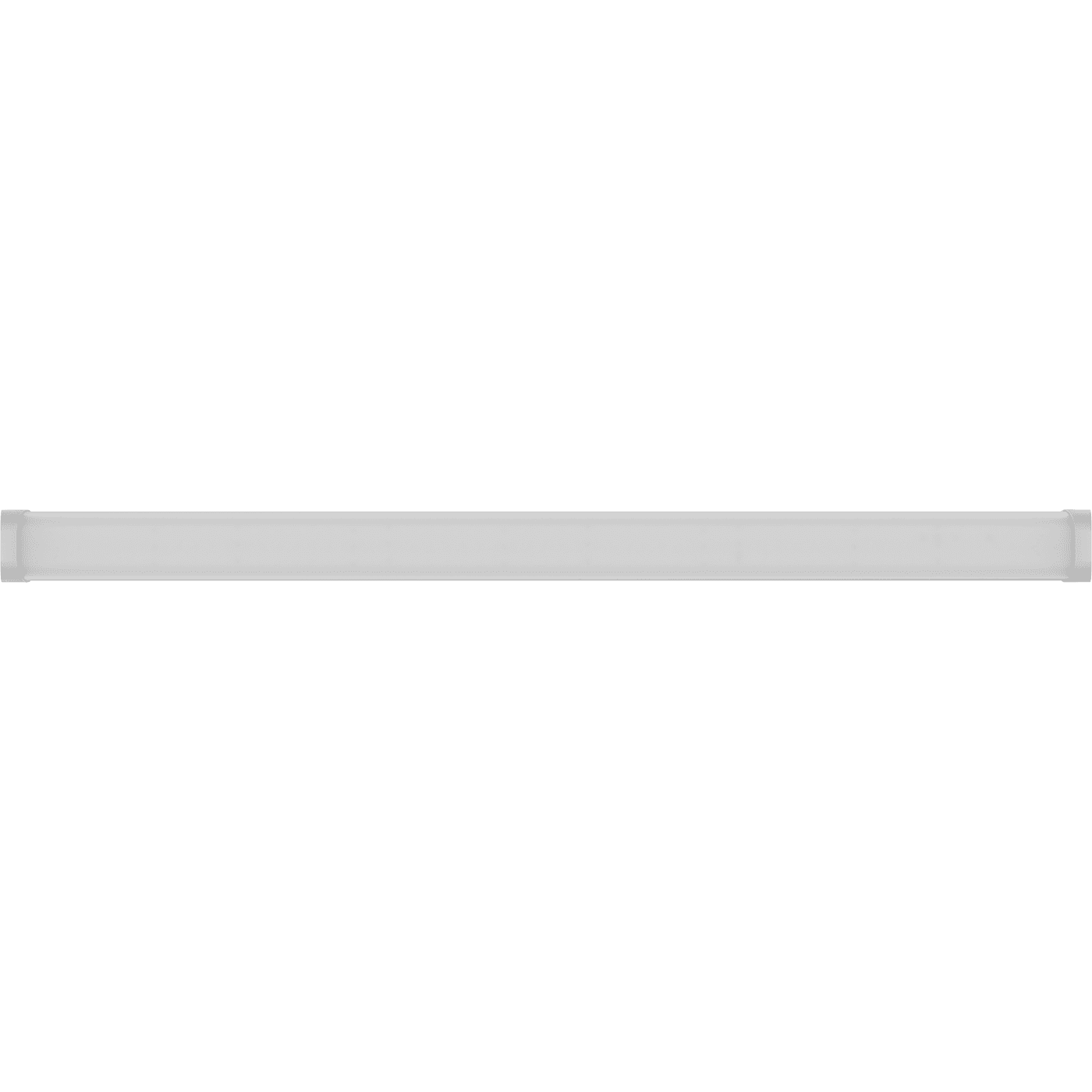

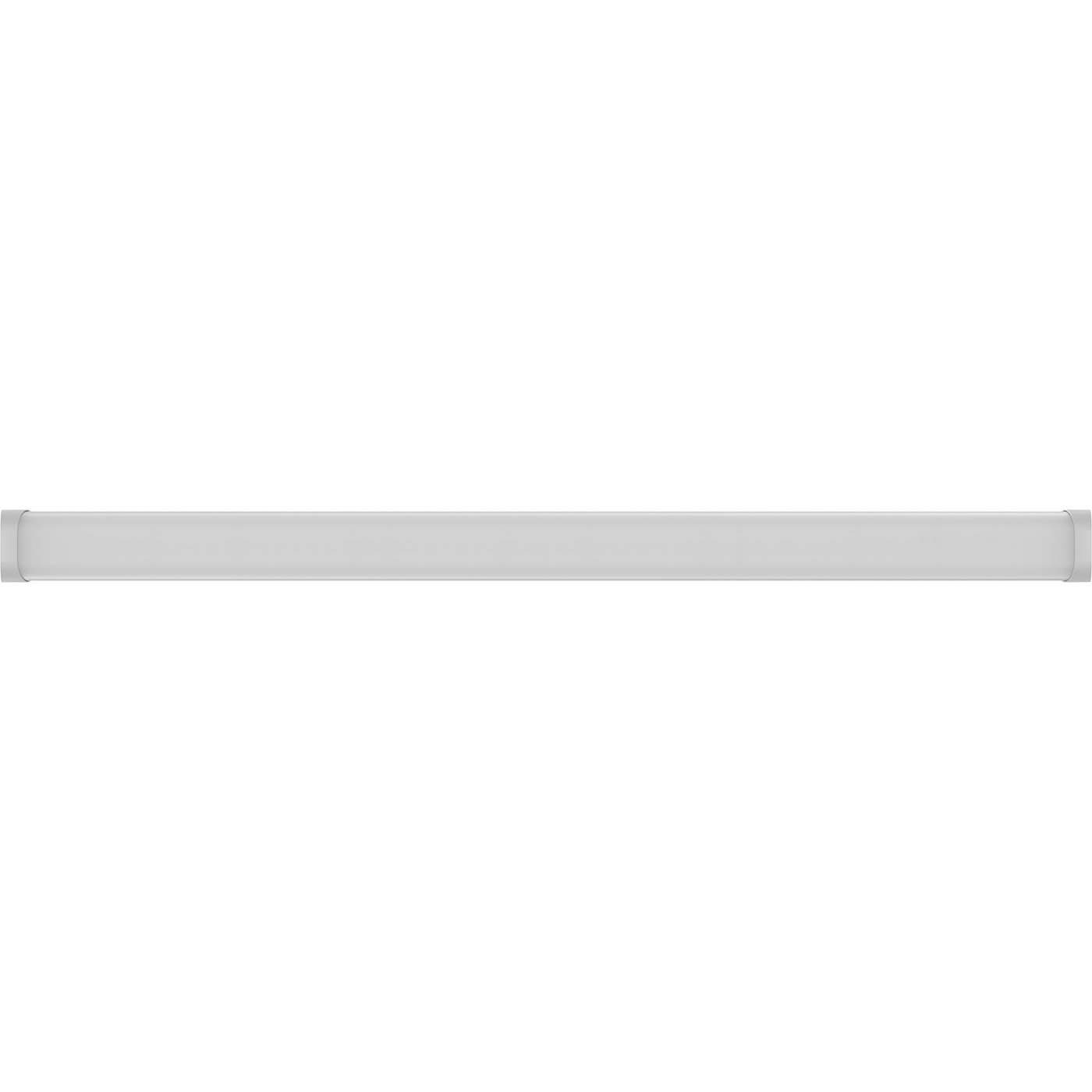

SIMPLE STANDARD (1500) 50W OPL 930 WH
SIMPLE STANDARD (1500) 50W OPL 930 WH
48 Wluminaire power
4600 lmlight flow
96 lm/Wenergy efficiency
code1898002130
color temperature3000
beam angleD120
old nameSIMPLE STANDARD (1500) 50W PRS 930 WH
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
48 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
48 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
material
Поликарбонат
housing color
Белый
length, mm
1576 mm
width, mm
105 mm
height, mm
65 mm
weight
2.1 kg
climatic performance
УХЛ4*
installation length, mm
1330 mm
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1898002130
energy efficiency class
A+
illuminating
color rendition index (CRI)
>90
light flow
4600 lm
flickering factor
<1%

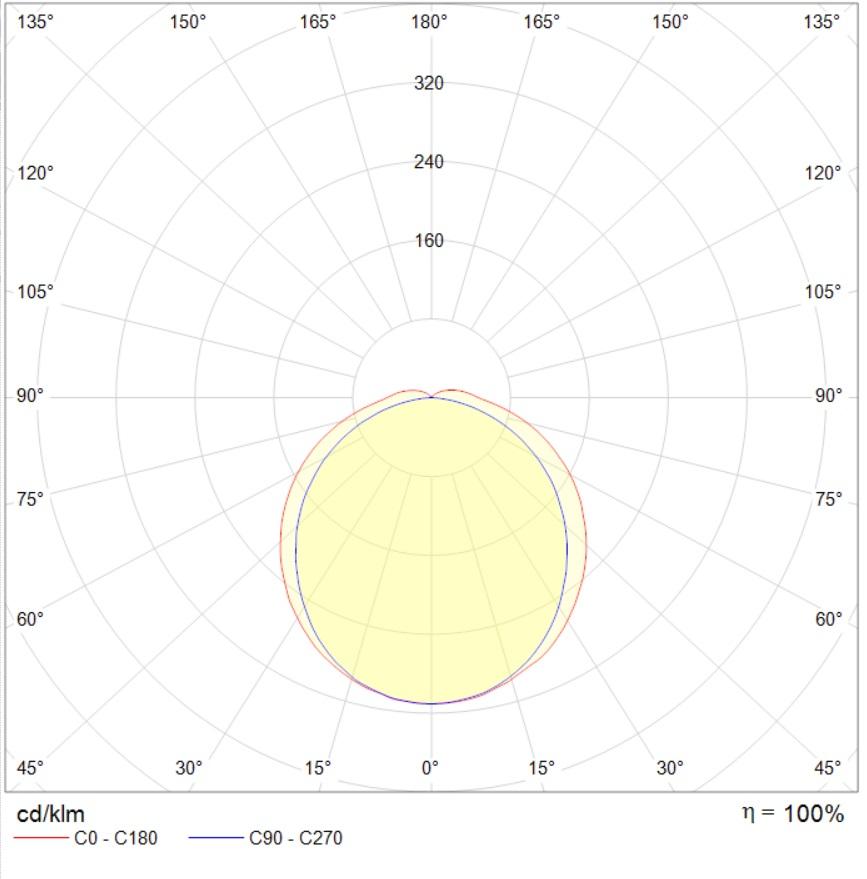

beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
energy efficiency
96 lm/W
