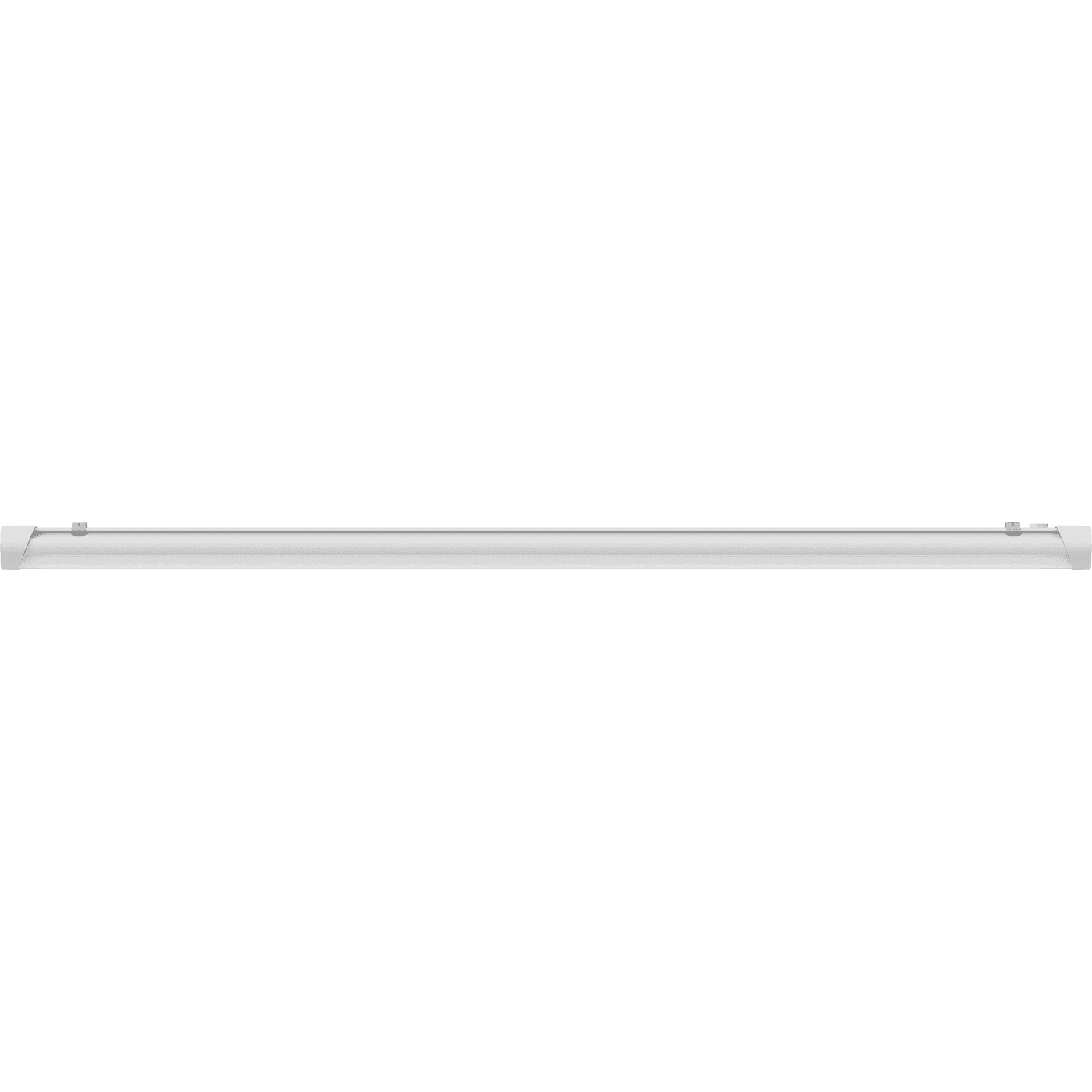

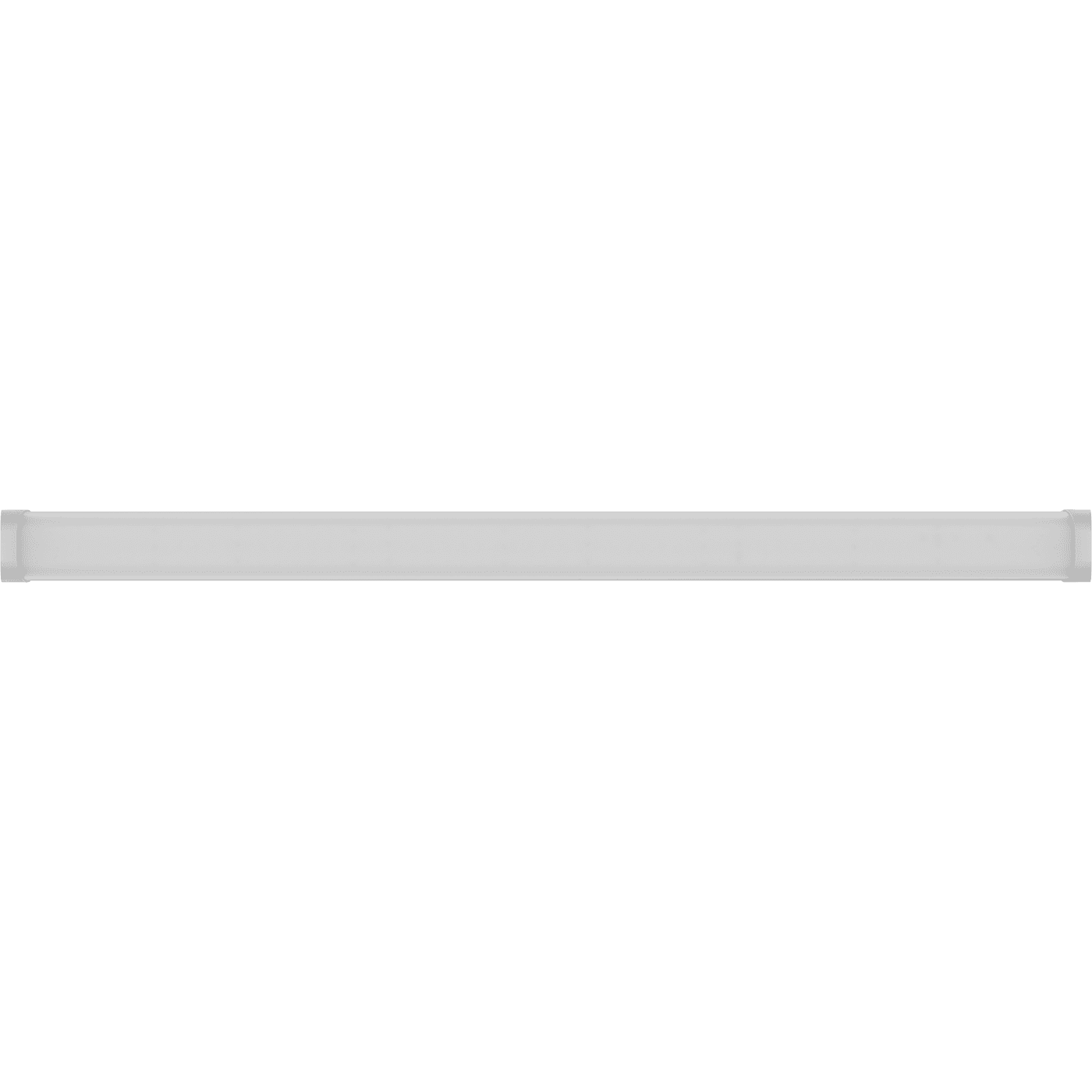

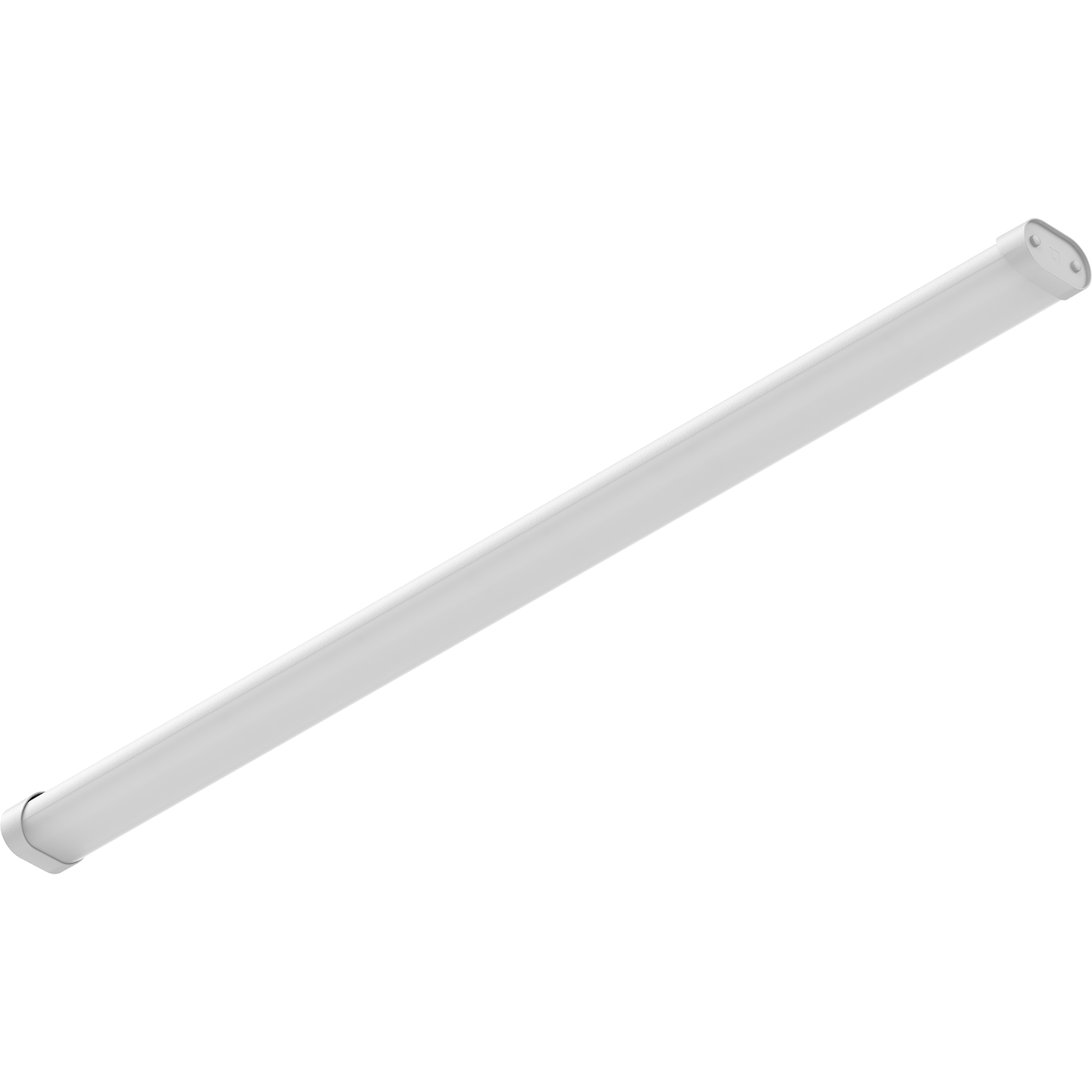

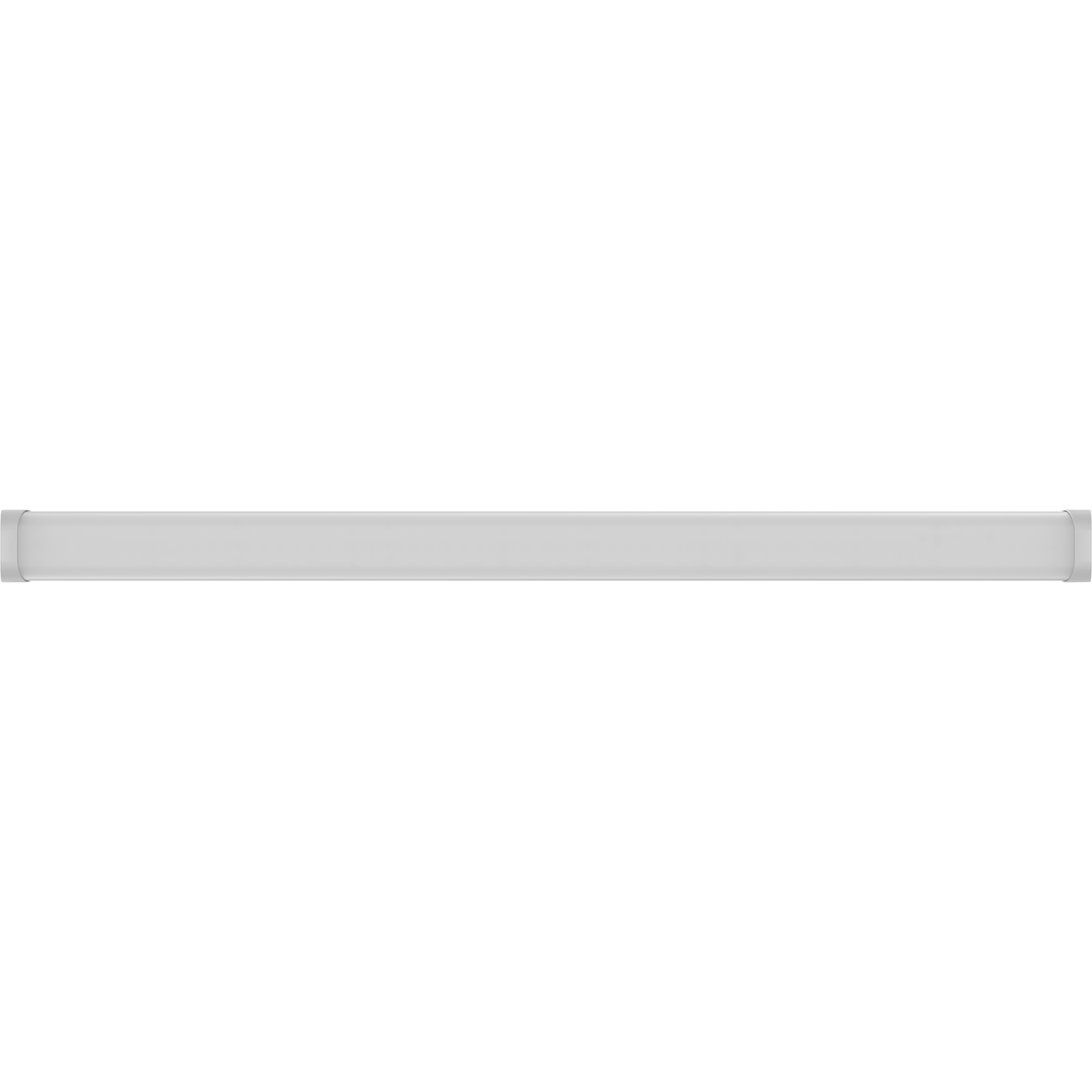

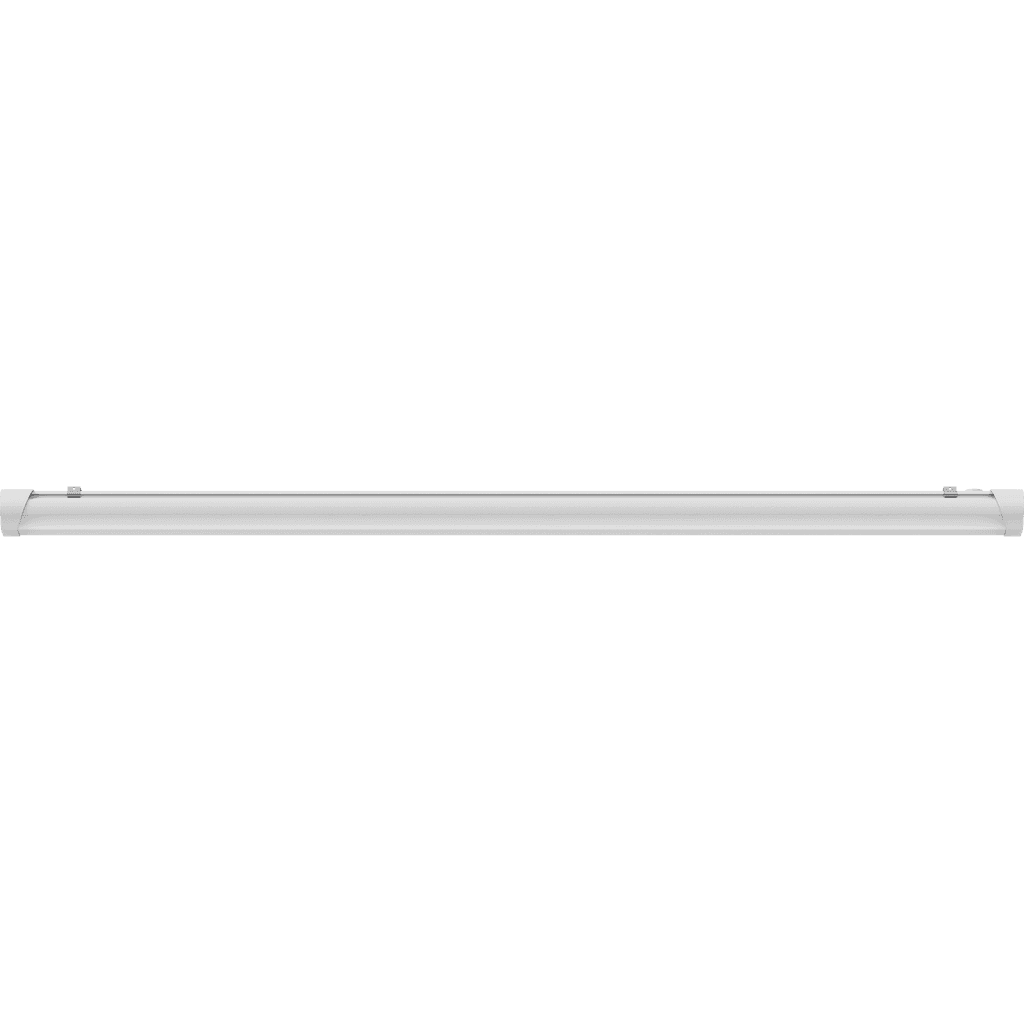

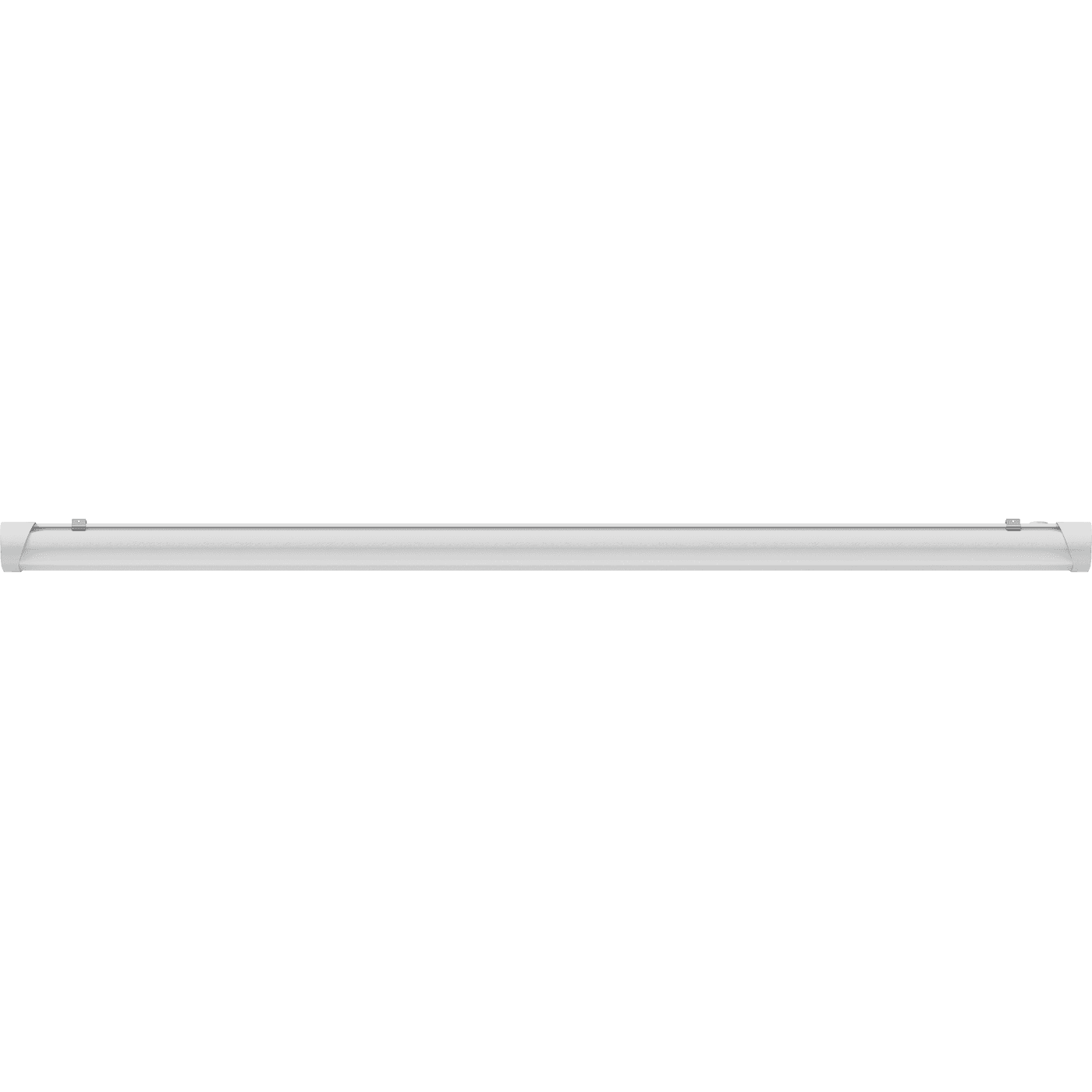

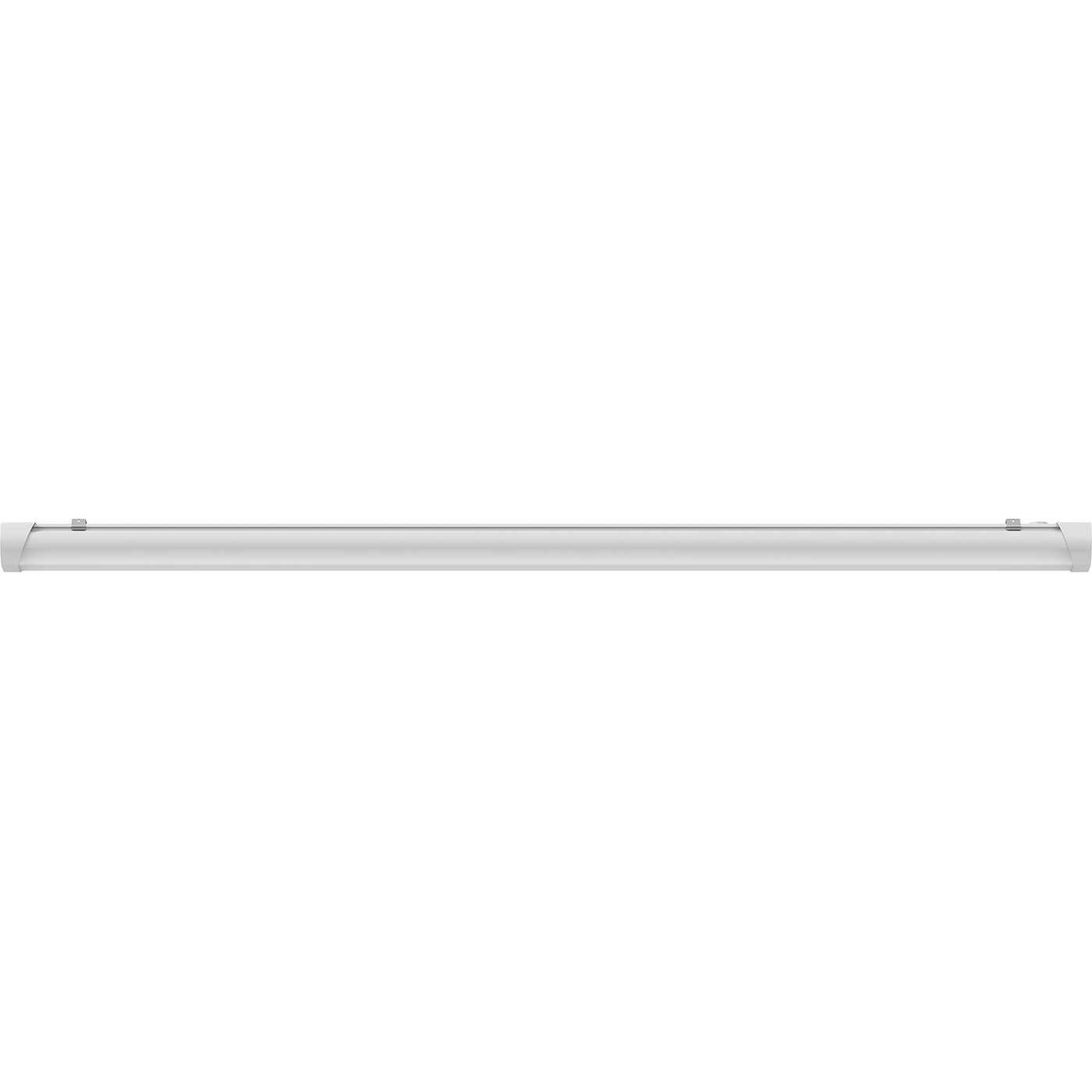

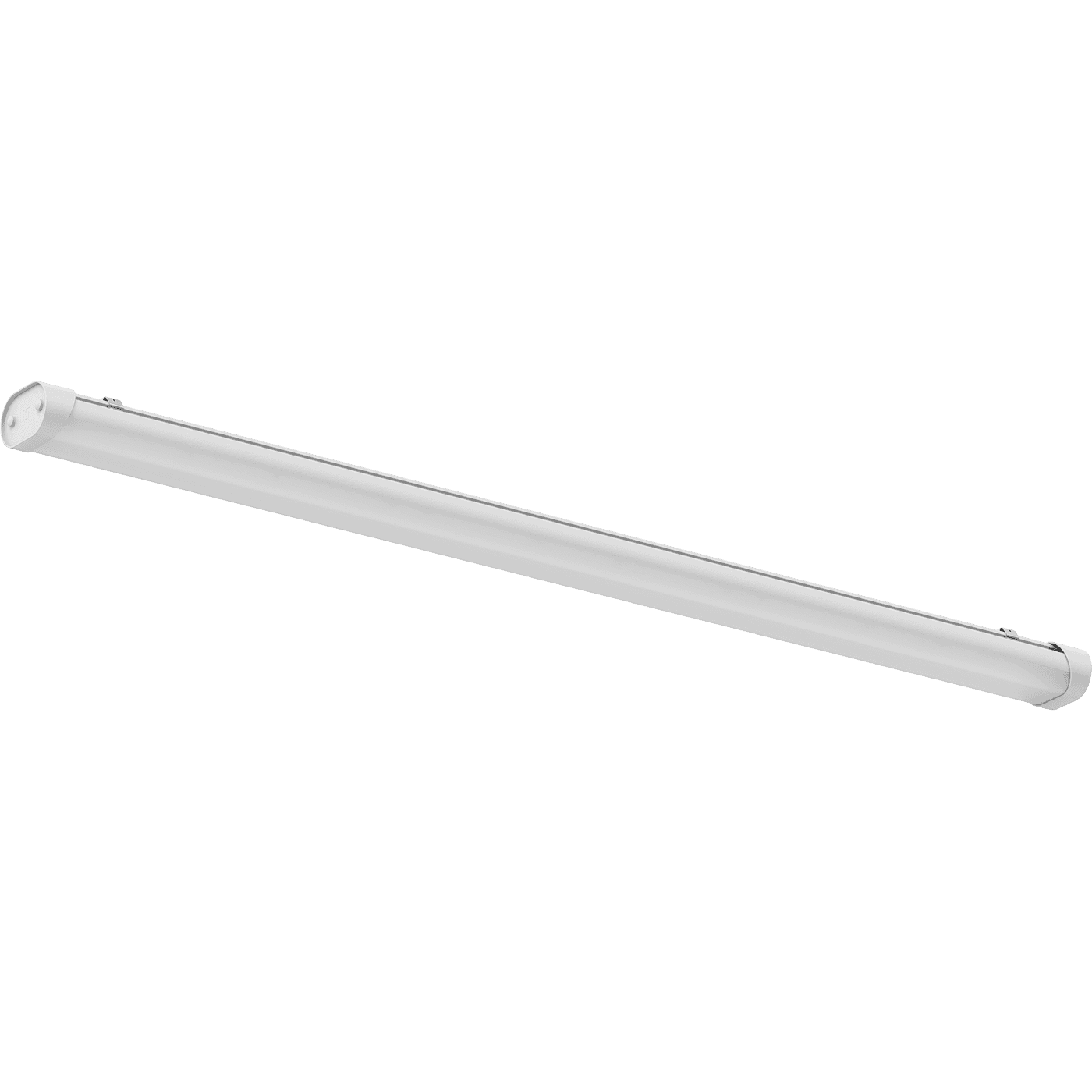

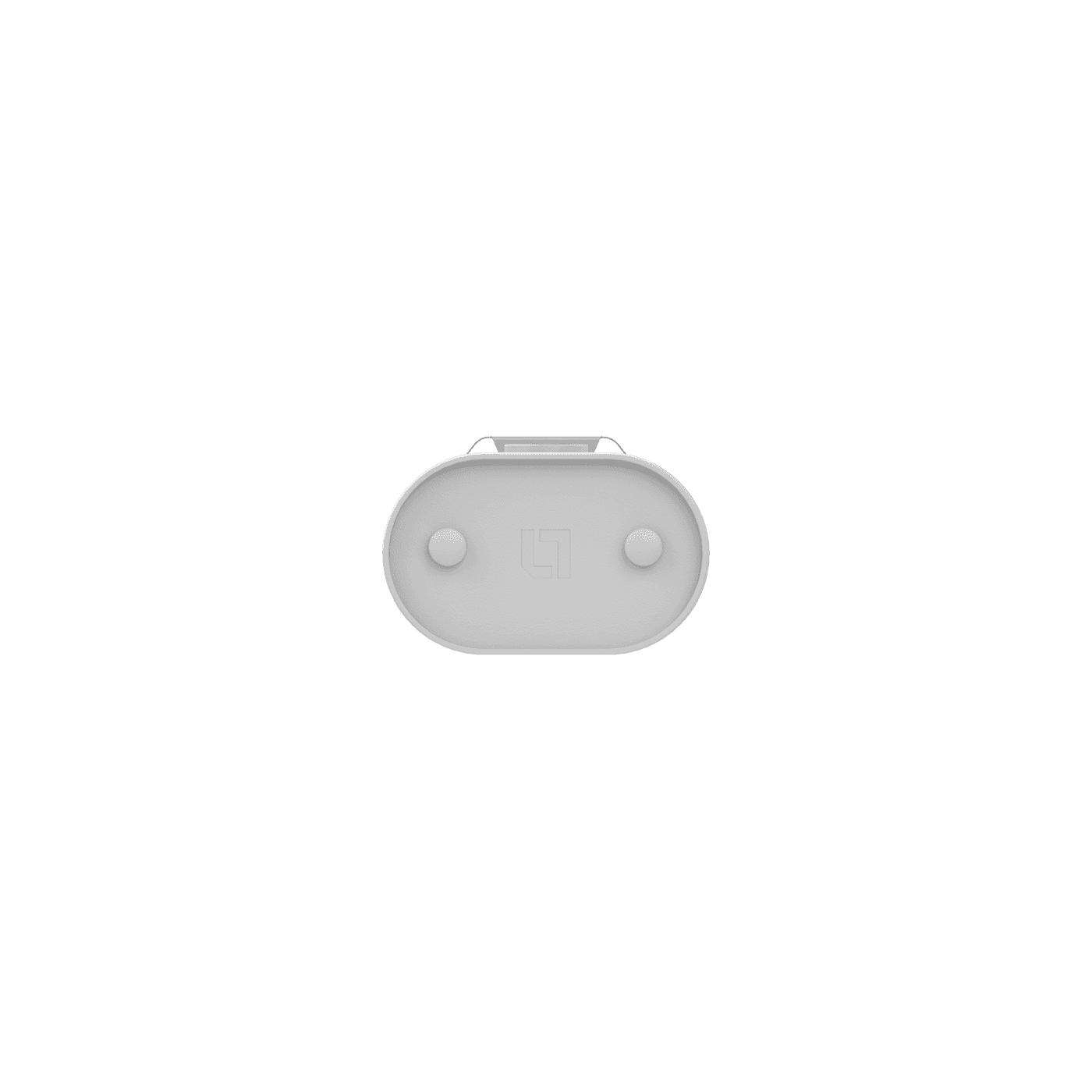

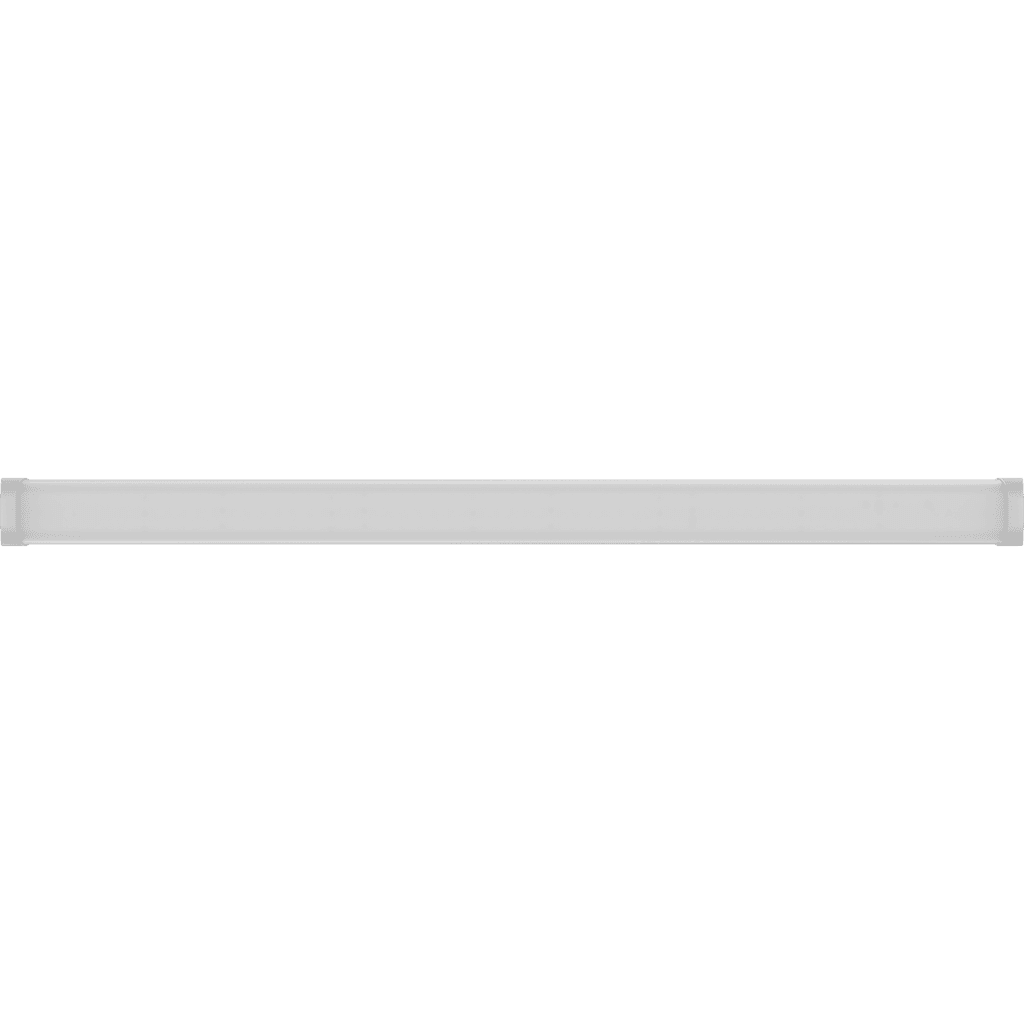

SIMPLE STANDARD (1500) 30W OPL 830 WH DALI EM

SIMPLE STANDARD (1500) 30W OPL 830 WH DALI EM
30 Wluminaire power
3200 lmlight flow
107 lm/Wenergy efficiency
code1898001440
color temperature3000 K

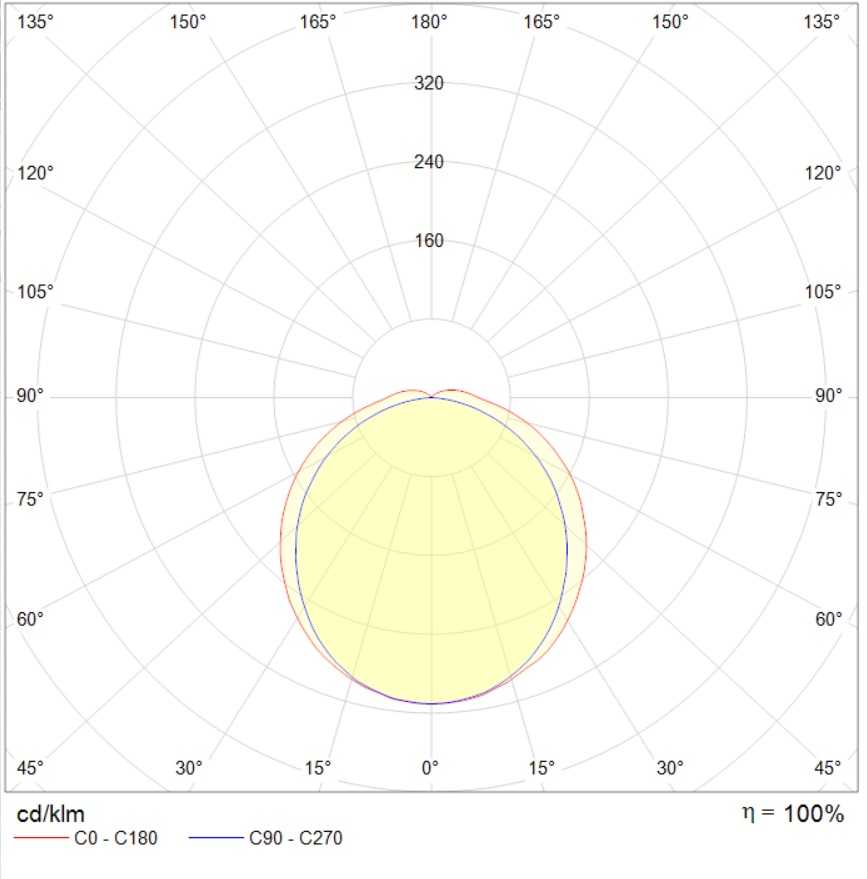

beam angleD120
old nameSIMPLE STANDARD (1500) 30W PRS 830 WH DALI EM
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommon
energy efficiency
107 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
107 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1576 mm
width
105 mm
height
65 mm
installation length
1330 mm
weight
2.6 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
17% lm
battery / battery Ni-Cd
RB 6,0 V 1,5 А*h Ni-Mh
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898001440
