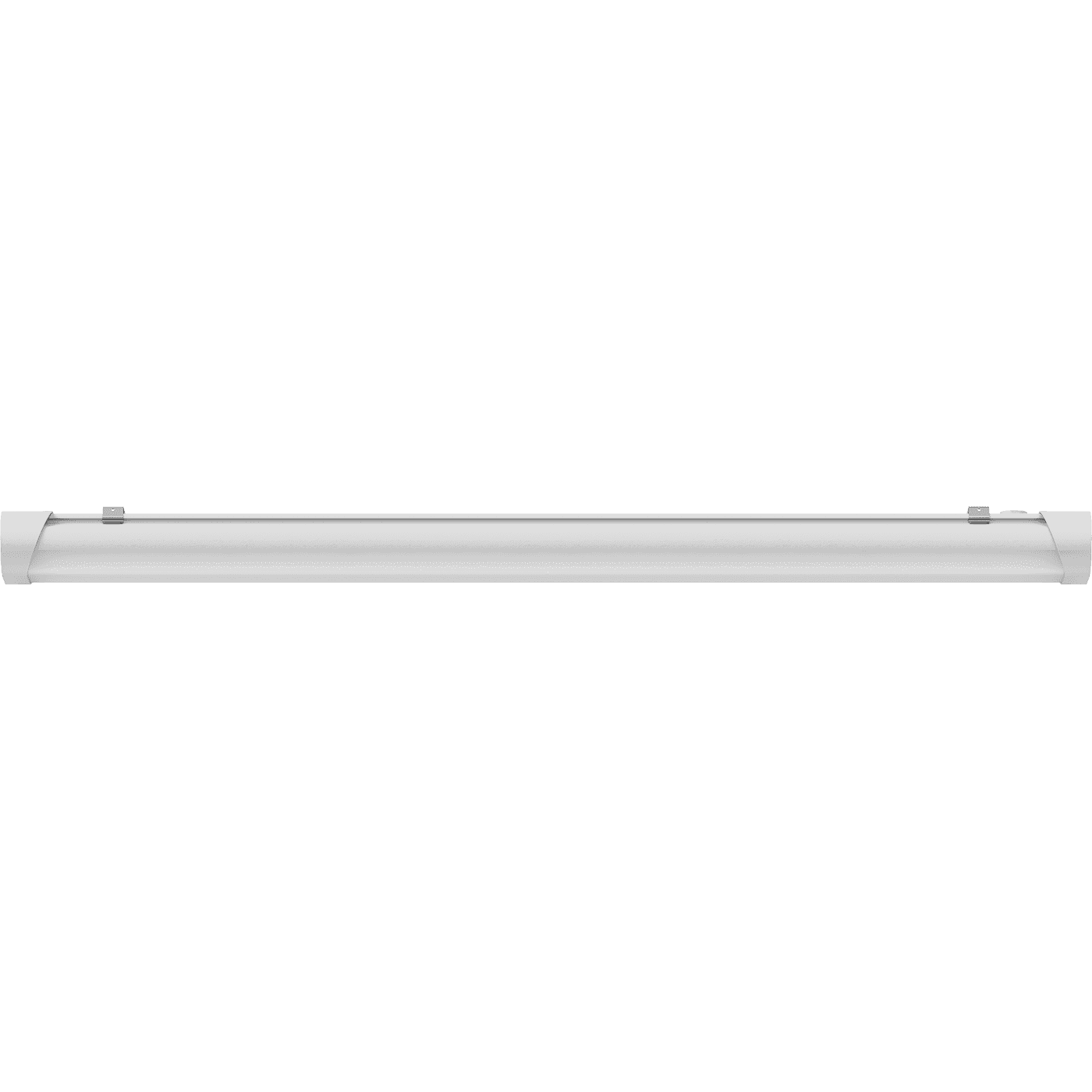

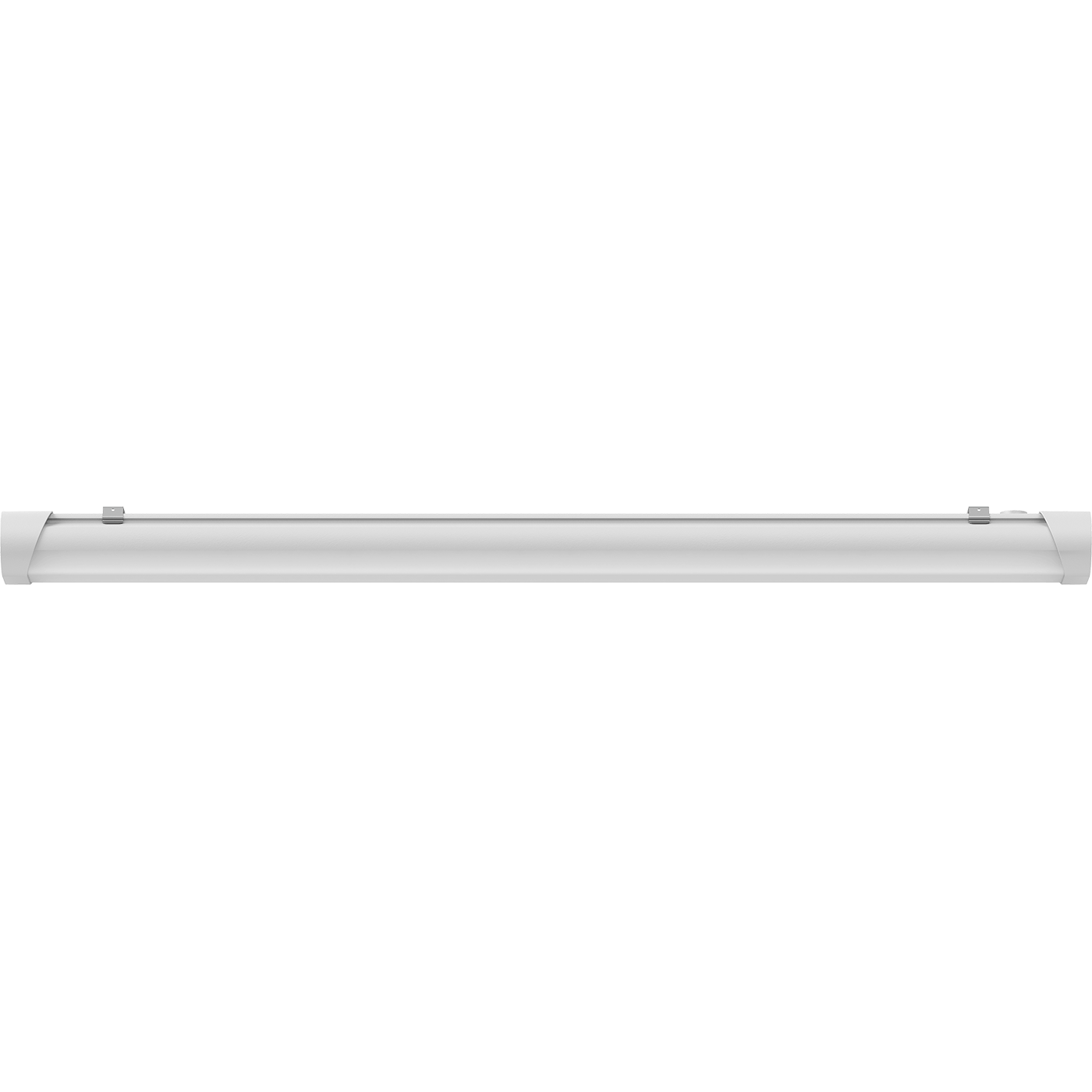

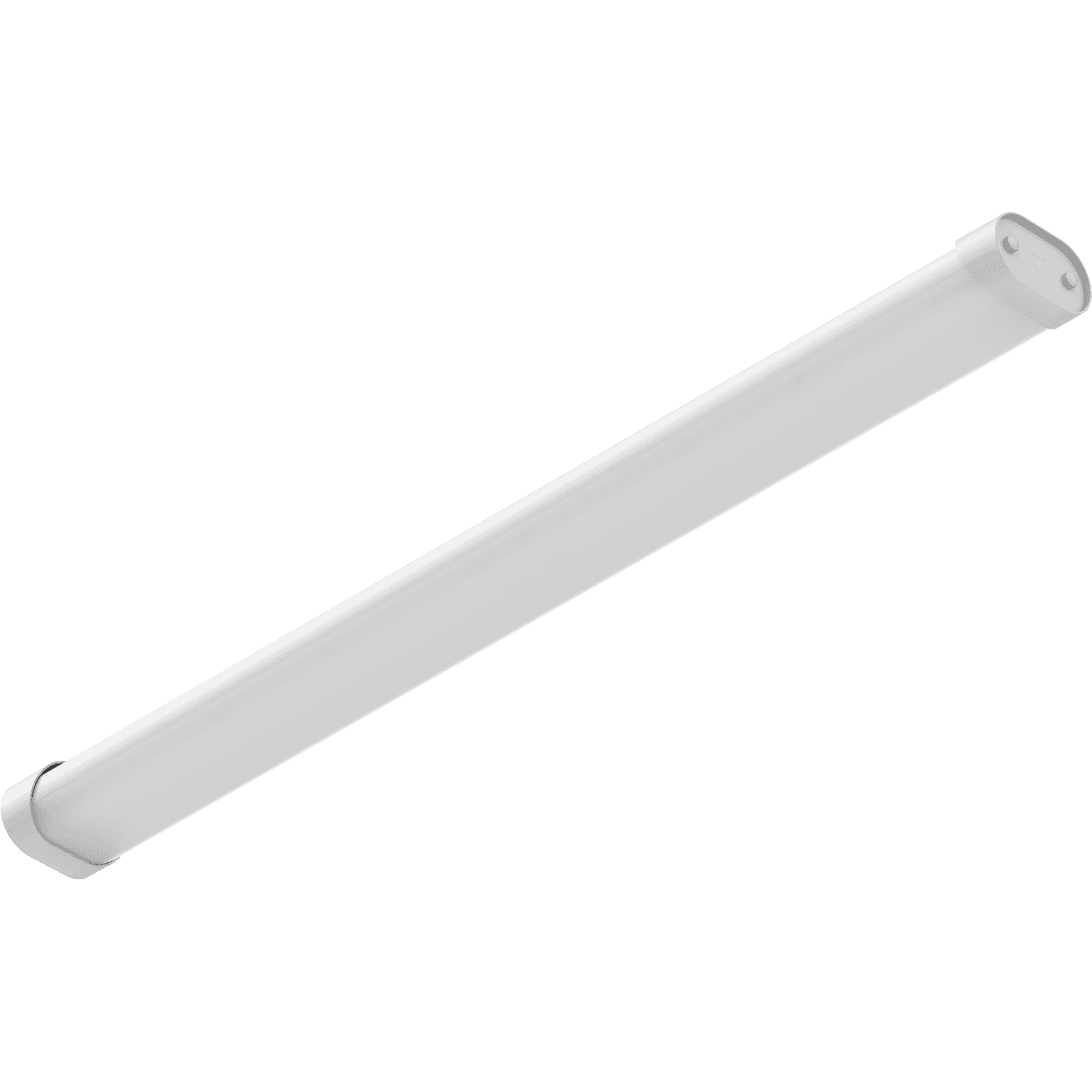

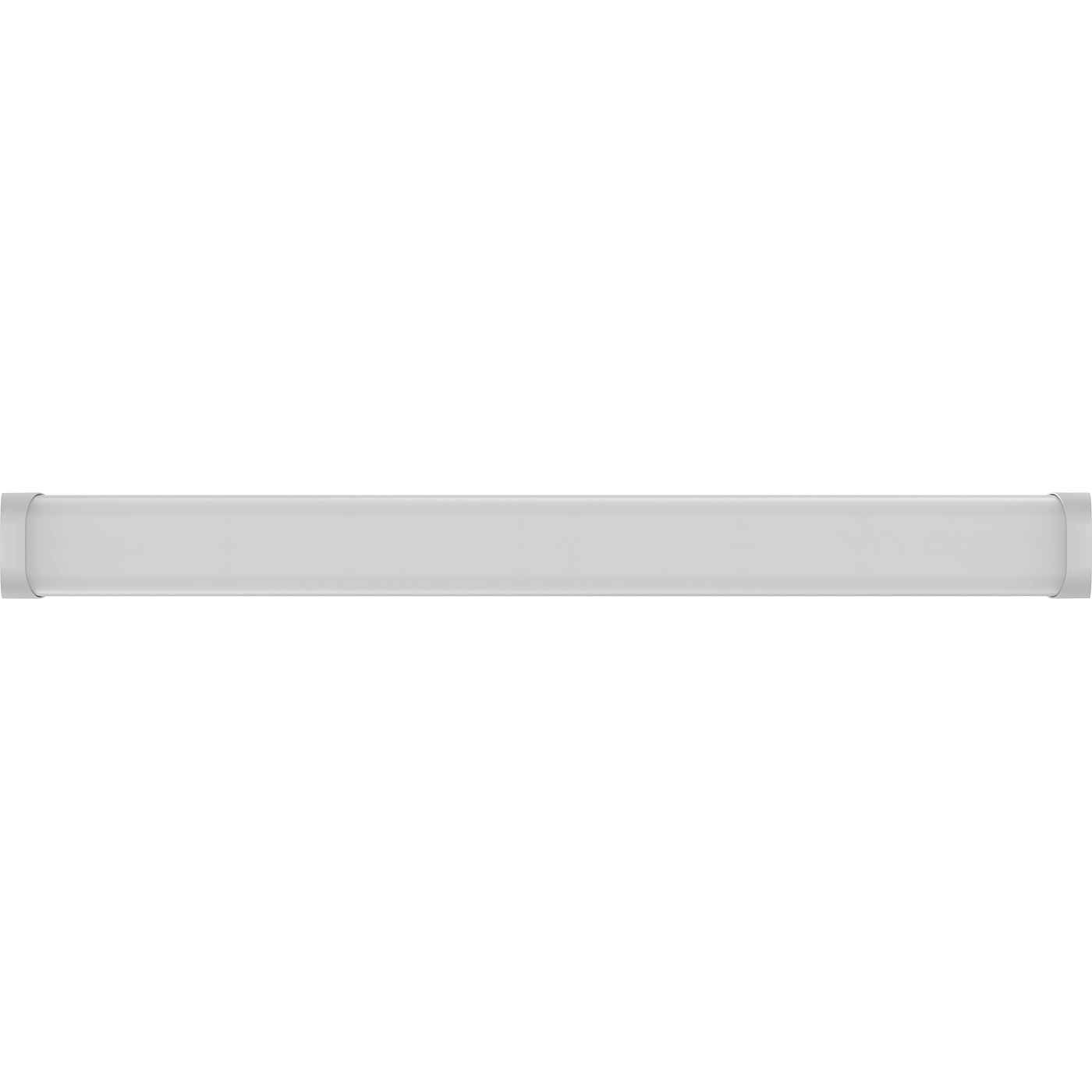

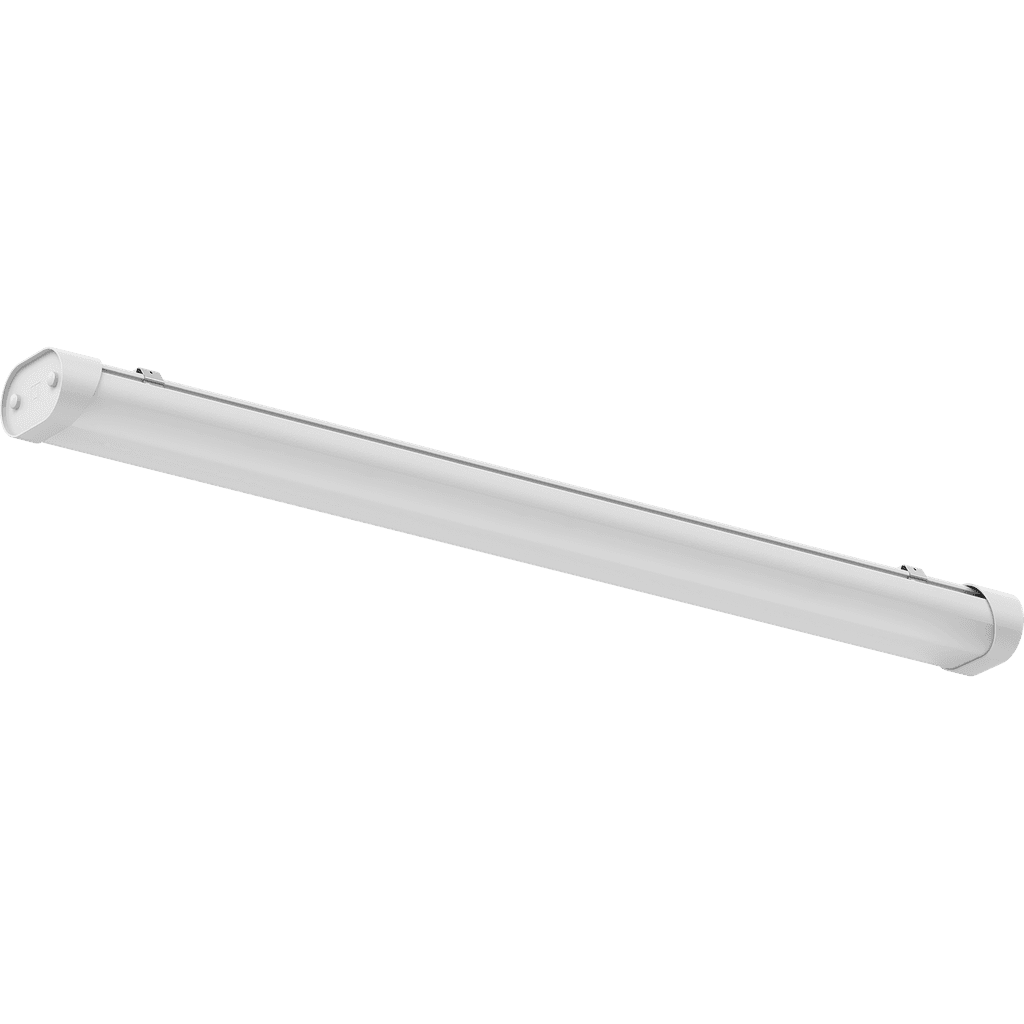

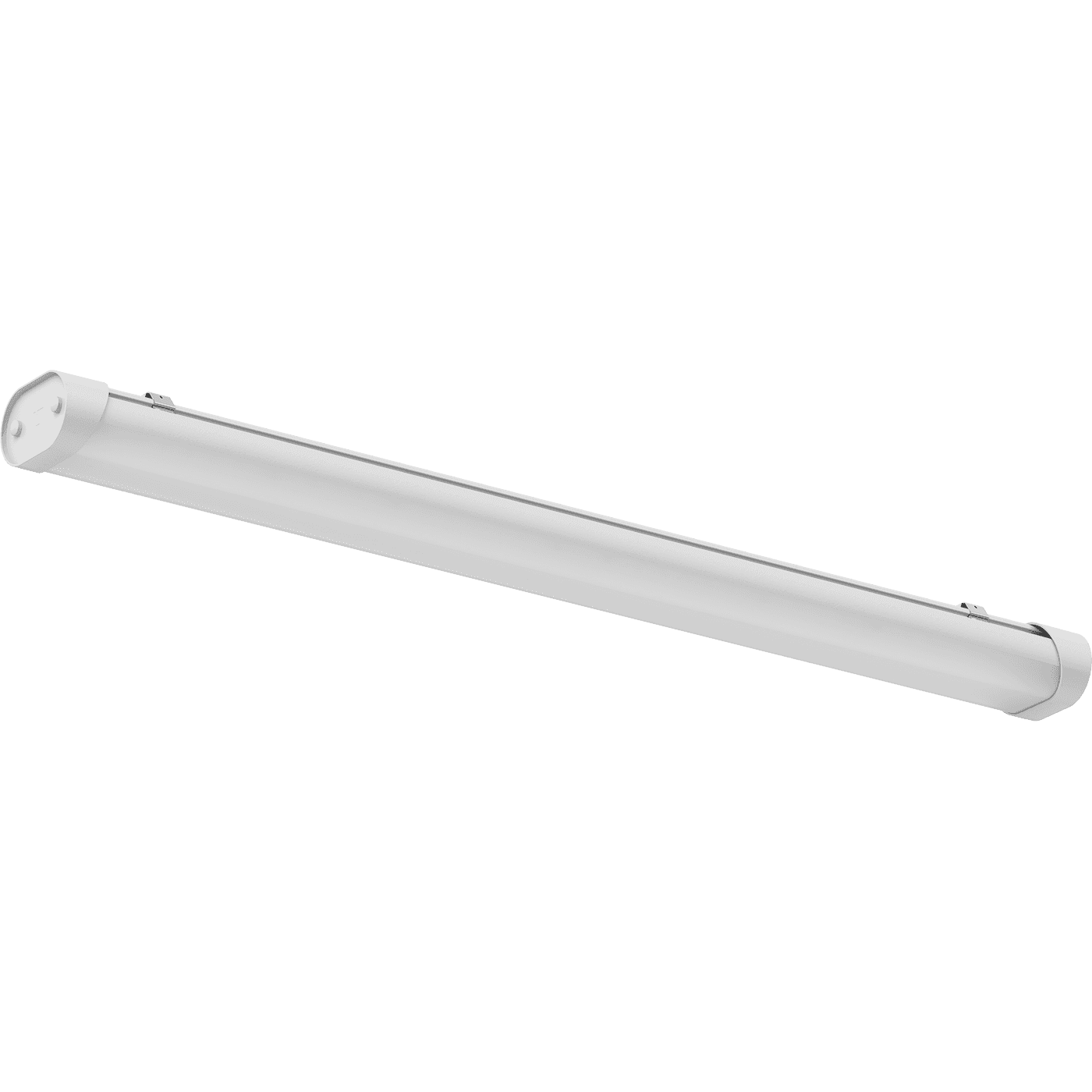

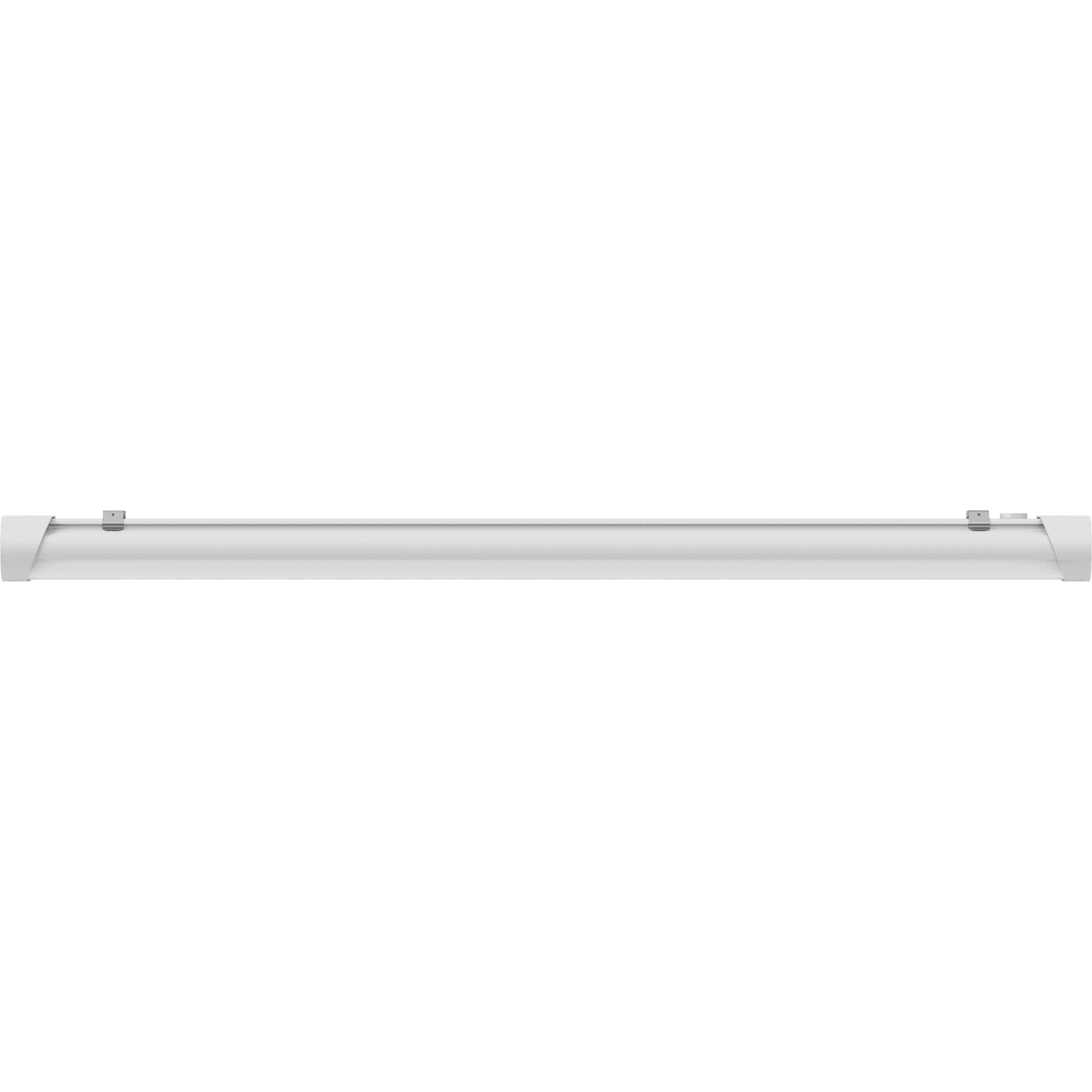

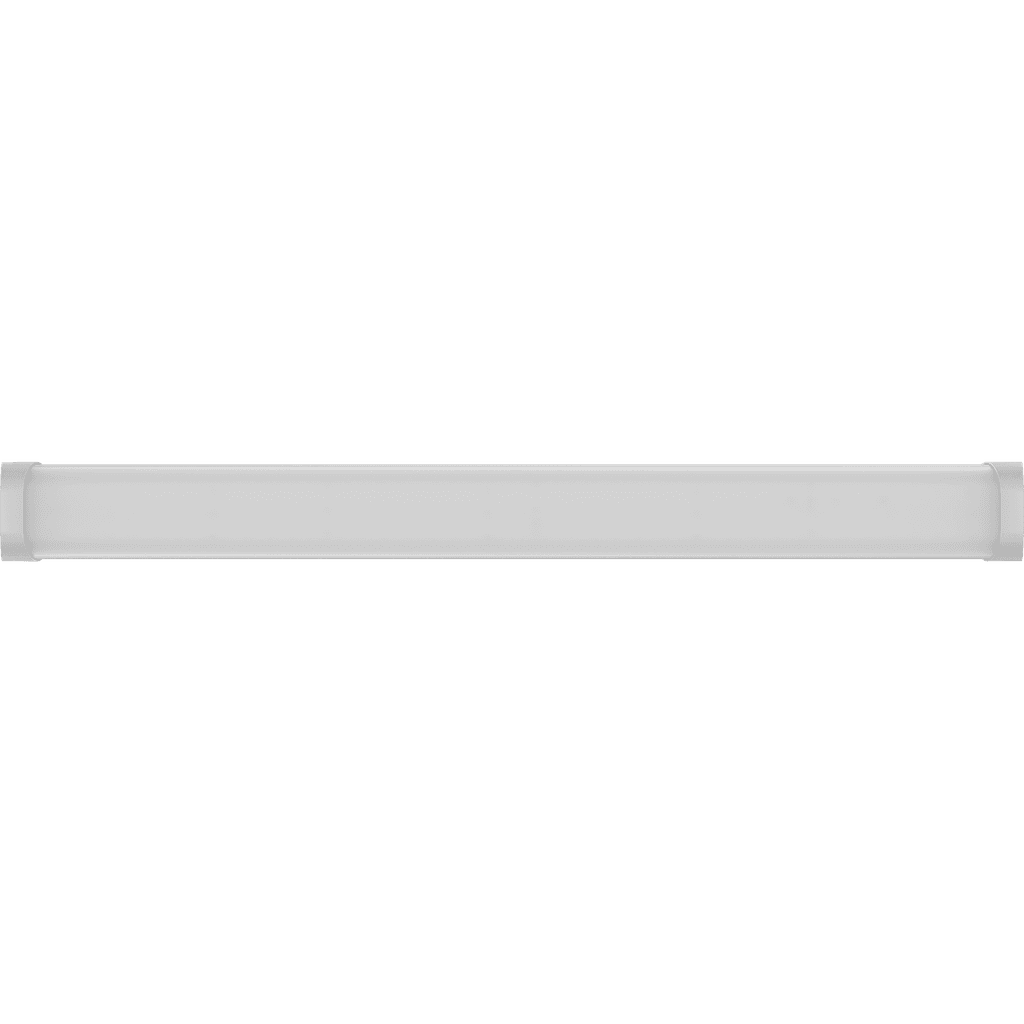

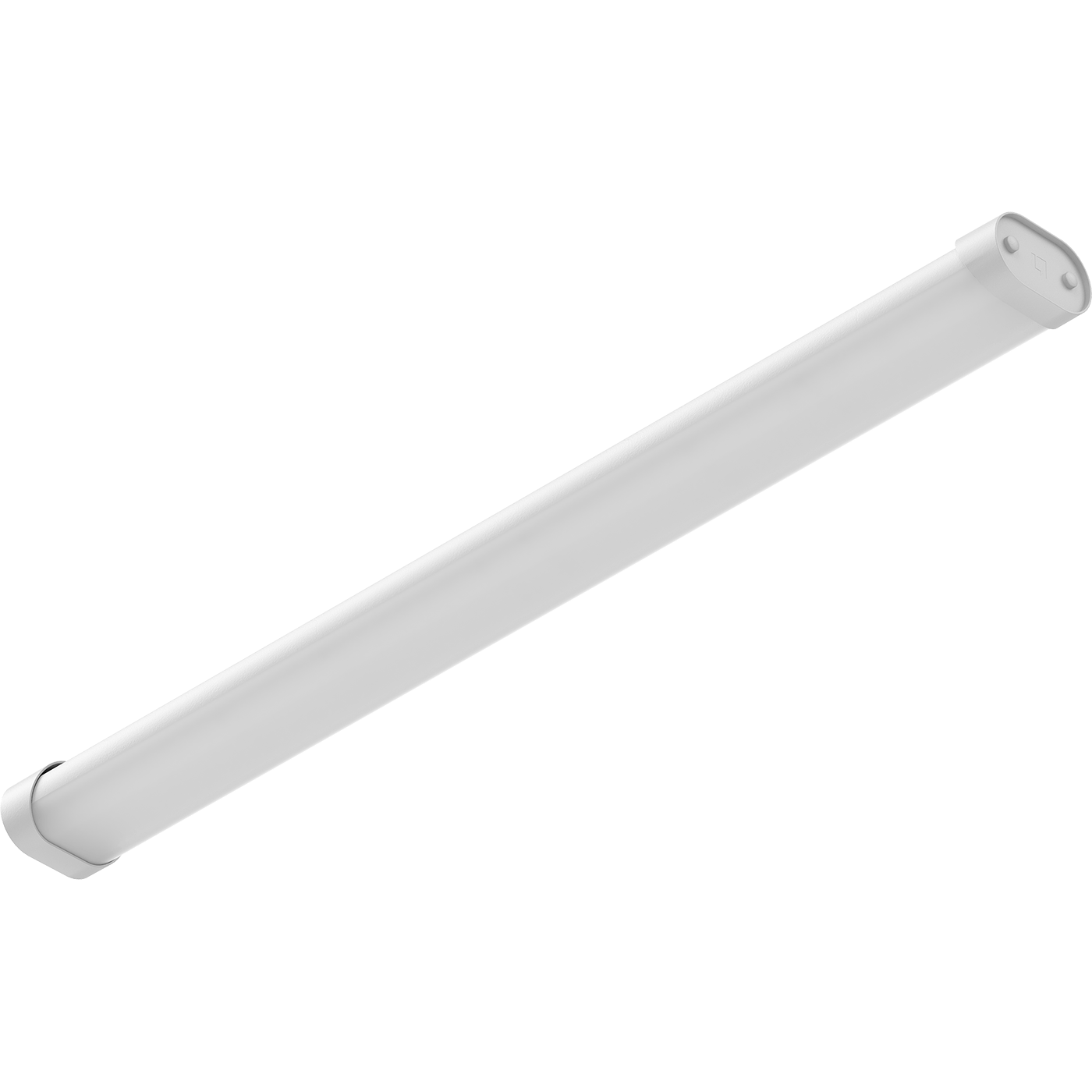

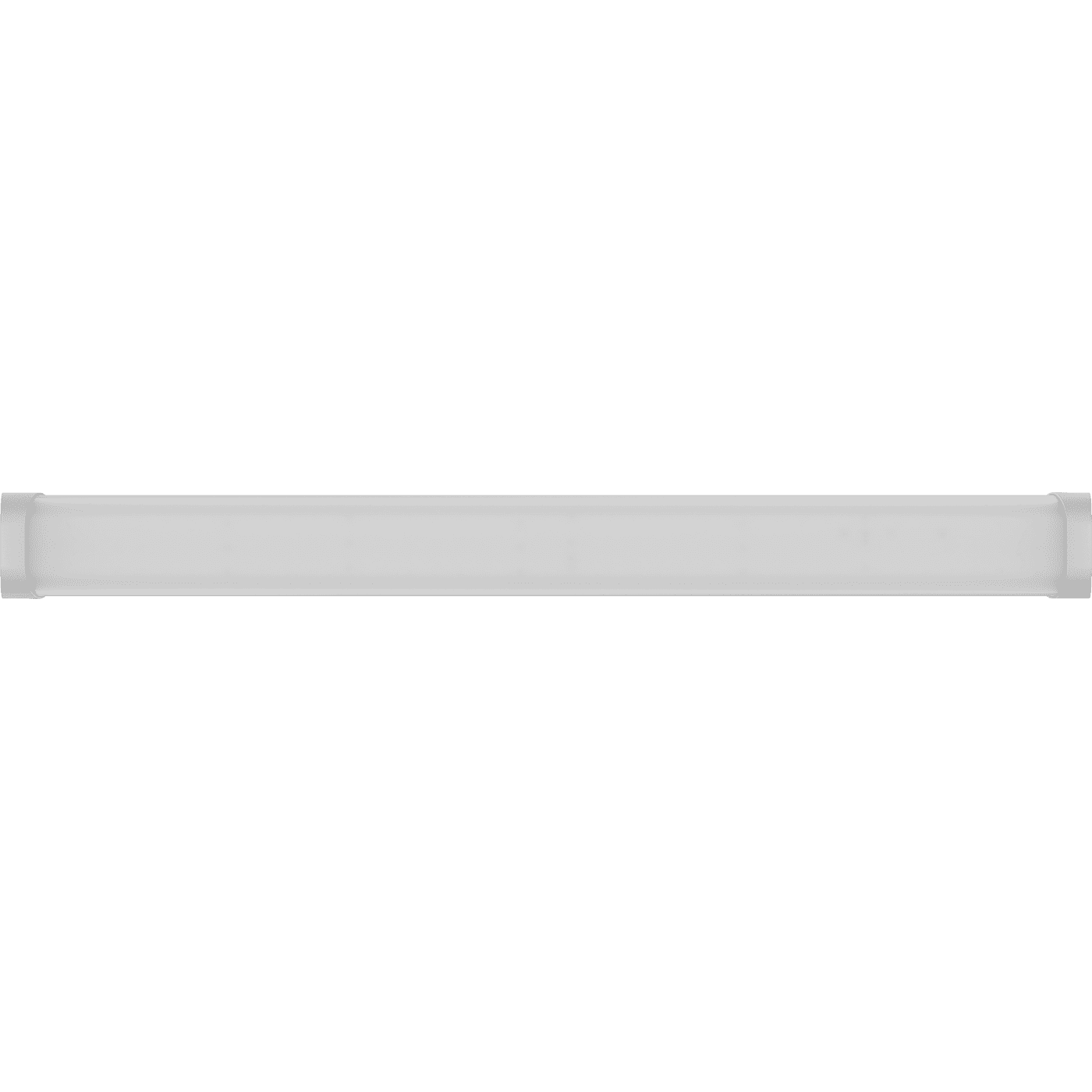

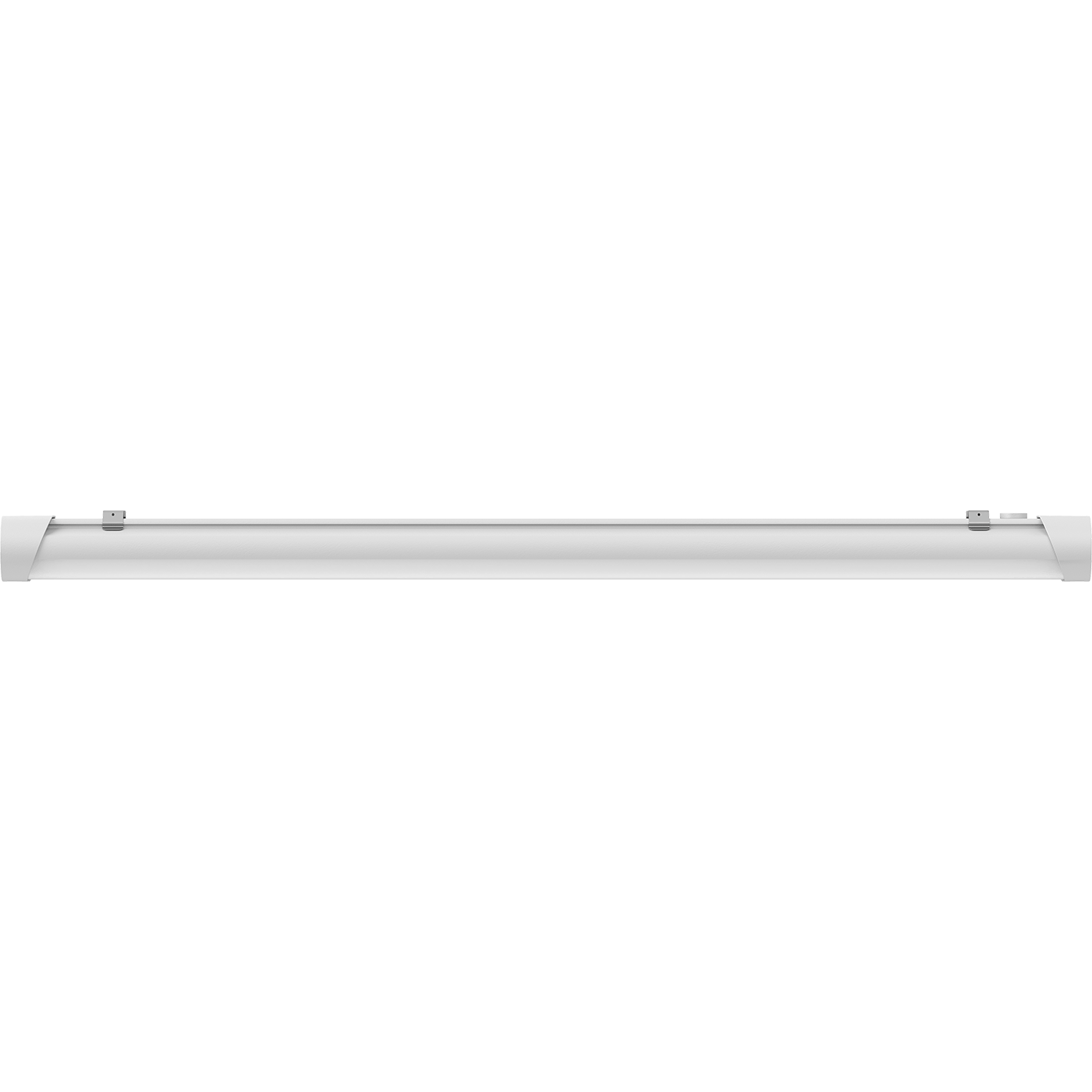

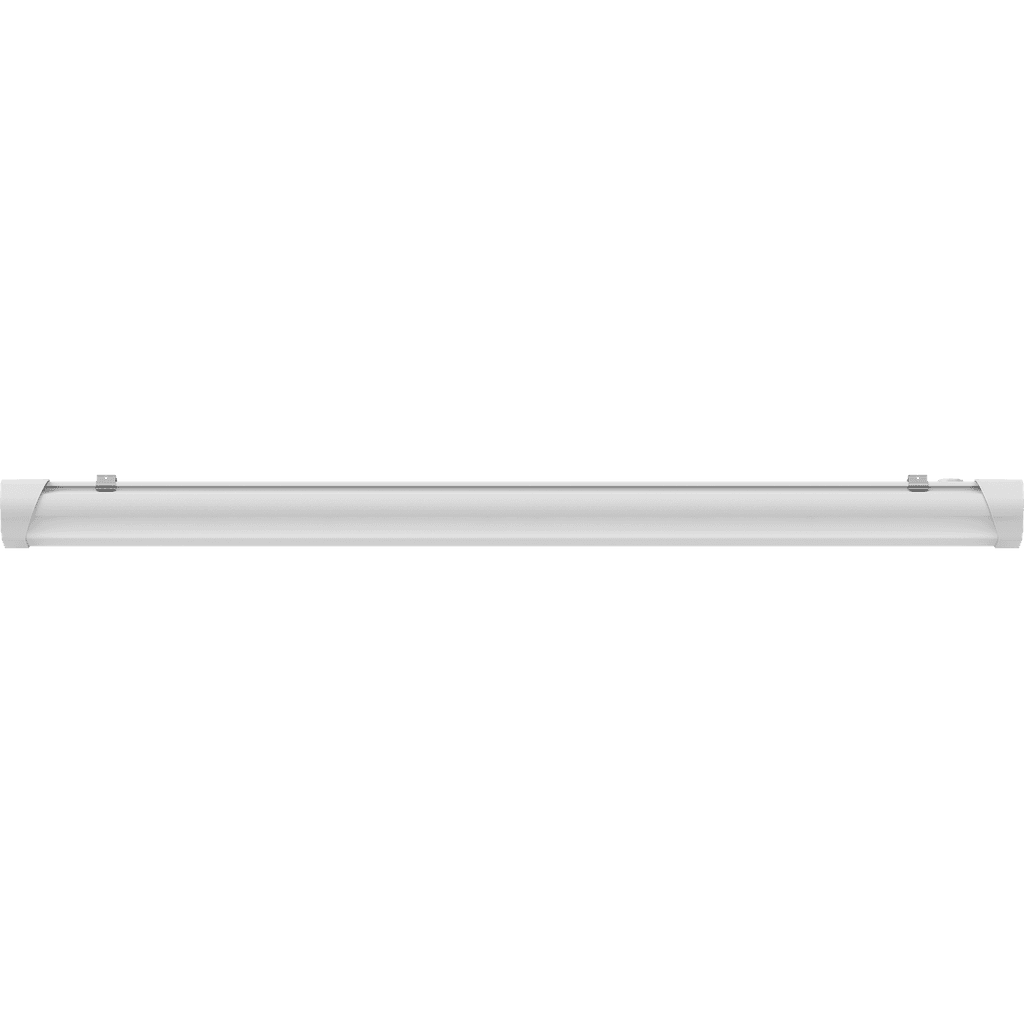

SIMPLE STANDARD (1200) 20W OPL 930 WH

SIMPLE STANDARD (1200) 20W OPL 930 WH
20 Wluminaire power
1800 lmlight flow
90 lm/Wenergy efficiency
code1898001290
color temperature3000 K
beam angleD120
old nameSIMPLE STANDARD (1200) 20W PRS 930 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
90 lm/W
color rendition index (CRI)
>90
light flow
1800 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
90 lm/W
color rendition index (CRI)
>90
light flow
1800 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1070 mm
width
105 mm
height
65 mm
installation length
820 mm
weight
1.5 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898001290
model files
model files

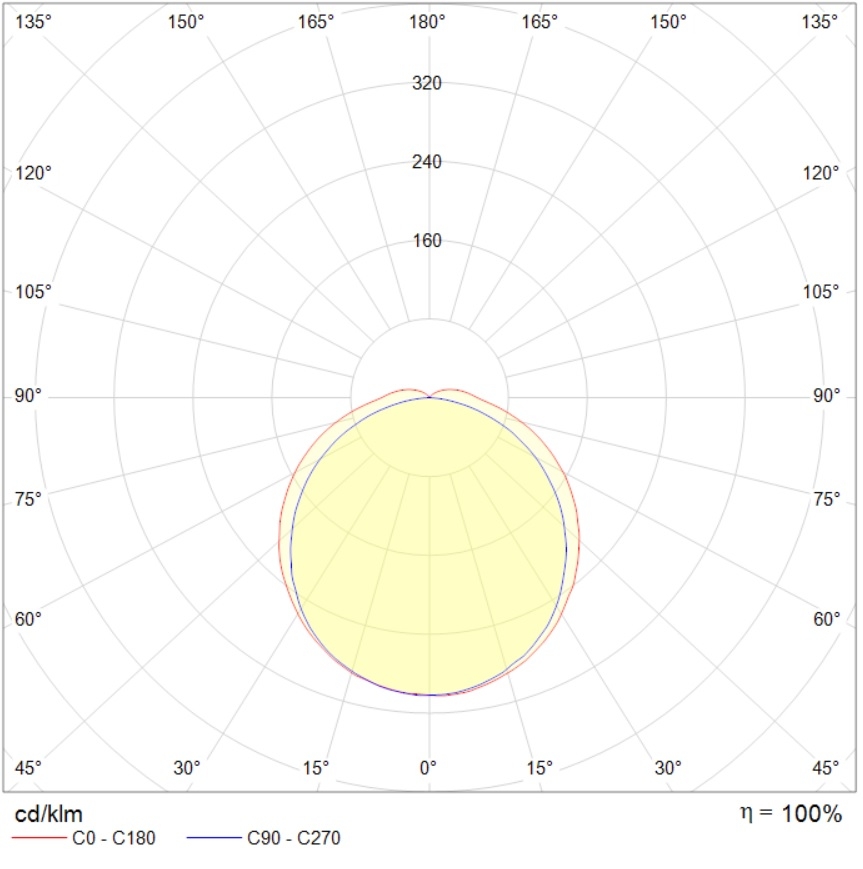

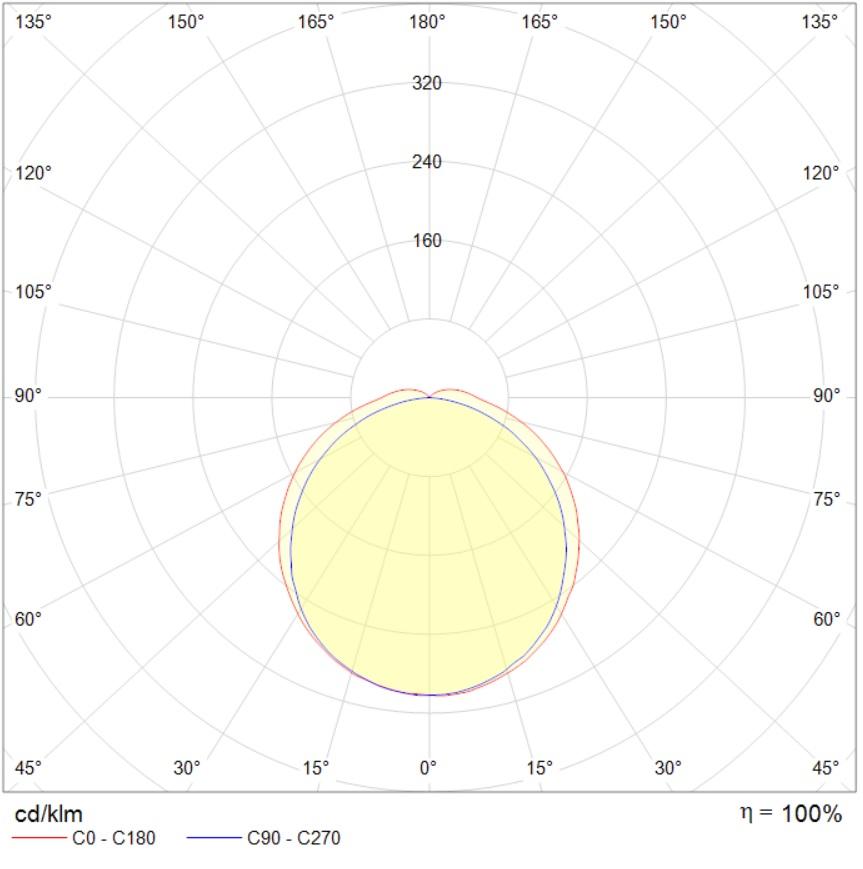

photometric files
