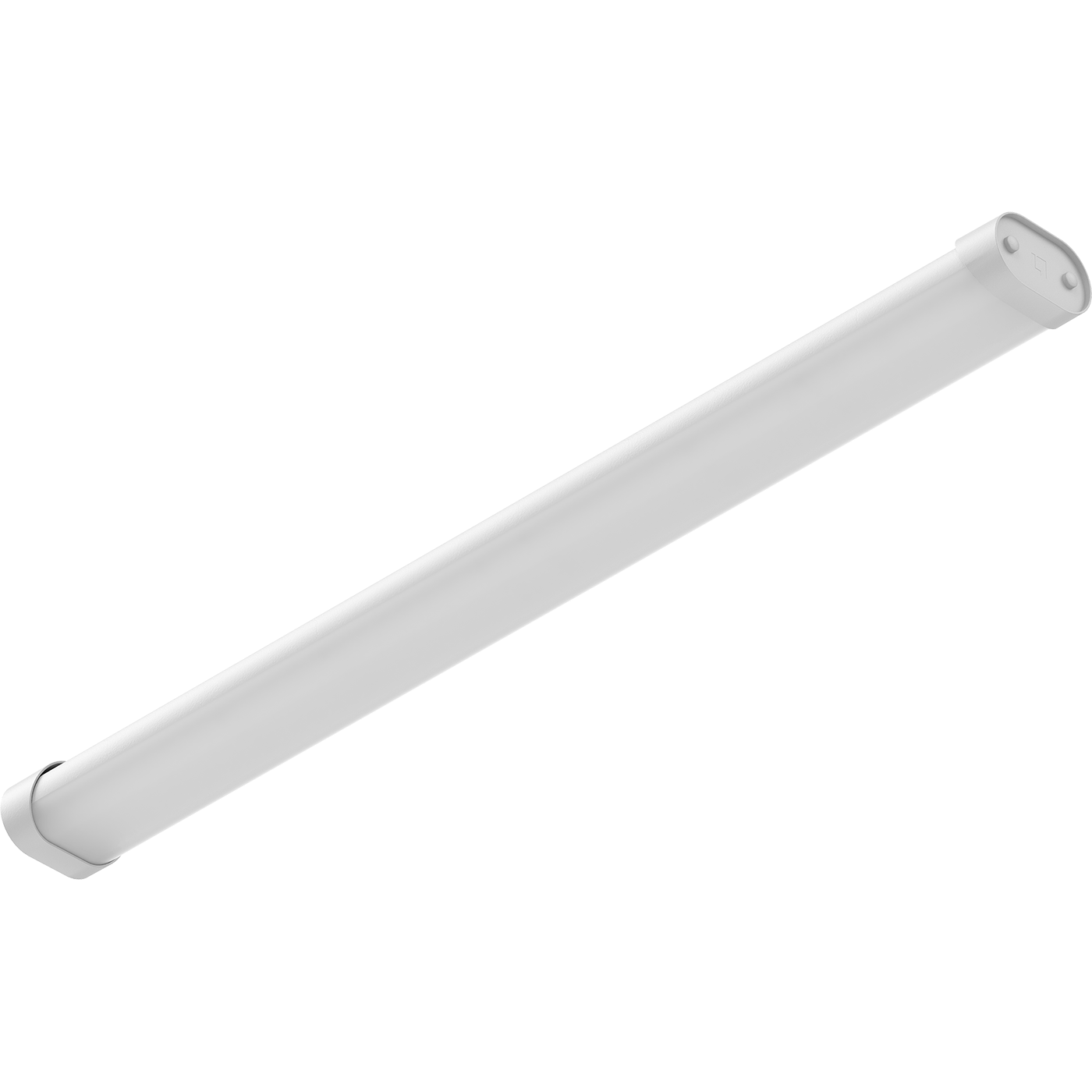

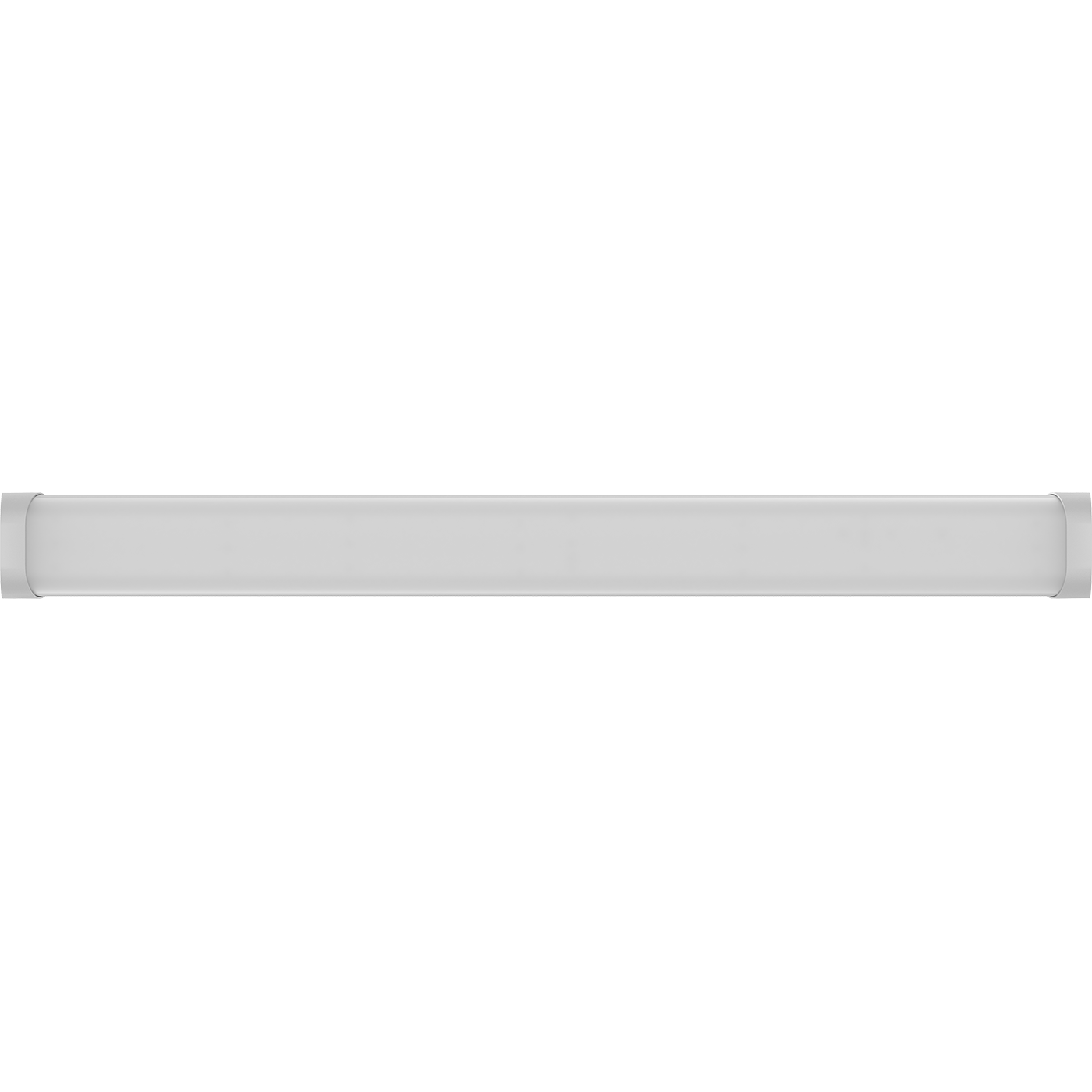

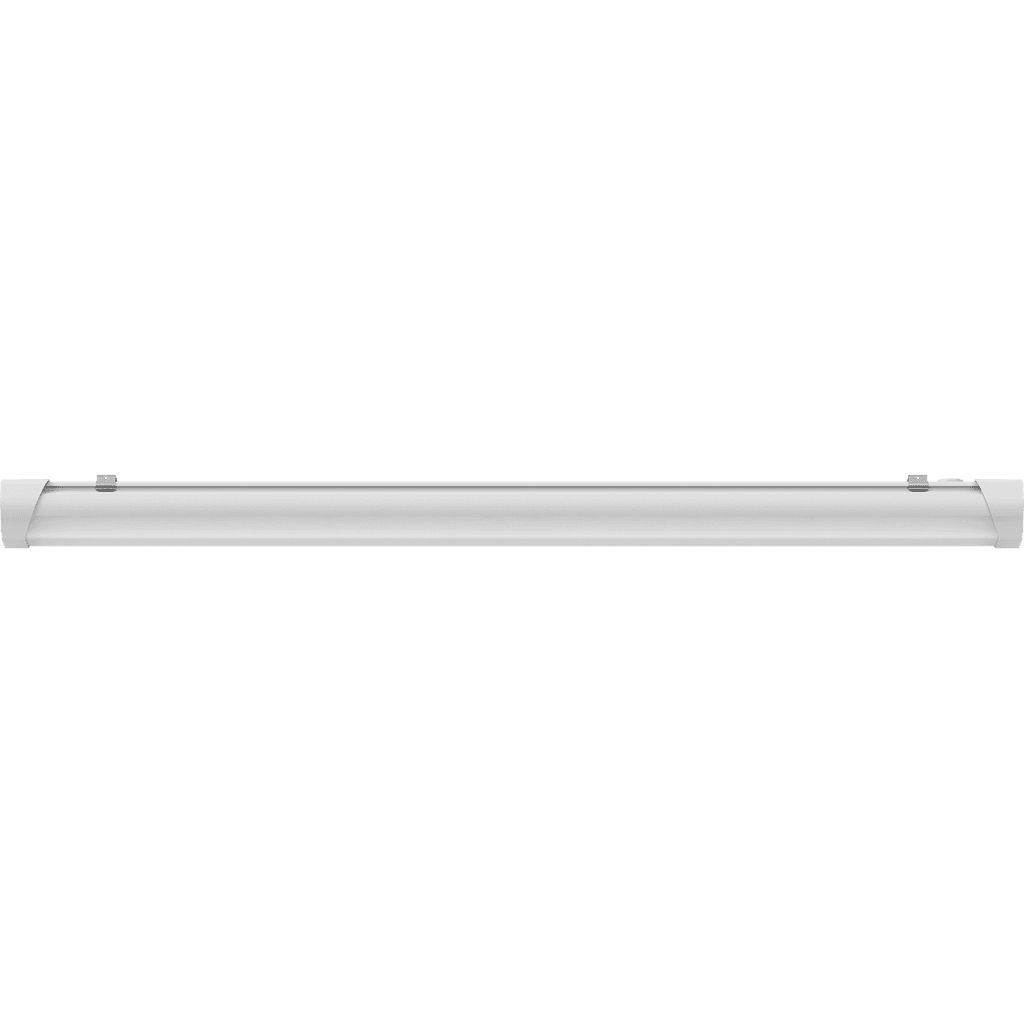

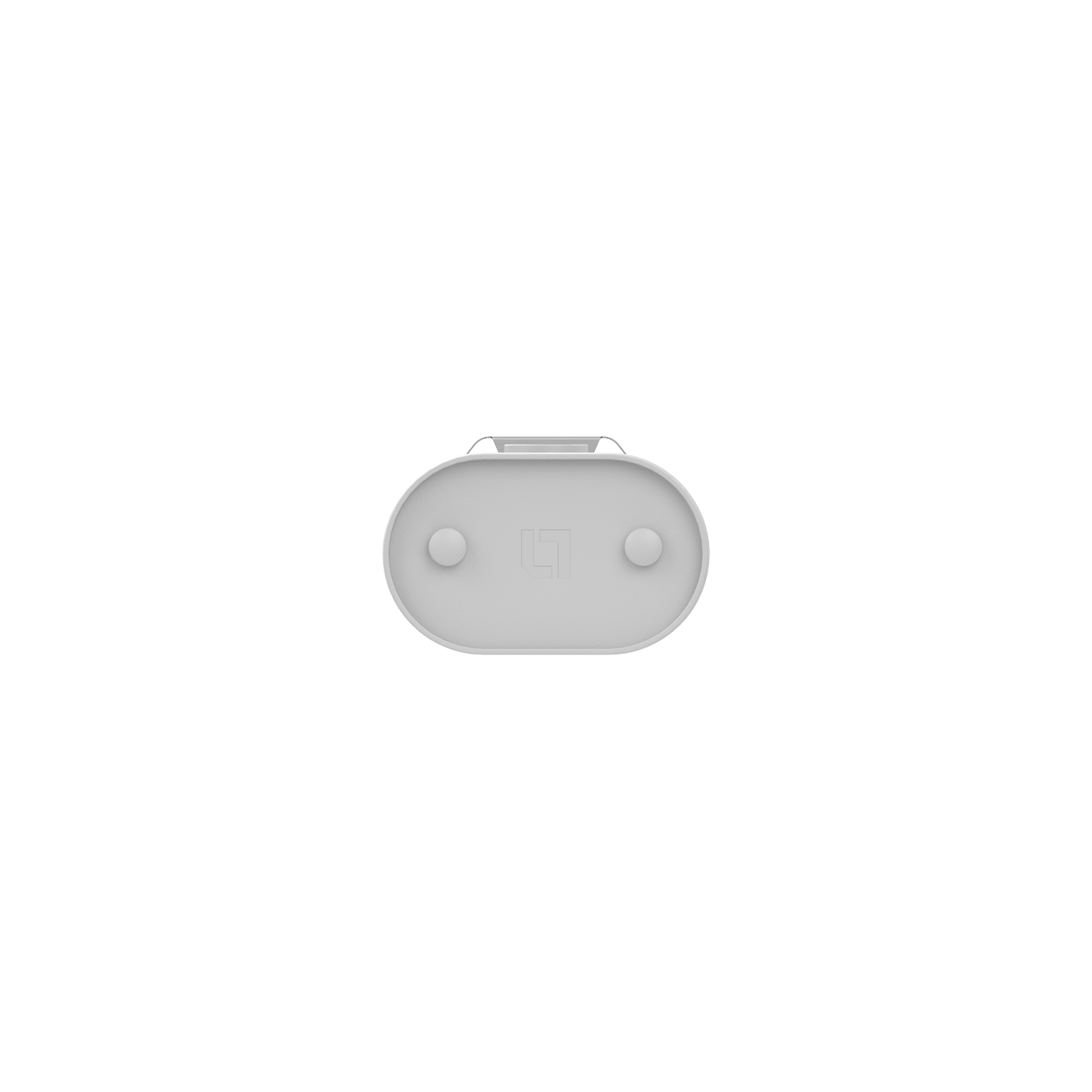

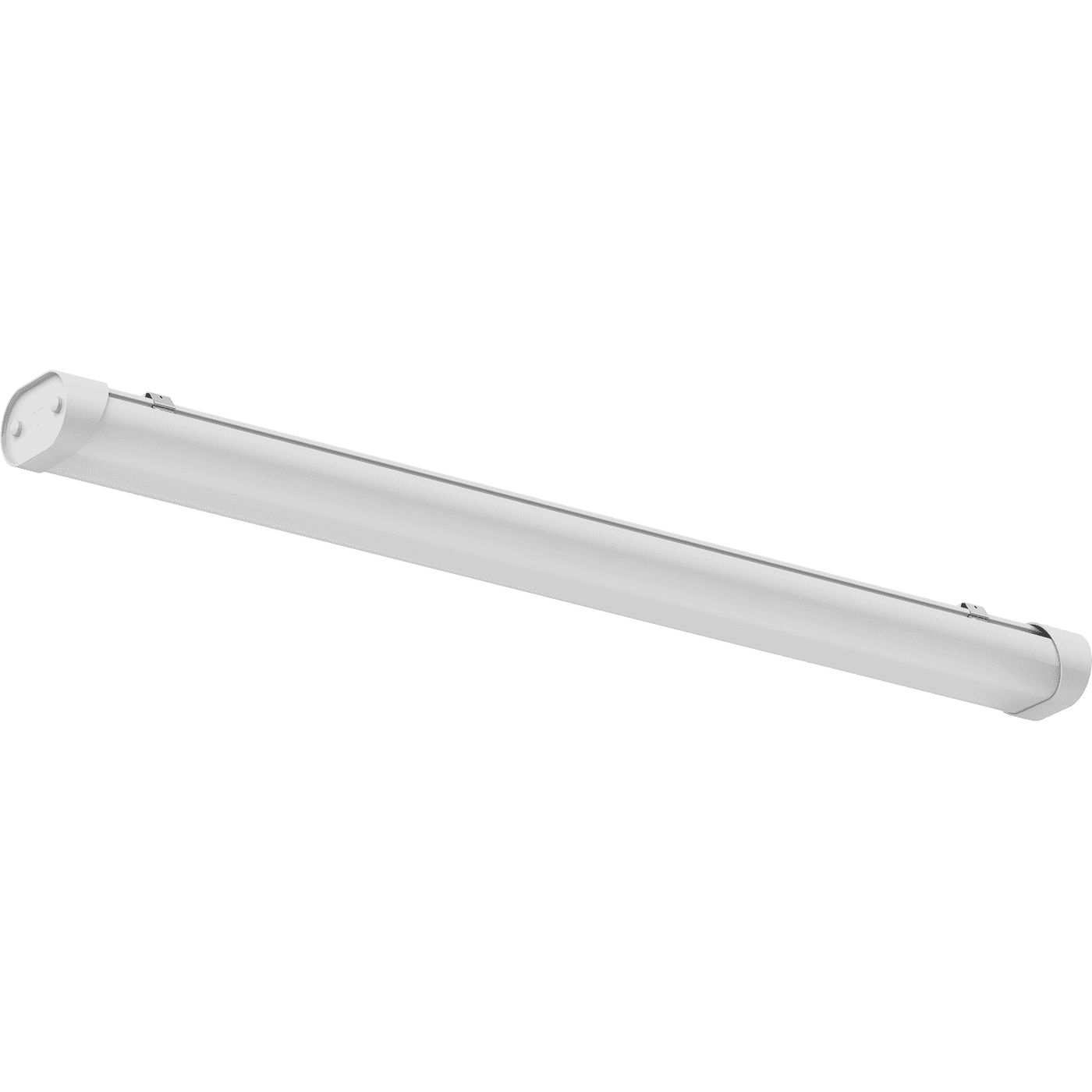

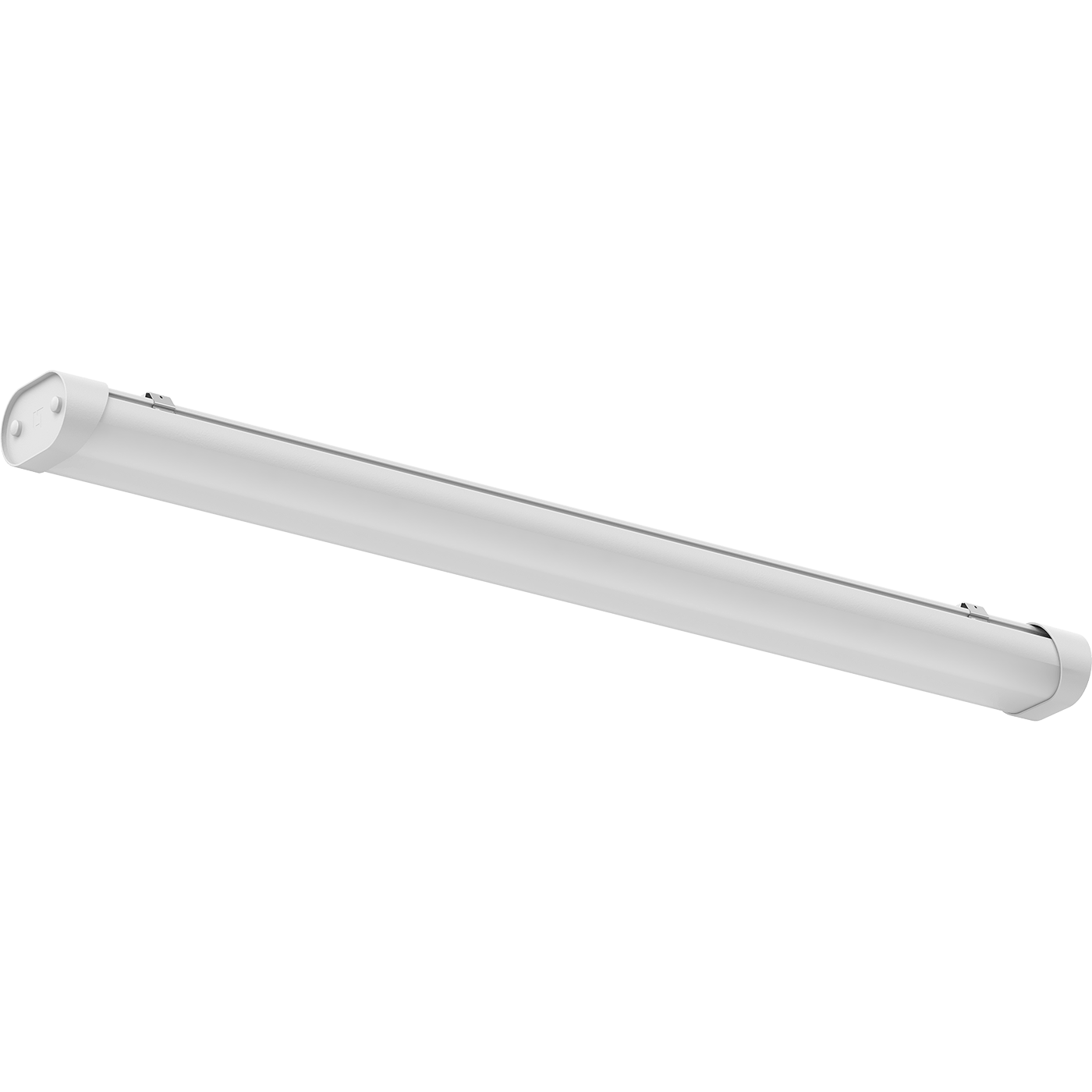

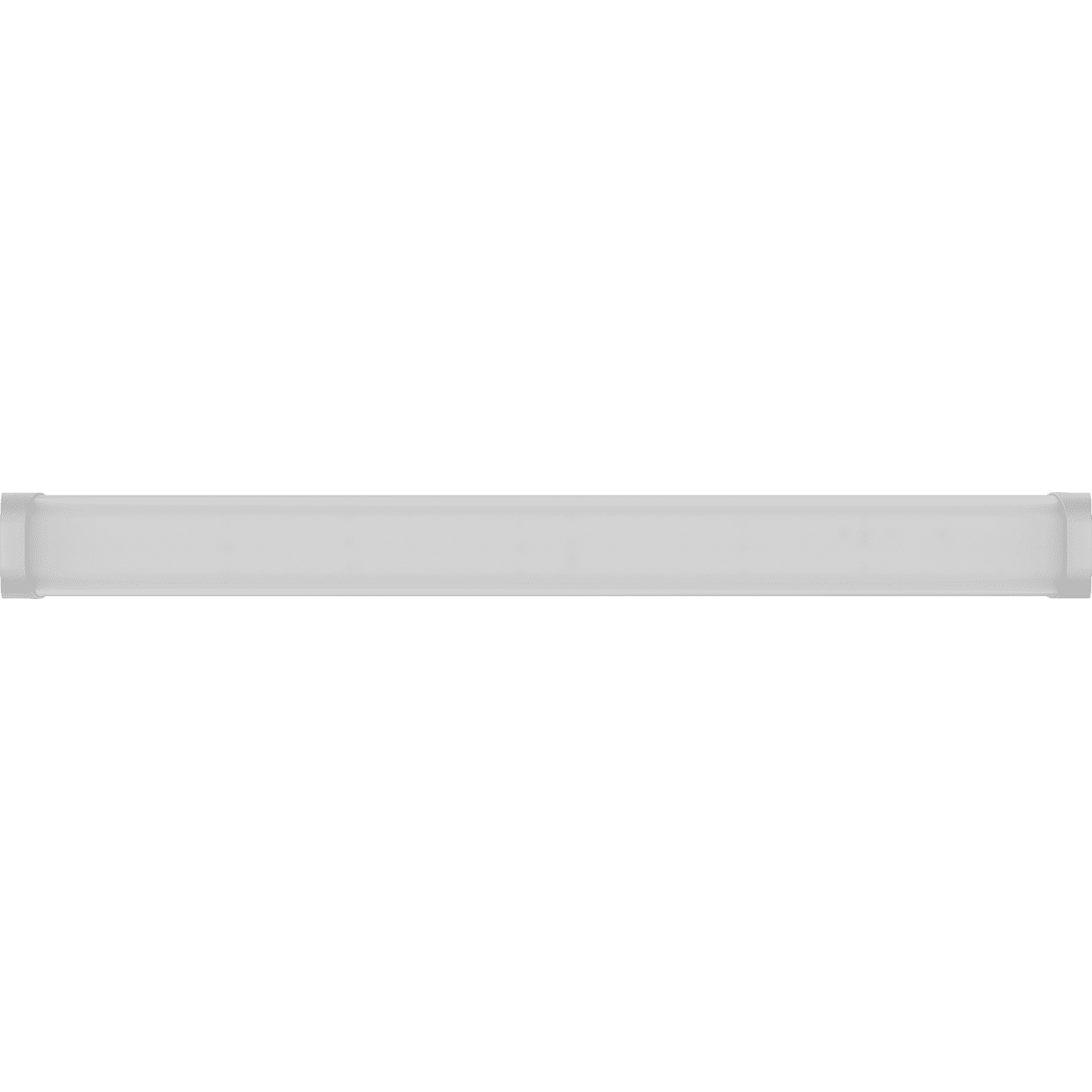

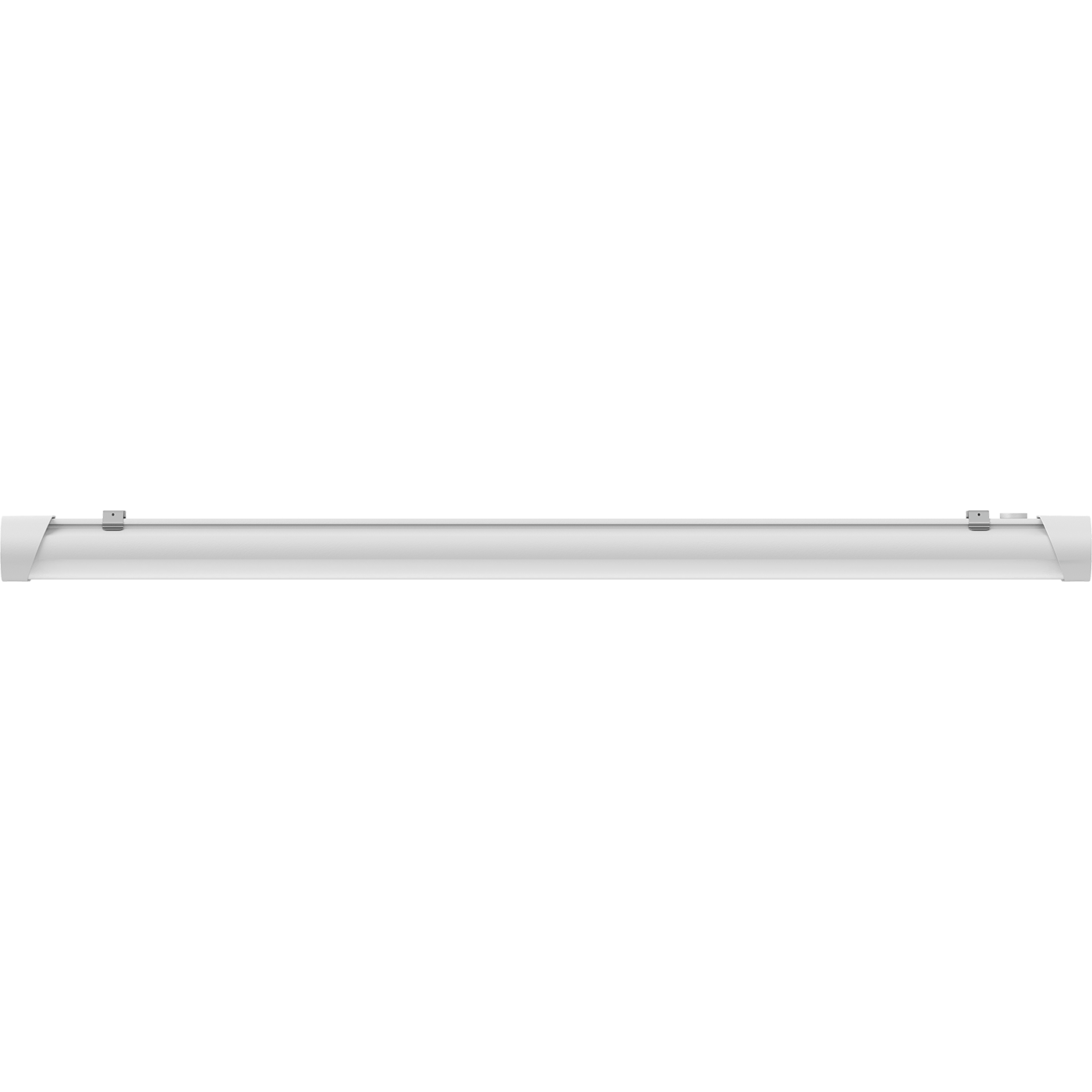

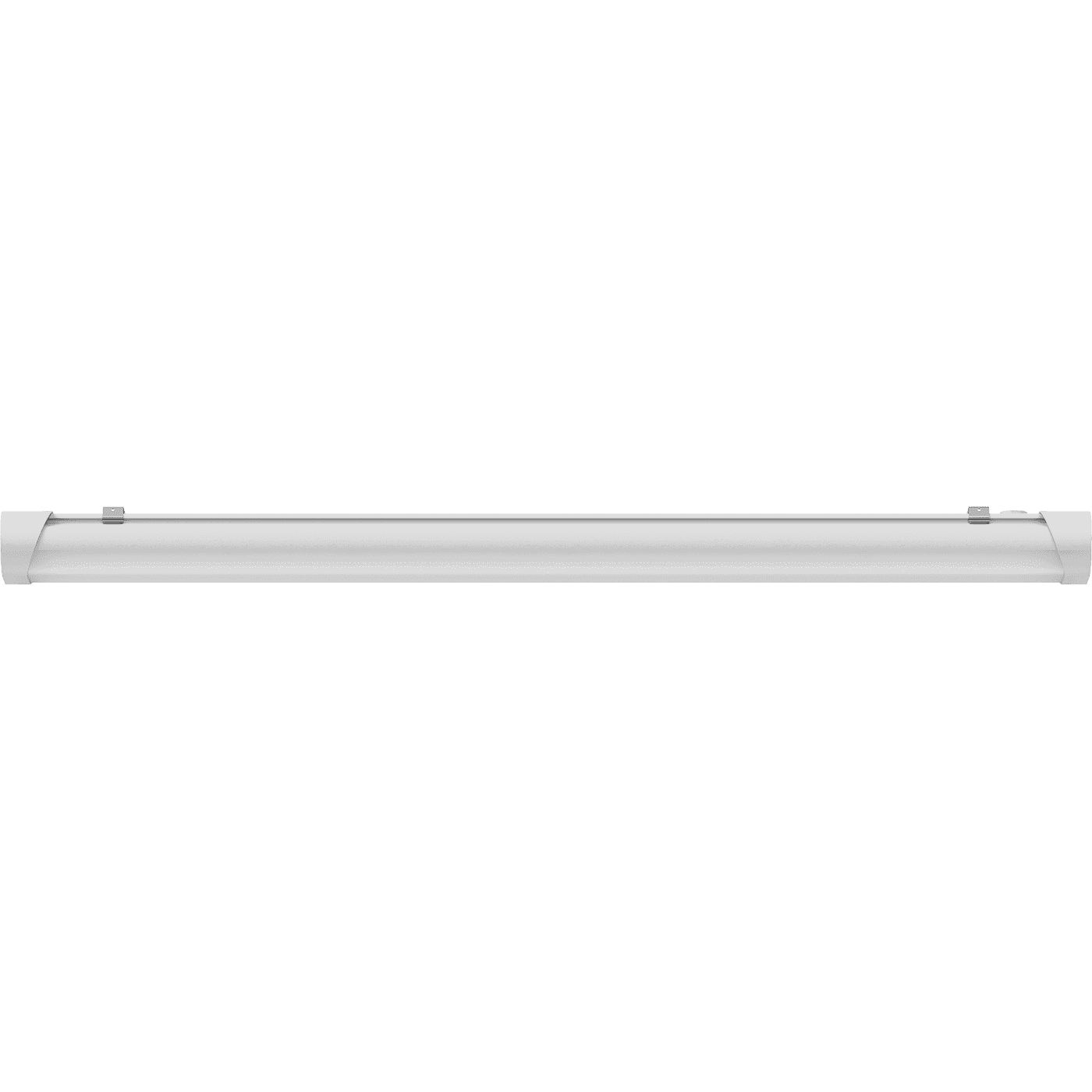

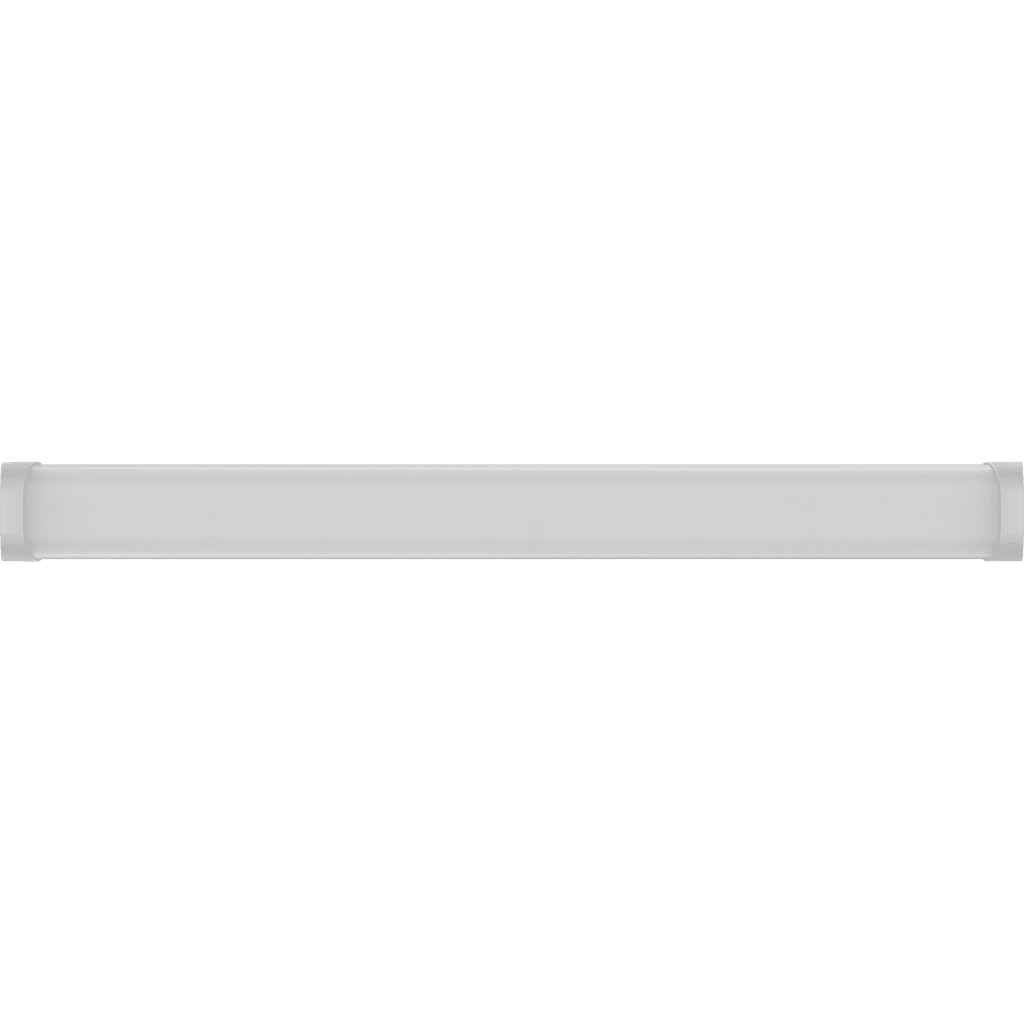

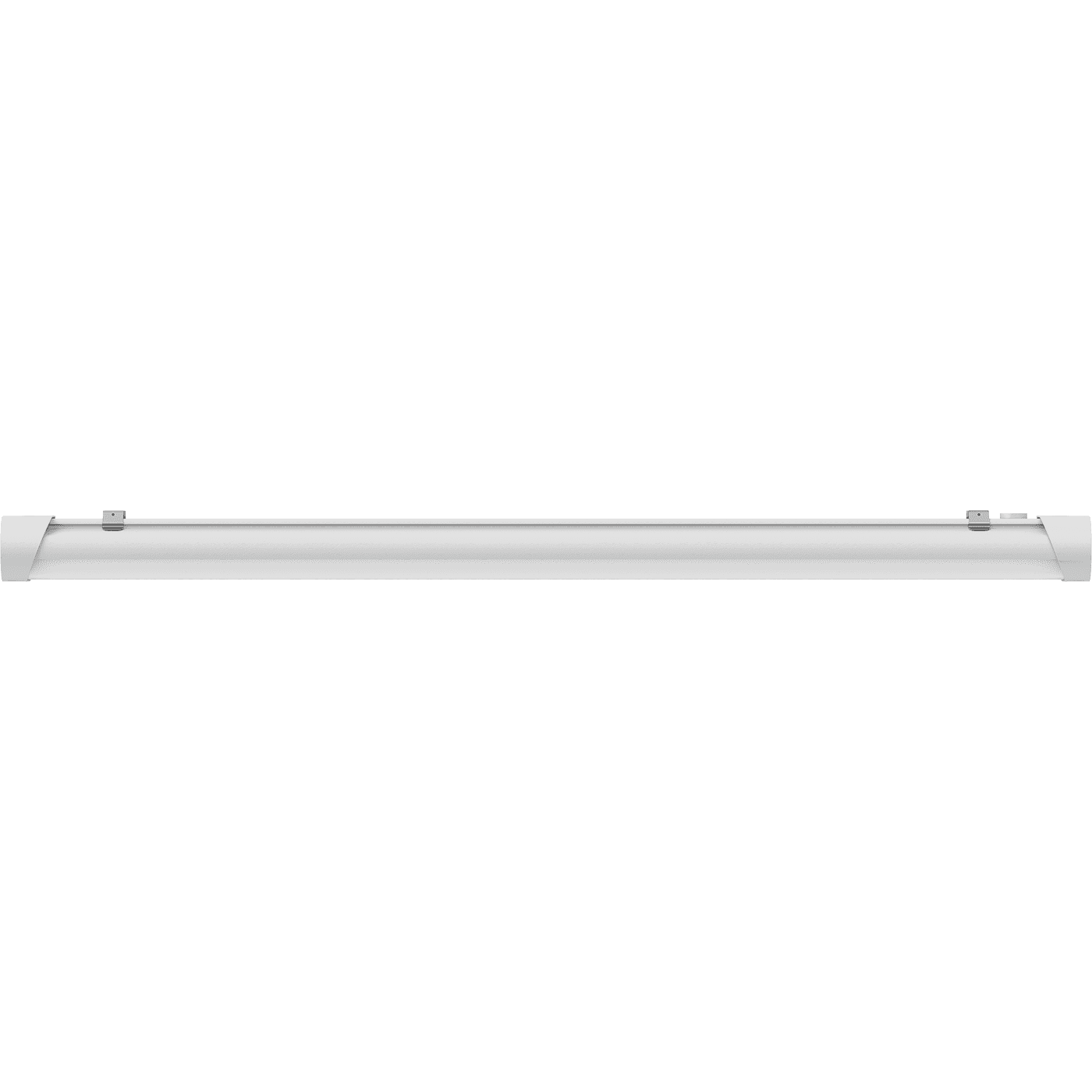

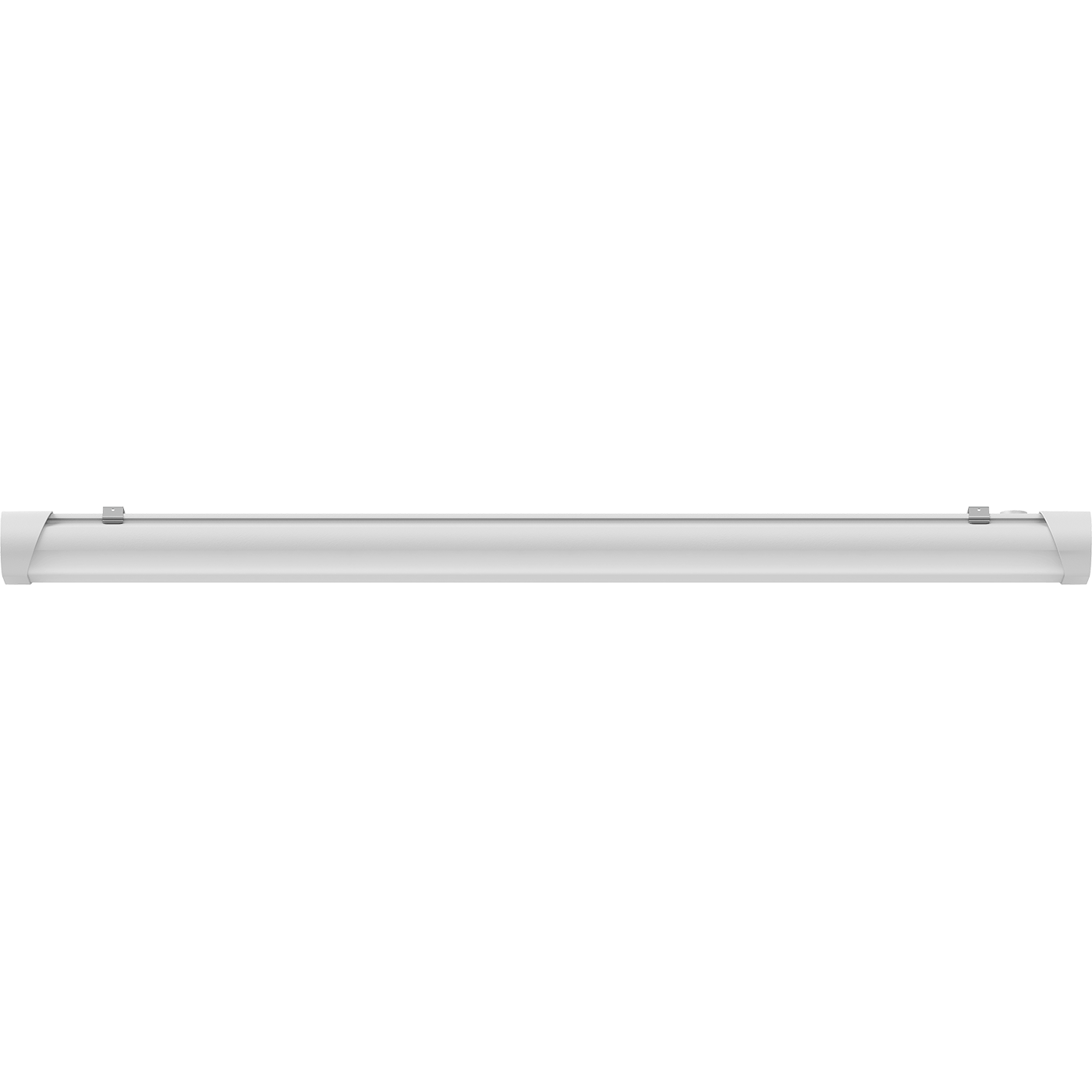

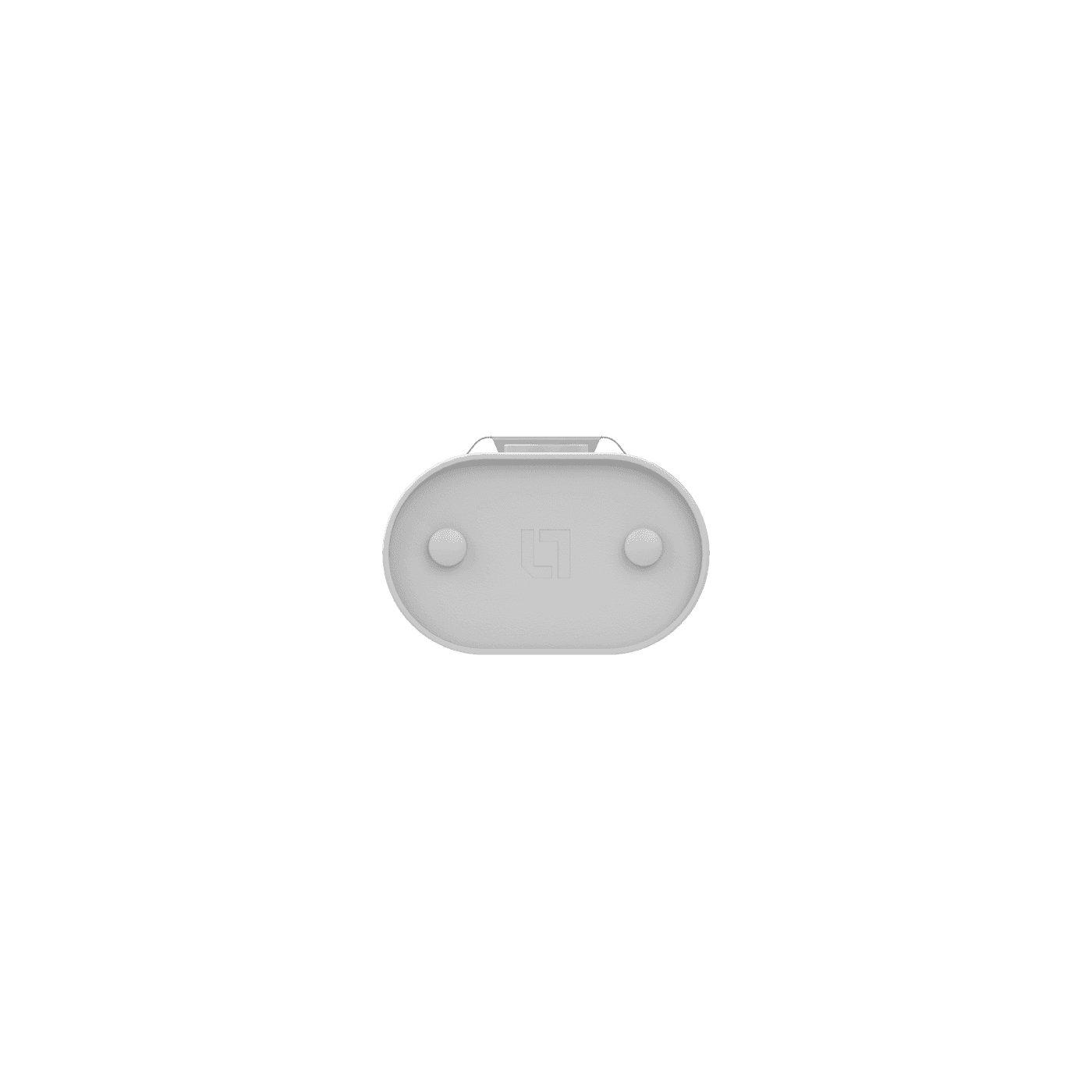

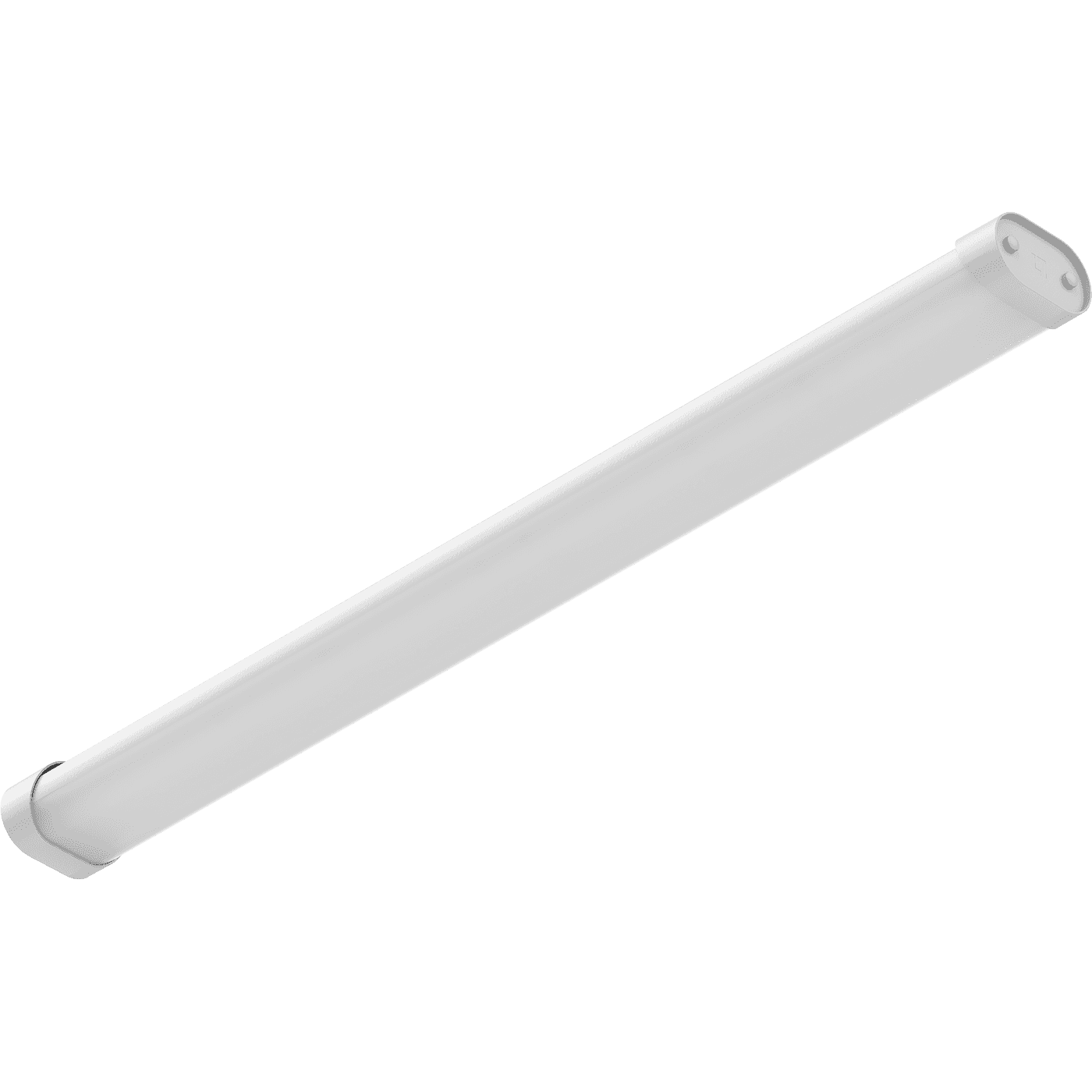

SIMPLE OPTIMA (1200) 40W OPL 930 WH
SIMPLE OPTIMA (1200) 40W OPL 930 WH
40 Wluminaire power
4000 lmlight flow
100 lm/Wenergy efficiency
code1898003550
color temperature3000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
30 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
40 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
material
Поликарбонат
housing color
Белый
length, mm
1070 mm
width, mm
105 mm
height, mm
65 mm
weight
1.5 kg
climatic performance
УХЛ4*
installation length, mm
820 mm
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1898003550
energy efficiency class
A+
illuminating
color rendition index (CRI)
>90
light flow
4000 lm
flickering factor
<1%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
energy efficiency
100 lm/W
model files
model files

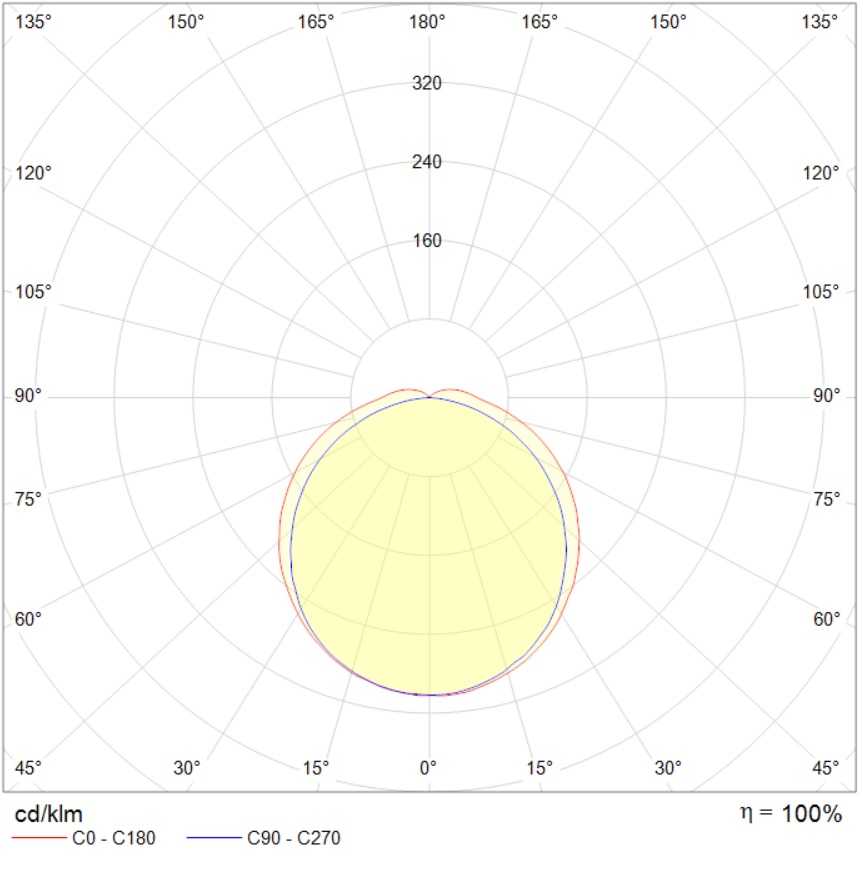

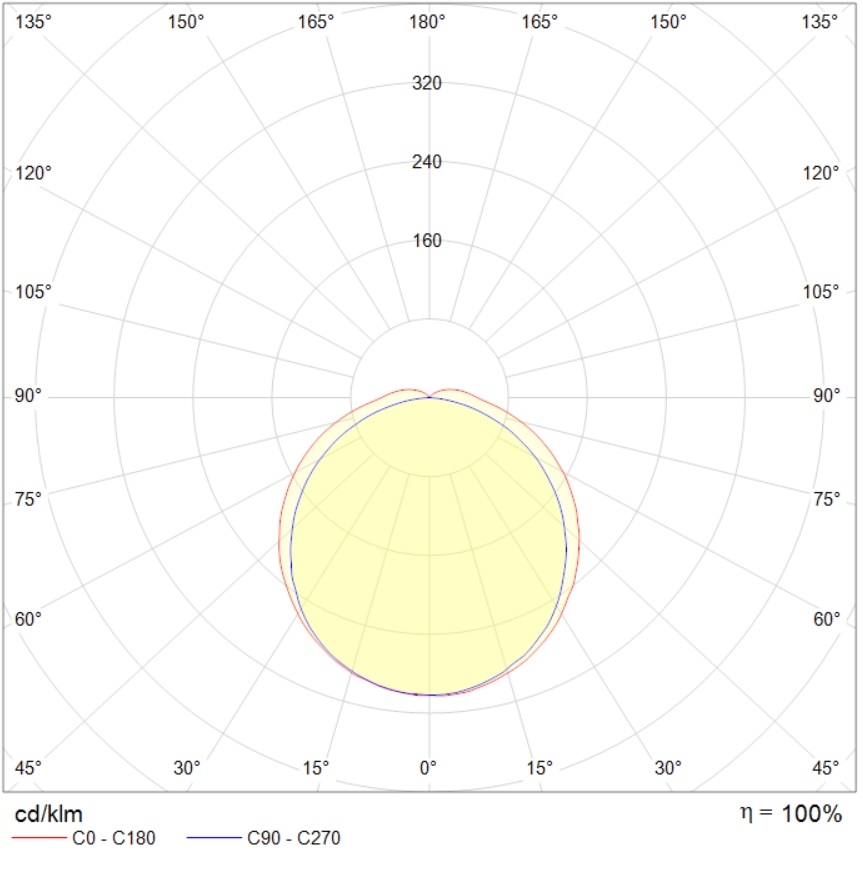

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg96.9 kB
ldt73.7 kB
documents
passport1.7 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
