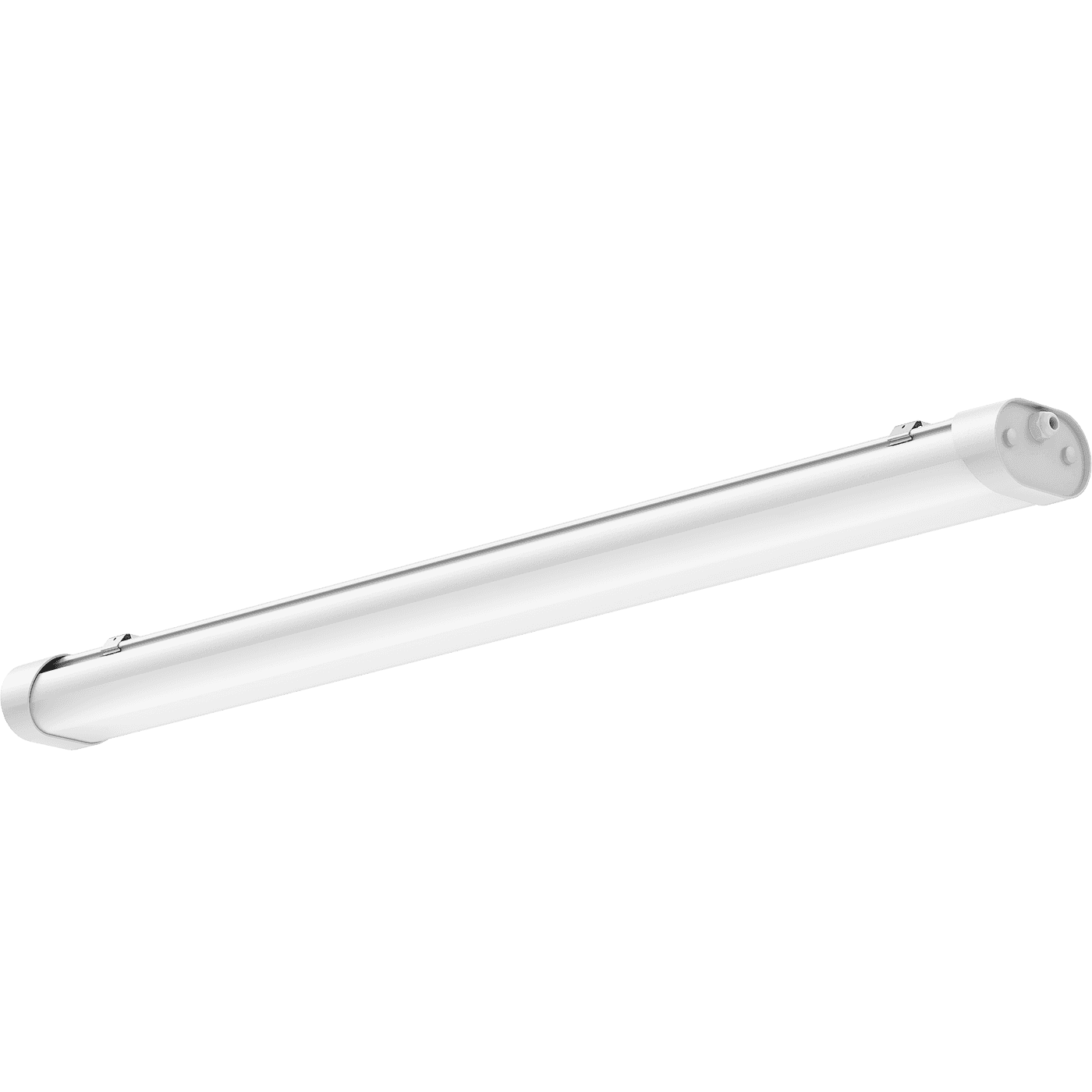

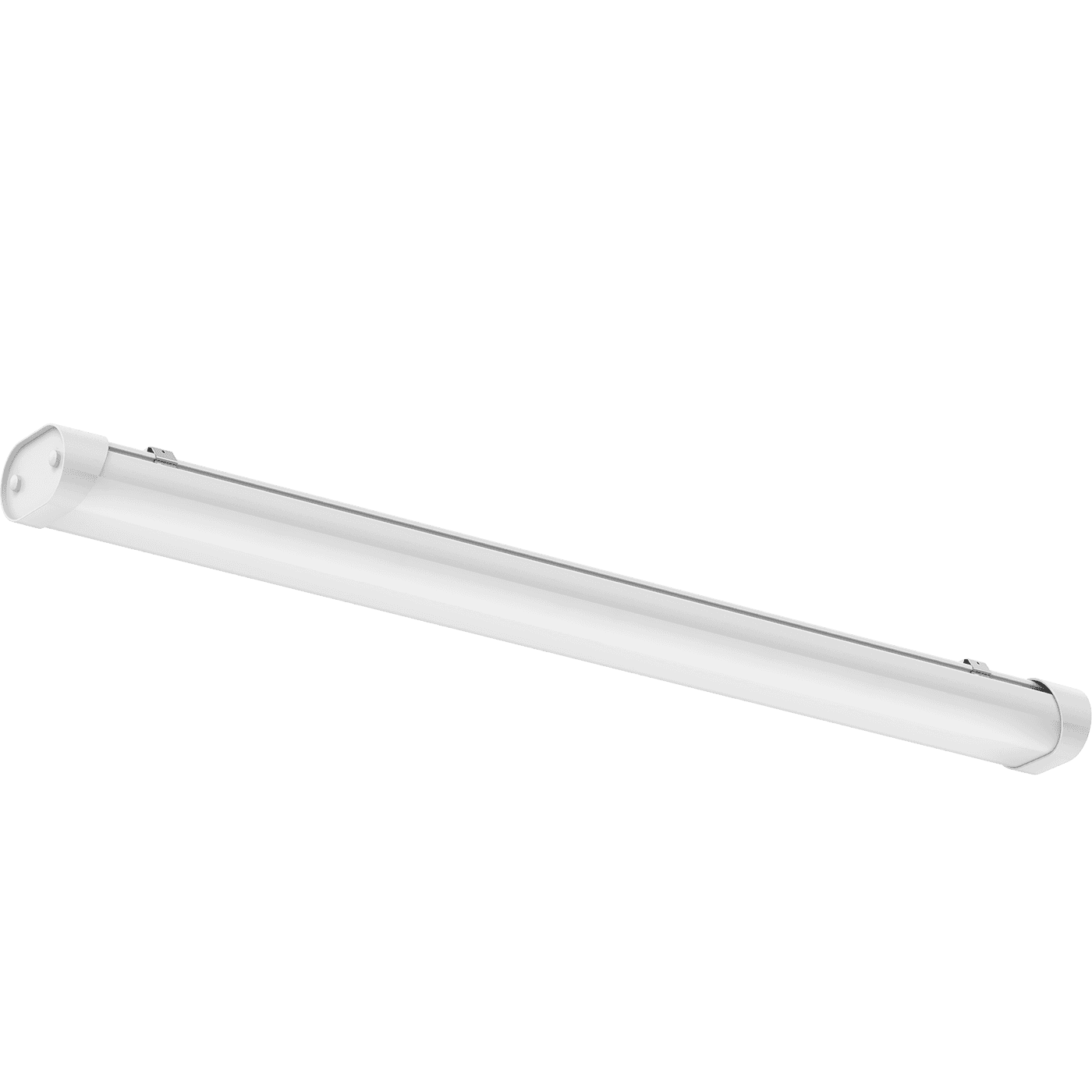

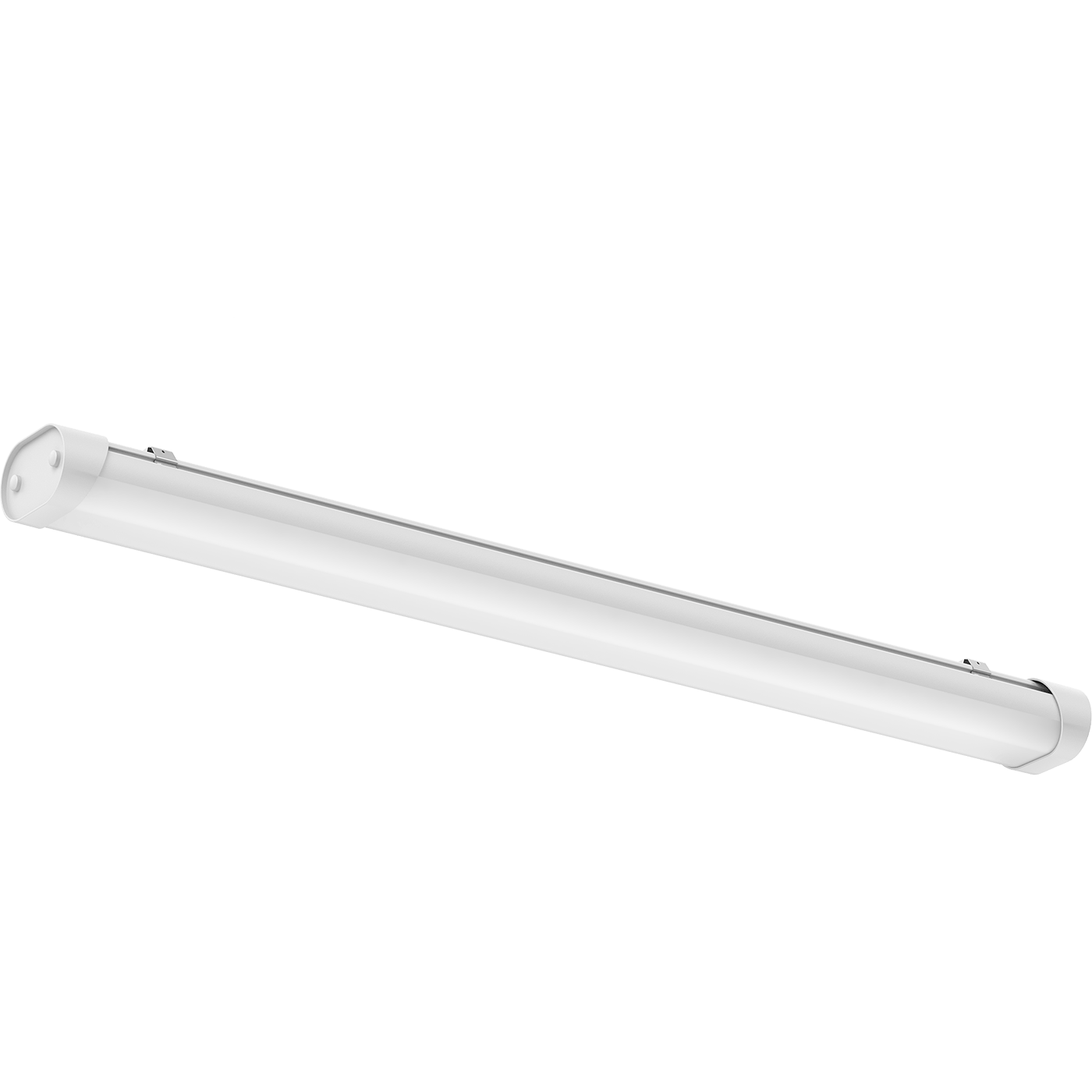

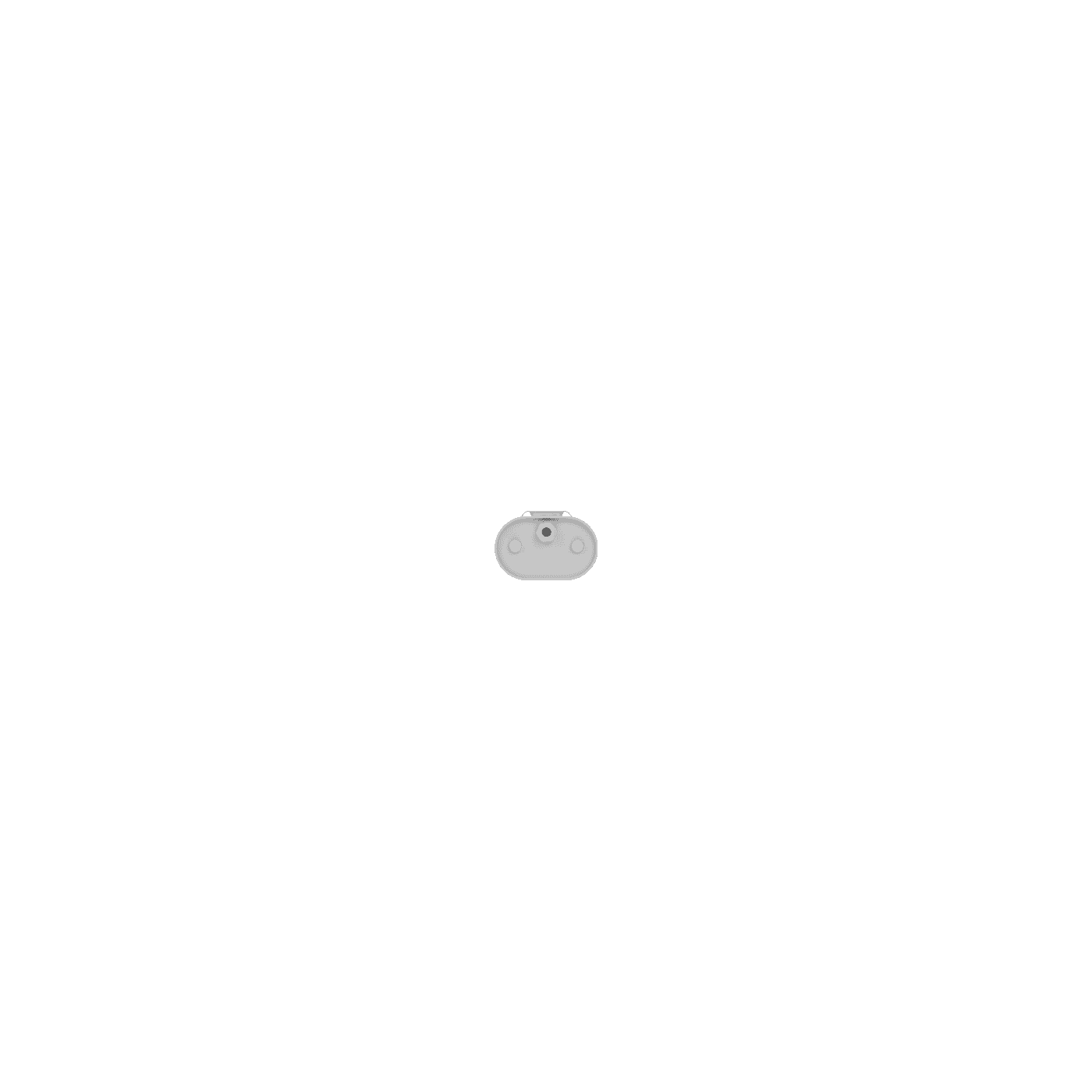

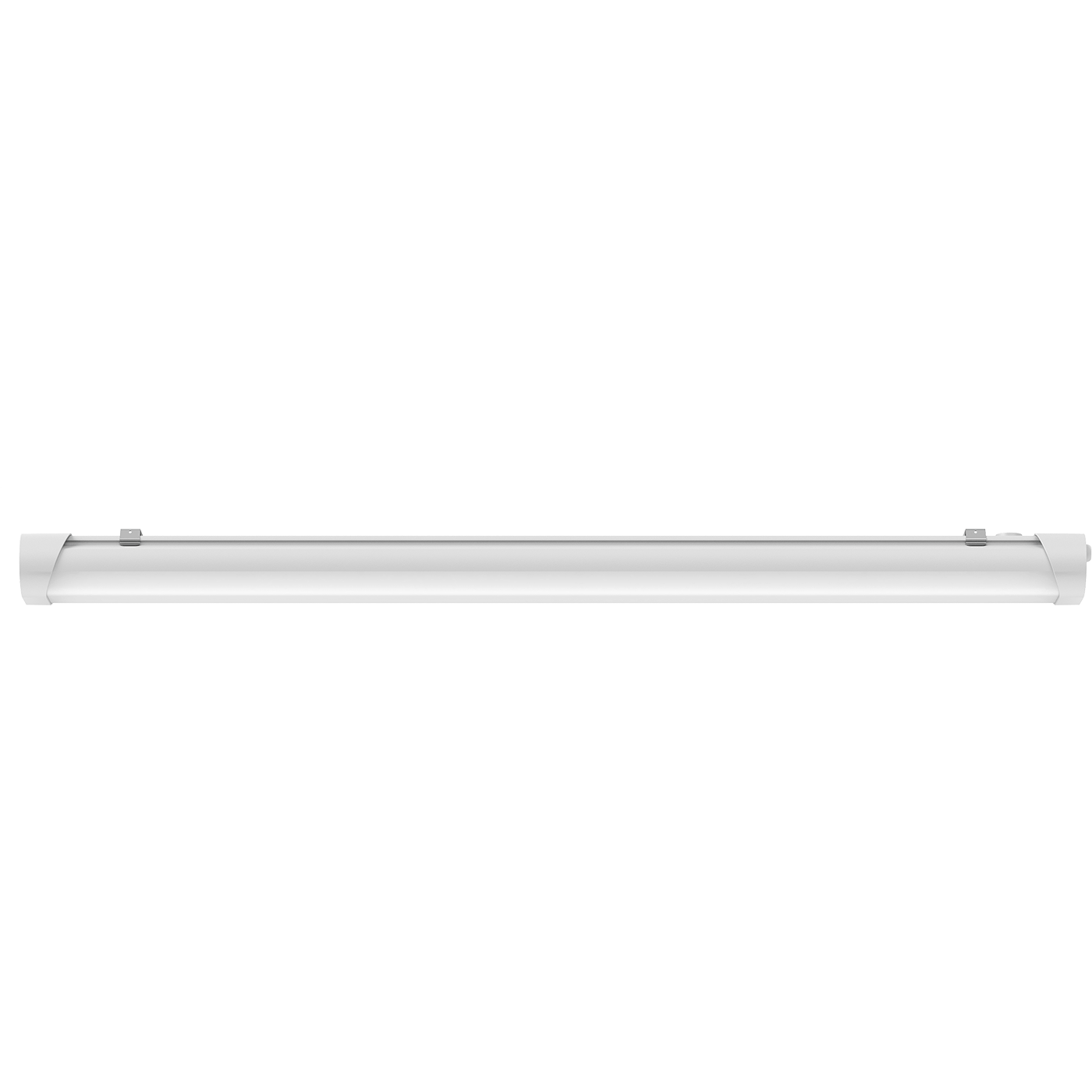

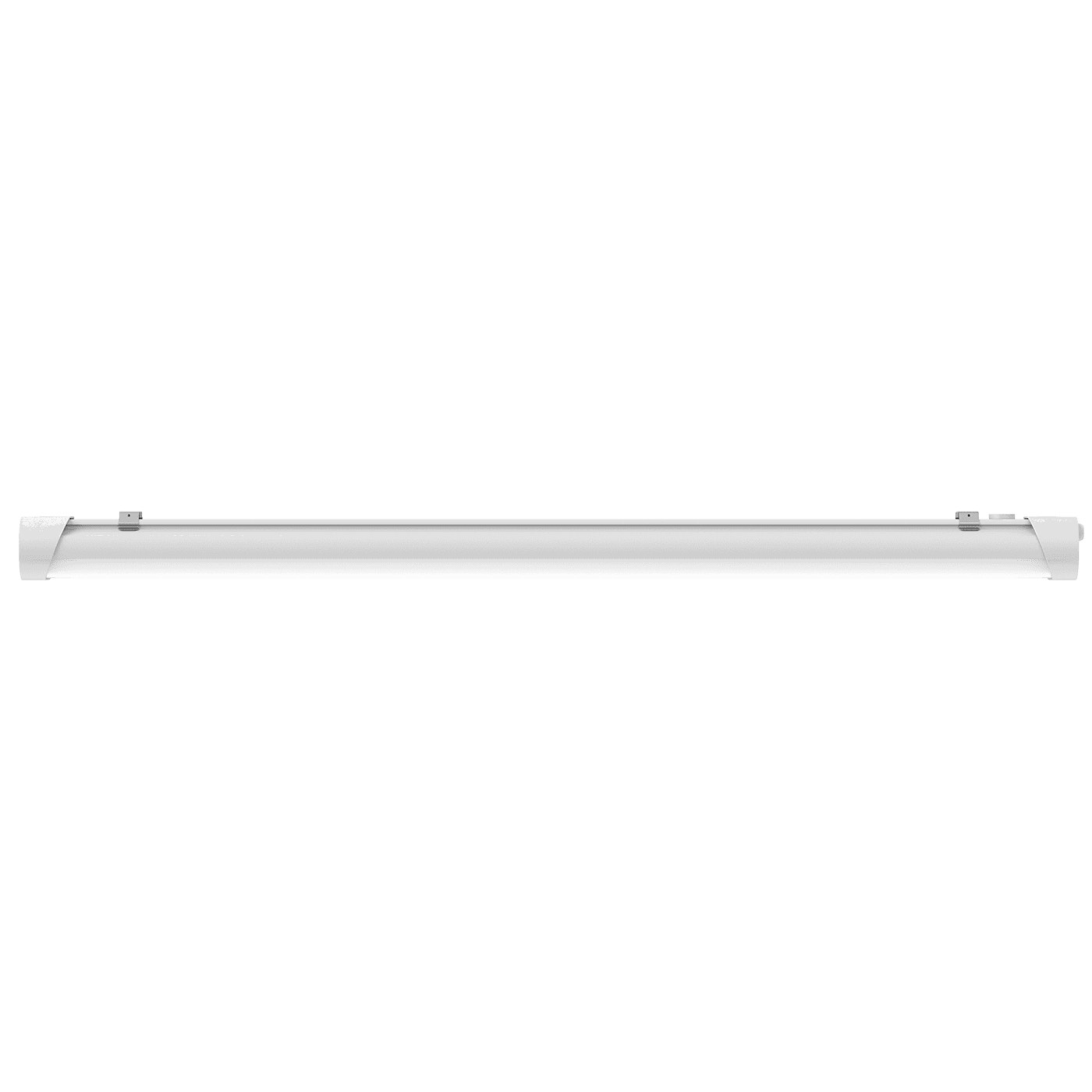

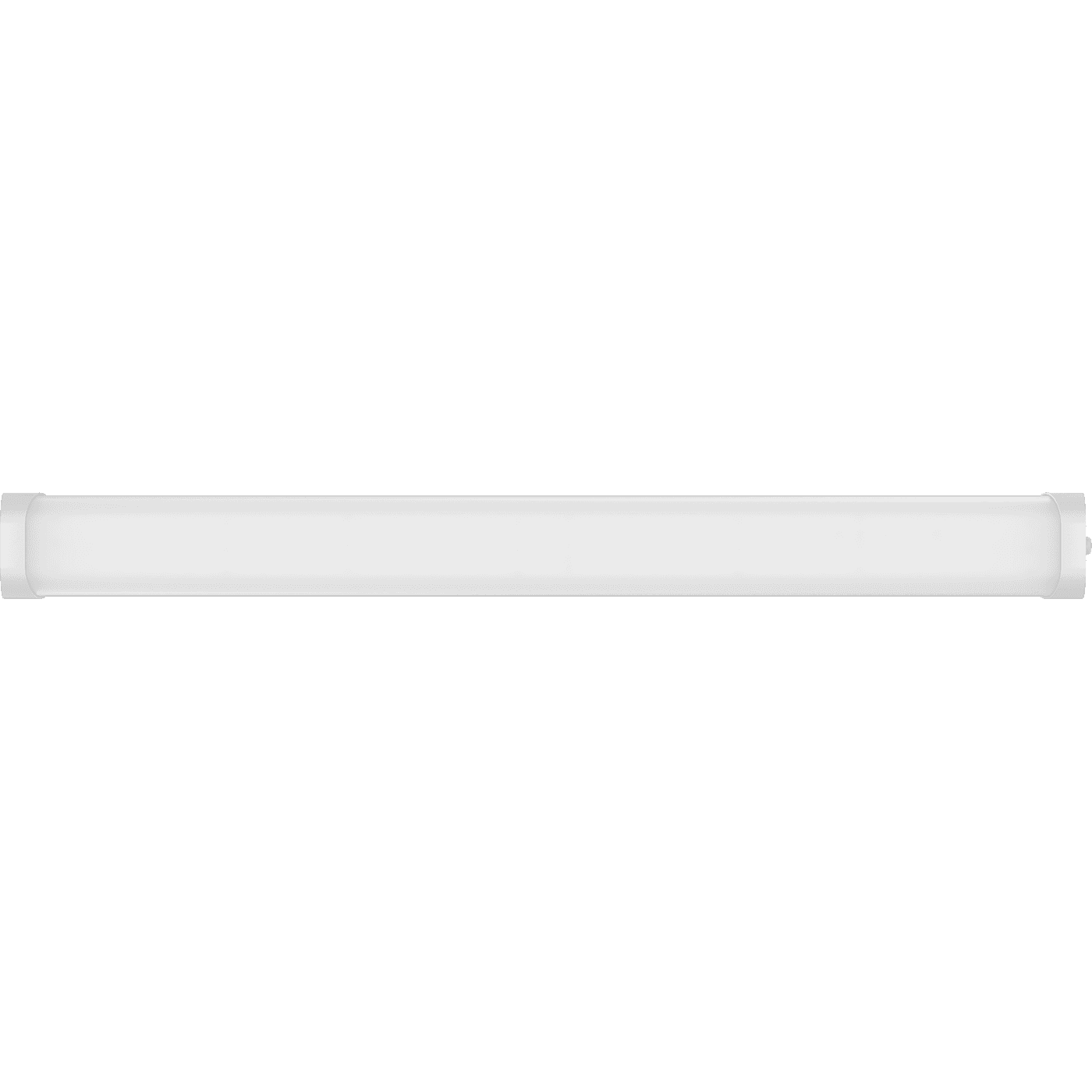

SIMPLE OPTIMA (300) 10W OPL 830 WH IP54
SIMPLE OPTIMA (300) 10W OPL 830 WH IP54
10 Wluminaire power
1200 lmlight flow
120 lm/Wenergy efficiency
code1898007010
color temperature3000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
120 lm/Wcolor rendition index (CRI)
>80light flow
1200 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
120 lm/W
color rendition index (CRI)
>80
light flow
1200 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
10 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
15 A
constructional
length
320 mm
width
105 mm
height
65 mm
installation length
150 mm
weight
0.7 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898007010
model files
model files

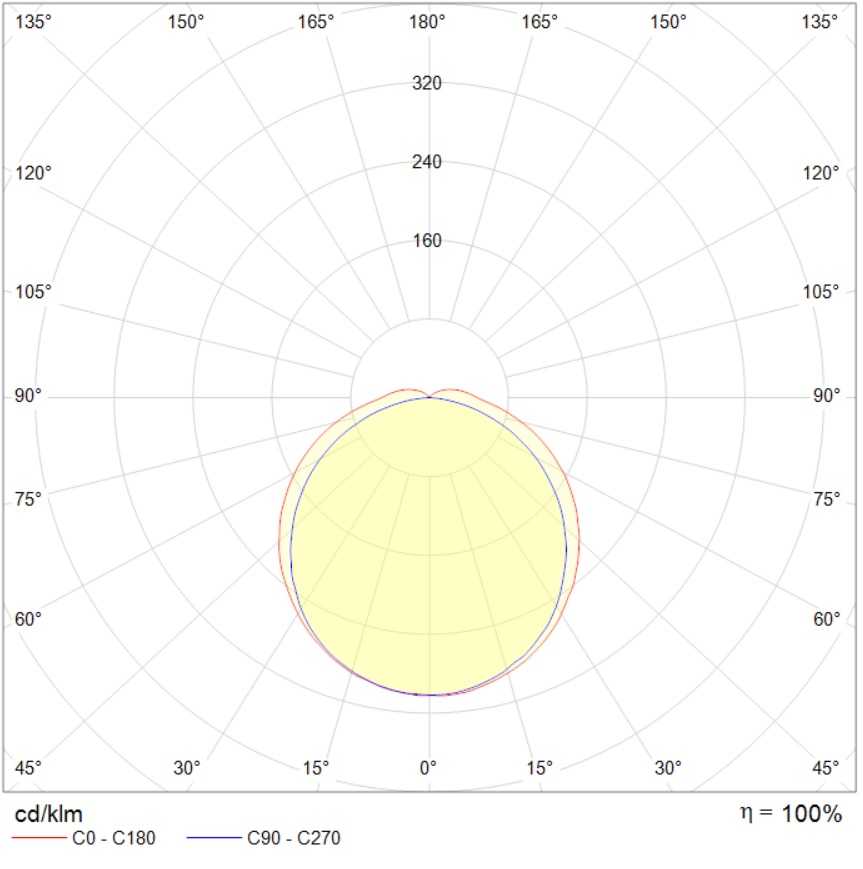

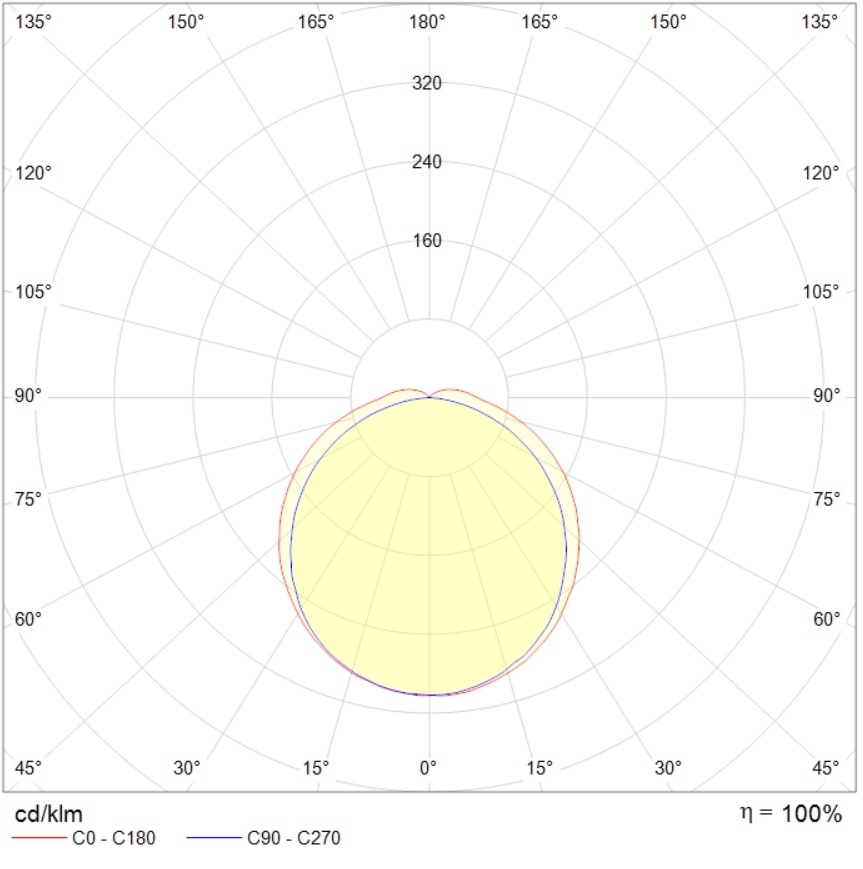

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg96.9 kB
ldt73.7 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016535.6 kB
Fire Safety Certificate2.5 mB
