SIMPLE EVO (600) 30W OPL 850 WH
SIMPLE EVO (600) 30W OPL 850 WH
24 Wluminaire power
2900 lmlight flow
121 lm/Wenergy efficiency
code1898004980
color temperature5000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
121 lm/Wcolor rendition index (CRI)
>80light flow
2900 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
121 lm/W
color rendition index (CRI)
>80
light flow
2900 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
24 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
565 mm
width
105 mm
height
65 mm
installation length
350 mm
weight
0.9 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898004980
model files
model files
photometric files
documents
сертификаты

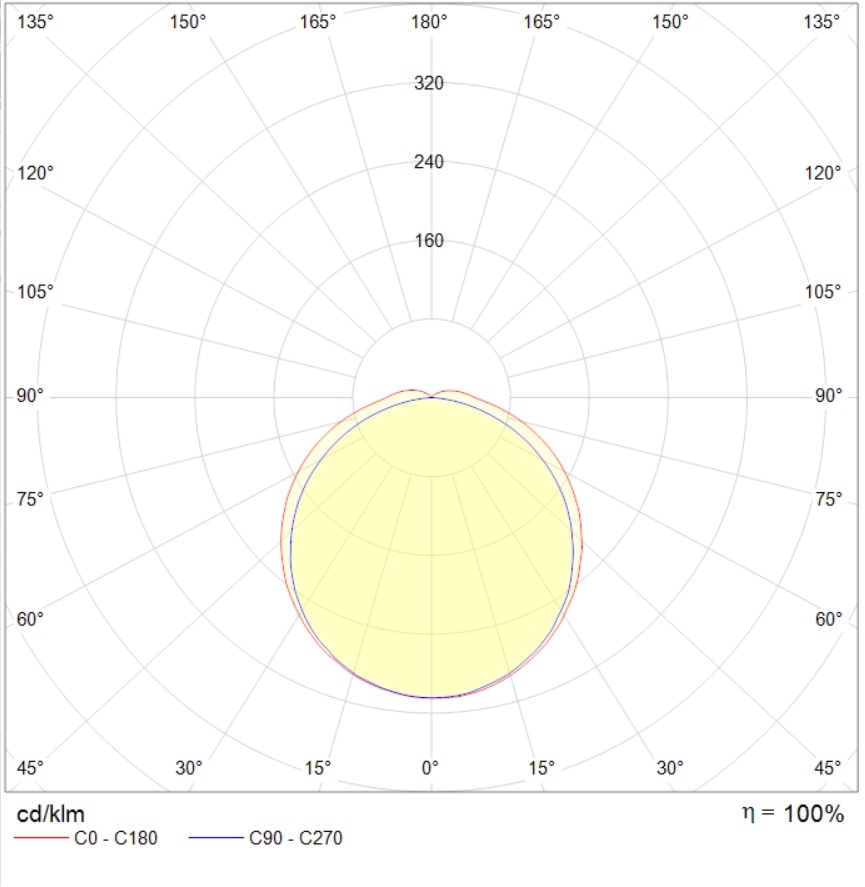

photometric files
ies107 kB
jpg99.9 kB
ldt73.7 kB
documents
passport1.4 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
