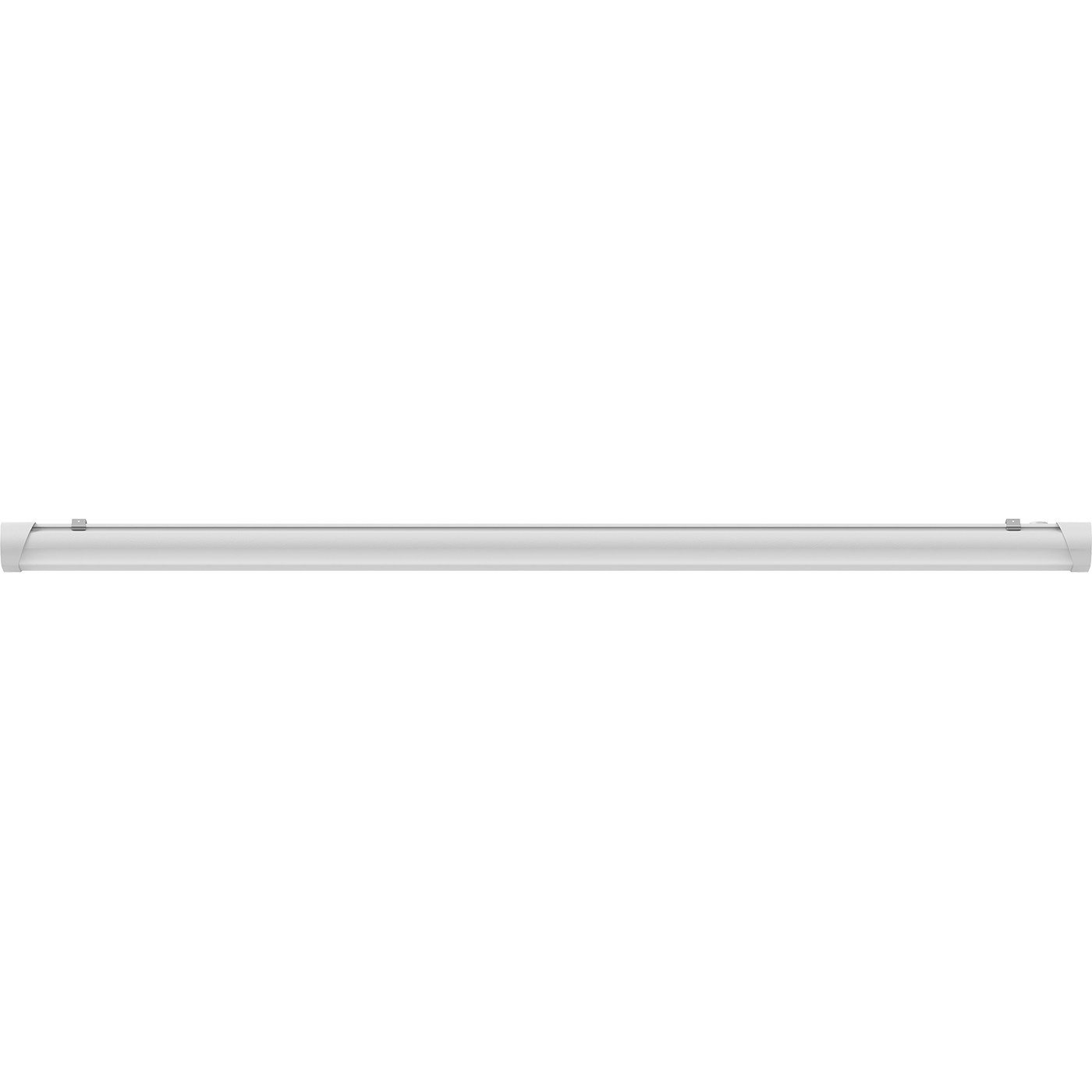

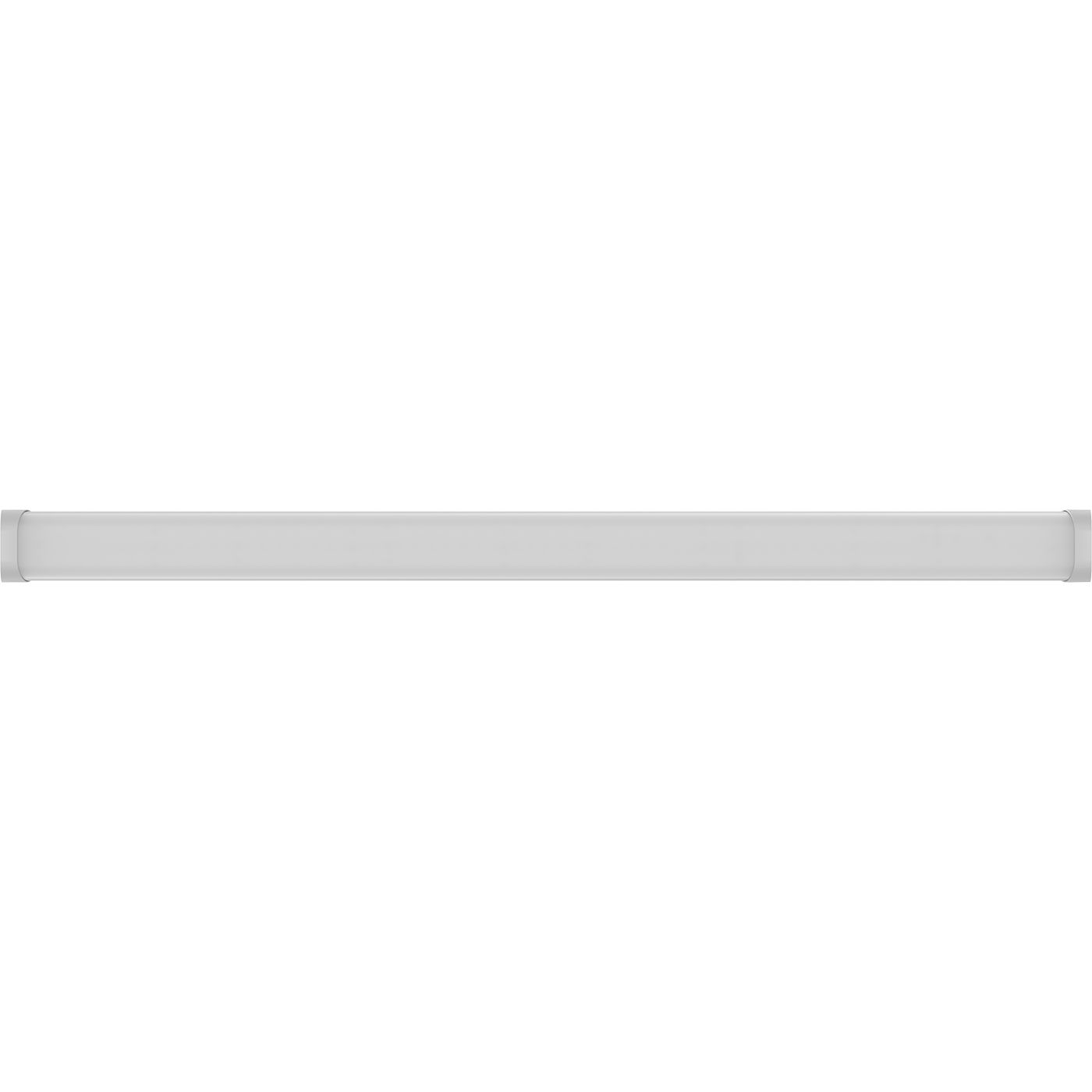

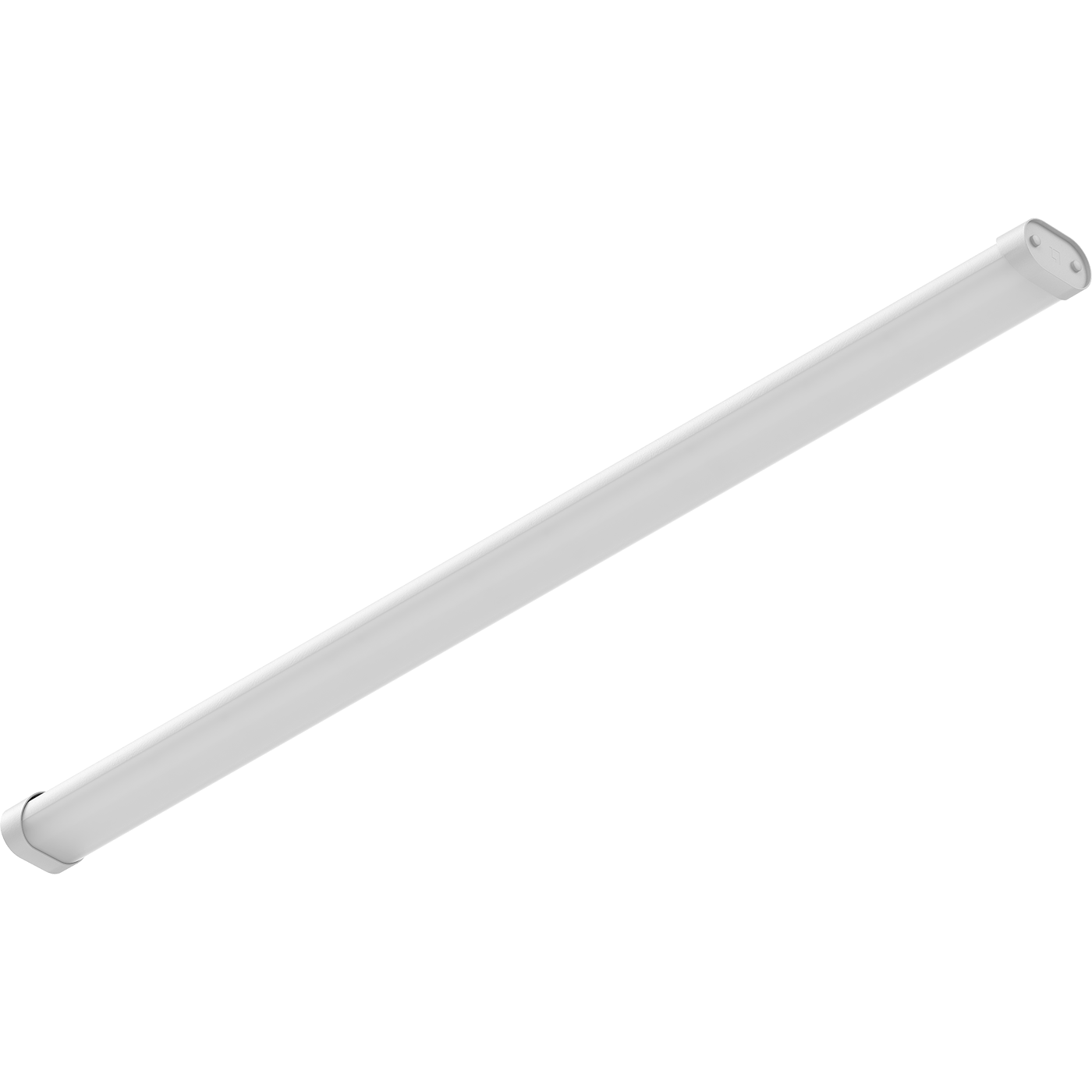

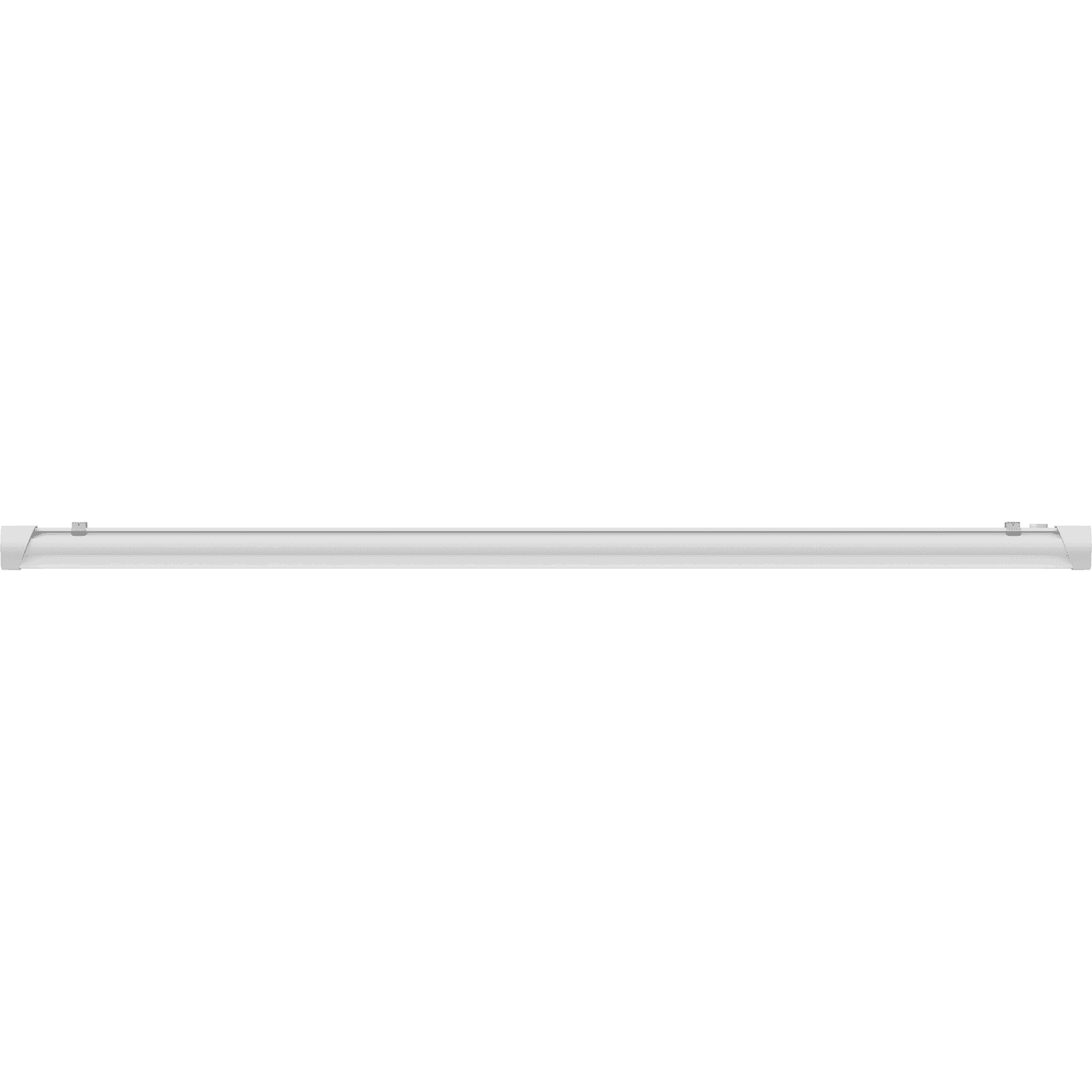

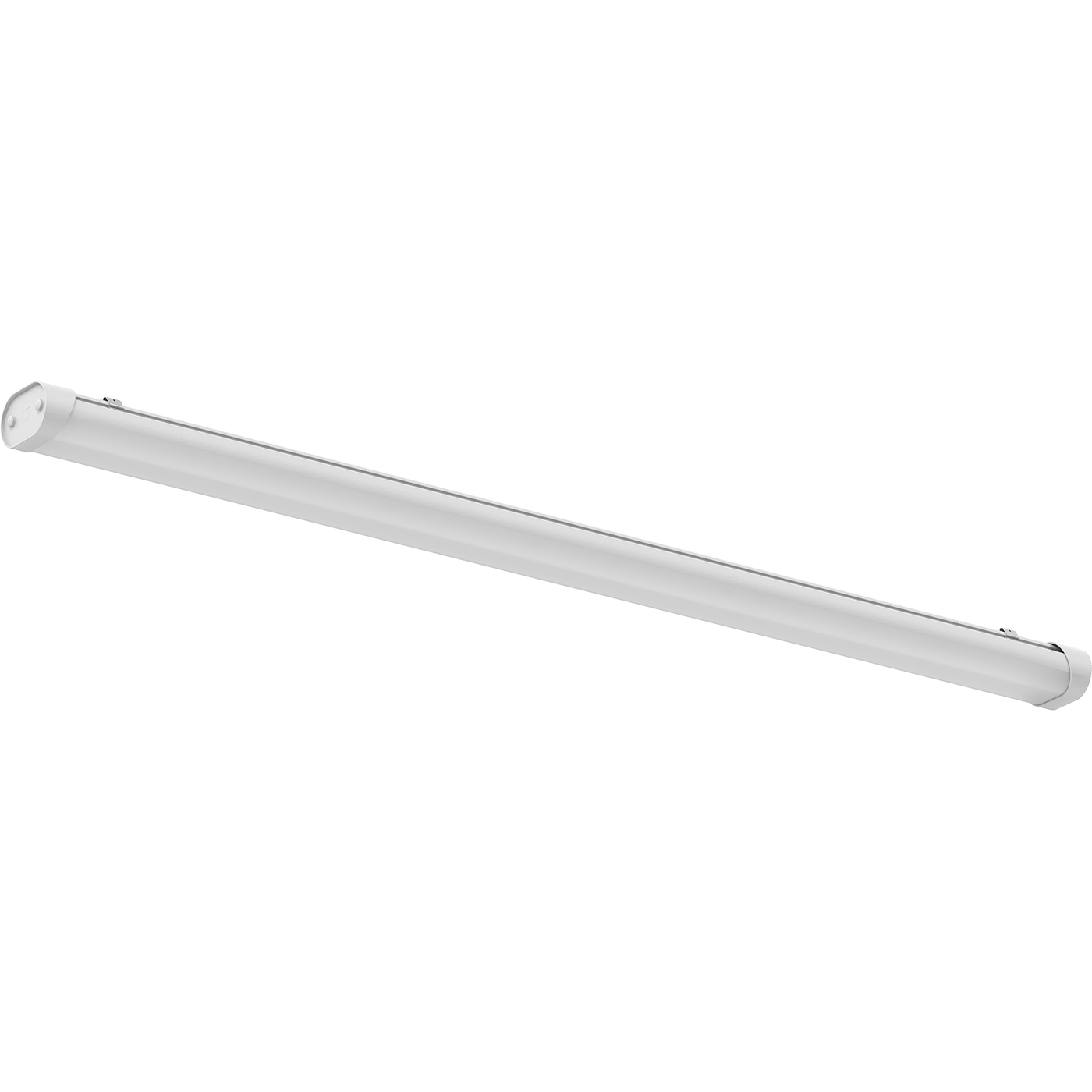

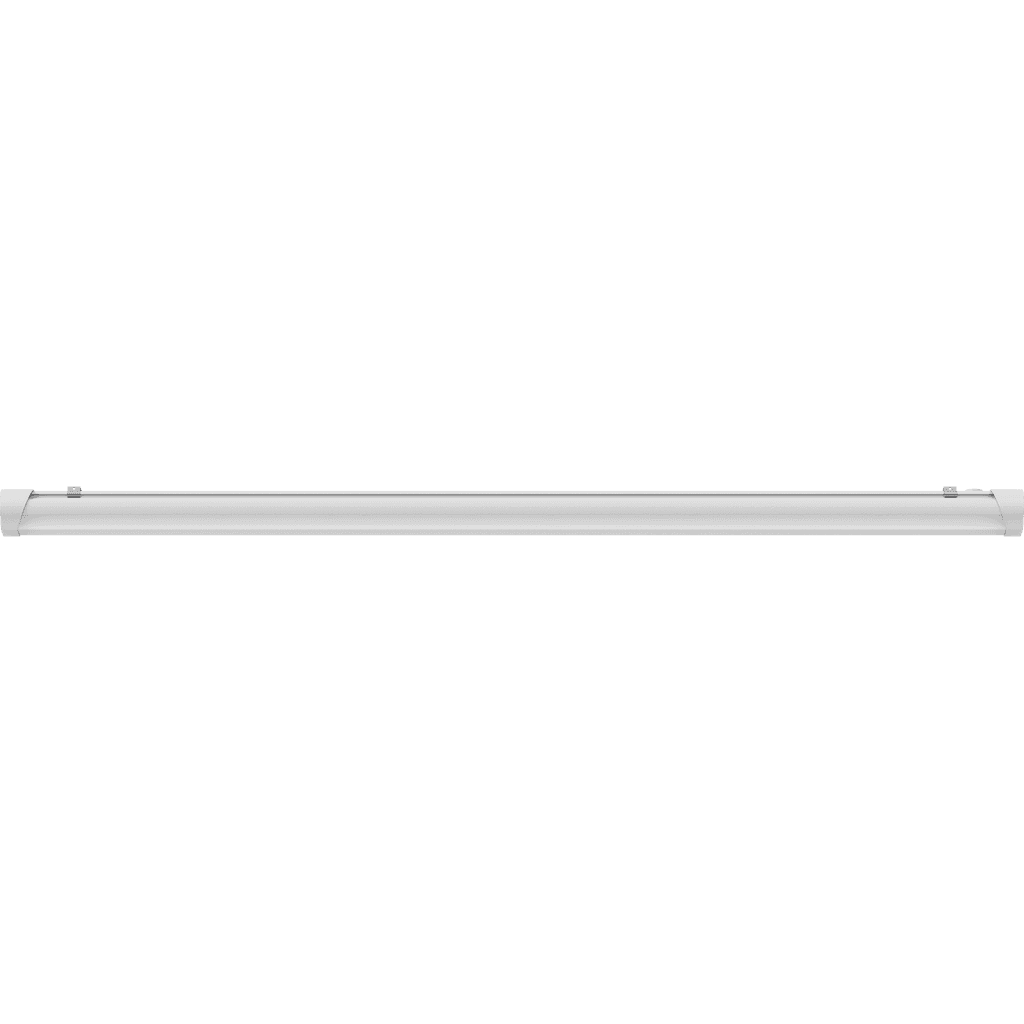

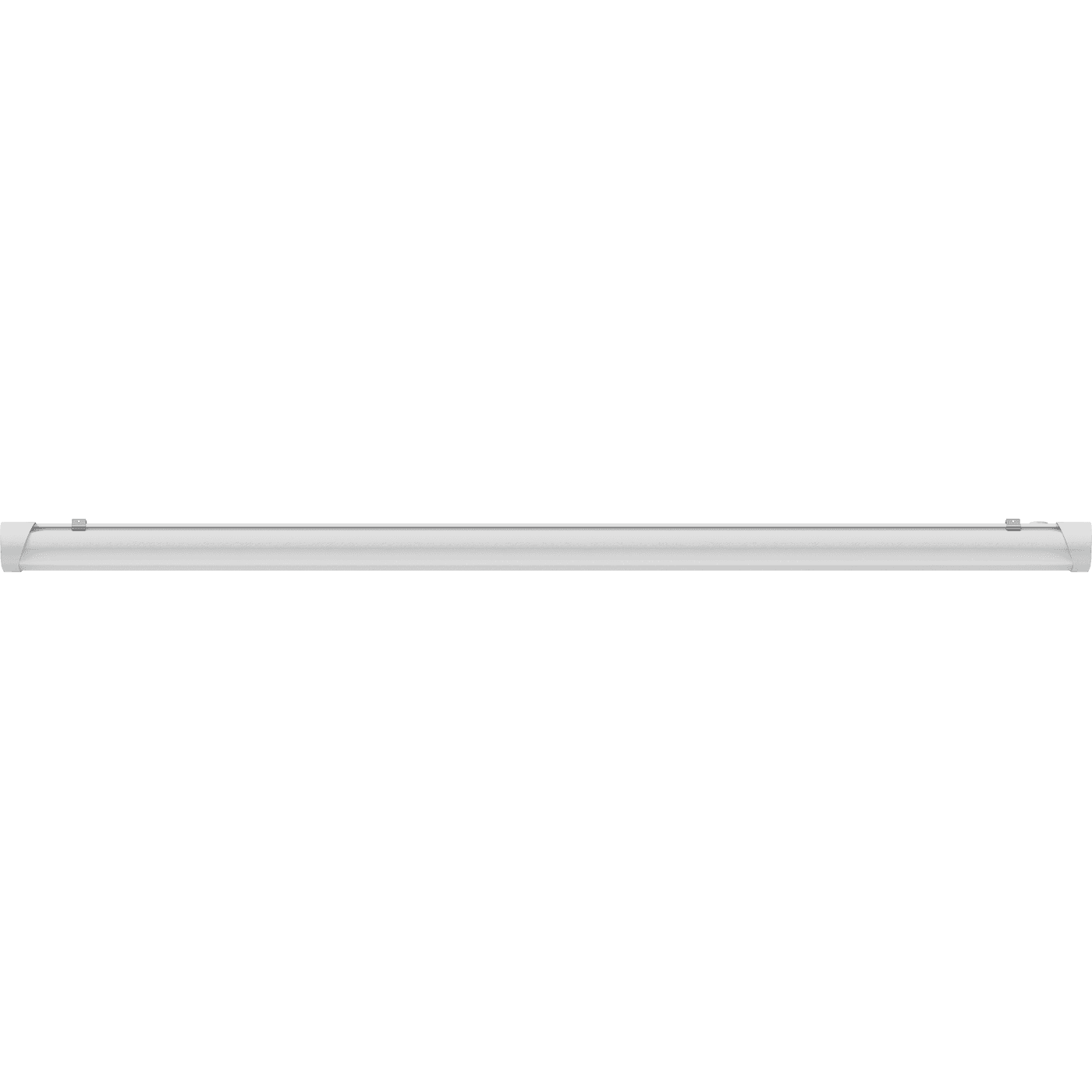

SIMPLE EVO (1500) 40W OPL 930 WH EM
SIMPLE EVO (1500) 40W OPL 930 WH EM
40 Wluminaire power
4800 lmlight flow
120 lm/Wenergy efficiency
code1898006190
color temperature3000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
120 lm/Wcolor rendition index (CRI)
>90light flow
4800 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
120 lm/W
color rendition index (CRI)
>90
light flow
4800 lm
flickering factor
<1%

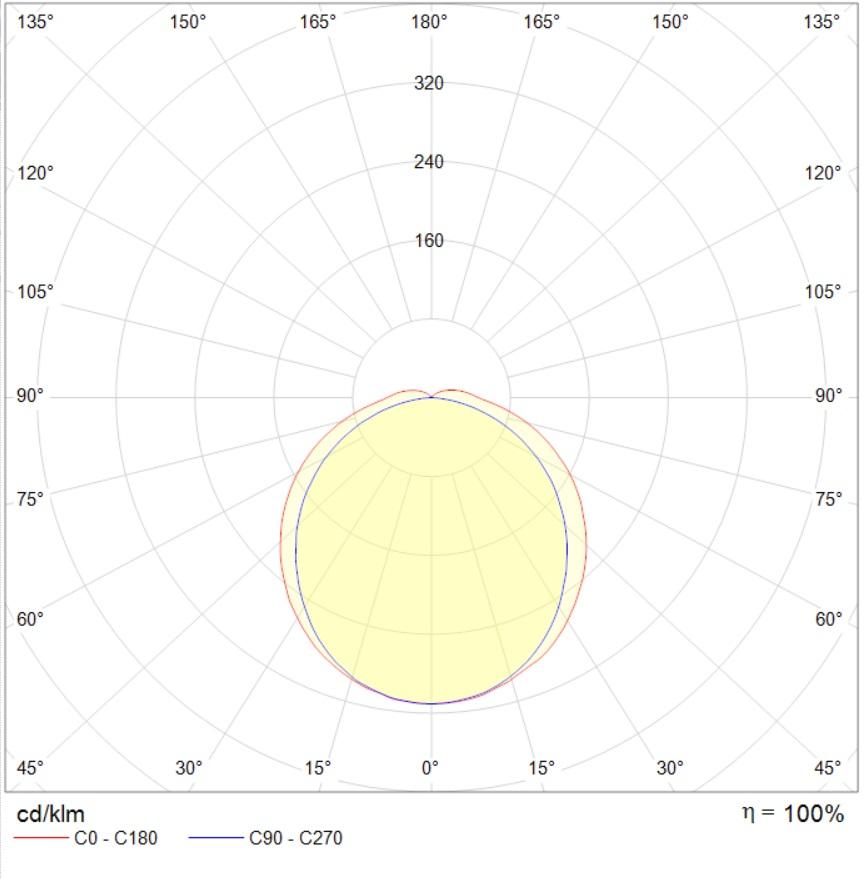

beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1500 µs
electric shock protection
I
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
3 A

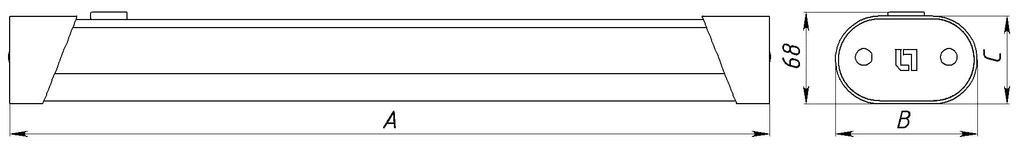

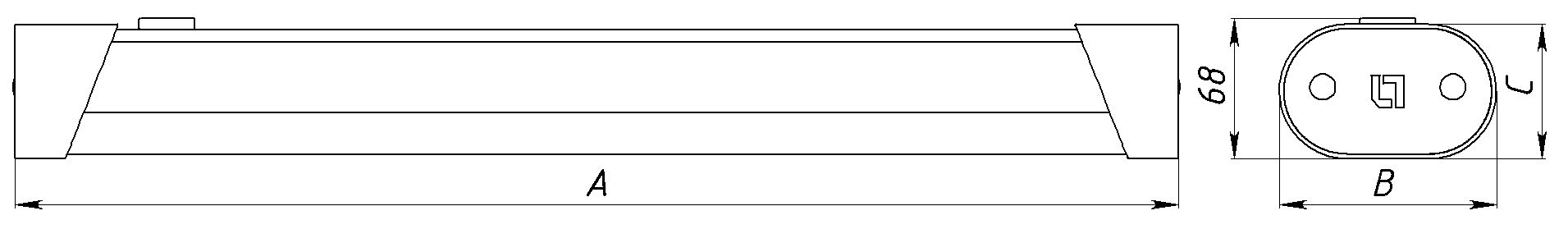

constructional
length
1576 mm
width
105 mm
height
65 mm
installation length
1330 mm
weight
2.6 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
12% lm
battery / battery Ni-Cd
RB 6,0 V 1,5 А*h Ni-Mh
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898006190
model files
model files
photometric files
documents
сертификаты
photometric files
ies107 kB
jpg100.5 kB
ldt73.7 kB
documents
passport1.4 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
