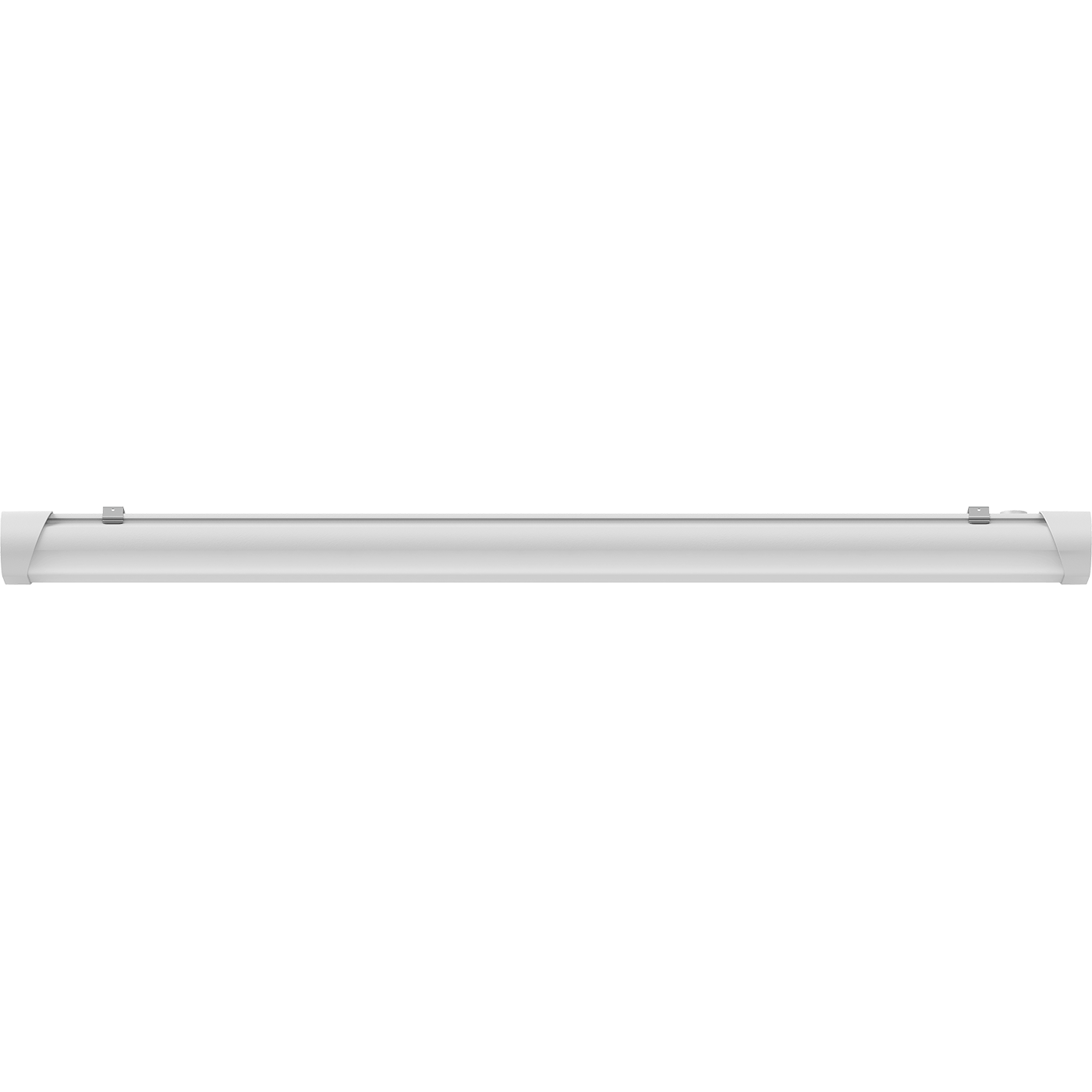

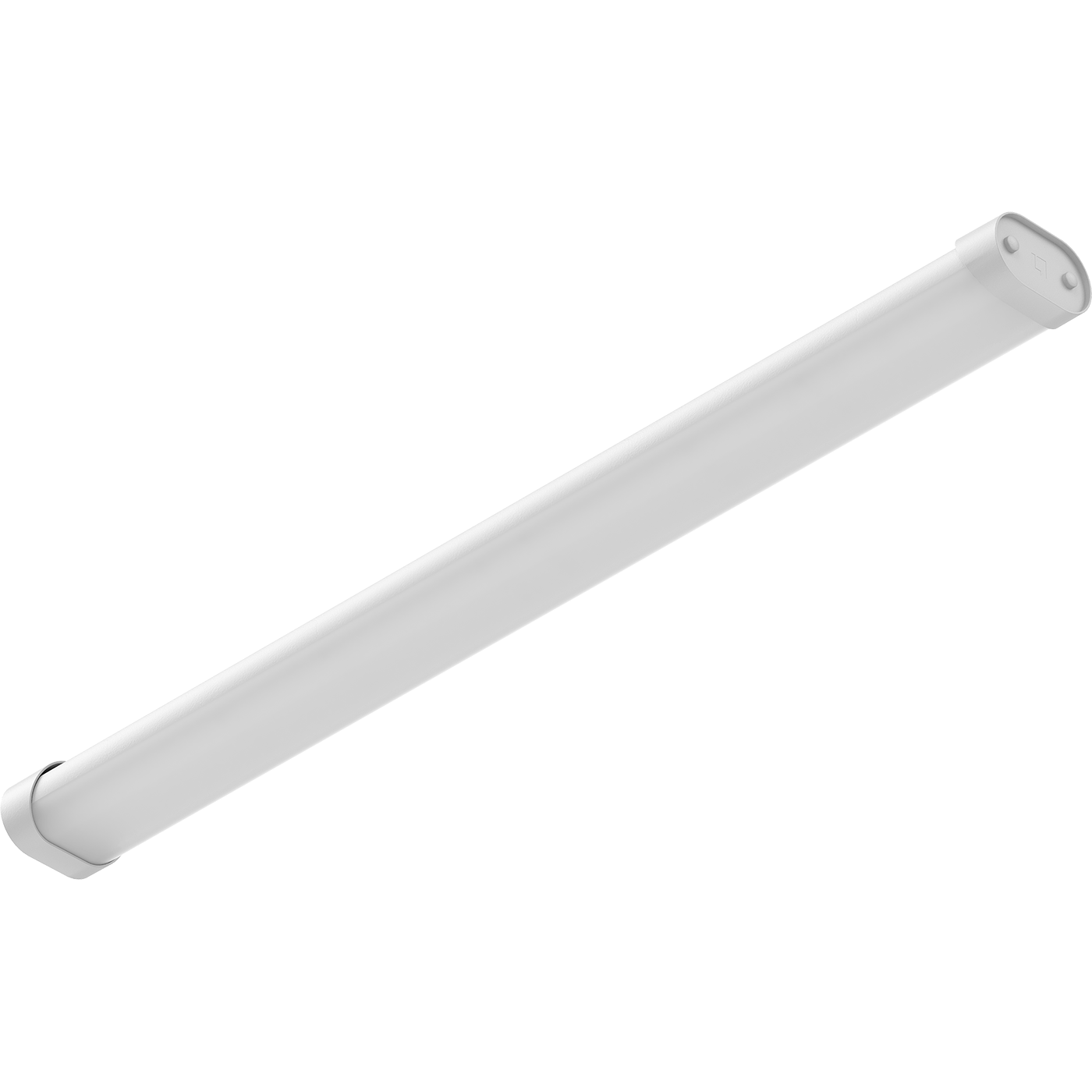

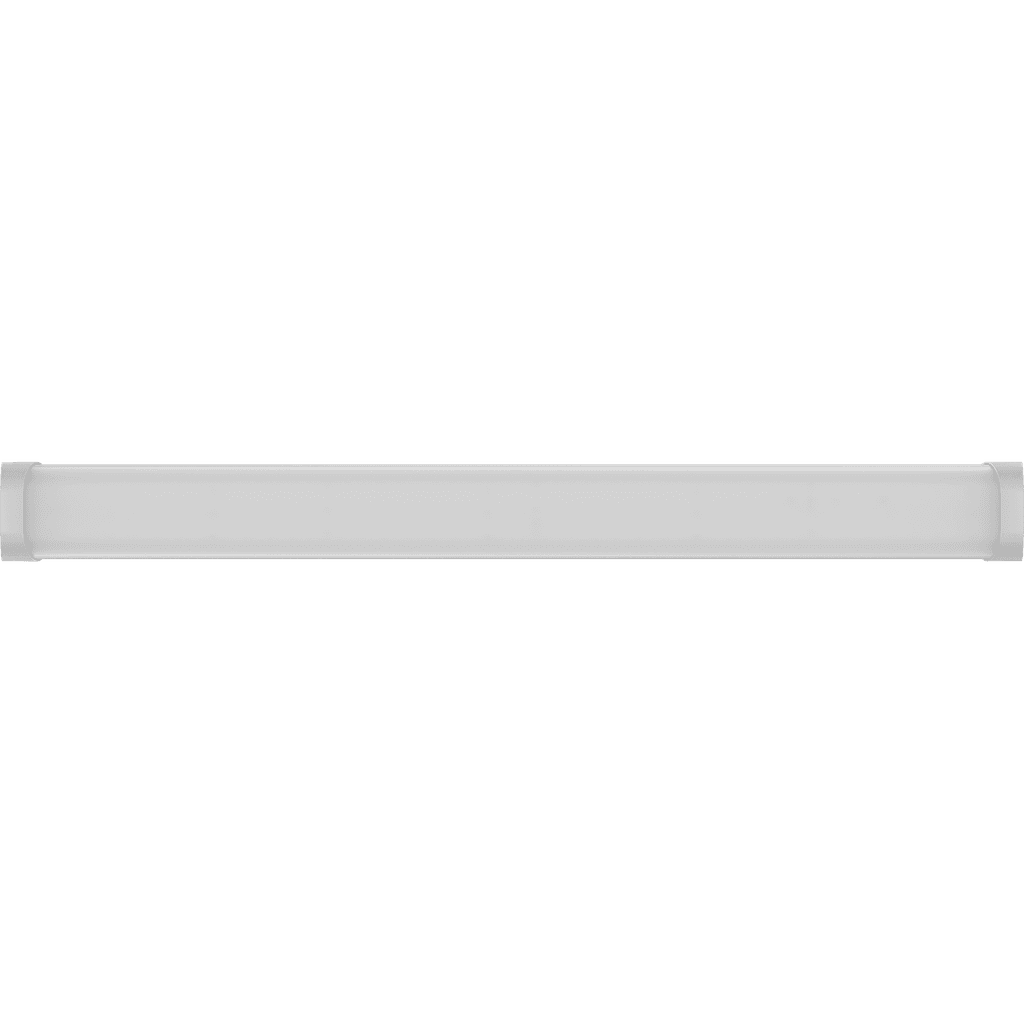

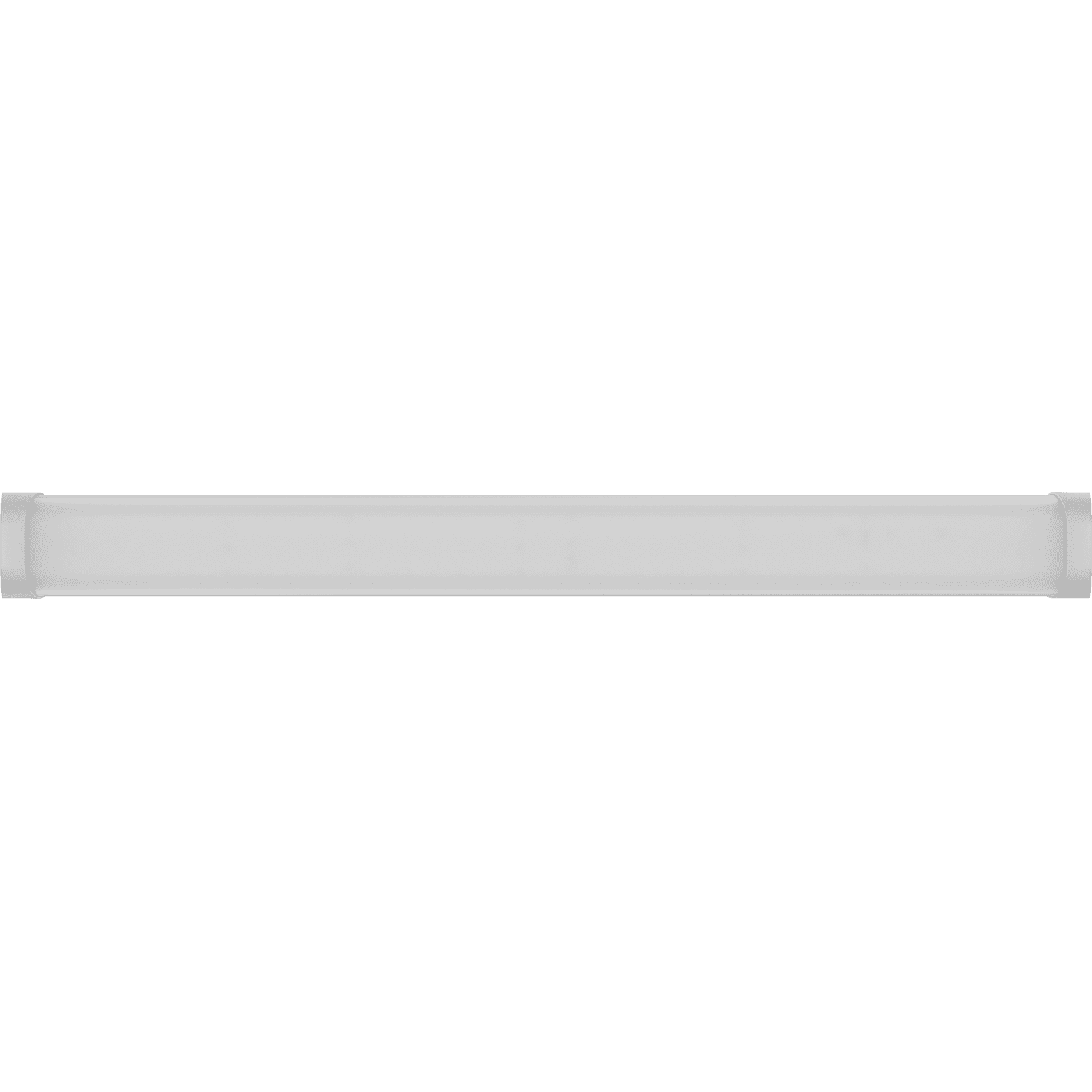

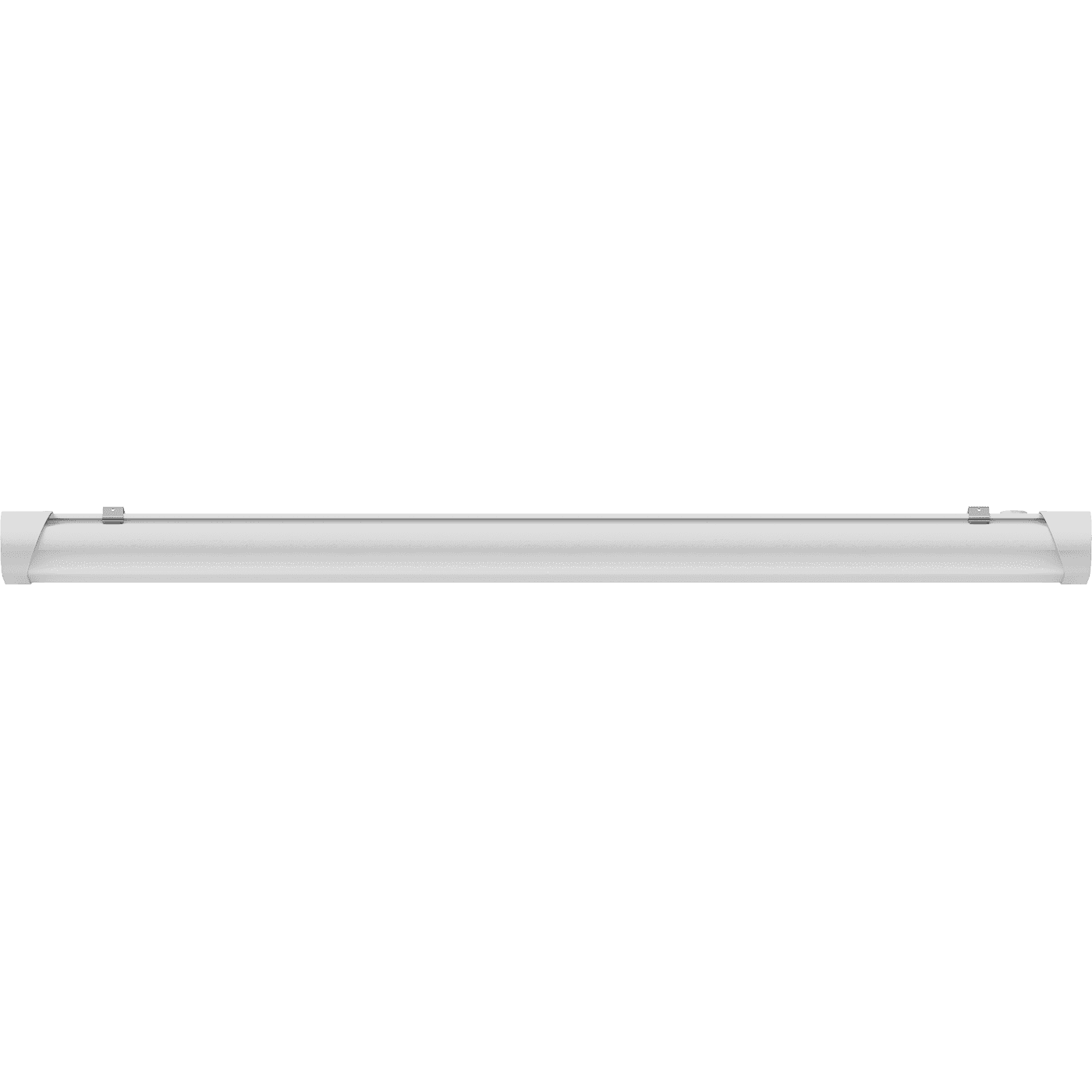

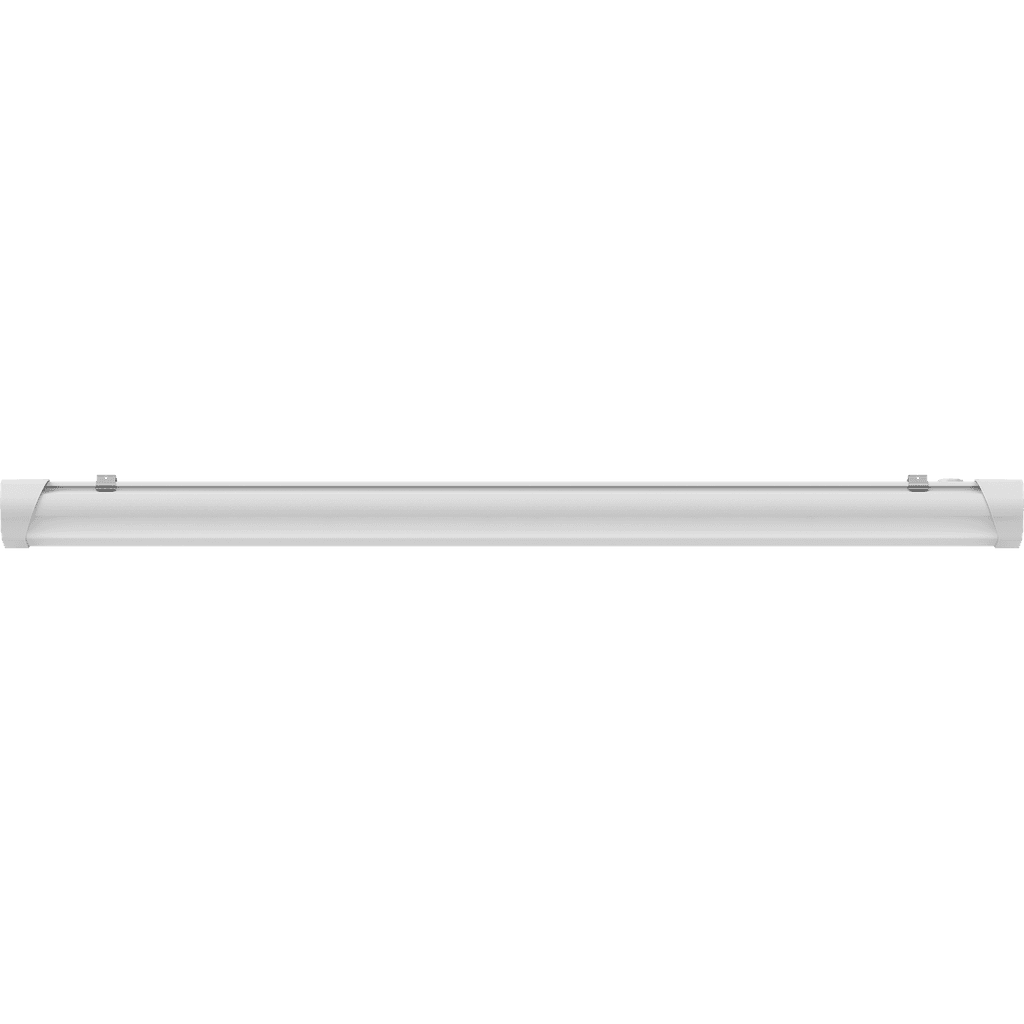

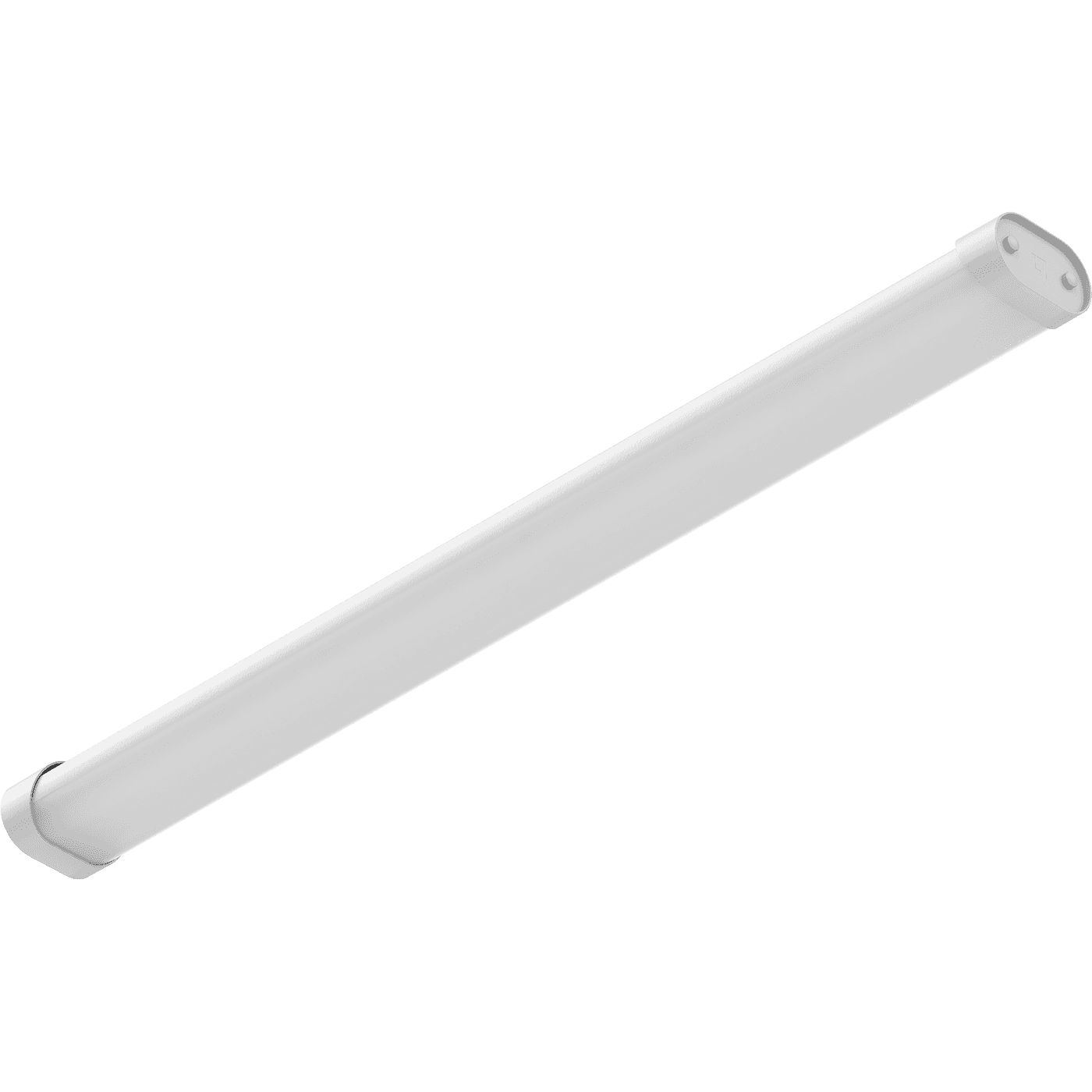

SIMPLE EVO (1200) 30W OPL 950 WH EM
SIMPLE EVO (1200) 30W OPL 950 WH EM
32 Wluminaire power
3900 lmlight flow
122 lm/Wenergy efficiency
code1898005490
color temperature5000 K

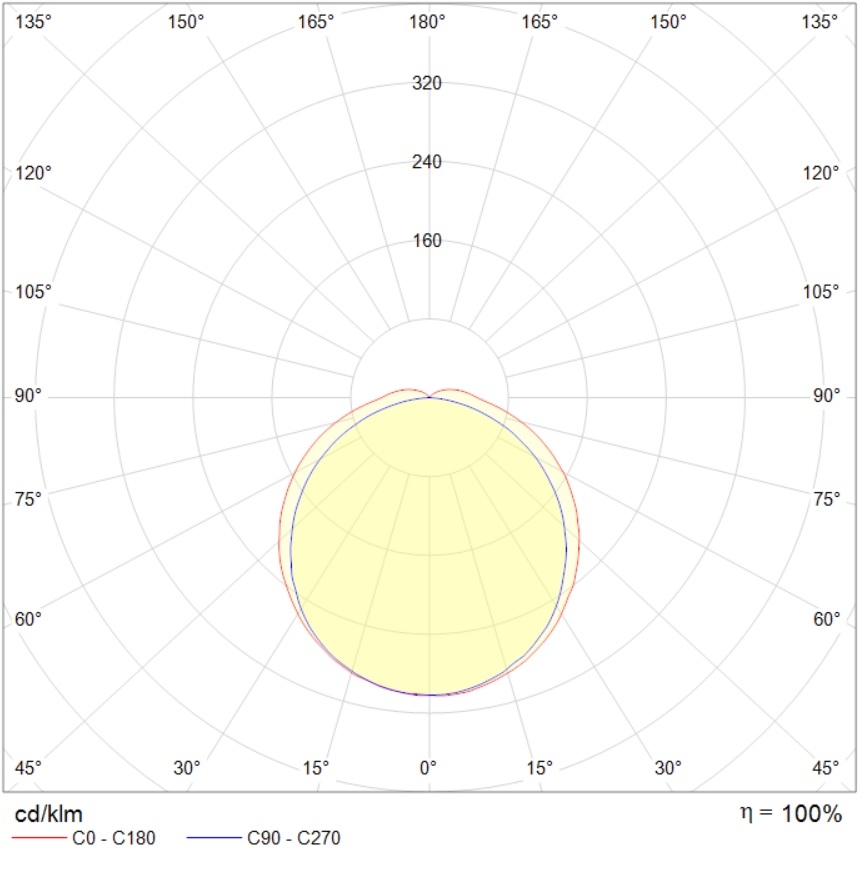

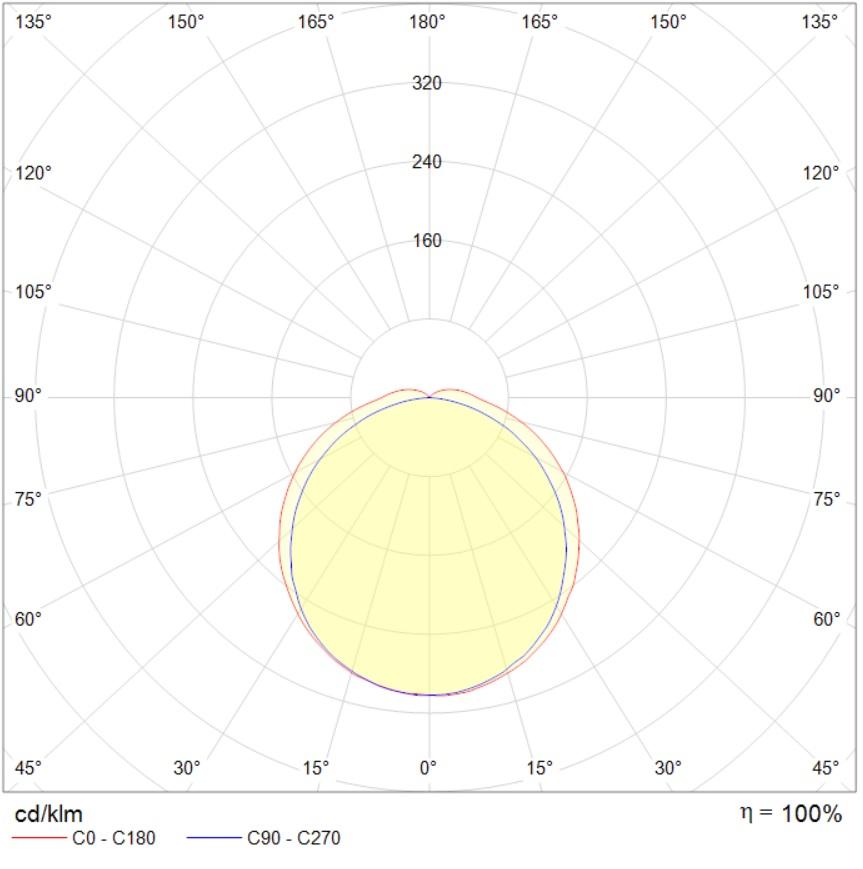

beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
122 lm/Wcolor rendition index (CRI)
>90light flow
3900 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
122 lm/W
color rendition index (CRI)
>90
light flow
3900 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1070 mm
width
105 mm
height
65 mm
installation length
820 mm
weight
2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
15% lm
battery / battery Ni-Cd
RB 6,0 V 1,5 А*h Ni-Mh
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898005490
