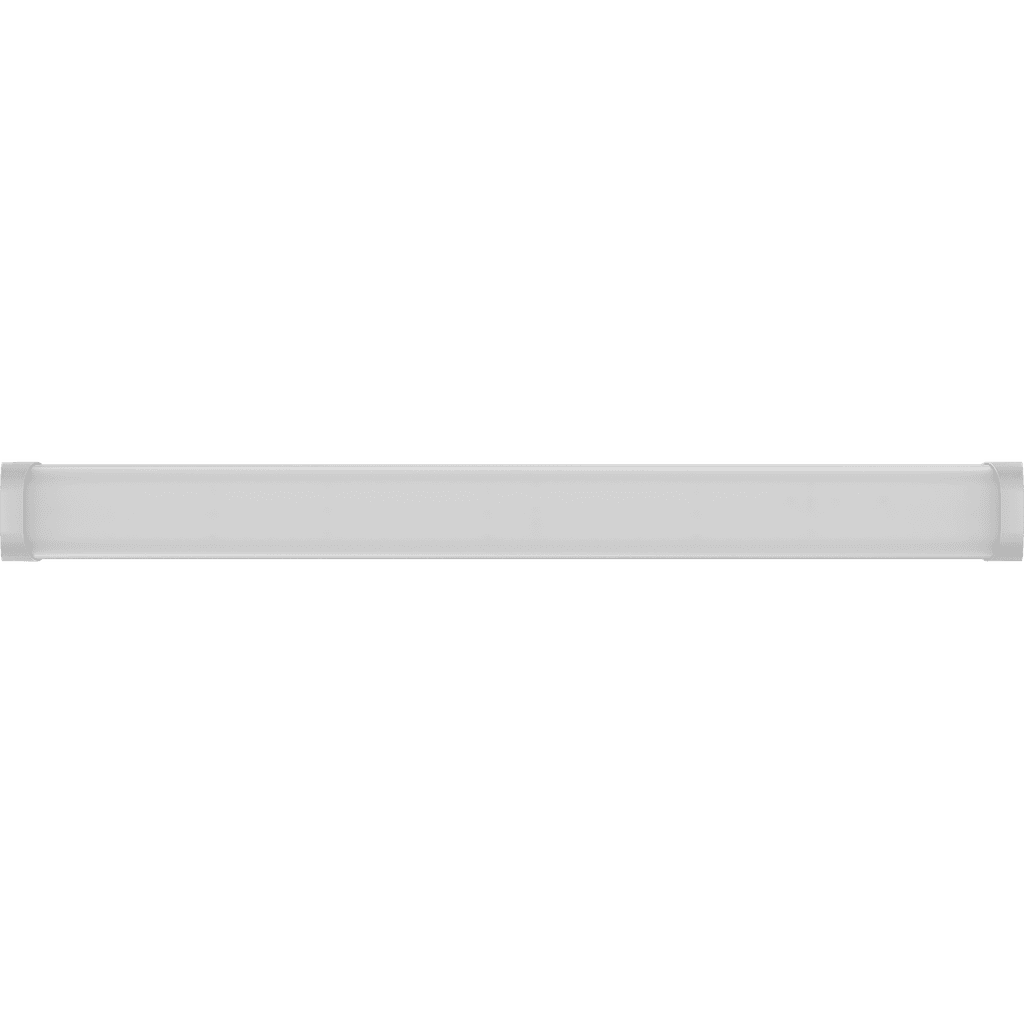

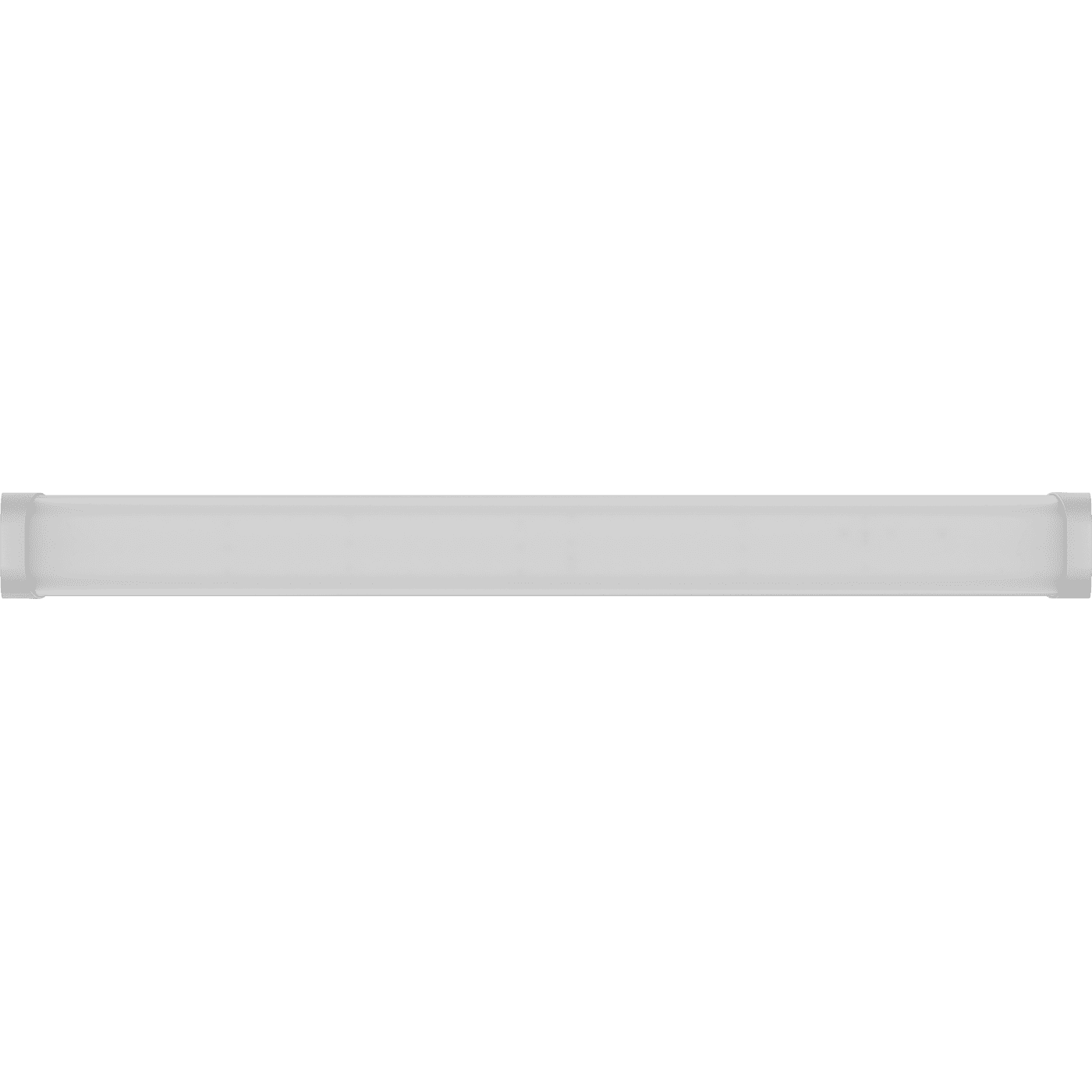

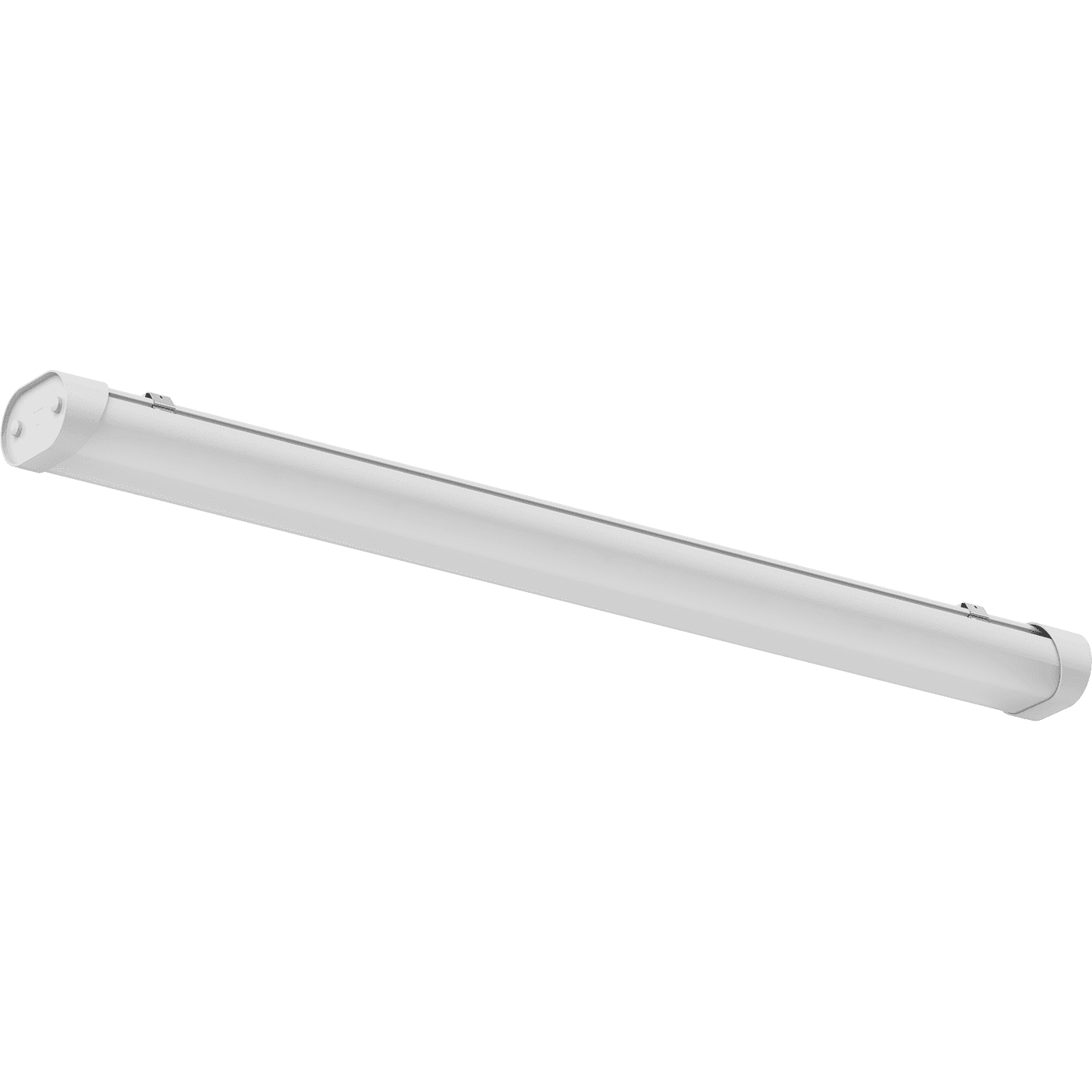

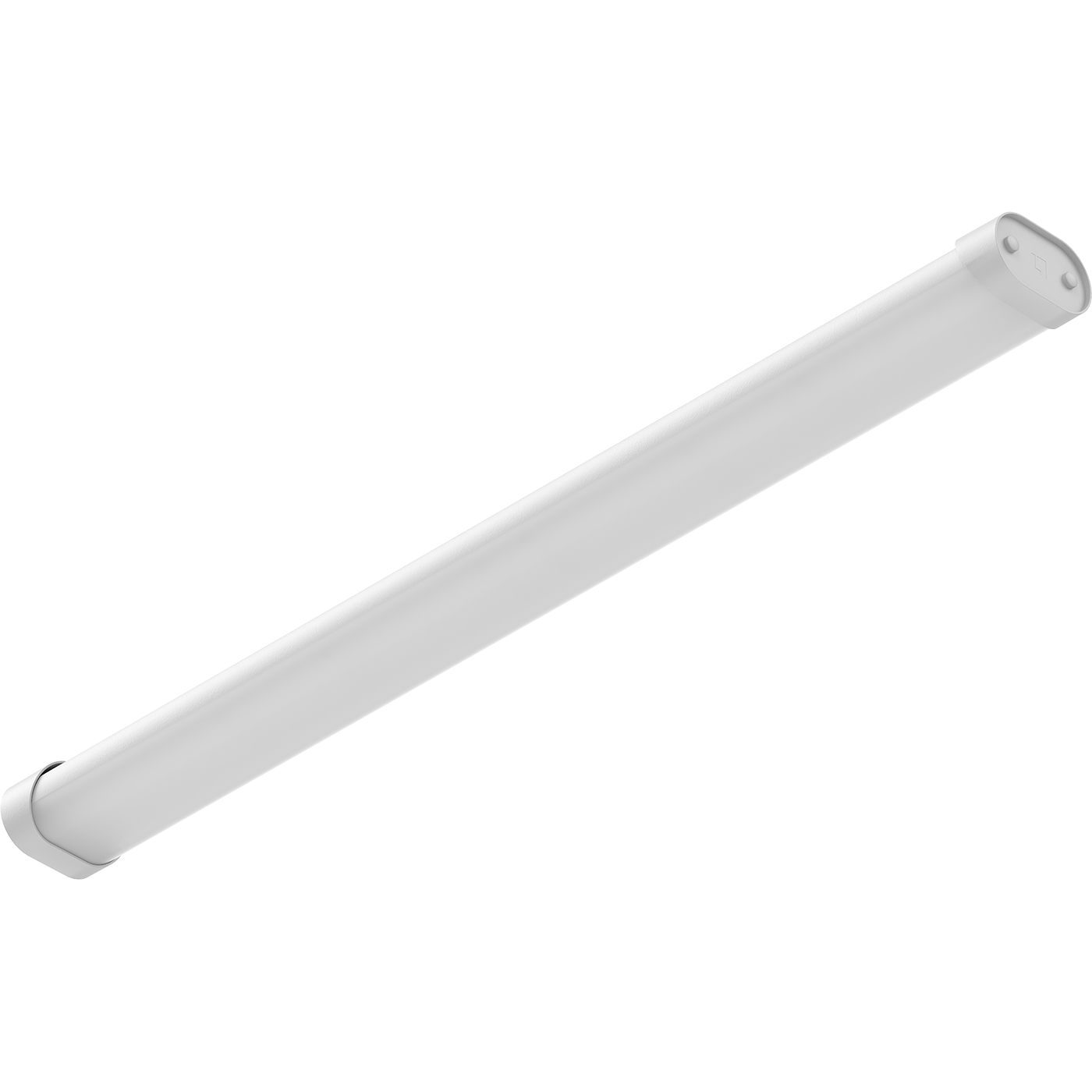

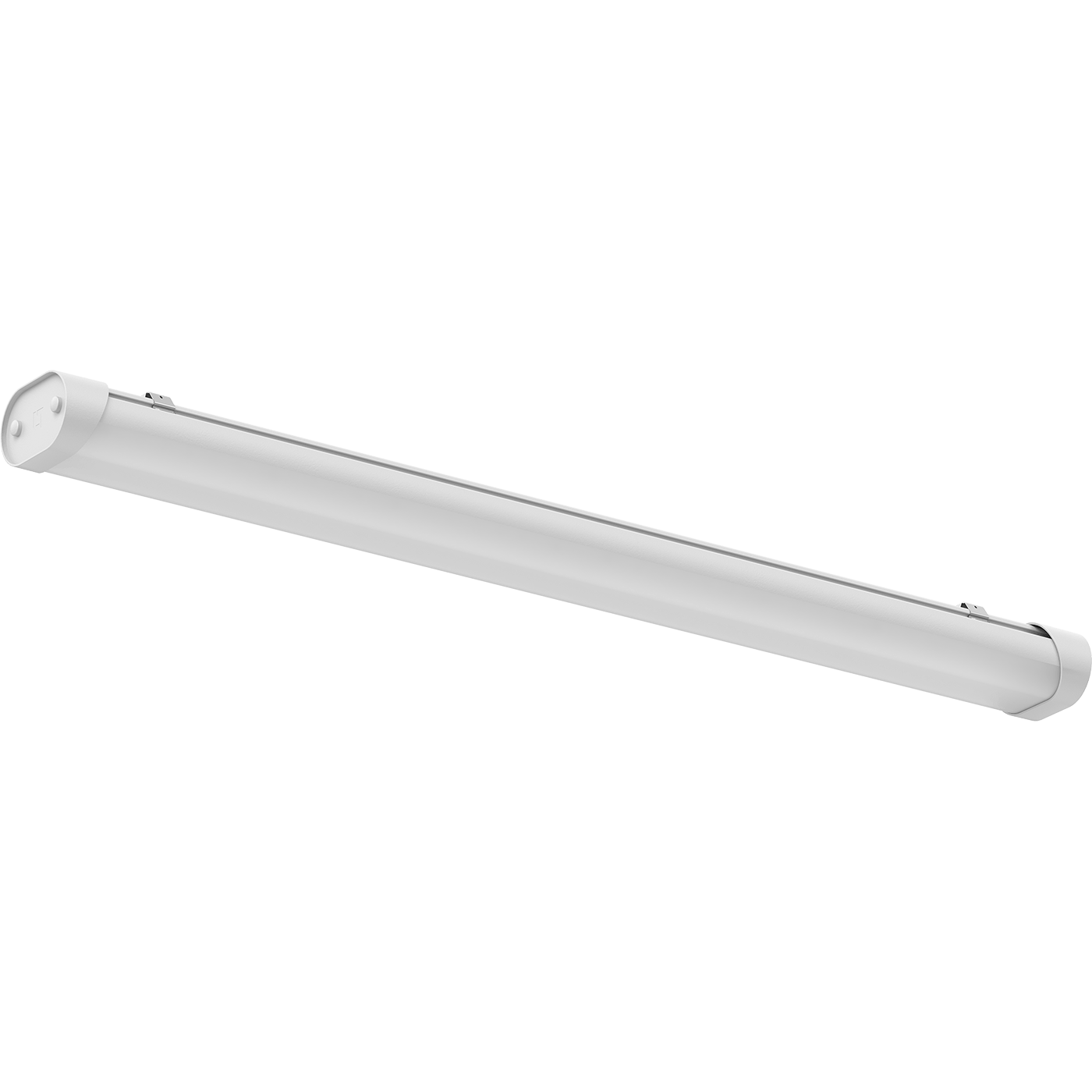

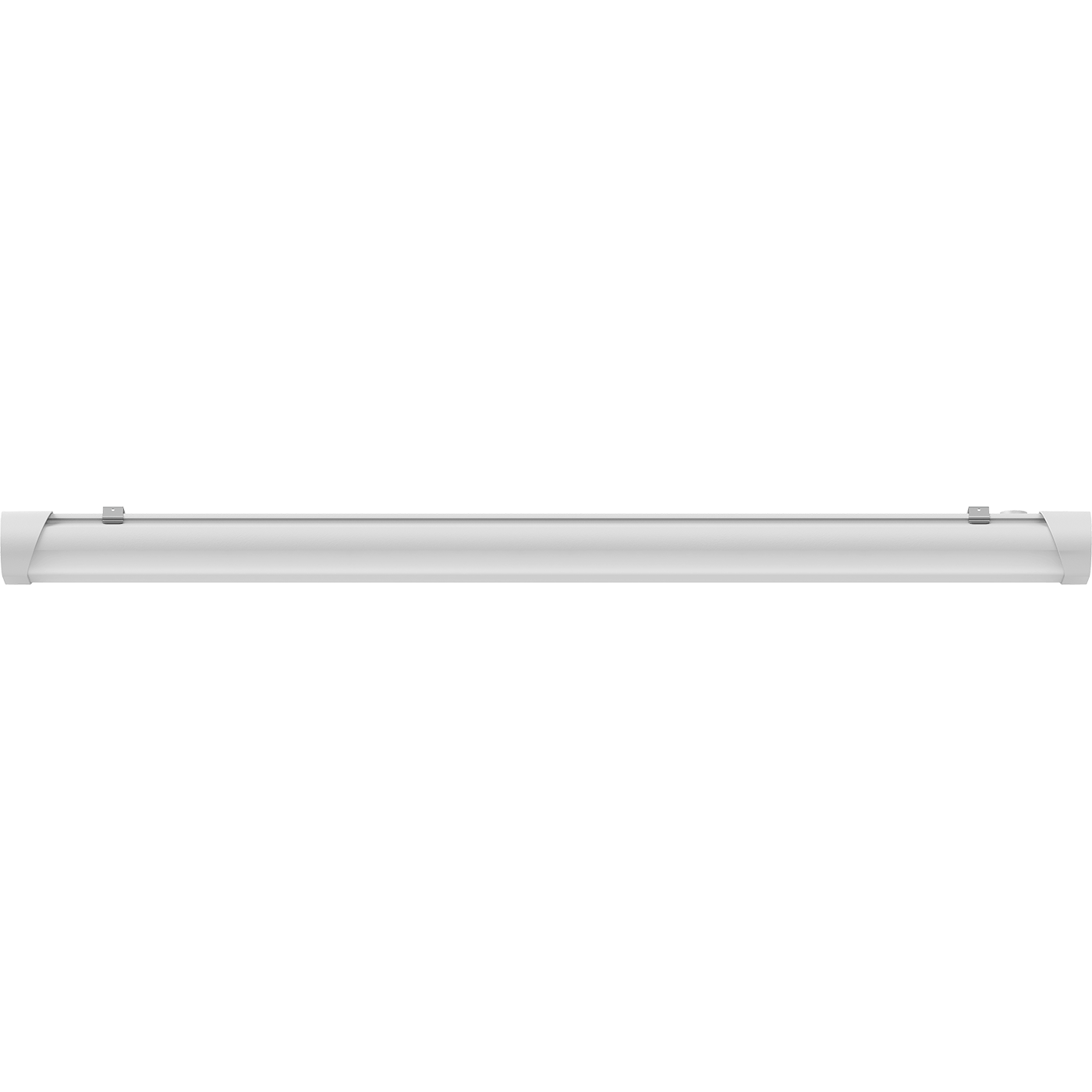

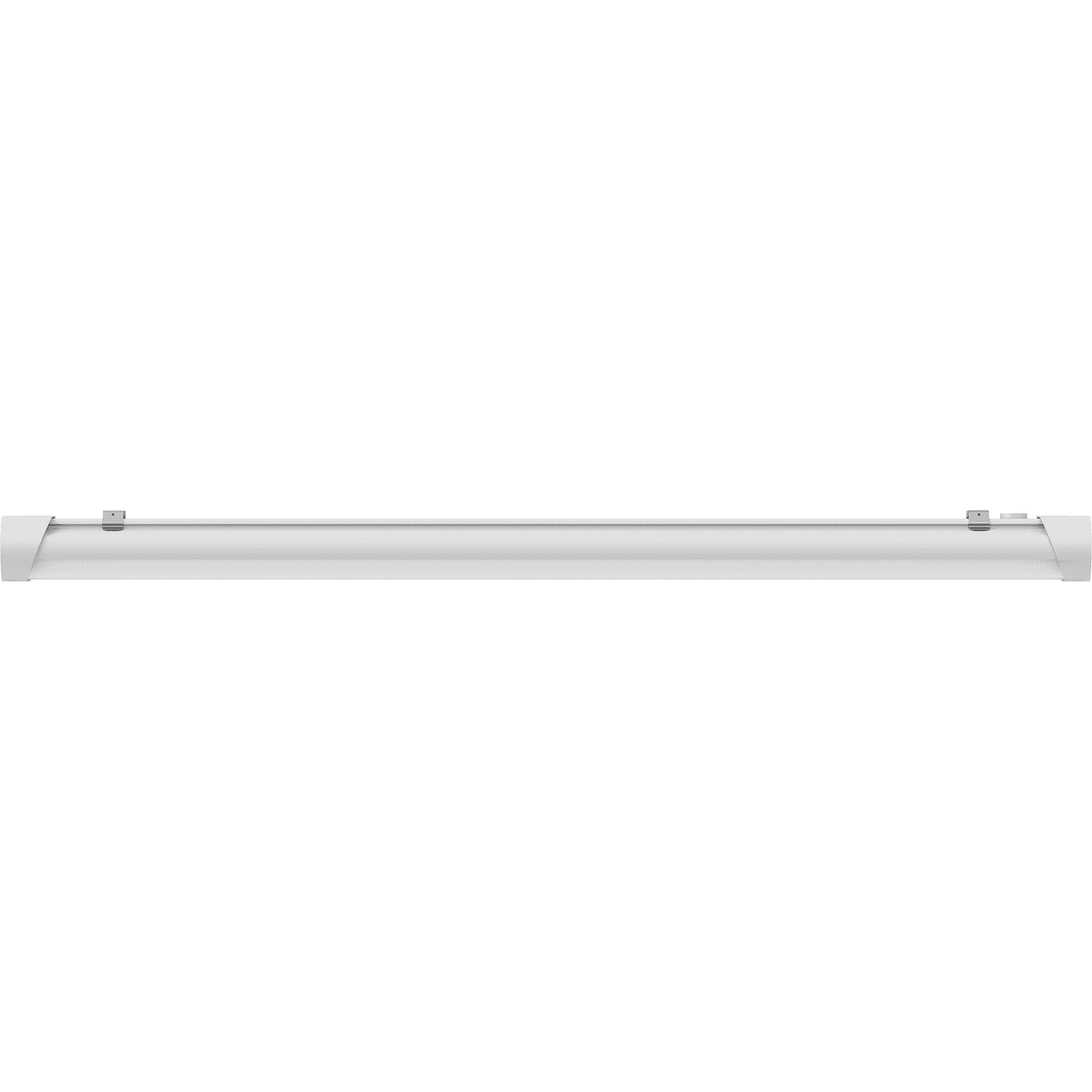

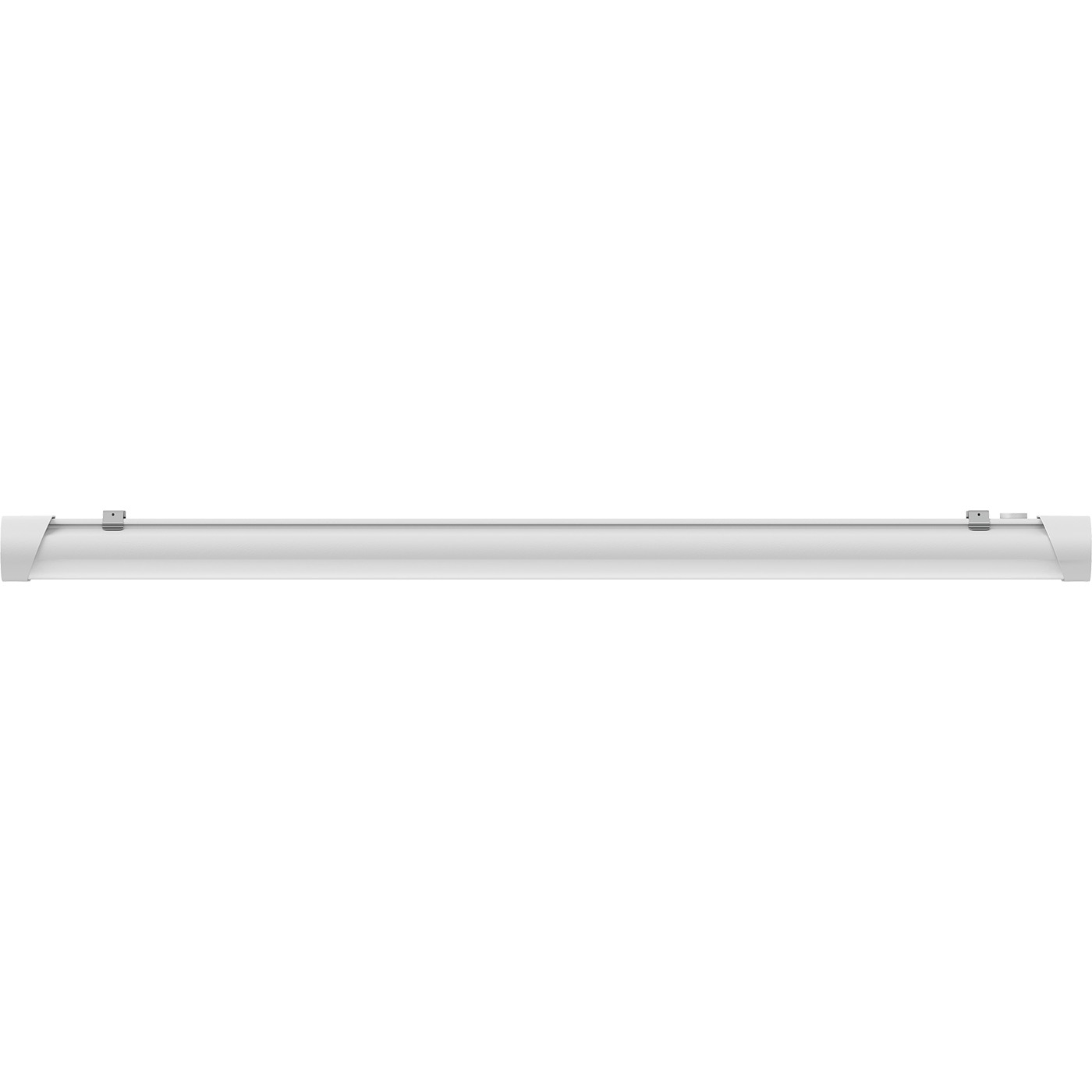

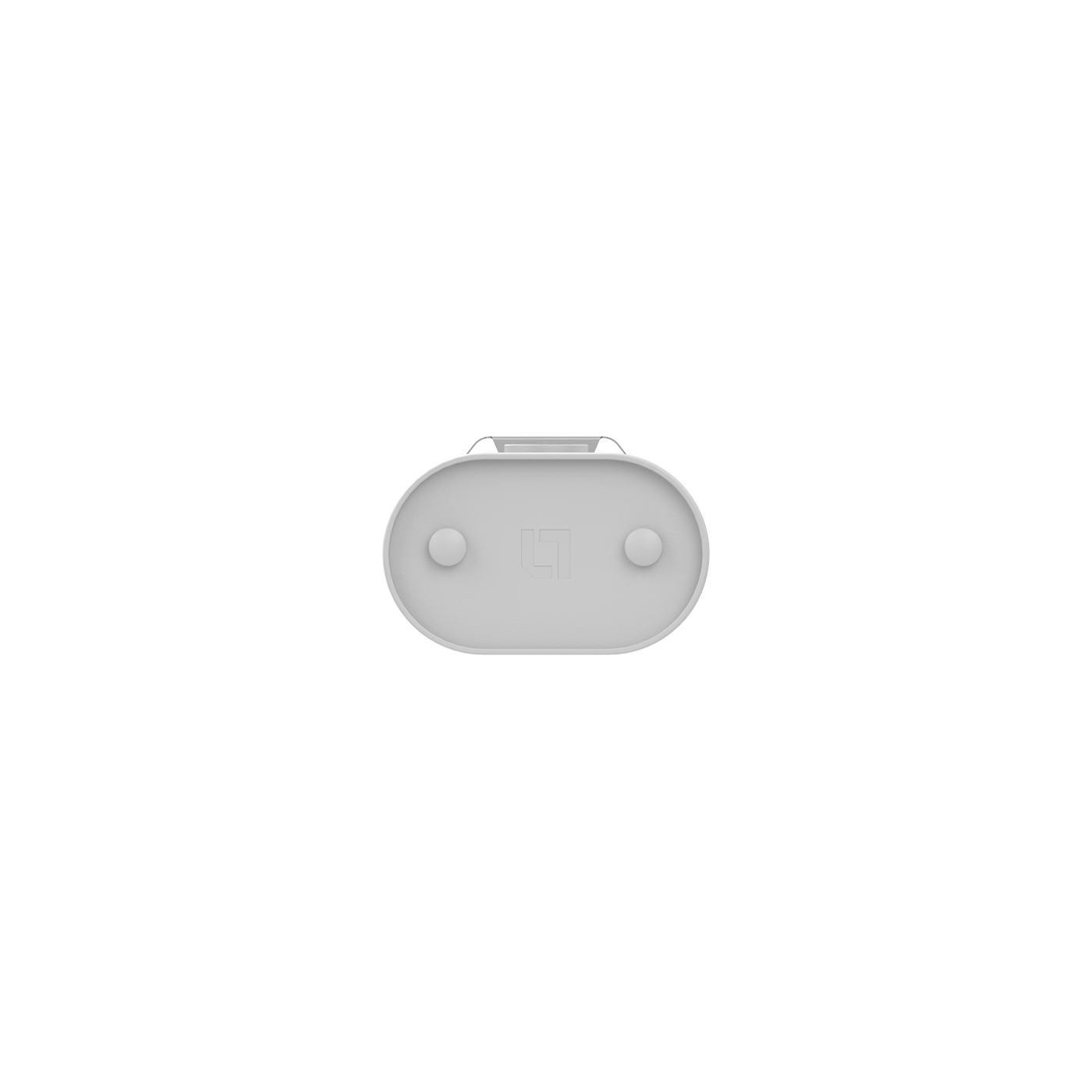

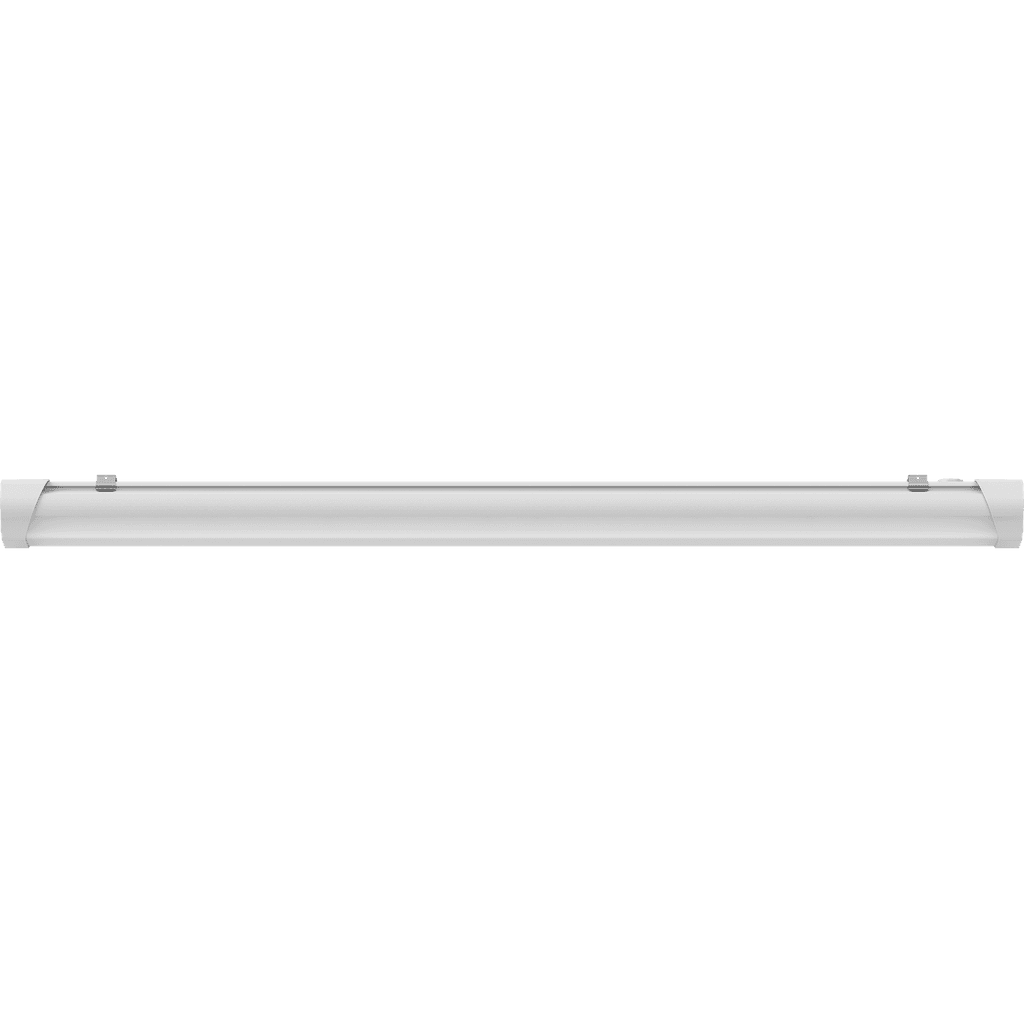

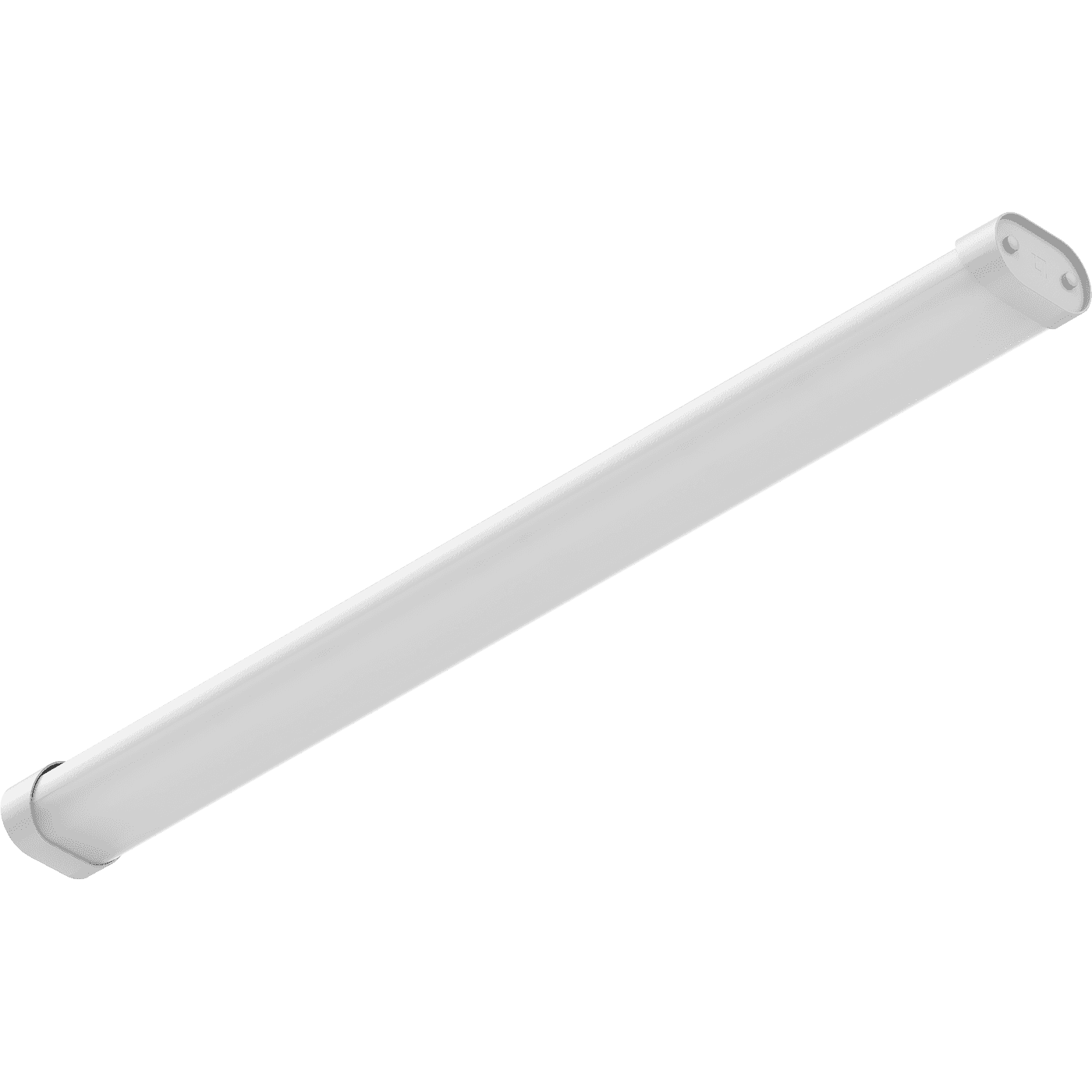

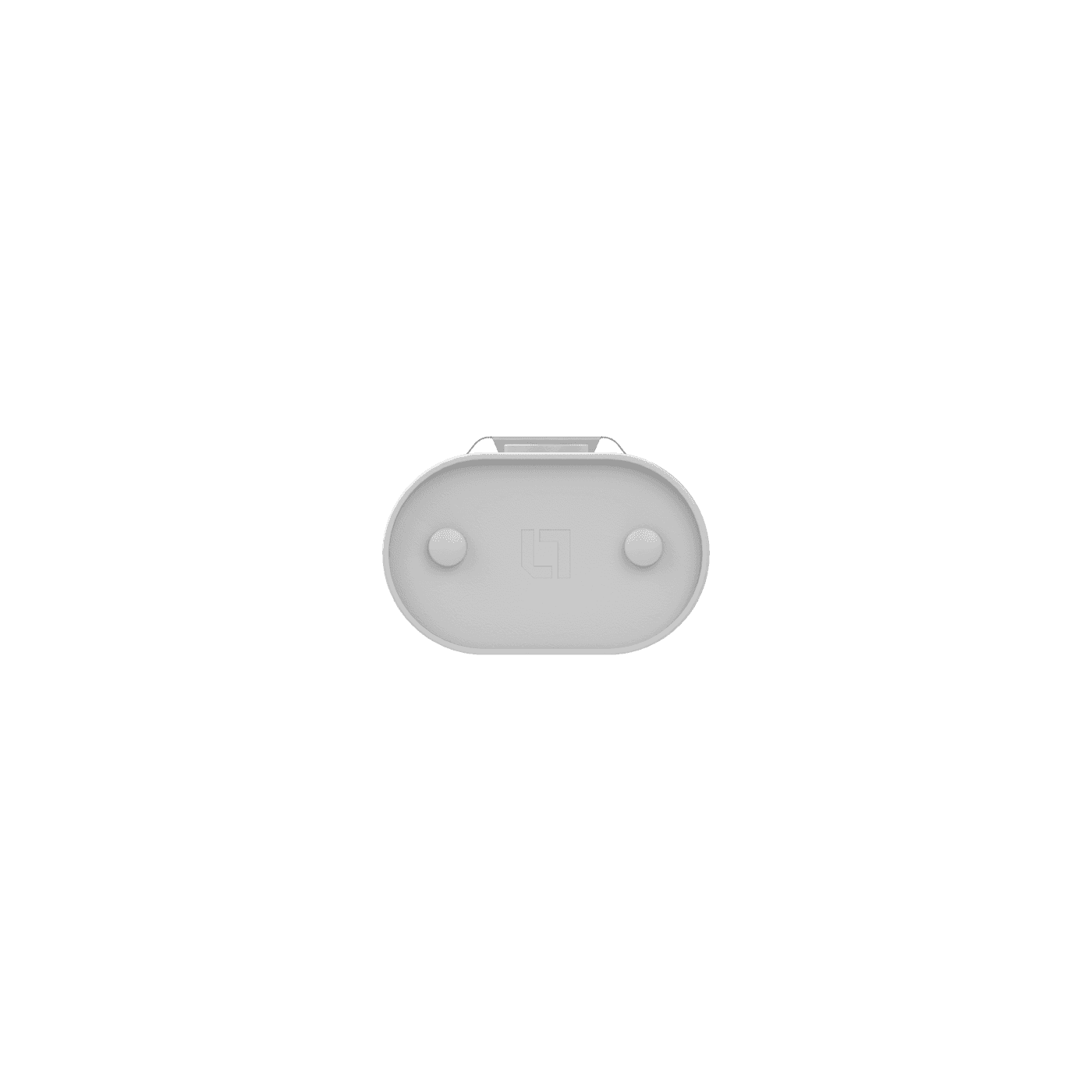

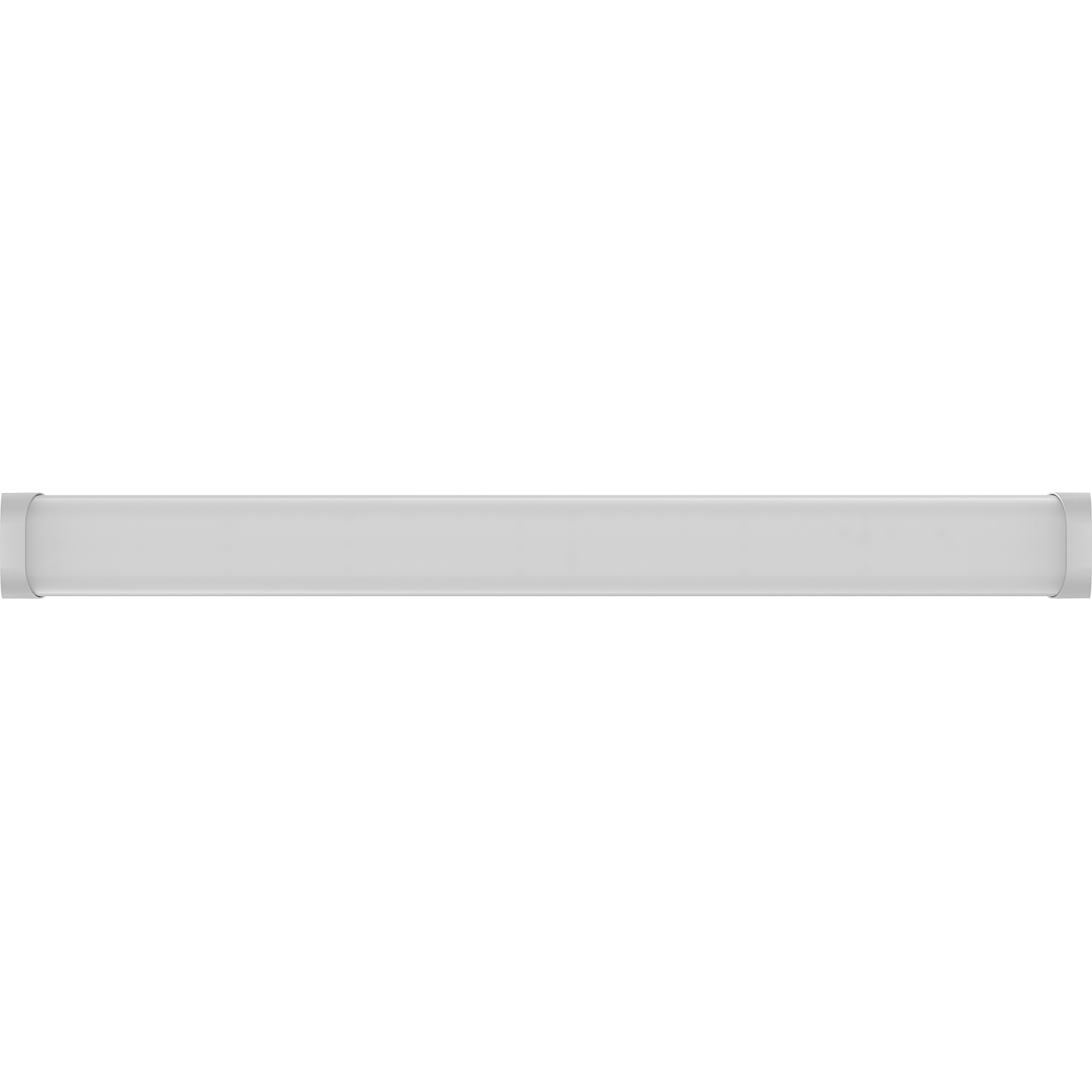

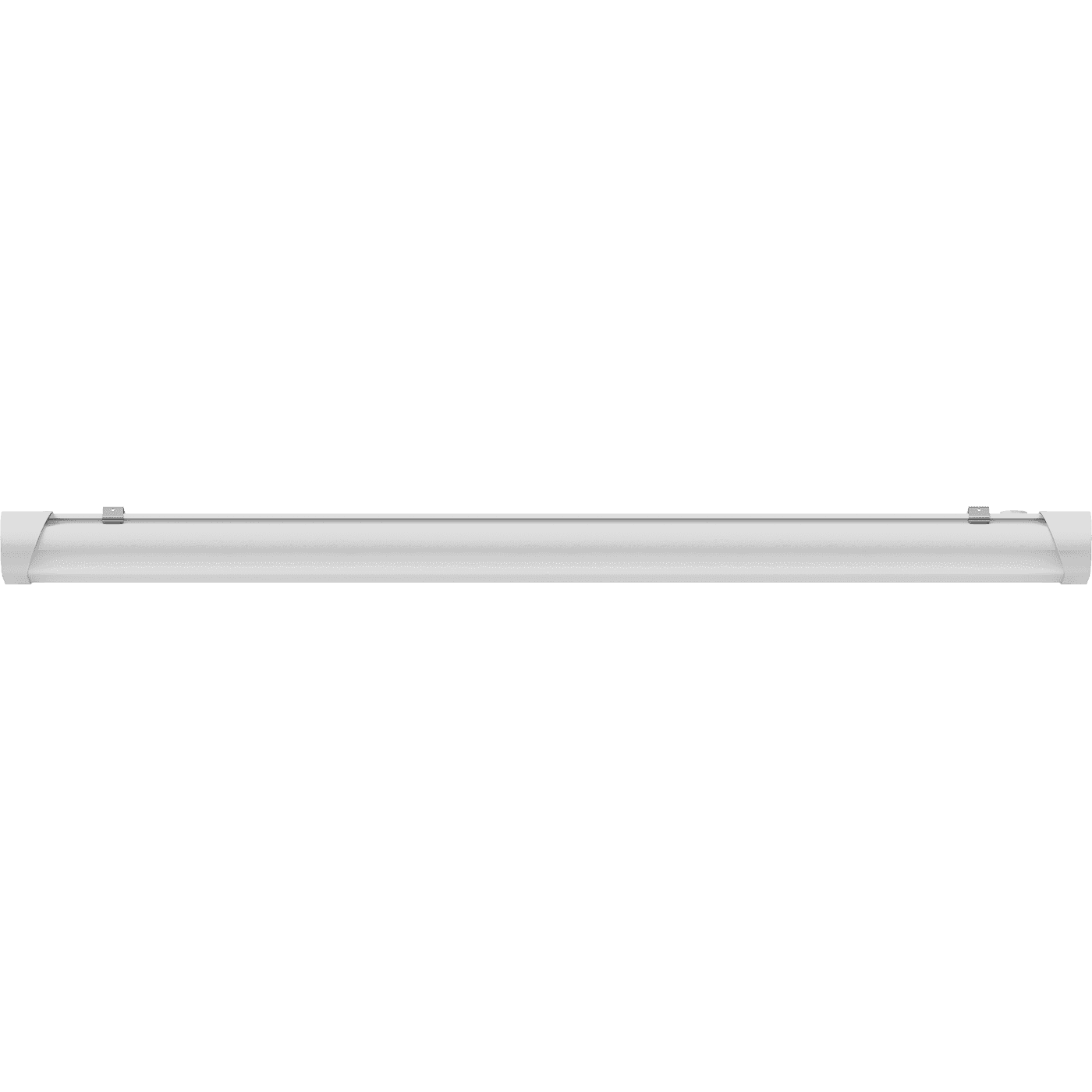

SIMPLE EVO (1200) 30W OPL 950 WH DALI EM

SIMPLE EVO (1200) 30W OPL 950 WH DALI EM
32 Wluminaire power
3900 lmlight flow
122 lm/Wenergy efficiency
code1898005130
color temperature5000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingemergencyLMS options
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
power factor
> 0,95
supply voltage
230 V
electrical
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
material
Поликарбонат
housing color
Белый
length, mm
1070 mm
width, mm
105 mm
height, mm
65 mm
weight
2 kg
climatic performance
УХЛ4*
installation length, mm
820 mm
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1898005130
energy efficiency class
A+
illuminating
color rendition index (CRI)
>90
light flow
3900 lm
flickering factor
<1%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
energy efficiency
122 lm/W
emergency
operating time in emergency mode, hours
1 h
LMS options
dimming
DALI
model files
model files

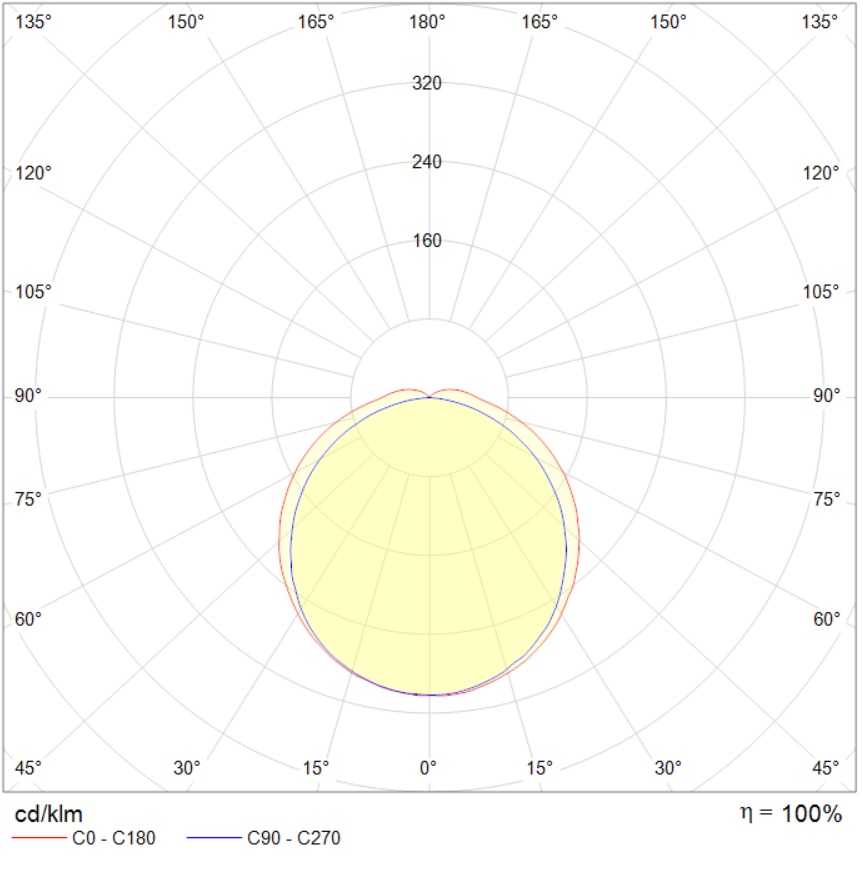

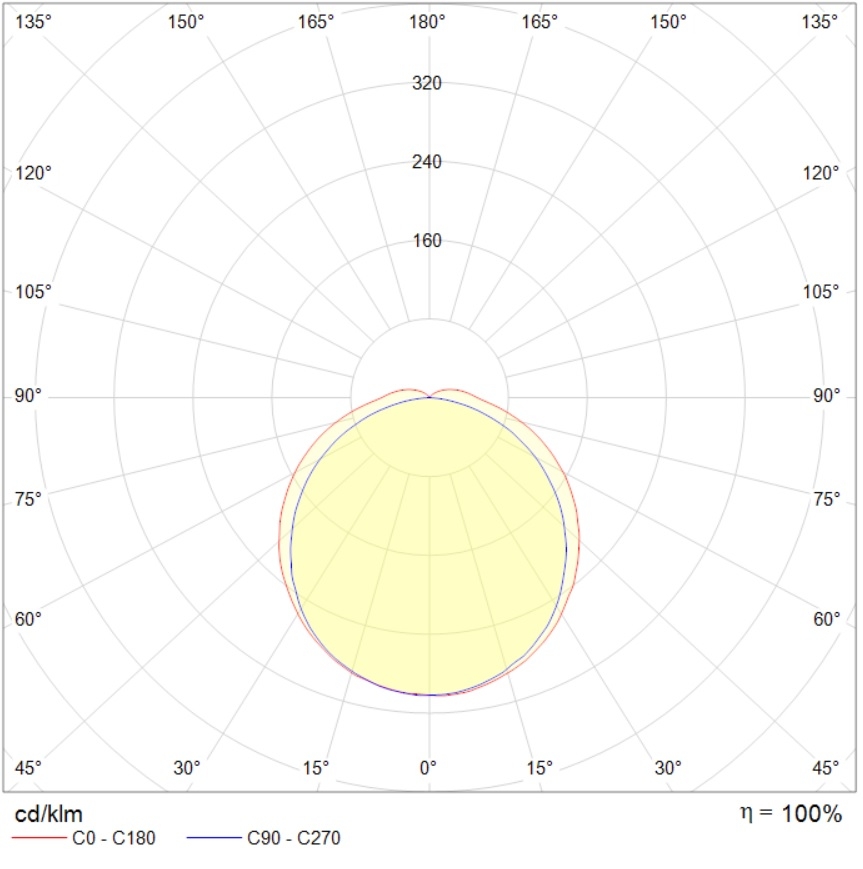

photometric files
