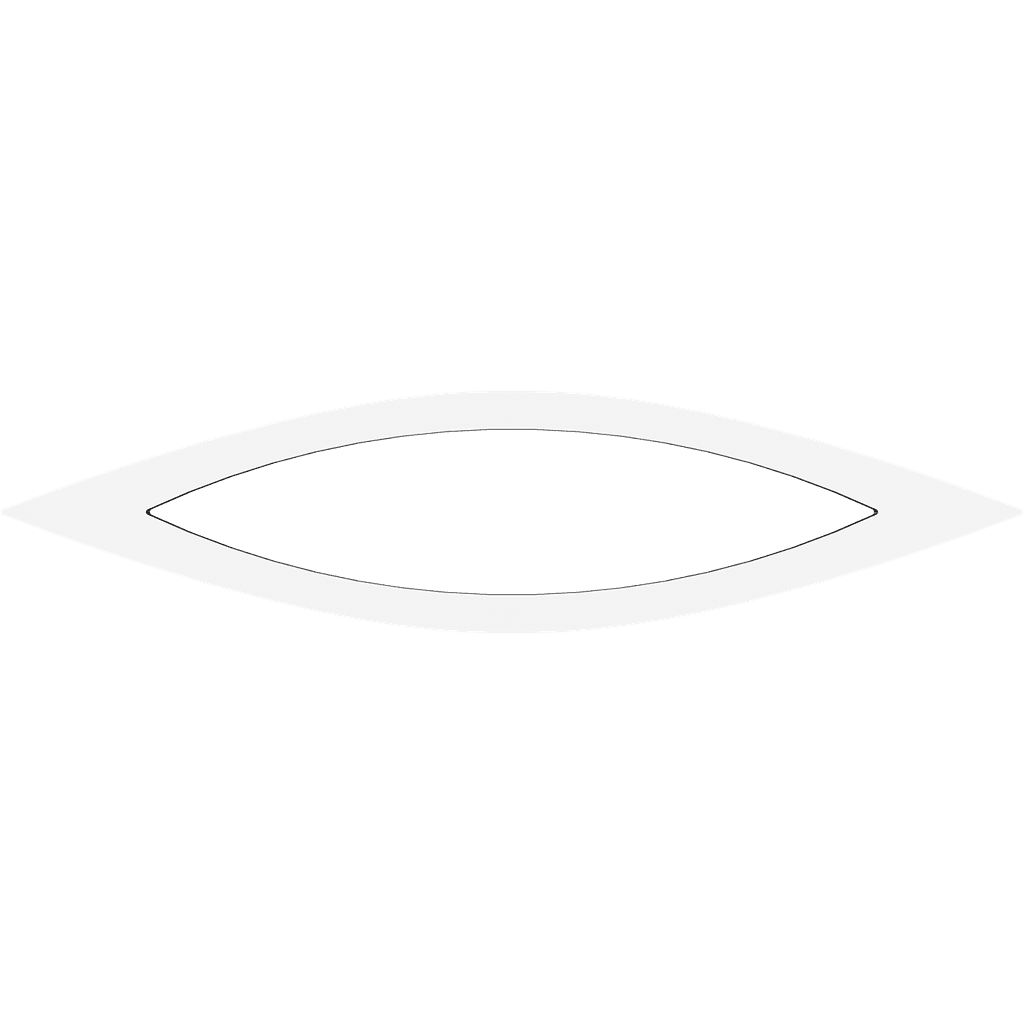

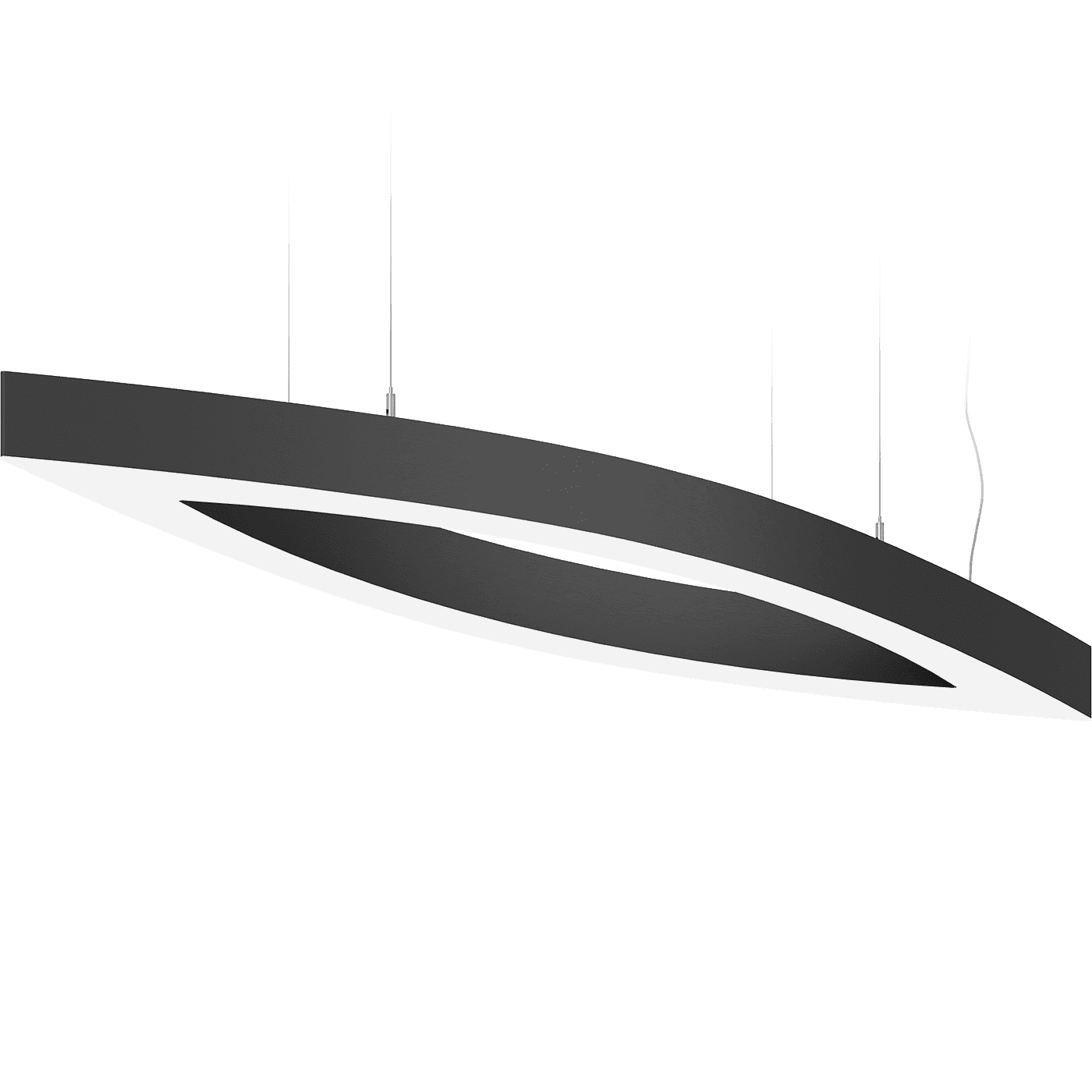

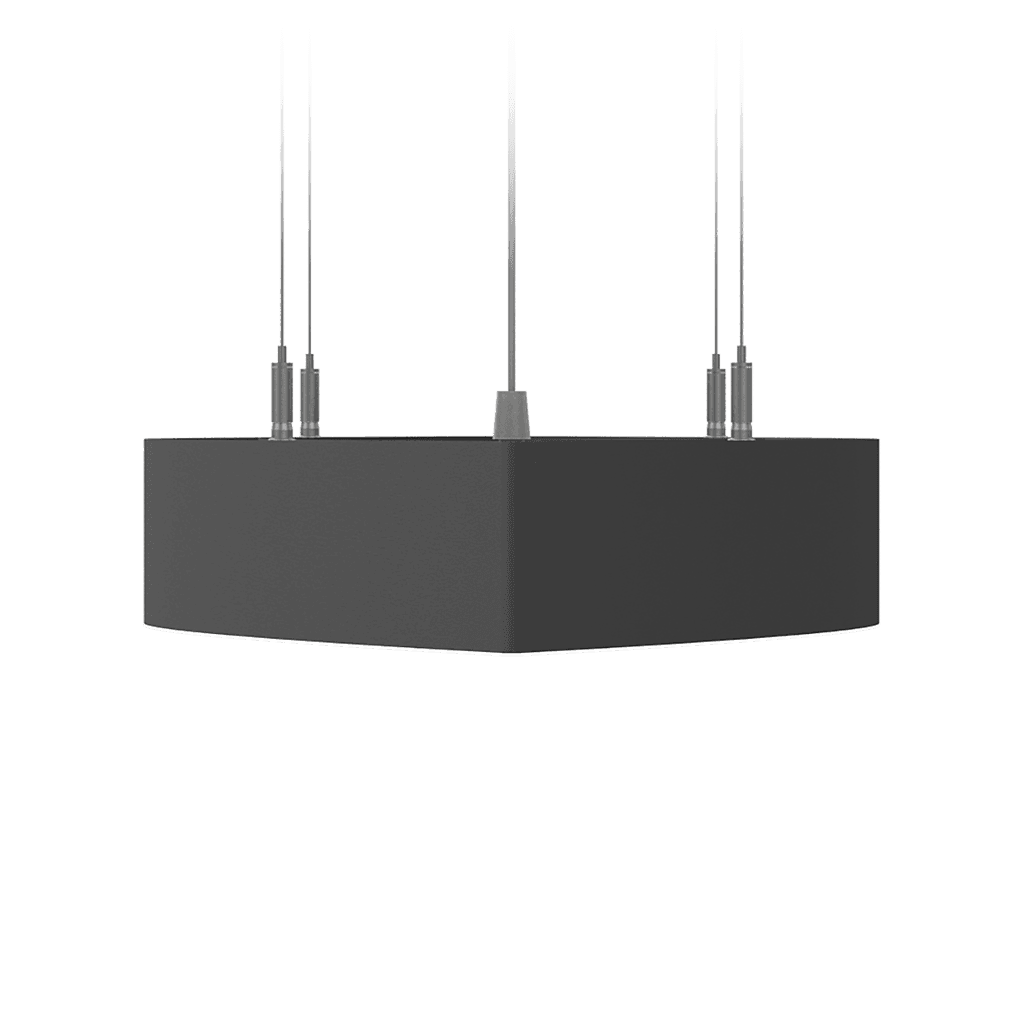

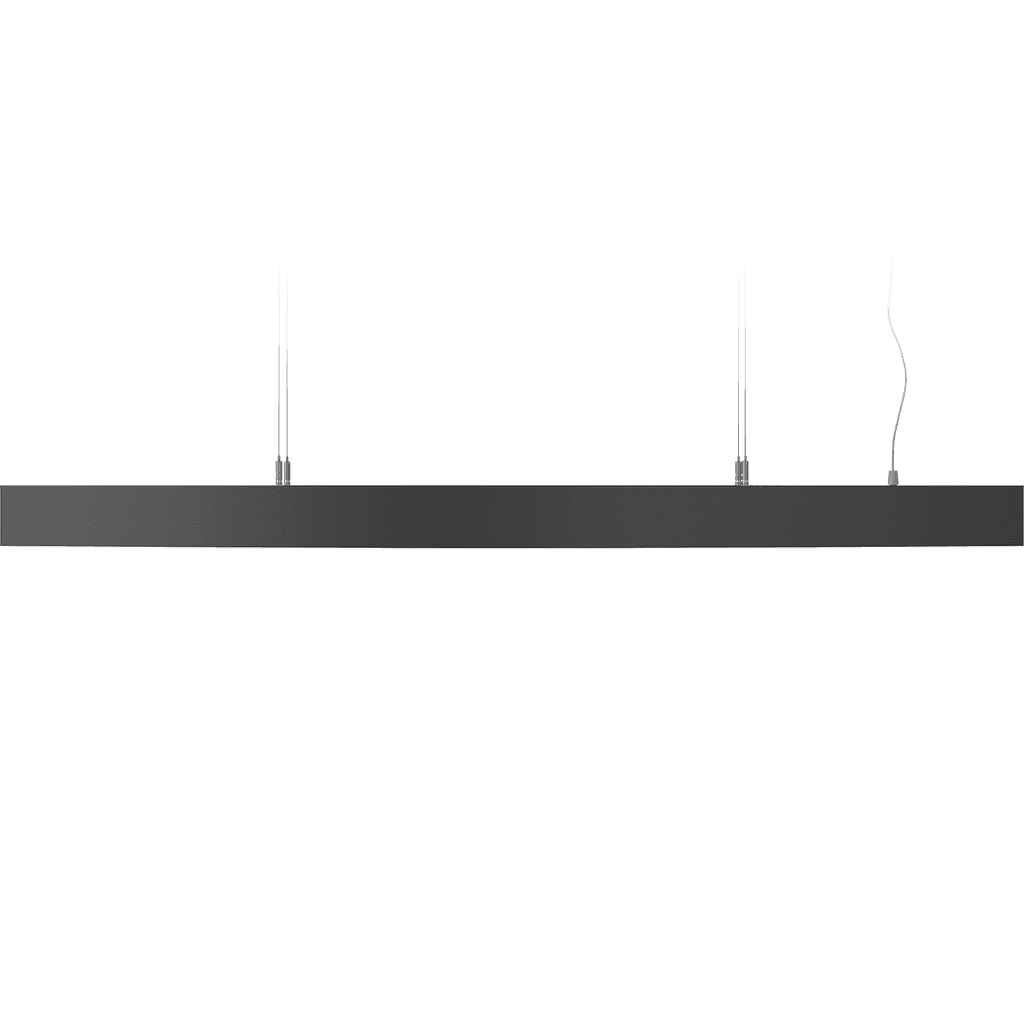

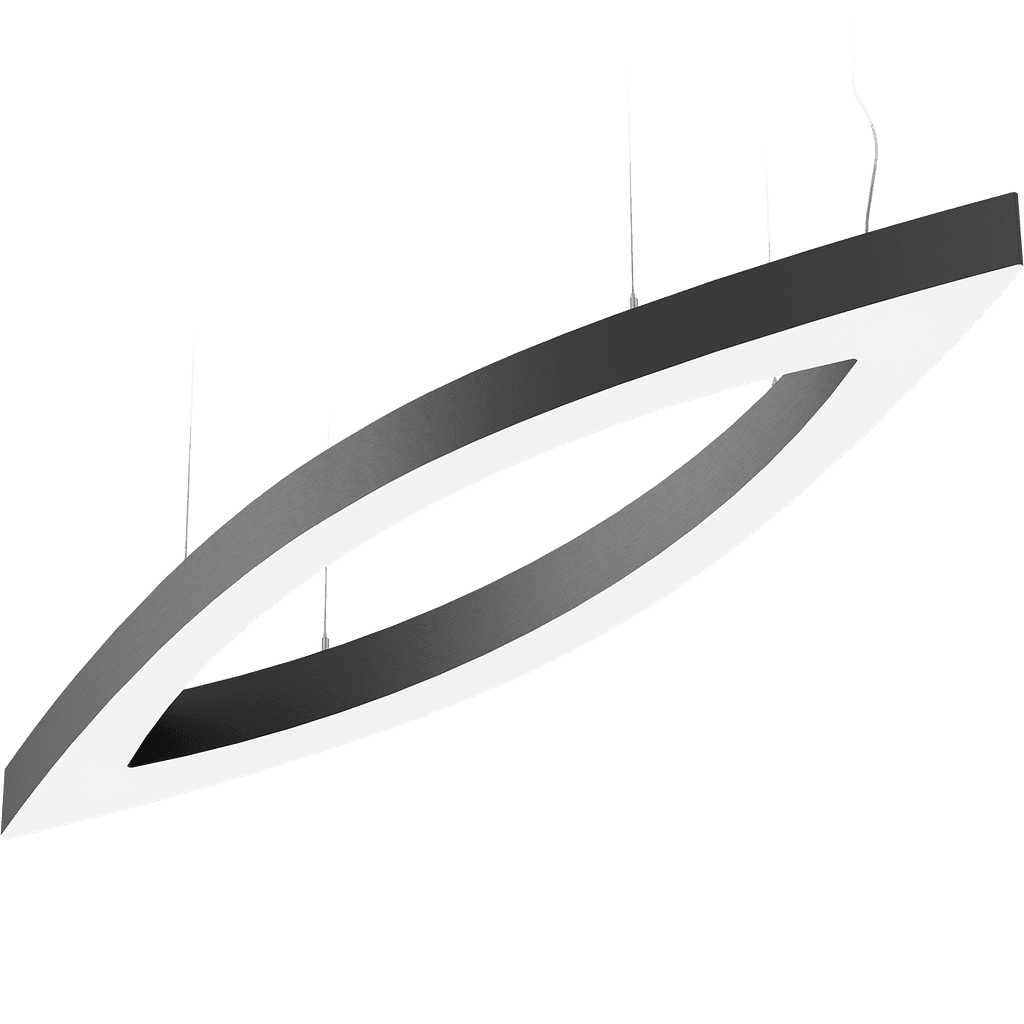

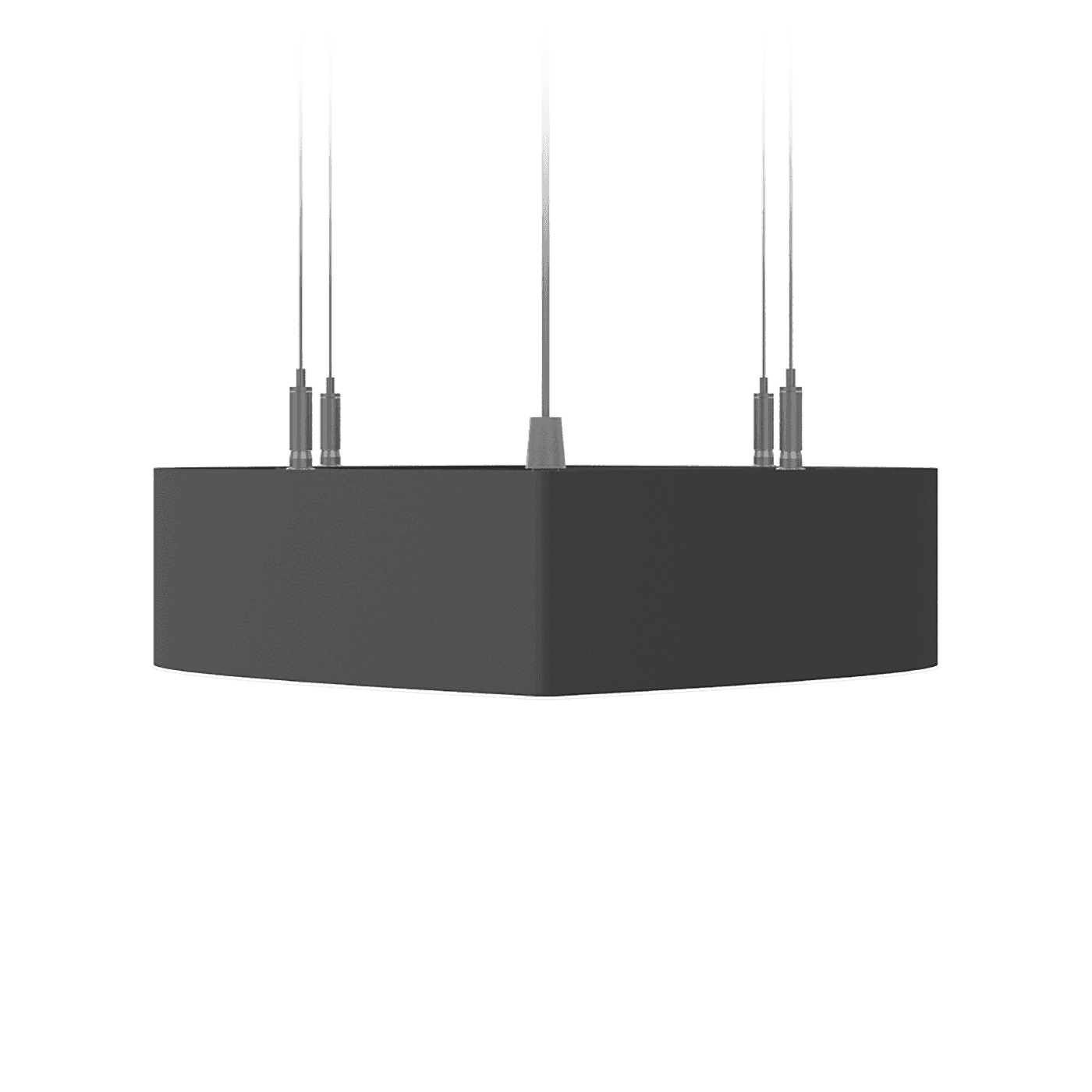

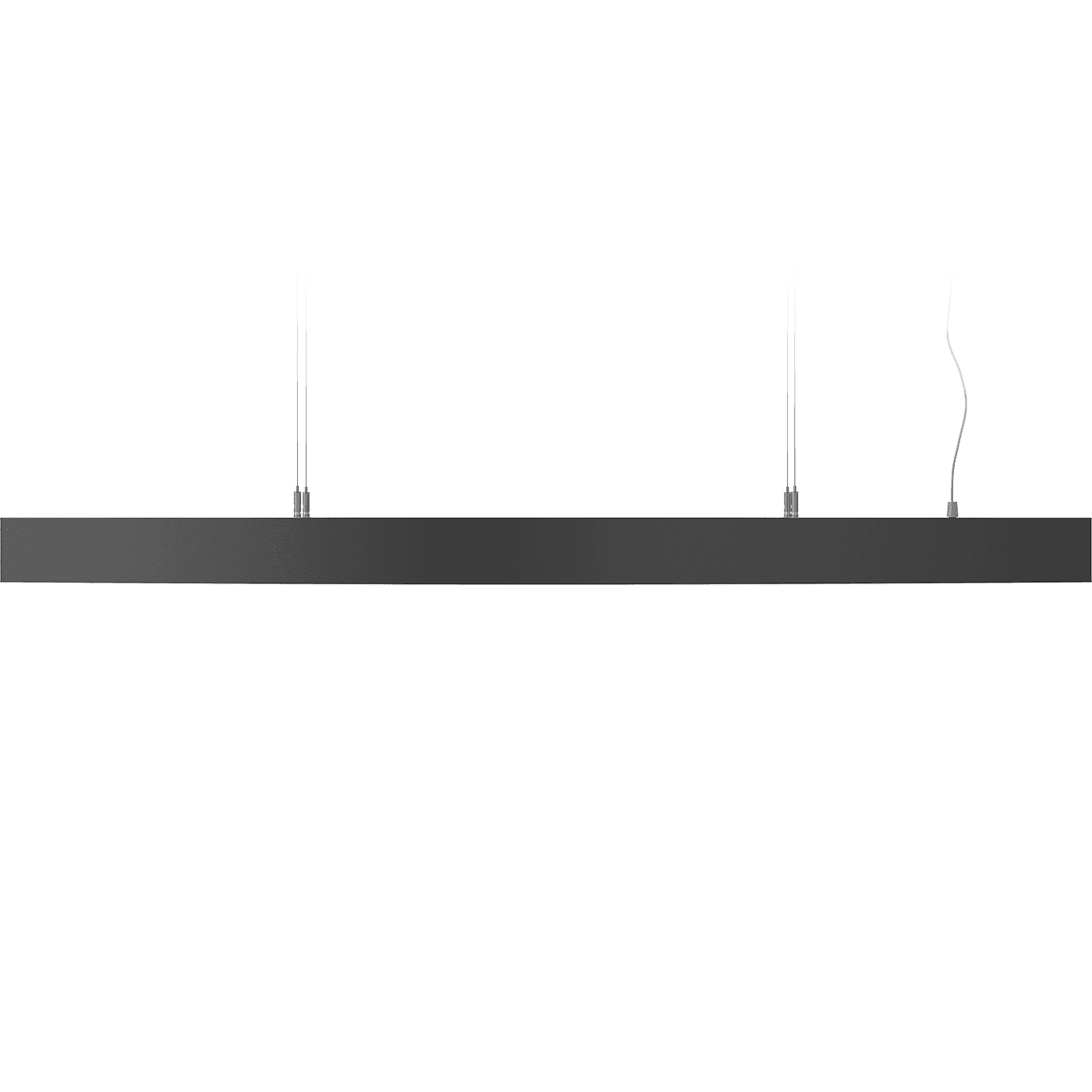

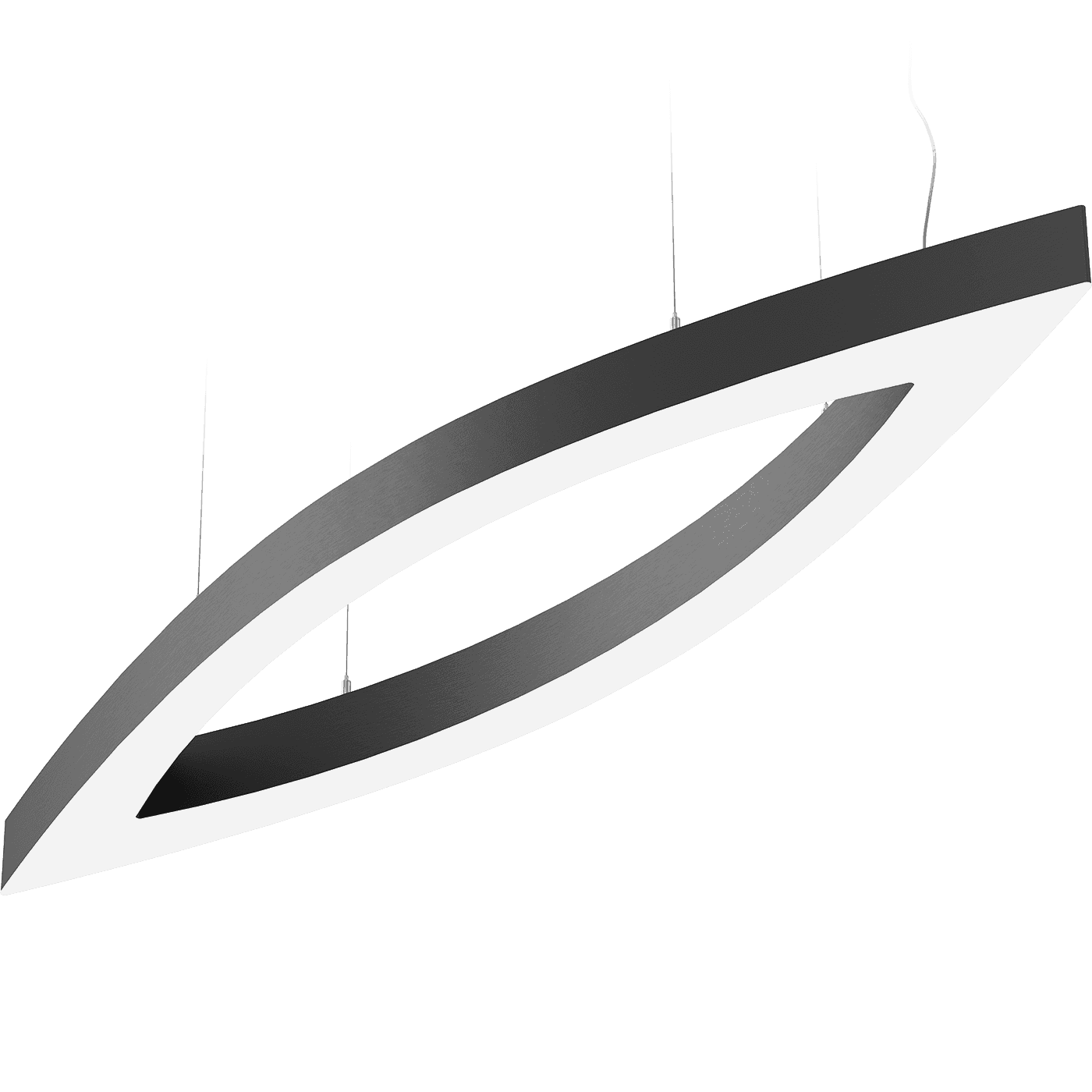

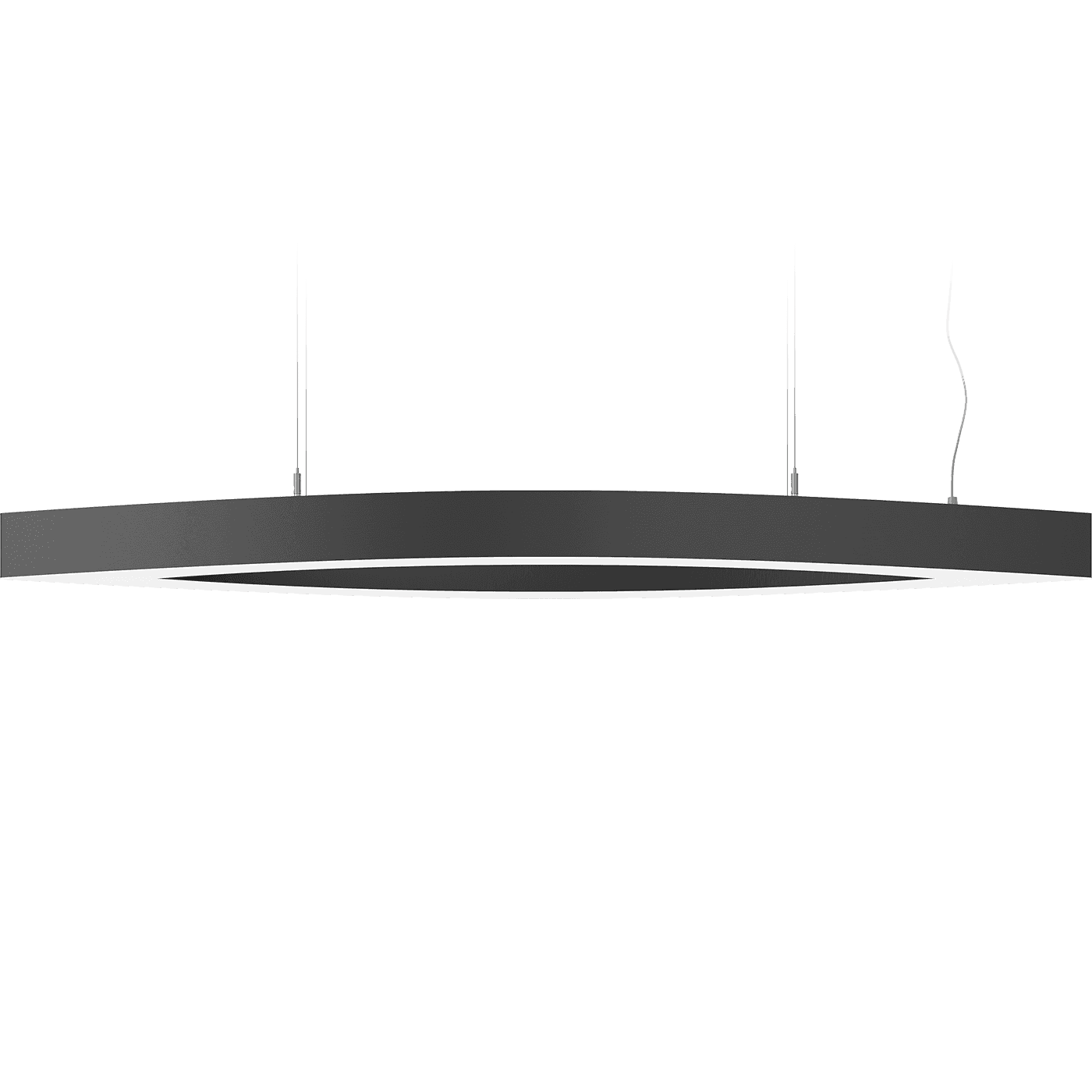

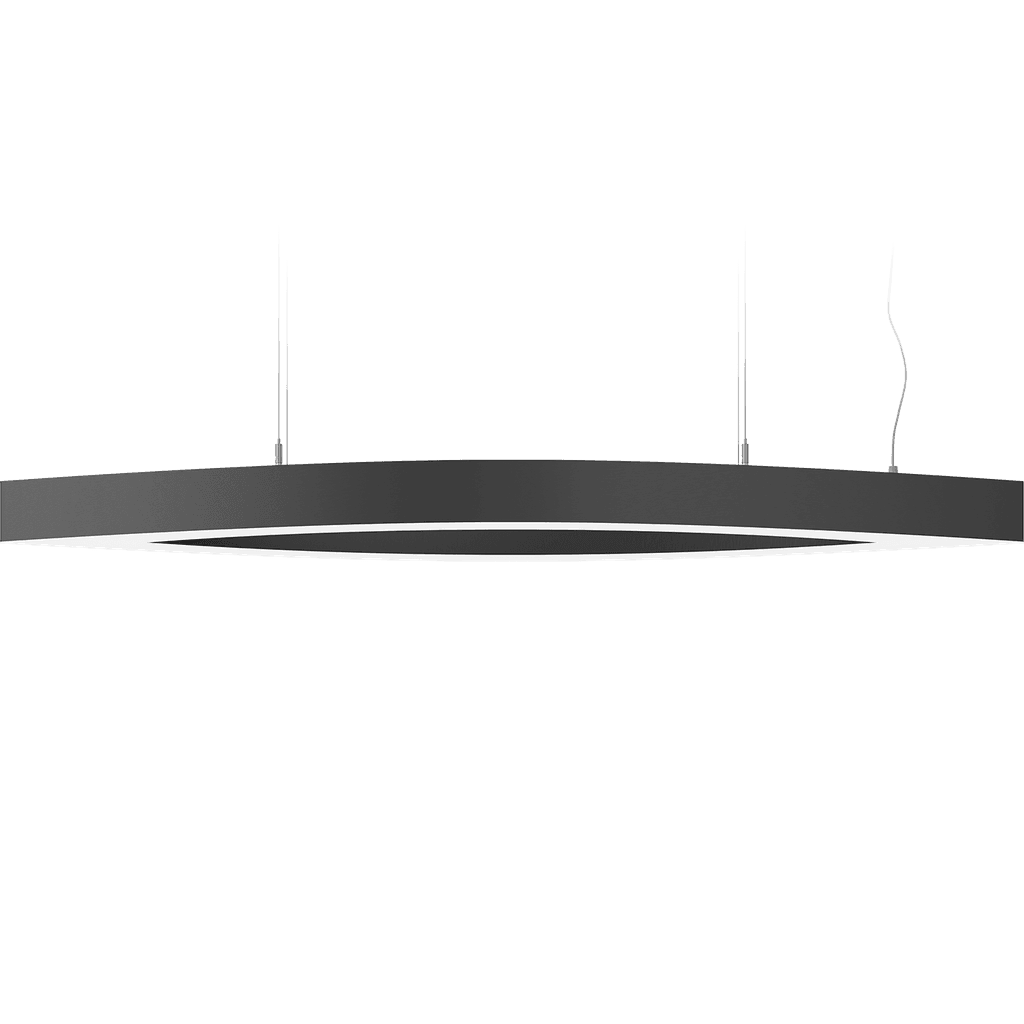

SHARP FLD/P (1350) 840 BL
_840_bl.jpg&w=1920&q=100)
_840_bl.jpg&w=1024&q=75)
SHARP FLD/P (1350) 840 BL
54 Wluminaire power
4000 lmlight flow
74 lm/Wenergy efficiency
code1828000030
color temperature4000 K
beam angleD120
old nameSHARP/P 1350 FLD BL 4000K m01
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
74 lm/Wcolor rendition index (CRI)
>80light flow
4000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
74 lm/W
color rendition index (CRI)
>80
light flow
4000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
85 µs
electric shock protection
I
luminaire power
54 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1350 mm
width
320 mm
height
60 mm
installation length
170 mm
installation width
597 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1828000030
model files
model files

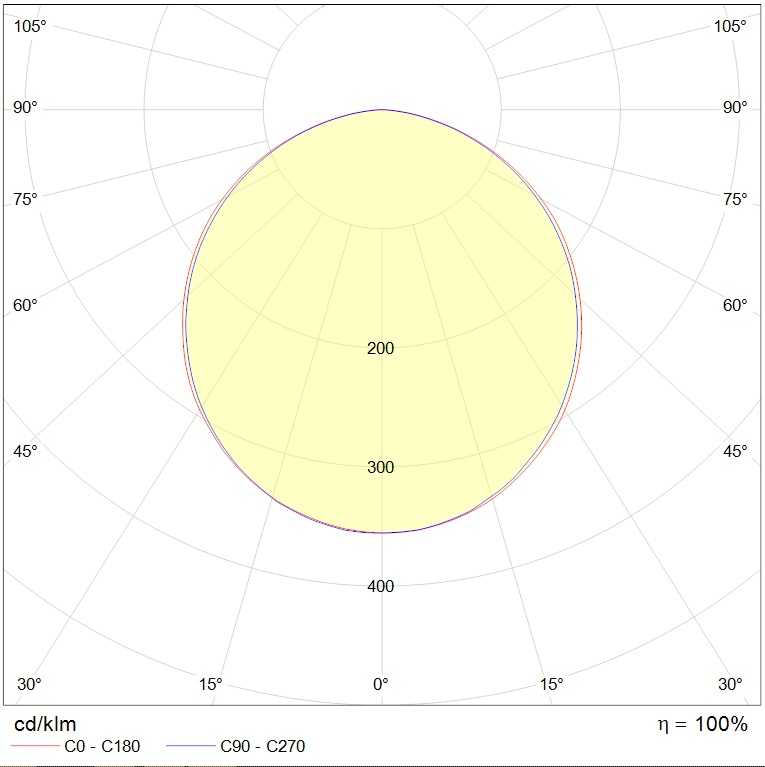

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg78.4 kB
ldt75.9 kB
documents
passport318.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB
