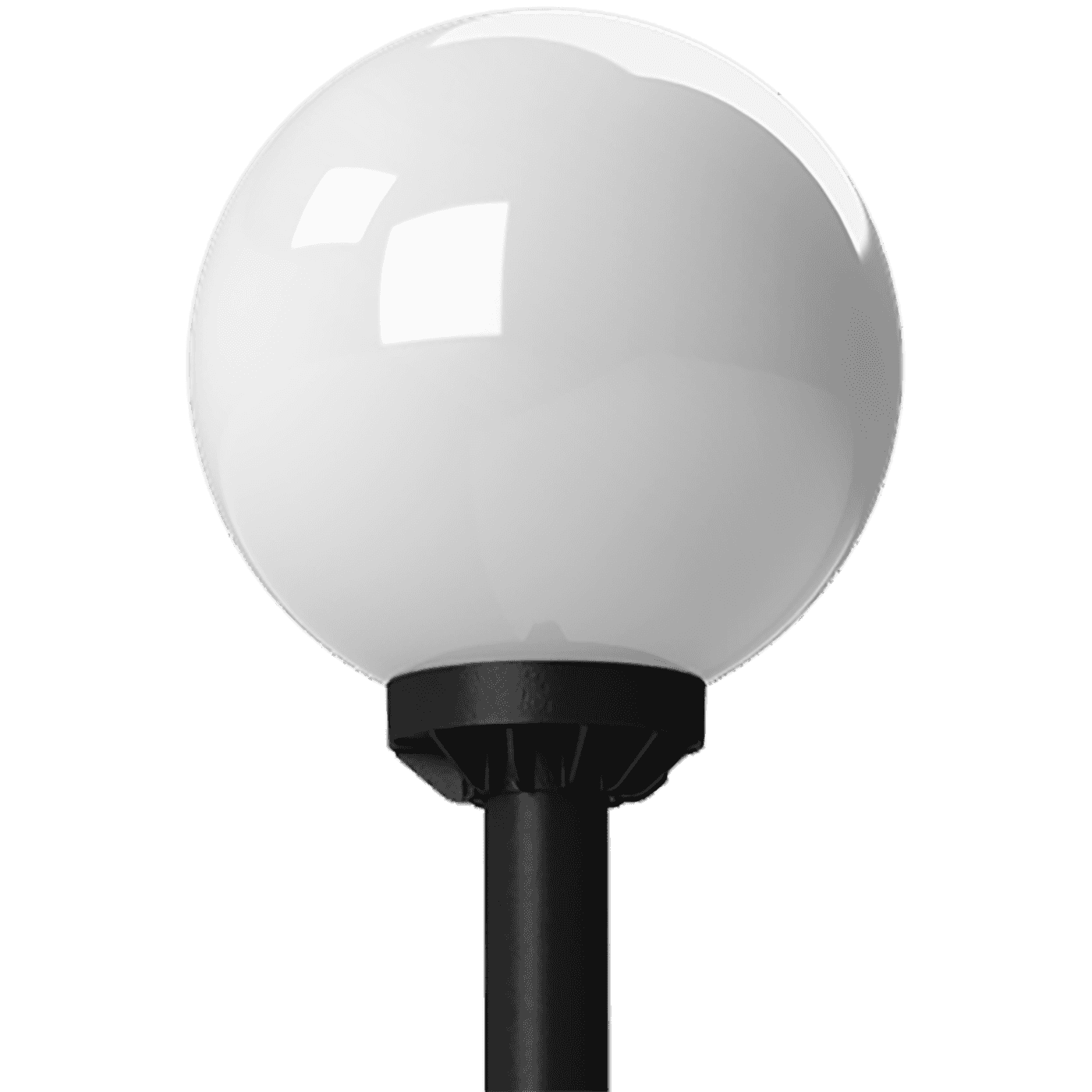

SFERA LED 40W DK 840 RAL9006
SFERA LED 40W DK 840 RAL9006
36 Wluminaire power
4400 lmlight flow
122 lm/Wenergy efficiency
code1647000040
beam angleD120
color temperature4000
weight2.8 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
36 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
2.8 kg
diameter, mm
350 mm
height, mm
385 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1647000040
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
122 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files

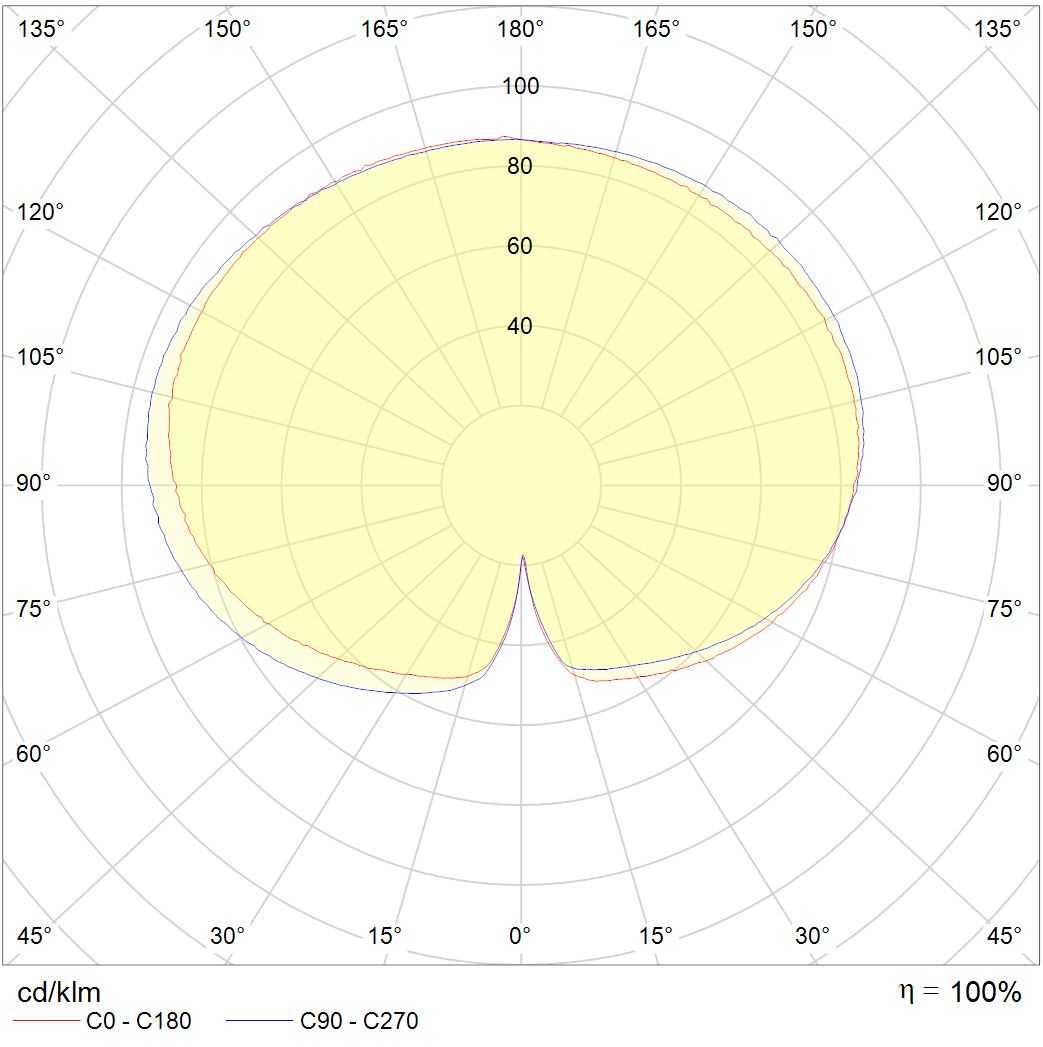

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS907 B
model 3dMax5.5 mB
photometric files
ies263.2 kB
jpg104 kB
ldt228 kB
documents
passport1004.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
