SAFARI DL LED G2 26W 940 WH DALI

SAFARI DL LED G2 26W 940 WH DALI
add to favorites
24 Wluminaire power
2500 lmlight flow
104 lm/Wenergy efficiency
code
1170004650
color temperature
4000 K
beam angle
D120
old name
SAFARI DL LED G2 26W 840 WH DALI
performance factor
100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. downlights
  6. recessed
  7. SAFARI DL LED G2
  8. SAFARI DL LED G2 26W 940 WH DALI
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommonpackage
energy efficiency
104 lm/W
color rendition index (CRI)
>90
light flow
2500 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
104 lm/W
color rendition index (CRI)
>90
light flow
2500 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
36 µs
power factor
> 0,95
luminaire power
24 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
47 A
constructional
diameter
188 mm
height
46 mm
installation diameter
155 mm
weight
1.3 kg
ingress protection (IP)
IP54/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
Type roof
emergency
emergency power supply
Нет
LMS options
dimming
DALI
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
energy efficiency class
A+
code
1170004650
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт.
model files
model files

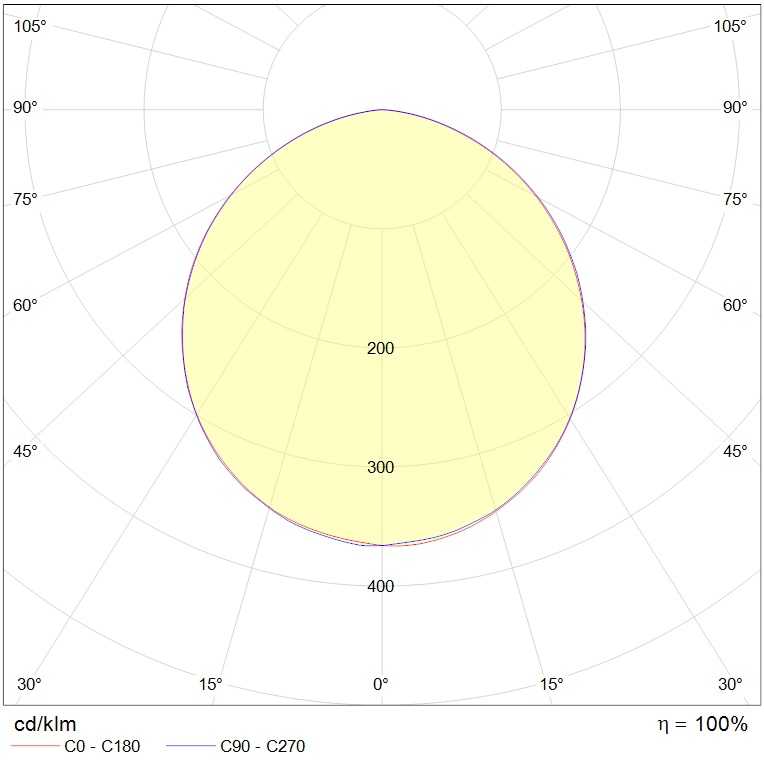

photometric files
ies107.1 kB
jpg72.6 kB
ldt64.7 kB
csv437 B
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
photometric files
ies107.1 kB
jpg72.6 kB
ldt64.7 kB
csv437 B
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
accessories

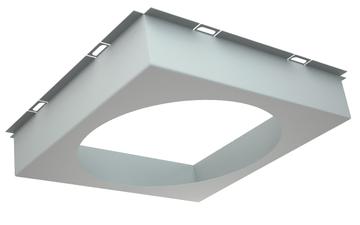

Рамка Грильято SL/DL (SAFARI G2 26W) 190x190xd150 (100x100x40 lamel 10mm) silver0.4kgarticle: 2170000820
Рамка Грильято SL/DL (SAFARI G2 26W) 440x440xd150 (150x75x50 lamel 10mm) black2.6kgarticle: 2170000810
