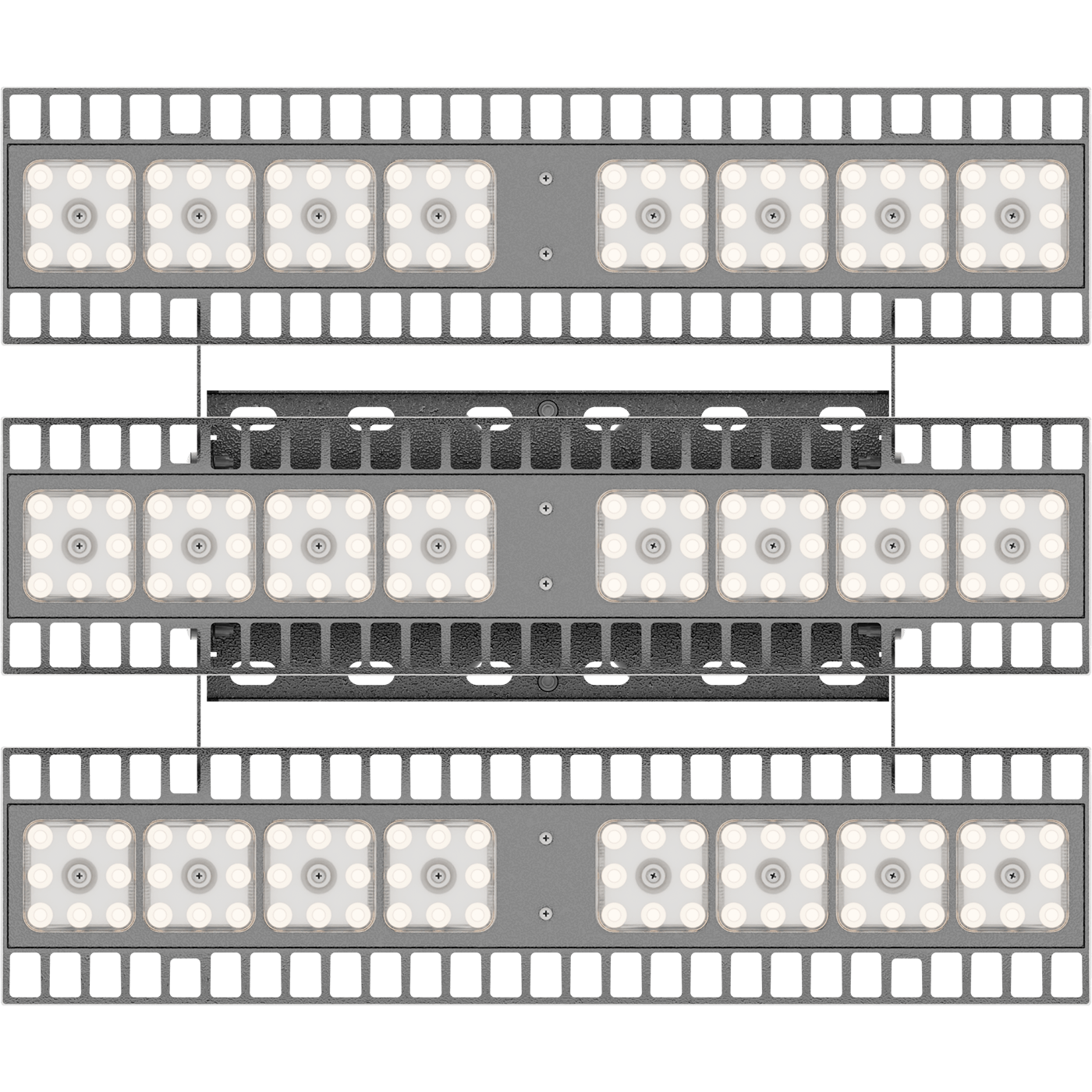

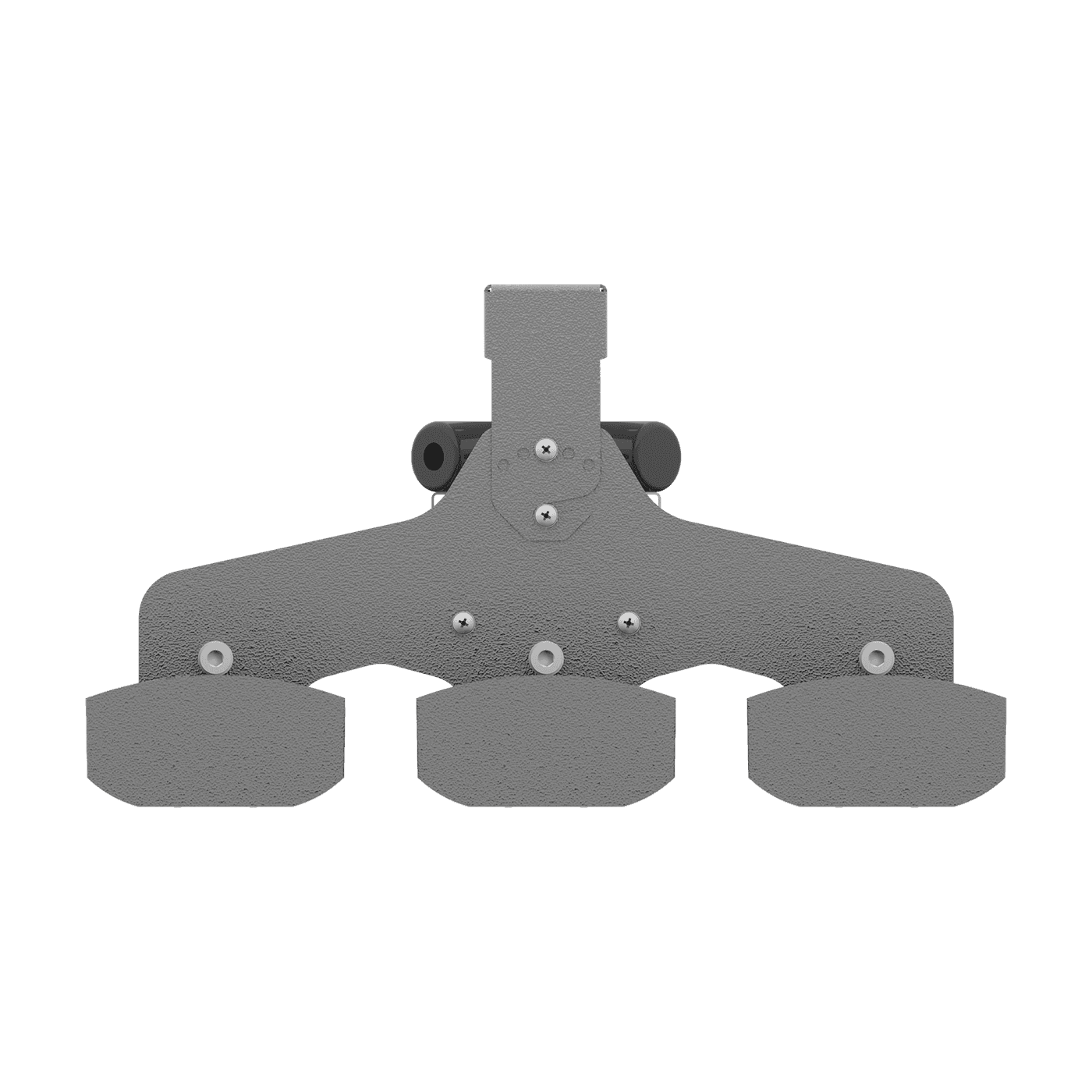

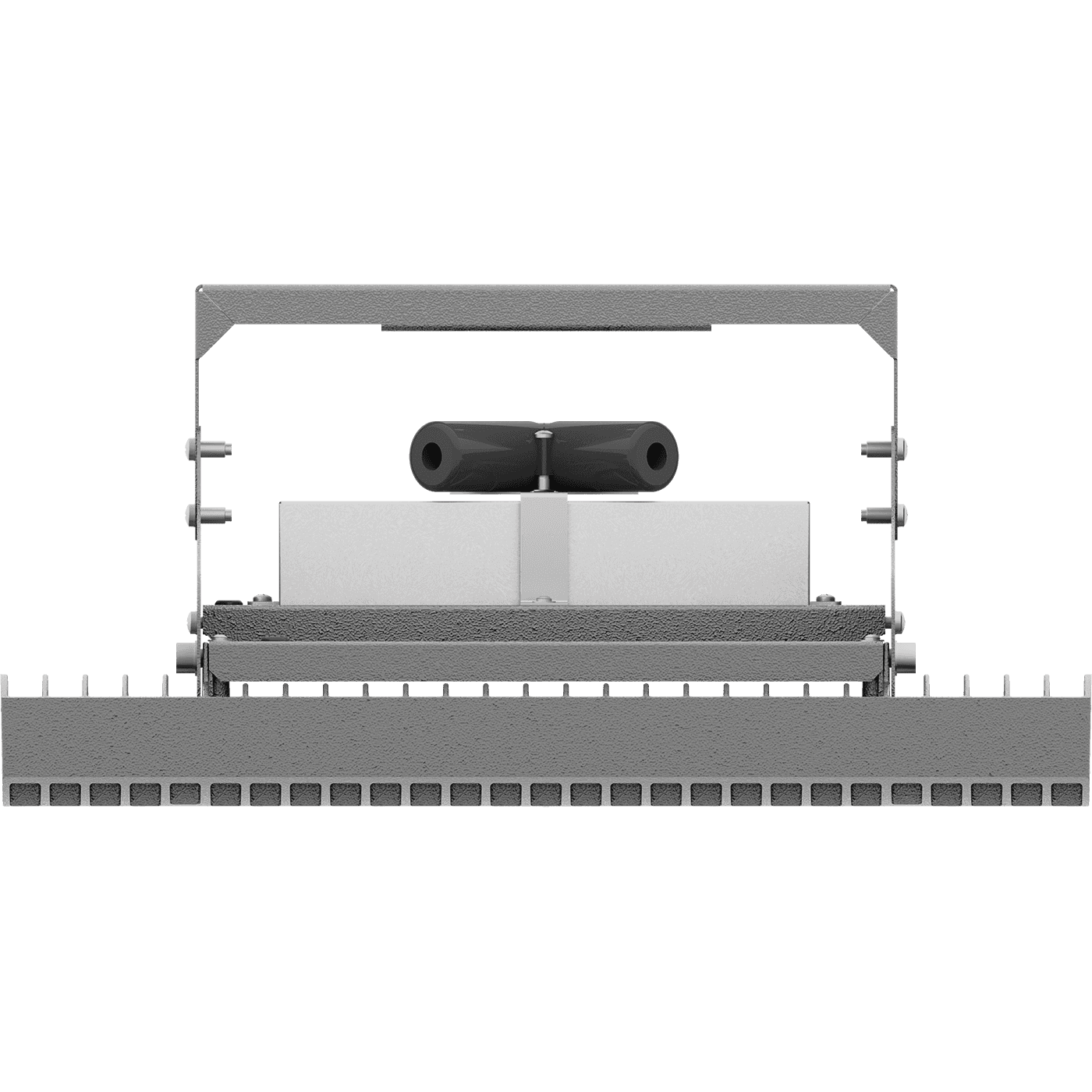

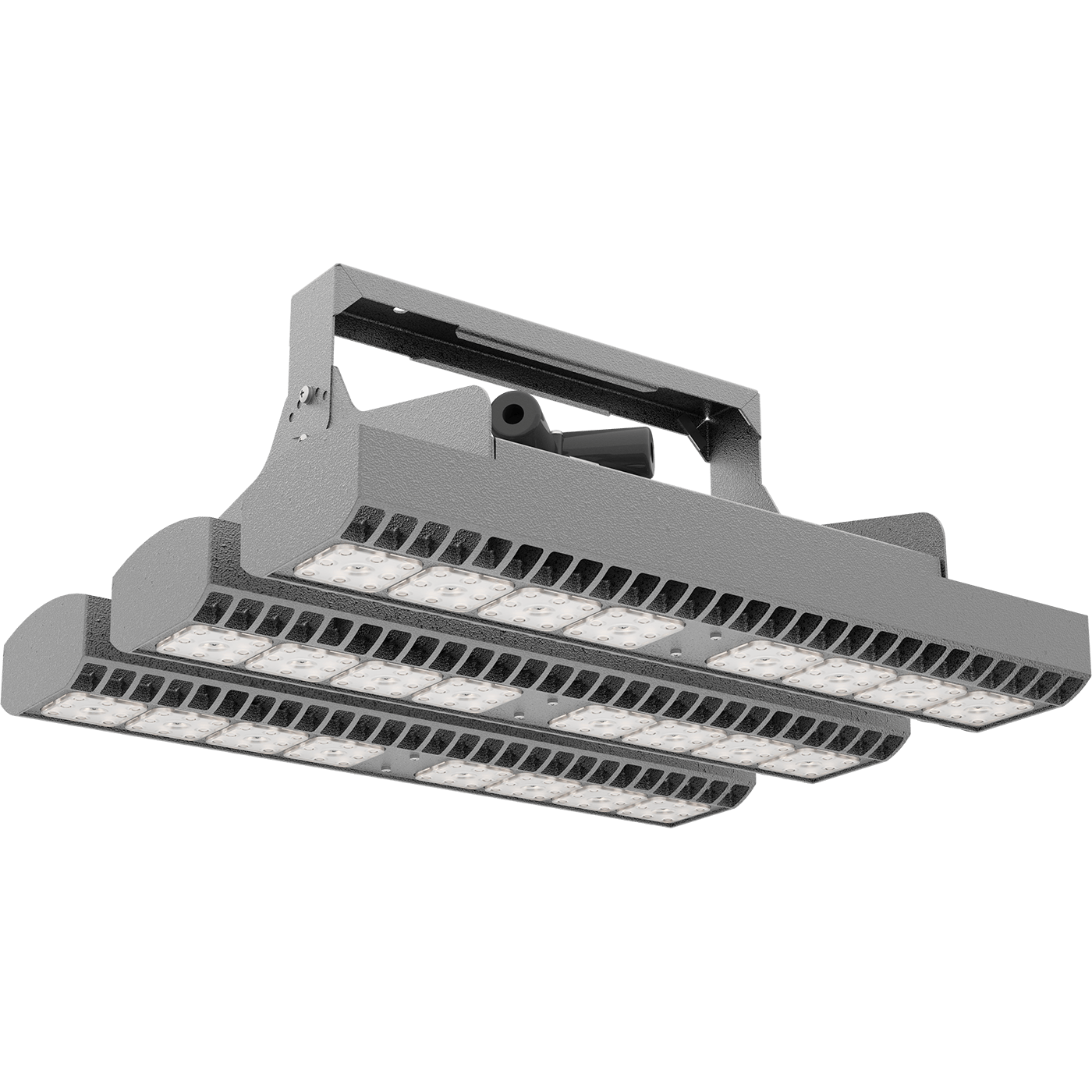

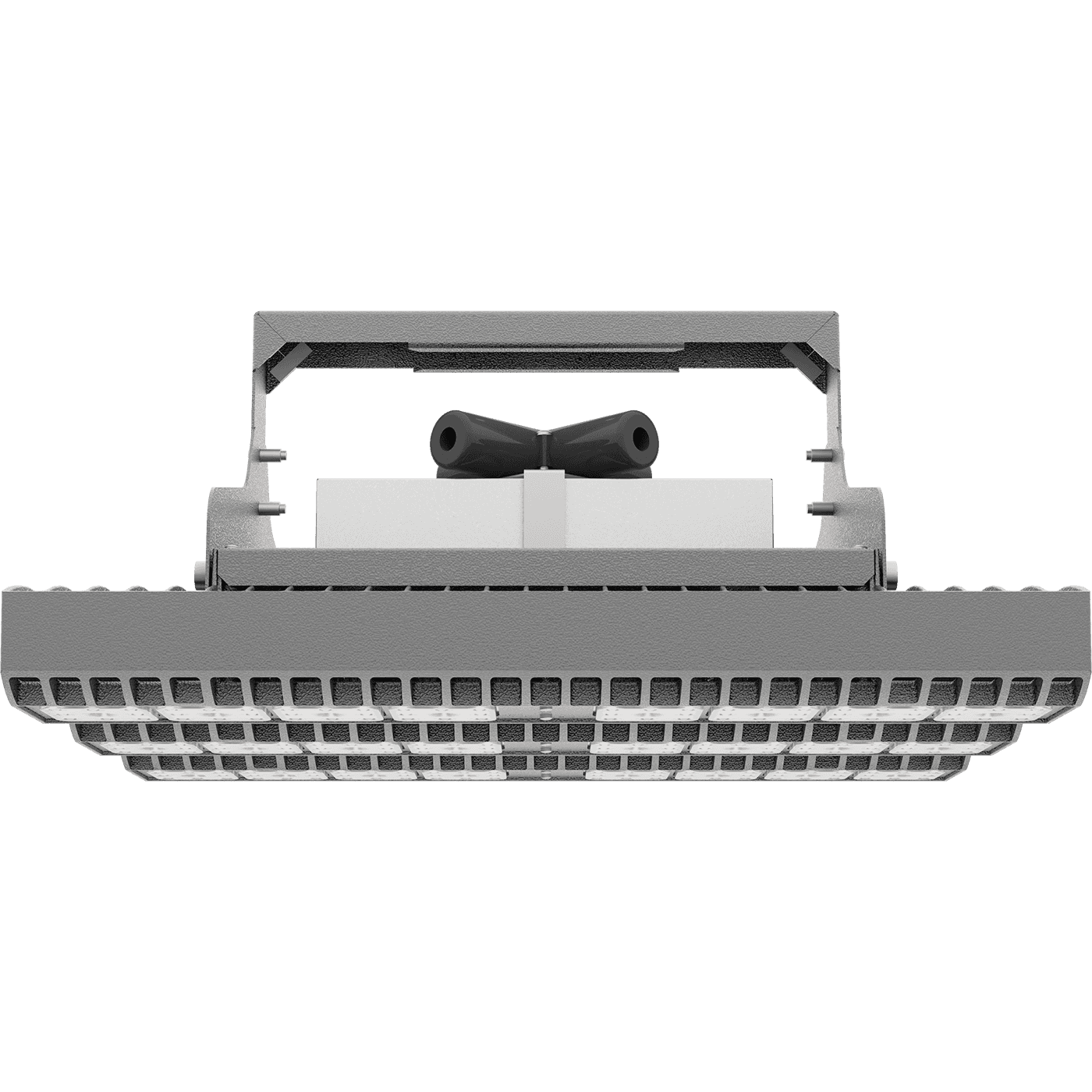

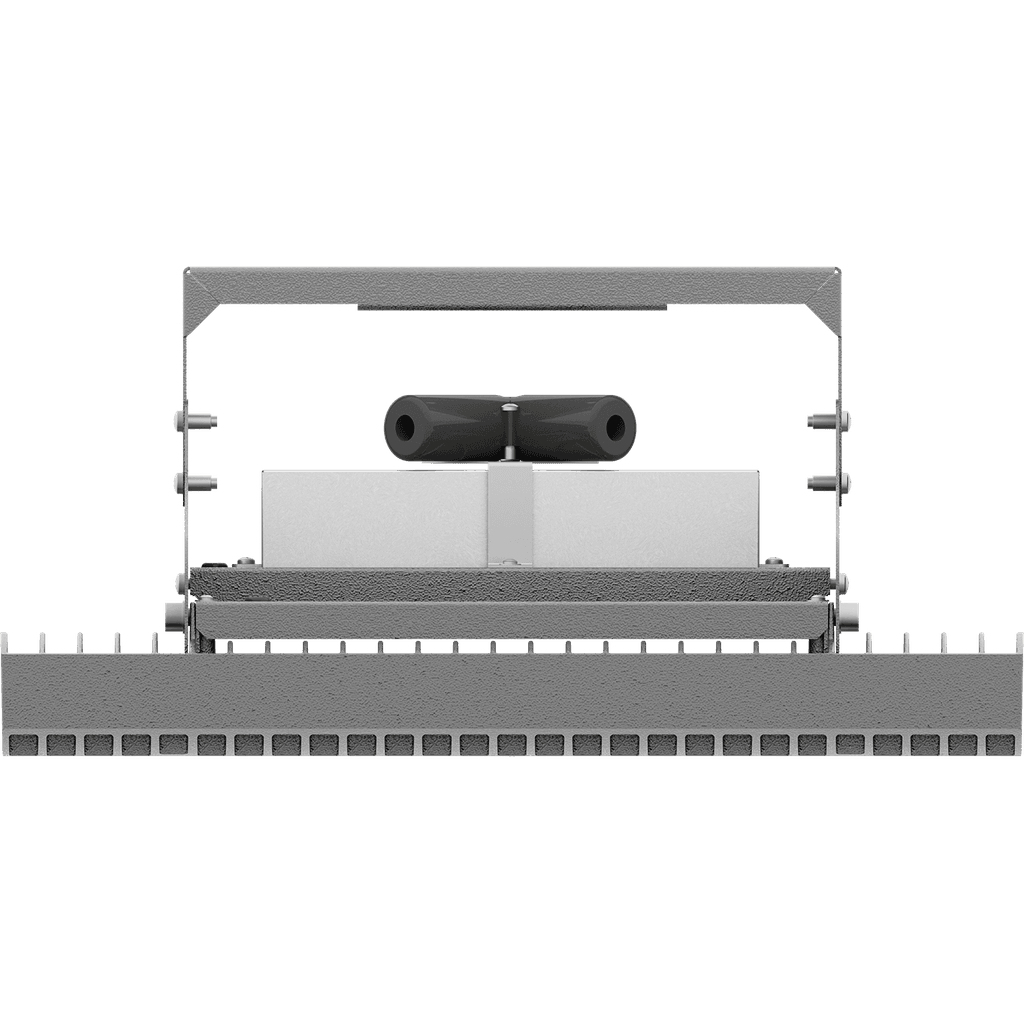

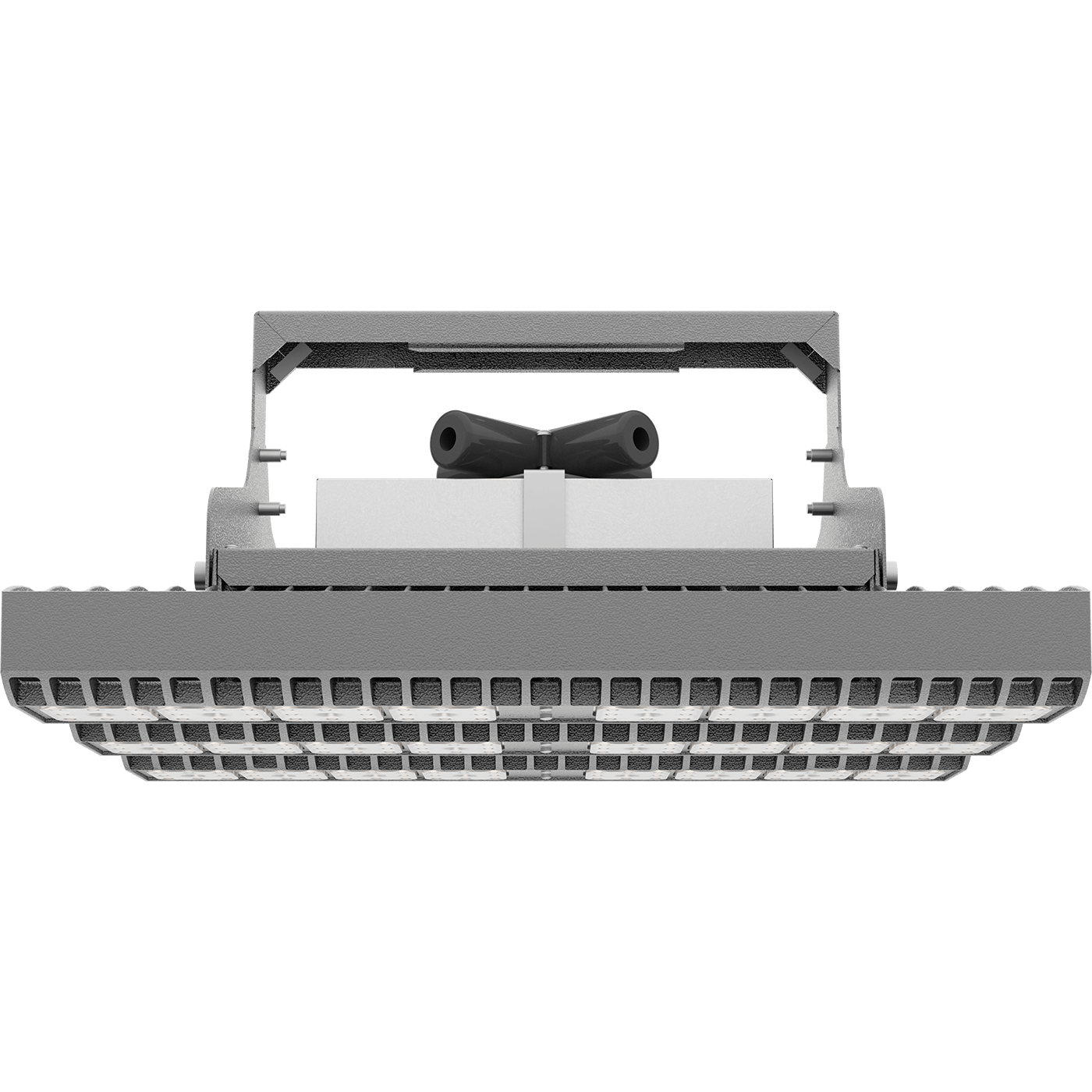

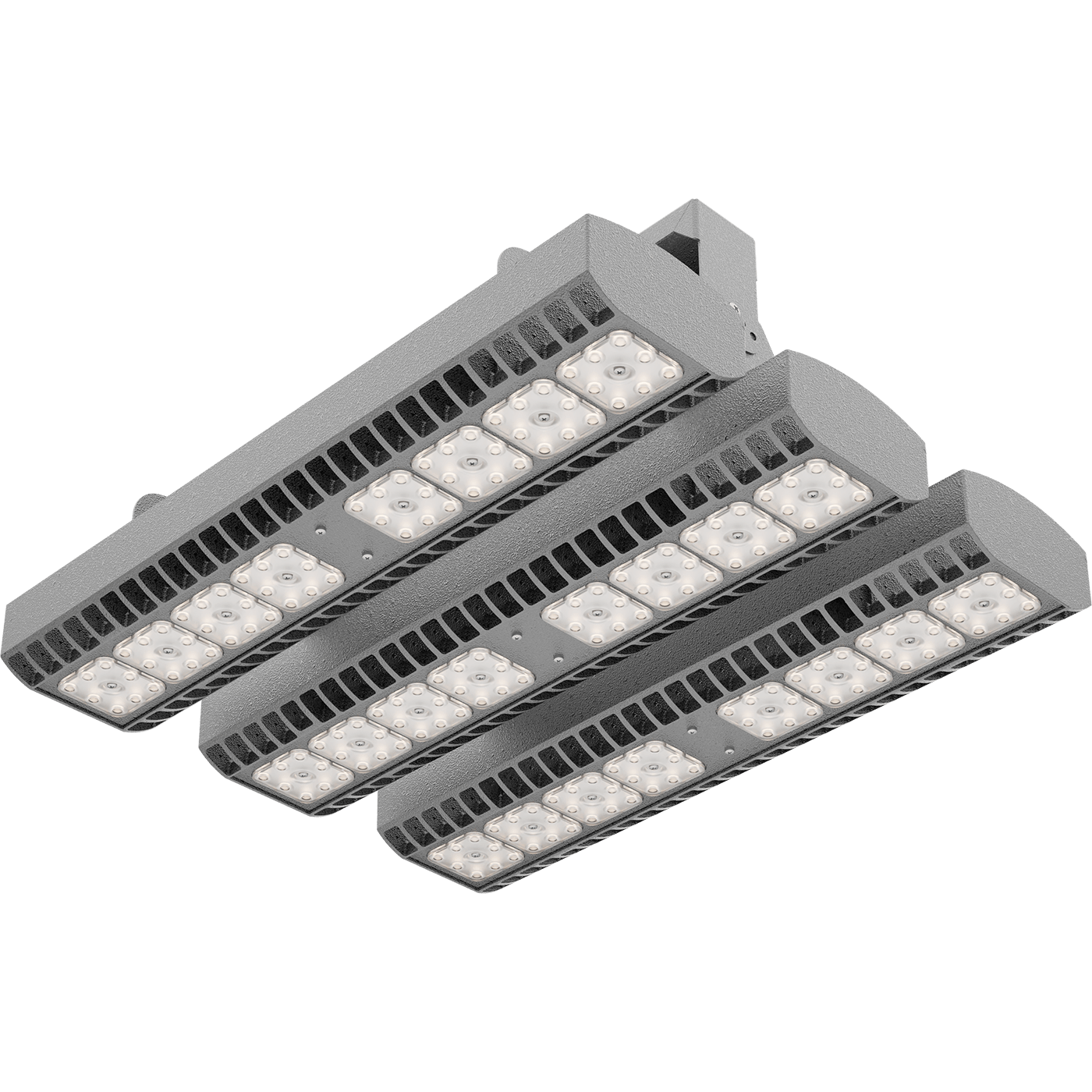

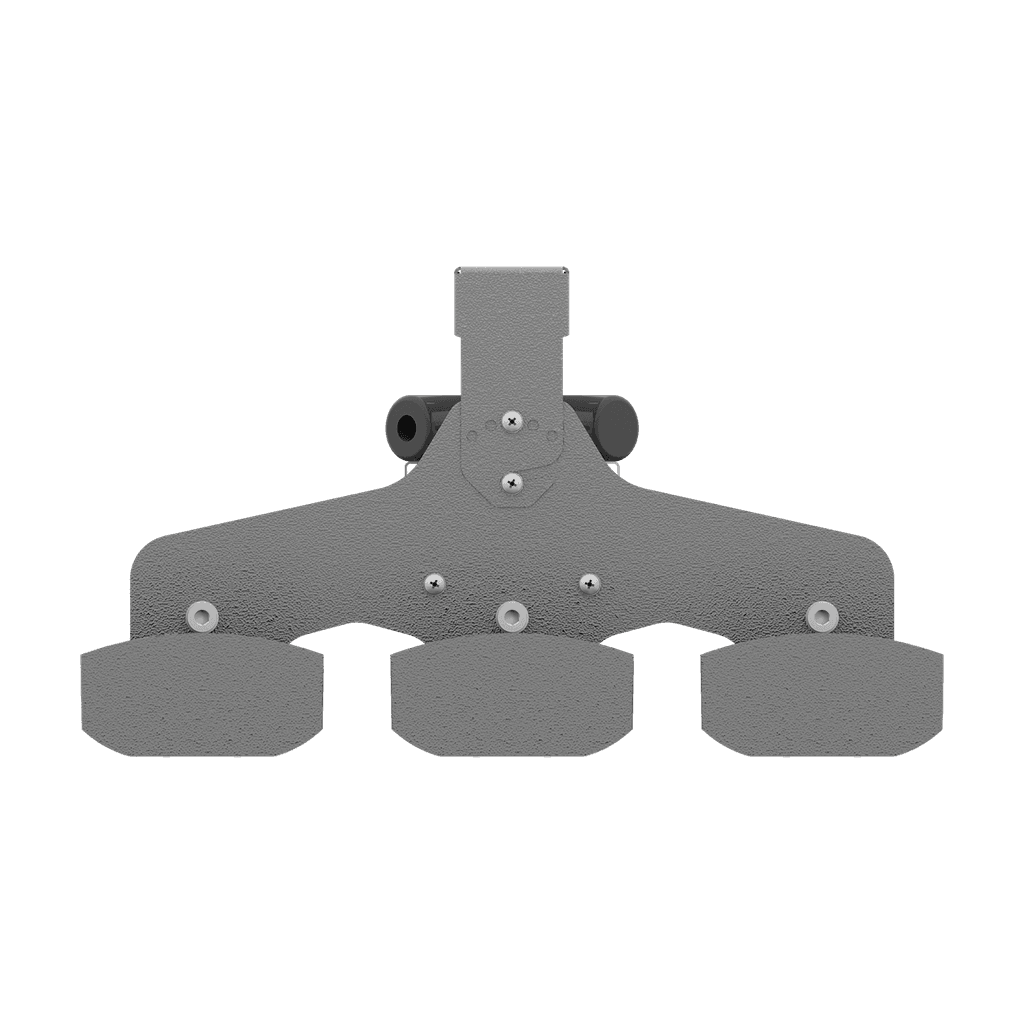

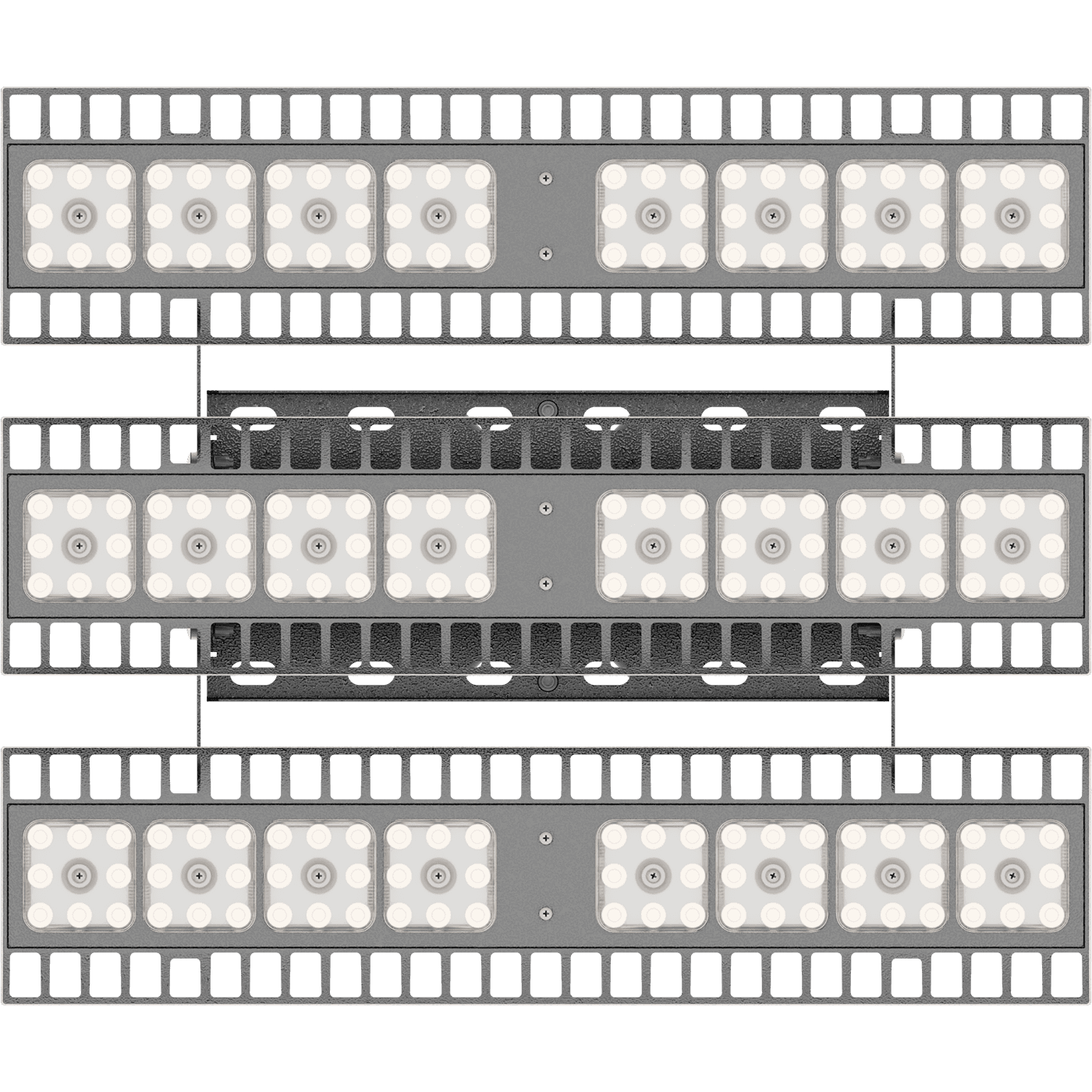

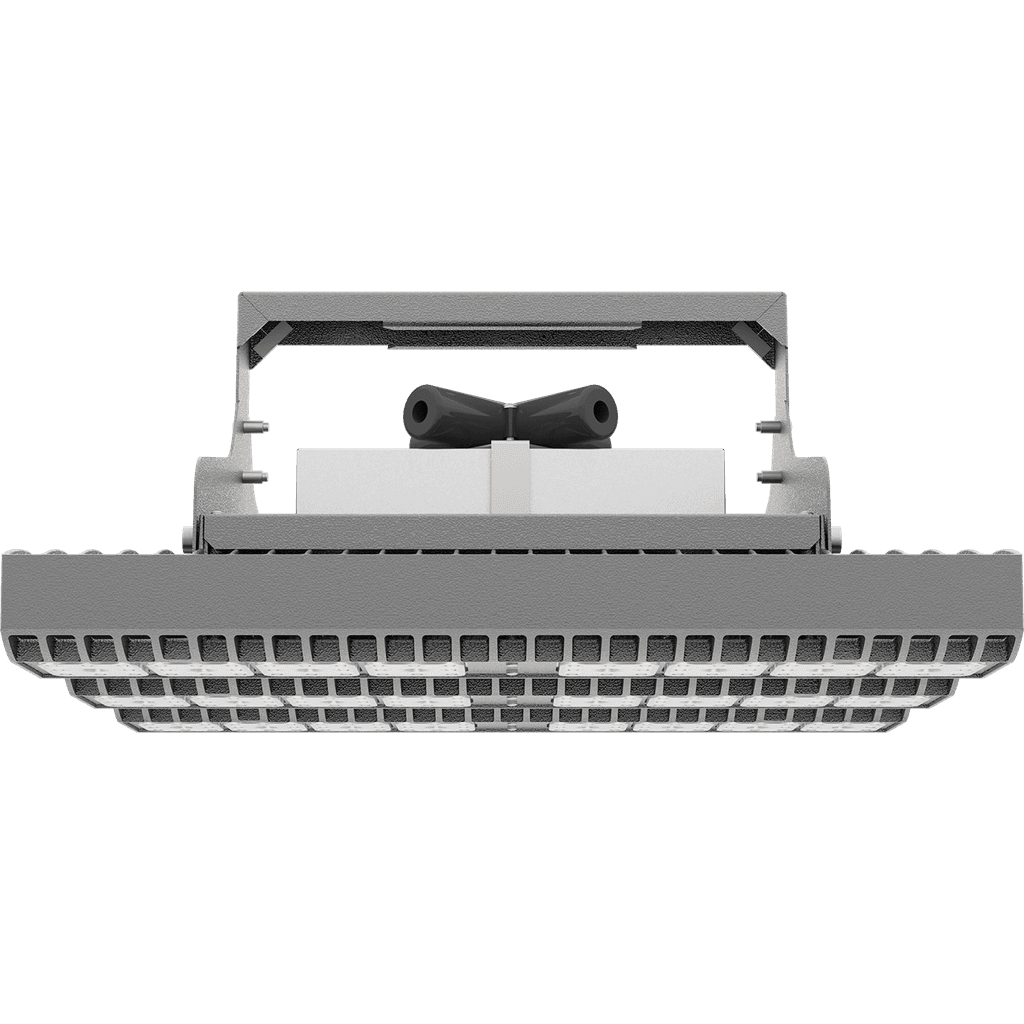

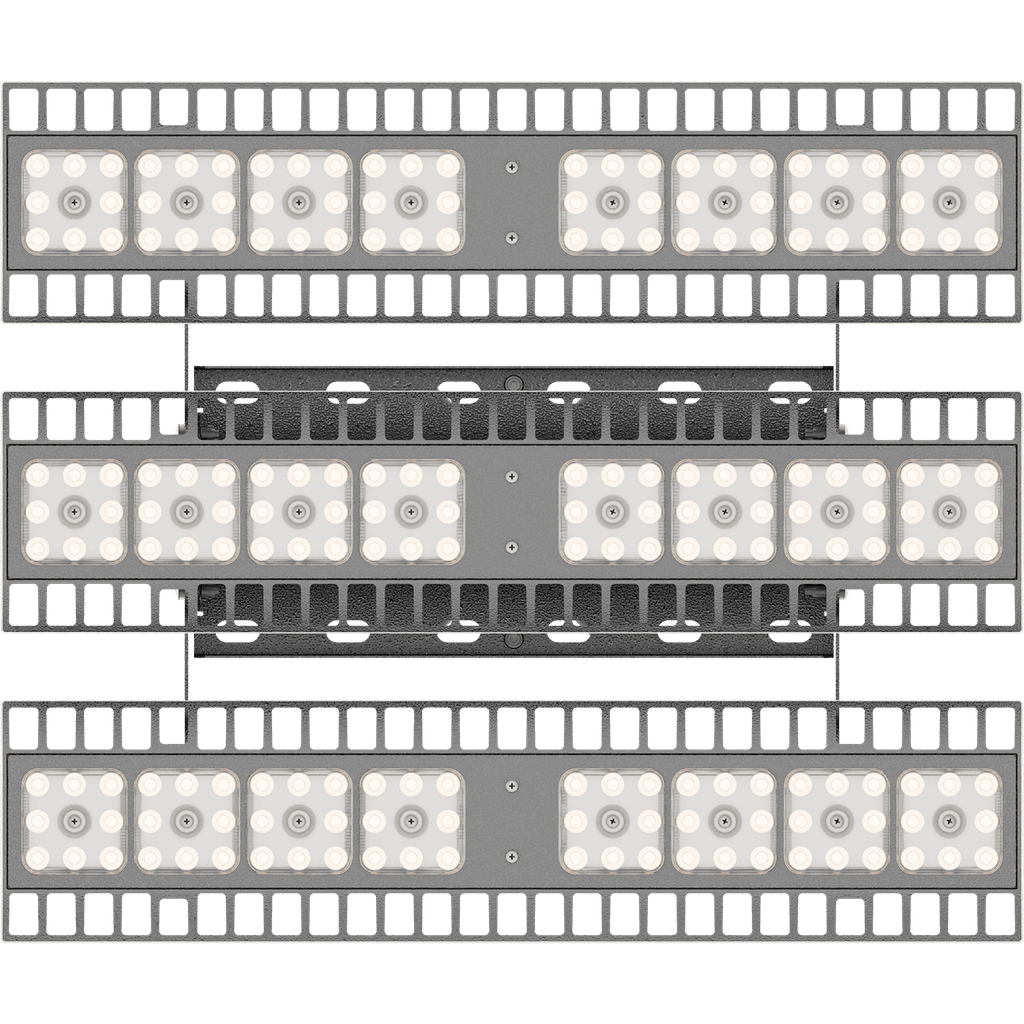

RUT 3 60 5700K (CRI 90)
model is discontinued
model is discontinued
RUT 3 60 5700K (CRI 90)
217 Wluminaire power
25100 lmlight flow
116 lm/Wenergy efficiency
code1499000850
color temperature5700 K
beam angleD60
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
25100 lmcolor rendition index (CRI)
>90flickering factor
<5%energy efficiency
116 lm/Wbeam angle
D60color temperature
5700 Killuminating
emission color
Белый
light source type
LED
light flow
25100 lm
color rendition index (CRI)
>90
flickering factor
<5%
energy efficiency
116 lm/W
beam angle
D60
color temperature
5700 K
electrical
luminaire power
217 W
electric shock protection
II
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1
fire safety class
П-ІІ
length
463 mm
width
389 mm
height
248 mm
material
Алюминий
housing color
Металлик
weight
11.5 kg
common
code
1499000850
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
CAD model 3DS347.5 kB
model 3dMax732 kB
photometric files
csv
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
