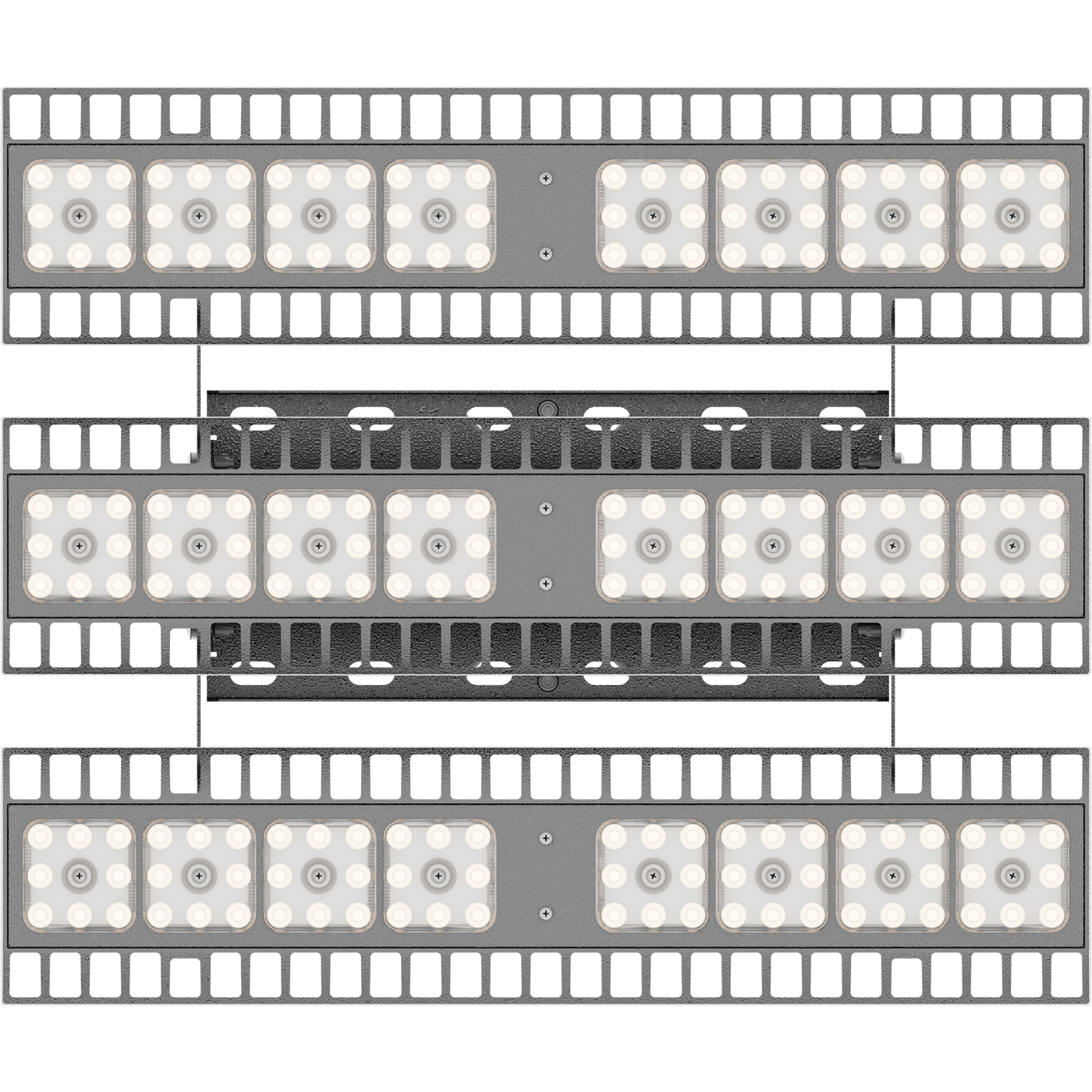

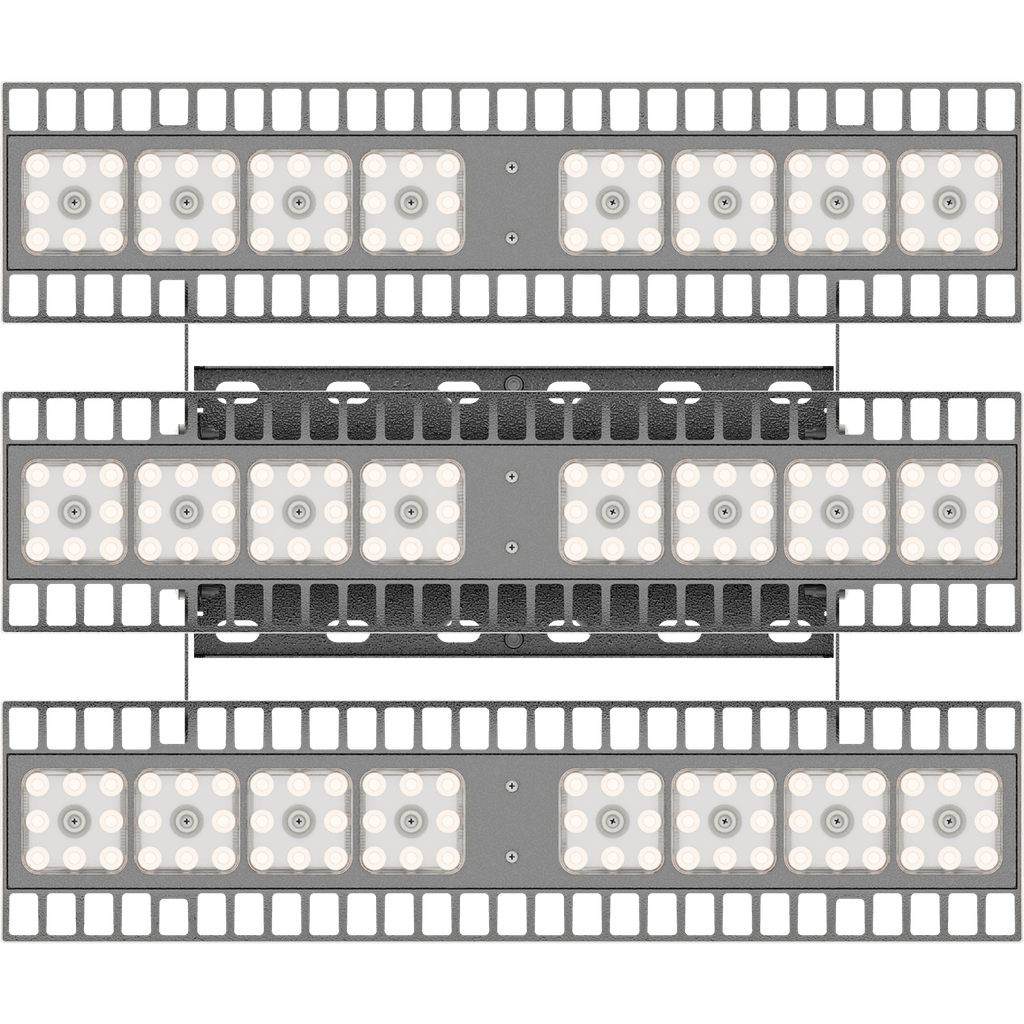

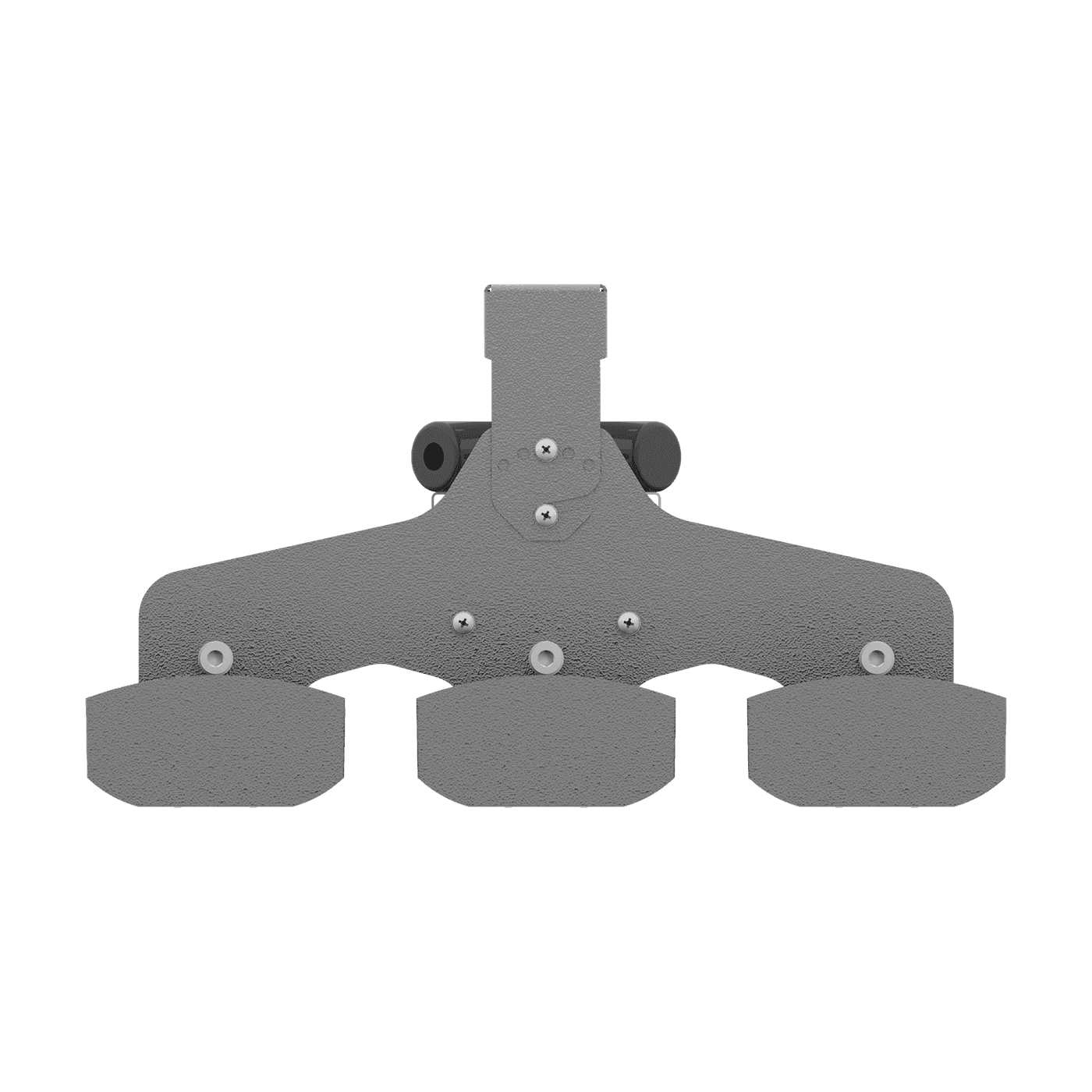

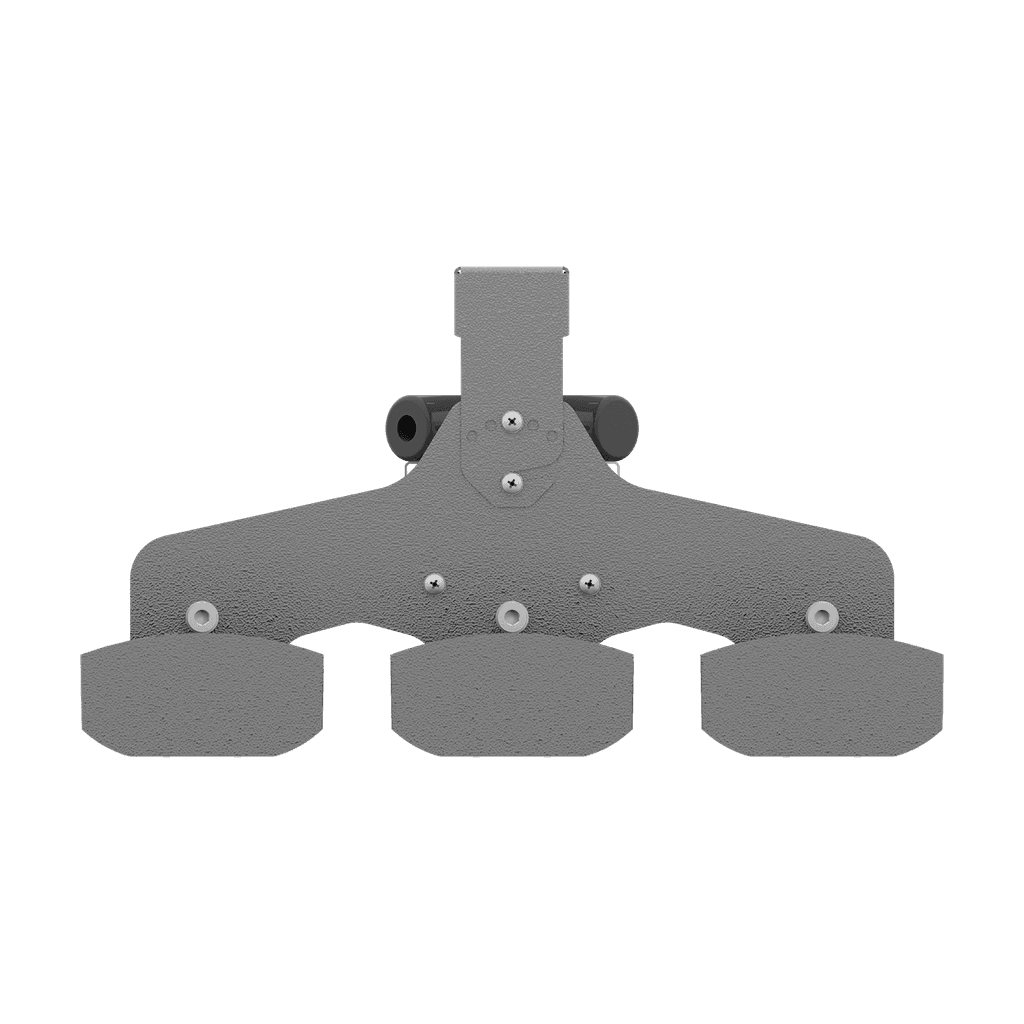

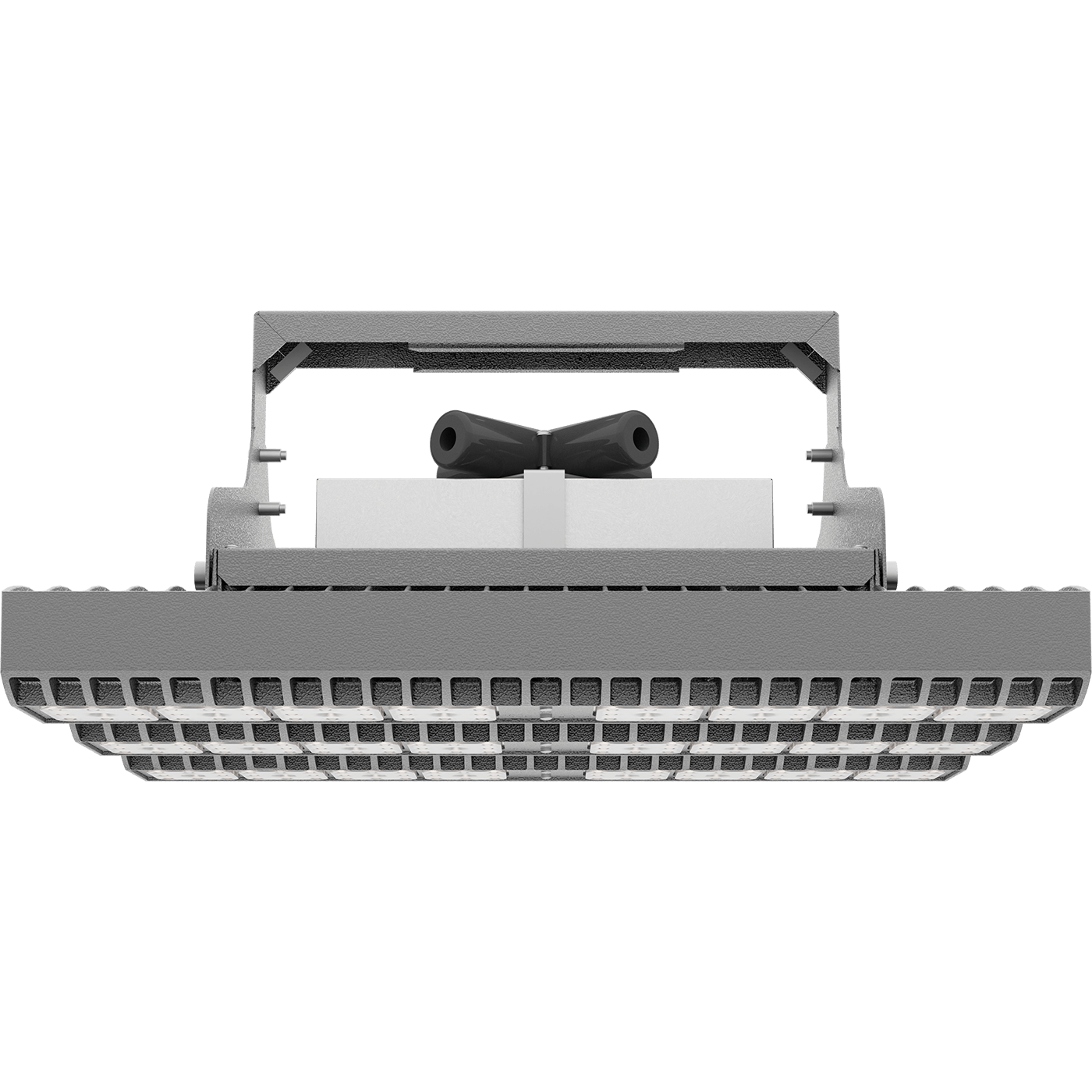

RUT 3 60 5000K
RUT 3 60 5000K
200 Wluminaire power
29000 lmlight flow
145 lm/Wenergy efficiency
code1499000750
color temperature5000 K
beam angleD60
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
29000 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
145 lm/Wbeam angle
D60color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
29000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
145 lm/W

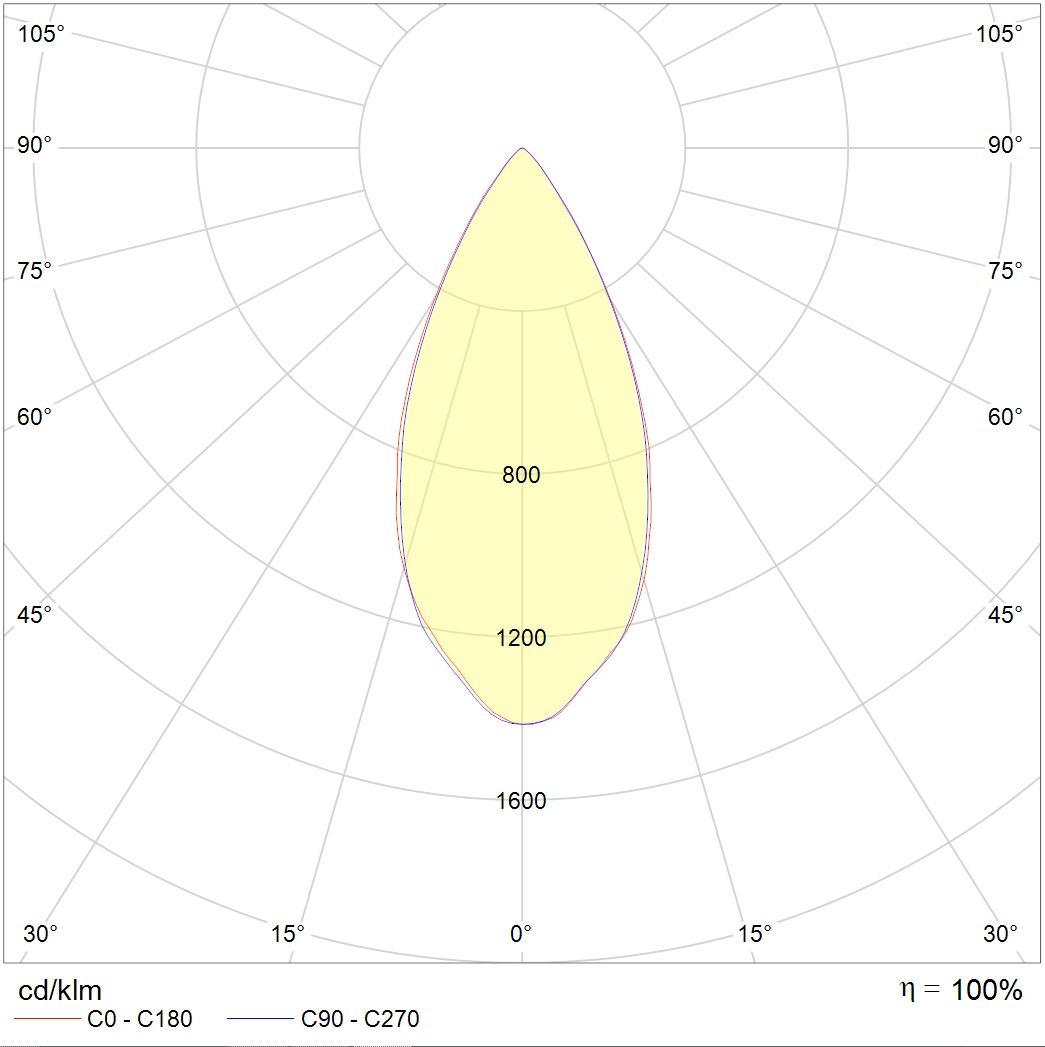

beam angle
D60
color temperature
5000 K
electrical
luminaire power
200 W
electric shock protection
I
power factor
> 0,97
maximum cross-section of the connected cable
2.5 mm2
starting current
75 A
supply voltage
230 V
starting current pulse time
500 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
length
463 mm
width
390 mm
height
225 mm
material
Алюминий
housing color
Металлик
weight
9.7 kg
common
code
1499000750
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax732 kB
photometric files
ies263.2 kB
jpg79 kB
ldt159.8 kB
documents
passport2.1 mB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
