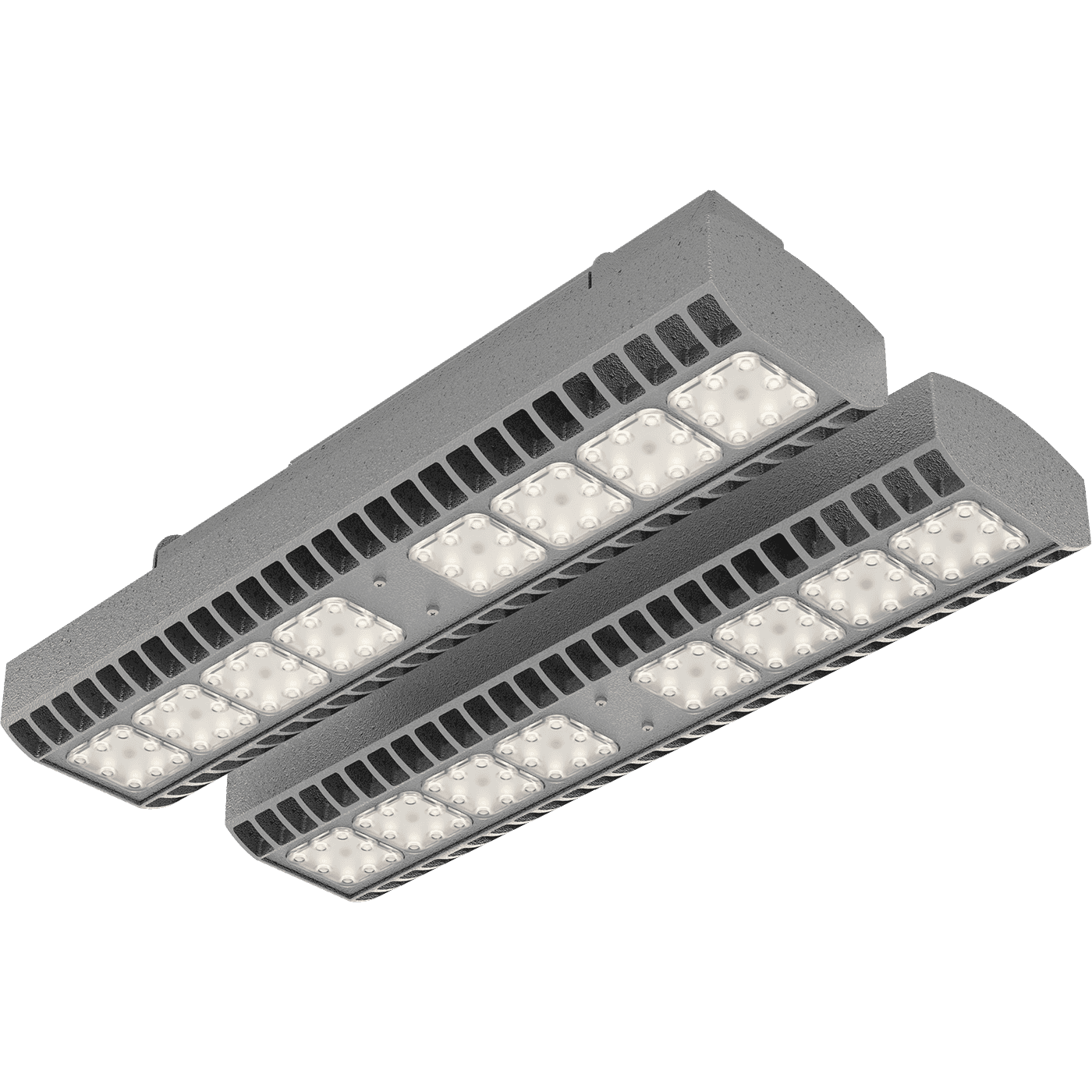

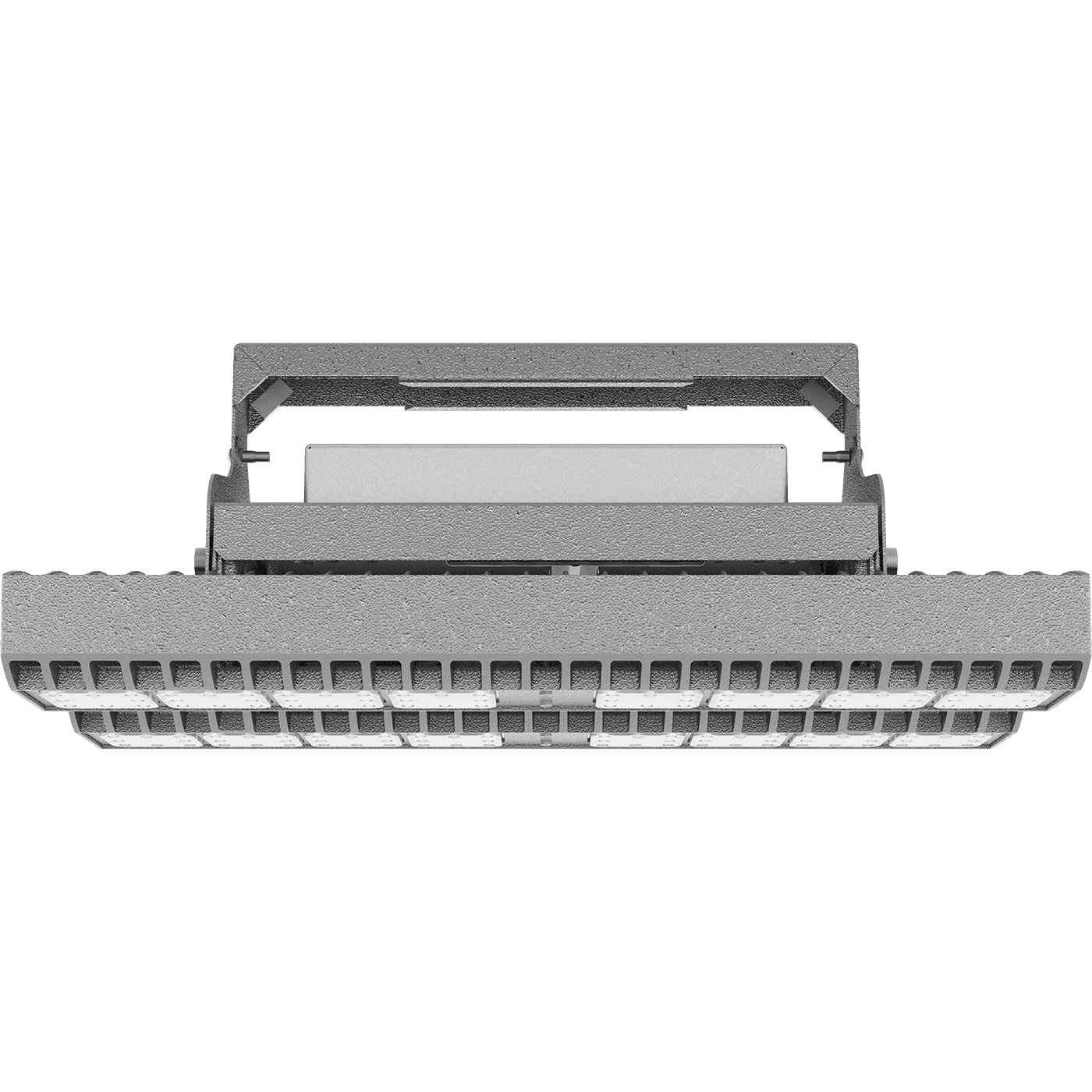

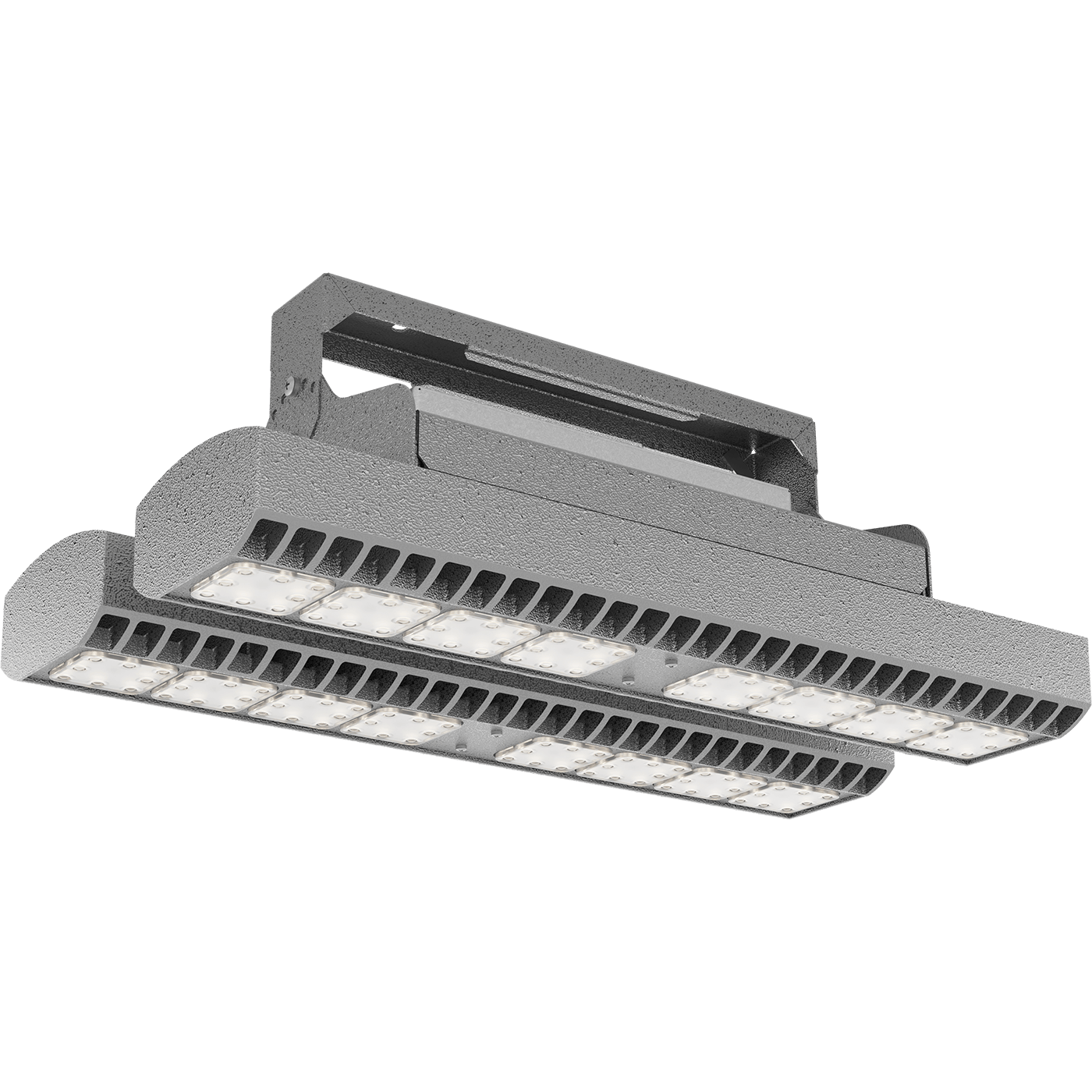

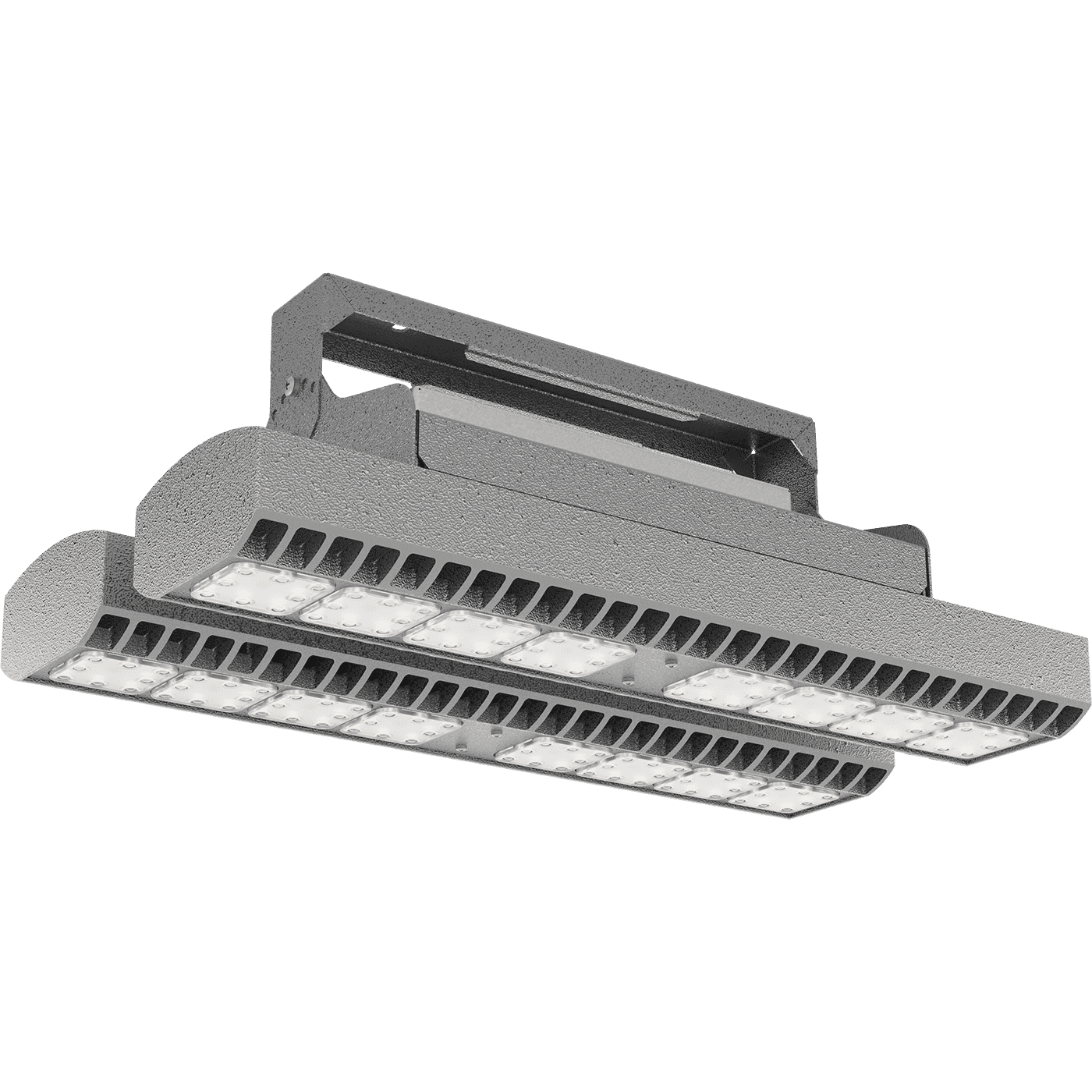

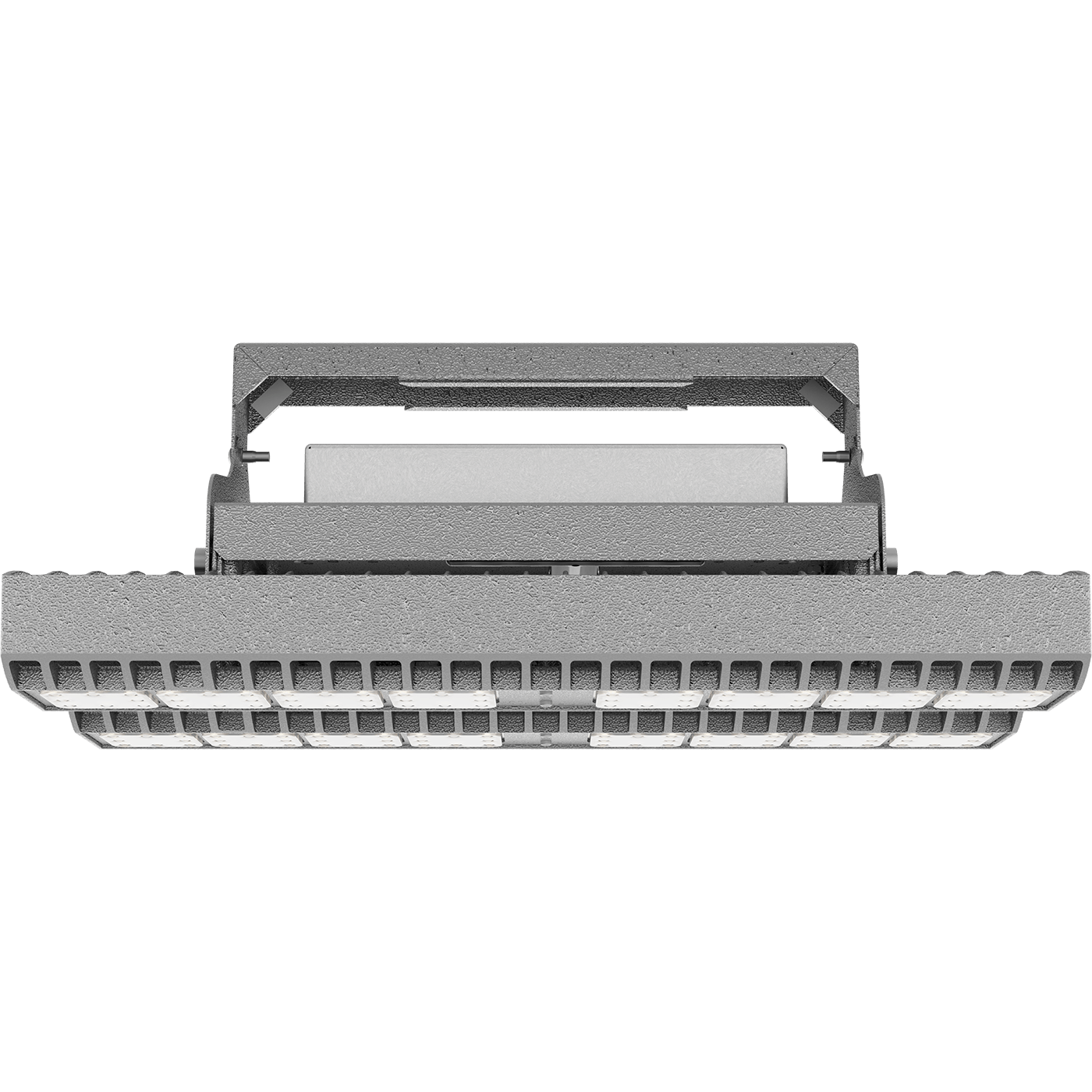

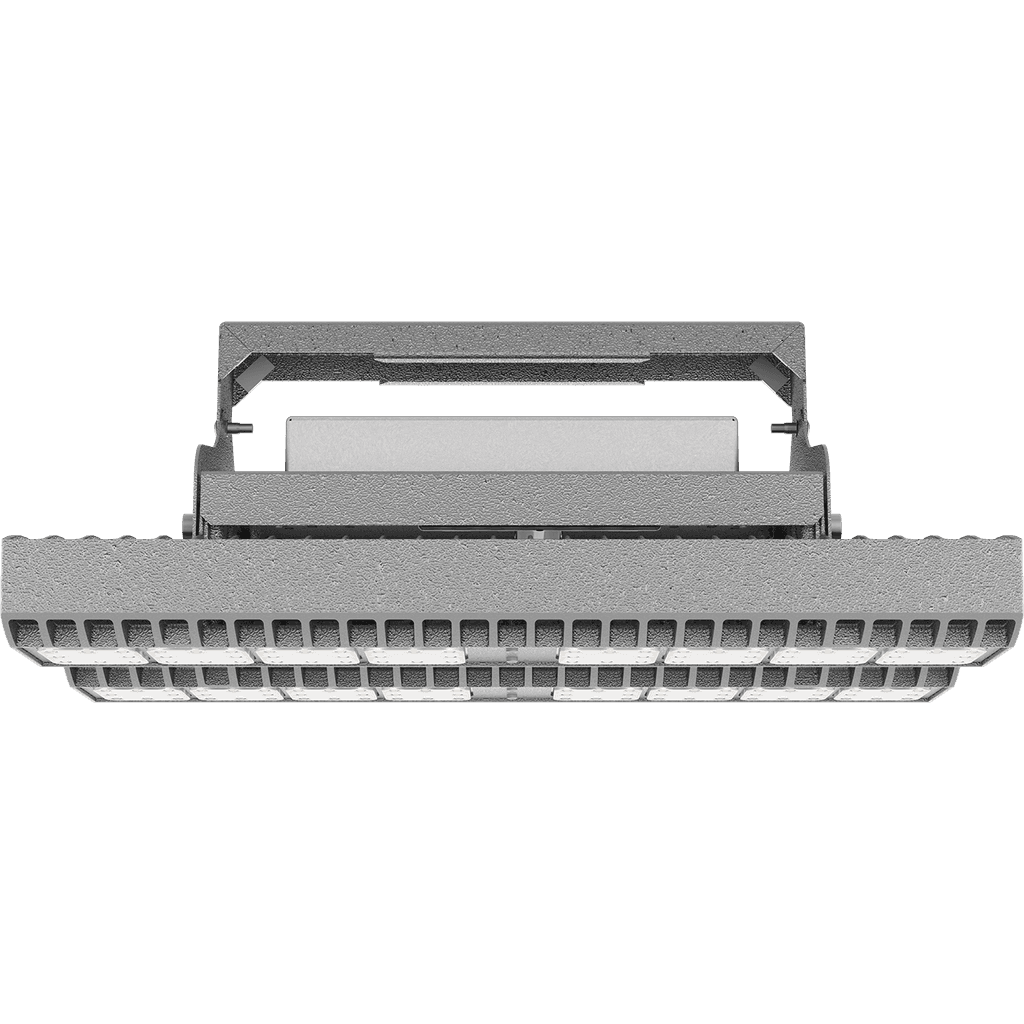

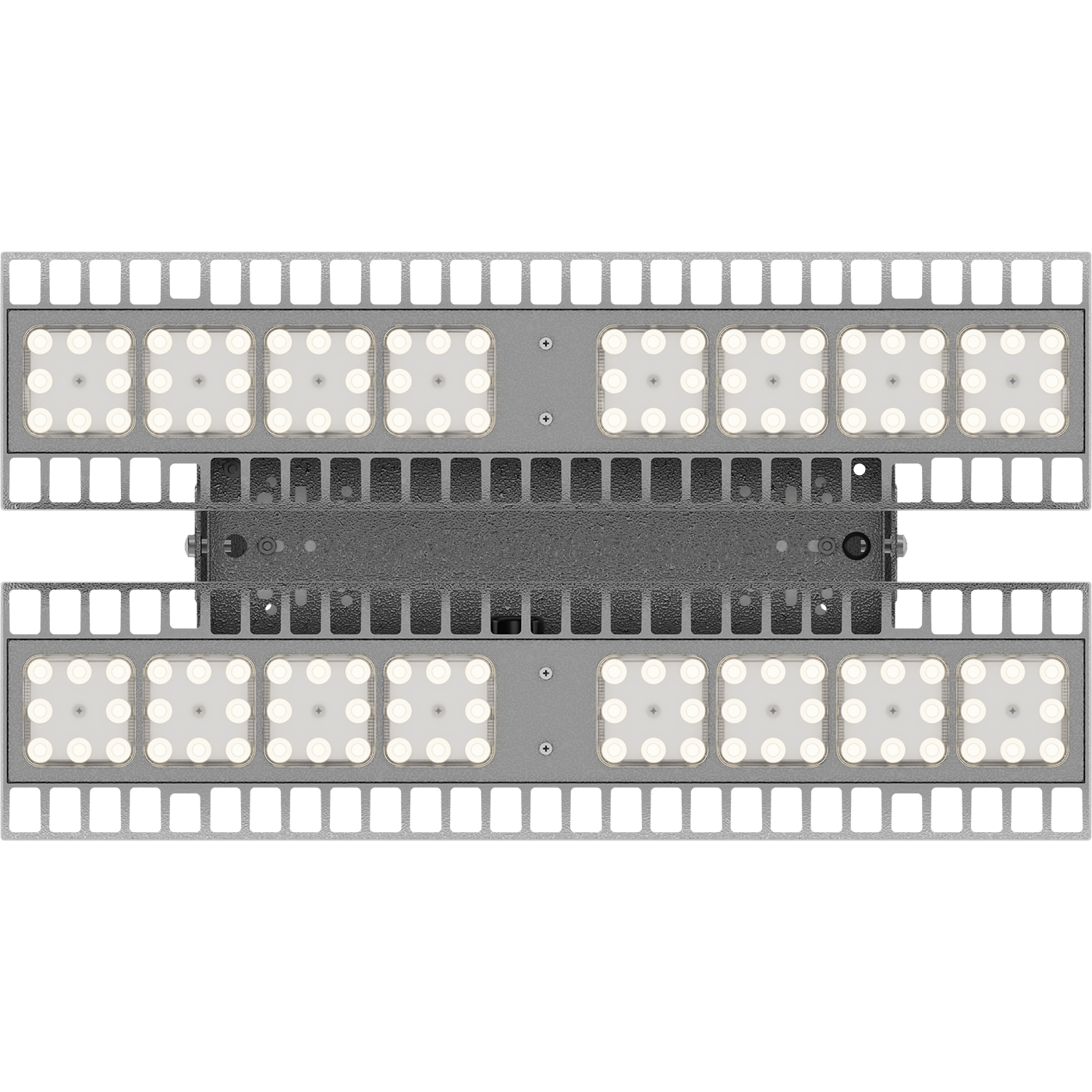

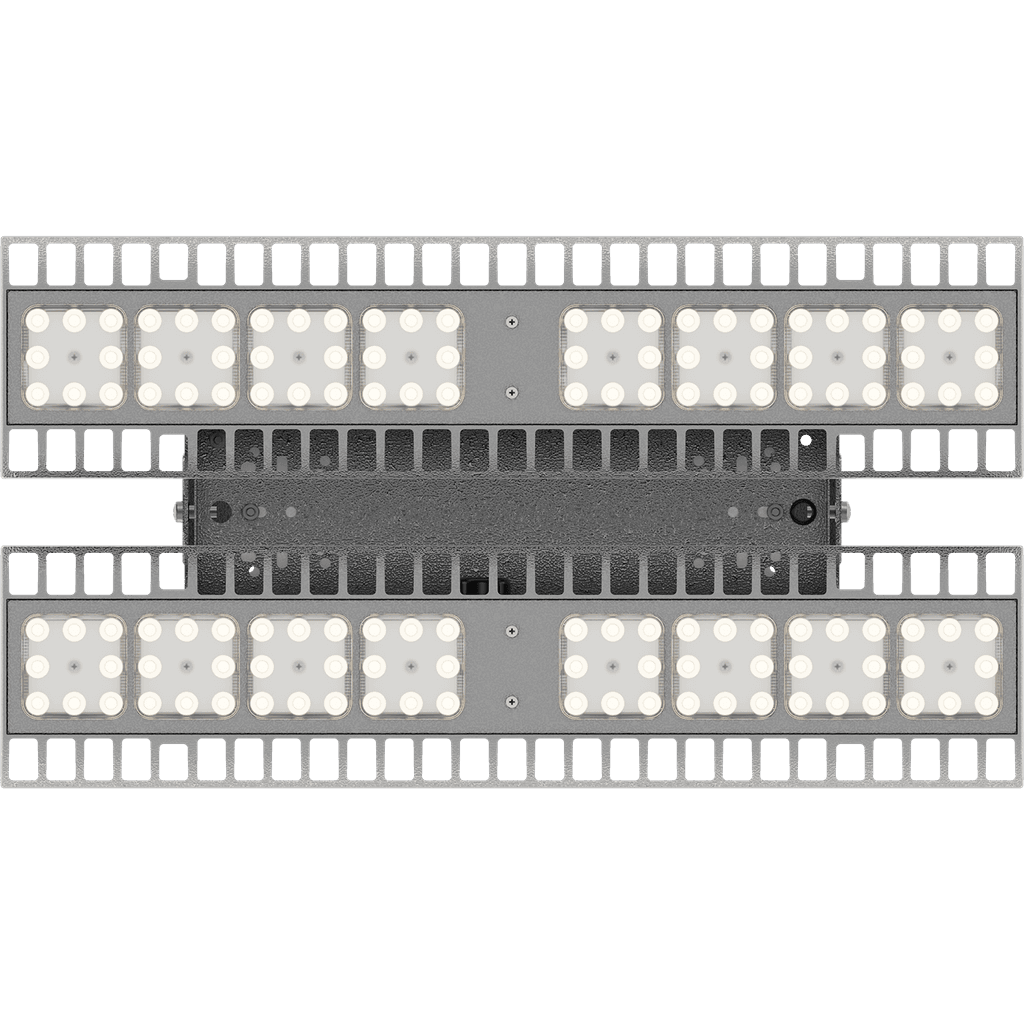

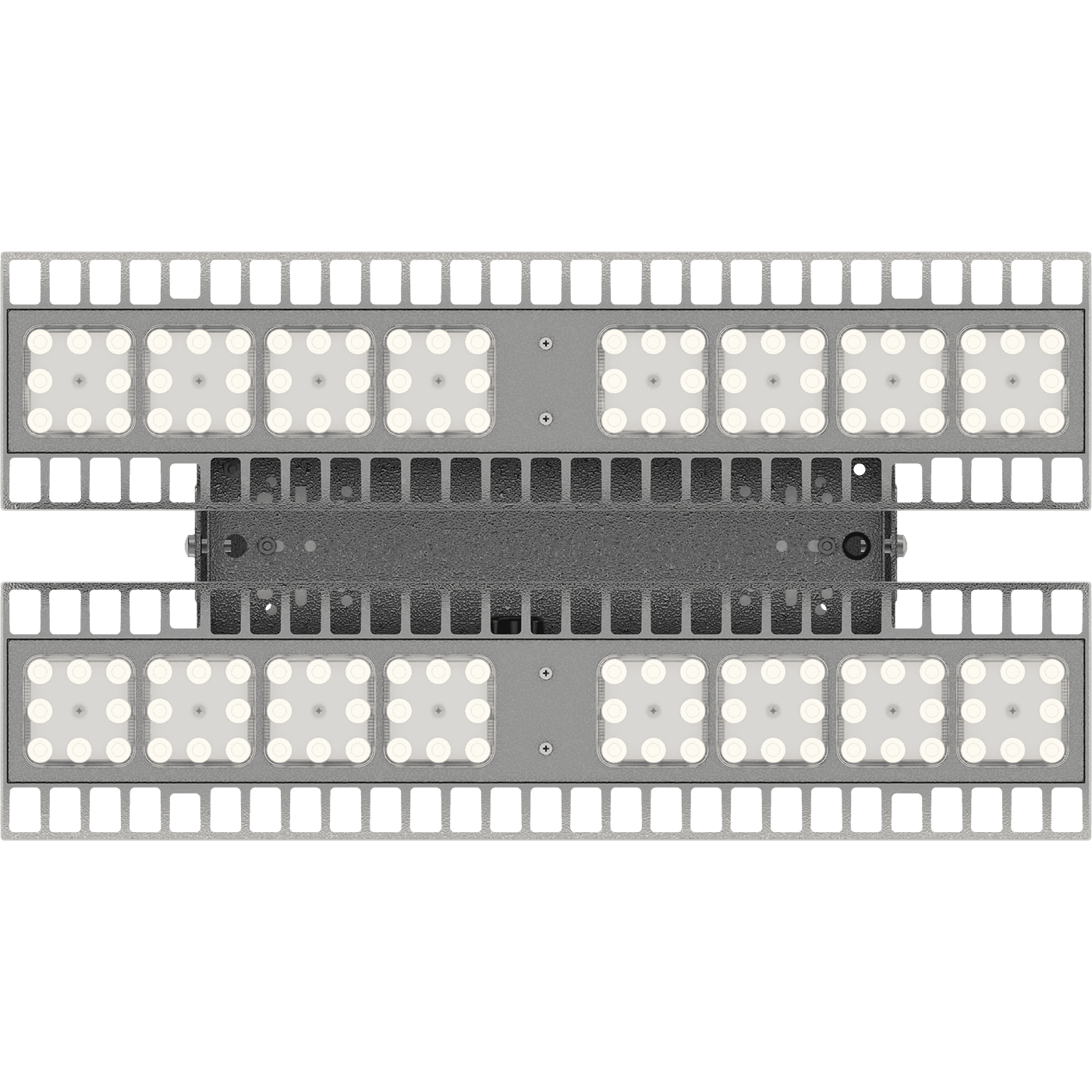

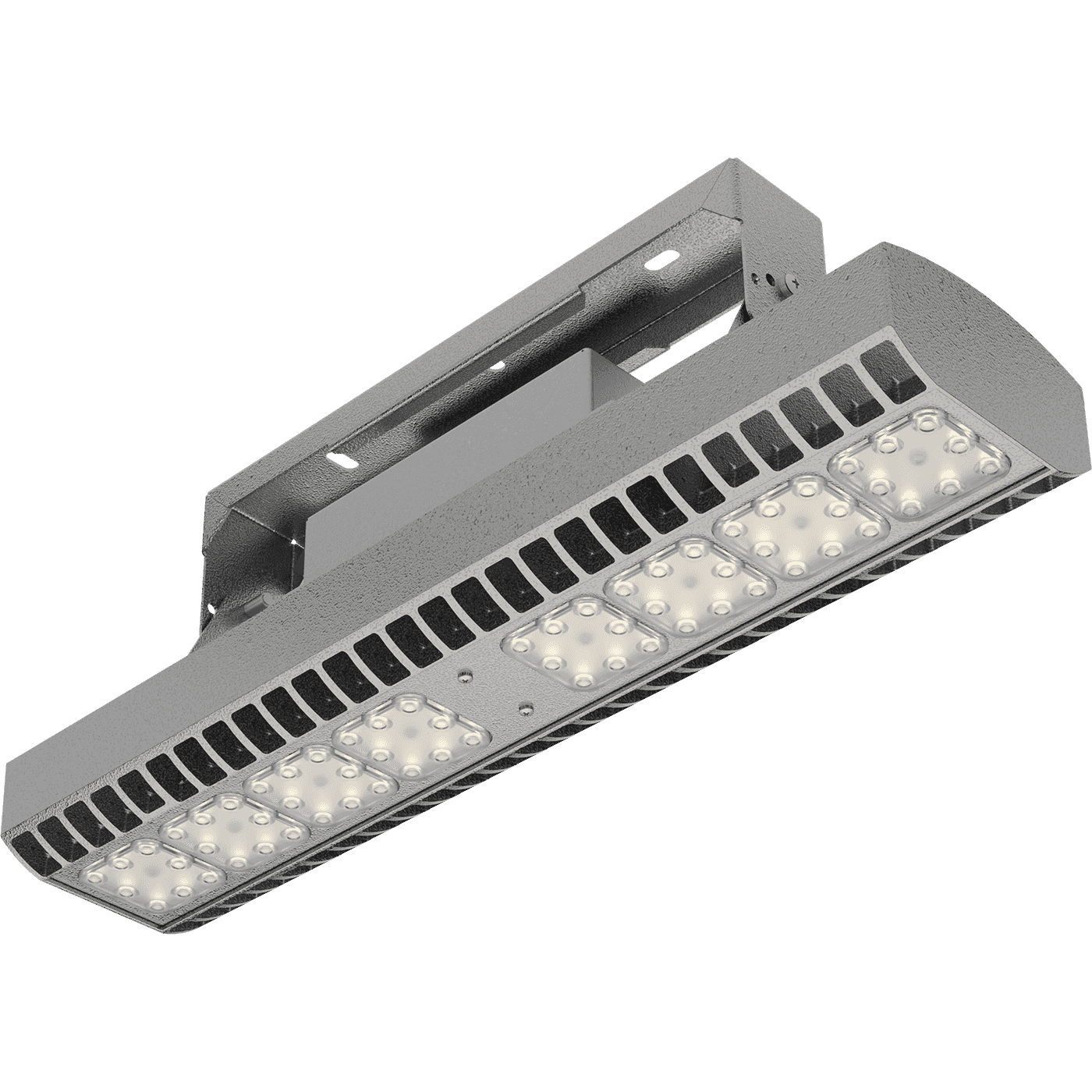

RUT 2 40 5000K
RUT 2 40 5000K
130 Wluminaire power
18200 lmlight flow
140 lm/Wenergy efficiency
code1499000700
color temperature5000

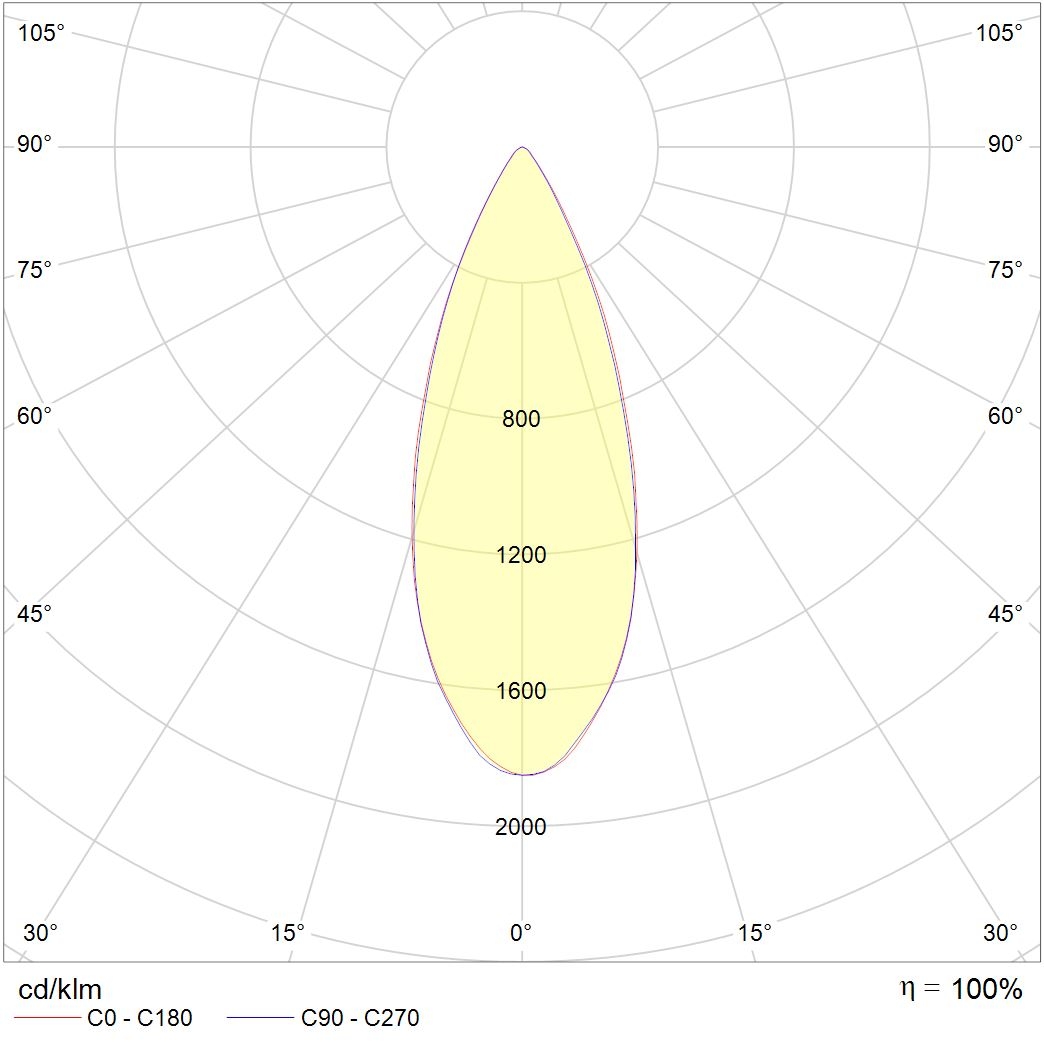

beam angleD30
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
128-431 Vluminaire power
130 Welectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5starting current
75 Astarting current pulse time, µs
375 mkspower factor
> 0,97supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
128-431 V
luminaire power
130 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
75 A
starting current pulse time, µs
375 mks
power factor
> 0,97
supply voltage
230 V
constructional
weight
7 kg
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
length, mm
463 mm
width, mm
249 mm
height, mm
180 mm
housing color
Металлик
shock resistance (IK)
IK07/2 Дж
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
36 month
temperature range
от -40 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
code
1499000700
illuminating
light flow
18200 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
140 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
