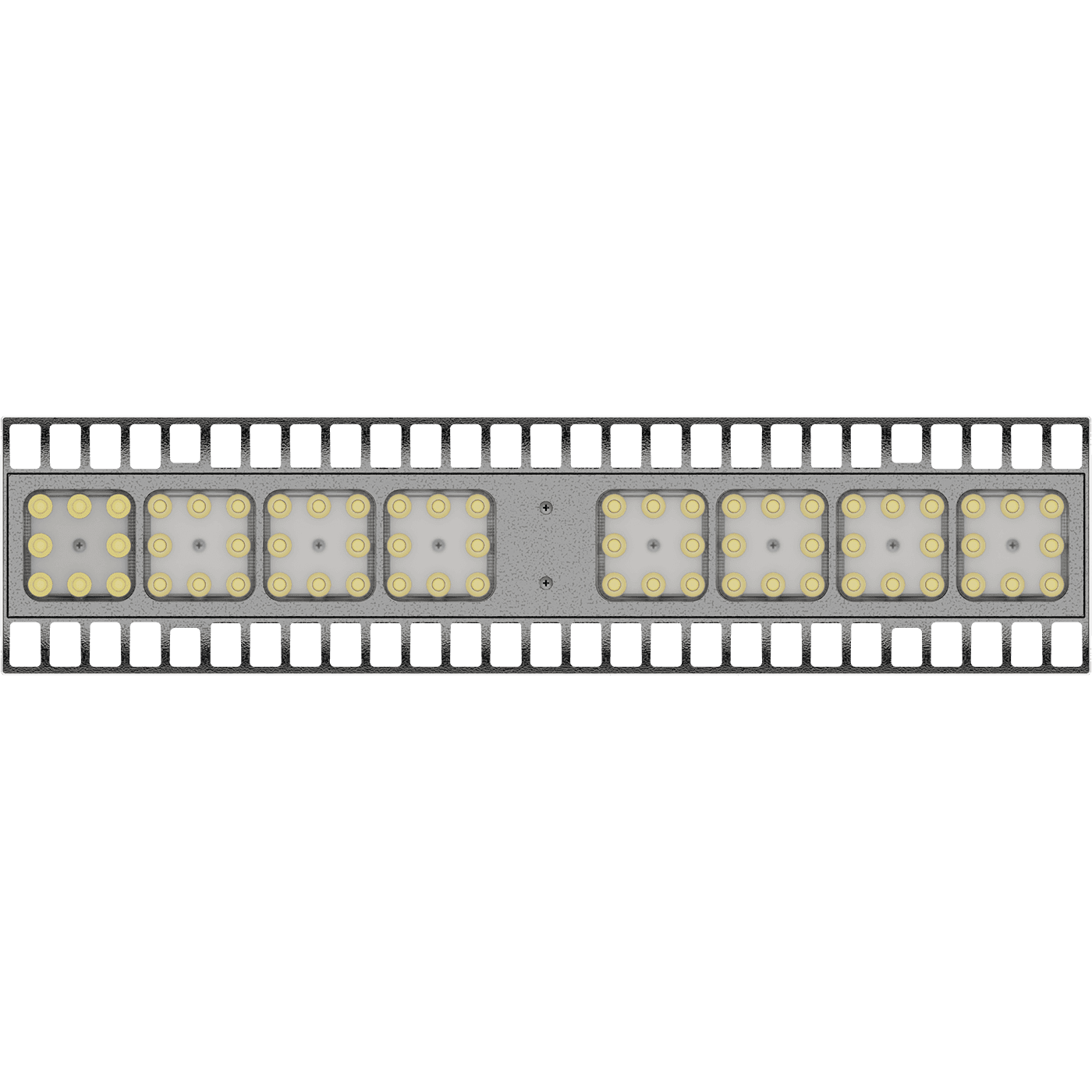

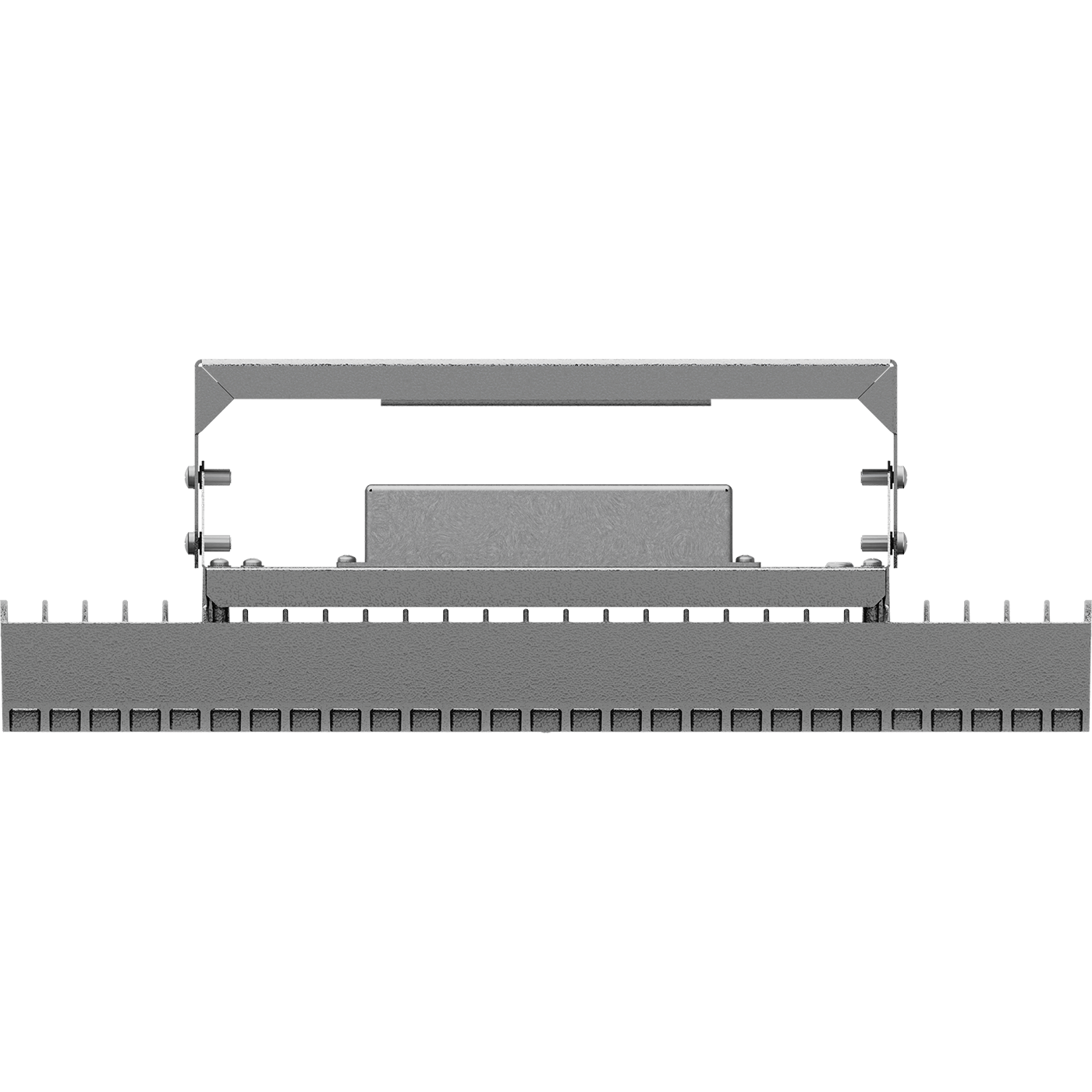

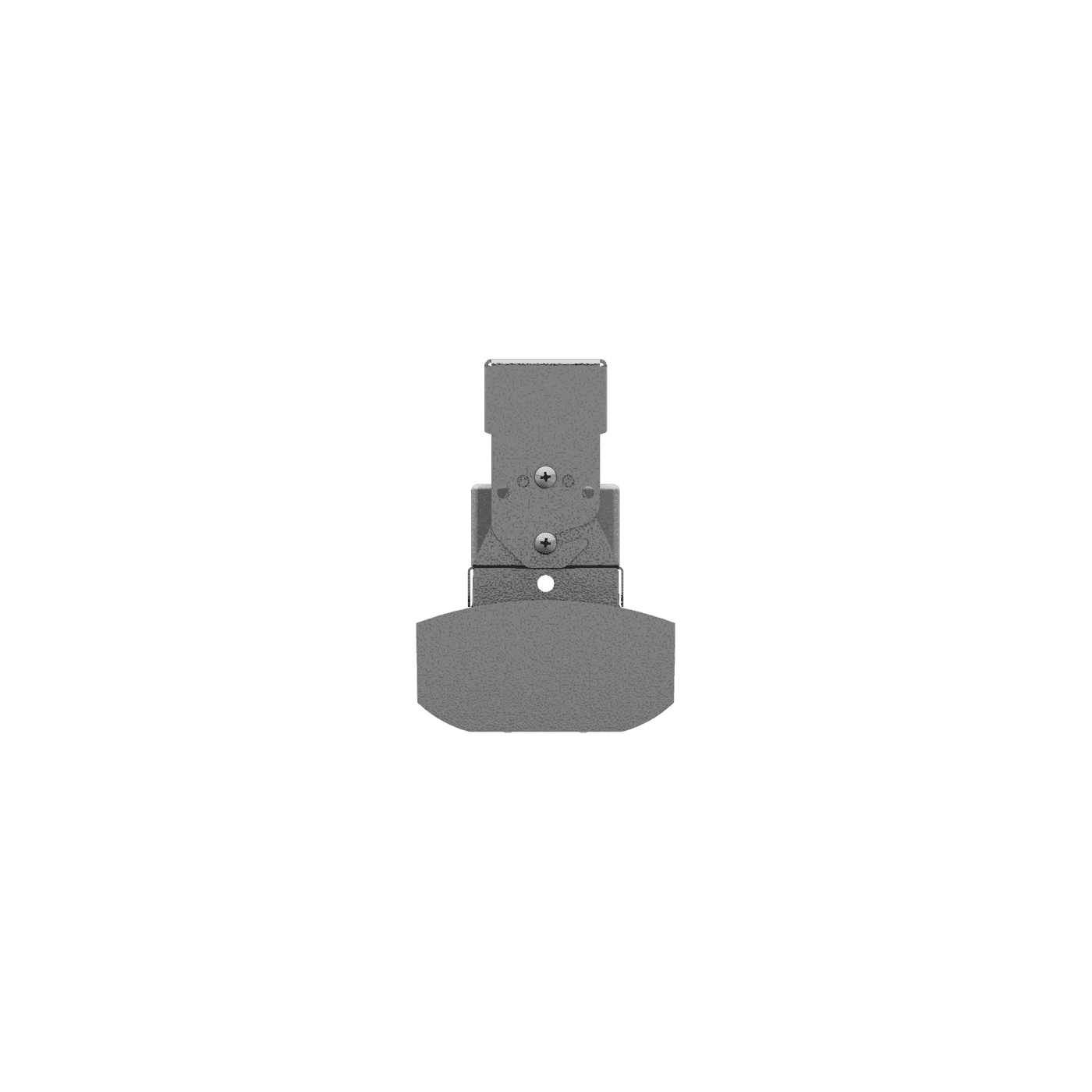

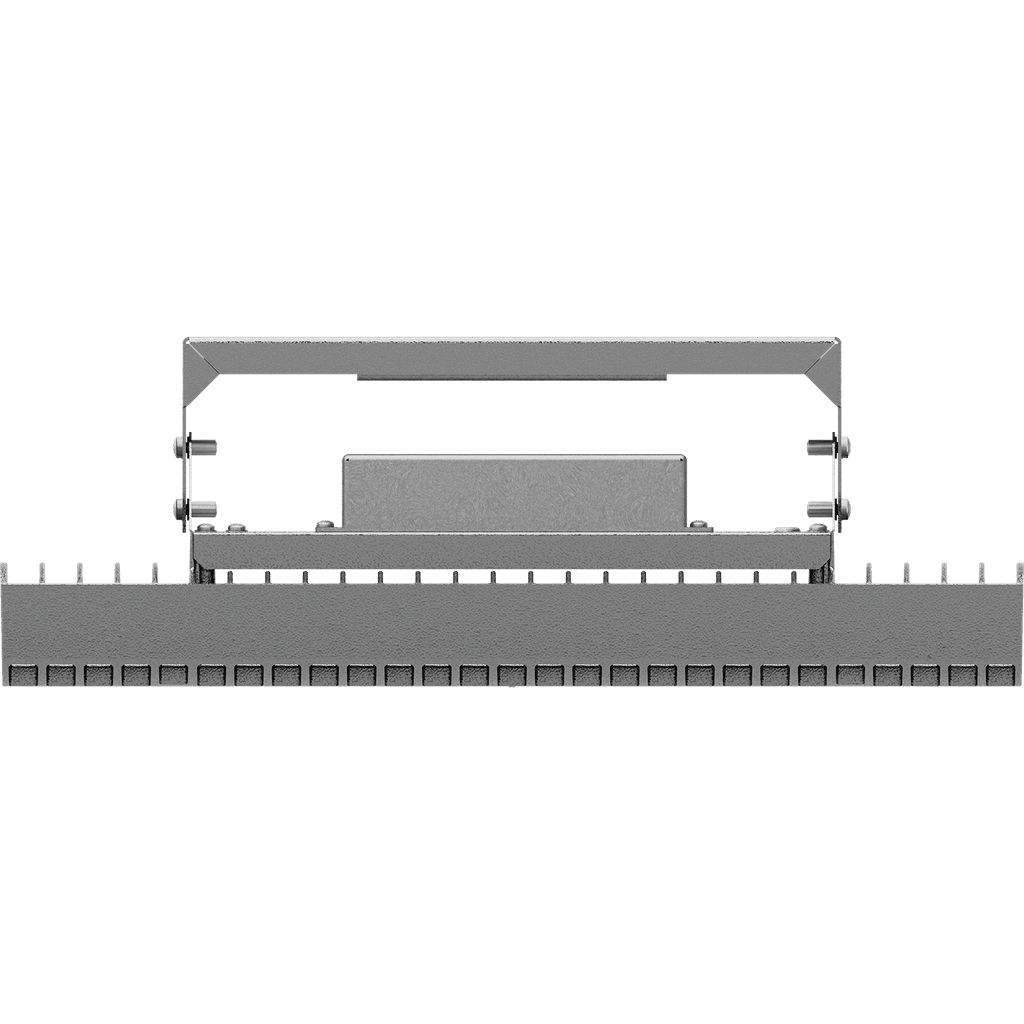

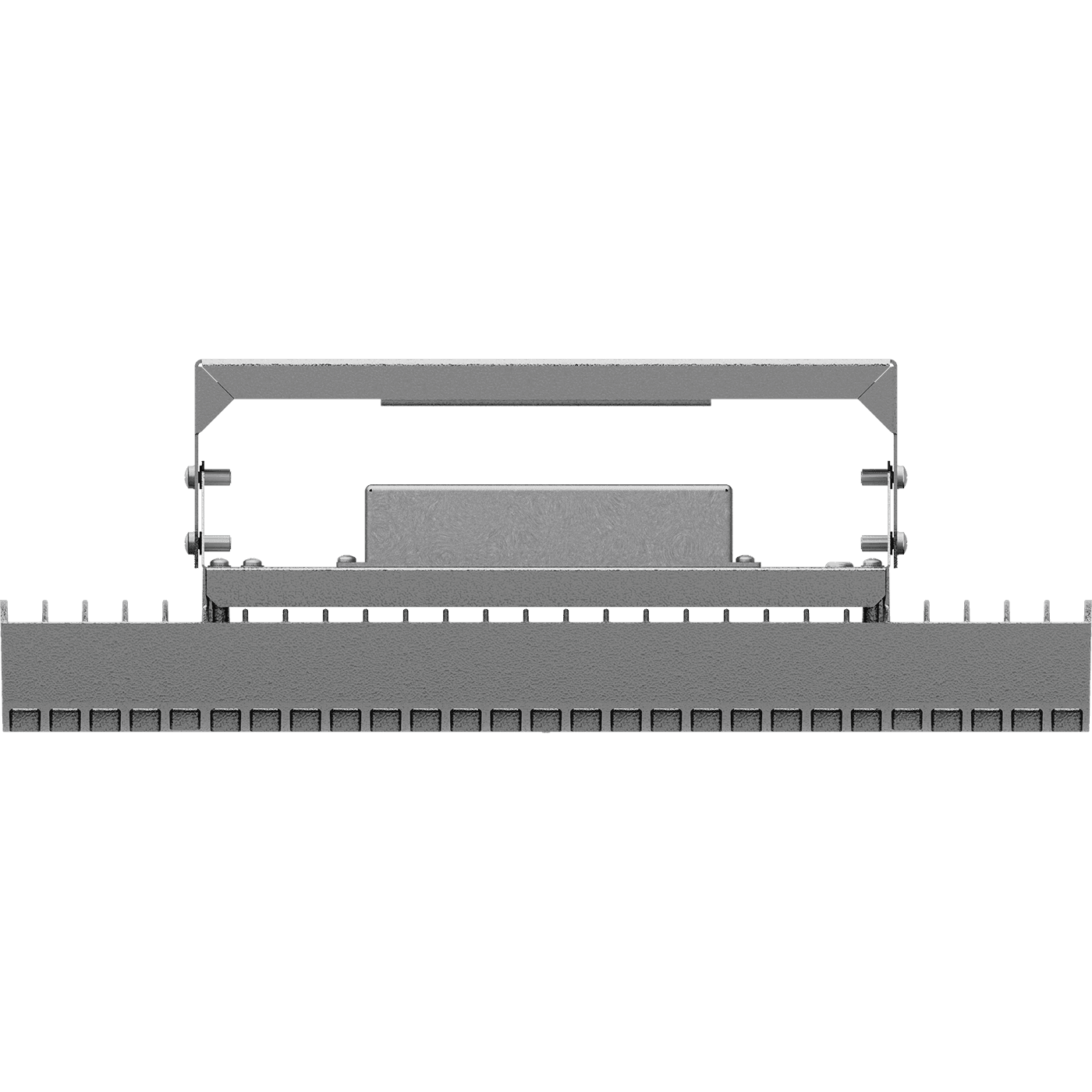

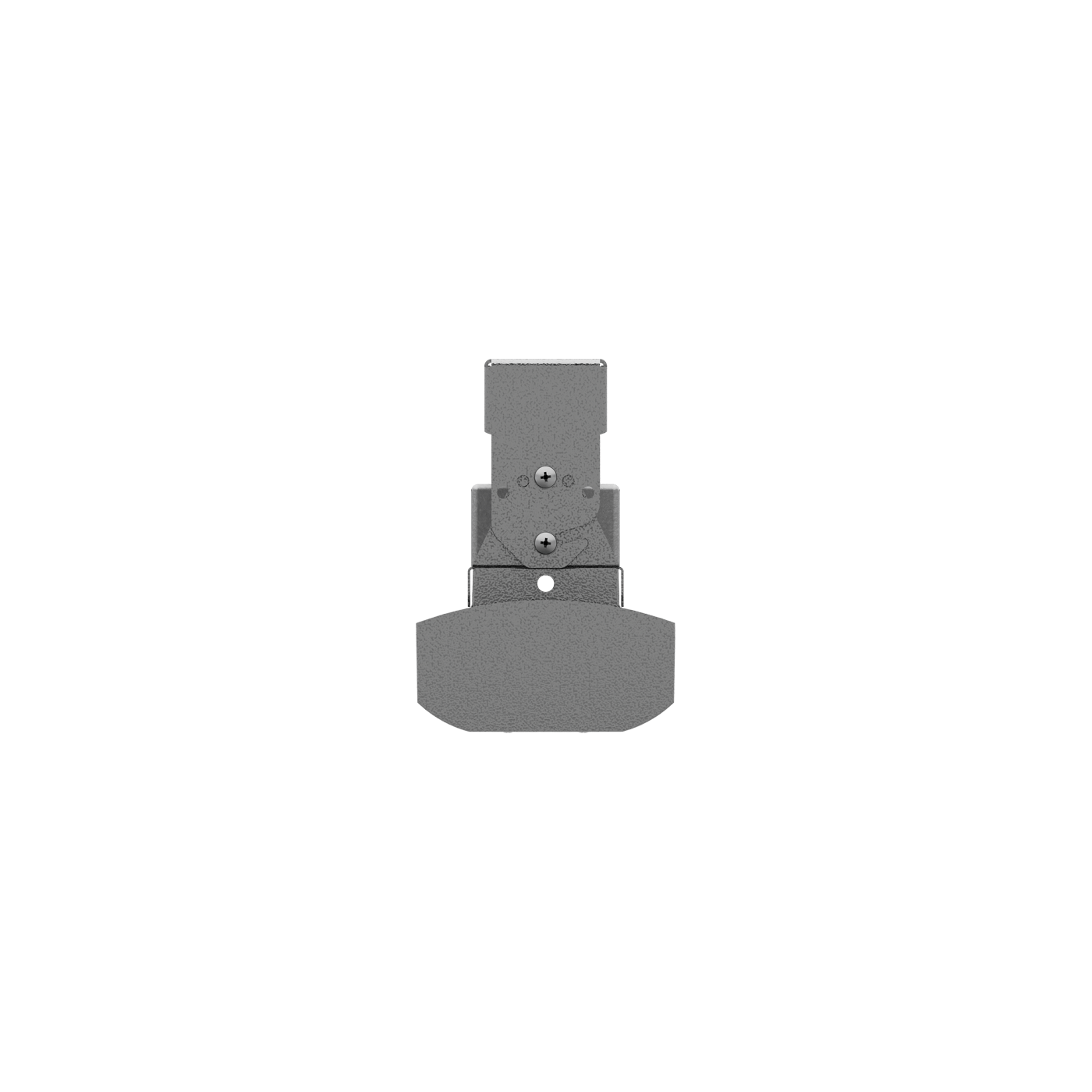

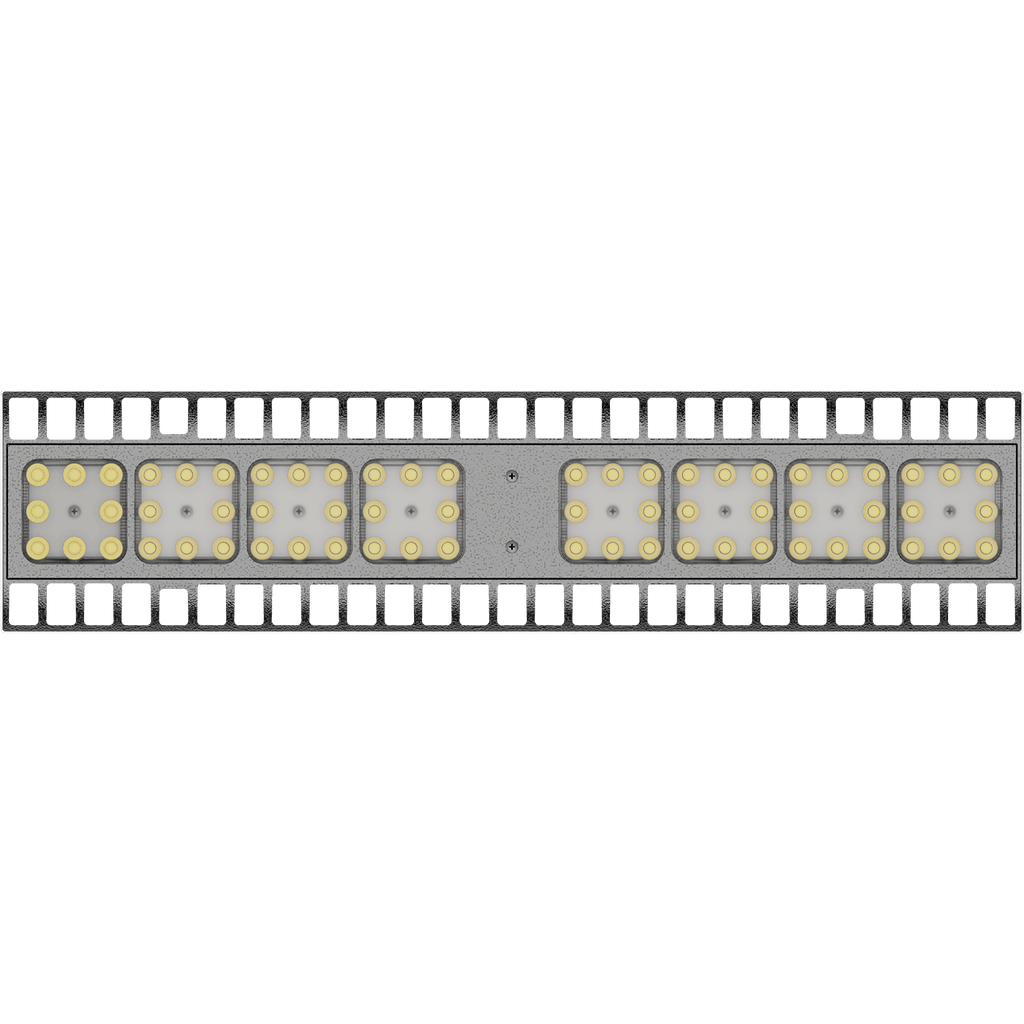

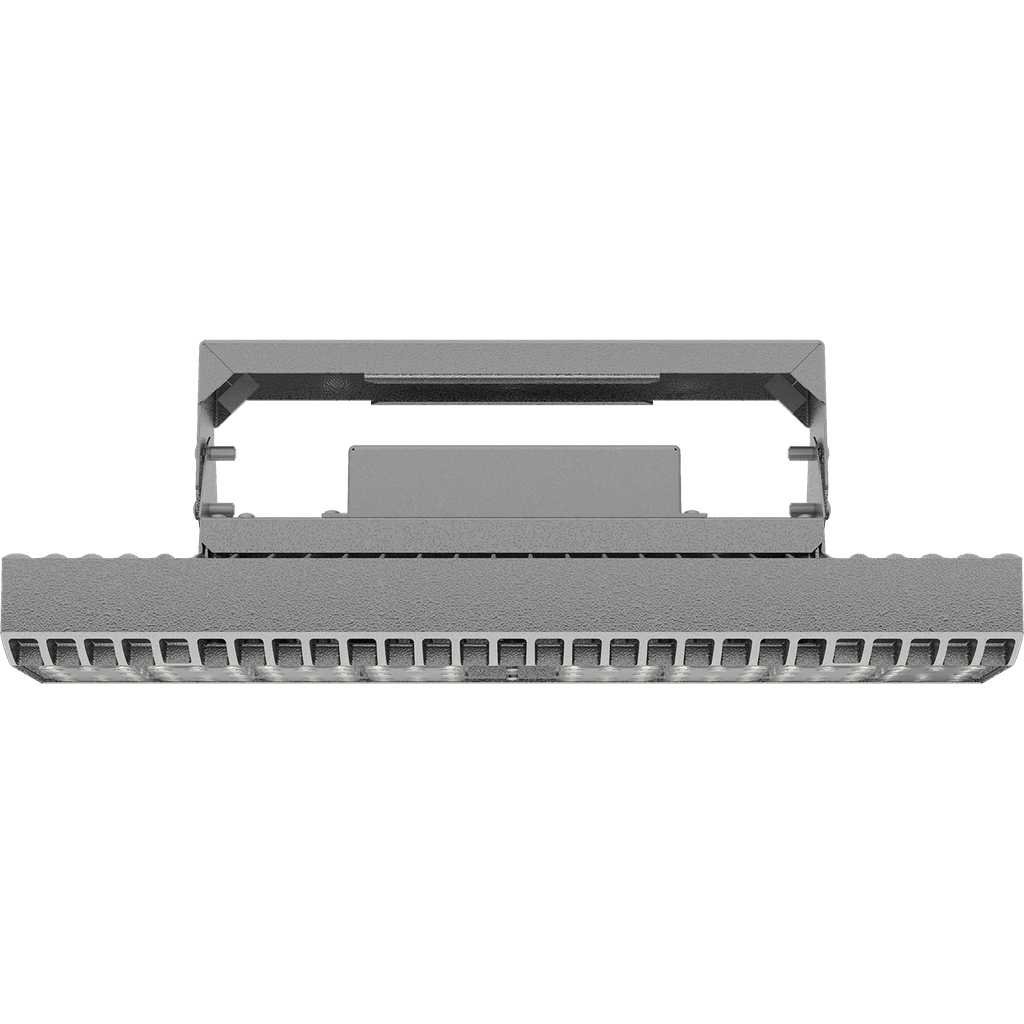

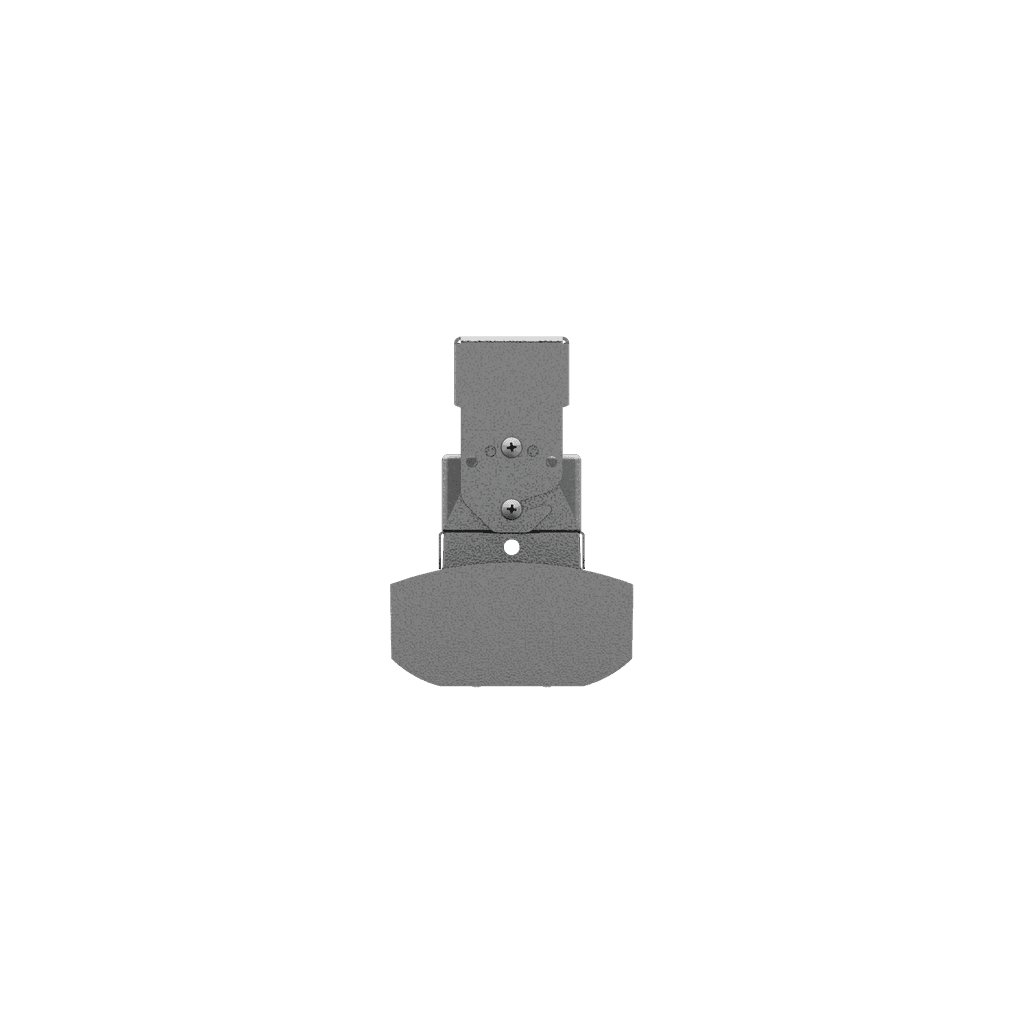

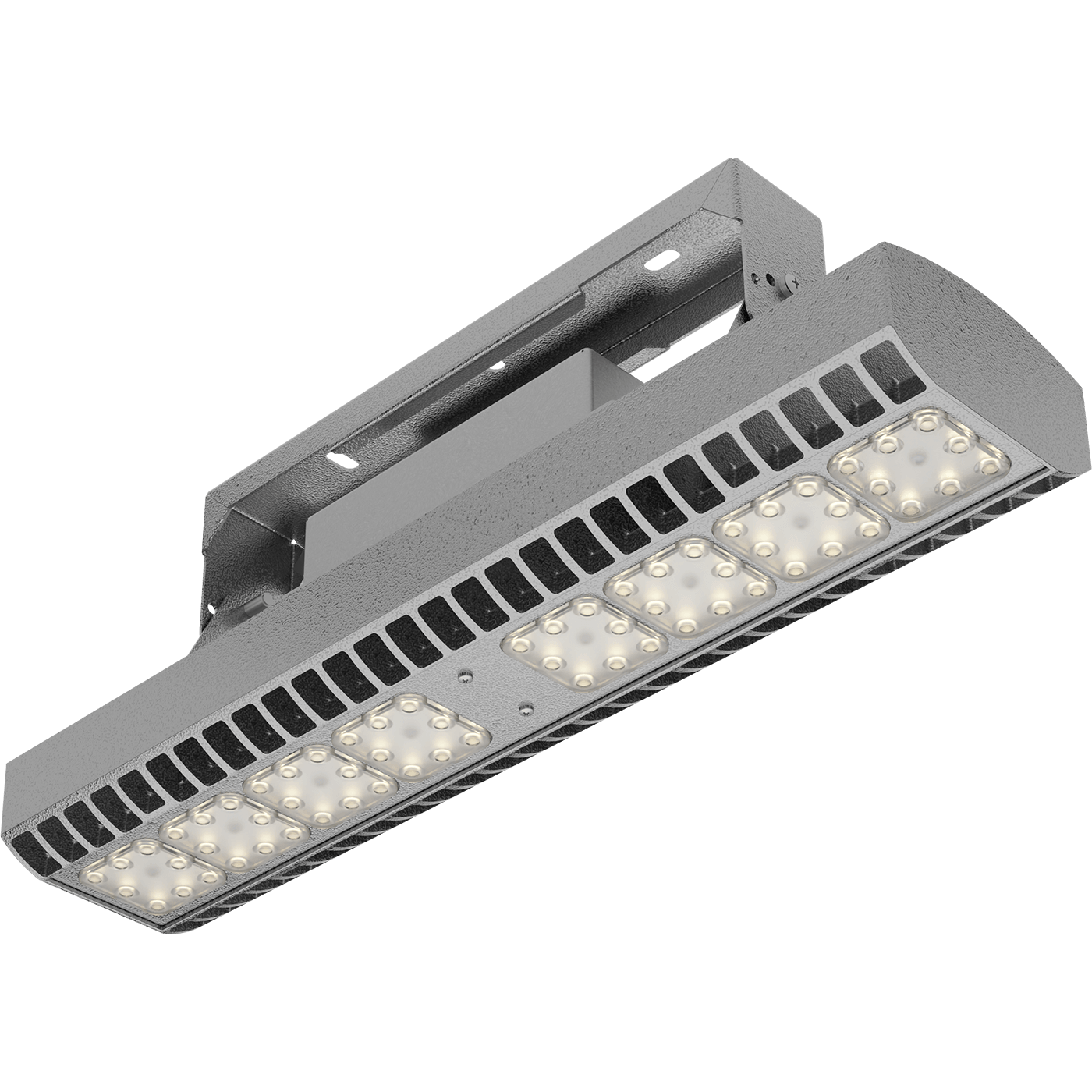

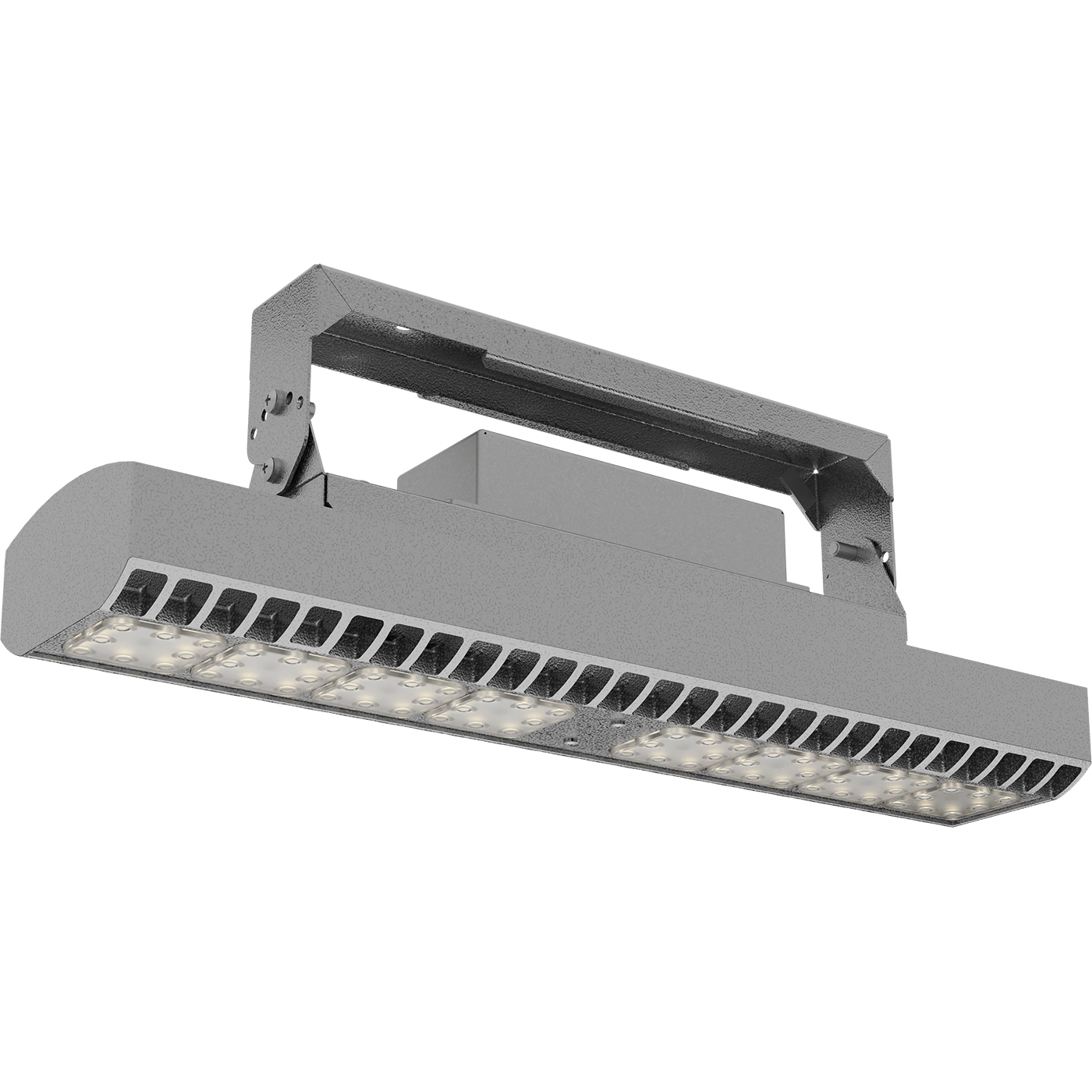

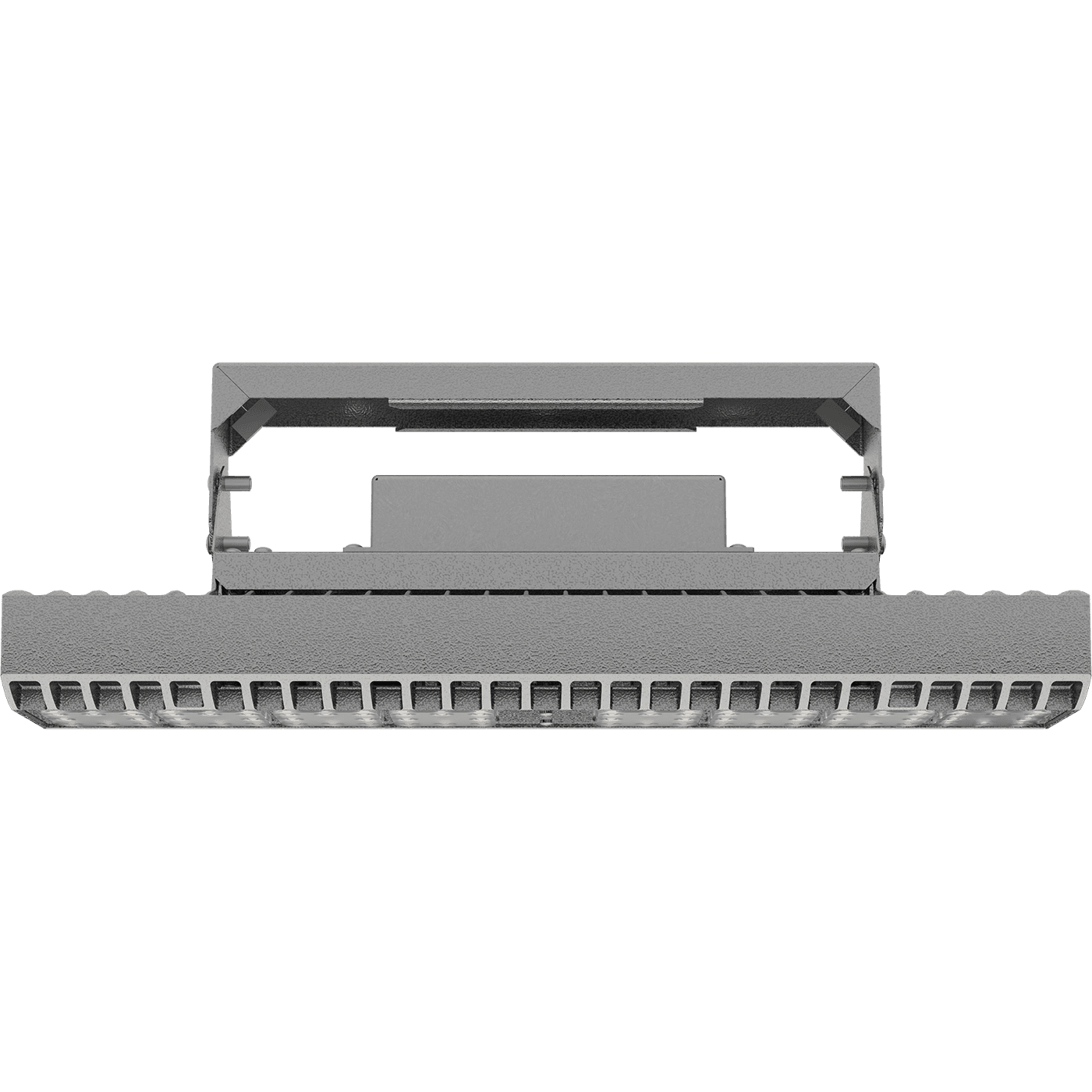

RUT 1 80 5000K with mat tempered glass
model is discontinued
model is discontinued
RUT 1 80 5000K with mat tempered glass
70 Wluminaire power
8900 lmlight flow
127 lm/Wenergy efficiency
code1156000180
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
8900 lmcolor rendition index (CRI)
>70flickering factor
<5%energy efficiency
127 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
8900 lm
color rendition index (CRI)
>70
flickering factor
<5%
energy efficiency
127 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
70 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
26 A
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2
fire safety class
П-I,II,IIa,ІІІ
length
465 mm
width
110 mm
height
160 mm
material
Алюминий
housing color
Серый
weight
3.5 kg
common
code
1156000180
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A+
service life
50 000 h
temperature range
от -30 до +40 C
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
CAD model 3DS274.9 kB
model 3dMax636 kB
photometric files
csv
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
