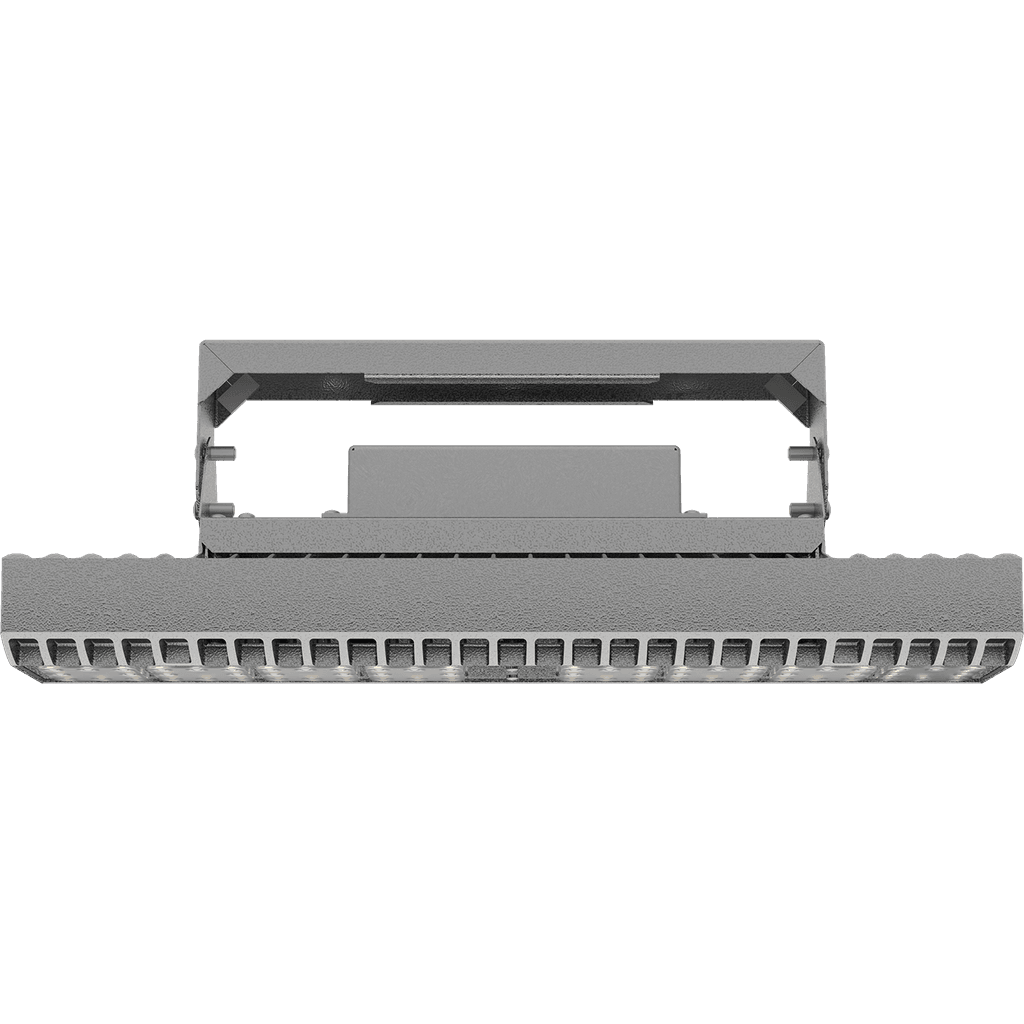

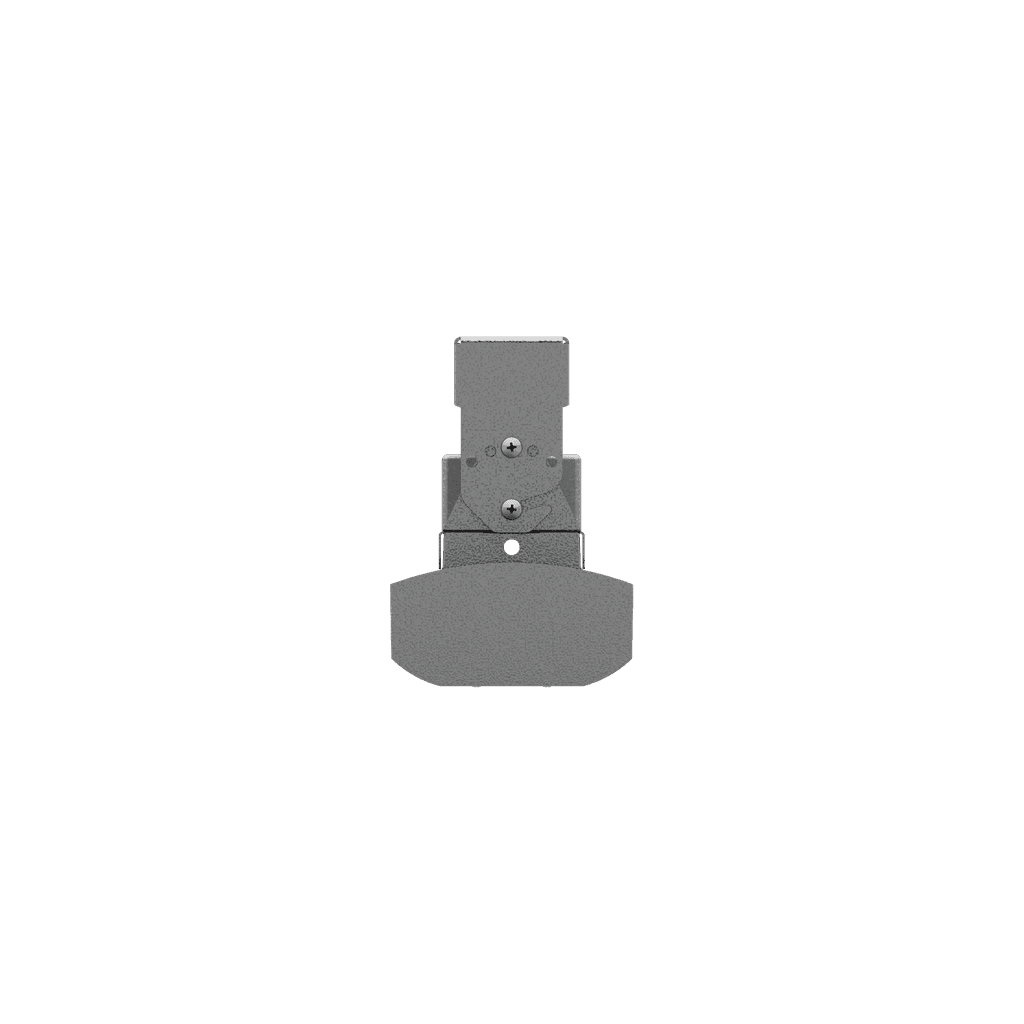

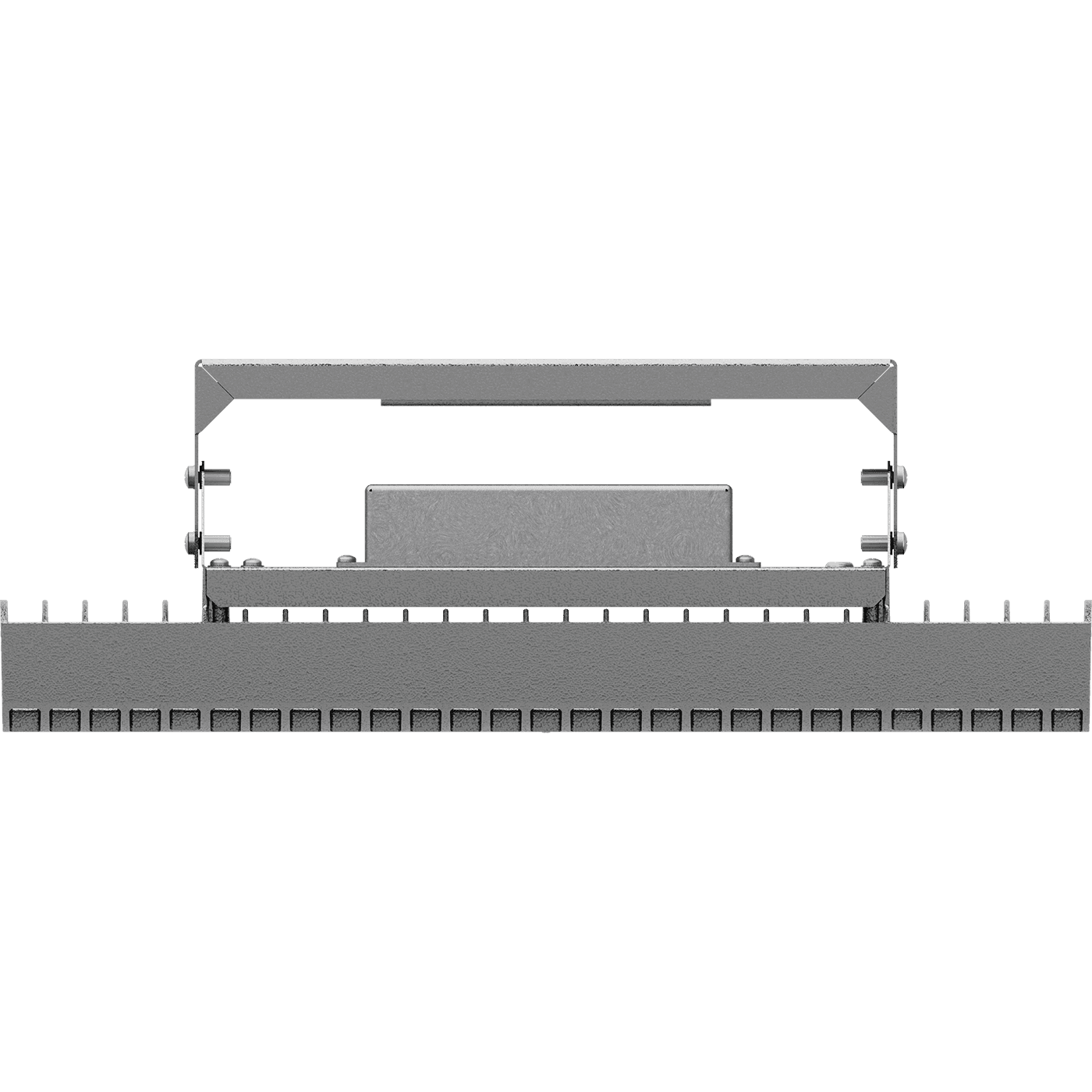

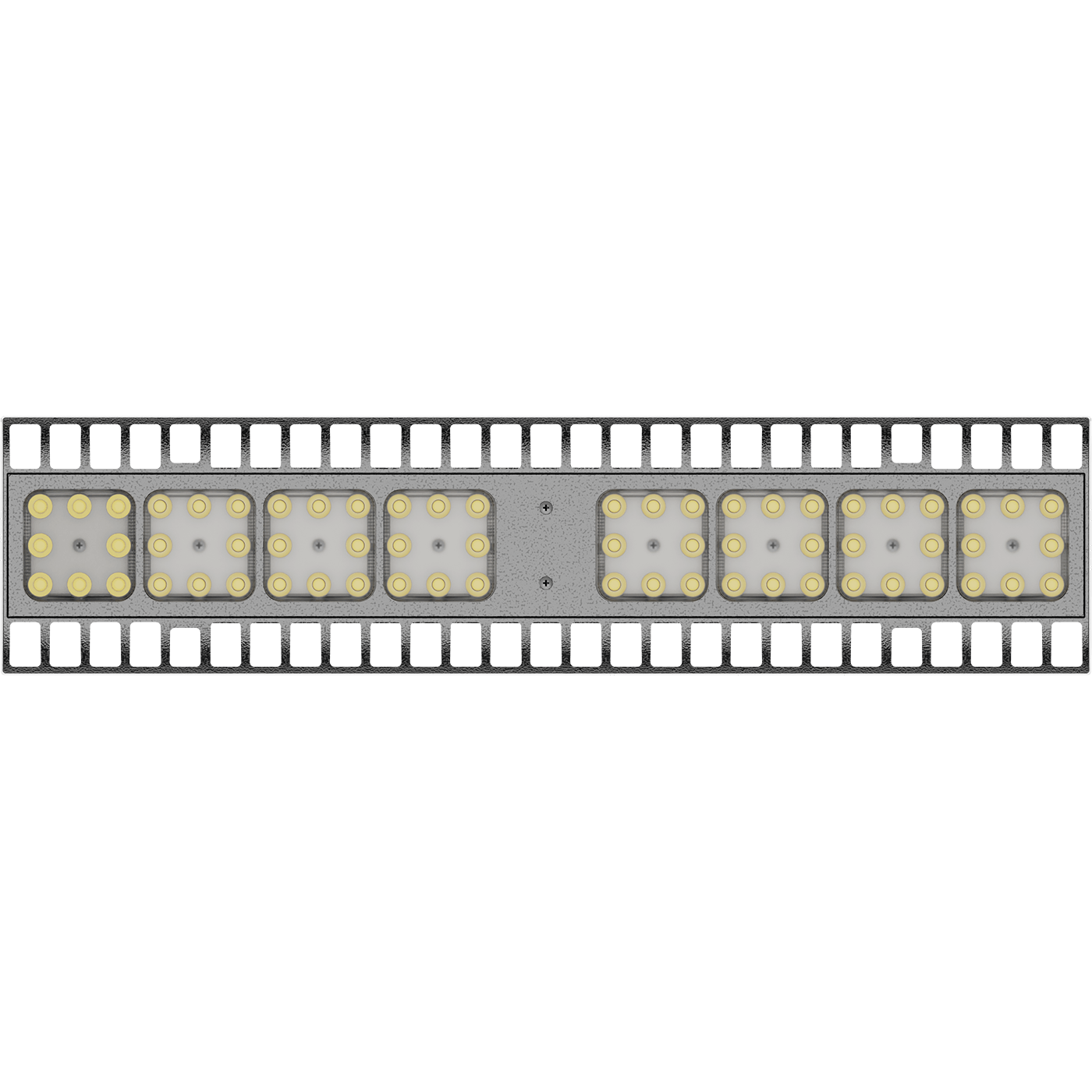

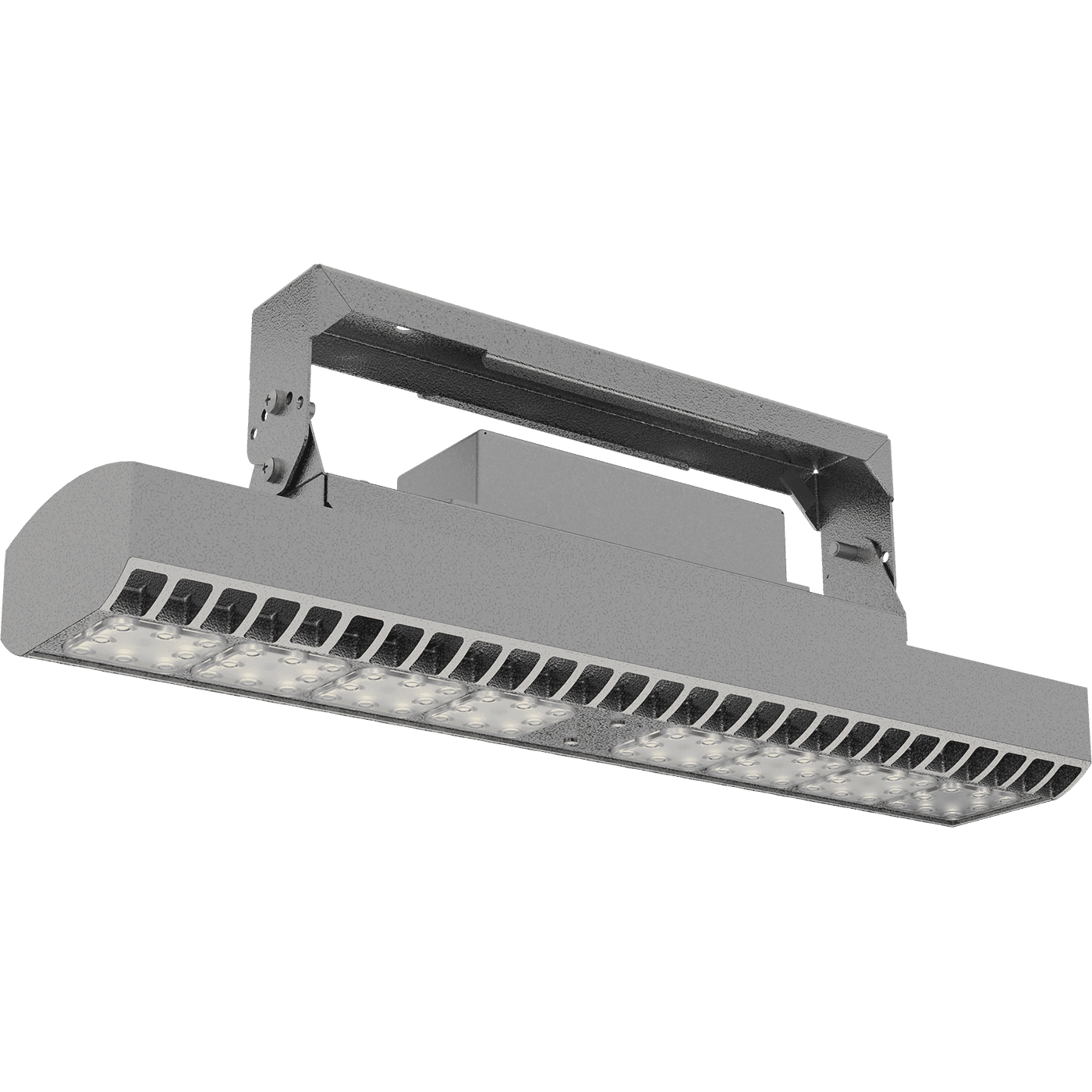

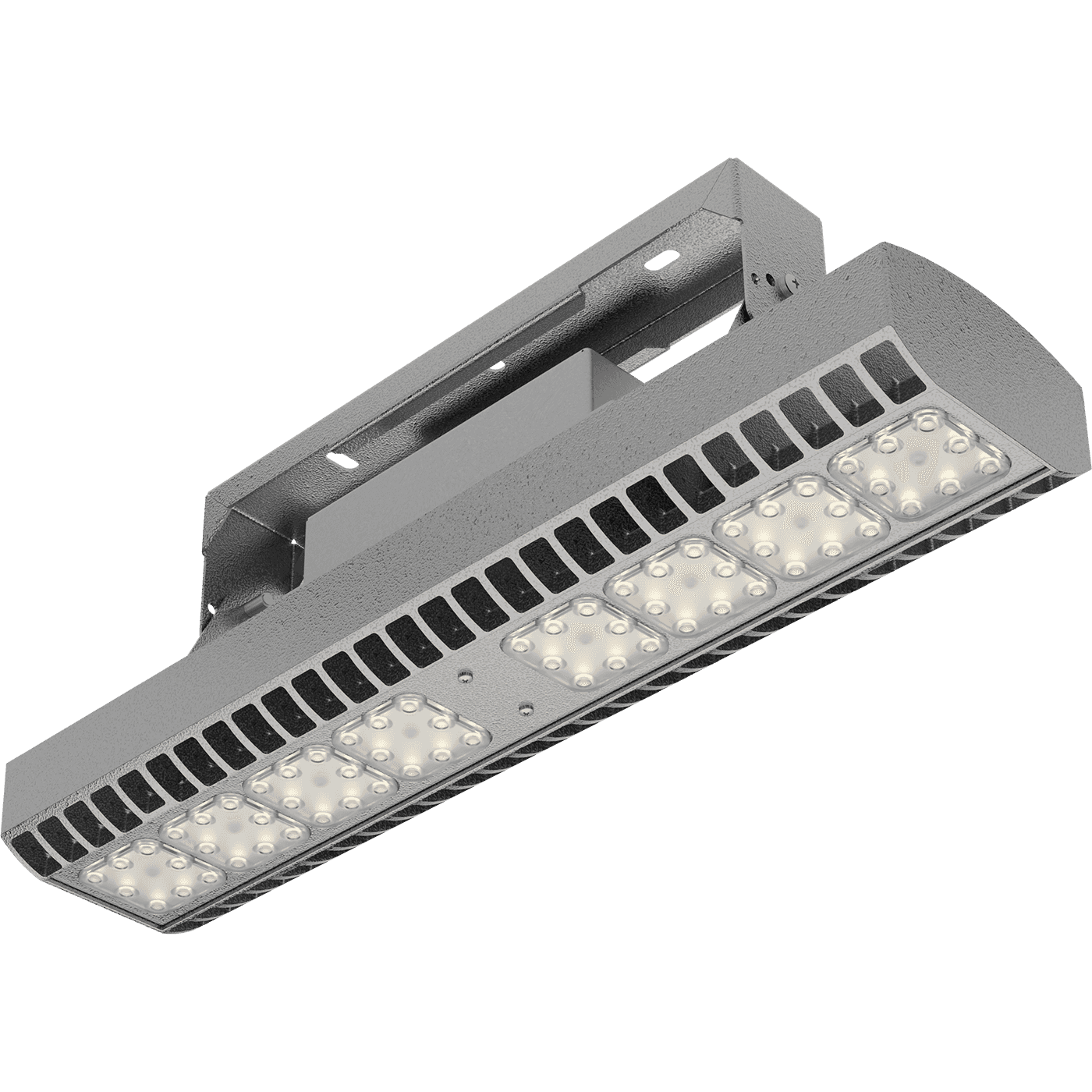

RUT 1 80 5000K
RUT 1 80 5000K
70 Wluminaire power
10000 lmlight flow
143 lm/Wenergy efficiency
code1499000680
color temperature5000 K
beam angleD80
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
10000 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
143 lm/Wbeam angle
D80color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
10000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W

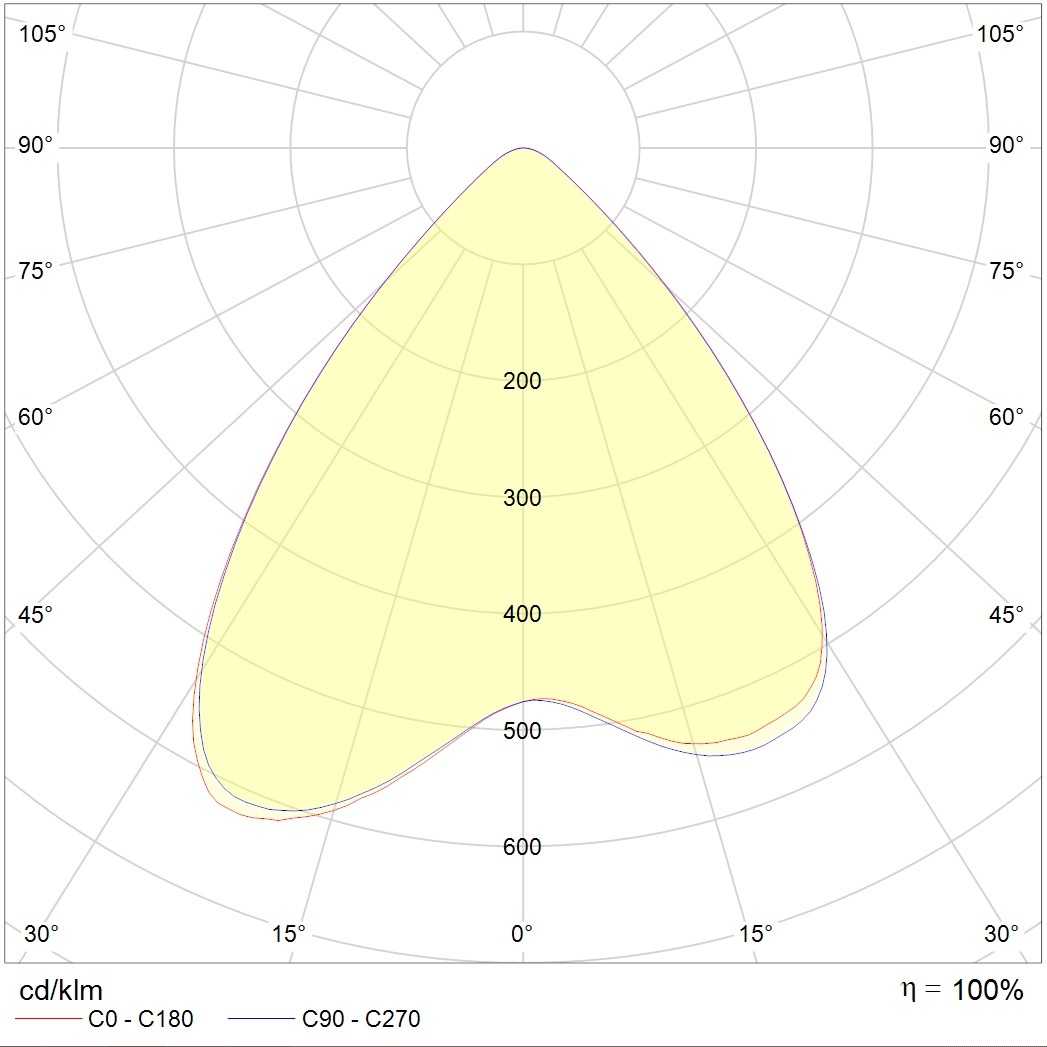

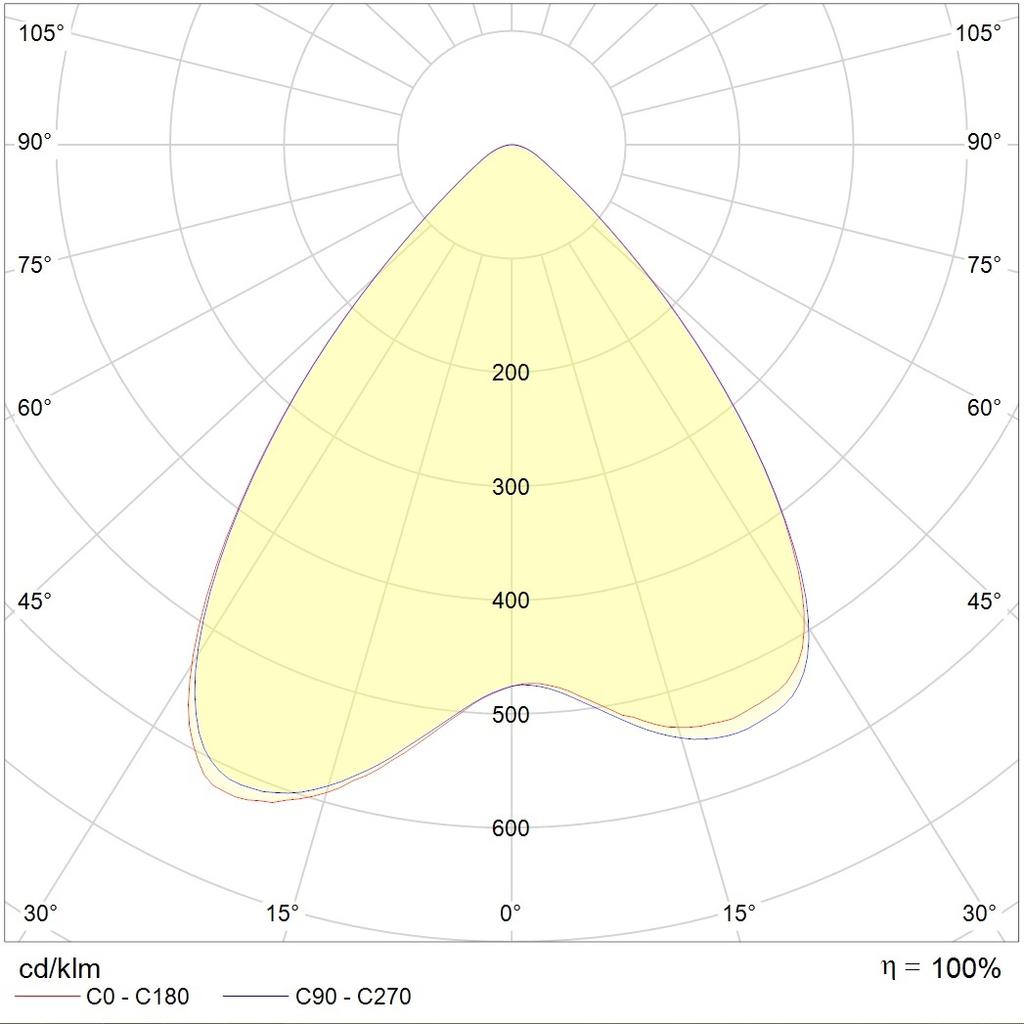

beam angle
D80
color temperature
5000 K
electrical
luminaire power
70 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
50 A
supply voltage
230 V
starting current pulse time
300 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ

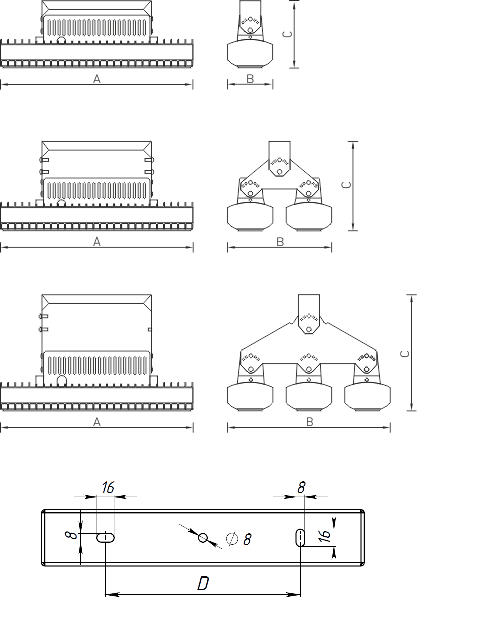

length
463 mm
width
110 mm
height
155 mm
material
Алюминий
housing color
Металлик
weight
3.5 kg
common
code
1499000680
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax636 kB
photometric files
ies263.2 kB
jpg131.4 kB
ldt160.6 kB
documents
passport2.1 mB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
