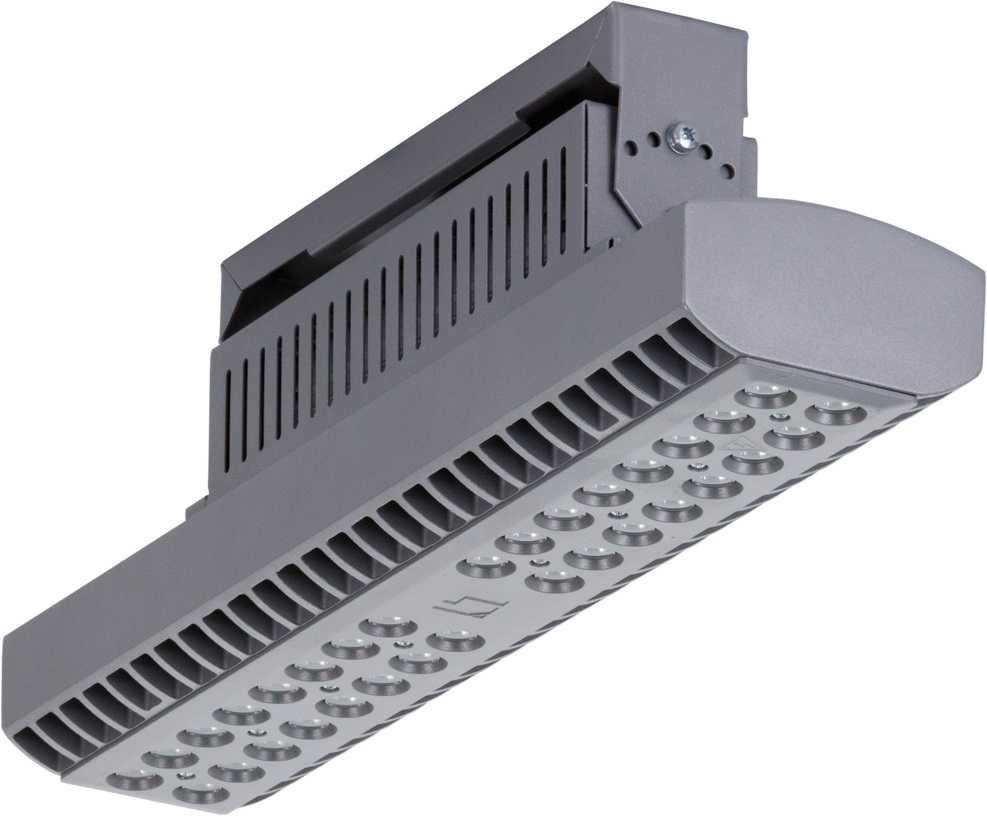

RUT 1 64 5000K
model is discontinued
.jpg&w=1920&q=100)
.jpg&w=1024&q=75)
model is discontinued
RUT 1 64 5000K
75 Wluminaire power
7200 lmlight flow
96 lm/Wenergy efficiency
code1499000310
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
light source type
LEDlight flow
7200 lmcolor rendition index (CRI)
>70flickering factor
<5%energy efficiency
96 lm/Wbeam angle
D120color temperature
5000 Killuminating
light source type
LED
light flow
7200 lm
color rendition index (CRI)
>70
flickering factor
<5%
energy efficiency
96 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
75 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
61 A
supply voltage
230 V
starting current pulse time
480 µs
constructional
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2
fire safety class
П-ІІ
length
463 mm
width
109 mm
height
113 mm
material
Алюминий
housing color
Серый
weight
2.2 kg
common
code
1499000310
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A+
service life
50 000 h
temperature range
от -30 до +40 C
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax640 kB
photometric files
csv
documents
passport169.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
