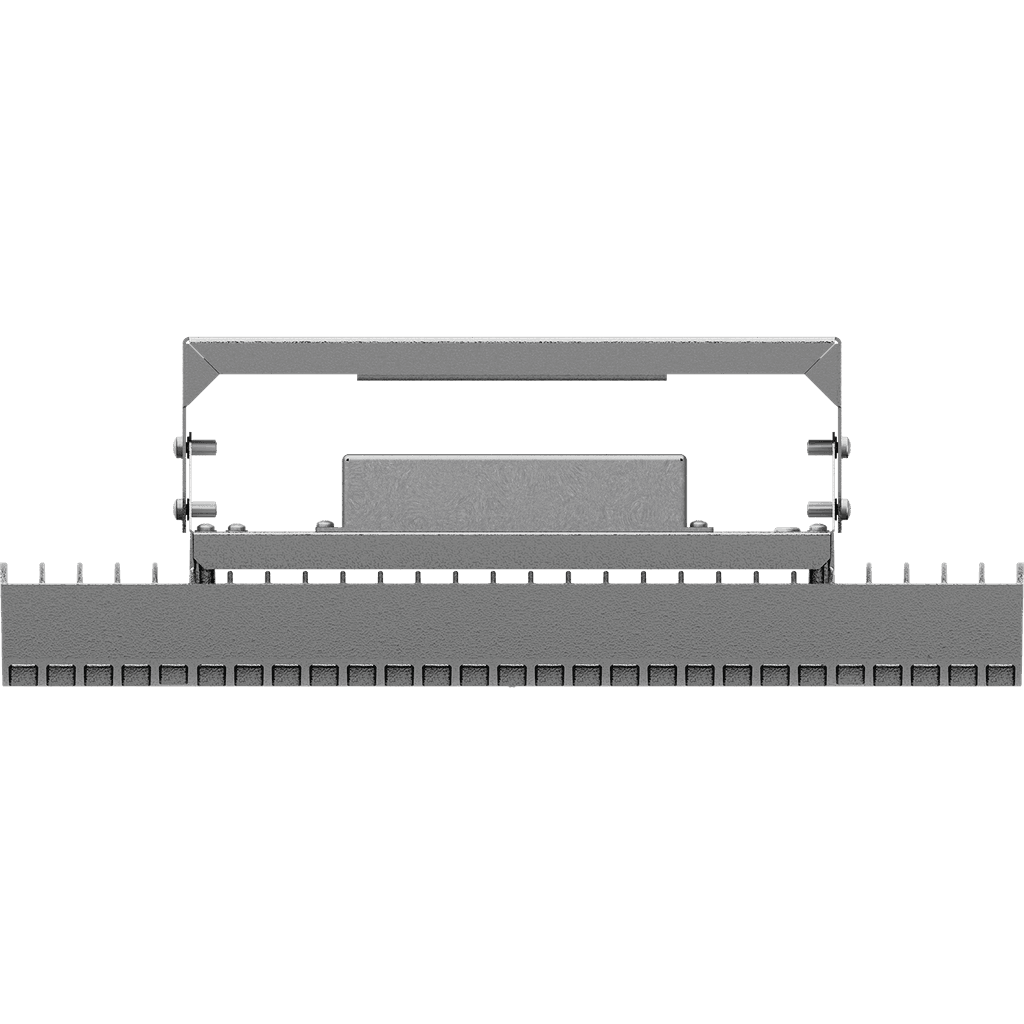

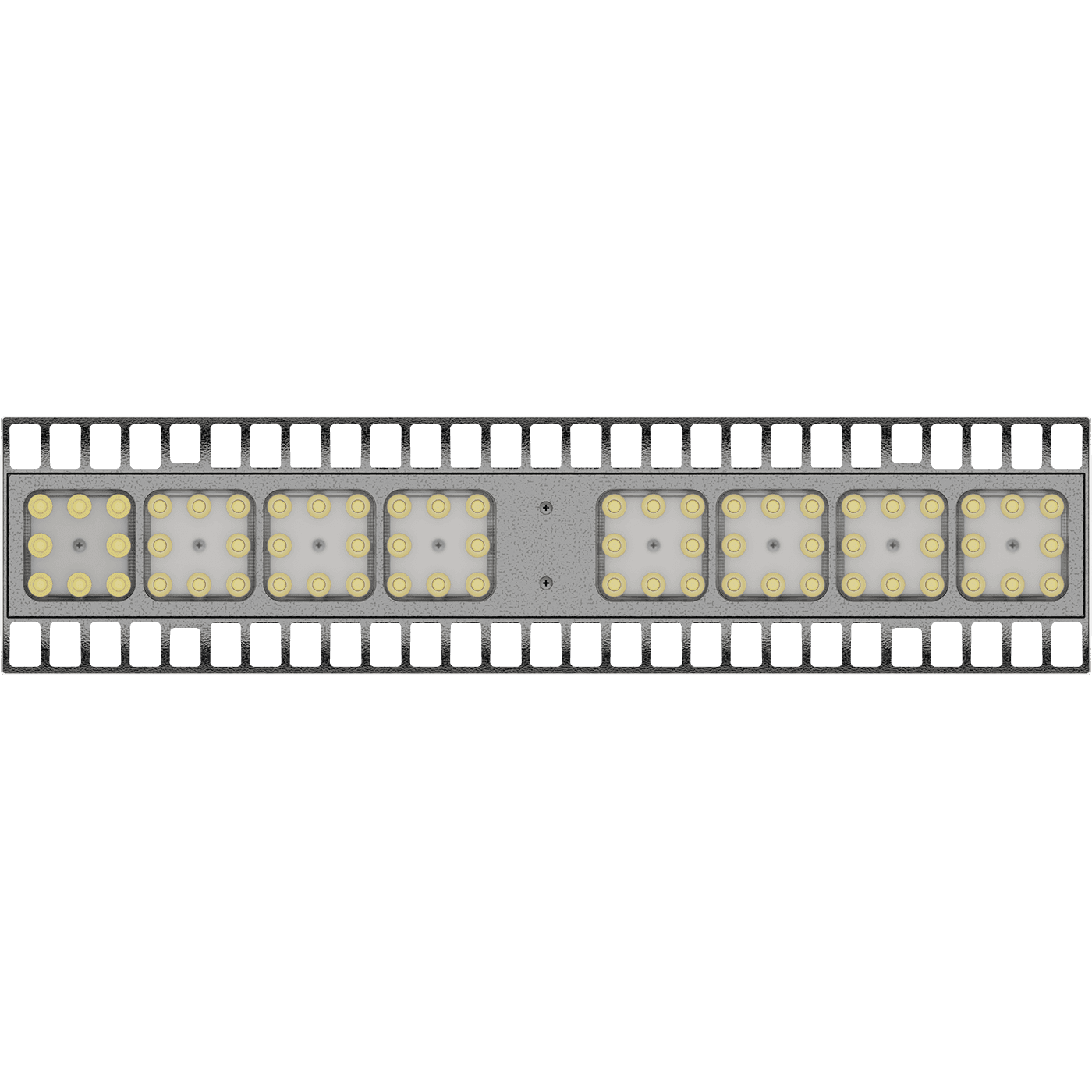

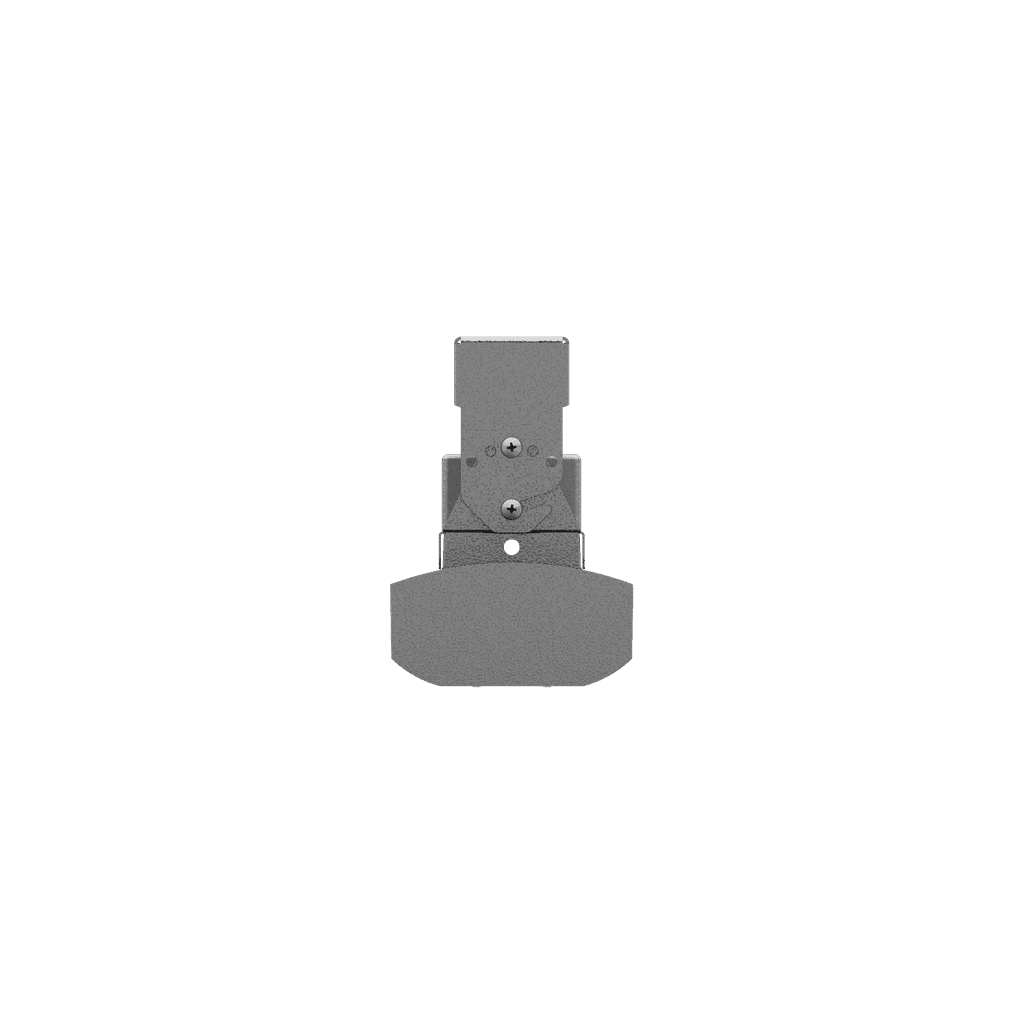

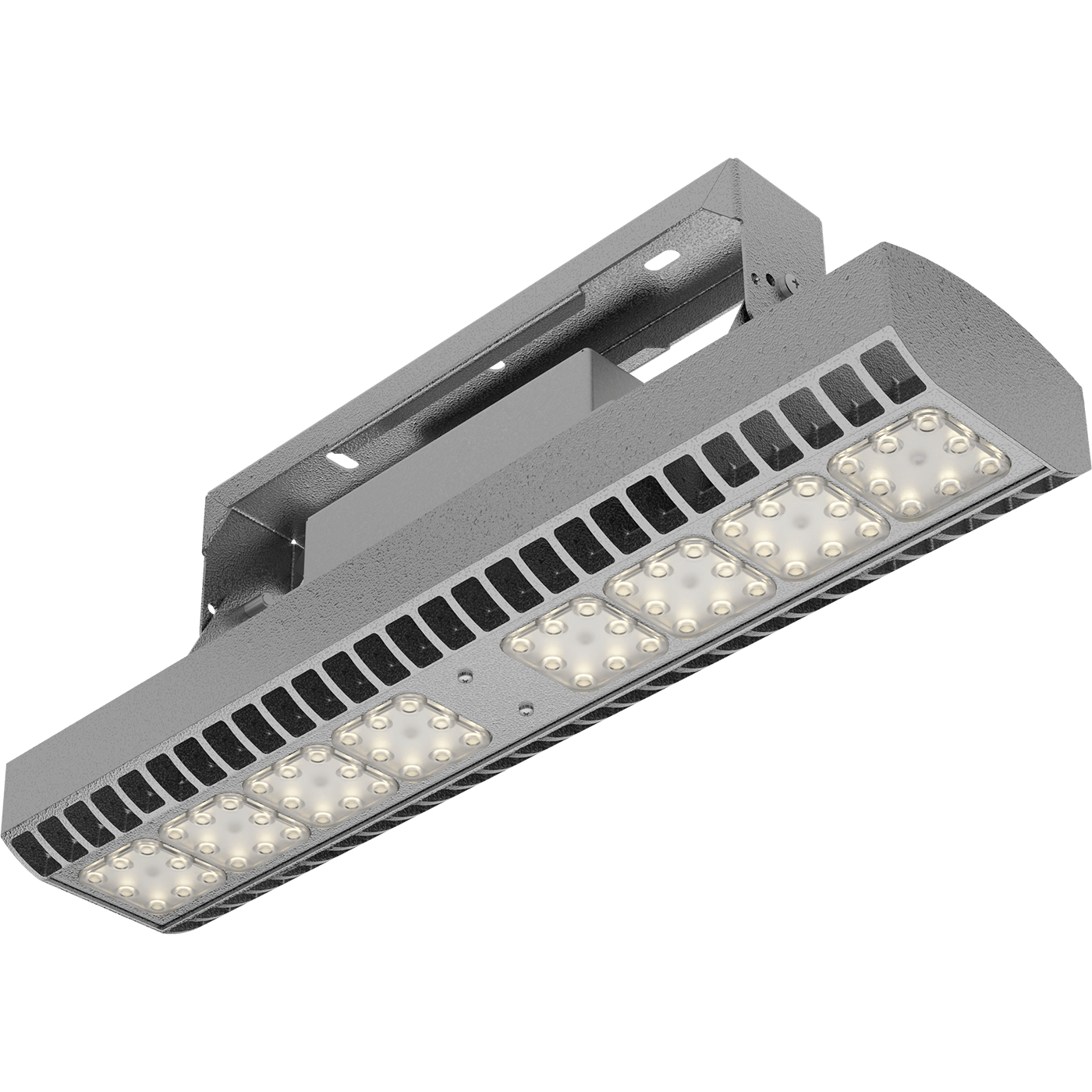

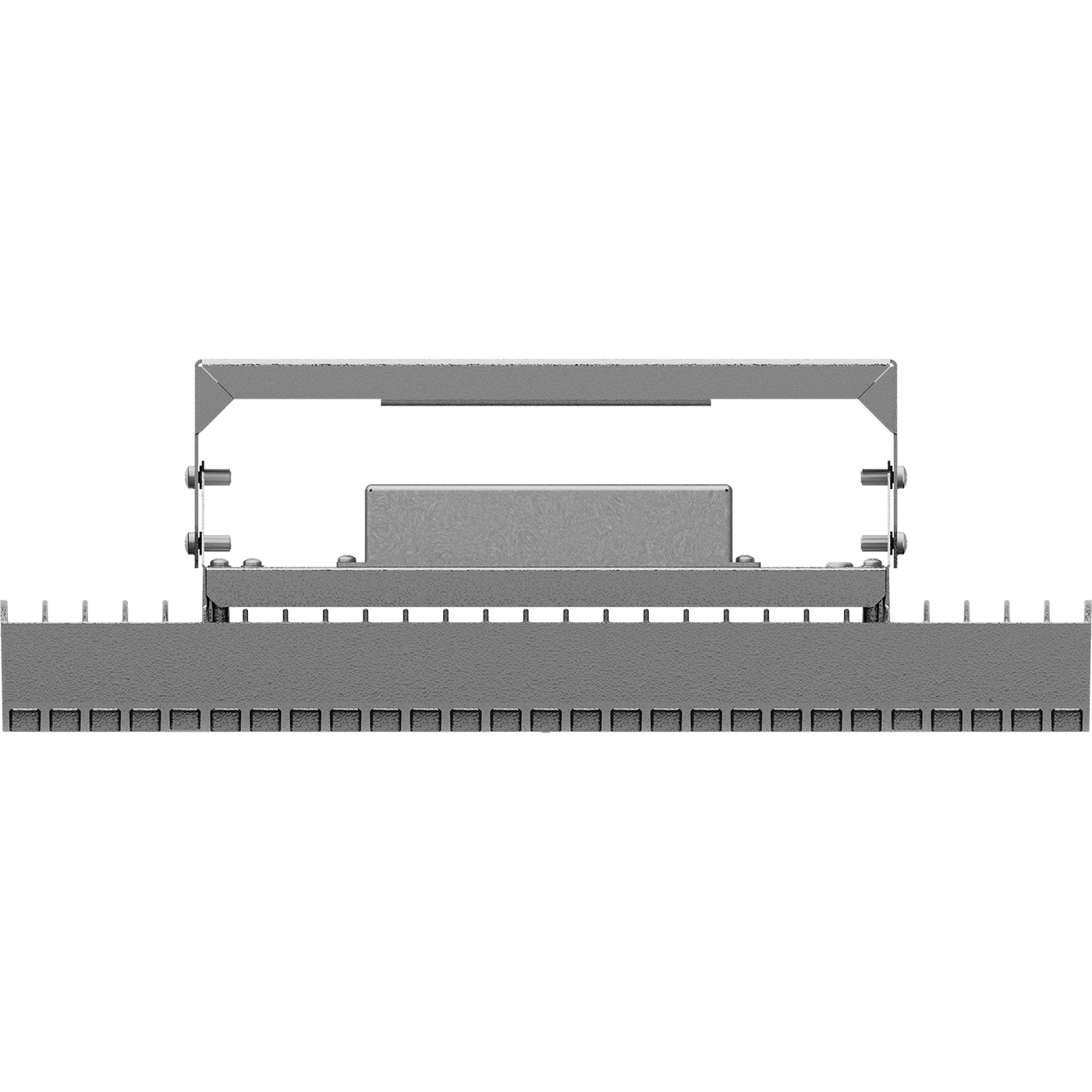

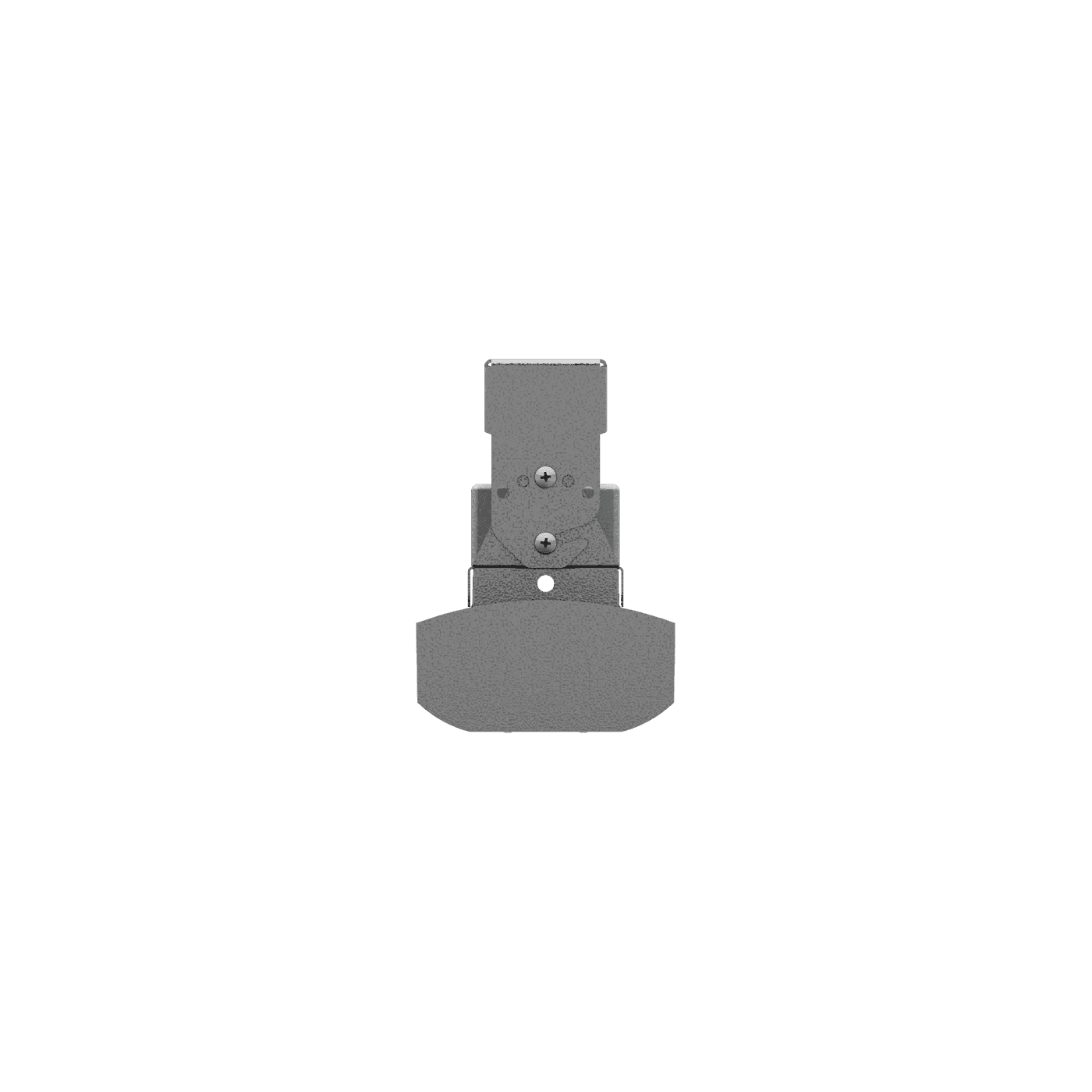

RUT 1 40 5000K
RUT 1 40 5000K
72 Wluminaire power
8500 lmlight flow
118 lm/Wenergy efficiency
code1499000660
color temperature5000
beam angleD40
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-300 Vsupply voltage, direct current
90-300 Vluminaire power
72 Welectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5starting current
33 Astarting current pulse time, µs
380 mkspower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-300 V
supply voltage, direct current
90-300 V
luminaire power
72 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
33 A
starting current pulse time, µs
380 mks
power factor
> 0,96
supply voltage
230 V
constructional
weight
3.5 kg
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
length, mm
463 mm
width, mm
110 mm
height, mm
160 mm
housing color
Металлик
shock resistance (IK)
IK10/20 Дж
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
36 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
code
1499000660
illuminating
light flow
8500 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
118 lm/W
beam angle
D40
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS274.9 kB
model 3dMax636 kB

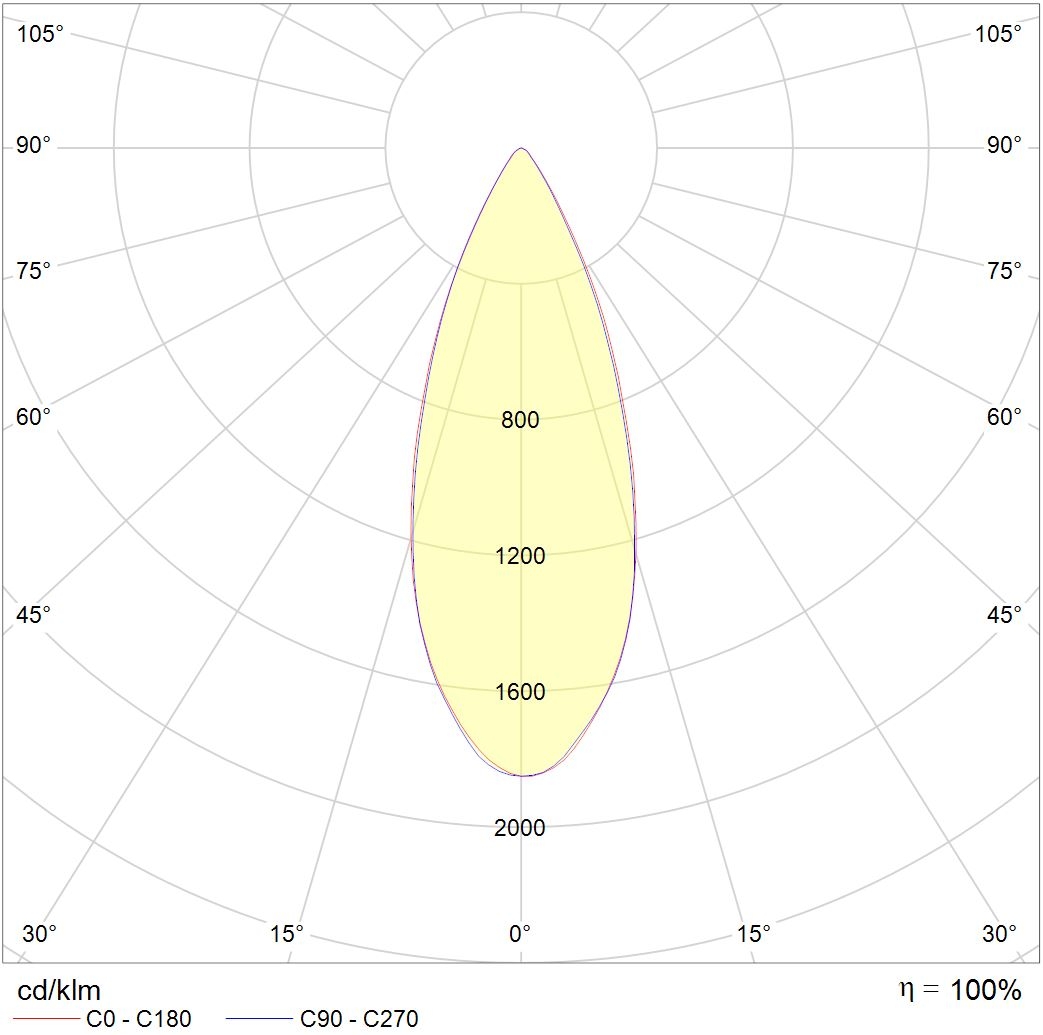

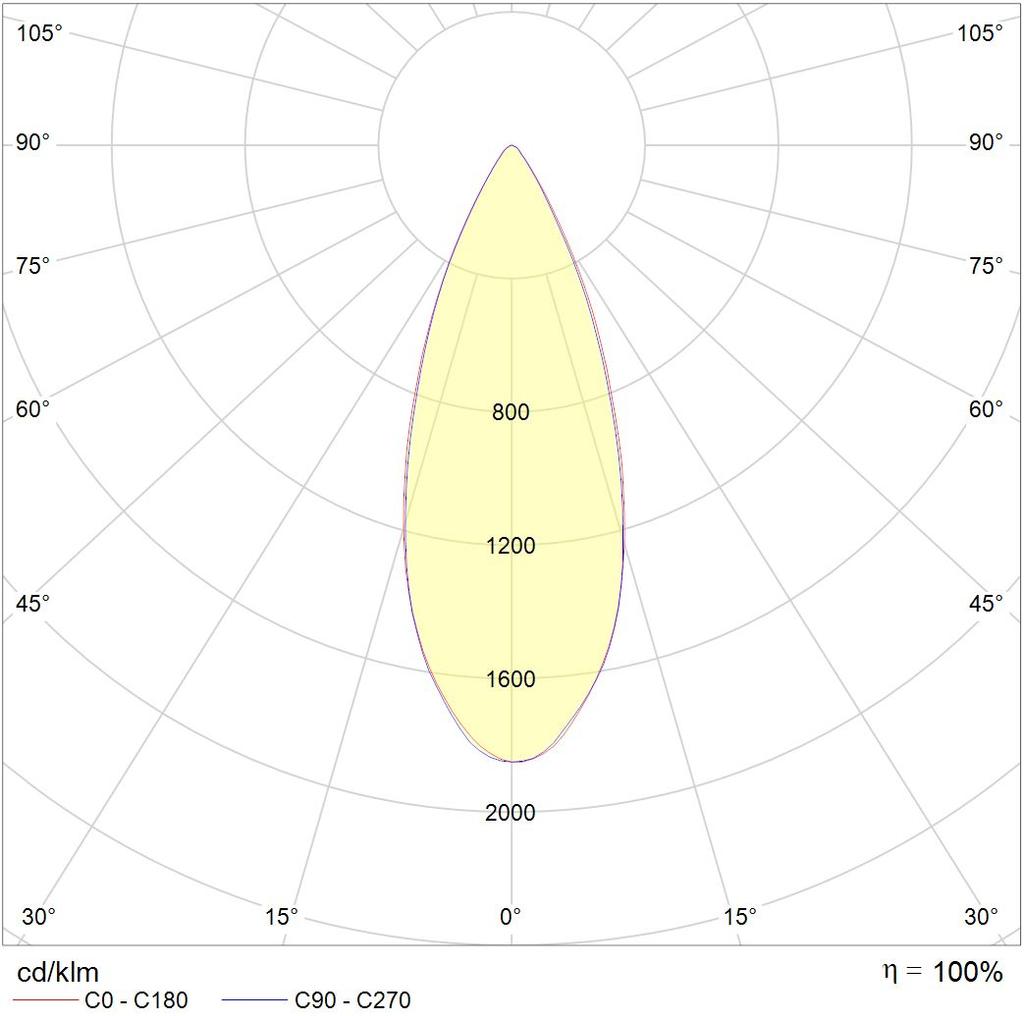

photometric files
ies263.2 kB
jpg81.5 kB
ldt158 kB
documents
passport2.1 mB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111 mB
Declaration of Conformity EAEU TR 037/2016155.8 kB
Fire Safety Certificate2.5 mB
