RUT 3 (300) 30 Ex 5000K
RUT 3 (300) 30 Ex 5000K
300 Wluminaire power
40000 lmlight flow
133 lm/Wenergy efficiency
code
1499001360
color temperature
5000 K
beam angle
D30
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
40000 lmcolor rendition index (CRI)
>70flickering factor
<1%energy efficiency
133 lm/Wbeam angle
D30color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
40000 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
133 lm/W
beam angle
D30
color temperature
5000 K
electrical
luminaire power
300 W
electric shock protection
II
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
length
463 mm
width
389 mm
height
248 mm
material
Сплав алюминиевый
housing color
Металлик
mounting type
weight
12 kg
emergency
emergency power supply
Нет
common
code
1499001360
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files

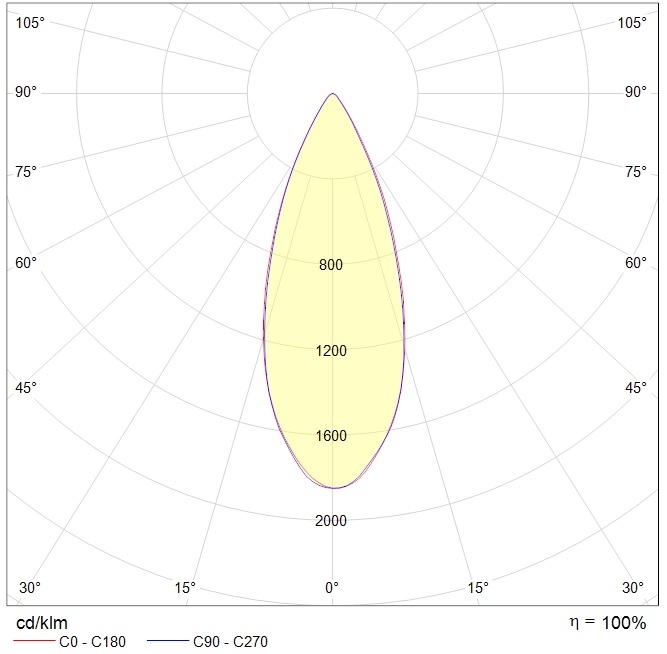

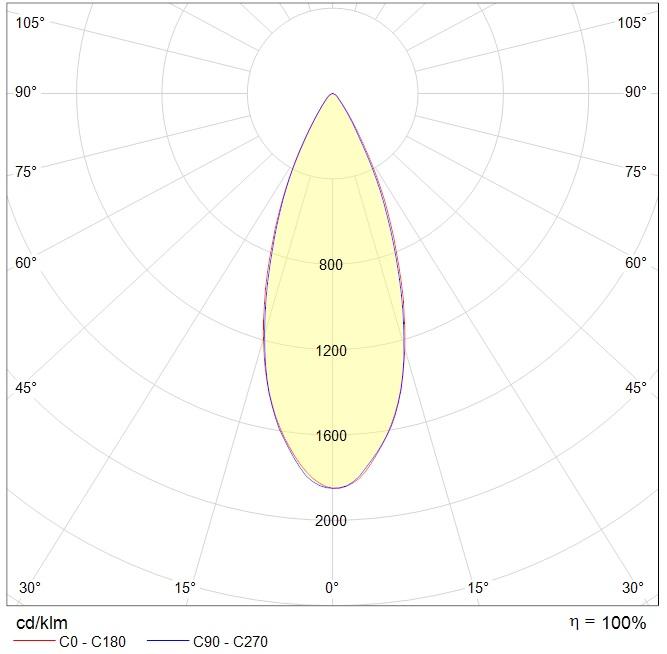

photometric files
сертификаты
photometric files
ies263.2 kB
jpg63.6 kB
ldt158.1 kB
csv460 B
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.4 kB
Declaration of Conformity EAEU TR 037/2016291.3 kB
