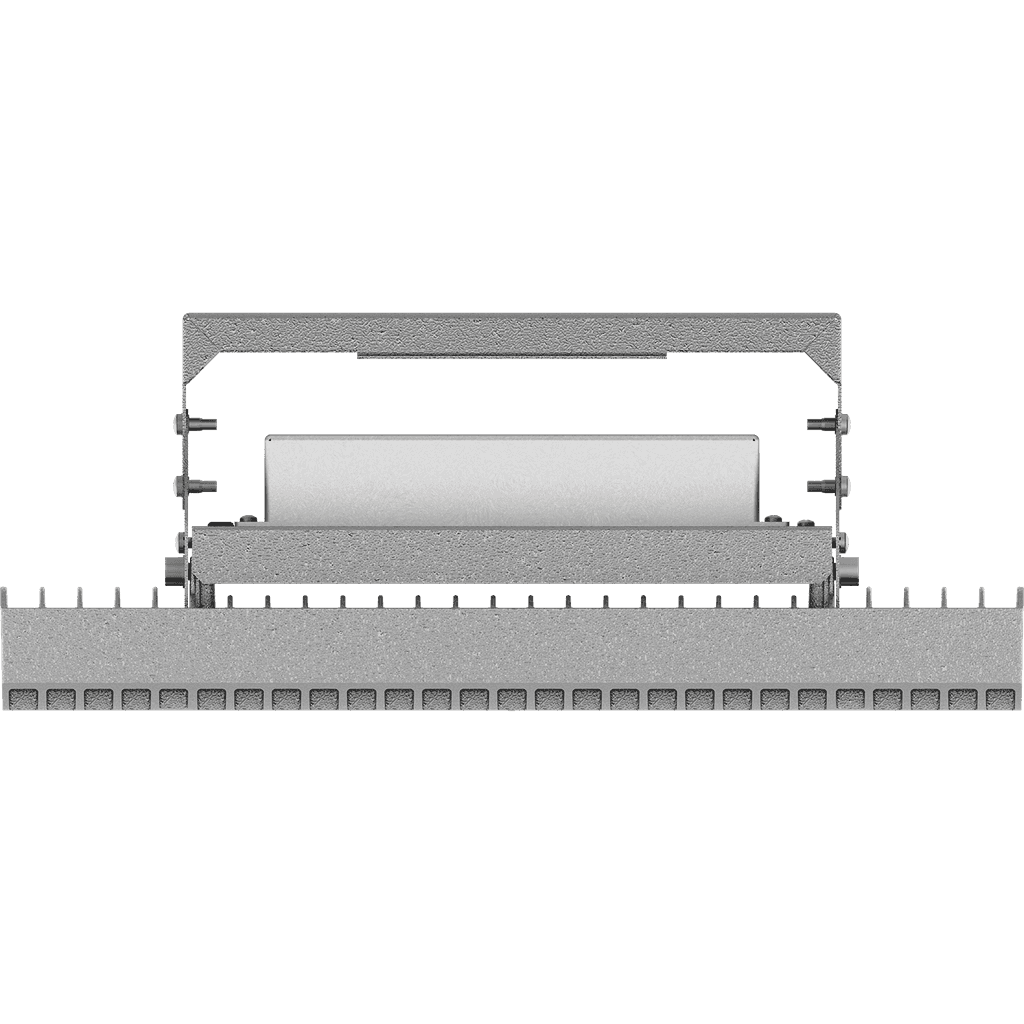

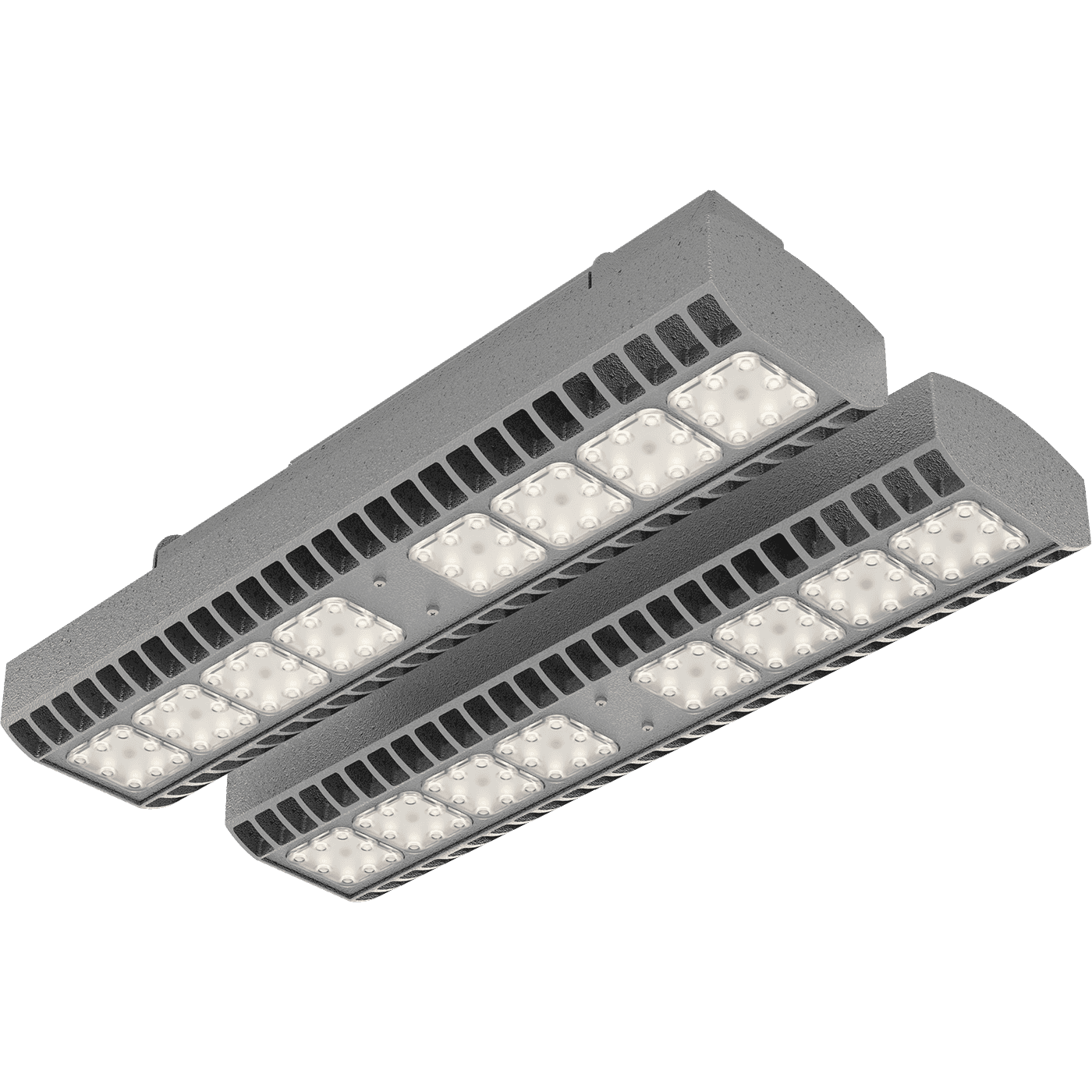

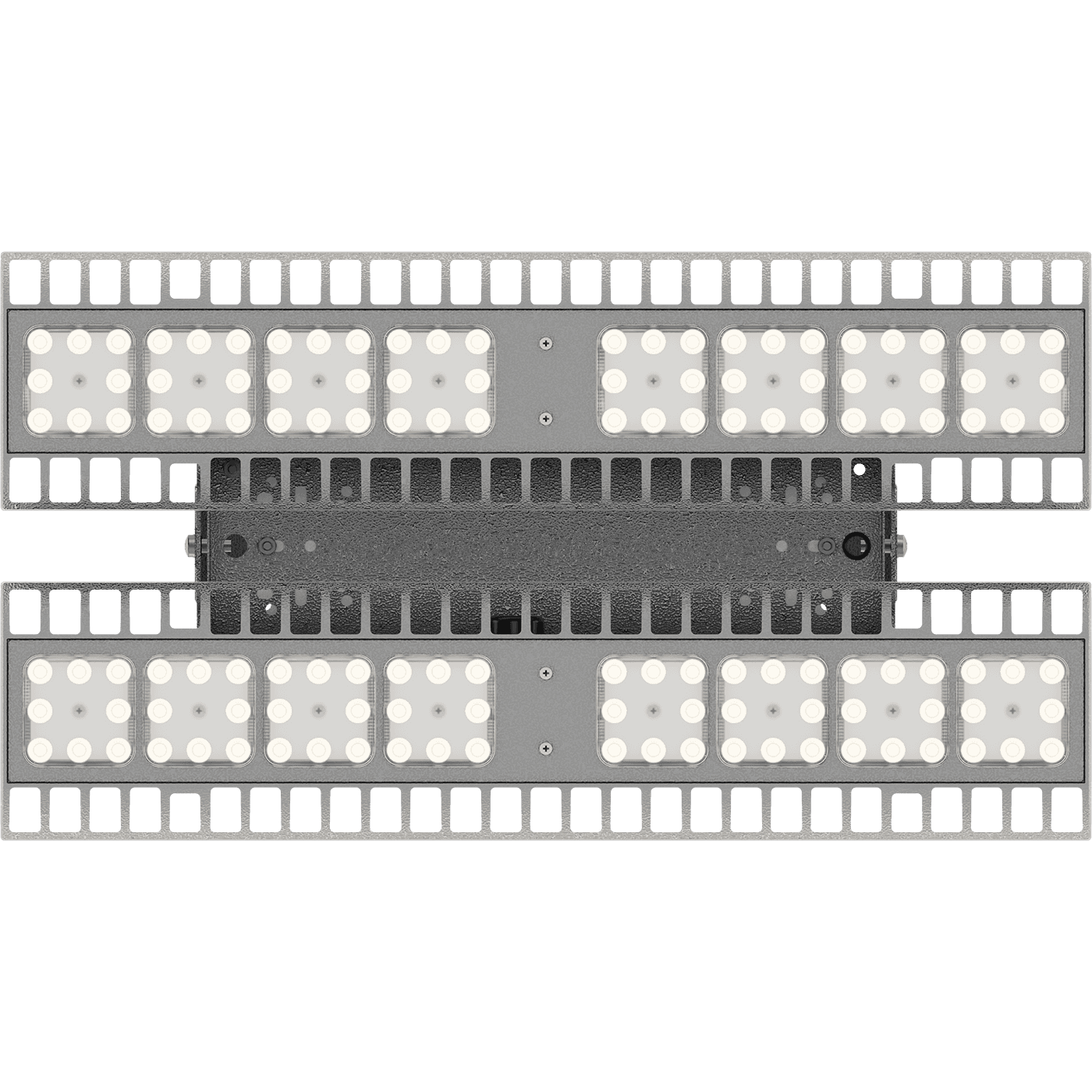

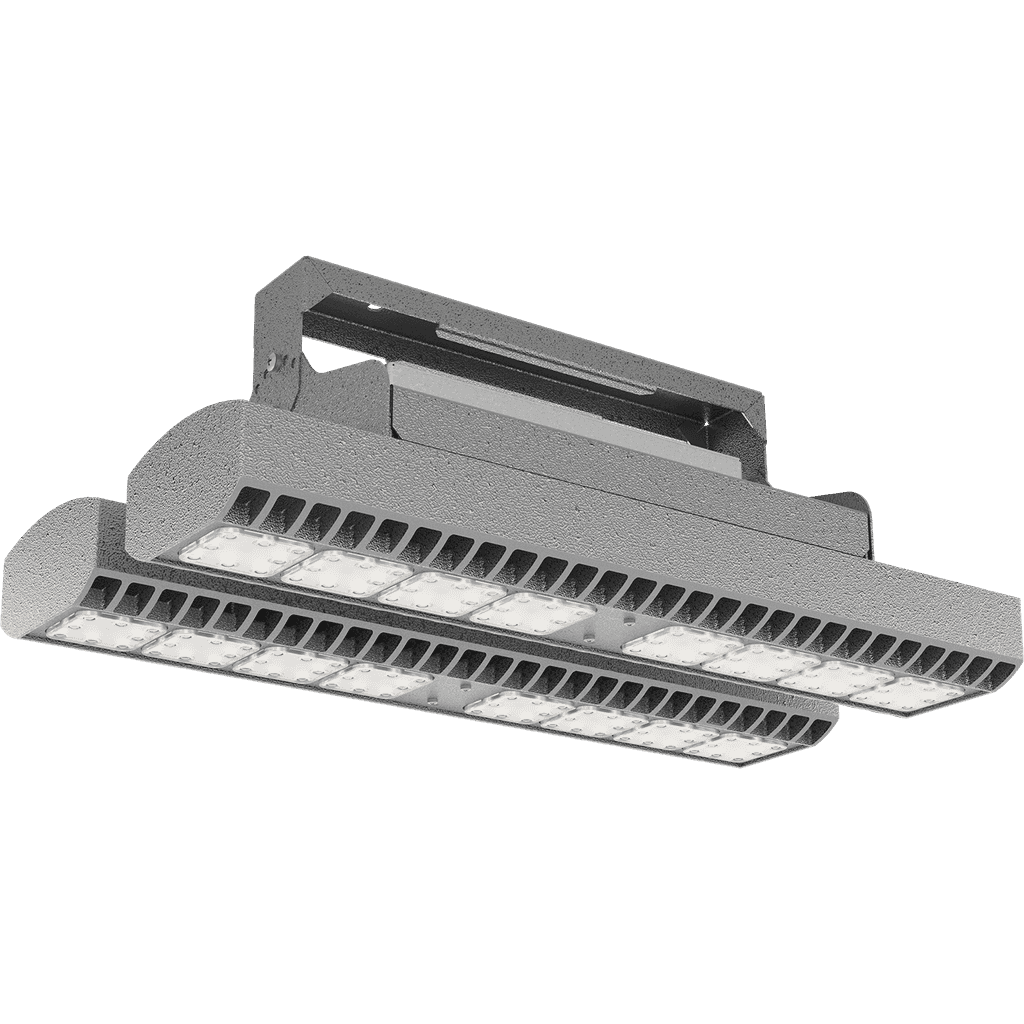

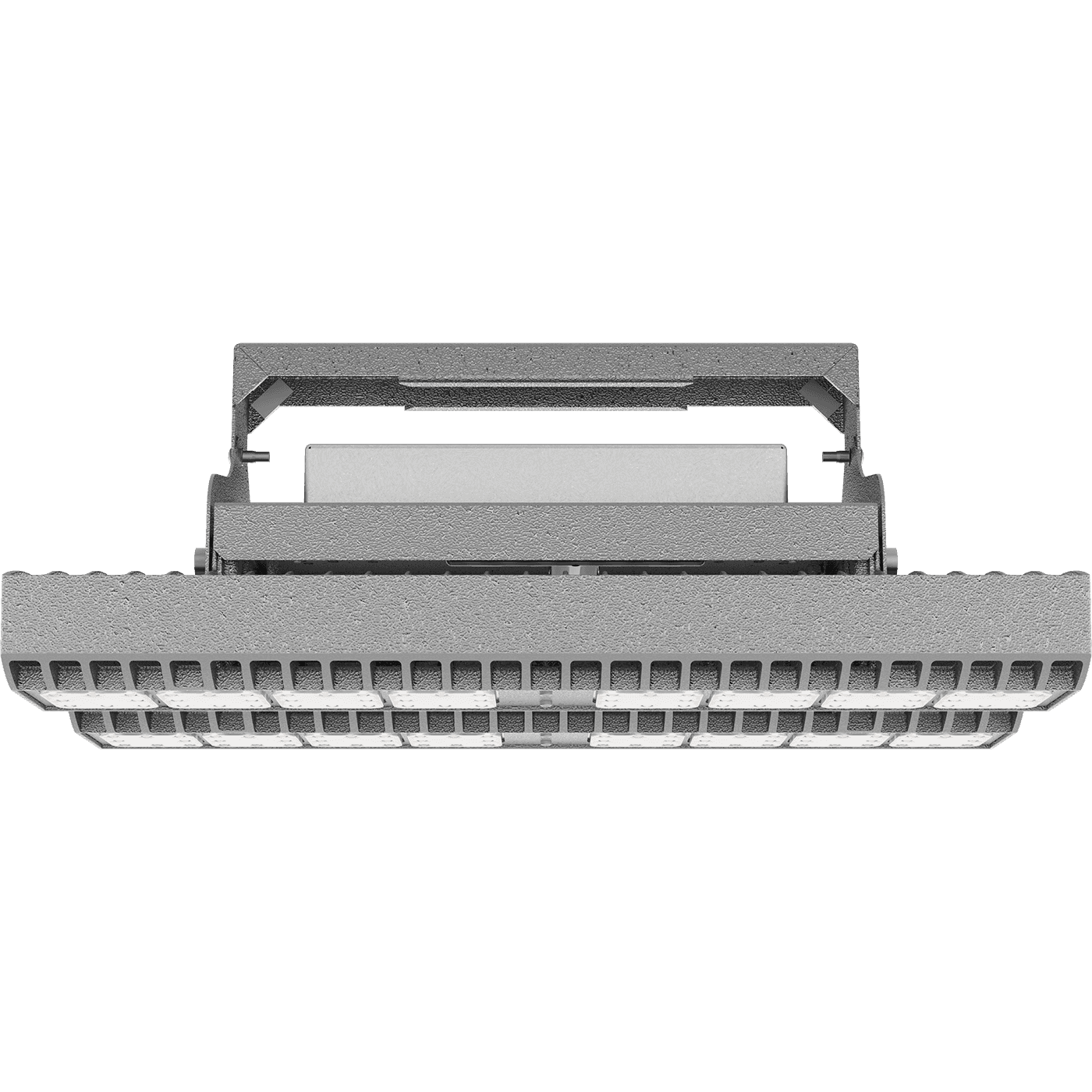

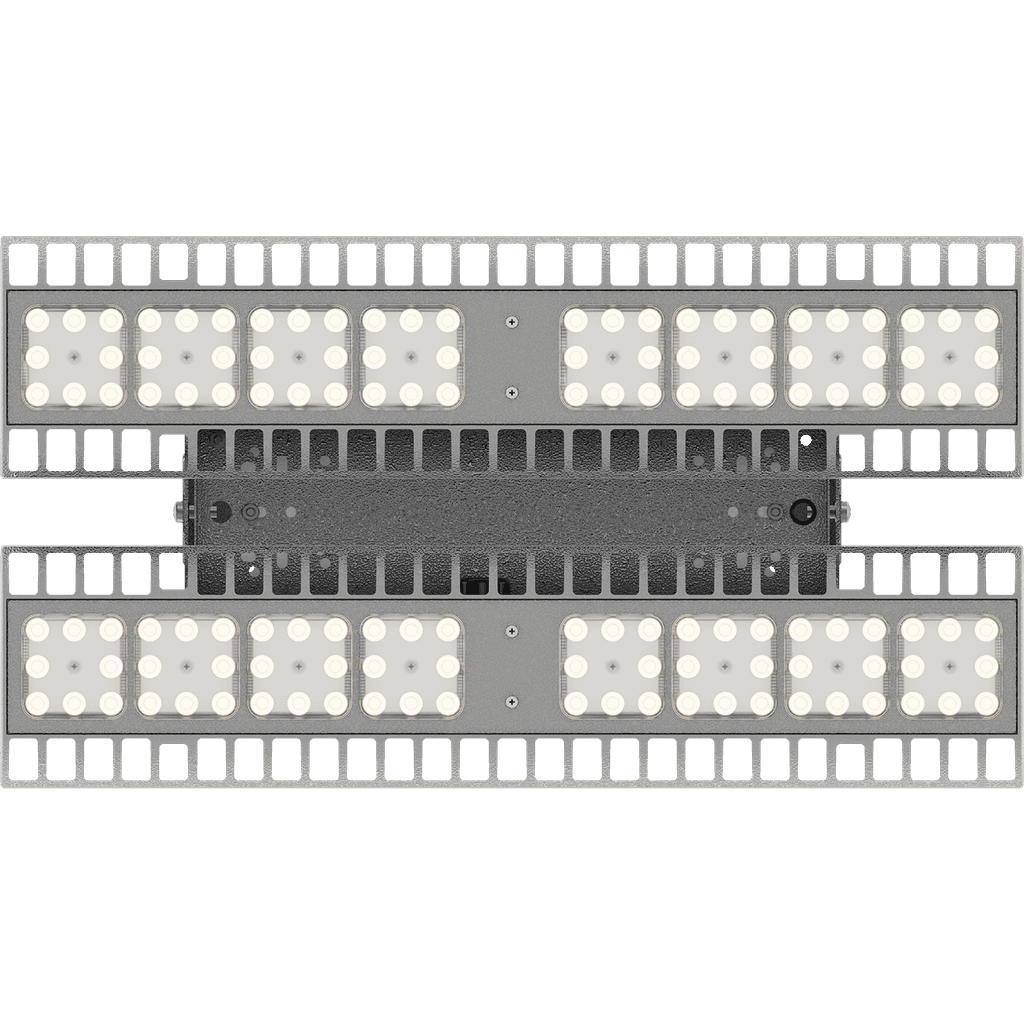

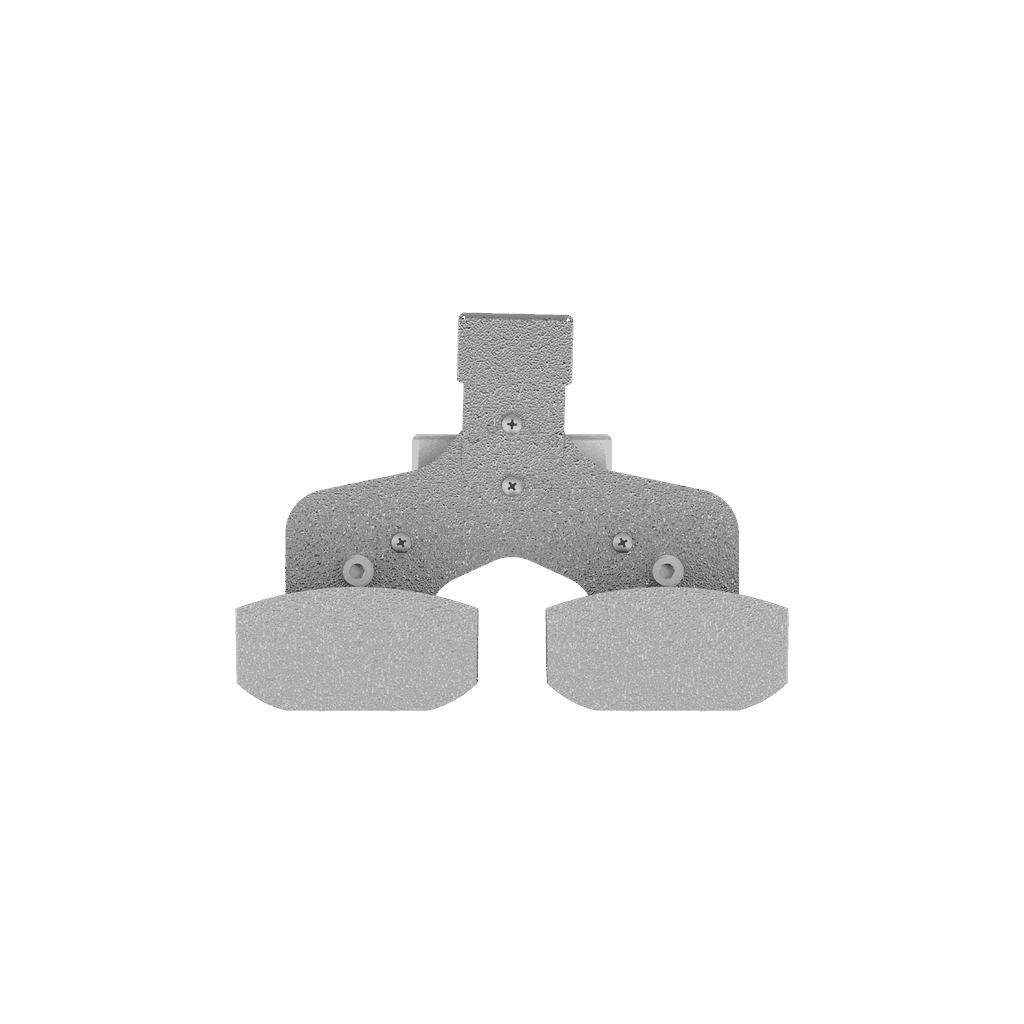

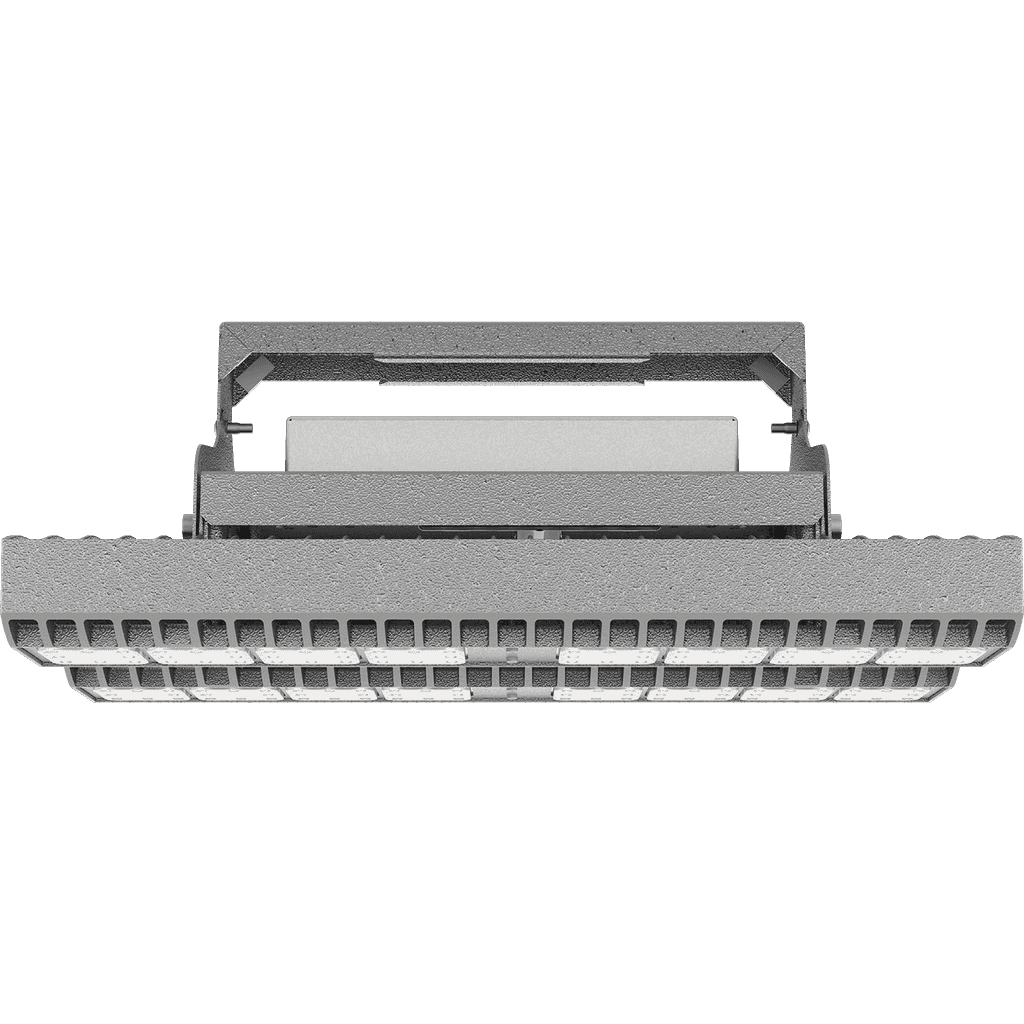

RUT 2 (200) 60 Ex 5000K
_60_ex_5000k.jpg&w=1920&q=100)
_60_ex_5000k.jpg&w=1024&q=75)
RUT 2 (200) 60 Ex 5000K
200 Wluminaire power
26000 lmlight flow
130 lm/Wenergy efficiency
code1499001310
color temperature5000 K
beam angleD60
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
26000 lmcolor rendition index (CRI)
>70flickering factor
<1%energy efficiency
130 lm/Wbeam angle
D60color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
26000 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D60
color temperature
5000 K
electrical
luminaire power
200 W
electric shock protection
II
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
length
463 mm
width
248 mm
height
215 mm
material
Сплав алюминиевый
housing color
Металлик
weight
8 kg
common
code
1499001310
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files
photometric files
сертификаты

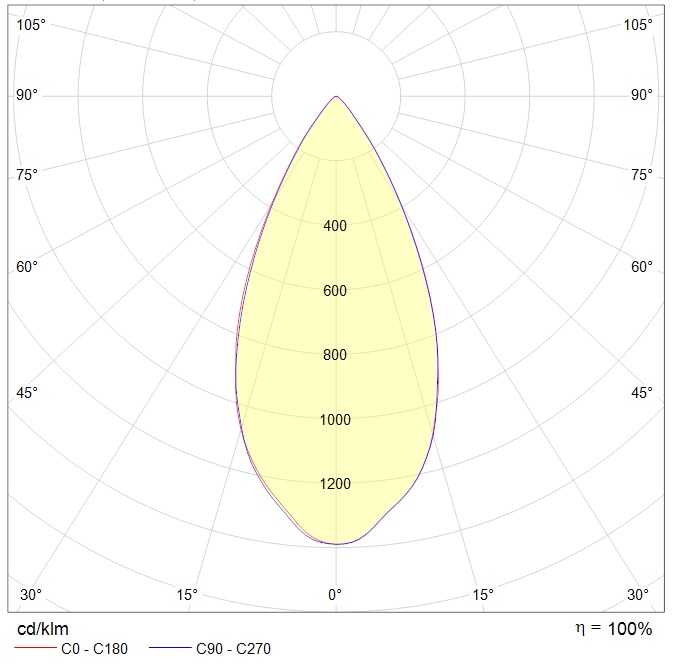

photometric files
ies263.2 kB
jpg72.3 kB
ldt149 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
