ROCKET.PRS ECO LED 60 Ex 5000K
ROCKET.PRS ECO LED 60 Ex 5000K
59 Wluminaire power
7700 lmlight flow
131 lm/Wenergy efficiency
code1404000080
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
7700 lmcolor rendition index (CRI)
>70flickering factor
<1%energy efficiency
131 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
7700 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
131 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
59 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
4 mm2
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
length
953 mm
width
96 mm
height
105 mm
material
Сплав алюминиевый
housing color
Серый
weight
2.5 kg
common
code
1404000080
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
temperature range
от -40 до +55 C
model files
model files
CAD/BIM files

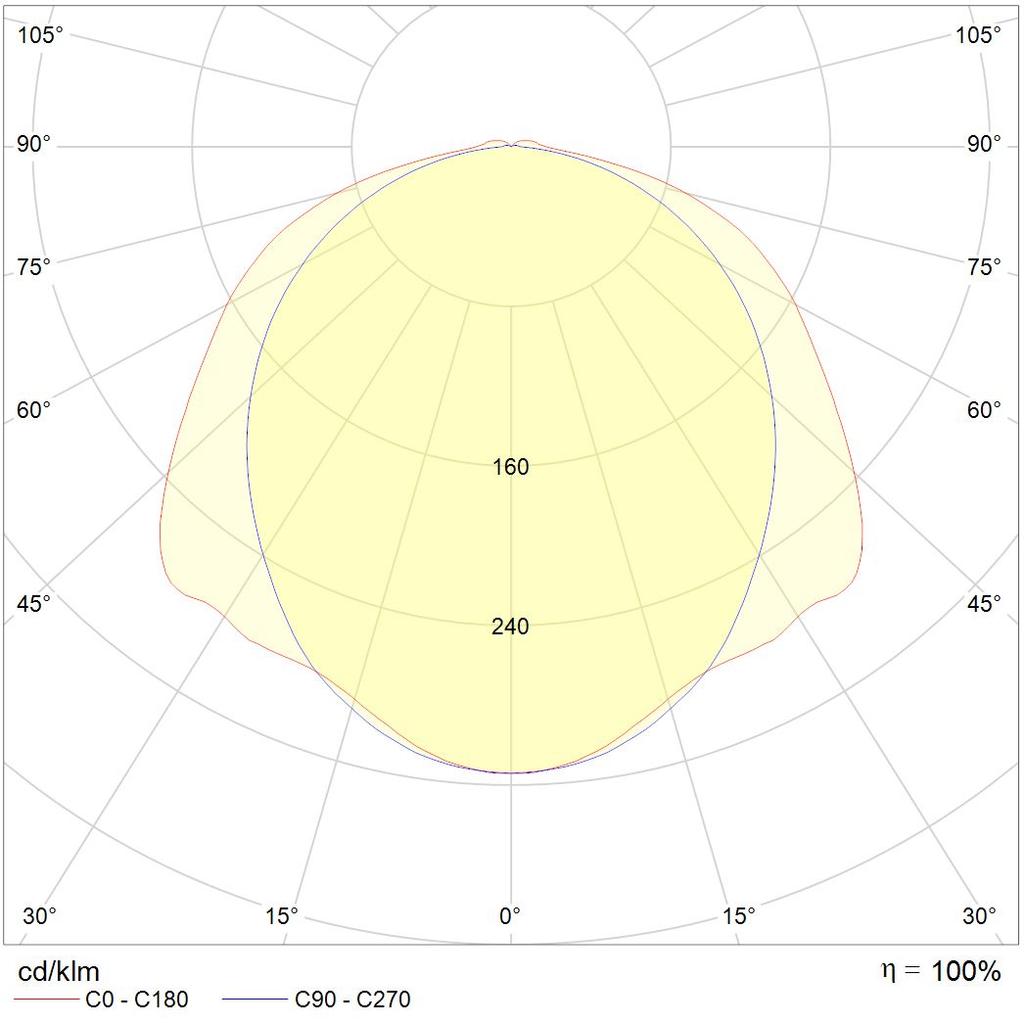

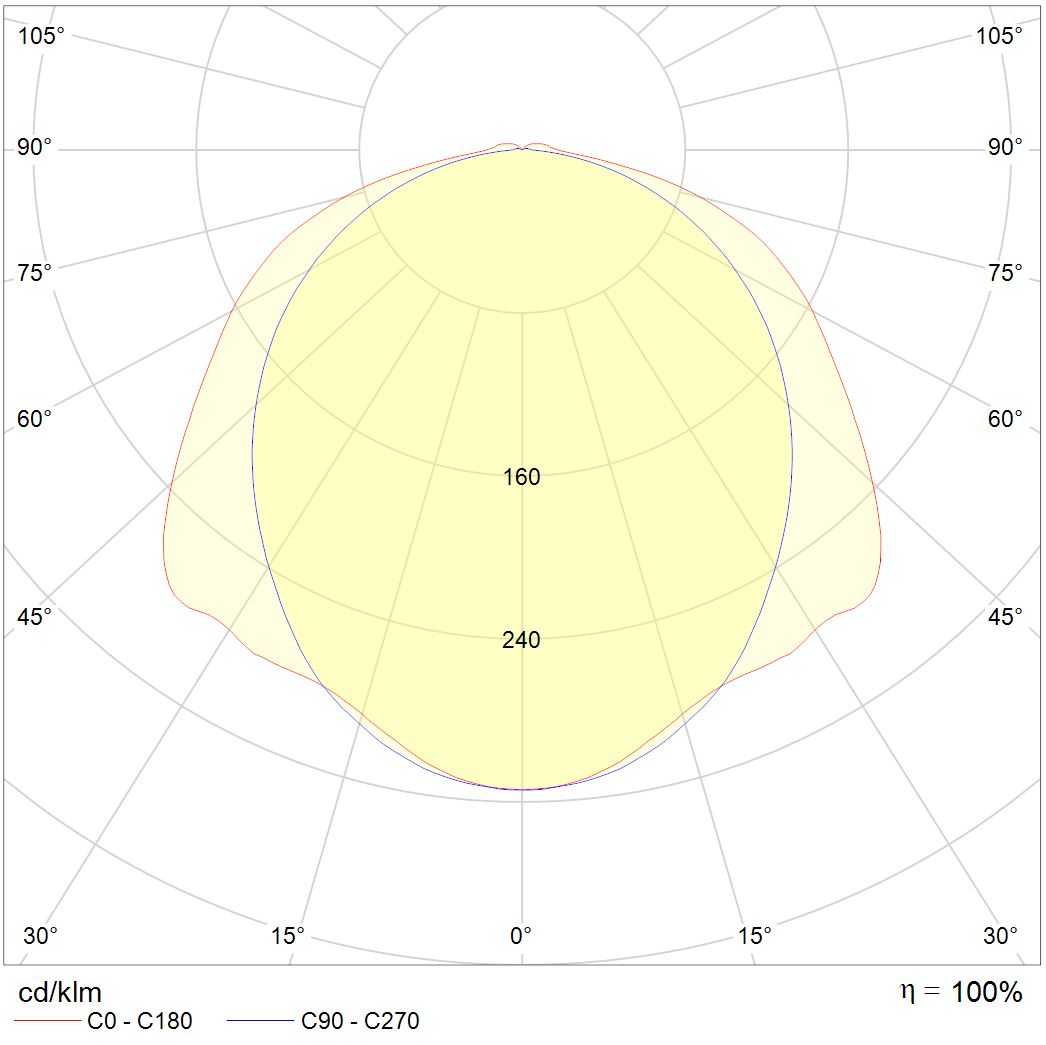

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg81.7 kB
ldt202.2 kB
documents
passport941.3 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
